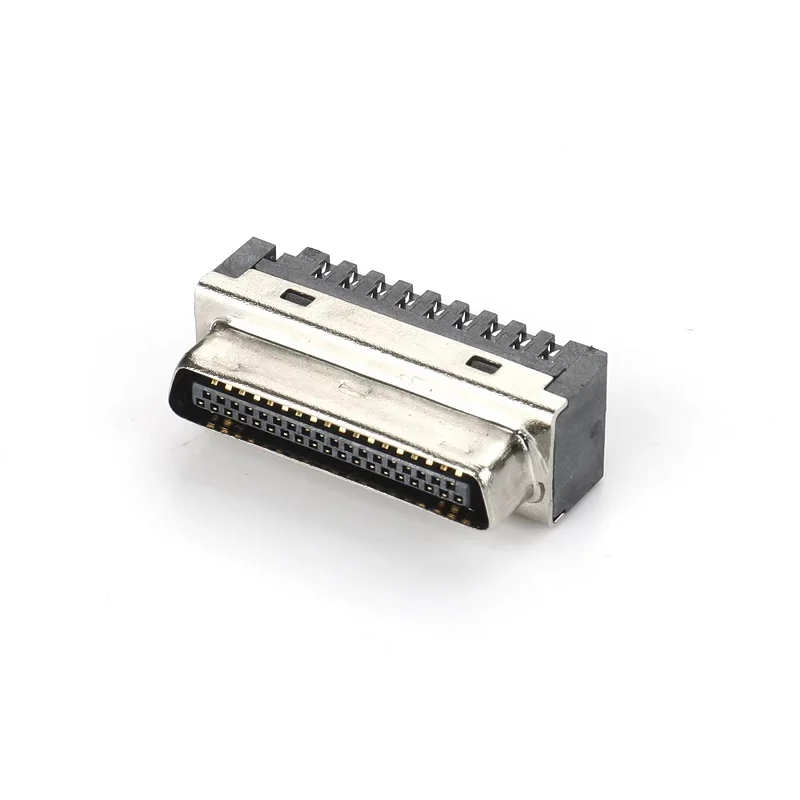

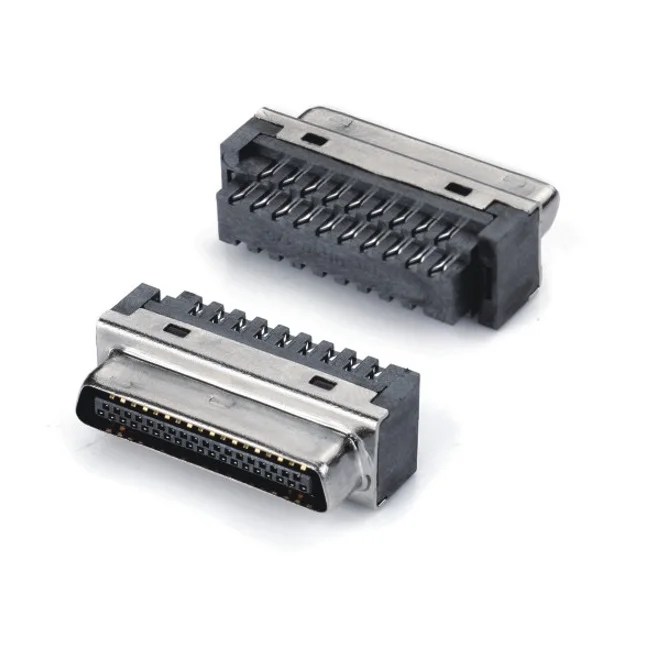

DH series DH40 37S male pitch=1.0mm 37Pin male connector for cable
- Category: >>>
- Supplier: Dongguan City Qingguo Electronic Co. Ltd.
Share on (1600677848643):
Product Overview
Description
Product Description

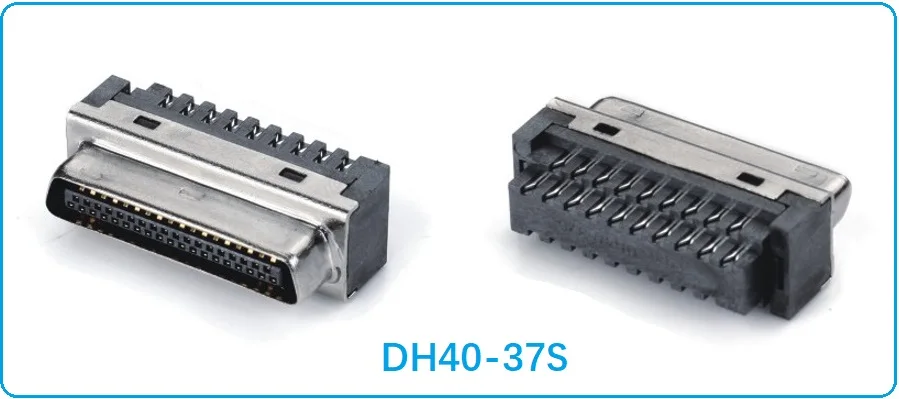

| Product Name | DH series DH40-37S 37Pin male Type Connector | ||
| Brand Name | KinKuo | Contact No | 37Pin |
| Color | Black | Application | ELECTRONIC |
| Hood | NA | Housing | UL94-V0 LCP |
| Terminal | Phosphor bronze | Shield Shell | SPCC |
| Wrench Spring | NA | Screw | NA |
| MOQ | 500 | Certification | RoHS |

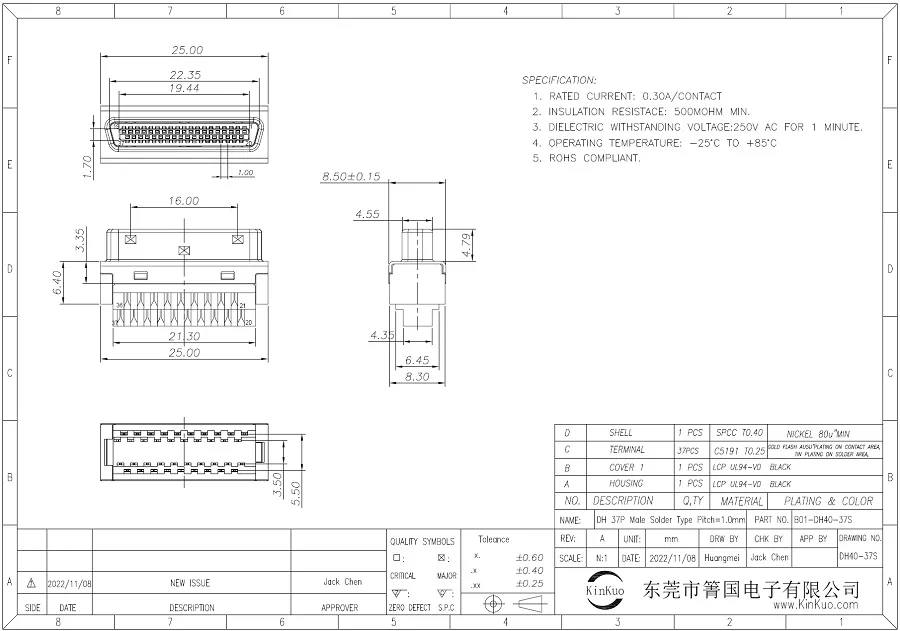

Specification | 1) Dielectric Withstanding Voltage: 500V AC | ||
| 2) Insulation Resistance: 500M /Min | |||
| 3) Contact Resistance: 35m /Max | |||
| 4) Operaion Temperature : -40°C ~ +85°C | |||
Packaging & Shipping
Tary Packing, Box size: 38*28*30 CM
⇒
Shipping ways:
1. Various shipping ways: FEDEX , DHL ,UPS and so on.
2. HONGKONG port ,we can choose it according to your request.
3. we can send products to your agent from china ,which is free shiping fee,which can save your cost.
Our Services
Please contact us if you have any requirement!!!
1. Whenever, we are pleased to get your order and any relevant requests.
2. Ensure the products meet the quality standards.
3. Ensure the goods will be delivered on time.
4. Provide warm and friendly service and after-sale service.
5. We will reply you within 24 hours.
6. OEM quality and original quality are acceptable.
7. About the warranty, if you have any problem about the goods after received it,
you can tell us on time.We will make sure to give you a satisfactory solution.
8. For more details and latest price, please feel free to contact us.
