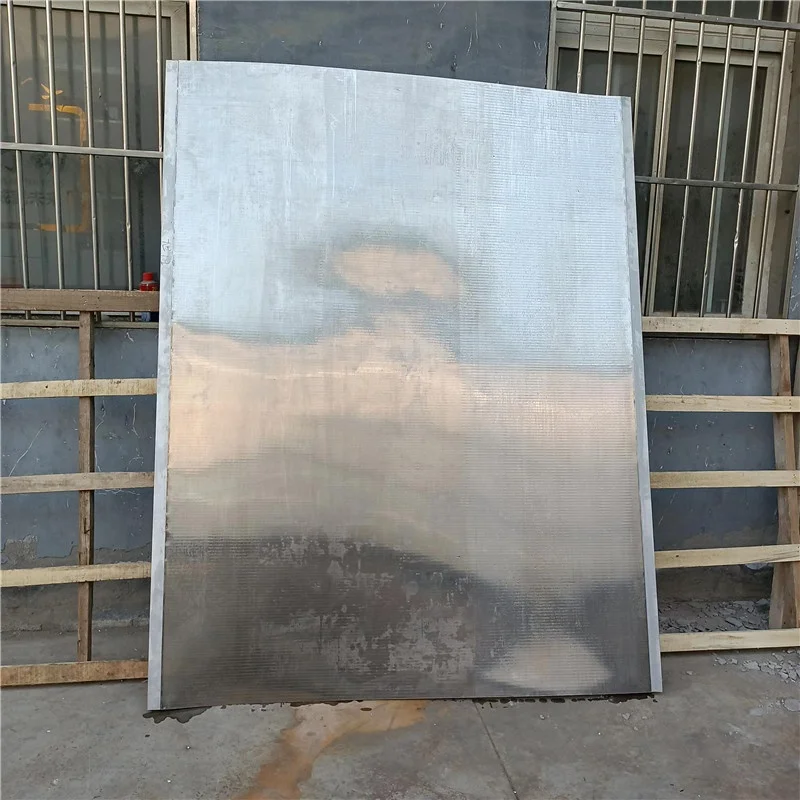

SS304 wedge wire Screen Sieve Panels solid liquid separators rundown screens
- Category: >>>
- Supplier: Anping County BT Wire Mesh Products Co. Ltd.
Share on (1600677871077):
Product Overview
Description
Specification
item | value |
Place of Origin | China |
Material | STAINLESS STEEL WIRE |
Type | Welded Mesh |
Application | Filters |
Weave Style | Plain Weave |
Technique | Welded Mesh |
Model Number | wedged wire mesh plate |
Brand Name | BT |
Processing Service | Bending, Welding, Decoiling, Cutting |

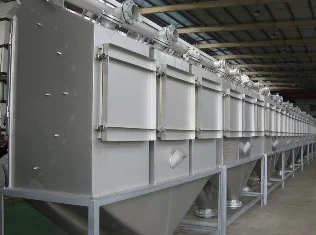

PRESSURE CURVED SIEVE/SIEVE BEND SCREEN
The pressure curved screen is an indispensable slurry separation equipment in starch production. It uses multi-stage countercurrent washing T technology for screening, which can effectively improve the starch yield and starch quality. The main part of the screen surface inlet, screen shell and feeding parts It is made of high-quality imported corrosion-resistant stainless steel materials and is an alternative to imported pressure curved screens.

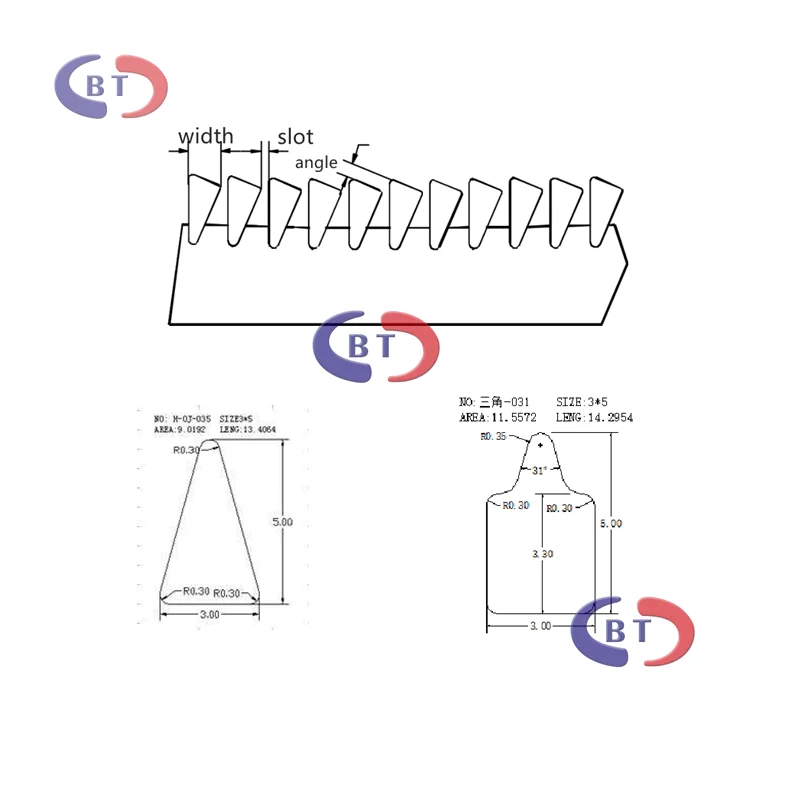

It is welded by a stainless steel wedge-shaped surface layer wire and a support bar. During operation, the wet material is sprayed from the nozzle under the pressure of 0.2-0.4Mpa, and the high feeding speed produces tangential force. The wedge-shaped surface layer filaments are dumped and have a certain angle to form a knife edge to scrape the material into a thin layer, so that the water and fine materials are evenly dispersed. The so-called "scraping" effect is to make the material easy to classify, and the entire screen surface is Essential self-cleaning. The screened material is discharged from the slag outlet, and the screened material enters the slurry outlet.
Slot | 0.05-5mm |
mesh width | 585mm,710mm,725mm |
Pressure | 0.28-0.42,0.18-0.32 |
Traffic | 9.1 17 |
Screen surface arc angle | 120° or customized arc |
Feature
1.Fiber separation and washing
2 Countercurrent washing, high recovery rate
3 Each specification includes single unit, double unit, triple unit, quadruple unit to meet different output production
4 Automatic washing equipment, starch yield rate
2 Countercurrent washing, high recovery rate
3 Each specification includes single unit, double unit, triple unit, quadruple unit to meet different output production
4 Automatic washing equipment, starch yield rate
Application
Used for starch screen,solid-liquid separation;Paper industry curved screen;For white water and fiber recycling etc....
