Hydraulic Car Body Panels Forming Stamping Machine Hydraulic Press/Press Tool Hydraulic Electric/Hydraulic Press Plates

Introduce:

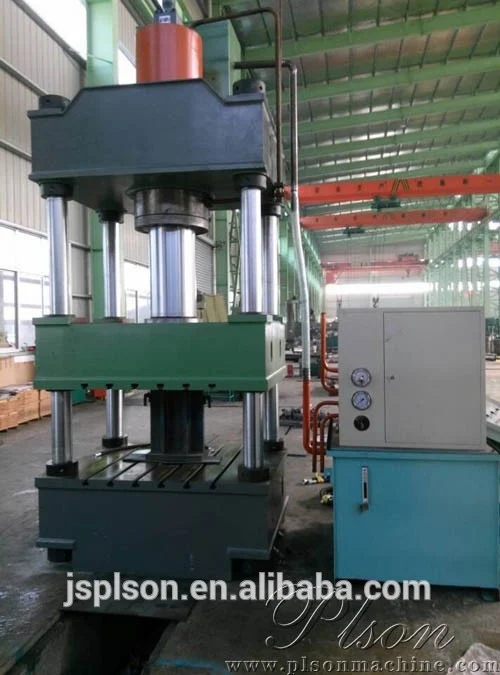

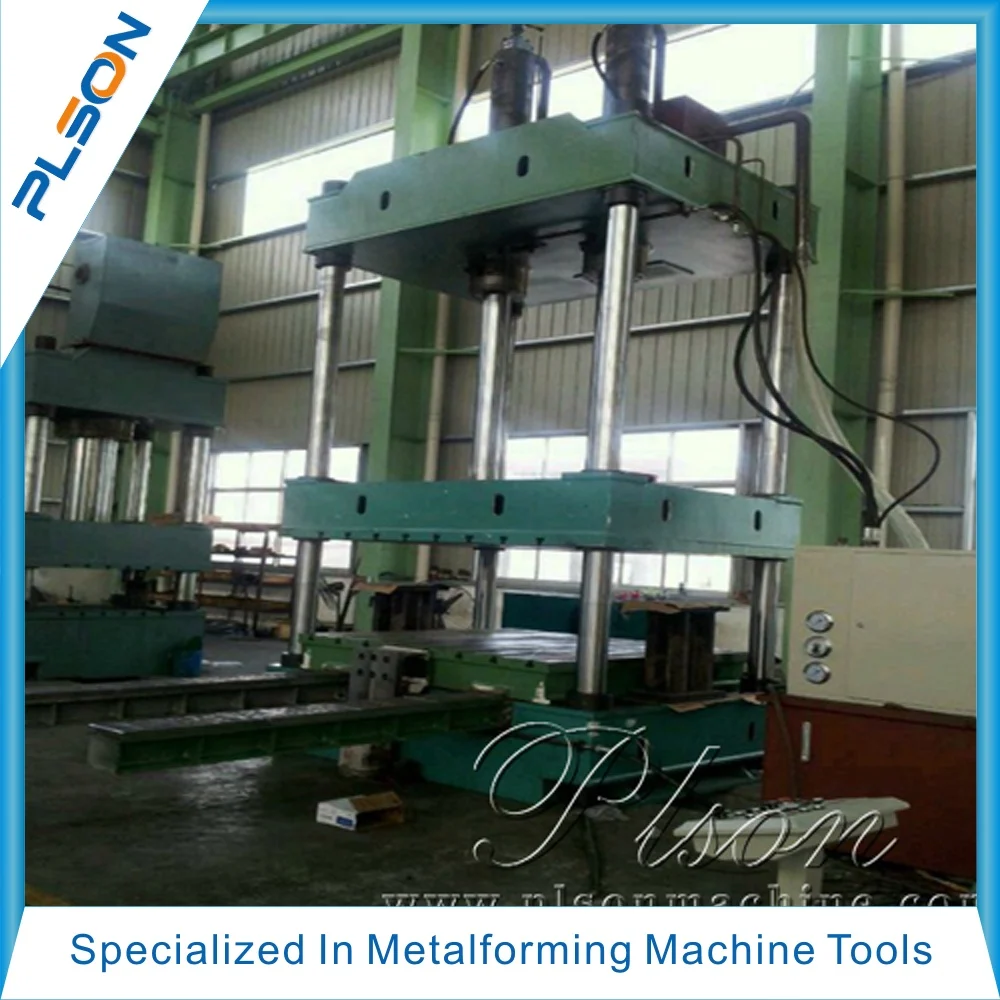

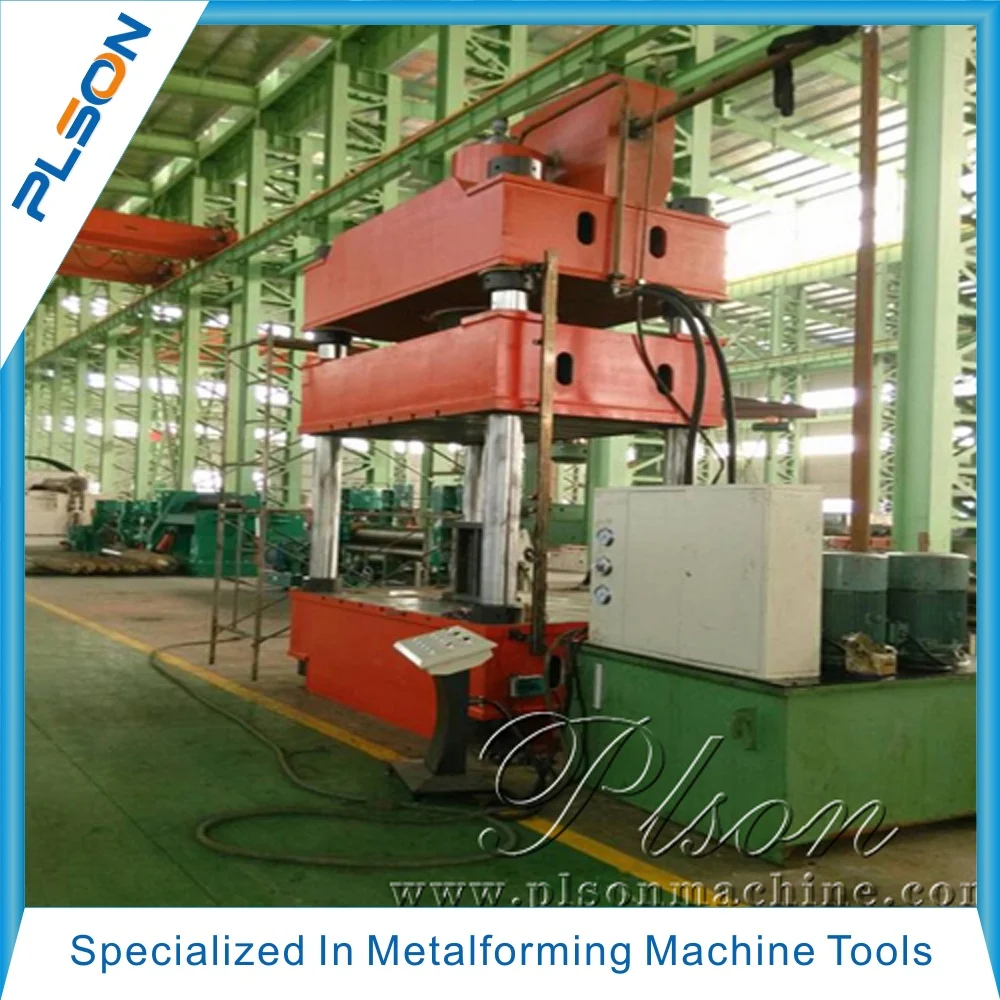

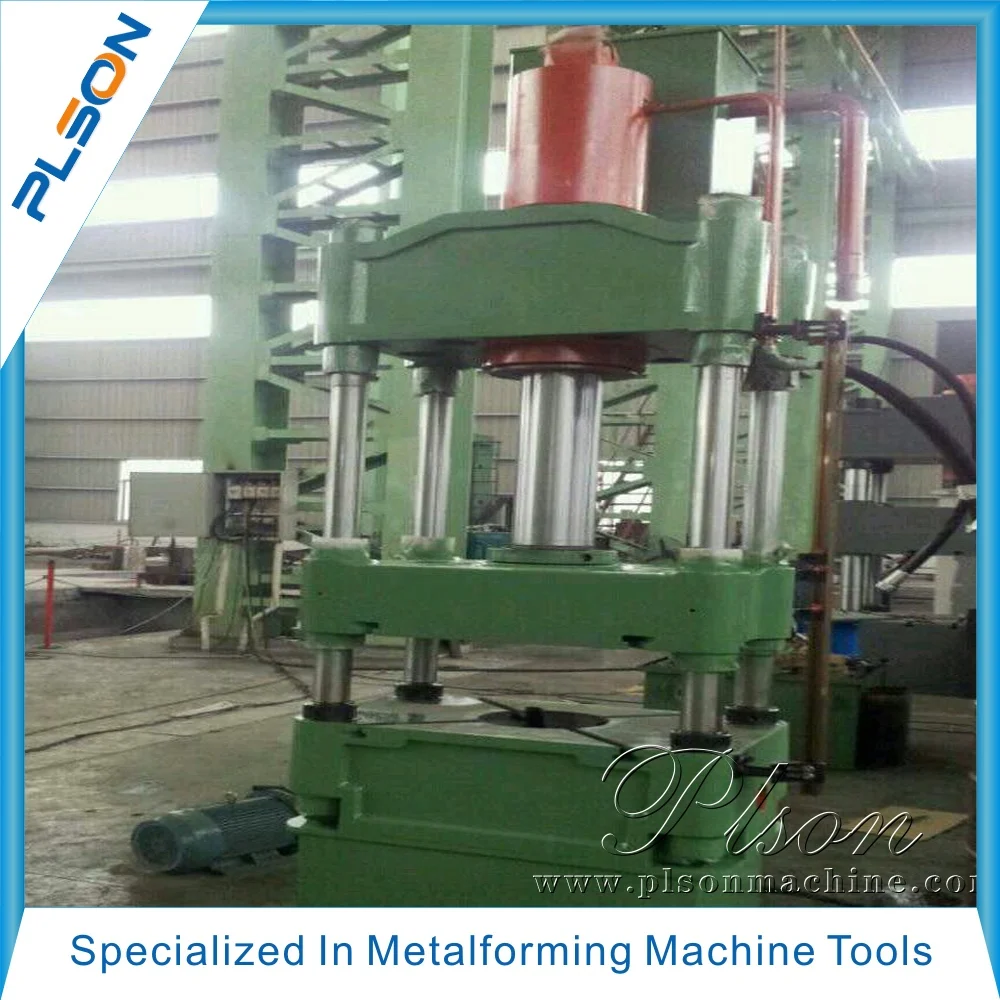

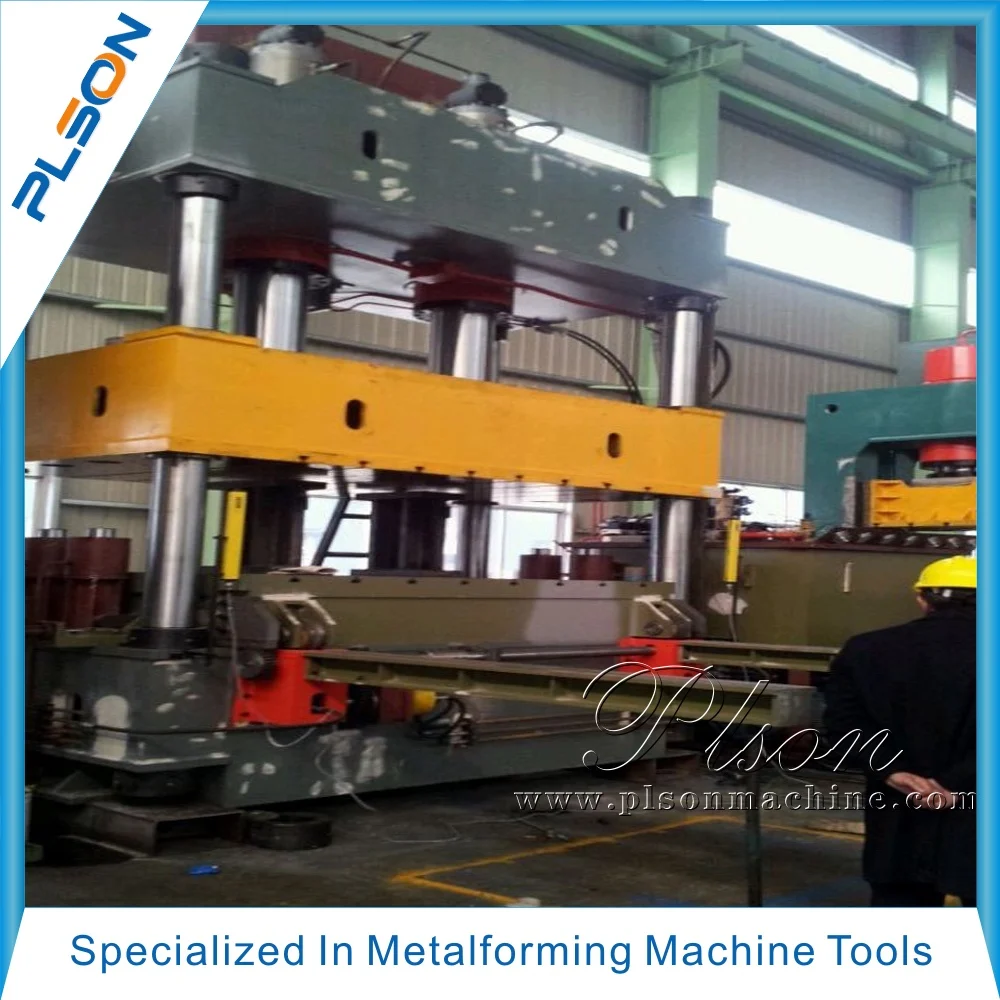

Four-column hydraulic press is a kind of mechanical equipment which uses the static pressure of hydraulic oil conveyed by oil pump to process metal, plastic, rubber, wood, powder and other products. It is often used in pressing and forming processes, such as forging, stamping, cold extrusion, straightening, bending, flanging, sheet drawing, powder metallurgy, pressing and so on. Its principle is to make use of Pascal's law to make use of liquid pressure transmission machinery, there are many kinds. Of course, the use is also varied according to needs. For example, according to the type of liquid transferring pressure, there are two kinds of hydraulic press and hydraulic press.

Application:

►This machine is suitable for various kinds of pressing technology of plasticity material, such as punching, bending, flanging, sheet metal drawing, besides, the machine can also engage in calibration, pressure equipment, wheel molding, plastic products and powder metallurgy press molding process. This machine has the power mechanism of independent and electrical system, and uses the centralized control buttons, can realize the adjustment (point)and work (semi-automatic) two kinds of mode of operation.
►The machine's working pressure, the travel range can be adjusted according to the process needs. And the constant pressure to complete the molding and constant distance froming two kinds of process requirements, with automatic return action after pressing.

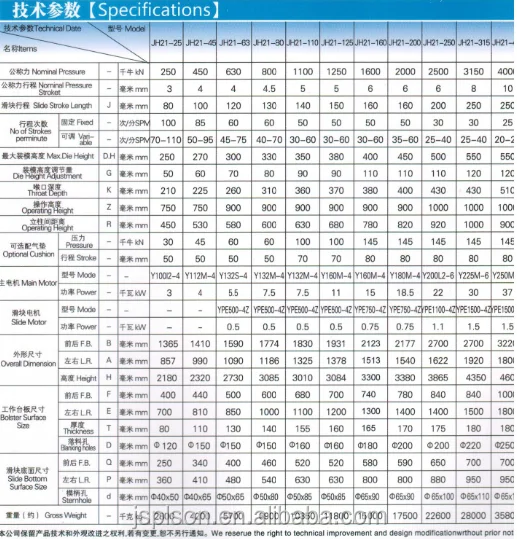

Specification:

►The fuselage adopted welded structure: it consists of an upper beam, a slide block, a workbench, an upright post, a main cylinder, hydraulic system and electrical system components. The column uses the high quality 45# forging steel, four column surface intermediate frequency quenching, after crossing the chromium treatment, the hardness of the parts can reach HRC38-42. Press tonnage is realized by a piston cylinder, a cylinder body are high-quality 45# forging steel, the surface of the piston rod through the intermediate frequency quenching, the hardness can reach HRC38-42, the service life is more longer. The main oil cylinder seals using imported materials, sealing ring, to ensure reliable sealing. Table and slide block are composed of T type groove, in order to mold installation.

Hydraulic System:

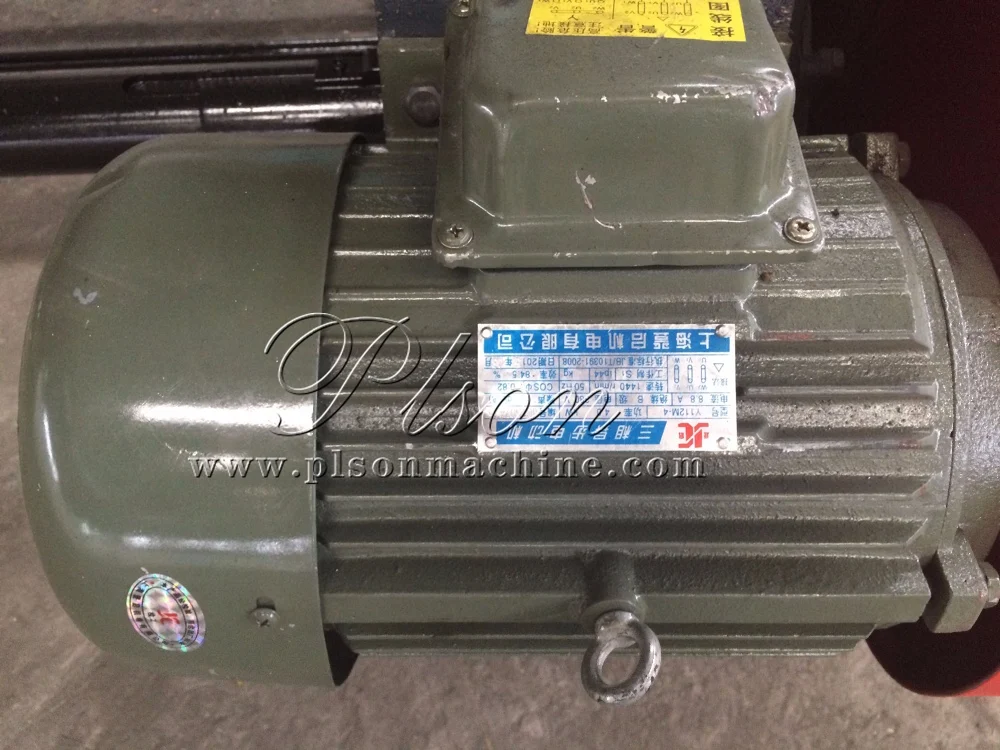

►The hydraulic system device is arranged on the right side of the fuselage, with cartridge integrated system, flexible action, reliable work, good sealing performance. The hydraulic pump comprises an oil tank, a high-pressure pump, motor,cartridge valves and other components, the tank is welded with steel plates,the tank using sealed oil tank, oil zone and back to oil tank is provided with aseparate, cleaning windows and oil drain plug, so that the cleaning and changing is convenient. Oil pump suction mouth check formula oil suction filter,ensure that the oil cleanliness, to ensure the service life of the pump and valve.

Electrical Control System:

►Electrical cabinet is provided with an independent cabinet, and provided with an air switch, relay and other electrical appliances, all kinds of alarm signal of compressor, limit switch and press action to achieve the action chain.

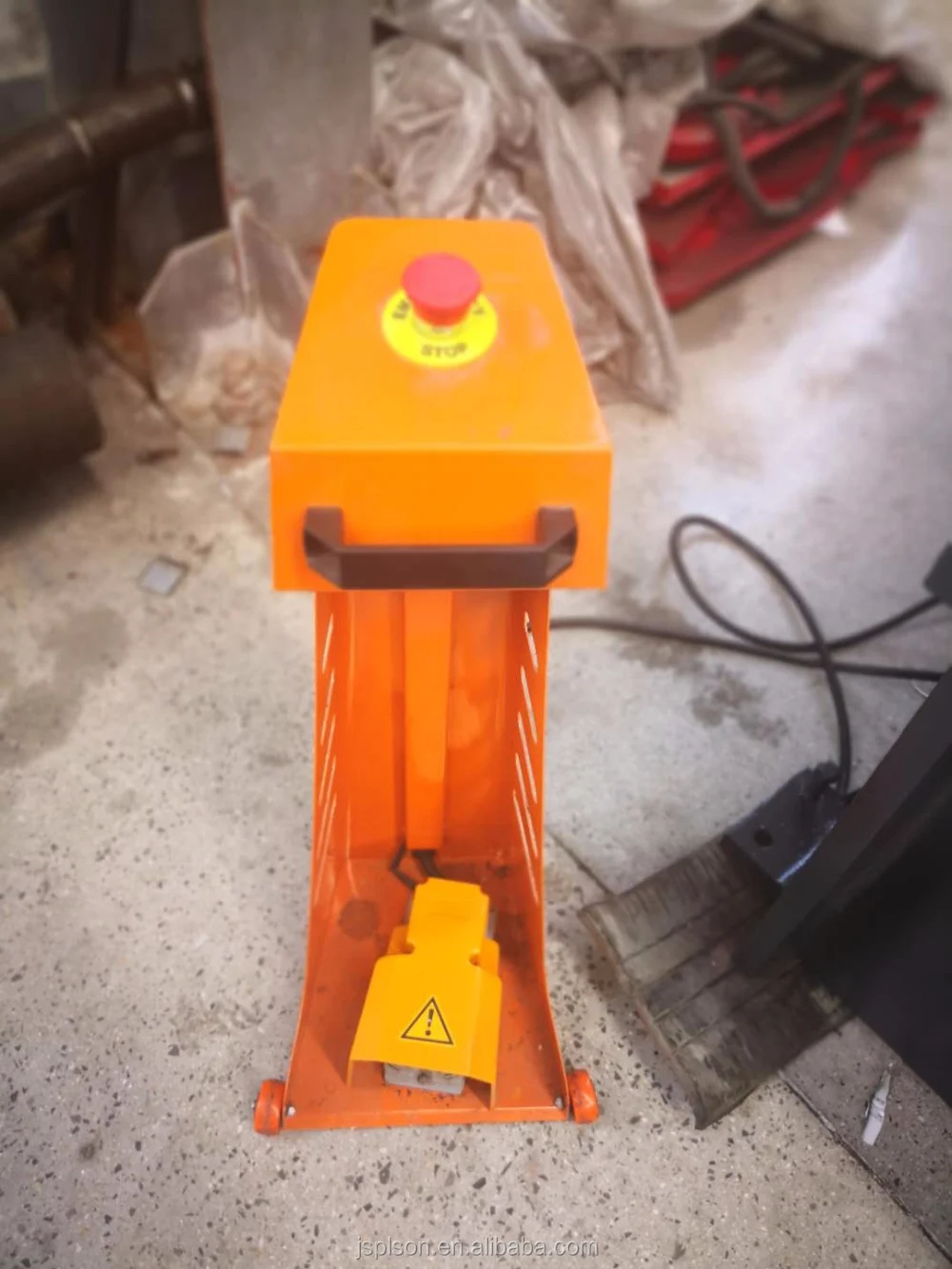

►With acentralized control panel, panel layout action button and select switch is necessary, also, it has a mobile button station

Technical Profile:

►Technical profile, including introduction, drawings, installation drawings, feature, hydraulic system, electrical system, maintenance,.
►Certificate of the machine.
►Packing list.
►Spare Parts.
►Sealing rings for pipeline.
►One set of bolt and nut for installation.

Working Environment:

►With power of three-phase:380V(±5%),50HZ.
►Working environment temperature: 0-40℃.
