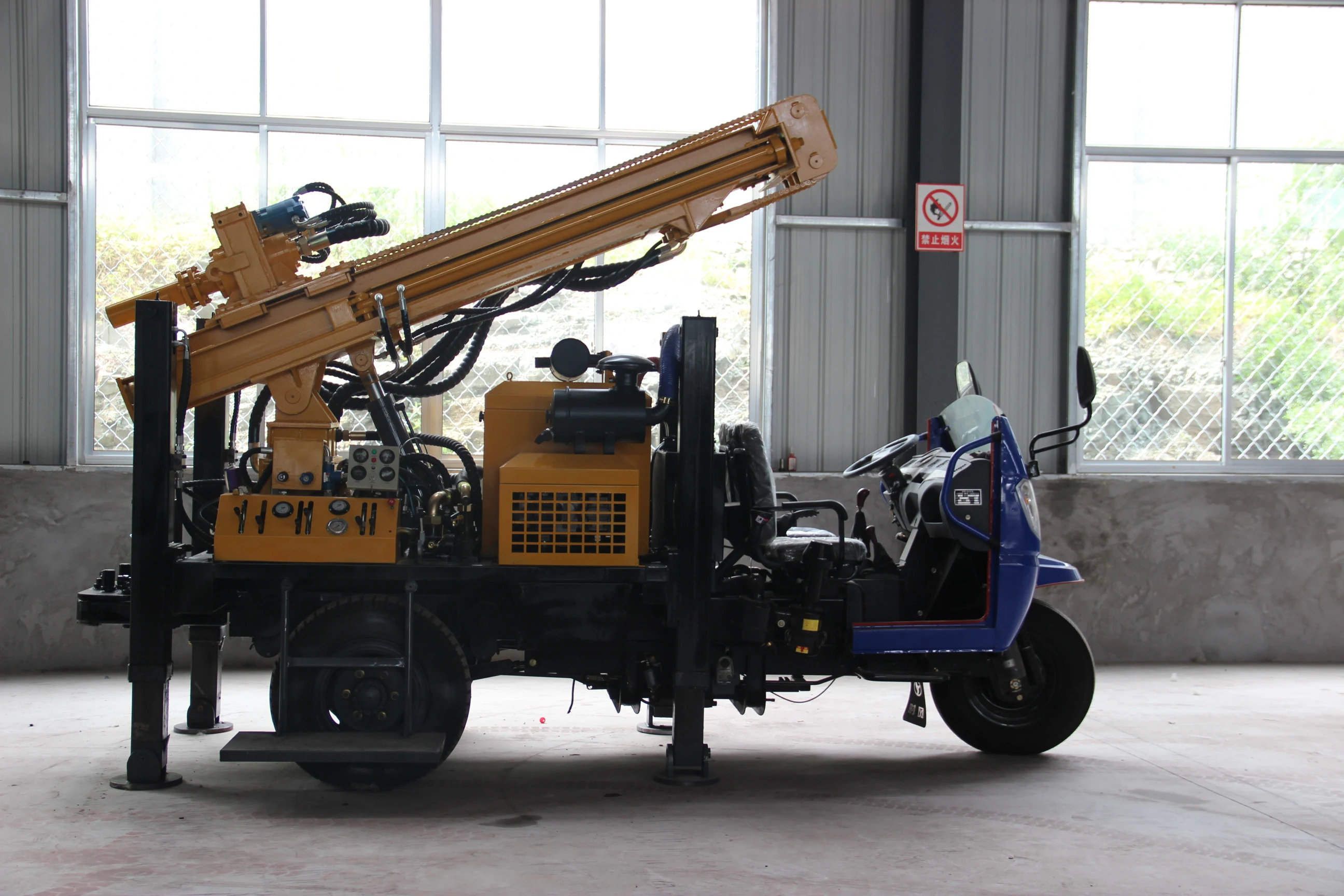

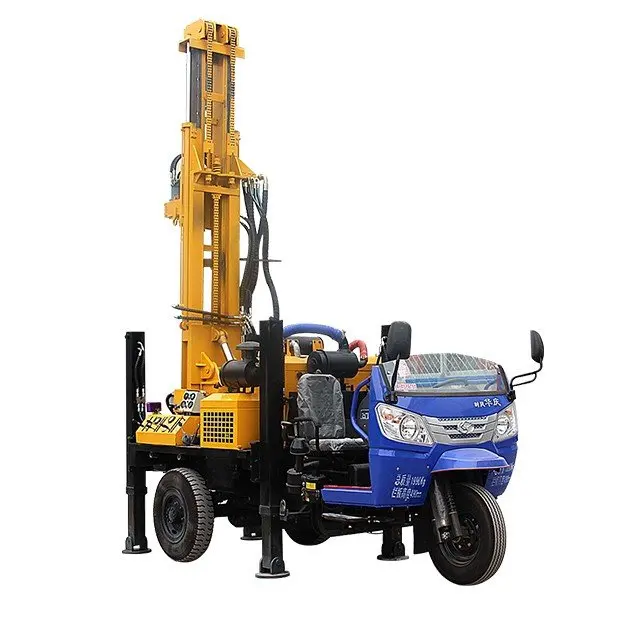

3 wheels,portable,Tricycle water well drilling rig, can drill 200 meters Mining 100m200m250m
- Category: >>>
- Supplier: Shandong Wogong Technology Co. Ltd.
Share on (1600677932880):
Product Overview
Description
Product Description
Specification
item | value |
Applicable Industries | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Construction works , Energy & Mining |
Showroom Location | None |
Condition | New |
Type | Rotary Drilling Rig |
Power Type | Diesel |
Place of Origin | China |
Shandong | |
Brand Name | Feida |
Usage | Water Well |
Voltage | |
Dimension(L*W*H) | 3950*1750*2250mm |
Weight | 5000KG |
Warranty | 1 Year |
Marketing Type | Hot Product 2022 |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Motor, Pump, Engine |
Key Selling Points | Competitive Price |
Drilling Diameter | 140-254mm |
Drilling Depth | Max.200m |
Mobility | yes |
One-time advance length | 3.3m |
Drill pipe length | 1.5m.2m.3m |
Lifting force | 13T |
Equipped capacitor | 65kw |
Equipped with hammer | Medium and high wind pressure series |
Using air pressure | 1.7-2.5MAP |
Rapid rise speed | 30m/min |
Fast feeding speed | 60m/min |
Hoisting force of winch | 1.5T |
High leg stroke | 1.4m |
Products Description

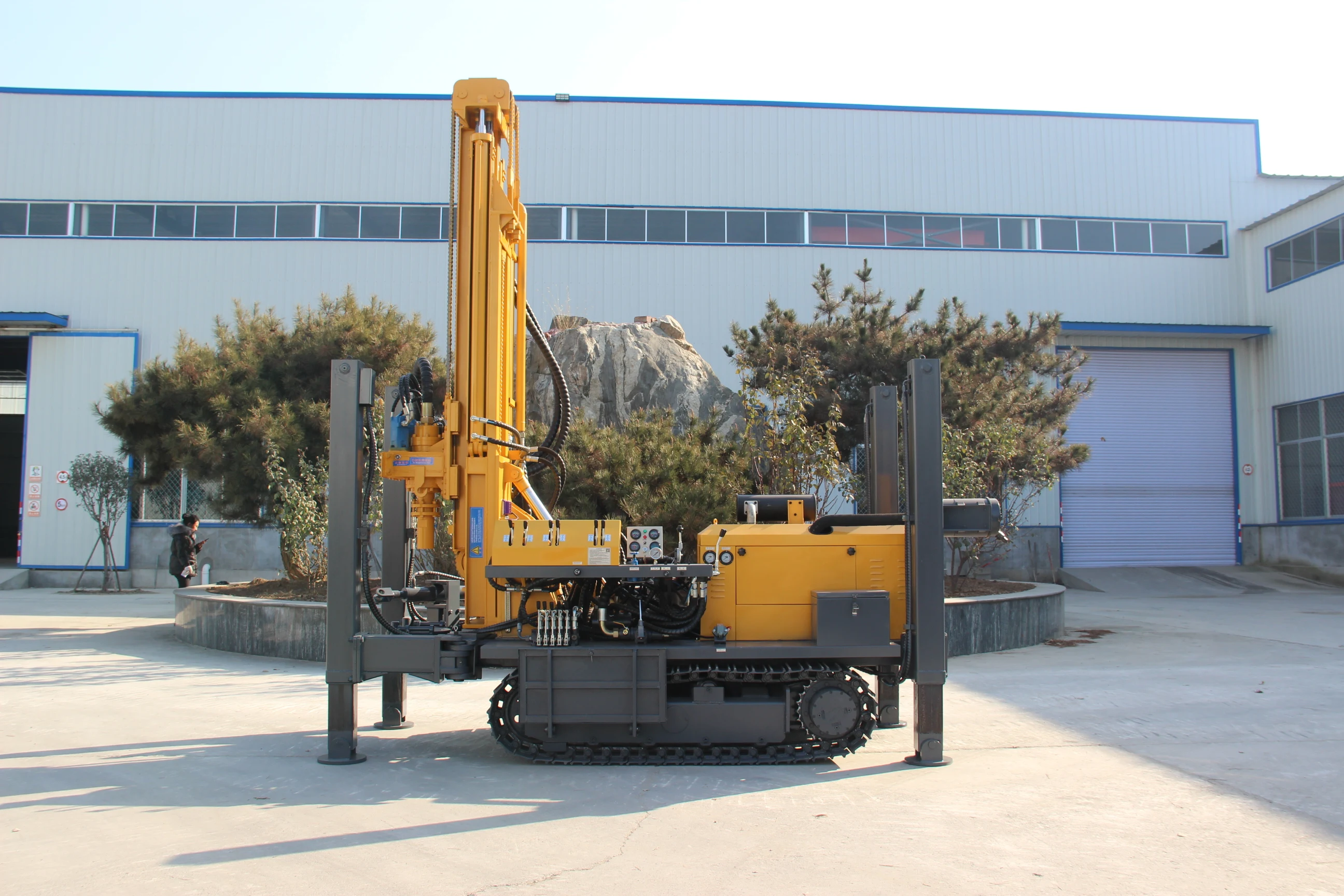

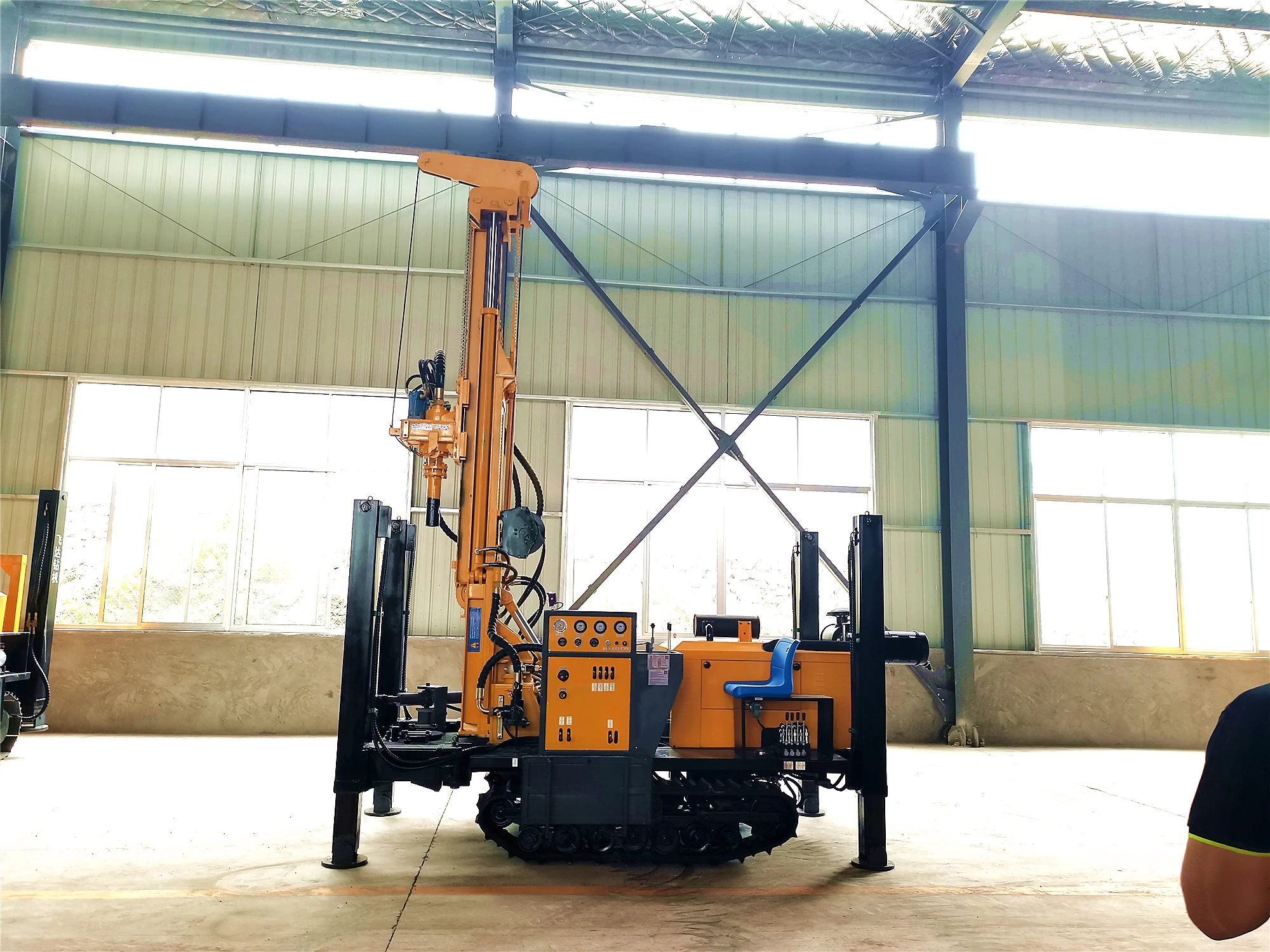

FYX200 rubber crawler water well drilling rig
Model | FYX200 |
The weight(T) | 5 |
The hole diameter(mm) | 140-254 |
Drilling depth(m) | 200 |
One-time advance length(m) | 3.3 |
Walking speed(km/h) | 2.5 |
Climbing angles(Max.) | 30 |
Equipped capacitor(kw) | 65 |
Using air pressure(MPA) | 1.7-2.5 |
Air consumption(m³/min) | 17-31 |
Swing speed(rpm) | 45-70 |
The penetration efficiency(m/h) | 10-35 |
Drill pipe diameter(mm) | Φ76 Φ89 |
Drill pipe length(m) | 1.5m 2.0m 3.0m |
Rig lifting force(T) | 13 |
Rapid rise speed(m/min) | 30 |
Fast feeding speed(m/min) | 60 |
Width of loading(m) | 2.6 |
Hoisting force of winch(T) | 1.5 |
Swing torque(N.m) | 3400-4700 |
Dimension(mm) | 3950*1750*2250 |
Equipped with hammer | Medium and high wind pressure series |
High leg stroke(m) | 1.4 |
The engine brand | Quanchai engine |
Show details
Products Show
Product packaging
Company Profile
Shandong Wogong Technology Co., LTD., the leading products are: FY180, FY200, FY280, FY350 and other well drilling car series,drill pipe drilling tool series, as well as high, middle and low air pressure air compressor series. The company's product structure from the original mine engineering drilling rig, expand to mine engineering, water well engineering, complex terrain drilling under the construction of drilling rig, drilling tool production. The company has organized and led technical personnel for many times, through extensive market research, comprehensive analysis of advantages and disadvantages of drilling products at home and abroad, put forward the design and development plan of drilling rig and drilling rig, and led the RESEARCH and development team to carry out the successful development of FY series well drilling rig and drilling rig for many times. Products have obtained a number of utility model and design patents, a number of key technology independent research and development, a number of patented technology, with fully independent intellectual property rights, with strong innovation. At the same time, the company's engineering technology research center has also won the municipal "engineering Technology Research Center", the provincial and municipal "One Enterprise one Technology Center", the municipal "Enterprise Technology Center" and other titles.
The company's products have passed the ISO9001 international quality management system certification, so that the company in product development and product quality has a qualitative leap and guarantee.
The company's products have passed the ISO9001 international quality management system certification, so that the company in product development and product quality has a qualitative leap and guarantee.
1. Our company's main products: Water well drilling rig, Truck well drilling rig, DTH drilling rig, blasting drilling rig, core
drilling rig, as well as any mining drilling rig and drilling rig accessories; Air compressor, mud pump, drill pipe, impactor,
drill bit; Mini excavator and other engineering mechanical equipment.
2. Our export countries: Chile, Spain, Portugal, the United States, Australia and various African countries
3. Our water well drilling rig is a fully hydraulic system with crawler chassis, which can be applied to any complex road
conditions. The rotary gearbox independently developed by us can work efficiently in both water and gas,
What we offer:
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4)Our well drilling rig sales in China first, China's largest well drilling rig manufacturer
5) Smooth communication
drilling rig, as well as any mining drilling rig and drilling rig accessories; Air compressor, mud pump, drill pipe, impactor,
drill bit; Mini excavator and other engineering mechanical equipment.
2. Our export countries: Chile, Spain, Portugal, the United States, Australia and various African countries
3. Our water well drilling rig is a fully hydraulic system with crawler chassis, which can be applied to any complex road
conditions. The rotary gearbox independently developed by us can work efficiently in both water and gas,
What we offer:
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4)Our well drilling rig sales in China first, China's largest well drilling rig manufacturer
5) Smooth communication
FAQ
1.what can you buy from us?
Well Drilling Machine,Drilling Tools and Accessories,Screw Air Compressor，Excavator.
2. How can we guarantee quality?
Always a pre-production sample before mass production;always final inspection is done before shipment；and our main unit has a one-year warranty, during which all damaged accessories can be replaced with new ones. We provide machine installation and operation videos.
3.Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
4.Are you a manufacturer or trading company?
We are professional manufacturer with big modern factory in ShanDong,China.
5.Do you have any certificates for your machine?
All of our products coming with the certificates of CE,ISO9001、EPA.
6. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Cas.
LanguageSpoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian.
Well Drilling Machine,Drilling Tools and Accessories,Screw Air Compressor，Excavator.
2. How can we guarantee quality?
Always a pre-production sample before mass production;always final inspection is done before shipment；and our main unit has a one-year warranty, during which all damaged accessories can be replaced with new ones. We provide machine installation and operation videos.
3.Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
4.Are you a manufacturer or trading company?
We are professional manufacturer with big modern factory in ShanDong,China.
5.Do you have any certificates for your machine?
All of our products coming with the certificates of CE,ISO9001、EPA.
6. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Cas.
LanguageSpoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian.
