DC Motor HRV Ventilation System Vertical Air Recuperator With Wall Bracket Optional For Closet Or Maintenance Room Wall Mounted
DC Motor HRV Ventilation System Vertical Air Recuperator With Wall Bracket Optional For Closet Or Maintenance Room Wall Mounted
DC Motor HRV Ventilation System Vertical Air Recuperator With Wall Bracket Optional For Closet Or Maintenance Room Wall Mounted
DC Motor HRV Ventilation System Vertical Air Recuperator With Wall Bracket Optional For Closet Or Maintenance Room Wall Mounted
DC Motor HRV Ventilation System Vertical Air Recuperator With Wall Bracket Optional For Closet Or Maintenance Room Wall Mounted
DC Motor HRV Ventilation System Vertical Air Recuperator With Wall Bracket Optional For Closet Or Maintenance Room Wall Mounted
DC Motor HRV Ventilation System Vertical Air Recuperator With Wall Bracket Optional For Closet Or Maintenance Room Wall Mounted

DC Motor HRV Ventilation System Vertical Air Recuperator With Wall Bracket Optional For Closet Or Maintenance Room Wall Mounted

Share on:


Price:$780.00 - $900.00
Price in USD:Details

Quantity:


Product Overview

Description



Note


The page only displays EXW prices and distribution prices. Please contact with us to confirm the total payment(Transportation costs and other expenses) before you putting the order!

Welcome to contact:
Contact: Tina Yu
Email: [email protected]
Mob/ WA/ Skype: 0086 188 5295 0357
Wechat: cqa09336
Website: www.miachina.net


Product Details

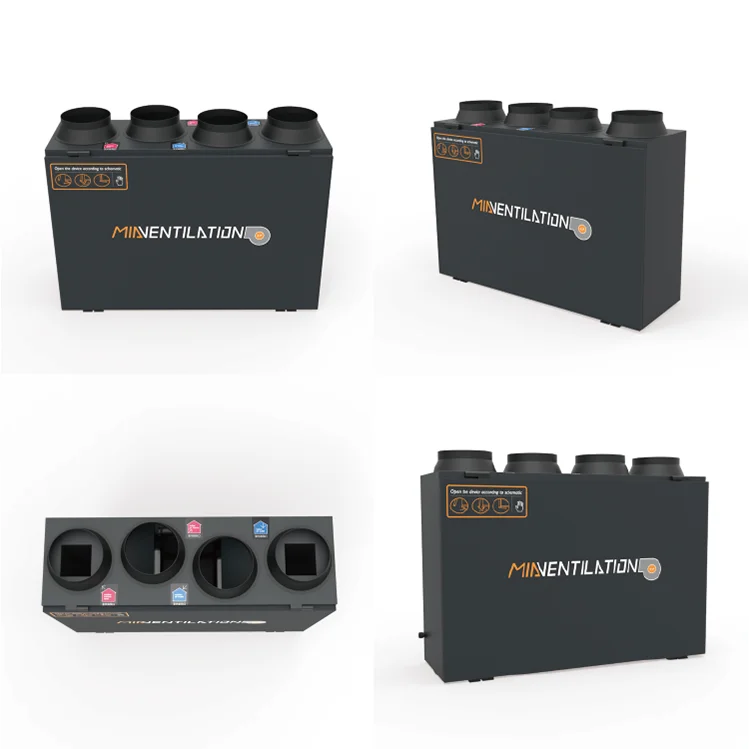

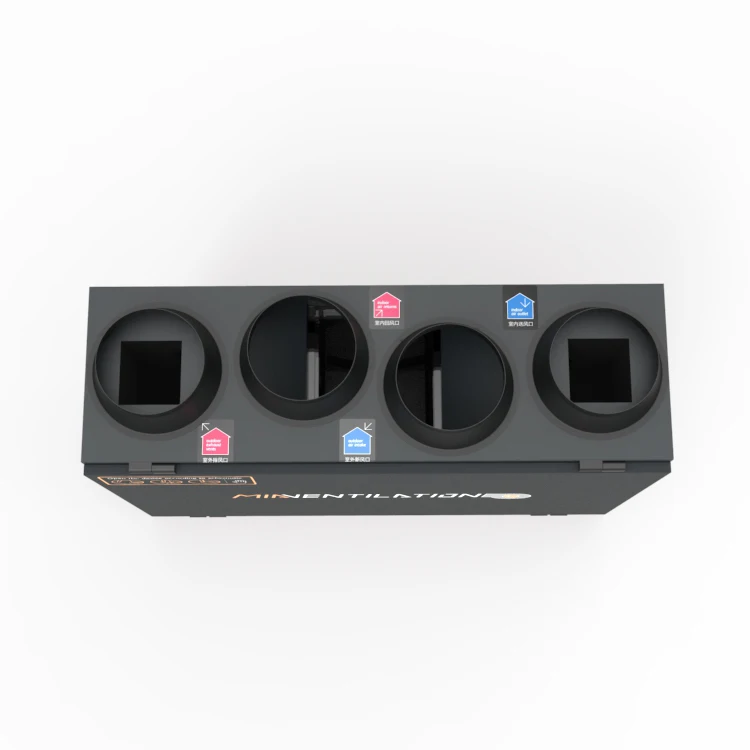

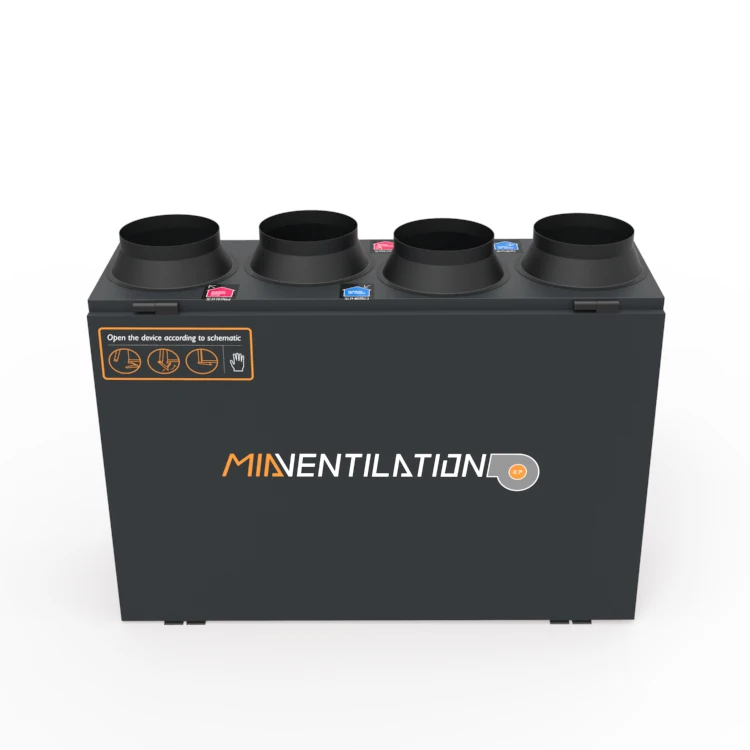

Vertical/Cabinet Type ERV Ventilation System
(AC outer rotor fan/DC brushless fan)




MIA-AHExxCGLB, MIA-AHExxCGJB/C, MIA-AHExxCGJDB, MIA-AHExxCGJDB/C
(xx represents 25, 35, 50, means 250m3/h, 350m3/h, 500m3/h)
1.Primary activated carbon two in one filter: filter dust particles, remove odor, formaldehyde.
2.European standard H13 high efficiency filter: PM2.5 purification rate is ≥99.97%.
3. PSY high thermal conductivity molecular materials, ultra-high heat recovery efficiency, while exchanging heat energy through the water molecules, consumables can be soaked with clean water, effectively prevent mildew and bacteria.
4. 87648 hours long warranty period!

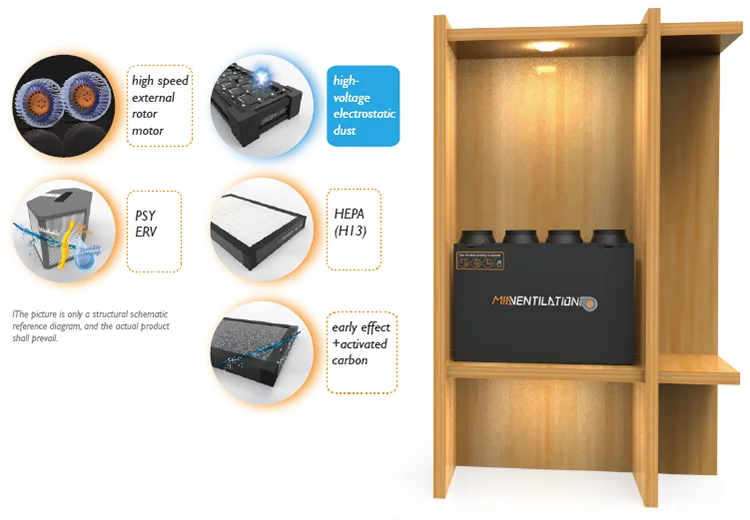

Details

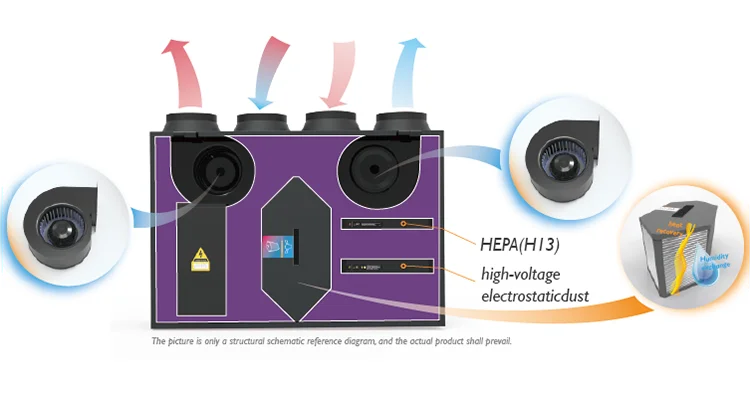

Energy Recovery Exchanger
The PSY high thermal conductivity of molecular material, developed by Japanese DR team, has high heat recovery efficiency. It can infiltrate water molecules in the process of heat exchange;with the washable material，also can avoid the problem of bacteria and molds production.

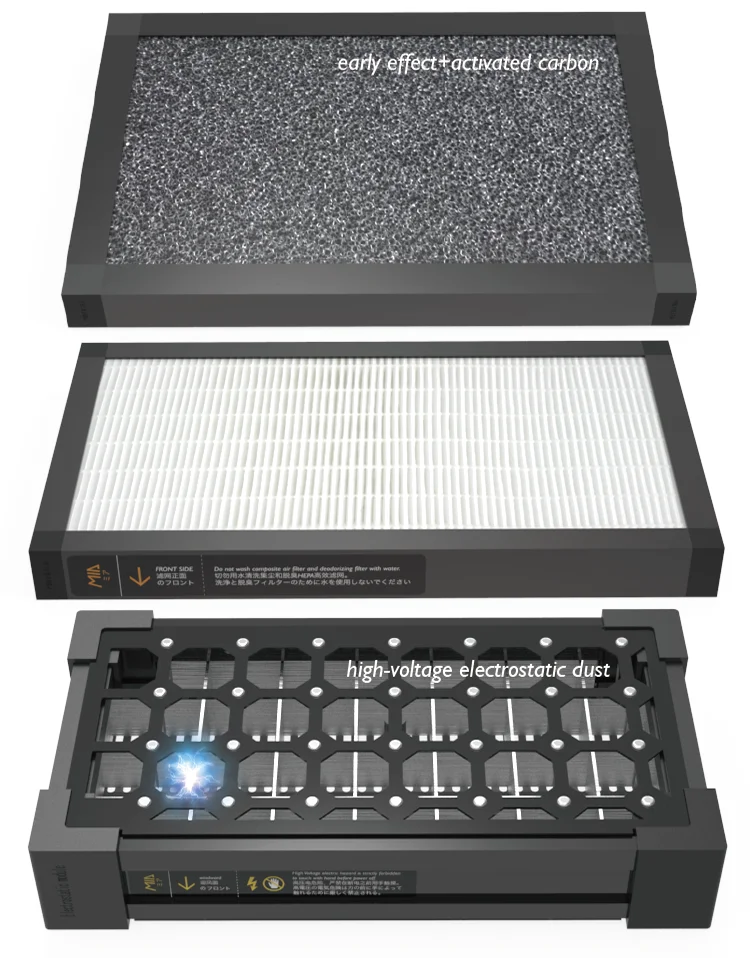

Early Effect+Activated Carbon Filter
The sealing property is far more than the paper border with using the plastic margin. The filter with composite fiber, sprayed with activated carbon powder, can filter dust particle efficiently and the wind resistance is very small. The even-distributed activated carbon power can maximize the role of activated carbon. This washable filter can be used repeatedly, and two in one way, early effect+activated carbon, greatly reduces the total cost of consumables.

High Efficiency Particulate Air Filter
The sealing property is far more than the paper border with using the plastic margin. To ensure the health and non-pollution, we take the environmental friendly imported sealant, no color and no odor. The filter element that we use is 3M HEPA, meeting the European standard-H13, and the PM2.5 removal rate can be up to 99.97%, this large dust holding capacity helps to save the total cost.

High-voltage Electrostatic Dust Filter
With pin type electric discharge way,the high-voltage electrostatic dust can replace the traditional tungsten filament high-voltage electrostatic dust collection. It' s thickness is only 4cm, can be suitable for all kinds of models. The removal rate of PM2.5 is highly to 98%, so that can effectively kill the bacteria and prevent the infection. It' s washable, also can be cleaned with brush, and will not increase the using cost.

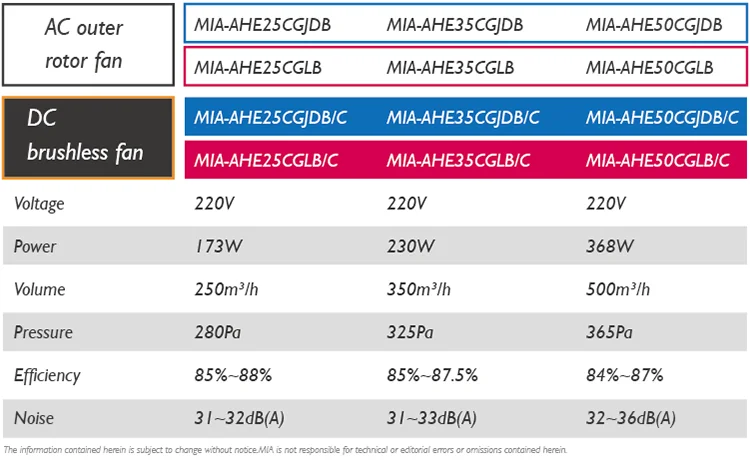

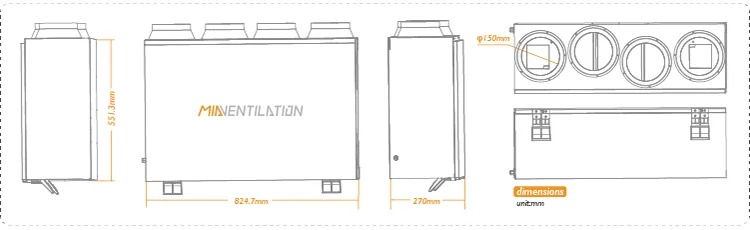

Technical Parameters& Dimensions

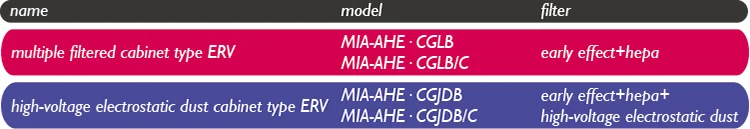

How to choose air volume and filters?

AC outer motor fan:
1. MIA-AHE.CGLB: Cabinet type heat recovery ventilator with Early Effect + Activated Carbon Filter and H13 HEPA Filter
2. MIA-AHE.CGJDB: Cabinet type heat recovery ventilator with Early Effect + Activated Carbon Filter, H13 HEPA Filter and High-voltage Electrostatic Dust Filter

DC brushless fan:
1. MIA-AHE.CGLB/C: Cabinet type recovery ventilator with Early Effect + Activated Carbon Filter and H13 HEPA Filter
2. MIA-AHE.CGJDB/C: Cabinet type heat recovery ventilator with Early Effect + Activated Carbon Filter, H13 HEPA Filter and High-voltage Electrostatic Dust Filter




Model
Voltage (AC)
Power (W)
Volume (m³/h)
Pressure
(Pa)
Noise (dBA)
Efficiency
Filter(pcs)
Moter
MIA-AHE25CGLB
220
173
250
280
31~32
85%~88%
2
AC
MIA-AHE25CGJDB
220
173
250
280
31~32
85%~88%
3
AC
MIA-AHE25CGLB/C
220
173
250
280
31~32
85%~88%
2
DC
MIA-AHE25CGJDB/C
220
173
250
280
31~32
85%~88%
3
DC
MIA-AHE35CGLB
220
230
350
325
31~33
85%~87.5%
2
AC
MIA-AHE35CGJDB
220
230
350
325
31~33
85%~87.5%
3
AC
MIA-AHE35CGLB/C
220
230
350
325
31~33
85%~87.5%
2
DC
MIA-AHE35CGJDB/C
220
230
350
325
31~33
85%~87.5%
3
DC
MIA-AHE50CGLB
220
368
500
365
32~36
84%~87%
2
AC
MIA-AHE50CGJDB
220
368
500
365
32~36
84%~87%
3
AC
MIA-AHE50CGLB/C
220
368
500
365
32~36
84%~87%
2
DC
MIA-AHE50CGJDB/C
220
368
500
365
32~36
84%~87%
3
DC

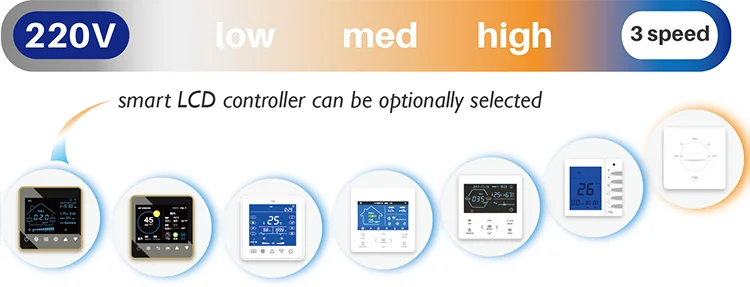

Please contact us to choose the suitable controller!






Contact Us






Applicable scenarios




Company profile and certifications

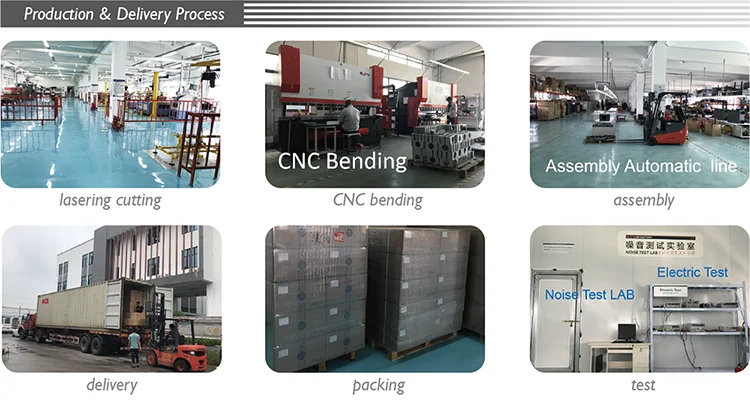

Production& Delivery
