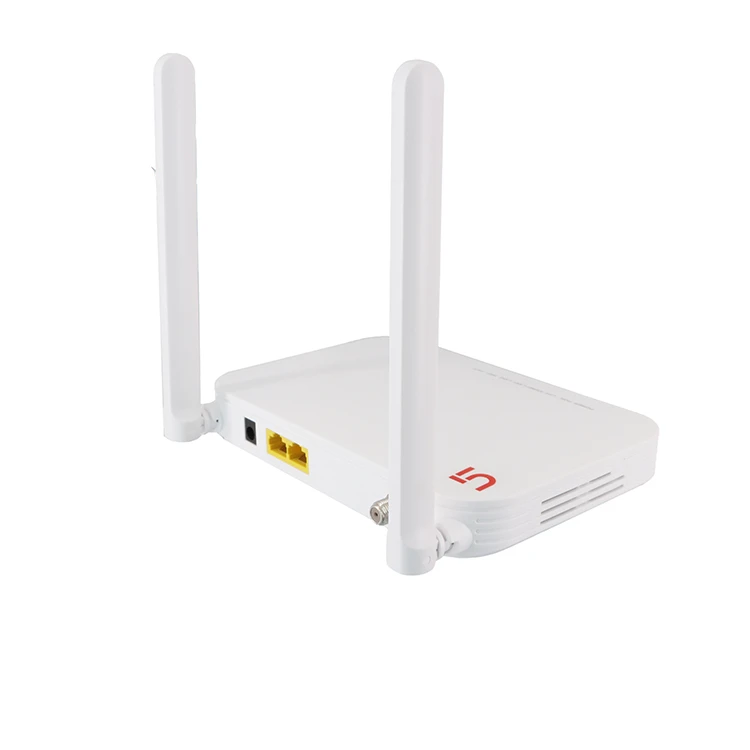

Wholesale Best Price RF Output Support OMCI Remote Control ftth GEPON ONT modem 1GE 1FE CATV WIFI ONU XPON
- Category: >>>
- Supplier: Shenzhen UT-King Technology Co. Ltd
Share on (1600678479019):
Product Overview
Description
Products Description
Wholesale Best Price RF Output Support OMCI Remote Control GEPON ONT 1GE+1FE+CATV+WIFI ONU XPON
【About Product】
GP4447 is designed and manufactured by Shenzhen UT-KING Technology Co.,Ltd, is a high-end home gateway in FTTH solution. By using GPON technology, ultra-broadband access is provided for home and SOHO users.UT-King GP4447 FTTH features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HDvideo services. UT-King GP4447 FTTH gives a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.
UT-King's XP6425 catv Xpon is designed as HGU (Home Gateway Unit) in different FTTH solutions, which has one GE port One FE LAN port and one CATV port. The carrier-class FTTH application provides data service access. The CATV XPON onu is based on mature and stable, cost-effective XPON technology. The ONU catv gpon can switch automatically with EPON and GPON mode when it access either EPON OLT or GPON OLT. The XPON ONU CATV adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0. The xpon onu is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah. The ONU catv is designed by Realtek chipset 9601D.
【Product Feature】
* In compliant with ITU – T G. 984 Standard
* Support ONU auto-discovery/Link detection/remote upgrade of software
* Meet 11 n/b/gtechnical standards
* Support VLAN transparent, tag configuration
* Support multicast function
* Support DHCP/Static/PPPOE internet mode
* Support port-binding
* Support OMCI+TR069 remote management
【Package Contents】
- 1 GPON Terminal
- Quick Installation Guide
- Power Adapter
- 1 GPON Terminal
- Quick Installation Guide
- Power Adapter
Model | Configuration | Fiber interface | |||||||||
PON | LAN | RF/CATV | Wifi | ONU | |||||||
EG8141A5 | 1 | 1GE+1FE | 1 | 2.4G 5dB | XPON | SC/APC | |||||
Remarks | Power plug:EU,AU,AM,UK etc | ||||||||||
Noted: with English manual | |||||||||||
Optional: 2GE+CATV+Wifi 2.4G | |||||||||||
Product Name | Wholesale Best Price RF Output Support OMCI Remote Control GEPON ONT 1GE+1FE+CATV+WIFI ONU XPON | |
PON | 1*XPON port, FSAN G.984.2 standard, Class B+Downstream Data Rate：2.488Gbps Upstream Data Rate：1.244Gbps SC/APC single mode fiber 28dB Link loss and 20KM distance with 1:128 | |
Chipset | ZTE | |

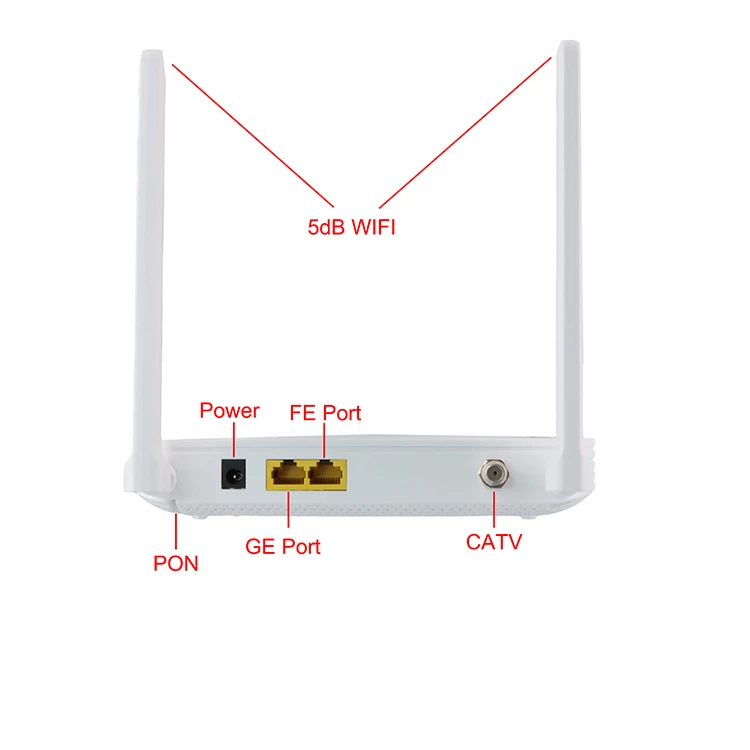

1* SC/APC PON Port 1 *10/100/1000Mbps RJ45 Ports 1 *10/100/1000Mbps RJ45 Ports 1 *CATV RF Port 1 *USB WIFI (2.4G ) | ||
Data Rates & Wavelength | Upstream:1.244Gbps, 1310nm Downstream:2.488Gbps, 1490nm | |
Distance | 0~ 20Km Max | |
External Power Supply | DC 12V/1A | |

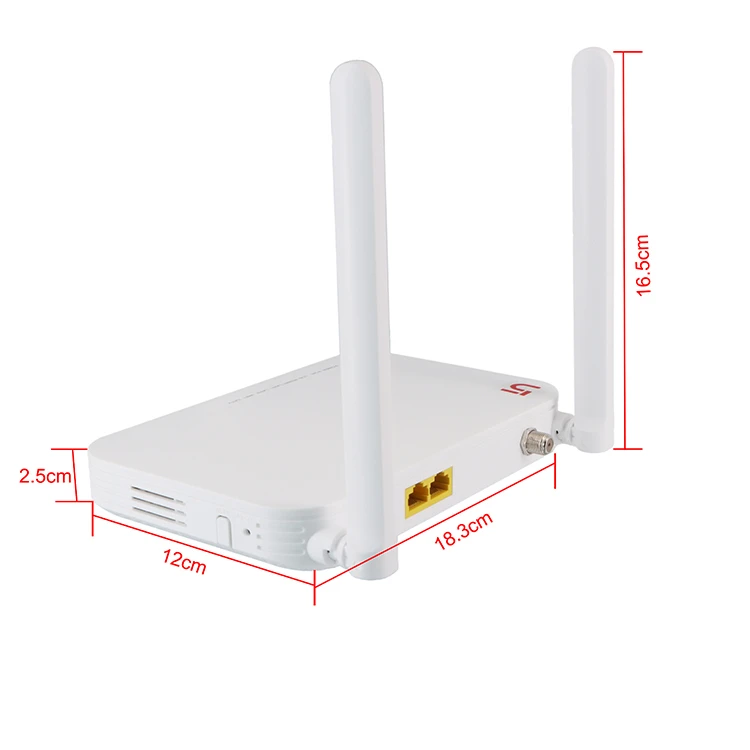

Dimensions (Length * Width * Height) | 183mm×120mm×25mm | |
Weight (Full-Loaded) | ≤0.6kg | |
Environmental Requirements | Working temperature: 0°C～40°C Storage temperature: -40°C～70°C Relative humidity: 10%～90%, non-condensing | |
Functionality | ||
Security | SMAC/ IP/ URL filter Anti-DOS Attack SPI Firewall | |
Multicast | IGMP v2/v3 snooping IGMP v2 proxy IGMP v3 proxy MLD v1/v2 snooping | |
Routing | 8 WAN interfaces NAT function Internet, IPTV and VoIP services are automatically linked to ONT ports Virtual Server, Trigger Port | |
IPv6 functions | IPv6/IPv4 dual stack DS-Lite MLD snooping | |
Configuration method | NMS, Web or TR069 | |
Related Product
Company Profile
1. Can we get a lower price? Any Discount?
Yes, price is not a problem, everything could be negotiated based on the quantity.
2. Can I get a free sample?
Yes,send inquiry,you will get free sample.
3. We are new in this PON fields, can you help me and recommend me some items?
Yes, of course. It is our pleasure to help you with it.
You only need to offer us more details about your application.
4. What is your MOQ?
No MOQ for any sample test.
5. OEM/ODM Service is available?
Yes, we have strong ability to offer customers ODM&OEM products of highest quality.
And it will require the MOQ.
6. For Trade Terms, such as payment and leadtime.
* Payment Terms: We mainly support T/T bank transfer,Paypal and Western Union
* Price Terms: EXW FOB CIF Shenzhen
* Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent
* Leadtime: Sample order 3-7work days; Bulk order 15-25work days(after your payment)
7. How about the Warranty?
There are 1 Year for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
Yes, price is not a problem, everything could be negotiated based on the quantity.
2. Can I get a free sample?
Yes,send inquiry,you will get free sample.
3. We are new in this PON fields, can you help me and recommend me some items?
Yes, of course. It is our pleasure to help you with it.
You only need to offer us more details about your application.
4. What is your MOQ?
No MOQ for any sample test.
5. OEM/ODM Service is available?
Yes, we have strong ability to offer customers ODM&OEM products of highest quality.
And it will require the MOQ.
6. For Trade Terms, such as payment and leadtime.
* Payment Terms: We mainly support T/T bank transfer,Paypal and Western Union
* Price Terms: EXW FOB CIF Shenzhen
* Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent
* Leadtime: Sample order 3-7work days; Bulk order 15-25work days(after your payment)
7. How about the Warranty?
There are 1 Year for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
