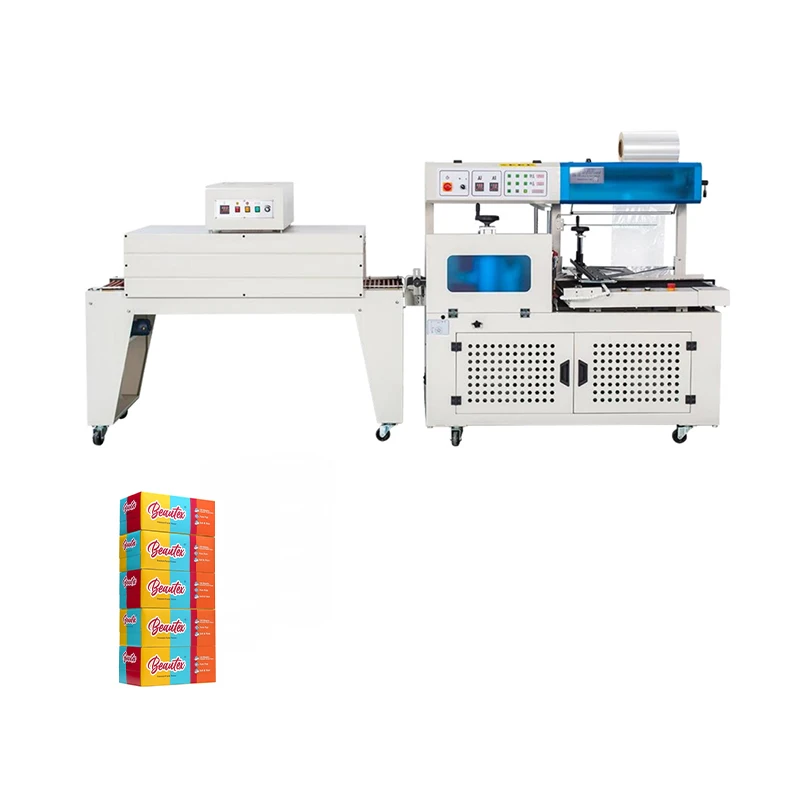

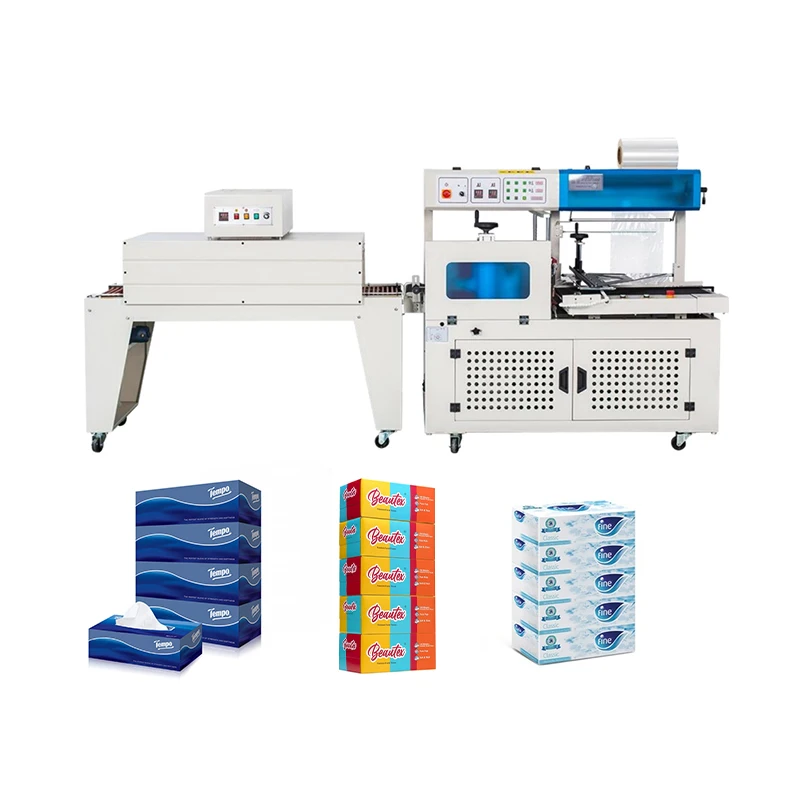

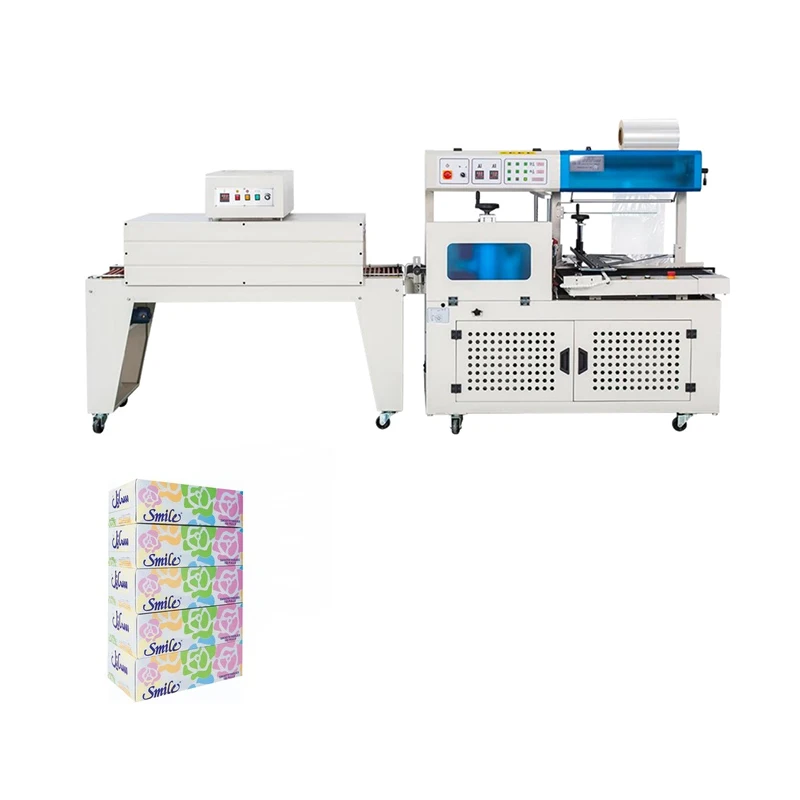

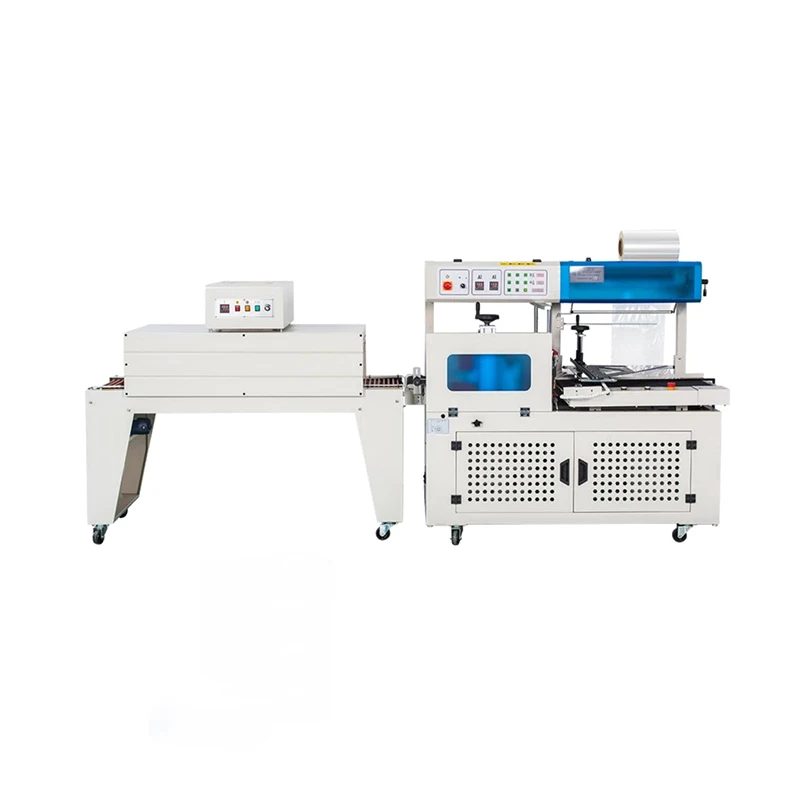

Pp Pe Film Heat Shrink Packaging Machine Film Wrapper Heat Shrink Packing Machine For Packaging Production Line
- Category: >>>
- Supplier: Shanghai Soontrue Fengguan Packaging Automation Co. Ltd.
Share on (1600679201229):
Product Overview
Description
Specification
Model | ZB-550 Automatic side sealing shrink packing machine |
Sealing model | Side sealing system |
Sealer Power | 380V/50-60HZ/3Phase |
Packing speed | Depends on products length |
Packing height | 250MM |
Packing width | 430MM |
Size limited | Width + Height≤550mm |
Film | POF , PE center-folded |
Maximum film size | 700MM (width) X 280MM (outer diameter) |
Sealer power consumption | 2.5 KW |
Conveyor height | 780-850 MM |
Aire compressor | 0.5MPA (5 BAR) |
Machine material | Carbon steel |
Machine dimension | 2610 X 1450 X 1530 MM |
Tunnel power | 380V/50-60HZ/3Phase |
Shrink oven size | 1500 (L)*600(W) X 300(H) MM |
Tunnel conveyor speed | 40 M/Min |
Tunnel conveyor | Chains with rotating silicon coated rods |
Tunnel power consumption | 12 KW |
Tunnel conveyor height | 780 – 850 MM |
ZB-550 is a fully automatic shrinking packing machine including side sealer and shrink tunnel which can feed products, seal and cut film and shrink film bag automatically. it is widely used in food, pharmaceutical, stationary, toy, auto parts, cosmetics, printing, hardware, electrical appliances and other industry. The packing length is infinite, it can pack the products with different width and height.
1.Packing method：single roll packaging
Packaging process：Infeed---Label---Seal with POF film----Shrink
1.Packing method：single roll packaging
2.Infeed conveyor direction：90°feeding
Packaging process：Infeed---Label---Seal with POF film----Shrink
Machine features：
1. This machine can pack long products. there is no limit of product length because of side sealing system.
2. Special durable alloyed sealing knife with anti-stick Teflon coats makes sealing strong and has better performance of heat conduction.
3. Side sealing line can be adjusted in the center of product or other desired position.
4. Film perforating wheels can be adjusted or removed easily.
5. Only adjust packing width and height by hand wheels without changing any molds and parts when
6. Operate easily and conveniently by moveable control panel.
7. A pair of photoelectric switches in vertical for thin products.
8. Automatically waste film collect system, it controlled by separate motor, making the waste film can be removed easily.
9. Optional customized infeed conveyor line and output line.
1. This machine can pack long products. there is no limit of product length because of side sealing system.
2. Special durable alloyed sealing knife with anti-stick Teflon coats makes sealing strong and has better performance of heat conduction.
3. Side sealing line can be adjusted in the center of product or other desired position.
4. Film perforating wheels can be adjusted or removed easily.
5. Only adjust packing width and height by hand wheels without changing any molds and parts when
packing size changes. packing length can be detected by the sensor automatically.
6. Operate easily and conveniently by moveable control panel.
7. A pair of photoelectric switches in vertical for thin products.
8. Automatically waste film collect system, it controlled by separate motor, making the waste film can be removed easily.
9. Optional customized infeed conveyor line and output line.
Soontrue is a professional tissue converting and packing machine manufacturer. Founded in 1993, with more than 133,500 square meters plant space and more than 2,000 well-trained and knowledgeable staff members, more than 700 of them are middle and senior technicians ; Our annual revenue reaches over USD300 million; with more than 2,000 patents to make sure our machines leading ahead in the industry.
Soontrue has 4 manufacturing bases which are Shanghai, Foshan, Pinghu, and Chengdu factories, Not satisfied with our achievements in China, over the past few years, we have successfully provided solutions and services for our customers in 160 countries and regions around the world. In China, Soontrue is a famous brand and the machines are widely used in all the big tissue factories, with more than 70% of domestic market share. Innovation,Intelligence, efficiency and service are always what we are striving for, win-win situation with customers is our final goal!
Soontrue has 4 manufacturing bases which are Shanghai, Foshan, Pinghu, and Chengdu factories, Not satisfied with our achievements in China, over the past few years, we have successfully provided solutions and services for our customers in 160 countries and regions around the world. In China, Soontrue is a famous brand and the machines are widely used in all the big tissue factories, with more than 70% of domestic market share. Innovation,Intelligence, efficiency and service are always what we are striving for, win-win situation with customers is our final goal!
FAQ
Q1: Does your company is trading company or manufacturer? And what is the date of establishment?
Answer: We are manufacturer with 4 manufacture bases in China , and founded in 1993 year.
Q2: I'm worried that I don't know how to operate your machine
Answer: Do not worry. Our tissue manufacturing machine is servo controlled, which greatly simplifies the difficulty of operation and commissioning. Most of the daily operation of the machine can be conducted by a few start-stop buttons and HMI. We can also provide instructional videos to give you step-by-step tutorial if necessary.
Q3: If I buy your tissue making machine, what technical support can I get?
Answer: Whether you buy a toilet paper making machine, a paper napkin making machine, or a facial tissue making machine, we will provide you with 24-hour online technical support. In addition, we can also provide you with instructional videos on the installation and daily commissioning and maintenance. For some customized tissue paper production line, our professional after-sales technicians can also provide on-site installation and commissioning services as per request (buyer should bear the cost for the service).
Q4: How do we build trust in the first business?
Answer: We believe that a win-win business must be based on our professional services and excellent products. Our team will fully study your needs, and clearly explain our products and solutions to you so that you can understand our services. We can take you to visit our modern factory through a video call, so that you can understand how your machine will be produced and let you know more about our products. Before delivery, we can cooperate with your partners to carry out factory acceptance test, or carry out acceptance through test video or video call. Make sure that the best tissue paper making machine you need is ready before shipment.
Q5: How can I find the suitable automatic tissue paper manufacturing machine I need?
Answer: We will fully communicate of the information of your tissue, including the width and diameter of the jumbo roll, pattern type, paper thickness, grammage etc.We have nearly 30 years of experience as a machinery manufacturer and can provide you with similar case videos for your reference.If necessary, we will ask you for samples of your tissue paper and packaging films for testing, in order to find the most suitable and cost-effective solution for you.
Q2: I'm worried that I don't know how to operate your machine
Answer: Do not worry. Our tissue manufacturing machine is servo controlled, which greatly simplifies the difficulty of operation and commissioning. Most of the daily operation of the machine can be conducted by a few start-stop buttons and HMI. We can also provide instructional videos to give you step-by-step tutorial if necessary.
Q3: If I buy your tissue making machine, what technical support can I get?
Answer: Whether you buy a toilet paper making machine, a paper napkin making machine, or a facial tissue making machine, we will provide you with 24-hour online technical support. In addition, we can also provide you with instructional videos on the installation and daily commissioning and maintenance. For some customized tissue paper production line, our professional after-sales technicians can also provide on-site installation and commissioning services as per request (buyer should bear the cost for the service).
Q4: How do we build trust in the first business?
Answer: We believe that a win-win business must be based on our professional services and excellent products. Our team will fully study your needs, and clearly explain our products and solutions to you so that you can understand our services. We can take you to visit our modern factory through a video call, so that you can understand how your machine will be produced and let you know more about our products. Before delivery, we can cooperate with your partners to carry out factory acceptance test, or carry out acceptance through test video or video call. Make sure that the best tissue paper making machine you need is ready before shipment.
Q5: How can I find the suitable automatic tissue paper manufacturing machine I need?
Answer: We will fully communicate of the information of your tissue, including the width and diameter of the jumbo roll, pattern type, paper thickness, grammage etc.We have nearly 30 years of experience as a machinery manufacturer and can provide you with similar case videos for your reference.If necessary, we will ask you for samples of your tissue paper and packaging films for testing, in order to find the most suitable and cost-effective solution for you.
