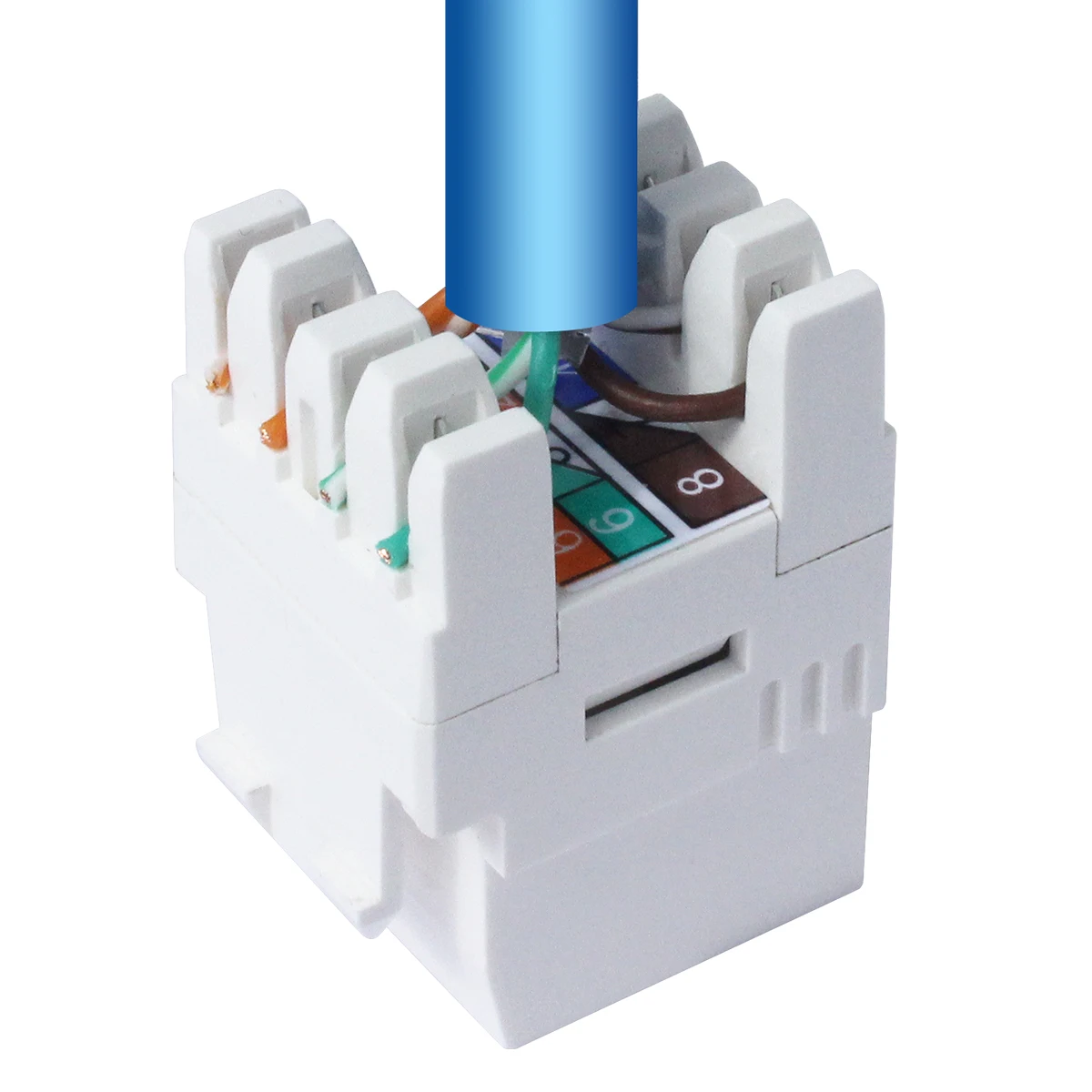

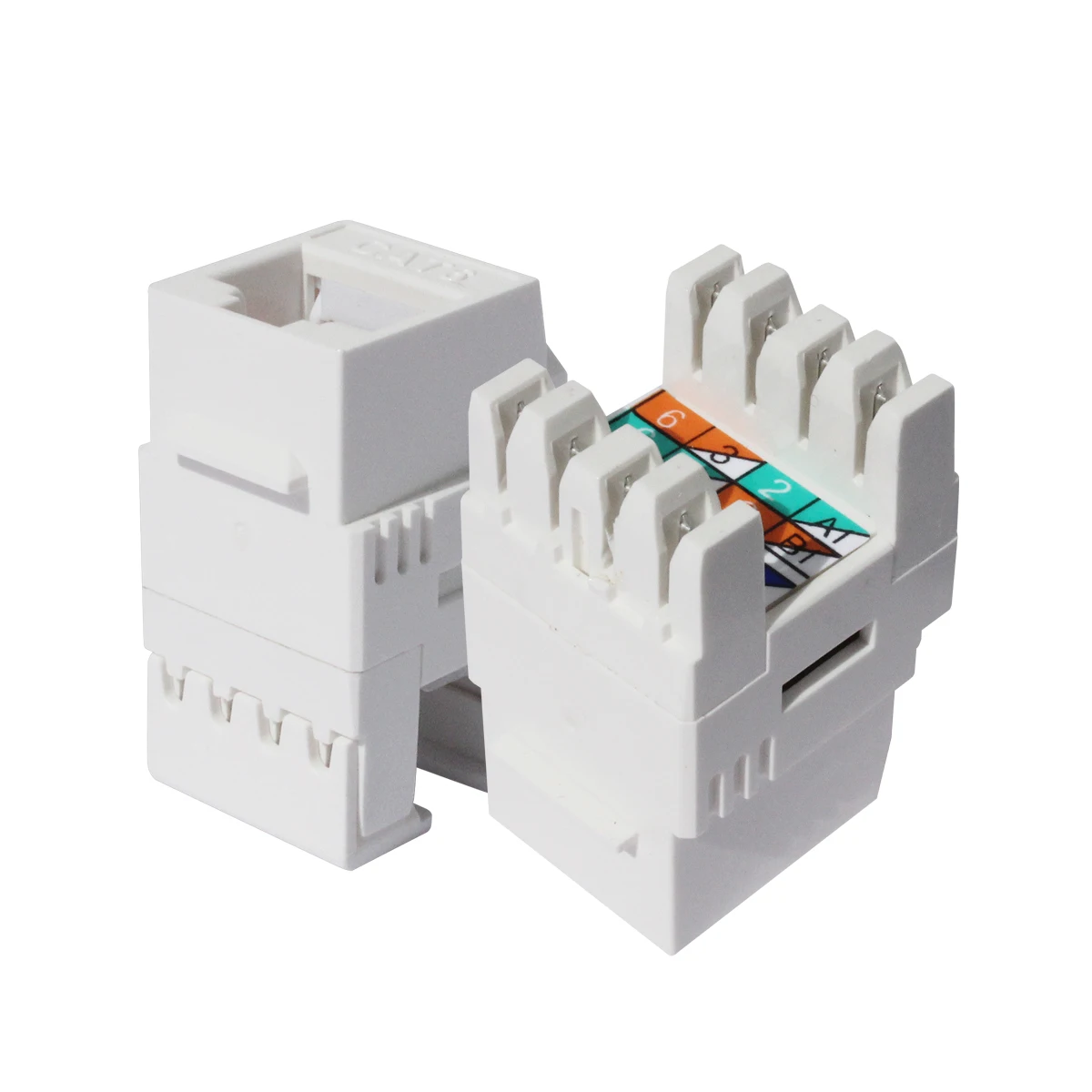

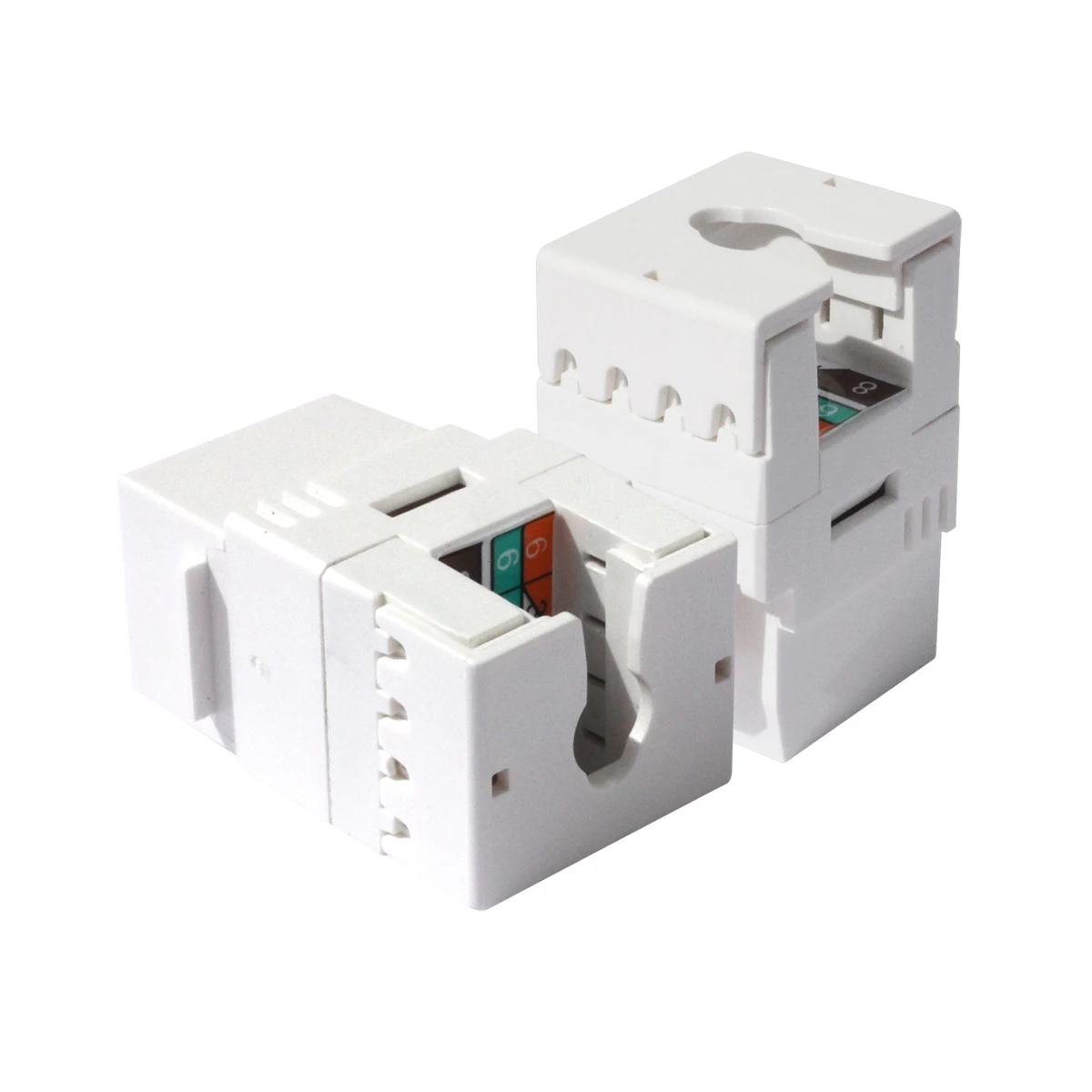

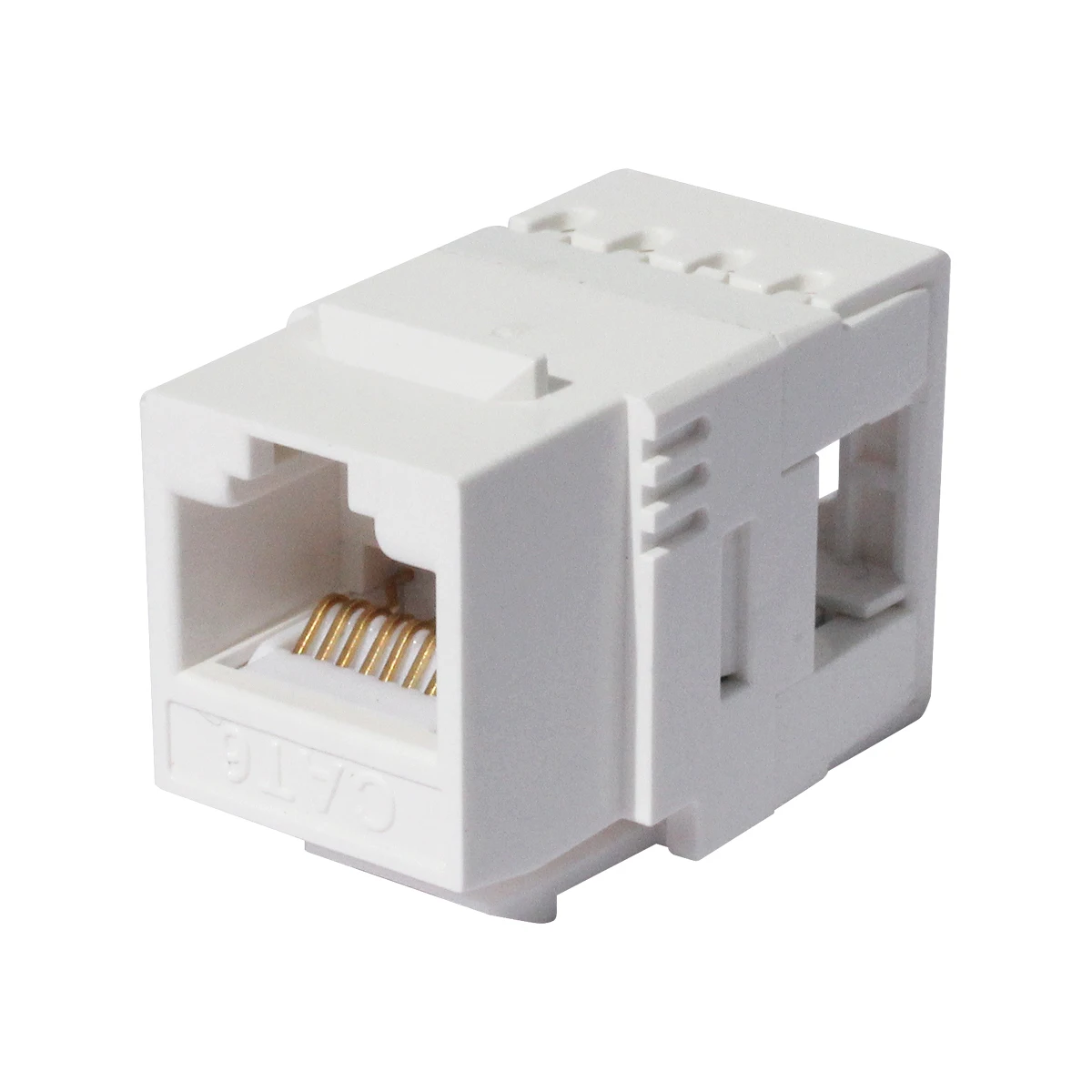

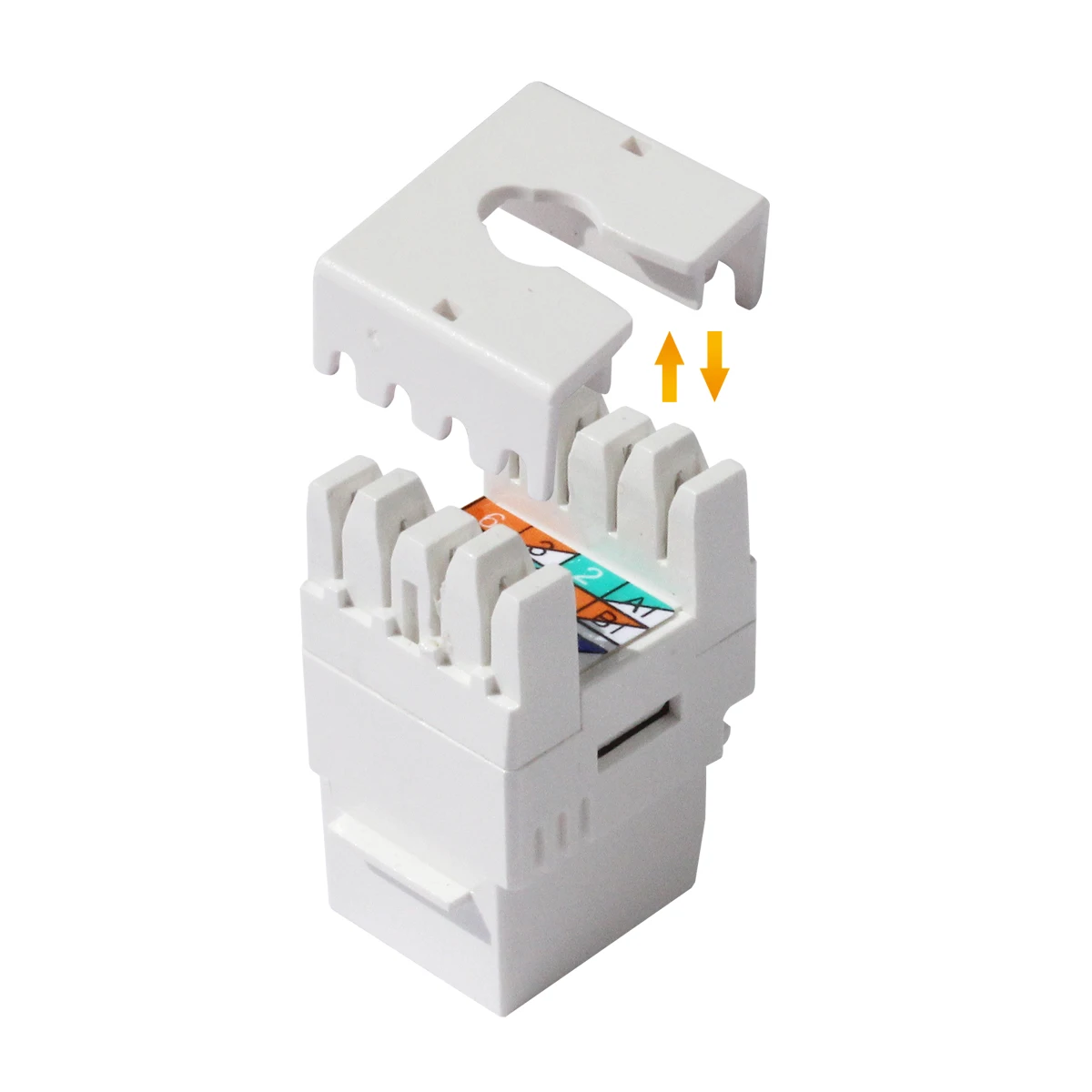

Cat6 cat5e cat6a 180 degree keystone jack without shutter UTP RJ45 jack
- Category: Other Telecommunications Products >>>
- Supplier: Yuyao Simante Network Communication Equipment Co. Ltd.
Share on (1600679265752):
Product Overview
Description
Cat6 cat5e cat6a 180 degree keystone jack without shutter UTP RJ45 jack
Product Description
Advantages
1. Auto-Machine Produce : stable quality & short leading time
2.100% QC test , 100% pass fluke test
3. OEM & ODM Services
4. Excellent R&D group support
5. Entity factory ,welcome to check the factory any time.
Technical Details:
| Current Rating: | 1.5 Amps |
| Insulation Resistance: | 500 Megaohm |
| DC Resistance: | 0.1 ohm MAX |
| Voltage: | 150 VAC MAX |
| Insertion Life: | ≥ 1000 Mating Cycles |
| Plug Retention Force: | 89N |
| Temperature: | -60 ~80 degree |
| IDC Accept: | 22-26 AWG Solid Wire |
| Wire Scheme: | T568A/ B |
Material:
| Housing | High Impact PC |
| Shiled | / |
| Spring Wire | Phosphor Bronze With Gold-plated 6u -50u |
| IDC Contact | Phosphor Bronze |
| IDC Holder | High Impact PC |
| PCB | Fiber Glass |
| Cable Tie | Nylon |
| Install Manual | A5 Paper |

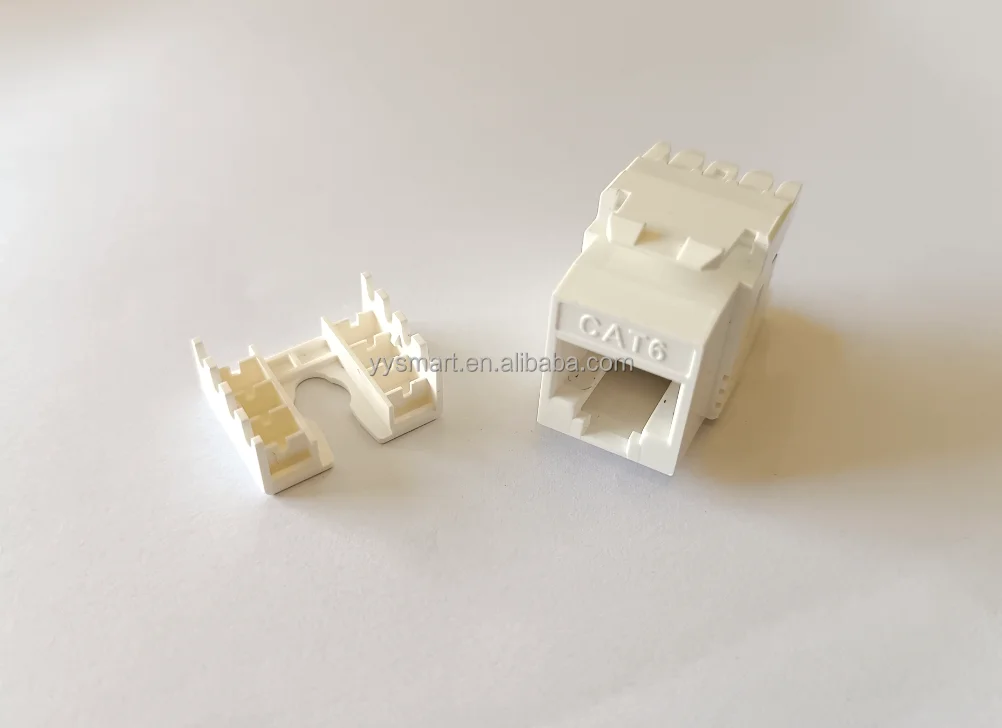

![8USO9HA4(SM{_4]IL6[~LG.png](http://sc03.alicdn.com/kf/H1983812b32854aecbb636773748613feI/200164322/H1983812b32854aecbb636773748613feI.png)
