500kg load small suspended platform building exterior painting hotel glass windows cleaning cradle gondolas
- Category: >>>
- Supplier: Shanghai Power Engineering Machinery Co. Ltd.
Share on (1600679348043):
Product Overview
Description
Video Description
Products Description
zlp500 series rope suspended power movable platform window cleaning hanging scaffold electric suspending cradle
Parameters of Painting ZLP500 Suspended Platform | ||
1. Rated Load | 500KG | |
2. Lifting speed | 9.3m/min | |
3. Lifting height | 50m | |
4. Hoist | LTD5.0 | |
4.1 Voltage-3 Phase | 380V(415V/220V) | |
4.2 Frequency | 50Hz/60Hz | |
4.3 Power | 1.5kwx2 | |
5. Safety Lock | LSG20 | |
6. Electric Control Cabinet Components | Schneider or CHNT | |
7. Platform Sise (LxWxH) | (2.5+2.5)x0.69x1.18m | |
8. Steel Wire Rope | 4pcsx100m 4x31SW+FC D=8.3mm | |
9. Special Cable | (3x2.0+2x1.0mm2) 100m | |
10. Suspended Jibs | 340kg | |
11.Lifting Parts Weight | 410kg(Steel) 290kg(Aluminum) | |
12.Counter Weight | 750kg | |
13.Qty of 20" Container | 10 sets | |
1. Working Platform: Steel Q235 + Painting; Q235 + Galvanised; Aluminum Alloy + Painting;
1.1 Working Platform is the workplace at heights for the workers.
1.2 Size of platform can be adjusted from 1.0m, 1.5m, 2m, 2.5 meter or 3m etc depending upon the needs of your building
1.3 With Bottom Wheel fitted underneath, the platform is easy to move.
1.1 Working Platform is the workplace at heights for the workers.
1.2 Size of platform can be adjusted from 1.0m, 1.5m, 2m, 2.5 meter or 3m etc depending upon the needs of your building
1.3 With Bottom Wheel fitted underneath, the platform is easy to move.
2. Suspension Mechanism: Steel Q235 + Painting; Q235 + Galvanised;
Suspension mechanism is on the top of the building to suspend the platforms through the steel rope.
Suspension mechanism is on the top of the building to suspend the platforms through the steel rope.
3. Components:
LTD6.3 Hoist: 1.5kw, 2 sets;
LSD20 Safety Lock: 2 sets;
Electric Cabine: 1 set;
Steel Rope: 4pcs, 100m/pcs; D=9.1mm;
Electric Cabinet: 1pcs, 100m/pcs, 3x2.5+2x1.5mm sq;
Safety Rope: 1pcs; 100m/pcs;
Counterweight (Optional): 40pcs, 25kg/pcs.
LTD6.3 Hoist: 1.5kw, 2 sets;
LSD20 Safety Lock: 2 sets;
Electric Cabine: 1 set;
Steel Rope: 4pcs, 100m/pcs; D=9.1mm;
Electric Cabinet: 1pcs, 100m/pcs, 3x2.5+2x1.5mm sq;
Safety Rope: 1pcs; 100m/pcs;
Counterweight (Optional): 40pcs, 25kg/pcs.

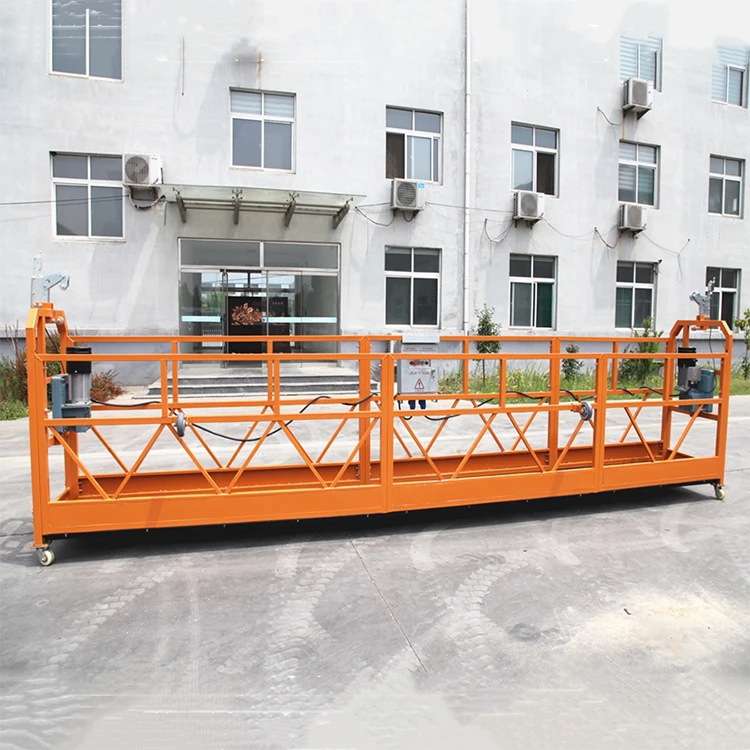

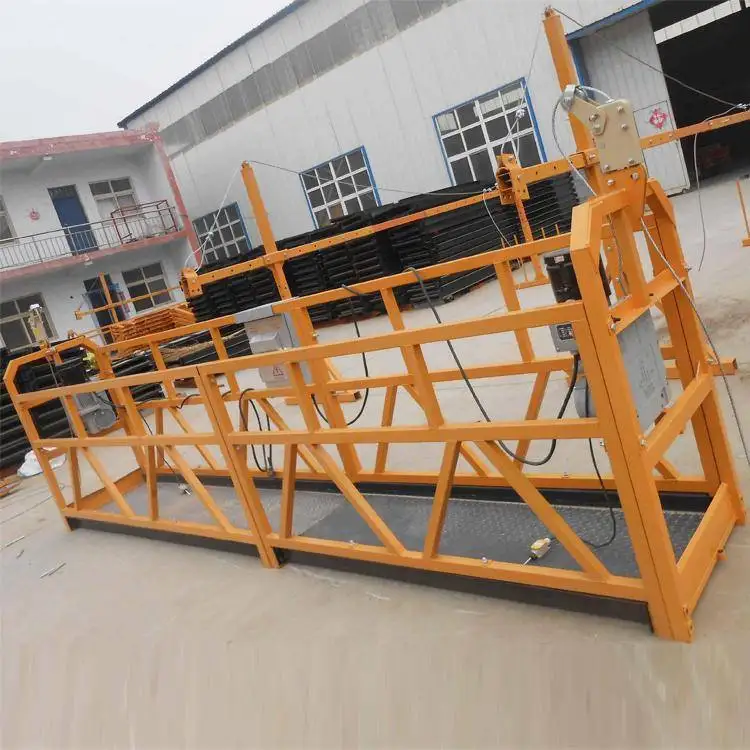

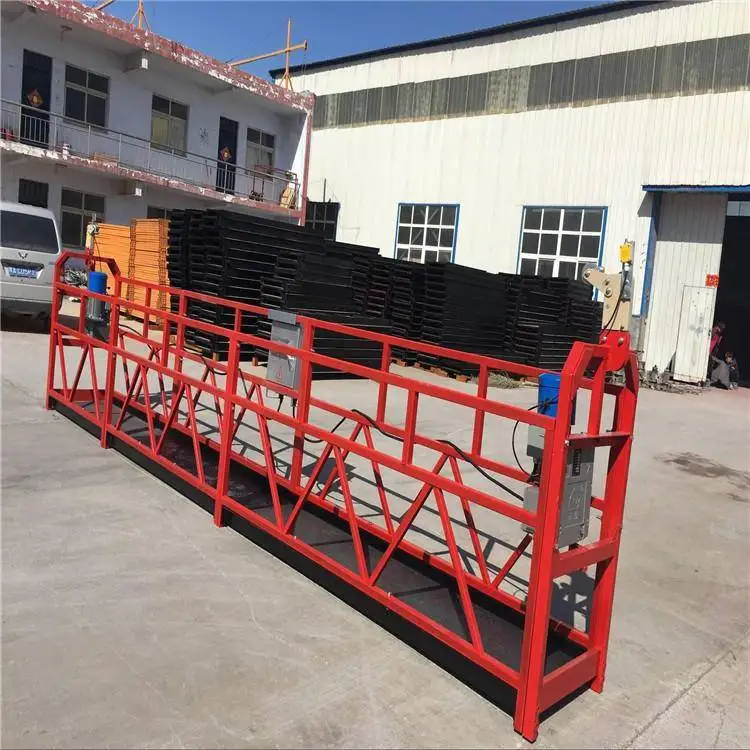

Product display
Suspended platform is mainly composed by suspension mechanism, hoist, safety lock, electric control box, working platform.Its structure is reasonable and easy to operate.It can be assembled and disassembly accroding to the actual Demand.The cleaning platform is mainly used for refurbishment, decoration, cleaning and maintenance of high construction building.

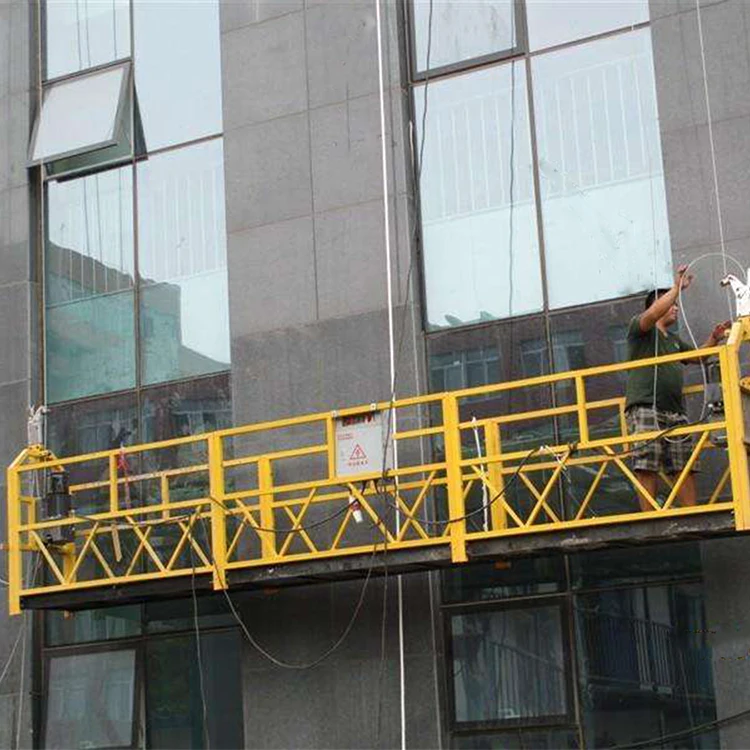

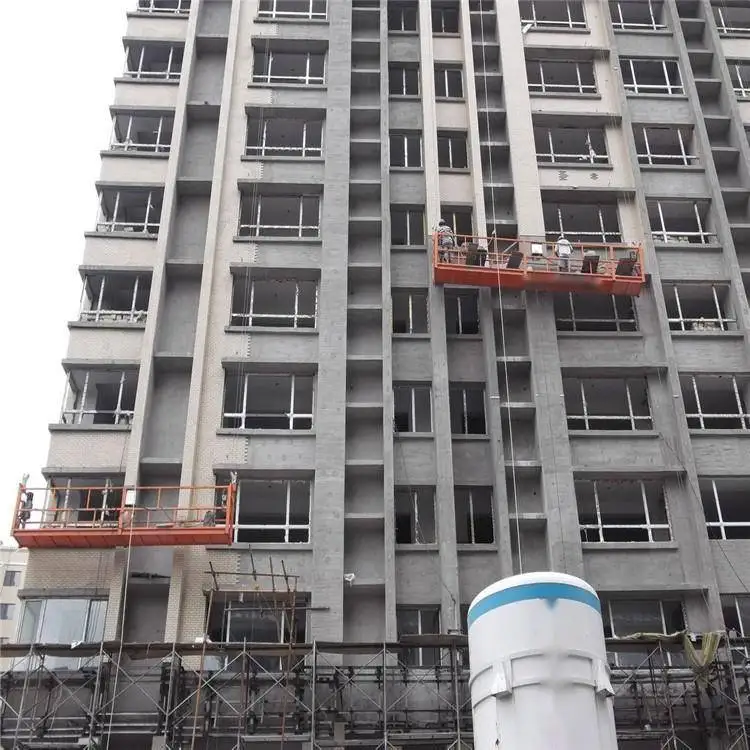

Successful Case
Our Construction gondola for window cleaning machine suspended platform have exported to more than 20 countries with good feedback from customers. We supply site access solutions according to different construction solution.
Technological process
Packing&Delivery
FAQ
1. How much is this suspended platform?
Price will offer you immediately after telling us your requirements of model, platform length,loading capacity, material, painting coat or galvanzied, voltage,with counterweight or not and price terms.
2. What quality certificate you own for your products?
Our products own CCC, CE, EAC and ISO9001 certificate.
3. How about the price?
Please send us inquiry, a consideration solution or preferable will be sent within 24 hours.
4. Payment term?
T/T, L/C, Alibaba trade.
5. Spare parts & guarantee?
If any parts get damaged because of quality within 12 months after shipping date. We will send new parts to replace right away.
6. Can you make suspended platform with our brand?
Yes.
7. Can you OEM as customers site situation?
Yes.
8. Delivery time?
According to order quantity, 10-20 working days will be finished after getting the deposit.
Price will offer you immediately after telling us your requirements of model, platform length,loading capacity, material, painting coat or galvanzied, voltage,with counterweight or not and price terms.
2. What quality certificate you own for your products?
Our products own CCC, CE, EAC and ISO9001 certificate.
3. How about the price?
Please send us inquiry, a consideration solution or preferable will be sent within 24 hours.
4. Payment term?
T/T, L/C, Alibaba trade.
5. Spare parts & guarantee?
If any parts get damaged because of quality within 12 months after shipping date. We will send new parts to replace right away.
6. Can you make suspended platform with our brand?
Yes.
7. Can you OEM as customers site situation?
Yes.
8. Delivery time?
According to order quantity, 10-20 working days will be finished after getting the deposit.
