ZTE F819 ZTE ZXA10 MDU F819 Device F823 F822 F821 F820 F803 F804 8/16/24 GPON/EPON ONU console cable
- Category: >>>
- Supplier: Zhengzhou Wangmai Trading Co. Ltd.
Share on (1600679462702):
Product Overview
Description
Product Paramenters
ZXA10 F804
ZXA10 F804 is a GPON Multiple Dwelling Unit (MDU) designed for FTTB/FTTO applications. F804 can provide HSI/Video/Voip converged access by connecting IAD or RG. The F804 special features is it’s reverse PoE, for when you lack a power supply.
GPON Interface
Optical port: 1 x GPON interface (SC/UPC)
Transmission Distance: 0 - 20km
Transmit rate: 2.488 Gbps downstream; 1.244 Gbps upstream
User Network Interface
1 x 10/100Base-T in main control card (Half/full duplex; Auto MDI/MDIX;
Auto negotiation) Optional UNIs:
8 FE interfaces ; 16 FE interfaces
24 FE interfaces ; 8 FE interfaces (Reverse PoE)
Optical Module
Wavelenth:
Receiving: 1480 - 1500 nm
Transmitting: 1290 - 1330 nm
Receiving Sensitivity: -28 dBm
Transmitting Optical Power: 1 - 5 dBm
Physical Performance
Power consumption: 10.2W (8FE-G) ; 11.53W (15FE-G) ; 13.7W (24FE-G) ; 11.3W (8PoE-G)
Dimensions: 170mm x 280mm x 43.6mm (8FE/16FE/8PD) 160 x 313 x 43.6 (24FE)
Working temperature: -30°C ~ 55°C
Working humidity: 5% ~ 95%
Weight: 2.0kg (8/16FE); 1.5kg (8PD); 2.6kg (24FE)
Power supply: -48 VDC or 110V/220V AC
Mounting mode: Rack/Cabinet/Desktop/Wall mounted
Main Function
Supported service: Internet, IPTV
GPON: 32 T-CONTs, 4096 GEM Ports
Type B protection
VLAN: 802.1Q, 802.1P, 802.1ad
MAC address learning and aging
MAC address table: 64l
Multicast: IGMP v1/v2/v3 Snooping
Multicast group: 1024
QoS: Service flowclassification based on physical port, MAC address, VLAN ID, VLAN priority level, IP address; SP/WRR/SP+WRR
Management: SNMP, Telnet, Local serial port management, SSH, OMCI
ZXA10 F804 is a GPON Multiple Dwelling Unit (MDU) designed for FTTB/FTTO applications. F804 can provide HSI/Video/Voip converged access by connecting IAD or RG. The F804 special features is it’s reverse PoE, for when you lack a power supply.
GPON Interface
Optical port: 1 x GPON interface (SC/UPC)
Transmission Distance: 0 - 20km
Transmit rate: 2.488 Gbps downstream; 1.244 Gbps upstream
User Network Interface
1 x 10/100Base-T in main control card (Half/full duplex; Auto MDI/MDIX;
Auto negotiation) Optional UNIs:
8 FE interfaces ; 16 FE interfaces
24 FE interfaces ; 8 FE interfaces (Reverse PoE)
Optical Module
Wavelenth:
Receiving: 1480 - 1500 nm
Transmitting: 1290 - 1330 nm
Receiving Sensitivity: -28 dBm
Transmitting Optical Power: 1 - 5 dBm
Physical Performance
Power consumption: 10.2W (8FE-G) ; 11.53W (15FE-G) ; 13.7W (24FE-G) ; 11.3W (8PoE-G)
Dimensions: 170mm x 280mm x 43.6mm (8FE/16FE/8PD) 160 x 313 x 43.6 (24FE)
Working temperature: -30°C ~ 55°C
Working humidity: 5% ~ 95%
Weight: 2.0kg (8/16FE); 1.5kg (8PD); 2.6kg (24FE)
Power supply: -48 VDC or 110V/220V AC
Mounting mode: Rack/Cabinet/Desktop/Wall mounted
Main Function
Supported service: Internet, IPTV
GPON: 32 T-CONTs, 4096 GEM Ports
Type B protection
VLAN: 802.1Q, 802.1P, 802.1ad
MAC address learning and aging
MAC address table: 64l
Multicast: IGMP v1/v2/v3 Snooping
Multicast group: 1024
QoS: Service flowclassification based on physical port, MAC address, VLAN ID, VLAN priority level, IP address; SP/WRR/SP+WRR
Management: SNMP, Telnet, Local serial port management, SSH, OMCI
Product Mold | ZTE ONU ZXA10 F804-8-16 |

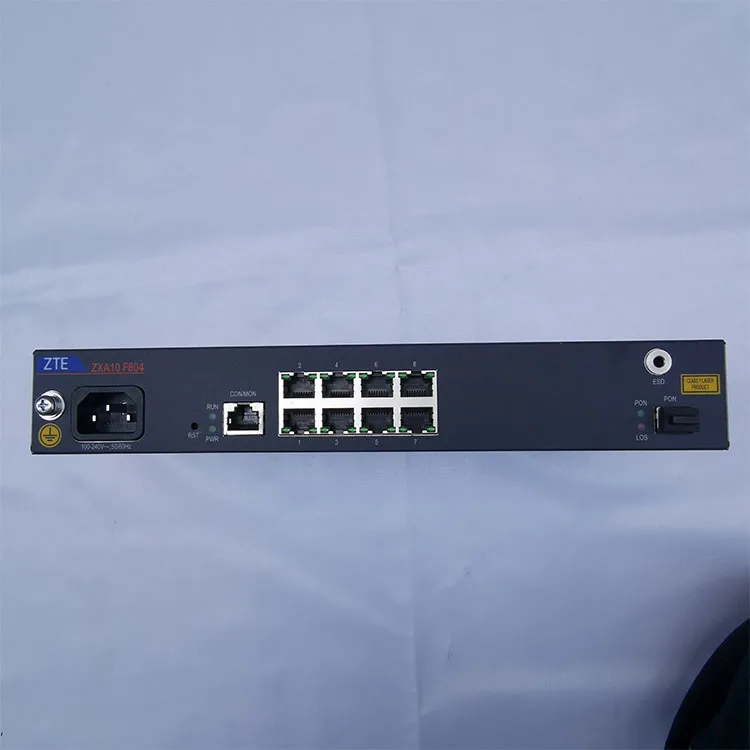

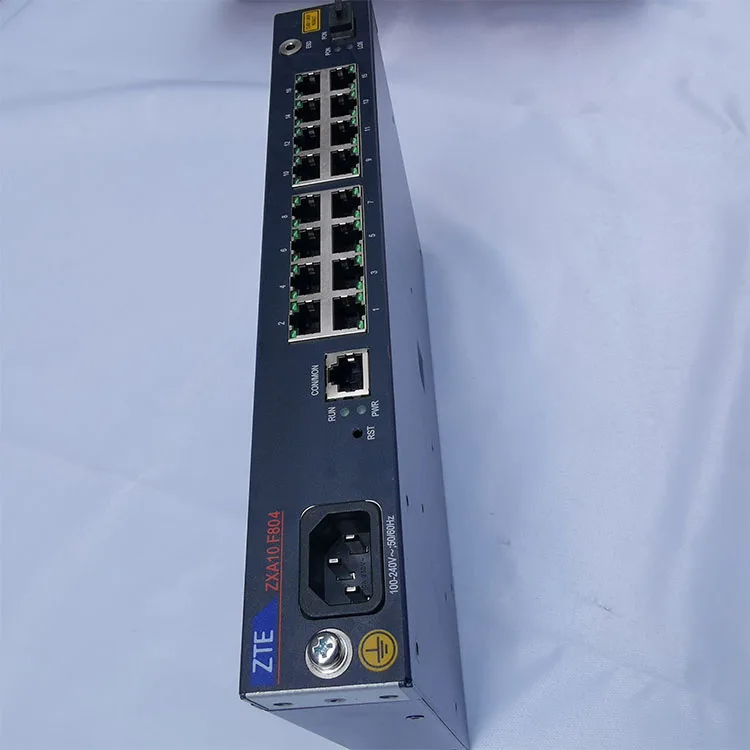

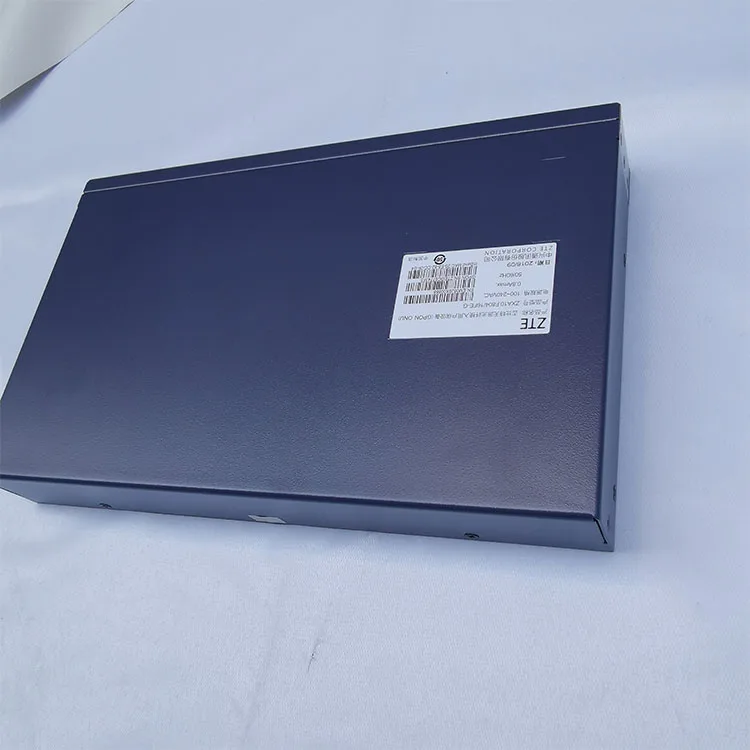

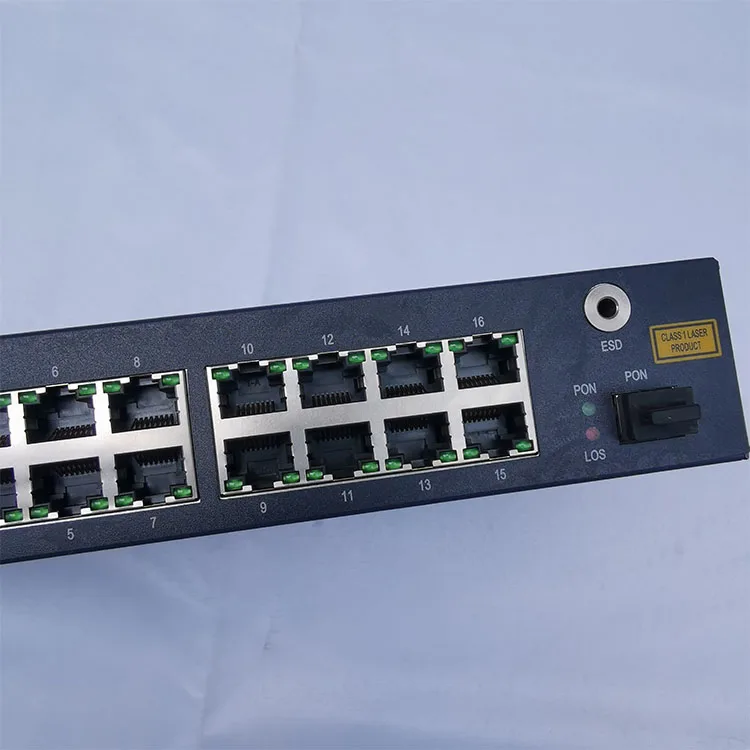

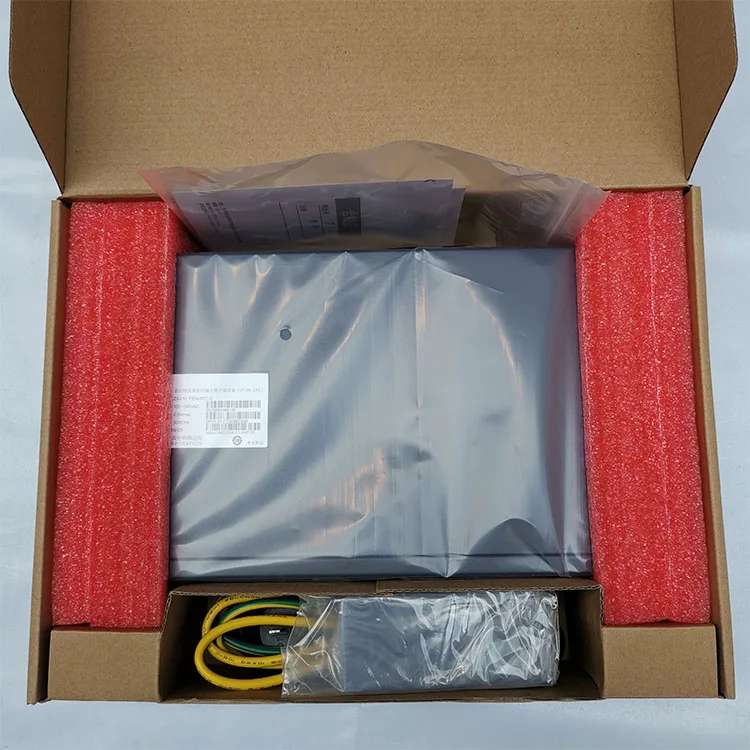

Product Picture
