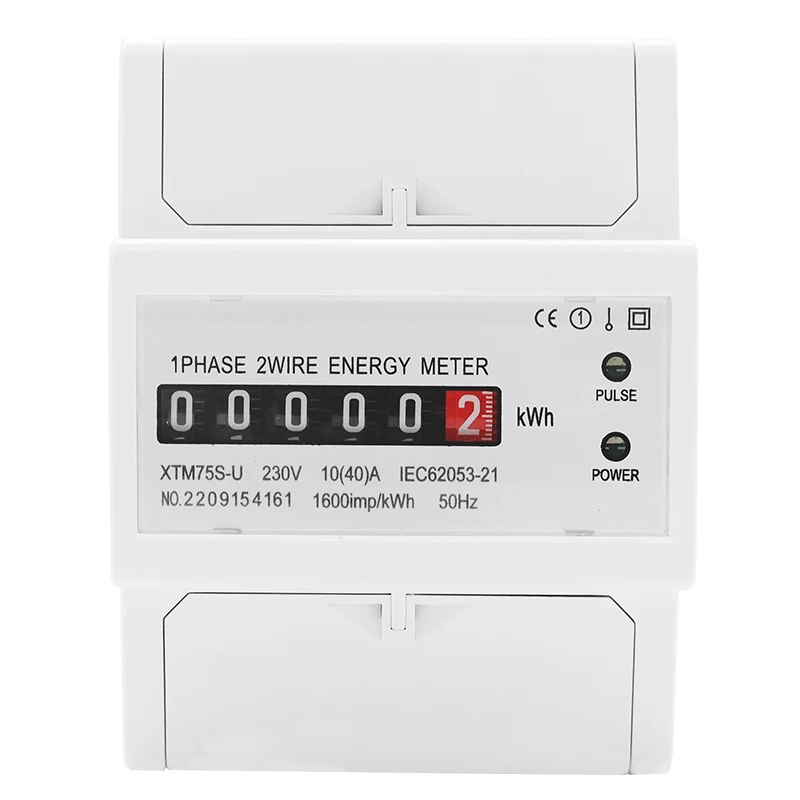

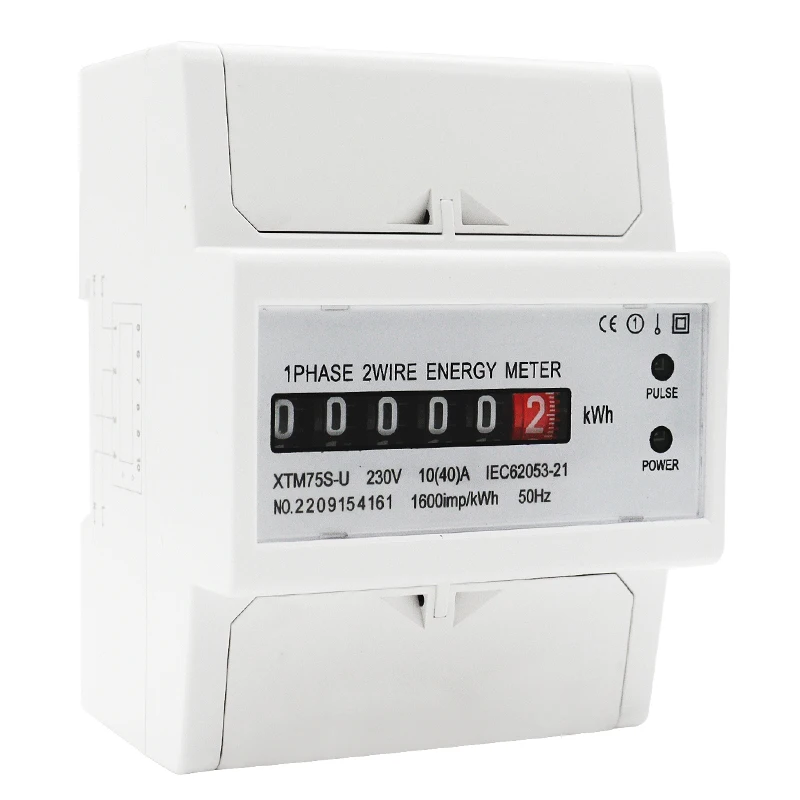

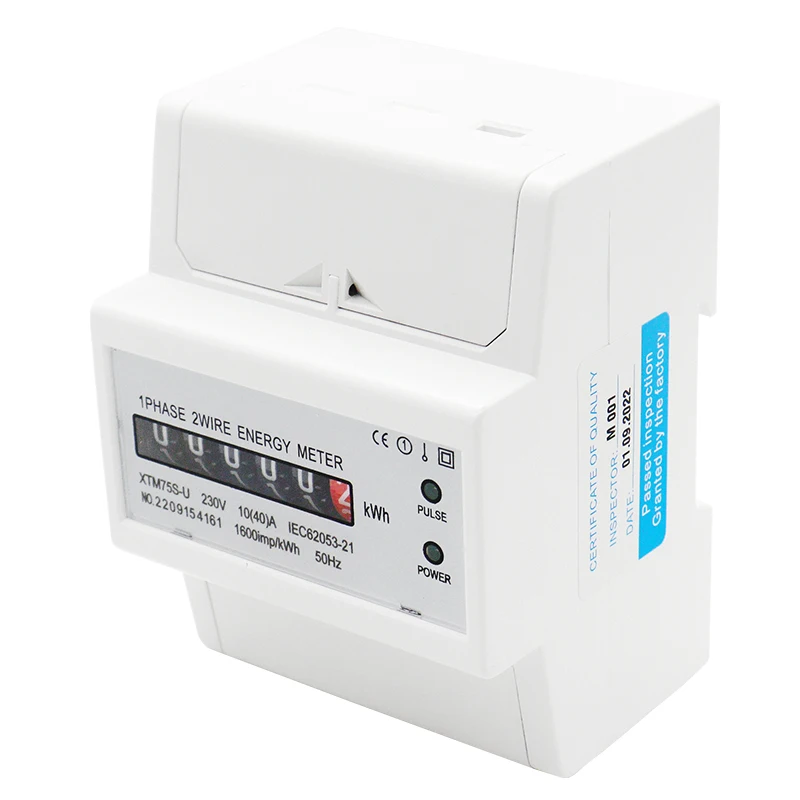

Electric Single Phase Two Wire AC 230V 100A Energy Meter kWh Counter Consumption Analog Electricity Wattmeter Household Din Rail
- Category: >>>
- Supplier: Wenzhou Taiye Electric Appliance Co. Ltd.
Share on (1600679476909):
Product Overview
Description
Products Description

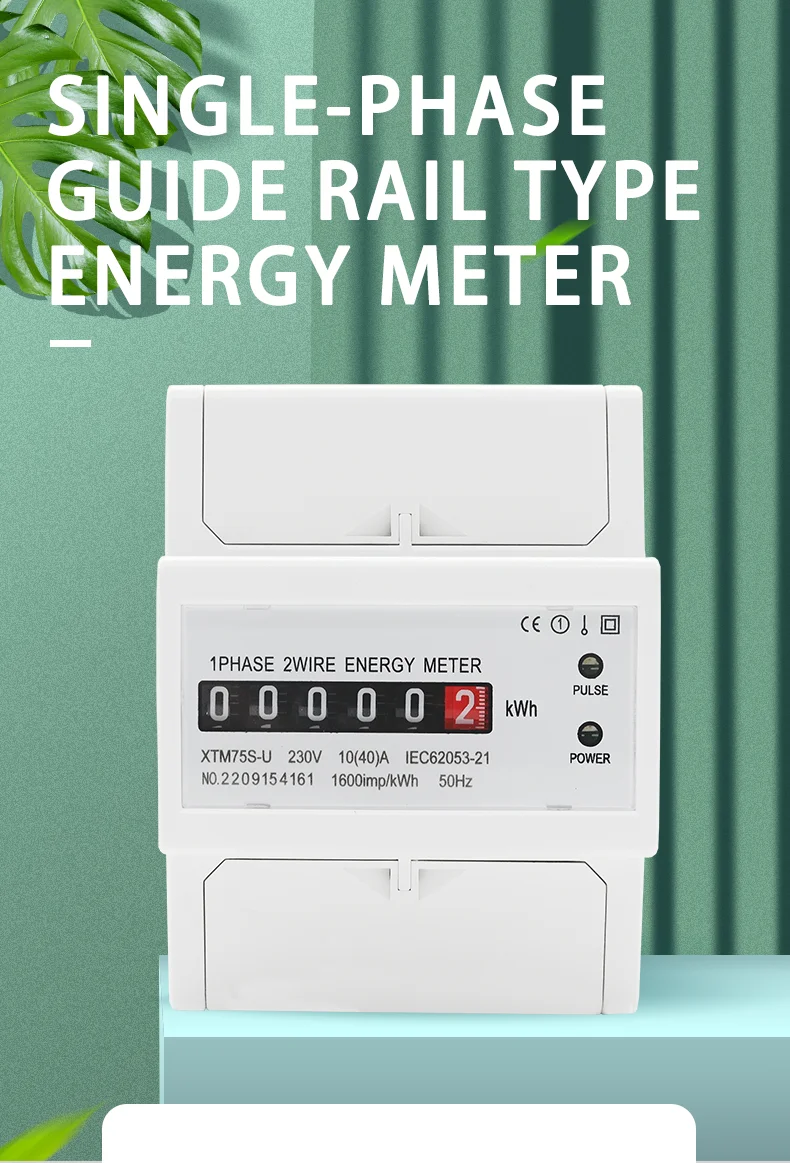

XTM75S-U single-phase guide rail electric energy meter is a new single-phase full electronic electric energy meter developed by our company using microelectronic technology to measure electric energy, special large-scale integrated circuit, digital
processing technology, SMT technology and other advanced technologies. The meter fully complies with the relevant technical requirements of the GB/T17215.321-2008 national standard and the IEC62053 international standard for the Class 1 or Class 2

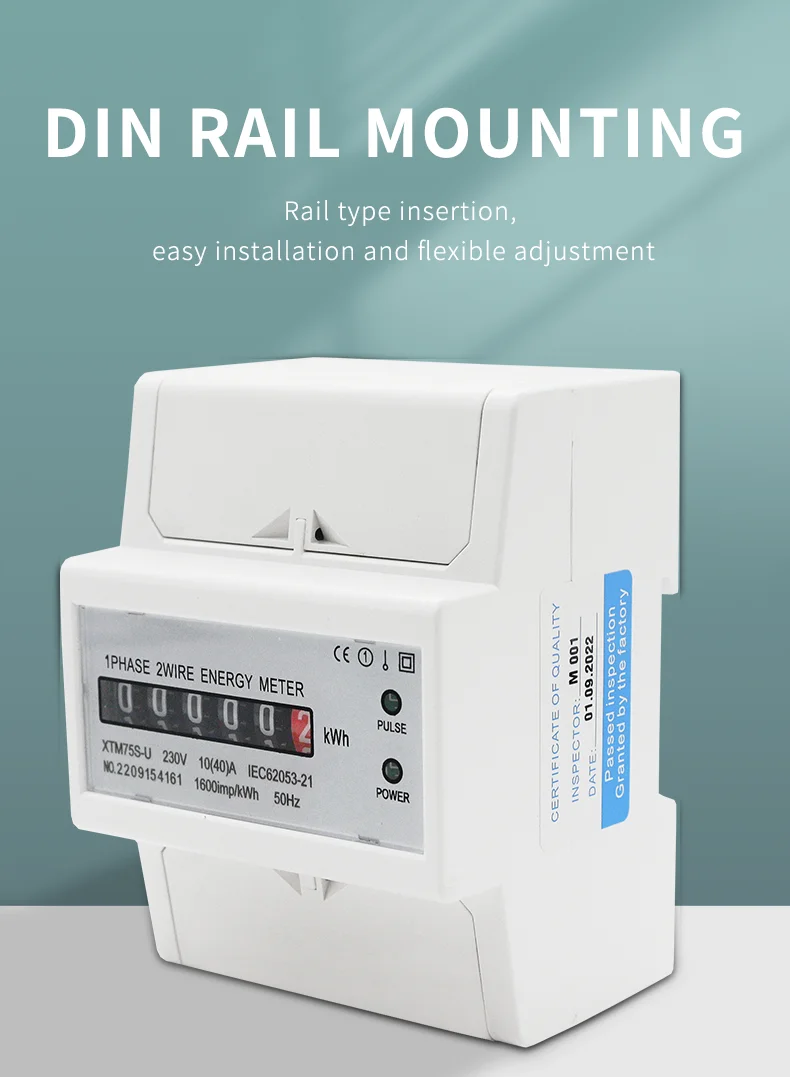

single-phase energy meter. It can directly and accurately measure the positive active energy in the electric energy measurement. It has the characteristics of high reliability, small size, light weight, beautiful appearance, advanced technology, 35mm DIN standard rail installation, etc; And it has good anti electromagnetic interference, low power consumption, high precision, high overload, high stability, and electricity theft prevention.
The meter is applicable to measuring single-phase AC active electric energy with rated frequency of 50Hz or 60Hz for fixed installation indoors. It is applicable to the environment temperature not exceeding - 25 ℃~+55 ℃, the relative humidity not
exceeding 95%, and the air does not contain corrosive gas and avoid the impact of dust, mold, salt mist, condensation, insects, etc.
processing technology, SMT technology and other advanced technologies. The meter fully complies with the relevant technical requirements of the GB/T17215.321-2008 national standard and the IEC62053 international standard for the Class 1 or Class 2
single-phase energy meter. It can directly and accurately measure the positive active energy in the electric energy measurement. It has the characteristics of high reliability, small size, light weight, beautiful appearance, advanced technology, 35mm DIN standard rail installation, etc; And it has good anti electromagnetic interference, low power consumption, high precision, high overload, high stability, and electricity theft prevention.
The meter is applicable to measuring single-phase AC active electric energy with rated frequency of 50Hz or 60Hz for fixed installation indoors. It is applicable to the environment temperature not exceeding - 25 ℃~+55 ℃, the relative humidity not
exceeding 95%, and the air does not contain corrosive gas and avoid the impact of dust, mold, salt mist, condensation, insects, etc.

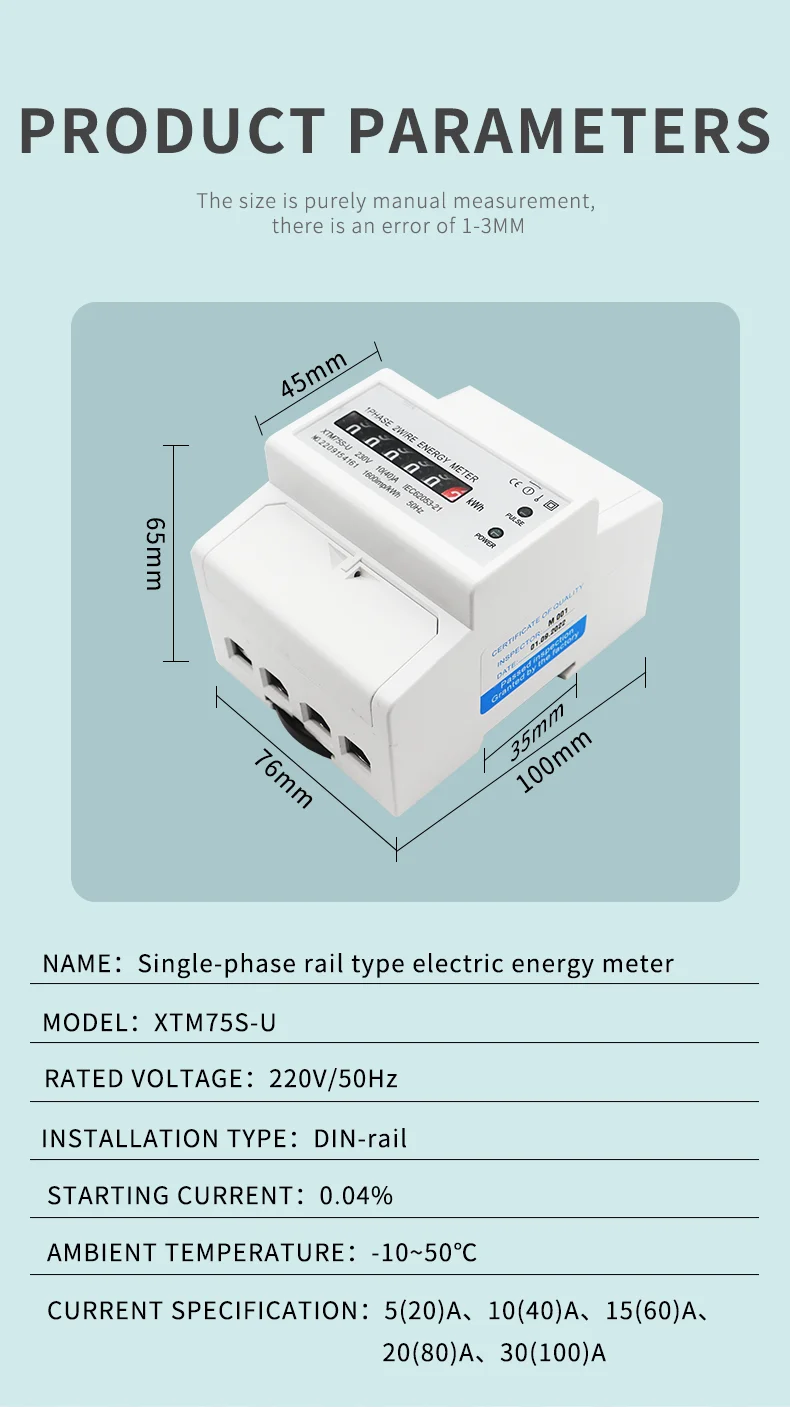

Specification | ||
Model | XTM75S-U | |
Type | Single-phase electric energy meter | |
Basic Current | 5 (A) | |
Accuracy Level | 1.0 | |
Reference Voltage | 220 (V) | |
Display Mode | Couter | |
Frequency | 50Hz | |
Maximum Current | 100 (A) | |
Select | 5-30A, 10-40A, 15-60A, 20-80A, 30-100A | |
Company Profile
Wenzhou Taiye Electric Co.,Ltd. has be committed to provide full-service for industrial automation control since its founded. We provide users with advanced technology and quality service for a long time.
Our company is specialized in design, production and sales of digital instruments (Ammeter, voltmeter, frequency meter, power factor meter, multifunction meter,Wifi Meter ),current sensor, power transformer and so on. The products have been widely used in the industries of power system, control system,building, civil projects, environmental protection, national defense etc.
Our main products have passed the national relative national type tests and got the certificates. Our company has fully passed the ISO9001,CE,ROHS. We sincerely expects to cooperate with all friends from the world.
Our main products have passed the national relative national type tests and got the certificates. Our company has fully passed the ISO9001,CE,ROHS. We sincerely expects to cooperate with all friends from the world.
FAQ
Q:How and how long can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality. Then after you send us confirmed files, the samples will be ready for delivery in 7 days. The samples will be sent to you via express and arrive in 5-7 workdays.
Q:How to order our product ?
A: 1)Please tell us the model and quantity and other request you need.
2)We make the PI for you.
3)After you confirm the PI, we arrange the order for you after receiving your payment.
4)After the goods finished, we send the goods out to you and tell you the tracking number.
5)We will track your goods until you receive the goods.
Q: Can I have a visit to your factory before the order?
A: Welcome! Our factory address: Dongan Industrial Zone,Yueqing City, Wenzhou, Zhejiang, China (Mainland)
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If I want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C,etc.
Q: If I want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
A: After price confirmation, you can require for samples to check our quality. Then after you send us confirmed files, the samples will be ready for delivery in 7 days. The samples will be sent to you via express and arrive in 5-7 workdays.
Q:How to order our product ?
A: 1)Please tell us the model and quantity and other request you need.
2)We make the PI for you.
3)After you confirm the PI, we arrange the order for you after receiving your payment.
4)After the goods finished, we send the goods out to you and tell you the tracking number.
5)We will track your goods until you receive the goods.
Q: Can I have a visit to your factory before the order?
A: Welcome! Our factory address: Dongan Industrial Zone,Yueqing City, Wenzhou, Zhejiang, China (Mainland)
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If I want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C,etc.
Q: If I want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
