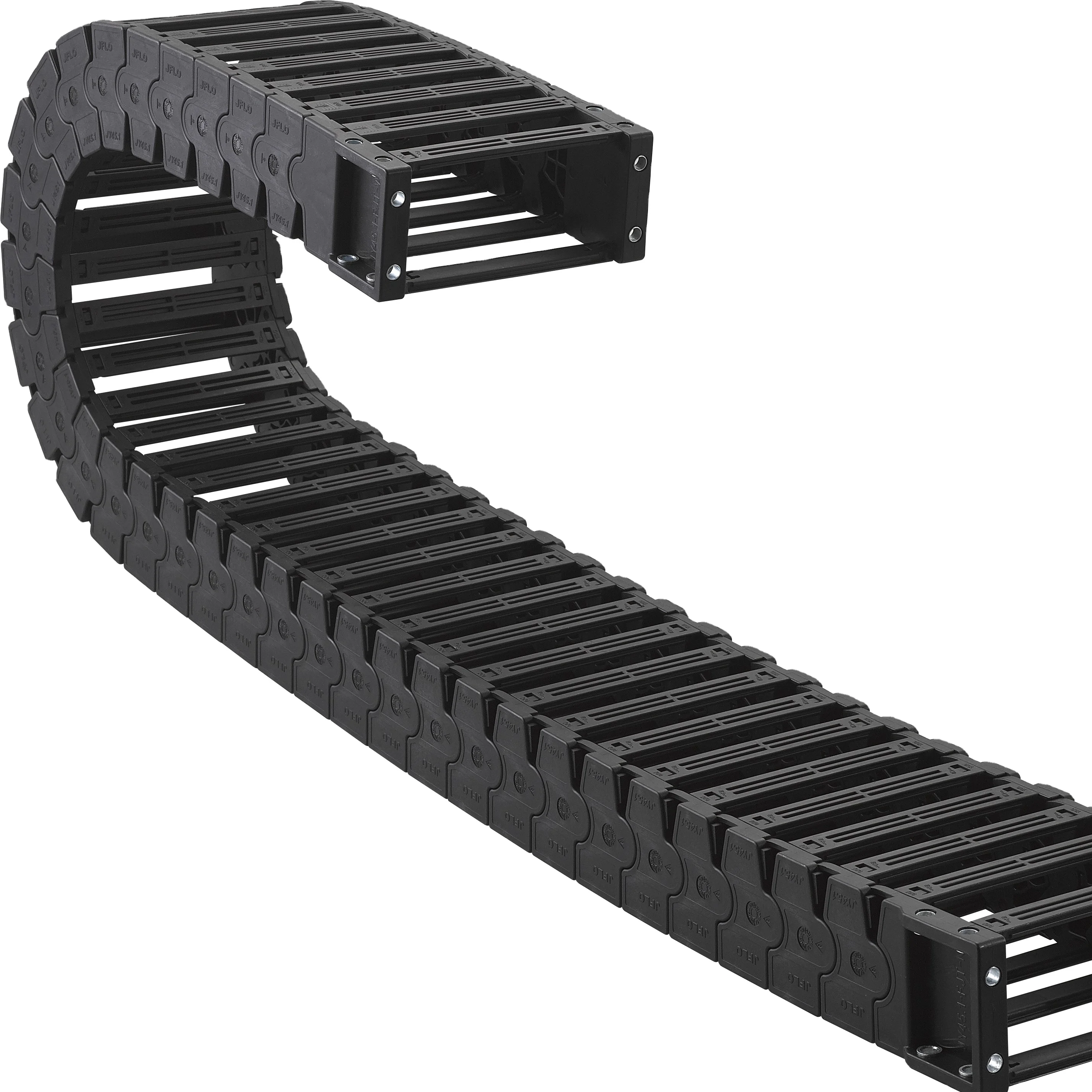

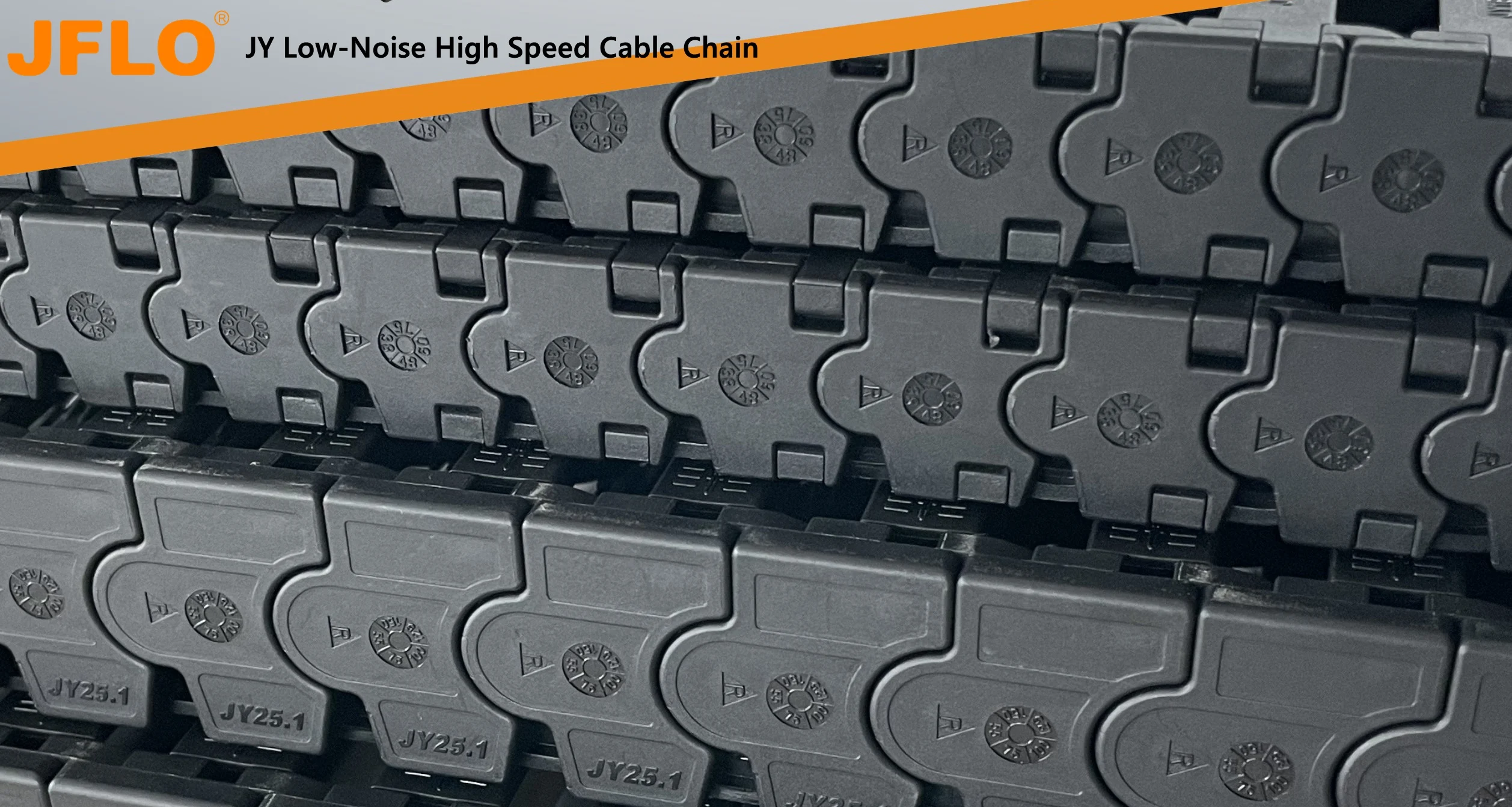

JFLO низкошумная серия кабельная цепь, JY45X100 45X150 противошумная кабельная носитель
JFLO низкошумная серия кабельная цепь, JY45X100 45X150 противошумная кабельная носитель
JFLO низкошумная серия кабельная цепь, JY45X100 45X150 противошумная кабельная носитель

JFLO низкошумная серия кабельная цепь, JY45X100 45X150 противошумная кабельная носитель

Share on (1600679486397):


Price:

Quantity:


Product Overview

Description









P/N#
Hi
Bi
Ha
Ba
Bending Radius
Bracket P/N #
JY45Q.1.25W
45
25
55
49








R55 R75 R100 R125 R150 R175 R200
JY45Q.1.25W-FJT
JY45Q.1.38W
45
38
55
62

JY45Q.1.38W-FJT
JY45Q.1.50W
45
50
55
74

JY45Q.1.50W-FJT
JY45Q.1.57W
45
57
55
81

JY45Q.1.57W-FJT
JY45Q.1.75W
45
75
55
89

JY45Q.1.75W-FJT
JY45Q.1.77W
45
77
55
91

JY45Q.1.77W-FJT
JY45Q.1.100W
45
100
55
124

JY45Q.1.100W-FJT
JY45Q.1.103W
45
103
55
127

JY45Q.1.103W-FJT
JY45Q.1.125W
45
125
55
149

JY45Q.1.125W-FJT
BASIC TECHNICAL DATA
PITCH=30.3MM, PER METER=33 LINKS, LENGTH OF CHAIN=S/2+K, S=Stroke

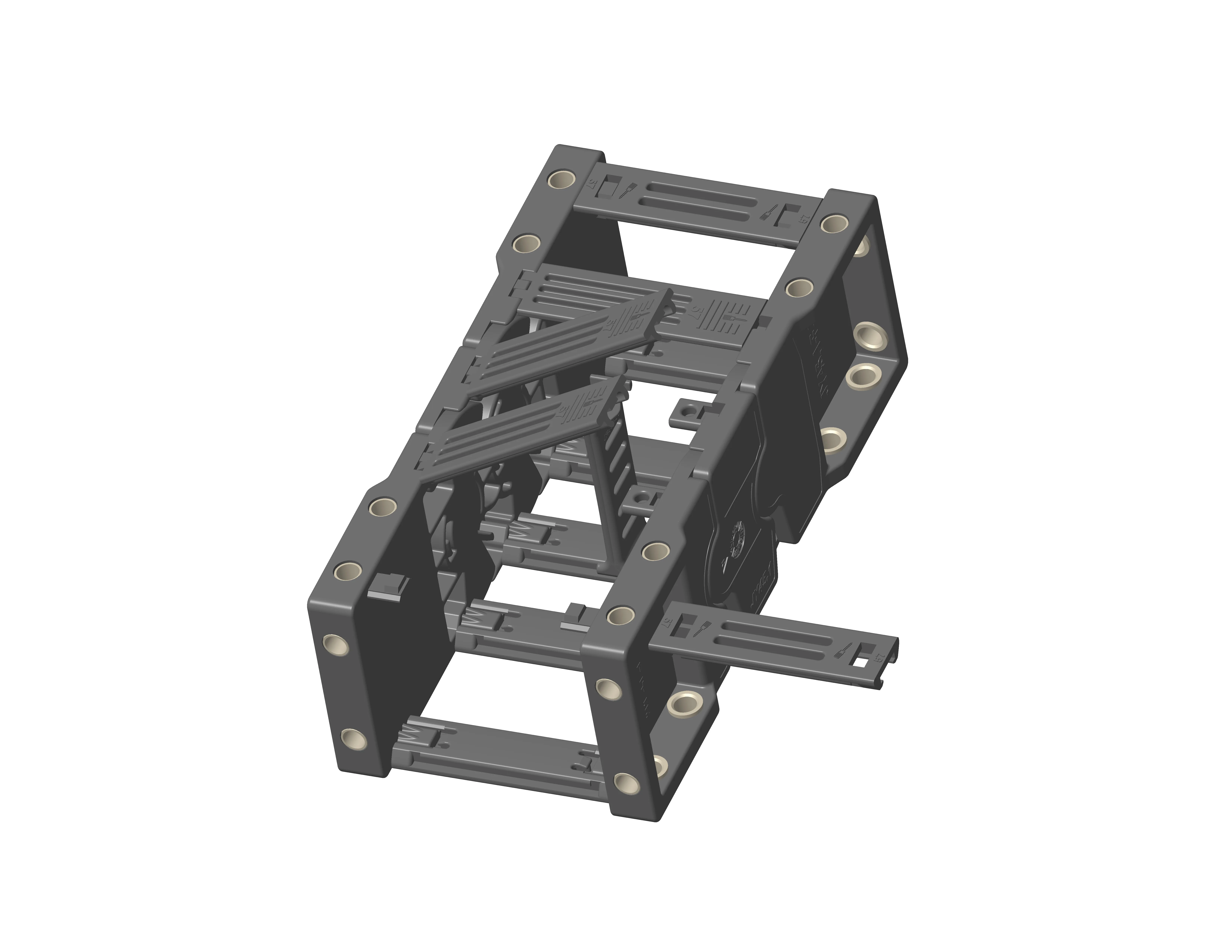

Main Body details and Separate Shim( Vertical Shim) Pictures are as below.
The unit price shown are not including bracket or any shims.
If you need further more information about Horizon Shim or others, please feel free to contact with us by mail.










Company Profile












Packing & Warehouse




Recommend Products




FAQ




1. How to select the size of the products?
For the cable drag chain, please inform us the Hi(inner height)*Bi(inner width) and bending radius, and also length is required. Also if possible, please inform us the objects(machines) you are used for, so that we will suggest the most suitable for you.

2. What is the main material of the products?
Our cable drag chain is made by PA66,coolant hose is made by POM( Dupont), and for bellows cover can be made by many different material functionally.

3. How long is your delivery?
Our mainly products are on stock, we can provide 3-7days fast delivery.
