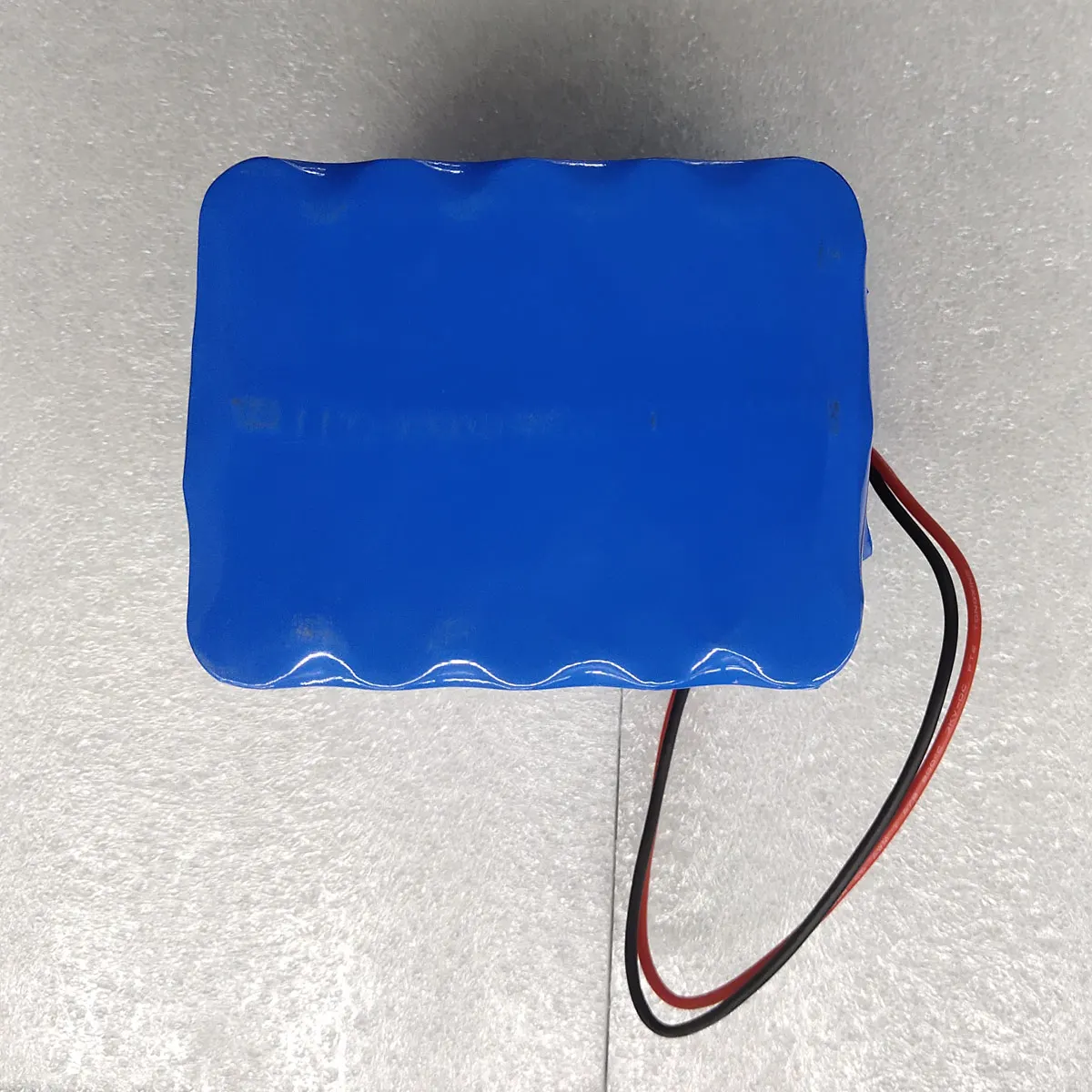

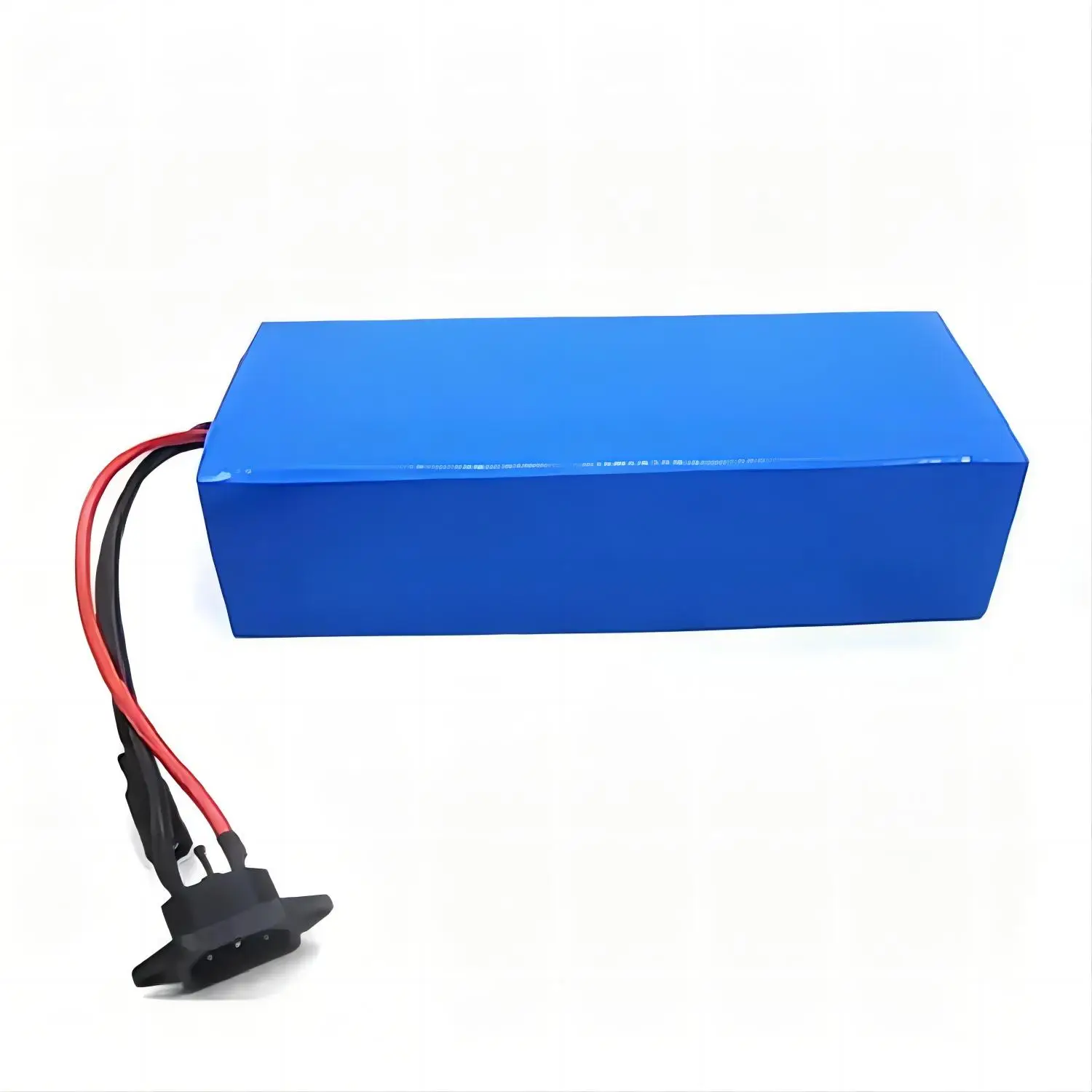

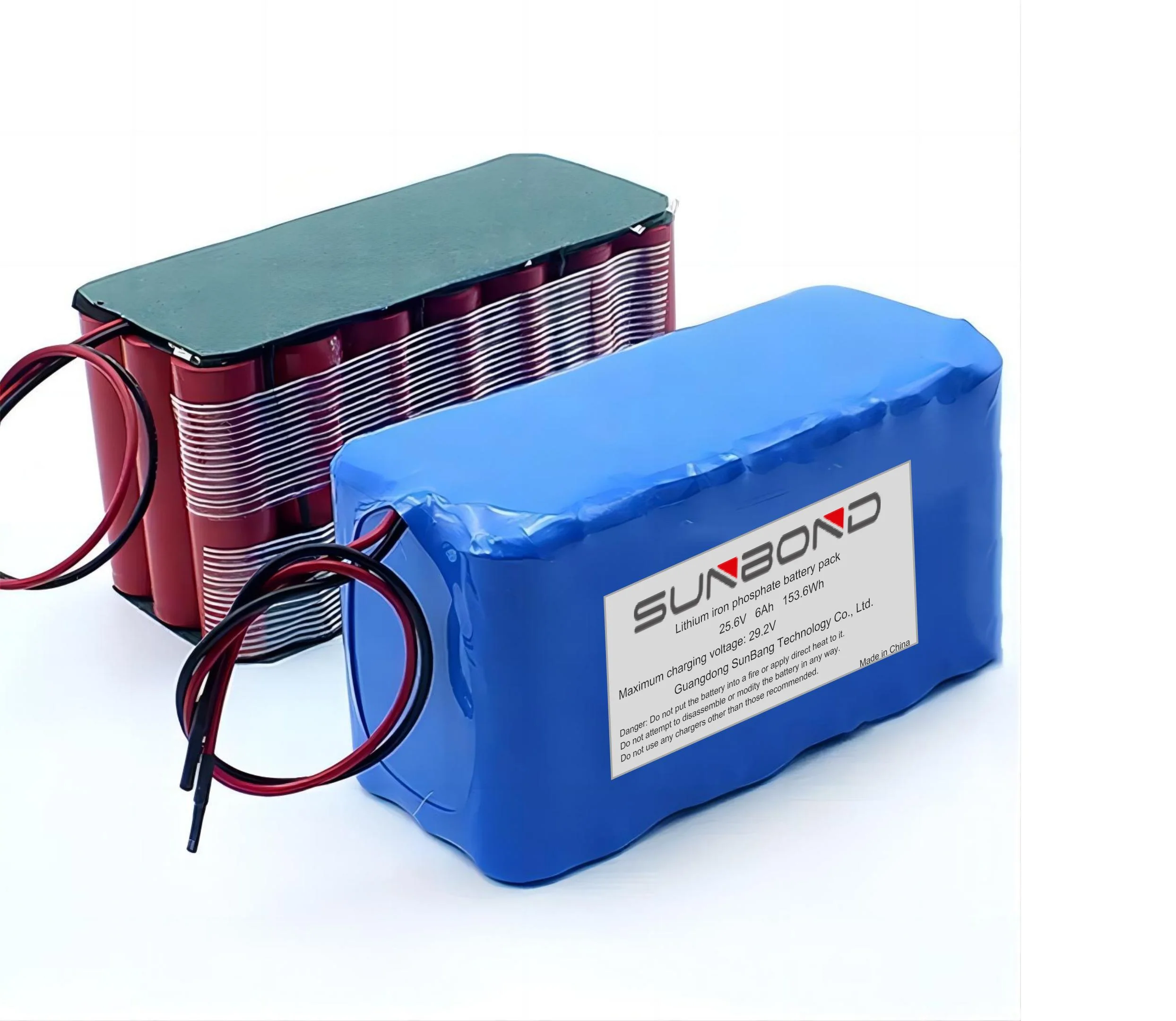

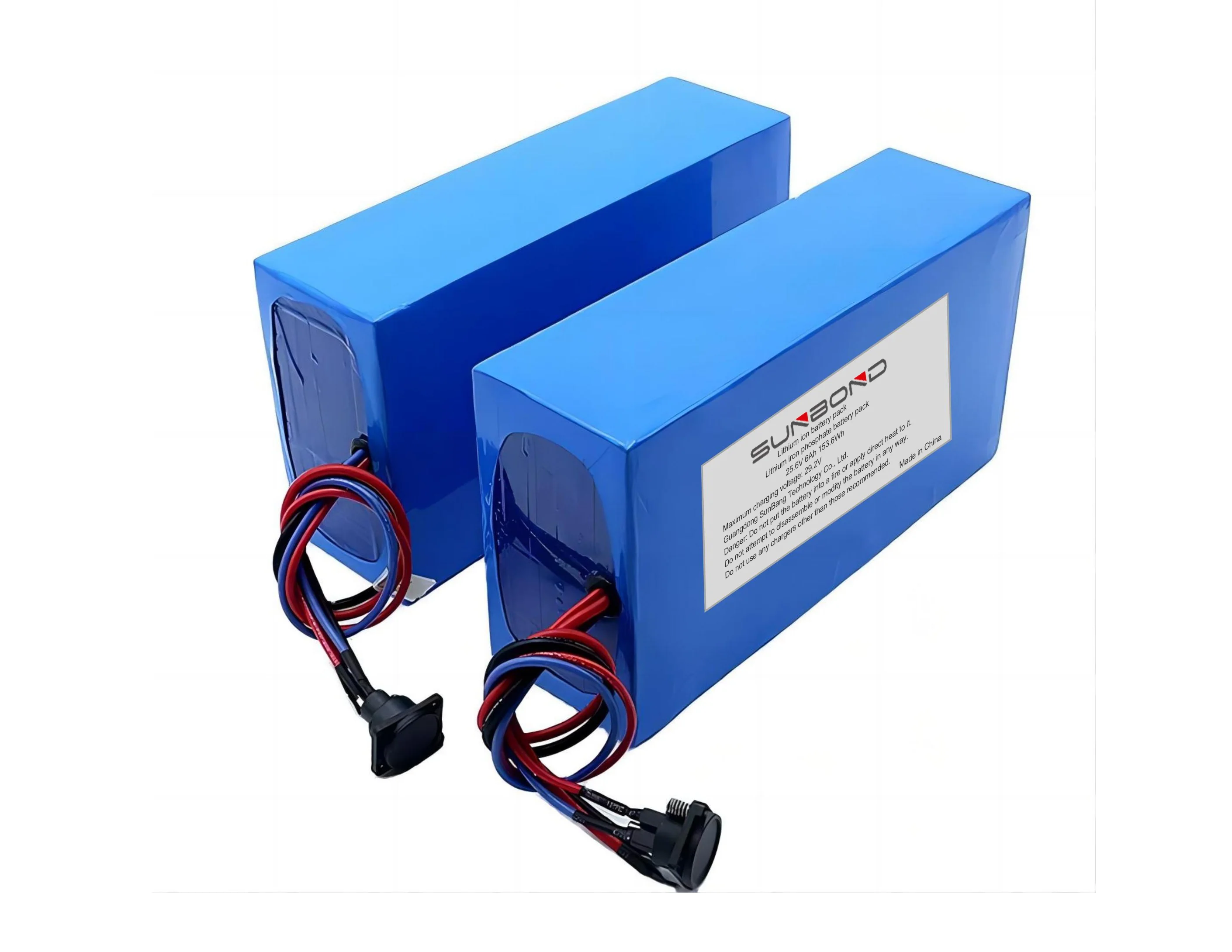

Customization 3S5P 4S4P 4S5P 11.1V 14.8V 8800mAh 11Ah Lithium Ion Battery Pack with BMS for Chauvet LED
- Category: >>>
- Supplier: Shenzhen Sunbang Technology Co. Ltd.
Share on (1600679569641):
Product Overview
Description
We're SunBang lithium battery manufacturer, a lithium battery industrial solution provider enterprise of over 10+ years, the
company has a perfect R & D, manufacturing, quality management system.
company has a perfect R & D, manufacturing, quality management system.
Product Description

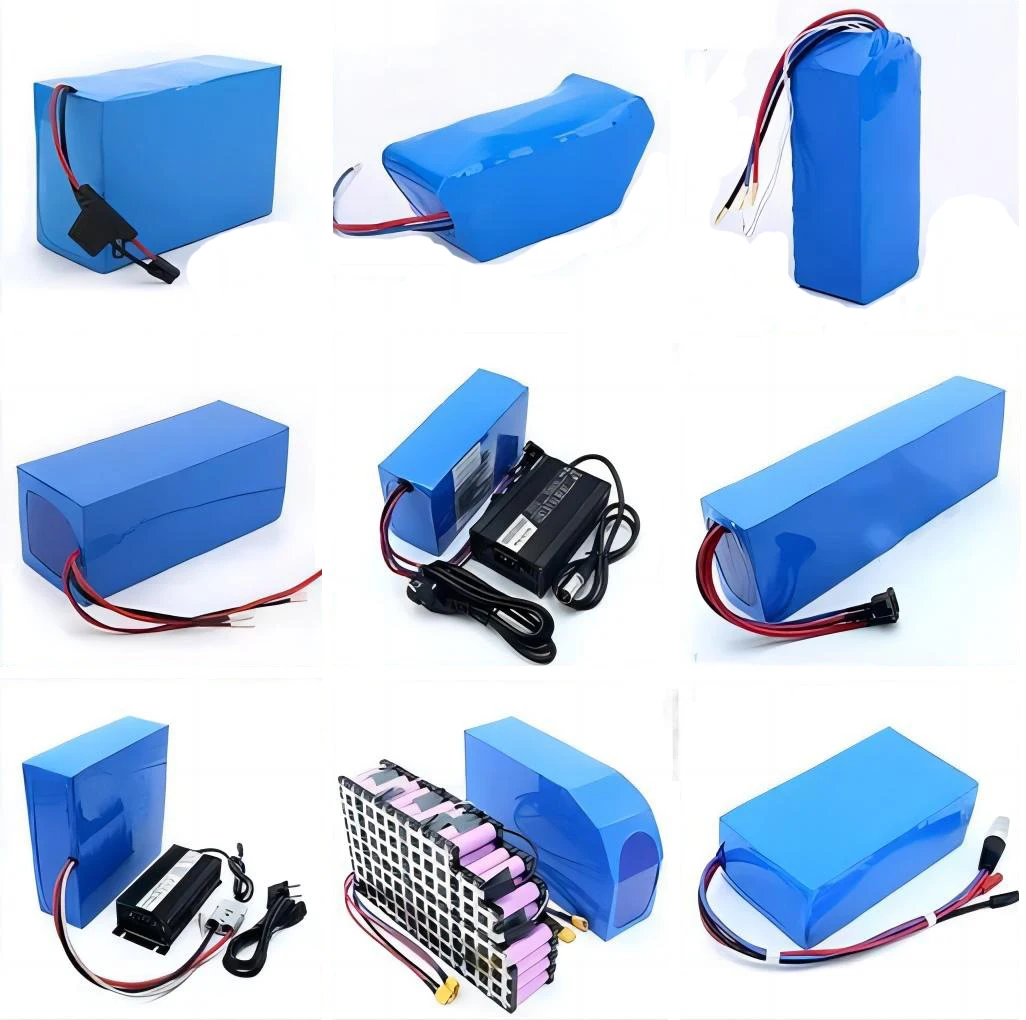

Project Customize Battery Pack 11.1V 12V 14V 22.2V 32V 36V 48V 52V 60V 72VGrade A cells 18650 21700 32700

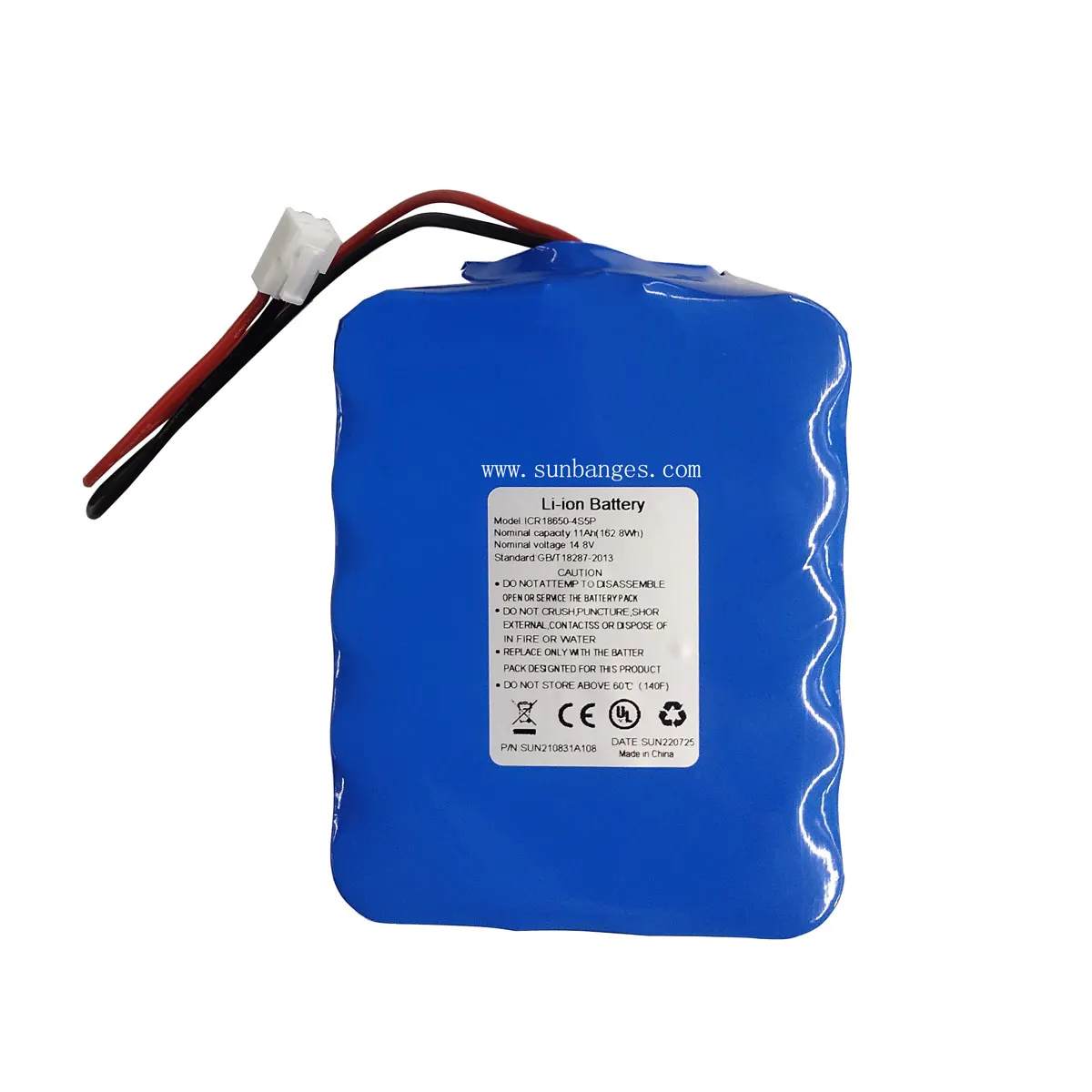

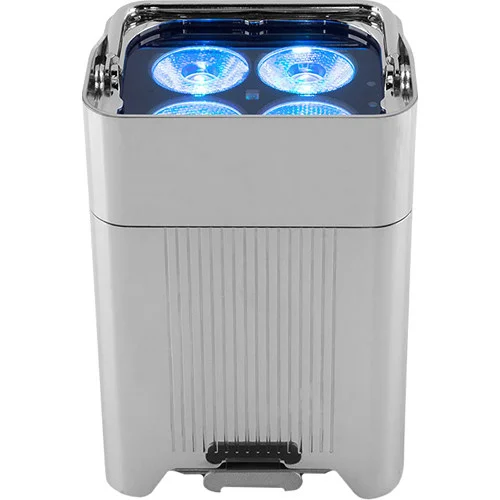

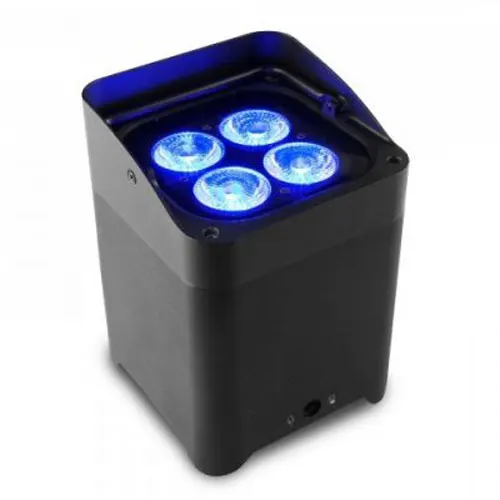

4S5P 14.8V 11Ah Lithium Ion Battery Pack for Chauvet LED
Specification
Electrical Properties | ||
Nominal Voltage | 14.8V | |
Nominal Capacity | 11Ah | |
Energy | 162.8Wh | |
Internal Resistance | 20≤mΩ | |
Cycle Life | 800 Times | |
Self-discharge | 3% per month | |
Charging | ||
Charging Voltage | 16.8V | |
Charging Mode | AC-DC | |
Charging Current | 2.2A | |
Maximum Charging | 11A | |
Discharging | ||
Discharging Current | 11A | |
Maximum Continuous Discharging Current | 11A | |
Peak Current | 33A(ms) | |
Discharging Cut-off Voltage | 10V | |
Environment | ||
Charging Temperature | 0℃ to 45℃(32℉ to 113℉) | |
Discharging Temperature | -20℃ to 60℃(-4℉ to 140℉) | |
Storage Temperature | 0℃ to 45℃(32℉ to 113℉) | |
Dustproof and Waterproof rating | ||

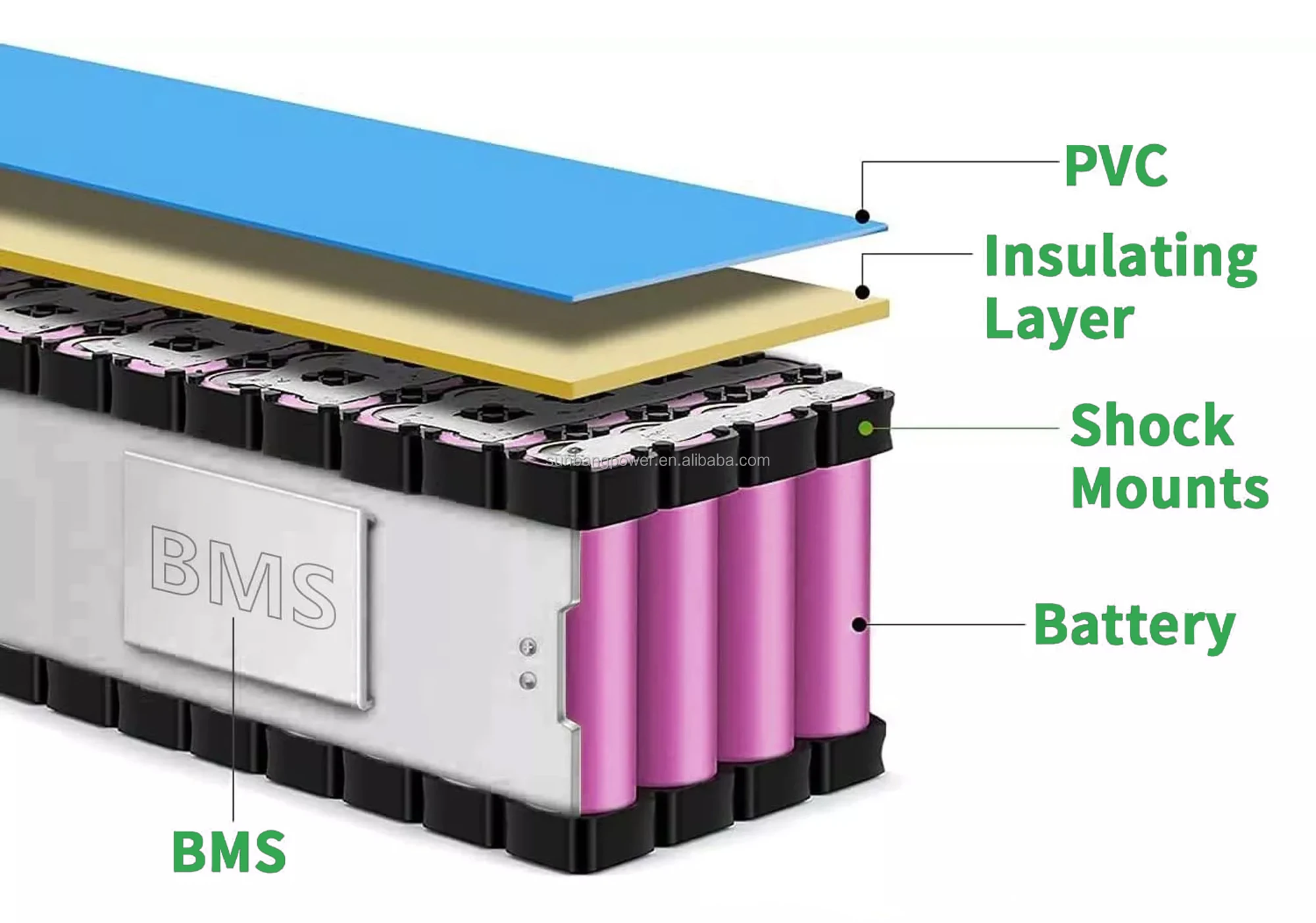

Physical | ||
Configuration | 4S5P | |
Battery Cell | 18650 3.7V 2200mAh | |
Case | PVC | |
Dimension | 100*80*90mm | |
Weight | 0.92 | |
Terminal | VH3.96 | |
BMS | ||
Overcharge Protection | Yes | |
Overdischarge Protection | Yes | |
Overcurrent Protection | Yes | |
Short circuit Protection | Yes | |
Balanced cell | Yes | |
Electrical Properties | |||||||
Nominal Voltage | 11.1V | ||||||
Nominal Capacity | 11Ah | ||||||
Energy | 122.1Wh | ||||||
Internal Resistance | 20≤mΩ | ||||||
Cycle Life | 800 Times | ||||||
Self-discharge | 3% per month | ||||||
Charging | |||||||
Charging Voltage | 12.6V | ||||||
Charging Mode | AC-DC | ||||||
Charging Current | 11A | ||||||
Maximum Charging | 2A | ||||||
Discharging | |||||||
Discharging Current | 2A | ||||||
Maximum Continuous Discharging Current | 11A | ||||||
Peak Current | 33A(ms) | ||||||
Discharging Cut-off Voltage | 7.5V | ||||||
Environment | |||||||
Charging Temperature | 0℃ to 45℃(32℉ to 113℉) | ||||||
Discharging Temperature | -20℃ to 60℃(-4℉ to 140℉) | ||||||
Storage Temperature | 0℃ to 45℃(32℉ to 113℉) | ||||||
Dustproof and Waterproof rating | |||||||
Physical | |||||||
Configuration | 3S5P | ||||||
Battery Cell | 18650 3.7V 2200mAh | ||||||
Case | PVC | ||||||
Dimension | 80*80*90mm | ||||||
Weight | 0.9KGS | ||||||
Terminal | VH3.96 | ||||||
BMS | |||||||
Overcharge Protection | Yes | ||||||
Overdischarge Protection | Yes | ||||||
Overcurrent Protection | Yes | ||||||
Short circuit Protection | Yes | ||||||
Balanced cell | Yes | ||||||
Packing & Delivery
Paper carton, plastic pallet or wooden pallet, or as your request.
OEM brand packing boxes or product labels, free design service are available.
Shipping
1, For samples or small packages, we can ship by registered air mail or EMS to save your cost.
2, For wholesale order packages, we can ship by safe international UPS, FEDEX, EMS, DHL,TNT...
3, For bulk order packages, we can arrange air-express and ocean shipping as your required.
Shipping
1, For samples or small packages, we can ship by registered air mail or EMS to save your cost.
2, For wholesale order packages, we can ship by safe international UPS, FEDEX, EMS, DHL,TNT...
3, For bulk order packages, we can arrange air-express and ocean shipping as your required.

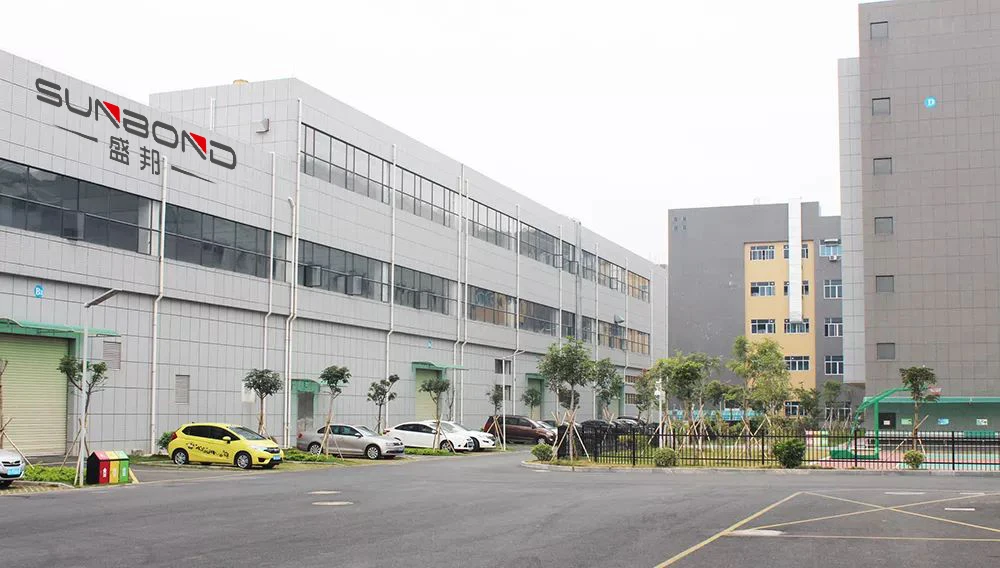

Company Profile
Shenzhen Sunbang was established in 2012
A high-tech technology company engaged in customized lithium batteries for 7 years and are specialized in producing all kinds of E-bike battery,electric motorcycle battery, storage battery and customized lithium battery projects.
All our batteries are global insured , and most have certificates such as IEC62133 , UN38.3, MSDS etc. Our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.

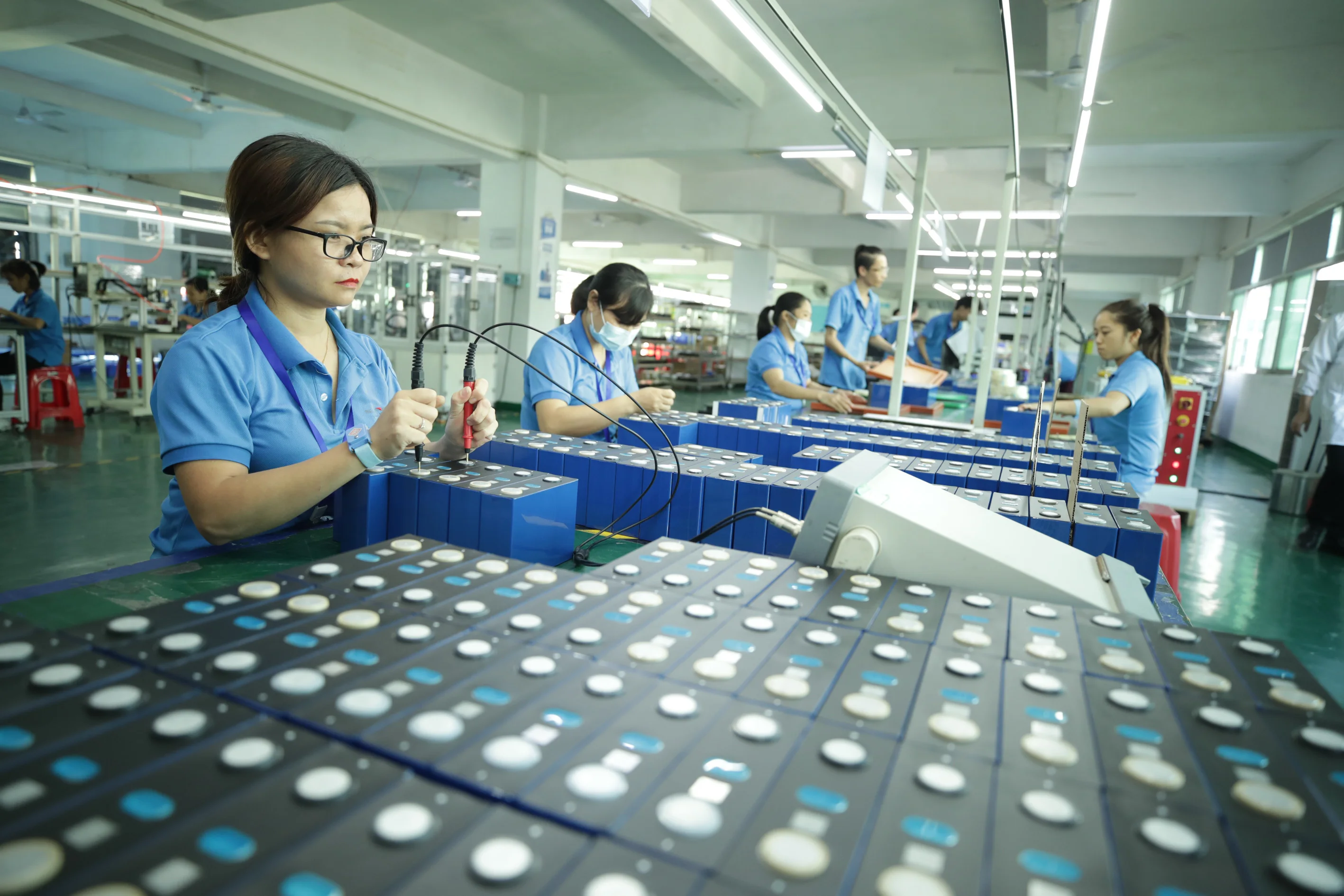

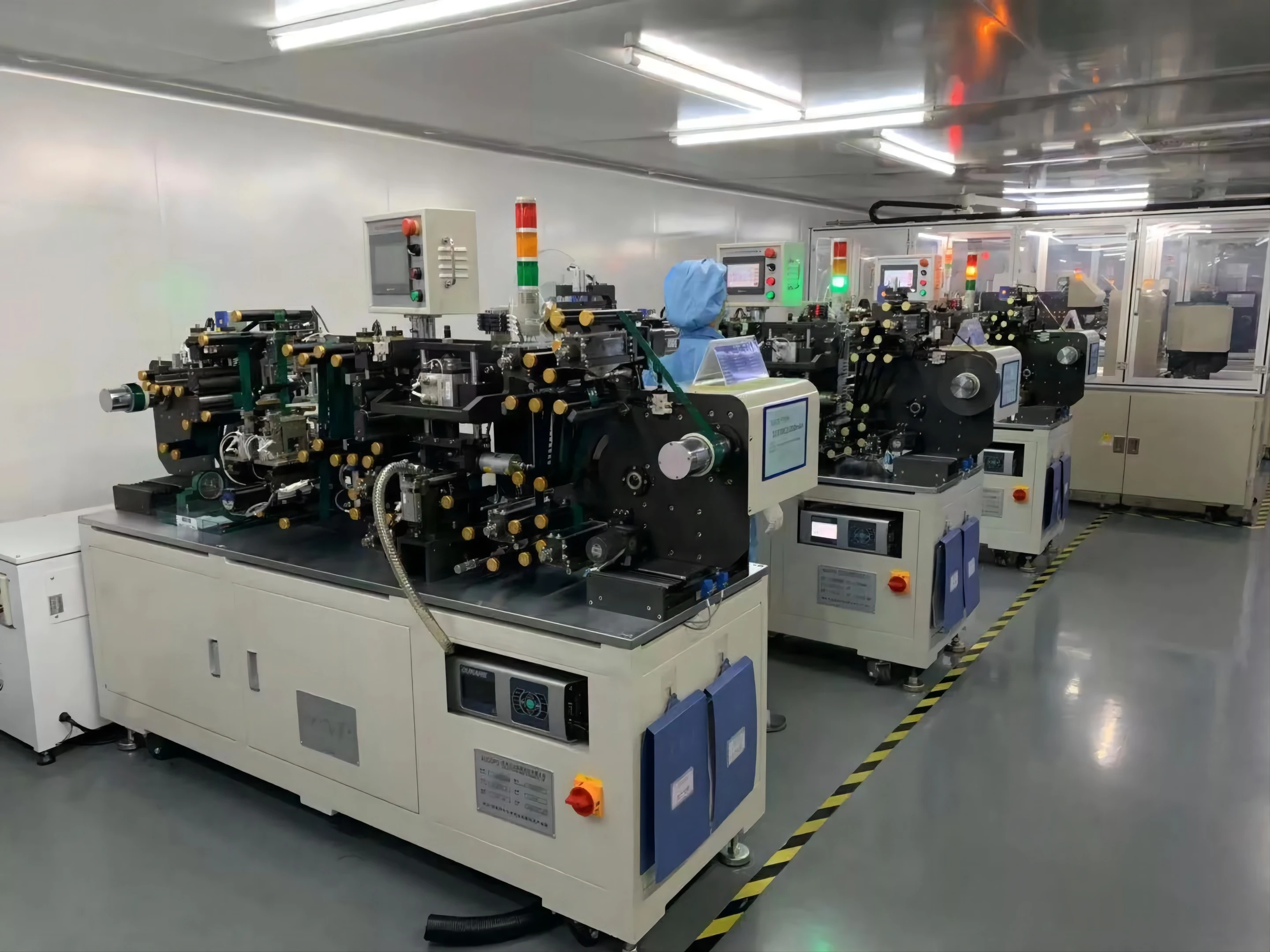

Sunbang as a comprehensive manufacturing and provide OEM service factory . In recent years,our factory has introduced a series of advanced equipment including Automatic Welding Machine , automatic Battery Sorter machine, Die Cutting Machine, Aging Machine, Integrated Battery Meter etc.In addition, our factory have obtained I S O 9 0 0 1 certificates,and most products have got _U L ,C E,P S E certificates to ensure the quality and sales overseas.We are famous for superior quality, competitive prices,first-class craftworks, safe package,and prompt delivery.
Therefore,we can fully satisfy your demands and have a large customer base. Also we have after-sale service in Europe and USA, always try our best to provide best service to all clients. Except our own products,we provide OEM services and accept customized order as well.We have developed designs for our customers in Spain and our products are popular in overseas markets.
We will supply much better products with diversified designs and professional services.We sincerely welcome friends from all over the world to visit our company and cooperate with us on the basis of long-term mutual benefits.We are glad to work together with you and finally bring you the satisfied products.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2012,sell to North America(30.00%),South Asia(10.00%),Oceania(10.00%),Western Europe(10.00%),Southern Europe(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%),South America(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Batteries
4. why should you buy from us not from other suppliers?
1.security good performance, high capacity, long service life;
2.discharge properties stable, design most flexible;
3. SGS,CE, UL , ROHS ,MSDS,UN38.3 and so on.
4.All our products are global insured
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,German
We are based in Guangdong, China, start from 2012,sell to North America(30.00%),South Asia(10.00%),Oceania(10.00%),Western Europe(10.00%),Southern Europe(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%),South America(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Batteries
4. why should you buy from us not from other suppliers?
1.security good performance, high capacity, long service life;
2.discharge properties stable, design most flexible;
3. SGS,CE, UL , ROHS ,MSDS,UN38.3 and so on.
4.All our products are global insured
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,German
