Quarry rock drill machine surface drill rigs air compressor drilling machine
- Category: >>>
- Supplier: Xiamen Eastern Pegasus Co. Ltd.
Share on (1600679731157):
Product Overview
Description
Product Overview

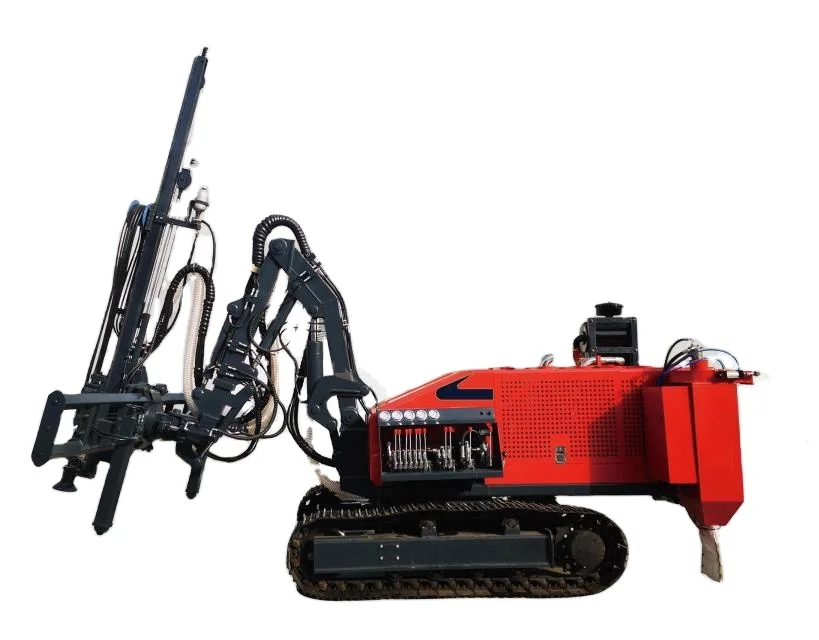

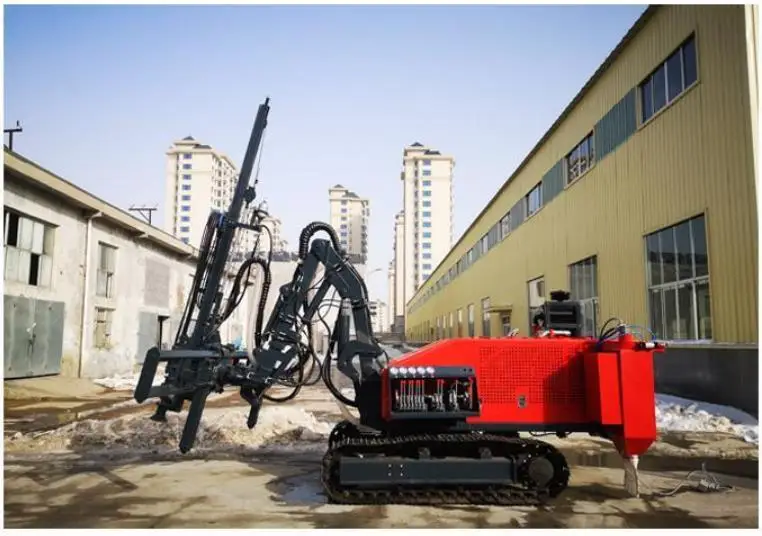

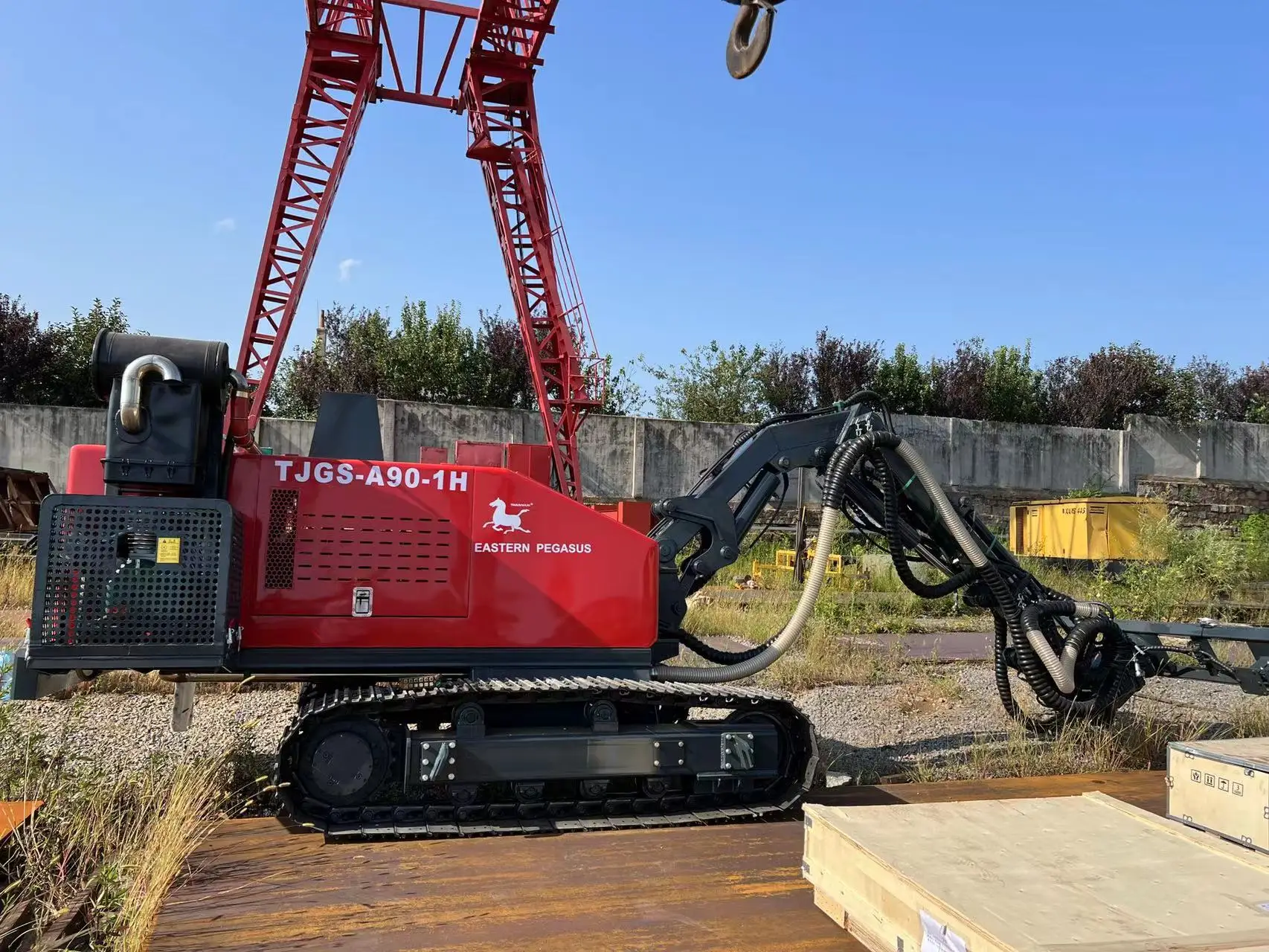

TJGS-A90-1X Craw-Type Hydraulic drill rig

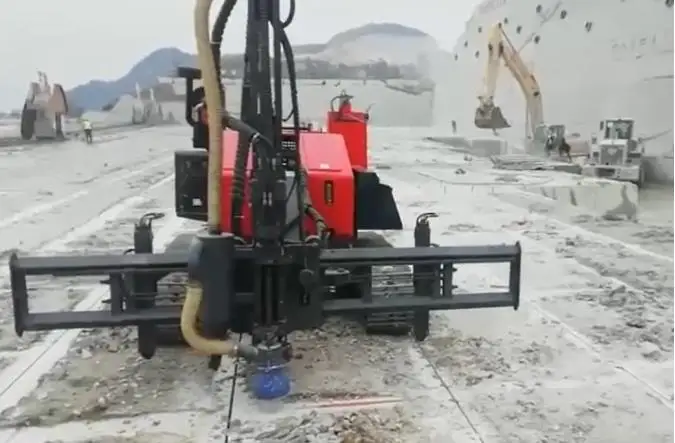

TJGS-A90-1H Crawler-type Hydraulic Drill Rig is mainly used for drilling holes of rock blasting works and drilling vertical holes in stone quarries.
PRODUCT SPECIFICATIONS
Model | TJGS-A90-1X | |
Weight | ≈5000 | kg |
Dimension | 4720*3020*3200 | mm |
Drilling depth | 12 | m |
Hole diameter | Ø32/Ø45 | mm |
Drilling speed | 800-1400 | mm/min |
Impact force | ≤15 | Mpa |
Blowing air pressure | ≥4 | kg/cm² |
Cylider stroke | 1.5 | m |
Engine power | 74 | Kw |
Travel speed | ≤4 | km/h |
FEATURES AT A GLANCE
Scientific and reasonable design, reliable quality, high working efficiency and low operation cost.
Equipped with self-developed BCY-90 Hydraulic Rock Drill,high drilling efficiency, longs ervice life and easy maintenance.
Manual control and long distance remote control, easy operation, safe and reliable.
On-board air compressor
Build-in dust collector can minimize the impact of stone powder on the environment.
Crawler-type movement has strong climbing ability, applicable to all kinds of landform.
Successful Project

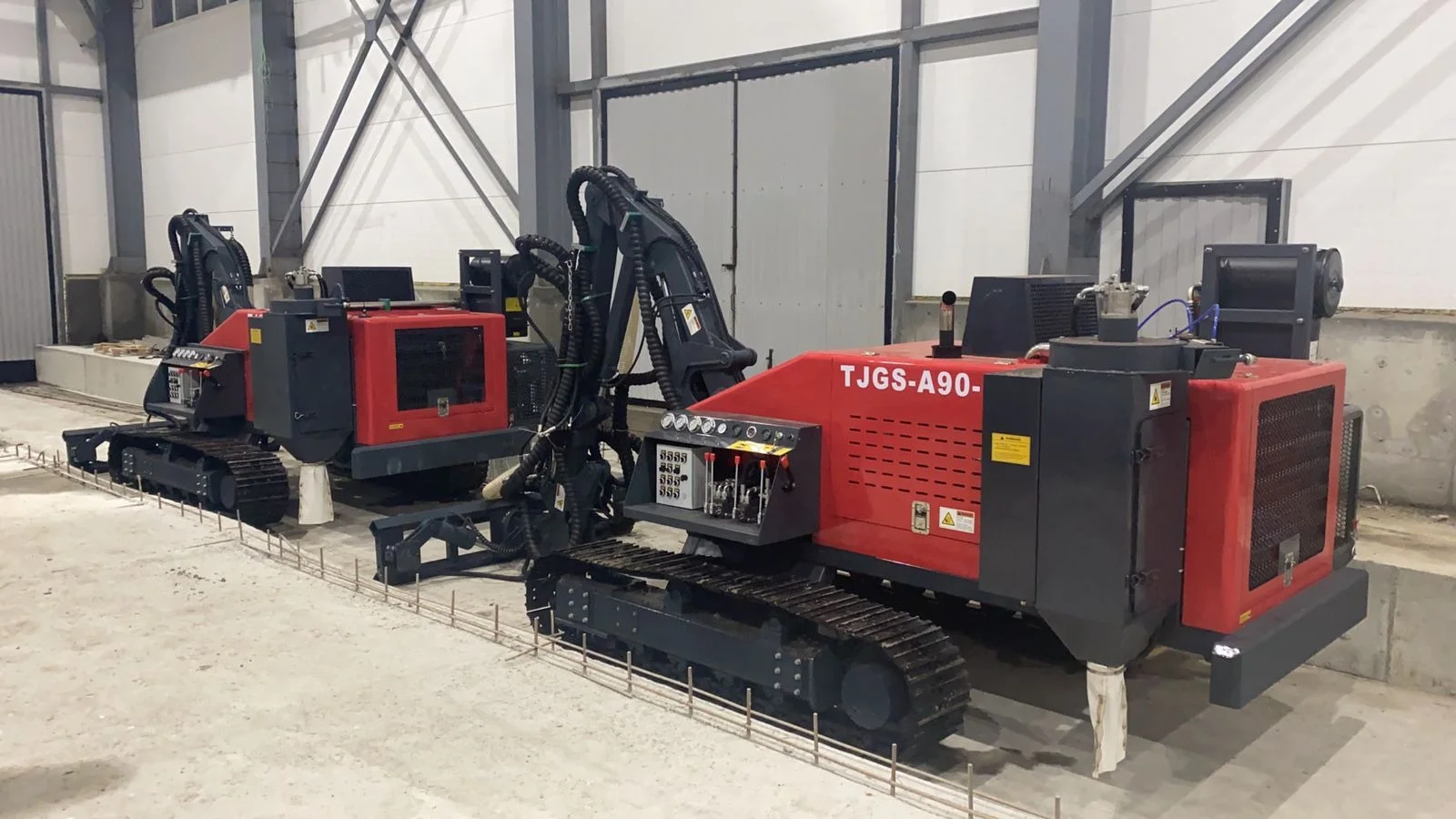

Project in Russia
Project in Russia
Project in Russia
Company Profile
