ac Wireless Remote Control Rf Remote 433mhz Rf Relay 220v Remote Switch Wireless Switch Remote Control Switch for fan and light
- Category: Remote Control Switches >>>
- Supplier: Shenzhen Geili Technology Co. Ltd.
Share on (1600679756346):
Product Overview
Description
Product features:
1. Wide-voltage: AC 90V-264V universal, effectively solve the problem of voltage instability
2. Load power≤3000W
3. Transformer isolation makes it safer to use
3. Working mode support: self-locking 、 interlocking and manual on/off
4. One receiver can pair 32 remote controls without interfering with each other
5. Simple wiring, no need to open the shell, with safety cover
2. Load power≤3000W
3. Transformer isolation makes it safer to use
3. Working mode support: self-locking 、 interlocking and manual on/off
4. One receiver can pair 32 remote controls without interfering with each other
5. Simple wiring, no need to open the shell, with safety cover

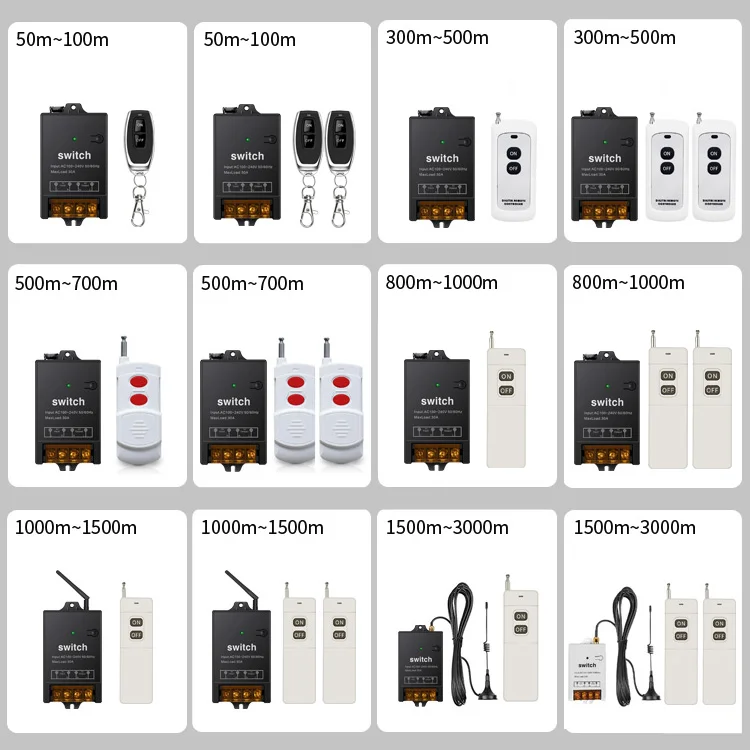

6.A variety of matching methods, a variety of remote control distance optional
7.It comes in black and white

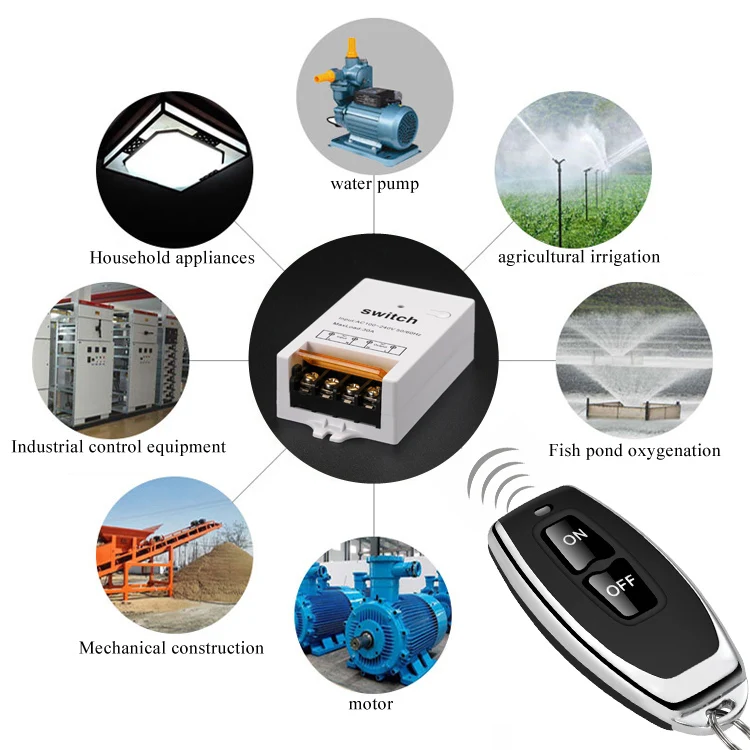

Scope of application: water pump, motor, lamps, industrial control equipment, etc
Product Paramenters
Key word | Remote switch | Working voltage | AC90V-264V | ||||
Product Size | 54*84*28mm | Working frequency | 433.932 MHz | ||||

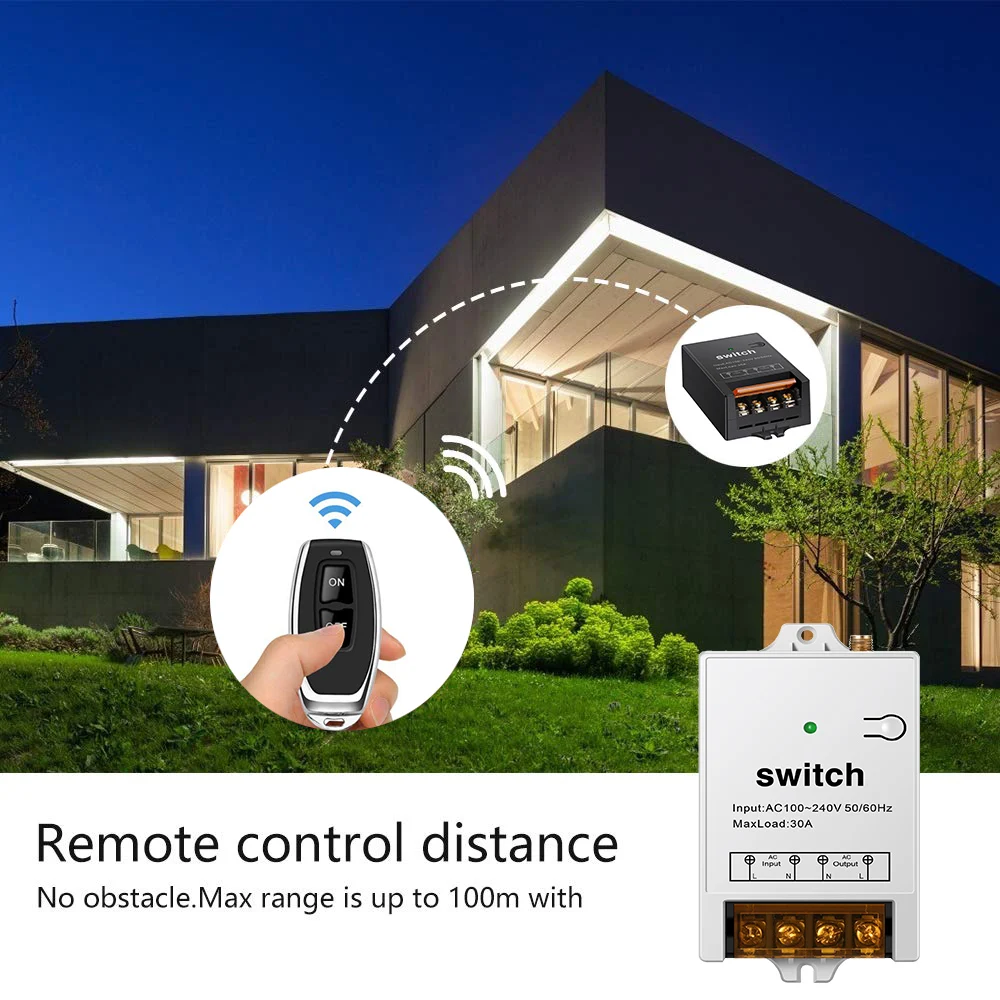

Emission current | ≤0.01 uA | Remote distance | 50m~100m | ||||

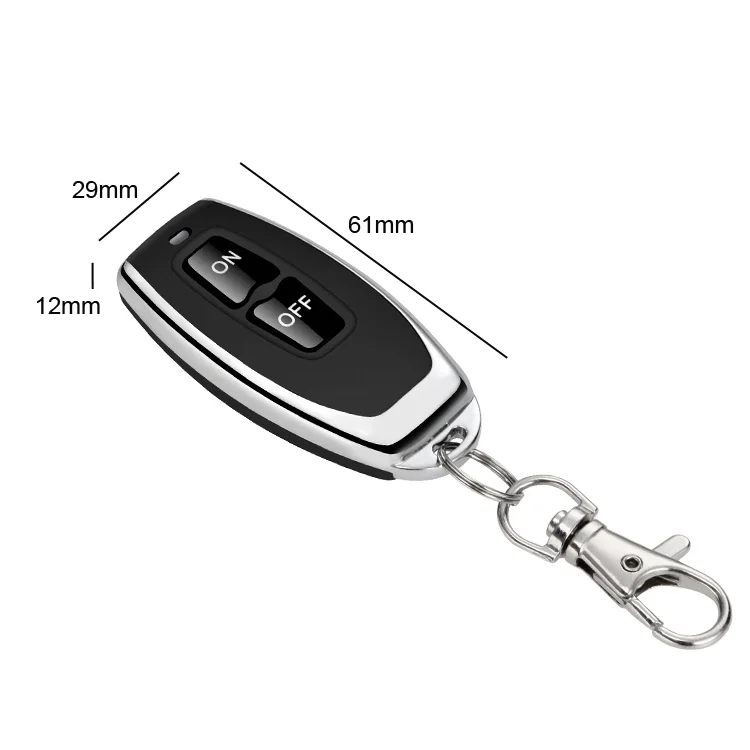

Remote control size | 12*29*61mm | Remote control battery | CR2016 two in series | ||||
Current | 40A | Color | black and white | ||||
Working mode | Self-locking Interlocking Manual on/off | ||||||
Details Images

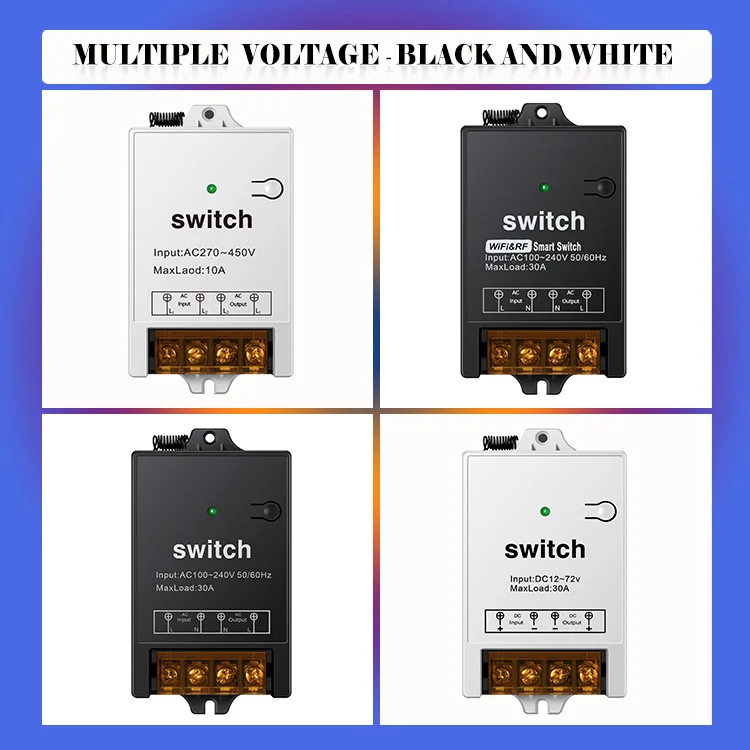

product assortment
AC isolation voltage
Applicable voltage range: AC96V-264V
DC wide voltage
Applicable voltage range: DC12V 24V 36V 48V 60V 72V
Mobile APP and RF remote control
Applicable voltage range: AC90V-264V
AC high voltage
Applicable voltage range: AC270V-450V

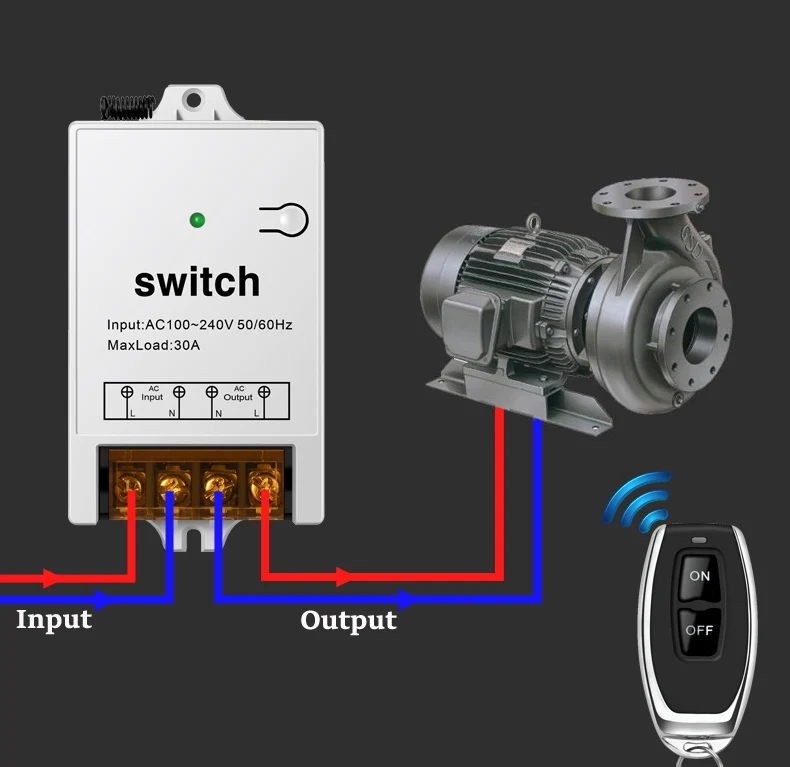

Installation Instructions
Scope of application:
Learn Matching Instructions
Introduction to the working mode
Self-locking mode: with a key control, press once open, then press once off, called self-locking.
Interlocking mode: when the remote control has two keys, one button is on and the other button is off, it is called interlocking.
Manual switch: no remote control, press the learning button on the receiver, press one on, then one off.
Interlocking mode: when the remote control has two keys, one button is on and the other button is off, it is called interlocking.
Manual switch: no remote control, press the learning button on the receiver, press one on, then one off.
Learning methods
Self-lock: the controller is powered on, hold down the learning button and wait for 3 seconds, the indicator light will flash once, release your hand, press the button of the remote control, the indicator light will flash 3 times, indicating the success of code
Interlock: the controller is powered ON, hold down the learning button and wait for 5 seconds, the indicator flashes twice,
release your hand, press the ON/ ON button of the remote control, the indicator flashes for 3 times and then it is in the light state, and then press OFF/ key of the remote control, the indicator flashes twice, indicating success in code checking
Code clearing: the controller is powered on, hold down the learning button and wait for 8 seconds, and the indicator light flashes 4 times, indicating the code clearing is successful
Manual on/off : the learning button on the controller can control the output on and off, press that open, then press that off
Interlock: the controller is powered ON, hold down the learning button and wait for 5 seconds, the indicator flashes twice,
release your hand, press the ON/ ON button of the remote control, the indicator flashes for 3 times and then it is in the light state, and then press OFF/ key of the remote control, the indicator flashes twice, indicating success in code checking
Code clearing: the controller is powered on, hold down the learning button and wait for 8 seconds, and the indicator light flashes 4 times, indicating the code clearing is successful
Manual on/off : the learning button on the controller can control the output on and off, press that open, then press that off
Warm Tip:The product is set to interlock mode from the factory. If you need to set other modes, you need to clear the code first, and then learn by pairing according to the required mode.
Certifications
FAQ
Q1 Are you a factory or a trading company
A1: We are a factory.
Q2: What is the mode of transportation?
A2: DHL/UPS/TNT/ FedEx and other air and sea freight are available.
Q3: How many remote controls can a receiver pair with?
A3: A receiver can pair up to 32 remote controls.
Q4: I need multiple remote controls to run. Will they interfere with each other?
A4: Each set of products is independently paired and does not interfere with each other. However, it should be avoided to press the remote control at the same time with an interval of one to two seconds
Q5: Can I work in wet areas?
A5: It is not recommended to work in humid environment.
Q6: What is the remote control distance?
A6: 50m~100m, 500m~1000m, 3000m ~5000m can be selected
Q7:What should I do when the controller's power is fine, but the remote control doesn't work on and off?
A7:This situation may be due to code drop, the solution is: first clear code, and then follow the required mode of learning. (See thedetails page for learning methods)
A1: We are a factory.
Q2: What is the mode of transportation?
A2: DHL/UPS/TNT/ FedEx and other air and sea freight are available.
Q3: How many remote controls can a receiver pair with?
A3: A receiver can pair up to 32 remote controls.
Q4: I need multiple remote controls to run. Will they interfere with each other?
A4: Each set of products is independently paired and does not interfere with each other. However, it should be avoided to press the remote control at the same time with an interval of one to two seconds
Q5: Can I work in wet areas?
A5: It is not recommended to work in humid environment.
Q6: What is the remote control distance?
A6: 50m~100m, 500m~1000m, 3000m ~5000m can be selected
Q7:What should I do when the controller's power is fine, but the remote control doesn't work on and off?
A7:This situation may be due to code drop, the solution is: first clear code, and then follow the required mode of learning. (See thedetails page for learning methods)
