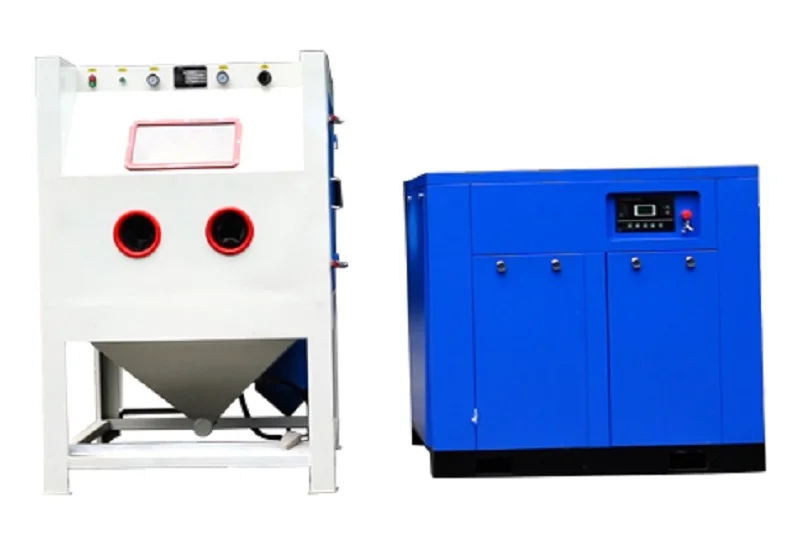

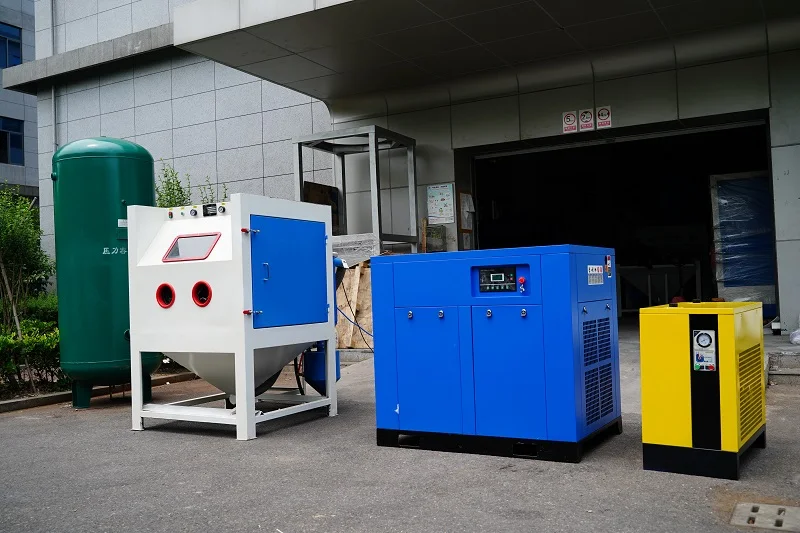

Dry sandblasting machine with air compressor
- Category: >>>
- Supplier: Hangzhou Kafan Machinery & Equipment Co. Ltd.
Share on (1600679986281):
Product Overview
Description
Products Description

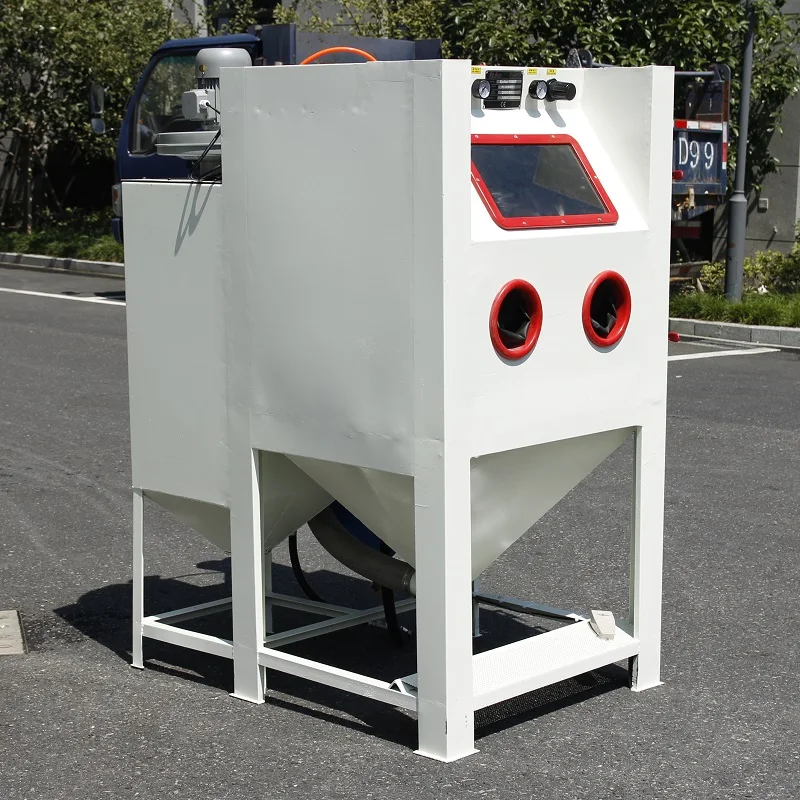

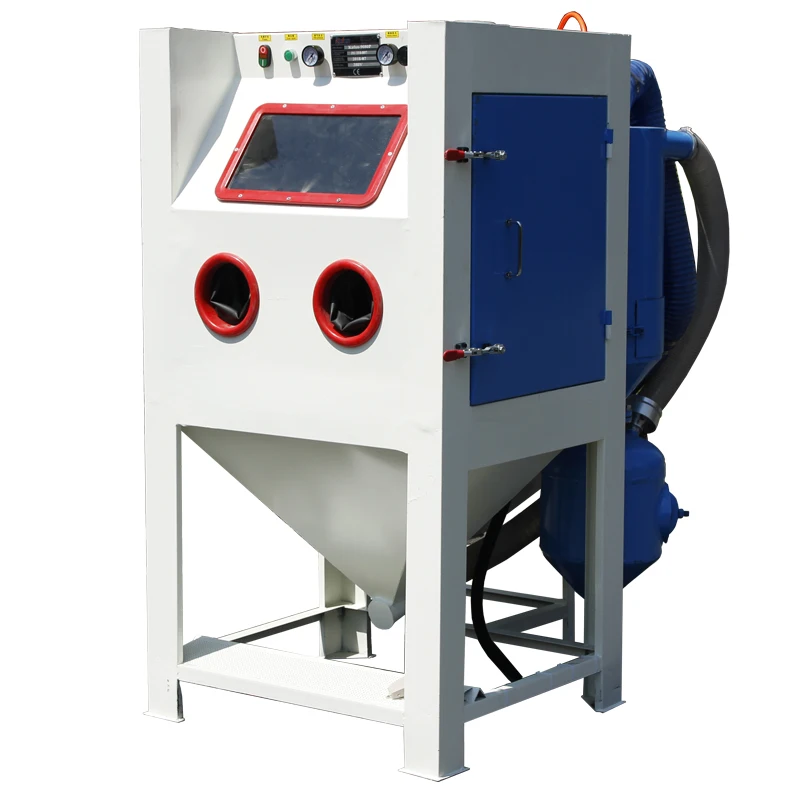

Dry sandblasting machine with air compressor

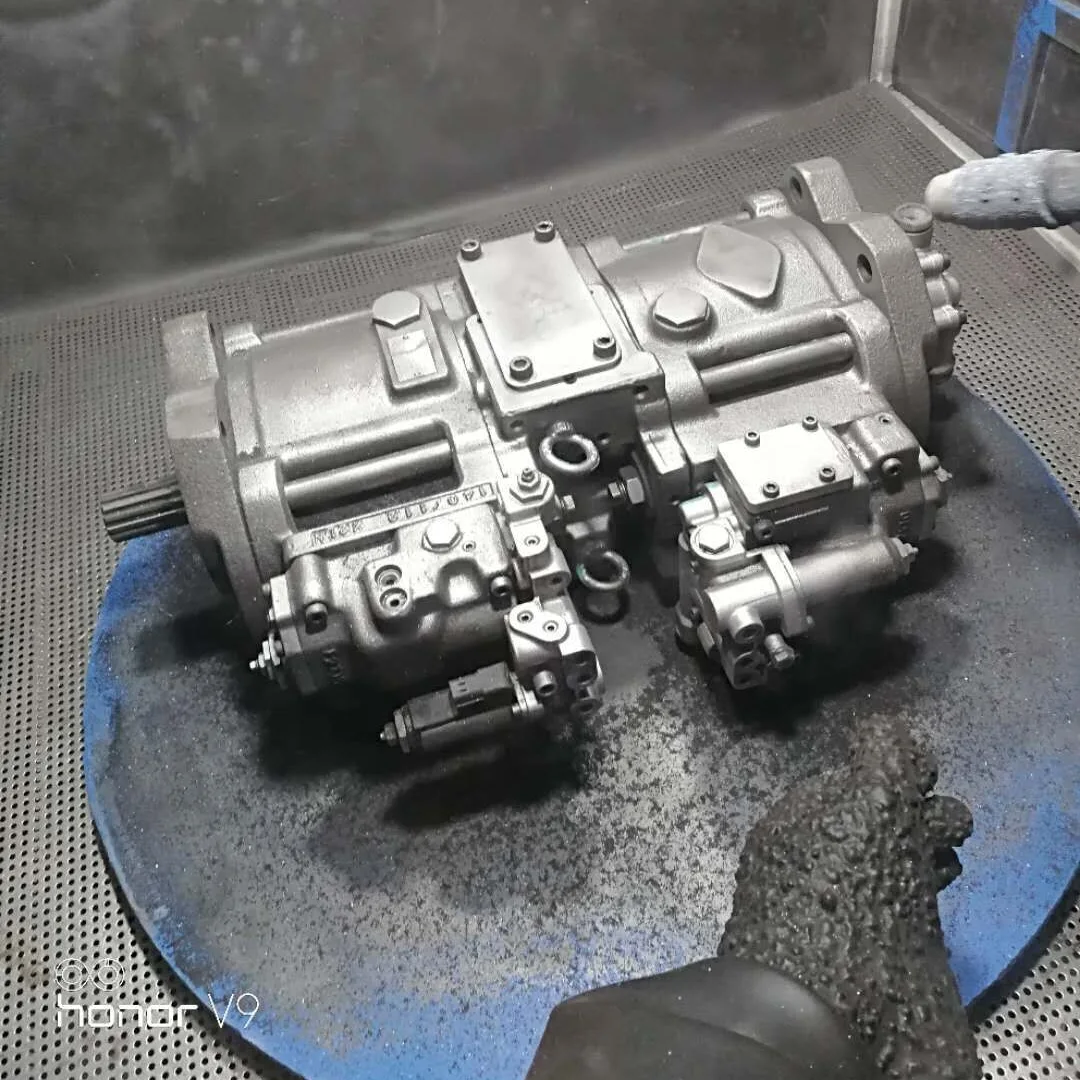

1.This factory directly supply turnable dry sandblasting machine suitable for heavy workpiece, such as various type of mold tree, statue, castings, motor, etc.
2. Specially designed manual carts( electric carts),comvenient and quick. Operation and maintenance easy to learn.
2. Specially designed manual carts( electric carts),comvenient and quick. Operation and maintenance easy to learn.
3. Maybe base on customer demand ,select manual or automatic rotary tables.
Details Images

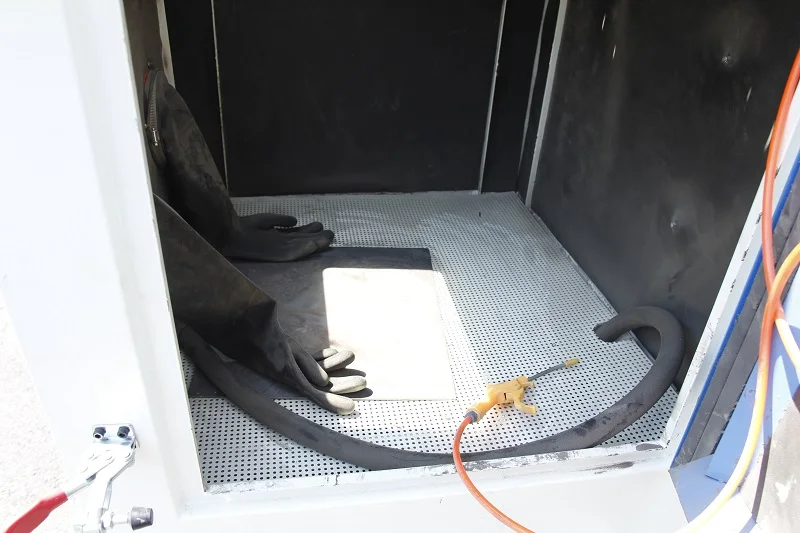

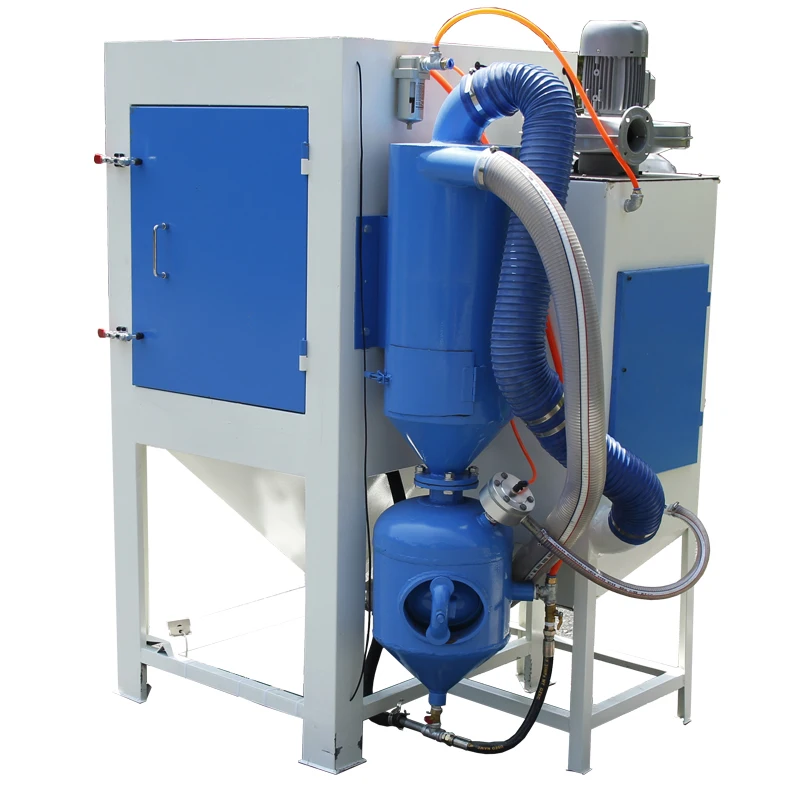

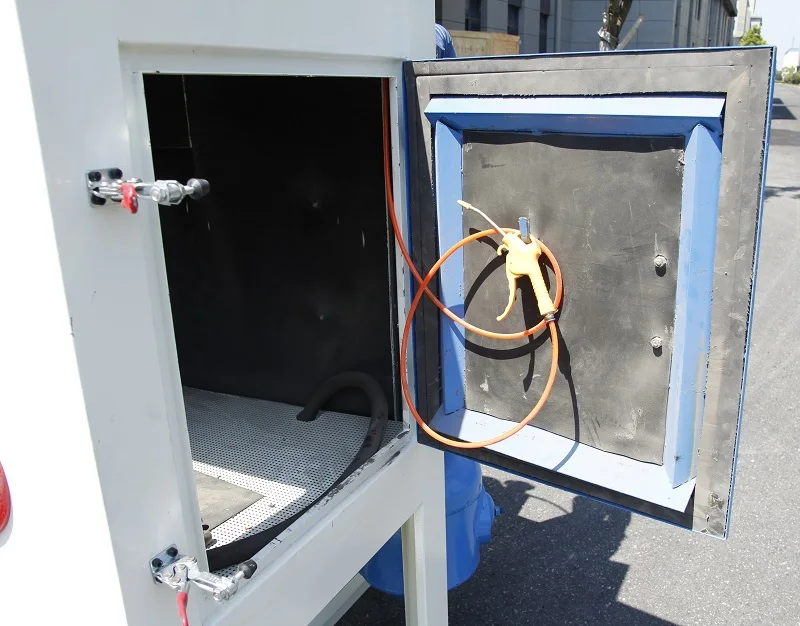

Dry Sand Blast Cleaning Machine Features
1.Enclosed cabinet design with filter dust collector ensures no dust air discharged to the outside, environmental friendly.
2. Built-in pressure regulator and guage to adjust pressure precisely to meet different blasting requirements.

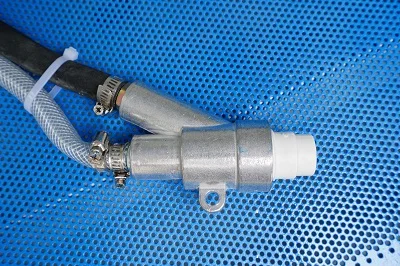

3. Provided with a piece of blasting gun with boron carbide nozzle, durable and long lifespan.
4.Used abrasive sieved by a mesh that pure abrasive will be recycled for times, saving cost.
5. Foot pedal control the working of blast gun, ensures safety and reduce operator's fatigue
6. 2mm thickness steel plate welded machine body, with surface powder-coated, corrosion-resistent, scratch-resistent.
2. Built-in pressure regulator and guage to adjust pressure precisely to meet different blasting requirements.
3. Provided with a piece of blasting gun with boron carbide nozzle, durable and long lifespan.
4.Used abrasive sieved by a mesh that pure abrasive will be recycled for times, saving cost.
5. Foot pedal control the working of blast gun, ensures safety and reduce operator's fatigue
6. 2mm thickness steel plate welded machine body, with surface powder-coated, corrosion-resistent, scratch-resistent.

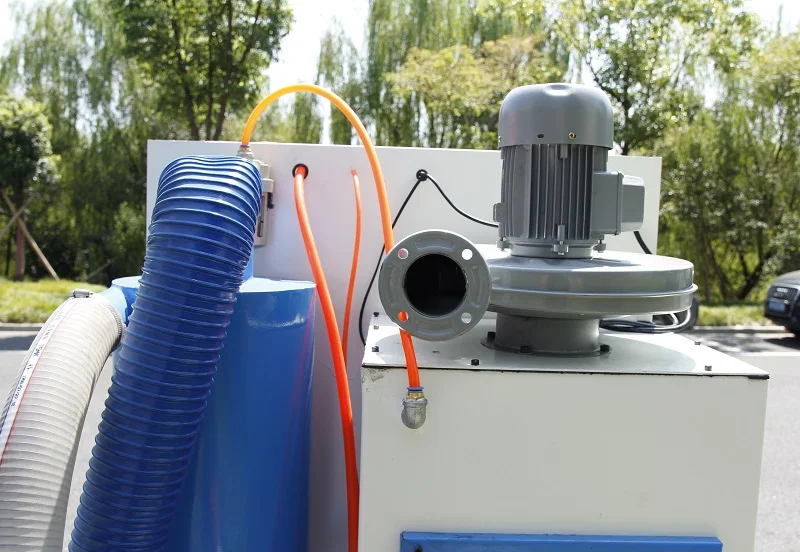

Each of our sandblaster cabinets are designed with effective dust collecting system which configured with cartridge filter, fan motor, remove dust away from the operator's window for increased visibility and accuracy when cleaning. It is optional to add a cyclone device used to separate ultrafine abrasives from dusts.
Dimension: | length1230mm *width950mm*height1650m |
Working size: | length900mm *width800mm*height800m |
Dust collector size | 430 mm * 380 mm * 1500 mm |
Dust collector power | 0.75KW 220V 50HZ |
Number of guns: | 1 (boron carbide, 8mm nozzle) |
Operating opening: | 1 pair gloves |
Power: | 220V / 50HZ / 550W |
Working pressure: | 2-7bar |
Machine lighting: | 220V 13W energy saving lamp |
Dust removal method: | cartridge filter type |
Air source requirements: | pressure 7bar (kg / square meter) |
Required Flow: | 0.8-1.2 m3 / min |
Body material: | 2mm cold-rolled plate (powder coated surface, durable and long life) |

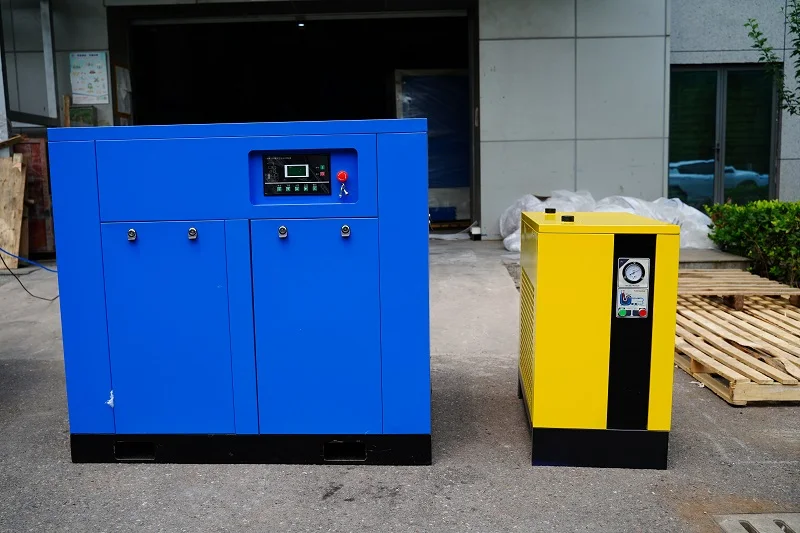

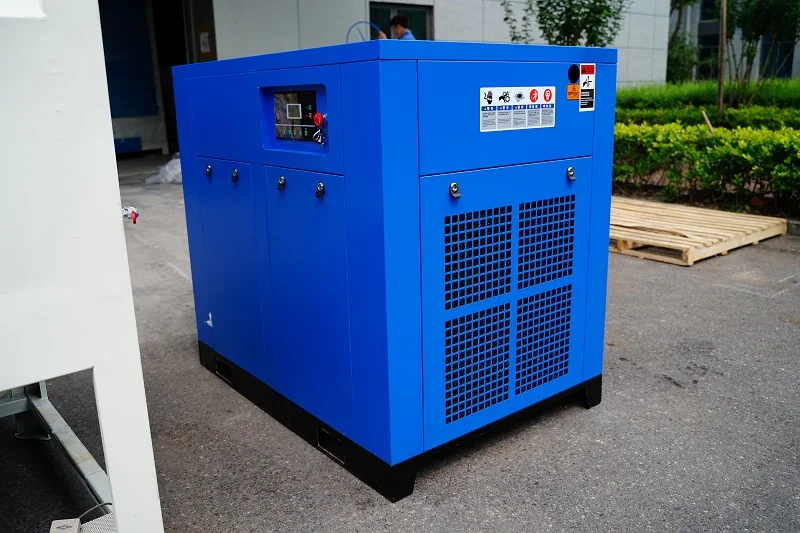

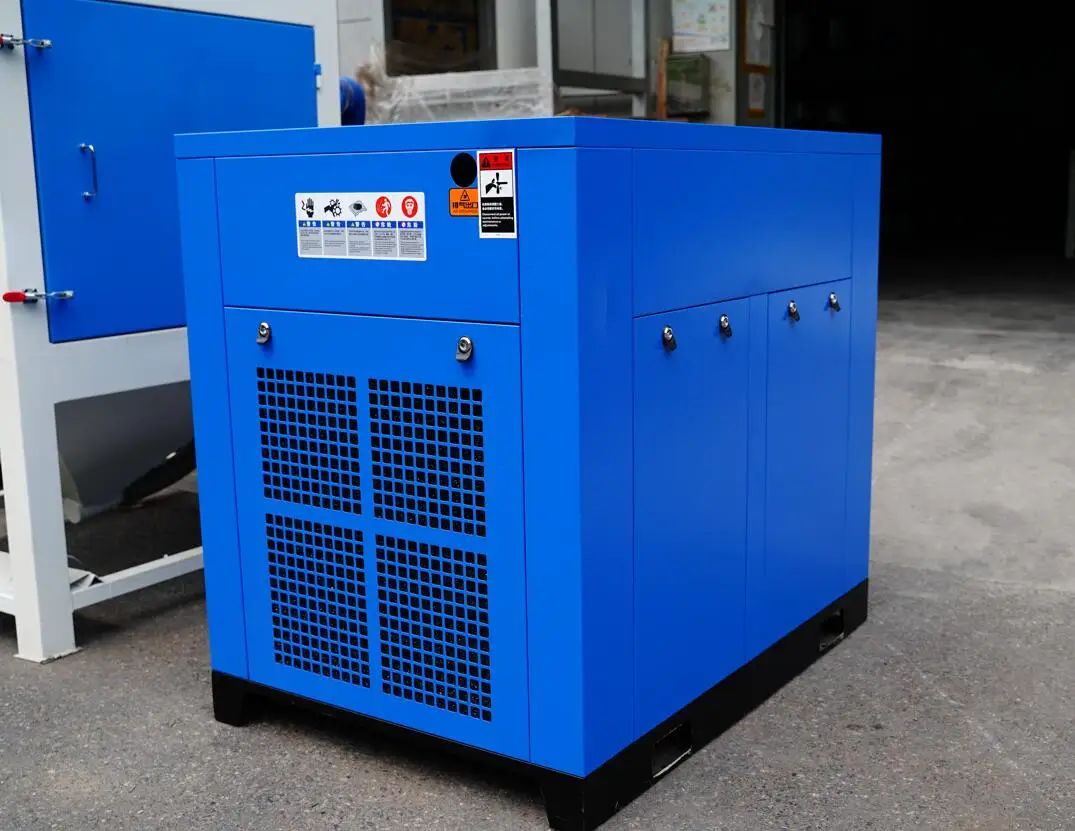

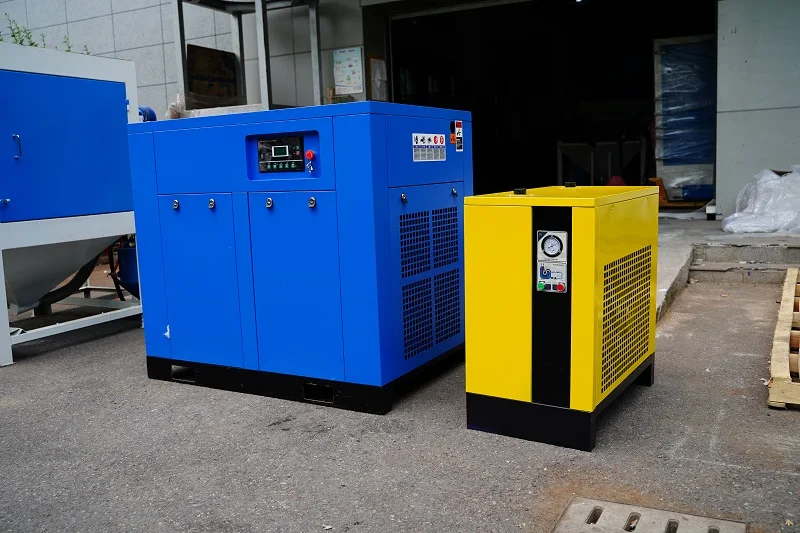

Screw Air compressor
1. The machine has a comprehensive noise protection, environmental protection, energy saving, quiet.
2. Rational design reduces the number of pipe fittings, ensuring no leakage phenomenon.
3. With a unique outer box to disassemble the whole structure, making the repair and maintenance work easily.
4. Suitable for most industrial equipment such as sandblasters, sprayers, etc.
2. Rational design reduces the number of pipe fittings, ensuring no leakage phenomenon.
3. With a unique outer box to disassemble the whole structure, making the repair and maintenance work easily.
4. Suitable for most industrial equipment such as sandblasters, sprayers, etc.
Model | Description |
KF-SAC-10A | Volume flow: 1.1m3/min Work pressure:0.8Mpa Motor power: 7.5KW (10HP) Power Voltage: 380/3/50 (V/PH/HZ) |

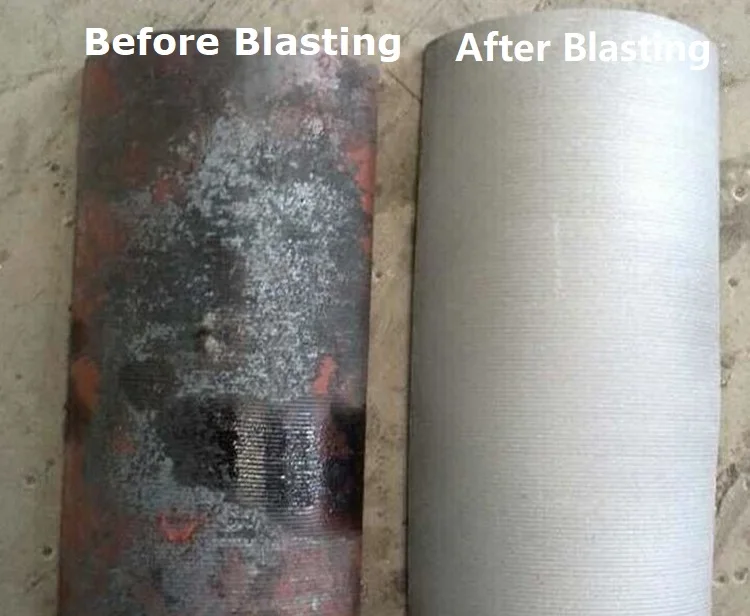

Application

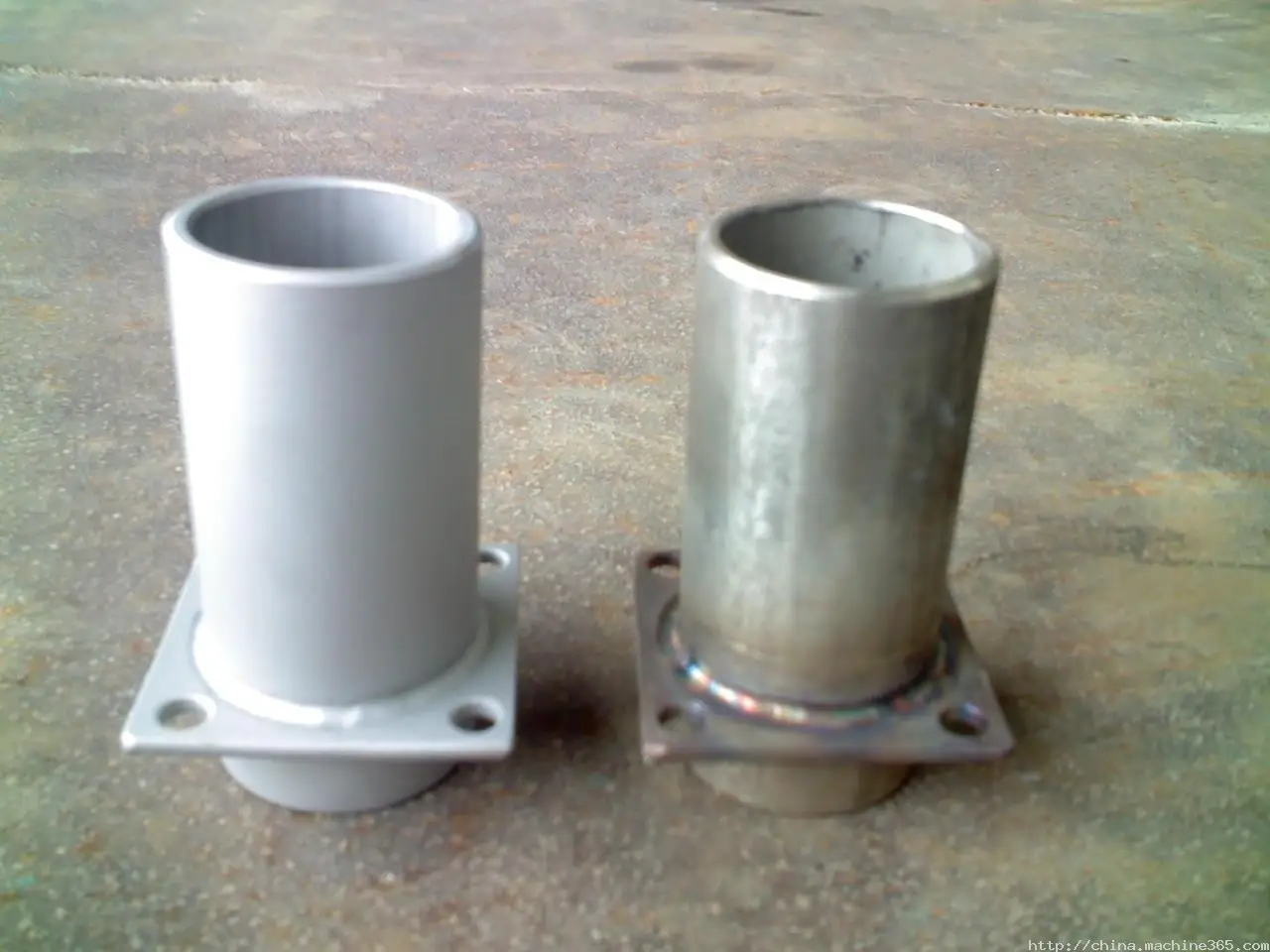

Environmetal cabinet designed Sandblaster can effectively handle a lot of cleaning purposes and simply deal with hard-to-reach areas.
Recommend Products
Detail information for sand blasting in different size
Model Loading weight (kg) | Turntable | Loading weight (kg) | Right door W*H(mm) | Outside size L*W*H(mm) | Cabin Size L*W*H(mm) |
KF-9080FTA | Φ600mm | 100 | 500*560 | 1250*950*1580 | 900*800*800 |
KF-9080FA | Φ600mm | 100 | 500*560 | 1250*950*1580 | 900*800*800 |
KF-1010FTA | Φ700mm | 150 | 650*780 | 1420*1050*1900 | 1000*1000*800 |
KF-1212FTA | Φ700mm | 200 | 750*780 | 1620*1250*2000 | 1200*1200*800 |

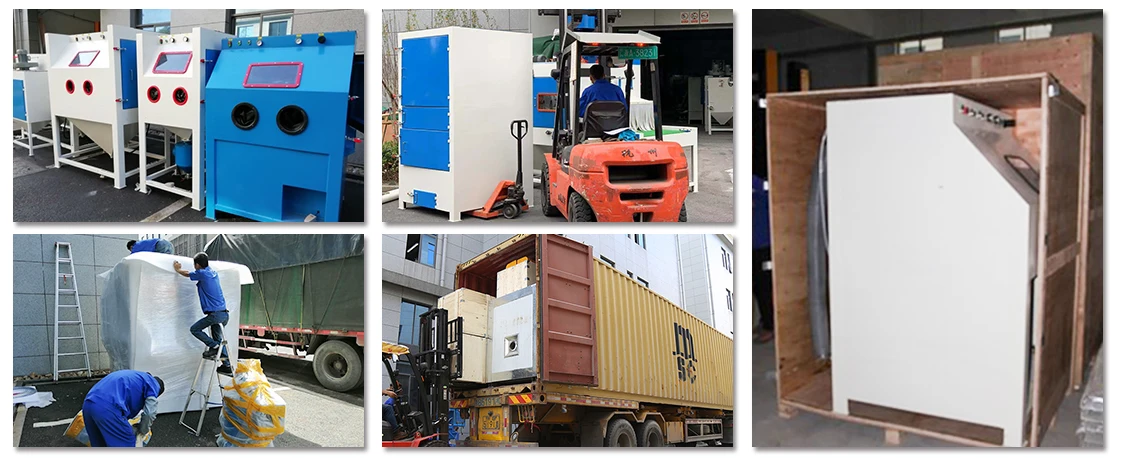

Packing
Factory&workshop
PROFESSIONAL MANUFACTURER OF SURFACE FINISHING MACHINERY
Kafan is a brand specializing in design and manufacturering sandblasting equipment and mass finishing equipment. devoted all ourselves supplying solution for worldwide customers, because of the superior technology, quality, service, we’ve established long term business relationship with distributor in US, Mexico, Russia, Poland, UK, Germany, South Africa, Vietnam, Thailand, etc.
Our products can be divided into two main parts, sandblasting equipment and mass finishing machines.
Sandblasting equipment including: manual sandblasting machine, suction sand blast cabinet, pressure blasting machine, wet abrasive blasting equipment, portable blaster pot, automatic conveyor blast system, tumbler blaster, rotary table blast machine, crawl blast machine, blasting parts and abrasives.
Mass finishing system including: vibratory polishing & deburring bowl, vibratory bowl with separator, centrifugal barrel tumbling machine, centrifugal disc finishing system, mass finishing media.
Sandblasting equipment including: manual sandblasting machine, suction sand blast cabinet, pressure blasting machine, wet abrasive blasting equipment, portable blaster pot, automatic conveyor blast system, tumbler blaster, rotary table blast machine, crawl blast machine, blasting parts and abrasives.
Mass finishing system including: vibratory polishing & deburring bowl, vibratory bowl with separator, centrifugal barrel tumbling machine, centrifugal disc finishing system, mass finishing media.
FAQ
1.What is the air pressure and air consumption of each blasting gun?
The input air pressure for the sandblasting machine is 8 bar and air consumption of each gun is about 1m3/min.
2.What is the abrasive and size to be applied?
Sand size ranges from mesh 16 to mesh 320 is all workable, like garnet, aluminum oxide, glass beads, corundum, steel grit, stainless steel shot, etc.
3.Can the abrasive be recycled?
Yeah, the abrasive is reused and circulates inside the blasting cabinet. Add some more from time to time. Don’t need to replace.
4. Can the machine be made to 220v 3-phase voltage?
Yes, we can customize 220v, 3 phase according to customer requirements. And voltage from 100V to 480V can all be made.
5.Is there dust outside the cabinet?
No, there isn’t. The blasting cabinet is equipped with dust collection system itself. It is sealed and closed. Outside is dustless and clean.
6. How long does it take for the machine to be delivered?
It can be delivered within 15-20 working days after receiving the advance payment.
7. Does the machine have a warranty?
Except for wearing parts, the machine is guaranteed for one year.
8. Do you have customers in the US? I would like to confirm more information from local customers.
We have cooperative customers in many countries and can provide customer contact information.
9. Are you a factory?
Yes, our factory locates in Hangzhou, and we have been in this industry for nearly 20 years.
10. Is there a possibility for us to send a sample to your company and give us a test of the equipment
Yes, you can send us work-pieces, we will provide free samples testing according to your requirements.
The input air pressure for the sandblasting machine is 8 bar and air consumption of each gun is about 1m3/min.
2.What is the abrasive and size to be applied?
Sand size ranges from mesh 16 to mesh 320 is all workable, like garnet, aluminum oxide, glass beads, corundum, steel grit, stainless steel shot, etc.
3.Can the abrasive be recycled?
Yeah, the abrasive is reused and circulates inside the blasting cabinet. Add some more from time to time. Don’t need to replace.
4. Can the machine be made to 220v 3-phase voltage?
Yes, we can customize 220v, 3 phase according to customer requirements. And voltage from 100V to 480V can all be made.
5.Is there dust outside the cabinet?
No, there isn’t. The blasting cabinet is equipped with dust collection system itself. It is sealed and closed. Outside is dustless and clean.
6. How long does it take for the machine to be delivered?
It can be delivered within 15-20 working days after receiving the advance payment.
7. Does the machine have a warranty?
Except for wearing parts, the machine is guaranteed for one year.
8. Do you have customers in the US? I would like to confirm more information from local customers.
We have cooperative customers in many countries and can provide customer contact information.
9. Are you a factory?
Yes, our factory locates in Hangzhou, and we have been in this industry for nearly 20 years.
10. Is there a possibility for us to send a sample to your company and give us a test of the equipment
Yes, you can send us work-pieces, we will provide free samples testing according to your requirements.
