High Power Wifi Control Floor Stand Electric Boiler For Space Heating And Domestic Hot Water Electric Heating Boiler
- Category: >>>
- Supplier: Hebei Wentai Group New Energy Co. Ltd.
Share on (1600680064495):
Product Overview
Description
Product Description
Household Economic Series | ||||||||||||
Model | WT-CR-3JJ | WT-CR-5JJ | WT-CR-7JJ | WT-CR-9JJ | WT-CR-12JJ | WT-CR-16JJ | ||||||
Heating area (S, m²) | ≤30 | 30-50 | 50-70 | 70-90 | 90-120 | 120-160 | ||||||
Rated heating power（kw） | 3 | 5 | 7 | 9 | 12 | 16 | ||||||
Operating Voltage(V) | 220 | 220 | 220 | 220 | 220 | 380 | ||||||
Rated heat storage (kwh) | 3 | 4.8 | 6 | 8.4 | 12 | 16.8 | ||||||
Rated heat storage(MJ) | 10.8 | 17.28 | 22 | 30 | 43 | 60 | ||||||
Max. heat release power (W/m²) | 125 | 125 | 125 | 125 | 125 | 125 | ||||||
Water temperature (°C) | 40-80 | 40-80 | 40-80 | 40-80 | 40-80 | 40-80 | ||||||
Rated daily heating time(h) | 24 | 24 | 24 | 24 | 24 | 24 | ||||||
Dimensions (mm*mm*mm) | 500*340*920 | 550*340*920 | 550*340*1070 | 640*430*1070 | 820*430*1070 | 990*470*1070 | ||||||
Insulation resistance(MQ) | > 100 | > 100 | > 100 | > 100 | > 100 | > 100 | ||||||
Ground resistance(Q) | W 1 | W 1 | W 1 | W 1 | W 1 | W 1 | ||||||
Heat loss(24h) | <5% | <5% | <5% | <5% | <5% | <5% | ||||||
Running noise(dB) | <50 | <50 | <50 | <50 | <50 | <50 | ||||||
Interface diameter(DN) | 15 | 15 | 20 | 20 | 25 | 25 | ||||||
Recommended cable | Copper wire 4mm² | Copper wire 6mm² | Copper wire 10mm² | Copper wire 16mm² | Copper wire 6mm² | |||||||
Structural ontology
It includes structures such as heating, heat storage, heat exchange, circulation, control, and equipment housing.
Heat storage module
The device has a built-in phase change heat storage material, which can store the heat energy converted from electrical energy during the nighttime low power period in the phase change material. The phase change material in the heat storage module has high heat storage density and high heat storage capacity.
Heat release module
The heat exchange device in the equipment releases the heat stored in the phase change material through the heat exchange device for heat supply when heat is needed.
Circulation device
The equipment has a built-in secondary side circulation device, which can effectively ensure the heat release effect, stabilize the room temperature within the set range, and ensure the heating effect.
Control module
The device has a built-in intelligent control module to monitor and control the parameters of electric heaters, circulating pumps,thermocouples and other instruments and equipment in the heating and heat release process, intelligently display the percentage of heat storage energy, and provide an intelligent visual operation interface to ensure the safety of system operation. sex and convenience.
Device enclosure
The equipment is embedded with high-performance thermal insulation materials, which can effectively maintain the temperature of the equipment, reduce the thermal insulation and heat dissipation, and improve the thermal storage efficiency of the system.
It includes structures such as heating, heat storage, heat exchange, circulation, control, and equipment housing.
Heating module
The equipment has a built-in electric heating device, which converts electric energy into heat energy during the low power period at night.Heat storage module
The device has a built-in phase change heat storage material, which can store the heat energy converted from electrical energy during the nighttime low power period in the phase change material. The phase change material in the heat storage module has high heat storage density and high heat storage capacity.
Heat release module
The heat exchange device in the equipment releases the heat stored in the phase change material through the heat exchange device for heat supply when heat is needed.
Circulation device
The equipment has a built-in secondary side circulation device, which can effectively ensure the heat release effect, stabilize the room temperature within the set range, and ensure the heating effect.
Control module
The device has a built-in intelligent control module to monitor and control the parameters of electric heaters, circulating pumps,thermocouples and other instruments and equipment in the heating and heat release process, intelligently display the percentage of heat storage energy, and provide an intelligent visual operation interface to ensure the safety of system operation. sex and convenience.
Device enclosure
The equipment is embedded with high-performance thermal insulation materials, which can effectively maintain the temperature of the equipment, reduce the thermal insulation and heat dissipation, and improve the thermal storage efficiency of the system.

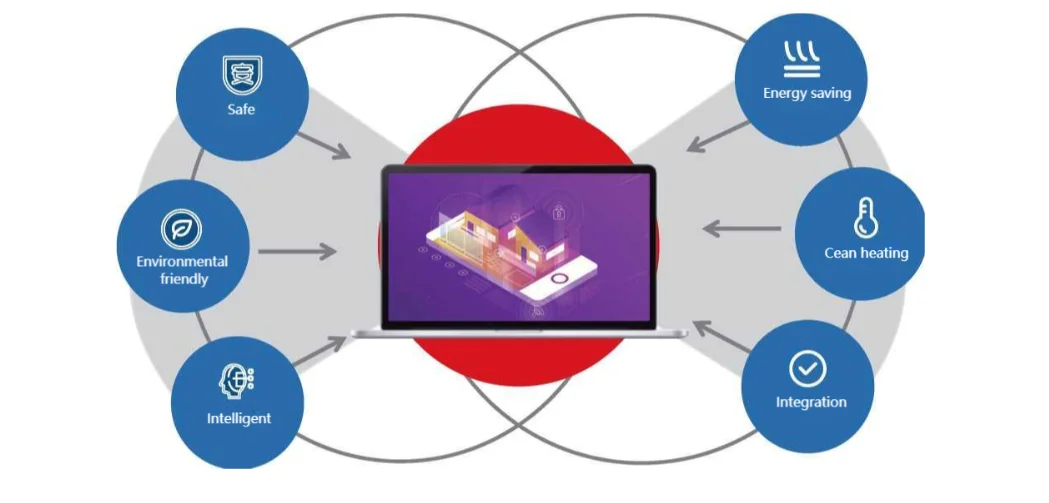

Product Advantages
Safety and environmental protectionDuring the operation of the equipment, it operates under normal pressure and zero emission, and will not produce dust, oil and other pollutants, which is safe and environmentally friendly.
Intelligent digital control
Automatic operation, using the Internet of Things digital remote control, the heating temperature can be adjusted at any time.
Easy and fast installation
There is no need to transform the original heating system, only the user needs to connect water and electricity to operate, the construction is convenient, the construction period is short, and the installation is simple and convenient.
Energy saving economy
Using clean energy such as low-price electricity at night to store heat for heating, compared with municipal heating, gas heating and other methods, the operating cost is greatly saved, and the energy consumption per square meter in the heating season is as low as 12.5 yuan/square meter.

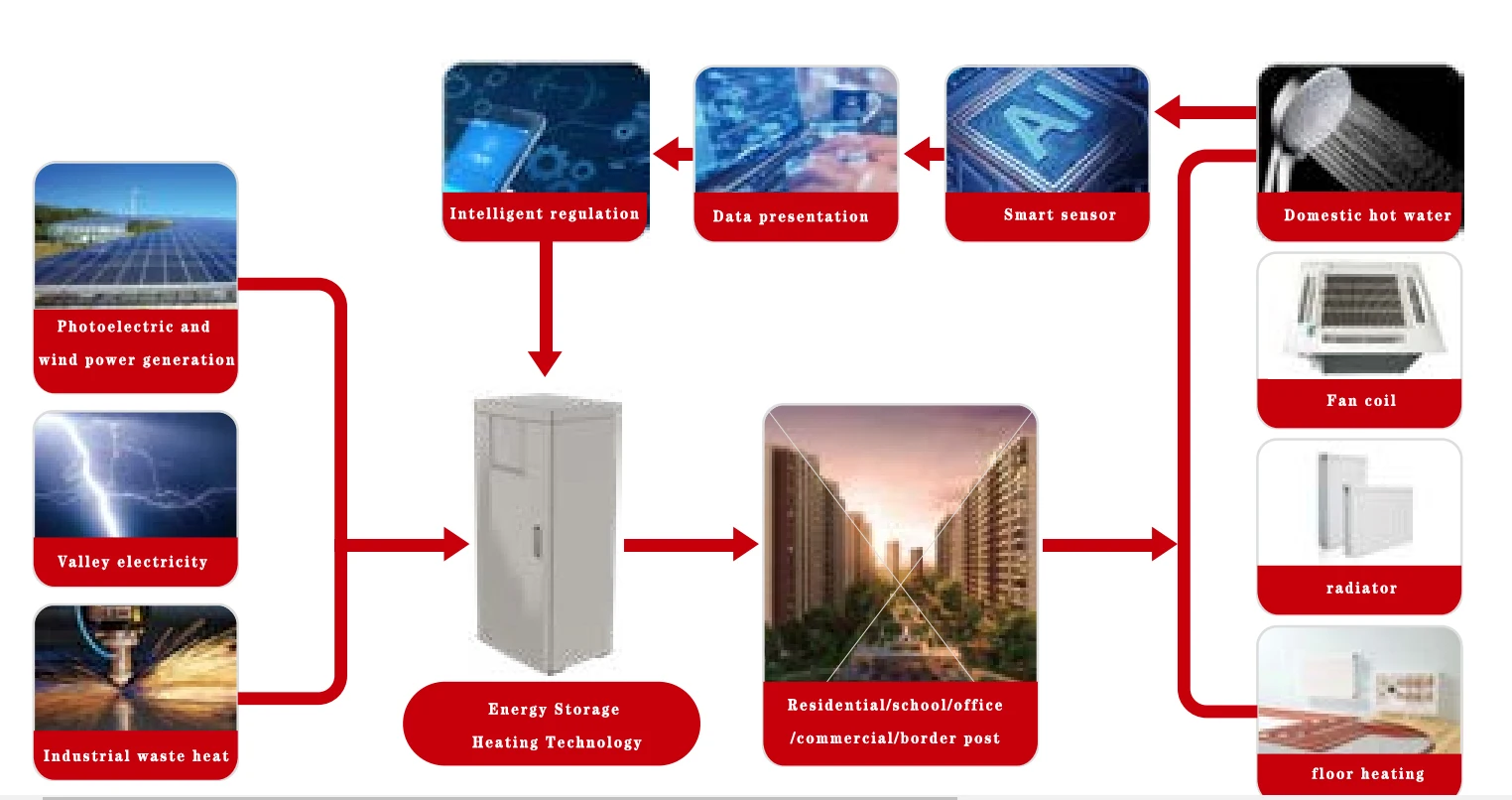

Low Valley Electricity/Clean Utilization of Renewable Energy
The equipment can use various clean electricity such as nighttime low-price electricity, photovoltaic electricity and wind
electricity to heat and store heat, and the heating methods are flexible and diverse.
Small footprint
The phase change heat storage heating integrates the equipment for heating, heat storage, heat release and other processes into one, which greatly saves the installation space.
Specification
item | value |
Place of Origin | China |
Hebei | |
Brand Name | wentai |
Model Number | Economy |
Housing Material | Stainless steel |
Power (W) | 3000 |
Storage / Tankless | Instant / Tankless |
Voltage (V) | 220 |
After-sales Service Provided | None |
Warranty | None |
Capacity | 0 |
Installation | Freestanding |
Application | Hotel, Commercial, Household |
Power Source | Electric |
App-Controlled | Yes |
Private Mold | NO |
Product name | Storage Electric Water Heater |
Function | Adjustable |
Storage water heater Heat Source | Induction |
Color | Customizable |
Material | Metal Shell |
Usage | Central Hot Water |
Keywords | Electric Heating Boiler |
MOQ | 1 Piece |
Company Profile
Wentai Group is a comprehensive enterprise integrating R&D, production, installation, commissioning, marketing and after-sales service. Since its establishment in 2014, it has taken the lead in the field of "coal -to-clean energy" and occupy the mainstream market share.
Under the goal of "double carbon", the company actively explores transformation and development, and has successively signed strategic cooperation agreements with universities such as Hebei University of Technology, absorbed and implemented the "energy storage + clean energy" technology in colleges and universities, and created energy storage technology and energy storage products. At the core, focus on innovative directions such as energy storage, photovoltaic power generation, wind power generation, energy cascade utilization, waste heat recovery, intelligent charging, intelligent control, etc. Best-in-class clean energy lifecycle solutions.
Taking scientific and technological innovation capability and advanced manufacturing capability as the strategic support for enterprise development, adhere to the market demand-oriented, and provide the market and customers with "high-efficiency, high-quality, high-value" products in a "low-carbon, low-energy-consumption, zero-emission" way. Clean energy products and services, and deepen the construction of a clean, low-carbon, safe and efficient modern energy system.
The company has an independent high-end equipment manufacturing base, located in Hengshui, Hebei Province, equipped with production workshops, spare parts testing centers, finished product testing centers, and finished product warehouses, which can produce and assemble different types of new energy equipment. The company's R&D team has rich experience, profound technology accumulation and strong independent innovation ability. At present, the team has accumulated more than 30 main intellectual property rights, ensuring the industrial technological advancement and market competitiveness of the main products.
In the future, Hebei Wentai will focus on new energy equipment and R&D business, accelerate the integration of low-carbon and clean energy systems, keep close to customer needs, and strive to build the company into a first-class low-carbon energy enterprise.
Under the goal of "double carbon", the company actively explores transformation and development, and has successively signed strategic cooperation agreements with universities such as Hebei University of Technology, absorbed and implemented the "energy storage + clean energy" technology in colleges and universities, and created energy storage technology and energy storage products. At the core, focus on innovative directions such as energy storage, photovoltaic power generation, wind power generation, energy cascade utilization, waste heat recovery, intelligent charging, intelligent control, etc. Best-in-class clean energy lifecycle solutions.
Taking scientific and technological innovation capability and advanced manufacturing capability as the strategic support for enterprise development, adhere to the market demand-oriented, and provide the market and customers with "high-efficiency, high-quality, high-value" products in a "low-carbon, low-energy-consumption, zero-emission" way. Clean energy products and services, and deepen the construction of a clean, low-carbon, safe and efficient modern energy system.
The company has an independent high-end equipment manufacturing base, located in Hengshui, Hebei Province, equipped with production workshops, spare parts testing centers, finished product testing centers, and finished product warehouses, which can produce and assemble different types of new energy equipment. The company's R&D team has rich experience, profound technology accumulation and strong independent innovation ability. At present, the team has accumulated more than 30 main intellectual property rights, ensuring the industrial technological advancement and market competitiveness of the main products.
In the future, Hebei Wentai will focus on new energy equipment and R&D business, accelerate the integration of low-carbon and clean energy systems, keep close to customer needs, and strive to build the company into a first-class low-carbon energy enterprise.
Company factory buildings and office buildings
Production equipment and production line
Inventory of accessories and products
Cooperation case
Certifications
Exhibition
Production equipment and production line
Transportation and packaging
FAQ
Q1: Are you a manufacturing company or a trading company? We are a professional manufacturer of gas water heaters, pe pipes, energy storage equipment, hot air fans, established in 2014
100pcs/per model
Q3 How long you can offer a sample for my inspection?
Depends on models, Sample 5-20days
Q4 Is OEM is acceptable?
Yes, OEM is welcome.
Q5 What is the delivery time?
The delivery time is 30-35 days after order was confirmed and received deposit.
Q6: What is your payment term?
T/T30% deposit in advance 70% balance against the copy of B/L
