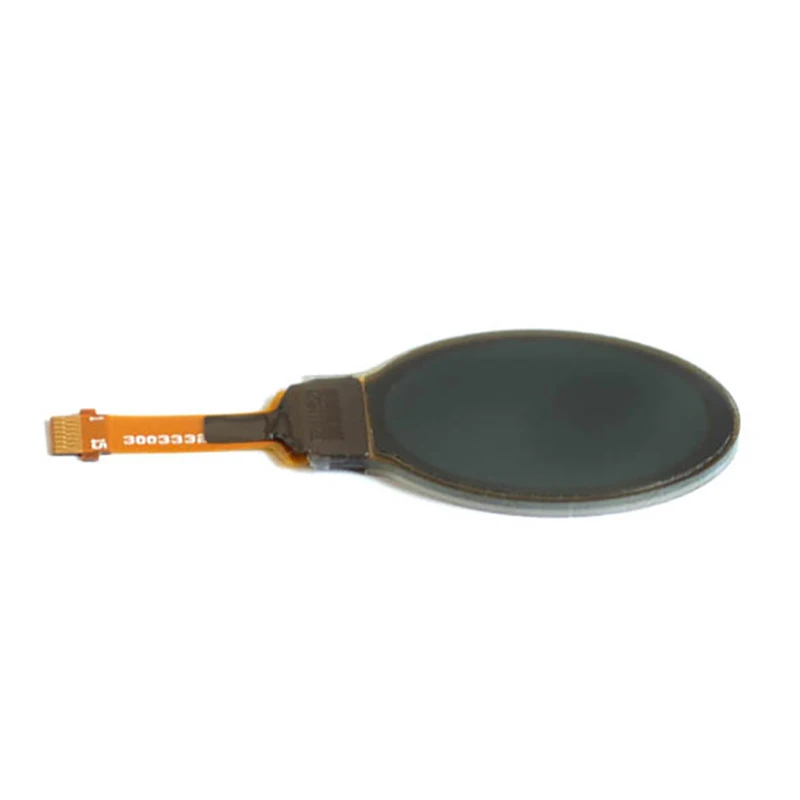

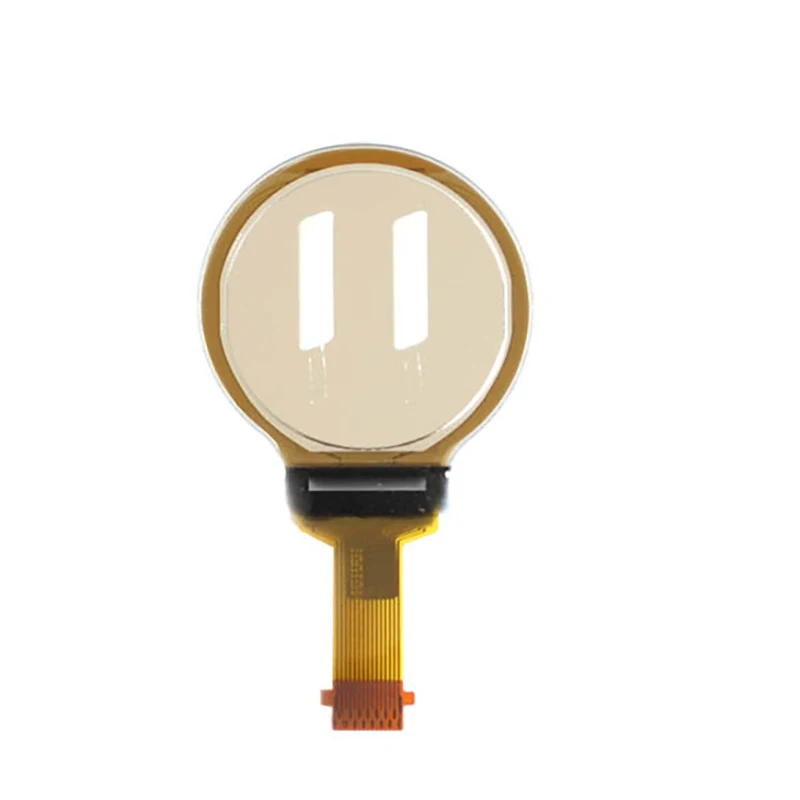

0.75 inch round small white 128x128 dots OLED display
INTRODUCTION
This is a white circular OLED display with small molecular organic light emitting diode, 0.75 inch with 128x128 pixels. The drive IC is SSD1327. Its operating temperature is -40℃~70℃, storage temperature is -40℃~85℃. The pixel luminance is 80(Typ) cd/m².
This OLED display possessing the excellent characteristics such as autoluminescence, wide angle of view, wide temperature range becomes the ideal choice for instruments and apparatus. Its circular design is also a good choice for other special application.
FEATURE
* Self-luminous, no backlight is required.
* Circular.
*Wide operating temperature: -40℃~70℃
Technical Specifications
DIAGONAL SIZE | 0.75 inch |
DISPLAY MODE | Passive Matrix |
DISPLAY COLOR | Monochrome (White) |
NUMBER OF PIXELS | 128x128 |
INTERFACE | Serial Peripheral Interface, I2C Interface |
DRIVER IC | SSD1327 |

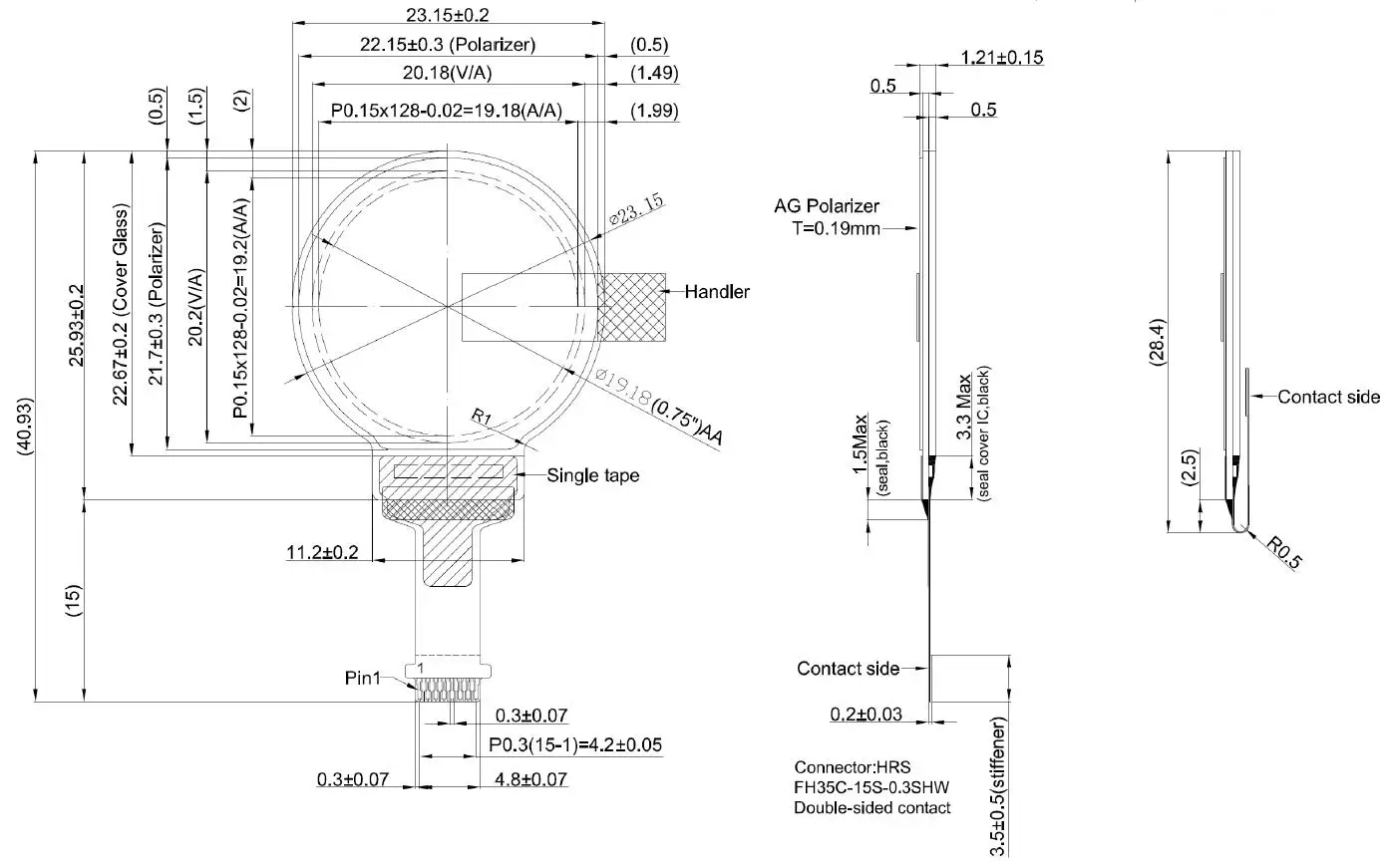

OUTLINE DIMENSION(mm) | 23.15x40.93x1.21 |
ACTIVE AREA(mm) | D=19.18 |
PIXEL PITCH(mm) | 0.15x0.15 |
PIXEL SIZE(mm) | 0.13x0.13 |
BRIGHTNESS(Typ) | 80 cd/m²(Typ) |
OPERATING TEMP. | -40℃~70℃ |
STORAGE TEMP. | -40℃~85℃ |
Application
*If you interested in 0.96”-10.1” TFT LCD Modules ,pls click here to know more about the detail.
* If you can't find a suitable one, contact us to get a recommendation.
Production Flow
Packaging & Shipping
Certifications
Adhering to the principle of customer first,quality first,Smart has a well-established rigorous quality management systerm accredited with ISO9001 ,Smart is firmly committed to its environmental responsibilities all products are RoHS & REACH compliant.
Company Information
SHENZHEN SMART SCIENCE TECHNOLOGY LIMITED established in 2009, is a high-tech private enterprise that is engaged in the R&D, Manufacturing and Marketing of LCD Modules and Touch Screens. Our products are sold to more than 60 different countries and areas all over the world
*1 , Products: 0.96”-10.1” TFT LCD Modules and Touch Screens
*2, Monthly Production Capacity:600,000pcs Employee: 80-100 persons
*3, Factory: 2000 square meter , Office and Warehouse: 600 square meter
*4, over 10 years LCD Modules experience and Stronger engineer team
*5, Production Lines: 10 lines, including 4 high-precision Full-Automatic production lines, which contain full-auto COG, full-auto FOG, full-auto Backlight-assembly, full-auto Glue-dispensing, full-auto CTP-assembly, in fully-enclosed dust-free, temperature and humidity controlled workshops.
*6 ,Certification :ISO9001& RoHS & REACH
our customers
welcome to visit our factory. We will show you how to produce TFT LCD Modules
Our Services
1.Reply your inquiry in 24 working hours,
2.Customized design is available,OEM and ODM are welcomed,
3.Delivery the goods to our customer all over the world with speed and precision,
4.Offer customer the competitive price with high LCD Modules product.
FAQ
Q: 1. Can I have a sample order?
A: Yes, welcome sample order to test and check quality.
Q: 2. Do you have any MOQ limit?
A: MOQ is 500~1000pcs
Q: 3. Which payments are acceptable?
A: Western Union, T/T are acceptable.
Q: 4. Which shipping methods are available?
A: Sea,. Fedex, DHL, TNT, UPS, EMS, BY ARI(door to door) all are available.
Q: 5. How about the lead time and delivery time of my order?
A: Lead time is 7-20 work days according to the detail order.
Q: 6. How to order ?
A: Pls contact us online or send us email, we will send you PI. After Payment, we will arrange produce your goods.
