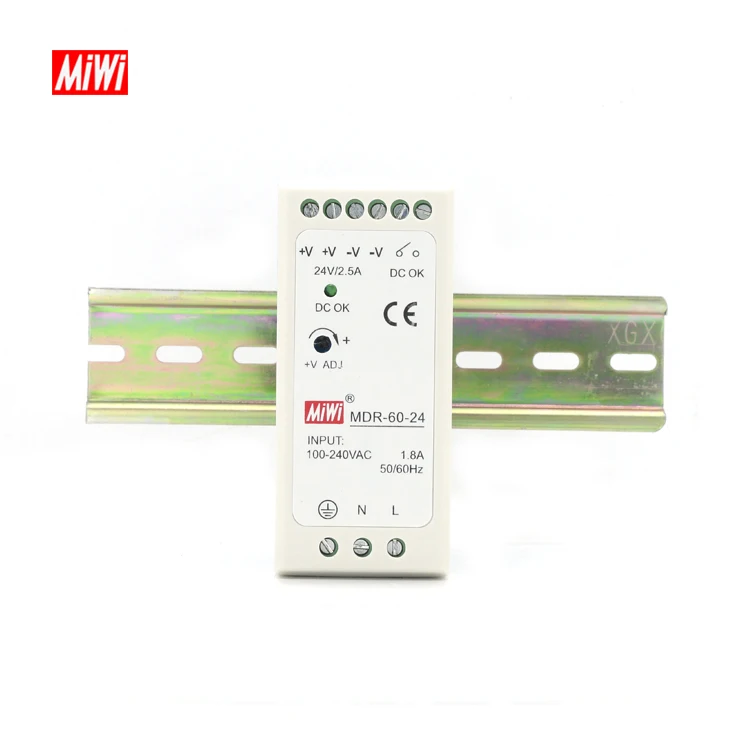

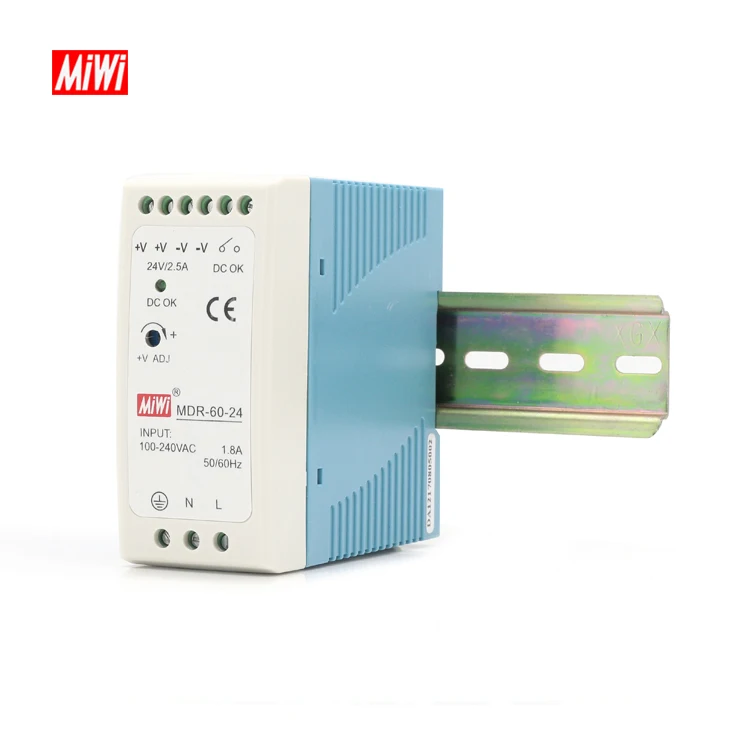

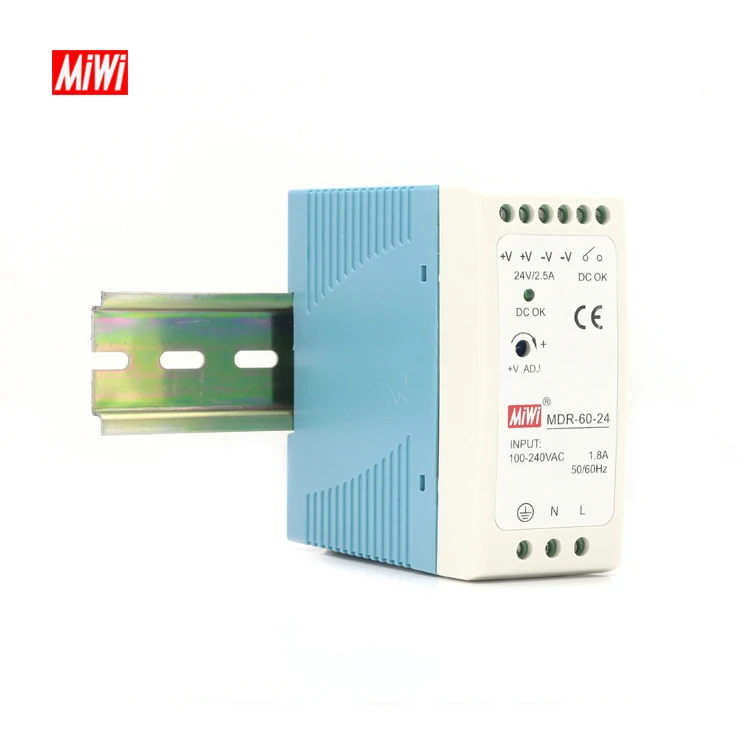

MDR 60 24 Din Rail 60W 2.5A 24V AC DC Led Single Output Switching Power Supply
- Category: >>>
- Supplier: Wenzhou Qianxiang Electric Technology Co. Ltd
Share on (1600680404244):
Product Overview
Description
You are here:Home>>Din Rail Series>>MDR Series
Product Description
- Universal AC input/Full range
- LED indicator for power on
- Protections: Short circuit / Overload / Over voltage
- No load power consumption<0.75W

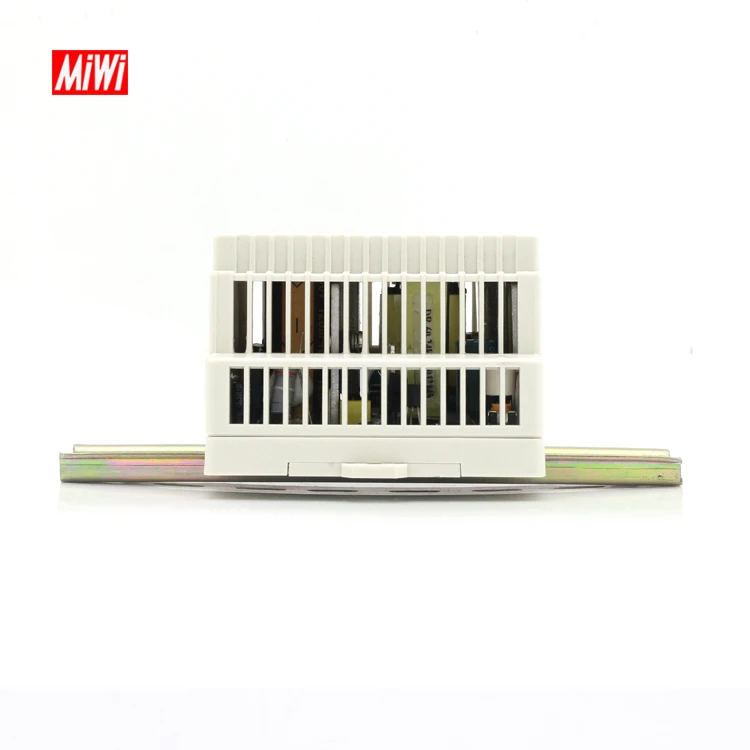

- Cooling by free air convection
- 100% full load burn-in test

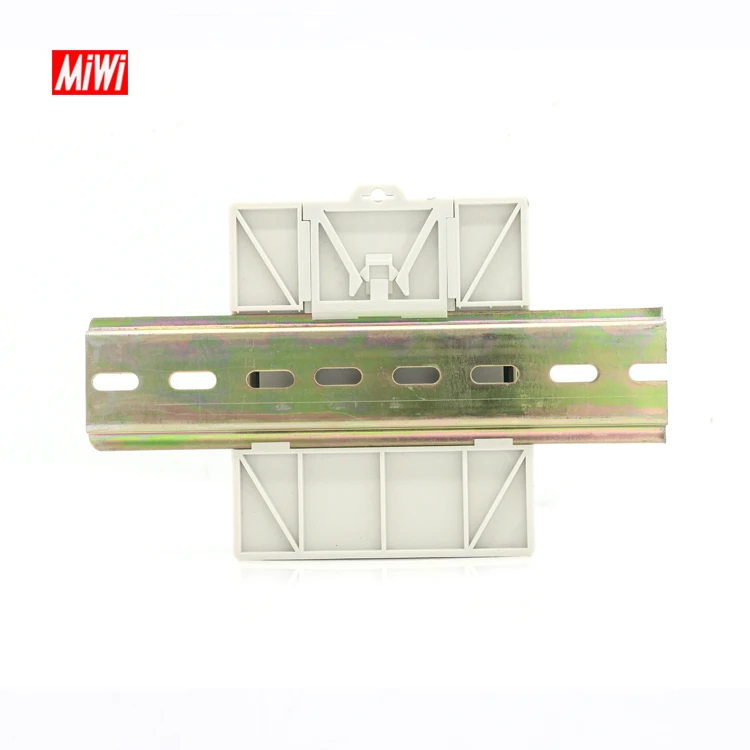

- Can be installed on DIN rail TS-35/7.5 or 15
- 2 years warranty
- Built in DC OK reply contact
| MODEL | MDR-60-5 | MDR-60-12 | MDR-60-24 | MDR-60-48 | |
| OUTPUT | DC VOLTAGE | 5V | 12V | 24V | 48V |
| RATED CURRENT | 10A | 5A | 2.5A | 1.25A | |
| CURRENT RANGE | 0 ~ 10A | 0 ~5A | 0 -2.5A | 0-1.25A | |
| RATED POWER | 50W | 60W | 60W | 60W | |
RIPPLE & NOISE (max.) Note.2 | 80mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | |
| VOLTAGE ADJ. RANGE | 5 -6V | 12-15V | 24 - 30V | 48 ~ 56V | |
VOLTAGE TOLERANCE Note.3 | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±1.5% | ±1.0% | ±1.0% | ±1.0% | |
SETUP, RISE TIME Note.5 | 500ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load | ||||
| HOLD UPTIME (Typ.) | 50ms/230VAC 20ms/115VAC at full load | ||||
| VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC | ||||
| INPUT | FREQUENCY RANGE | 47 ~63Hz | |||
| EFFICIENCY (Typ.) | 0.78 | 0.86 | 0.88 | 0.87 | |
| AC CURRENT (Typ.) | 1.8A/115VAC 1A/230VAC | ||||
| INRUSH CURRENT (Typ.) | COLD START 30A/115VAC,60A/230VAC | ||||
| LEAKAGE CURRENT | <1mA/240VAC | ||||
| PROTECTION | OVERLOAD | 105 ~ 150% rated output power | |||
Protection type : Constant current limiting, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | 6.25-7.25V | 15.6 - 18V | 31.2-36V | 57.6 - 64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||
| FUNCTION | DC OK ACTIVE SIGNAL (max.) | 3.75 ~ 6V / 50mA | 9 ~ 13.5V / 40mA | 11.5 ~ 16.5V / 40mA | 18 ~ 27V / 20mA |
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70C (Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
STORAGE TEMP., HUMIDITY | -40 ~ +85C, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/C (0 ~ 50℃) | ||||
| VIBRATION | Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | ||||
SAFETY &EMC (Note 4) | WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25C/ 70% RH | ||||
| EMC EMISSION | Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3 | ||||
| EMC IMMUNITY | Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024,EN61000-6-1,EN61204-3, light industry level, criteria A | ||||
| OTHERS | MTBF | 299.2K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 40*90*1000mm (W*H*D) | ||||
| NOTE | 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. | ||||
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uf & 47uf parallel capacitor. | |||||
| 3.Tolerance : includes set up tolerance, line regulation and load regulation. | |||||
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. | |||||
5.Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time. | |||||
