Пресс для фанеры CE

Product Overview

Description

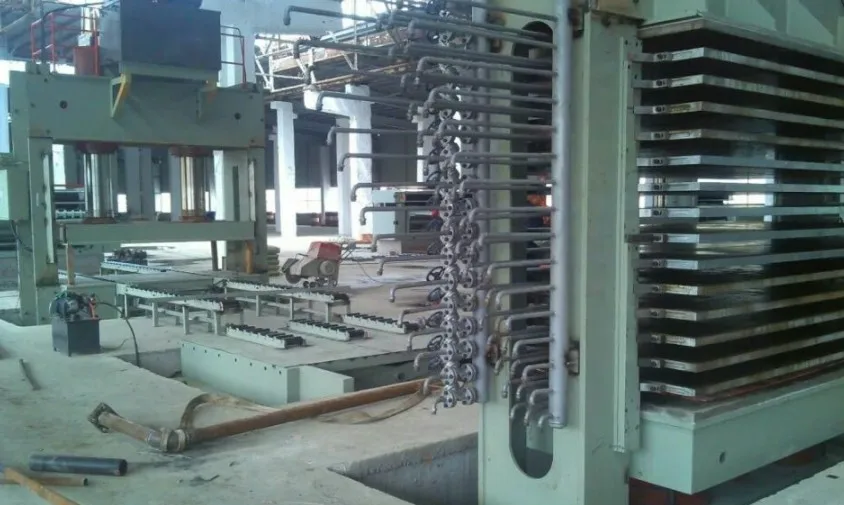

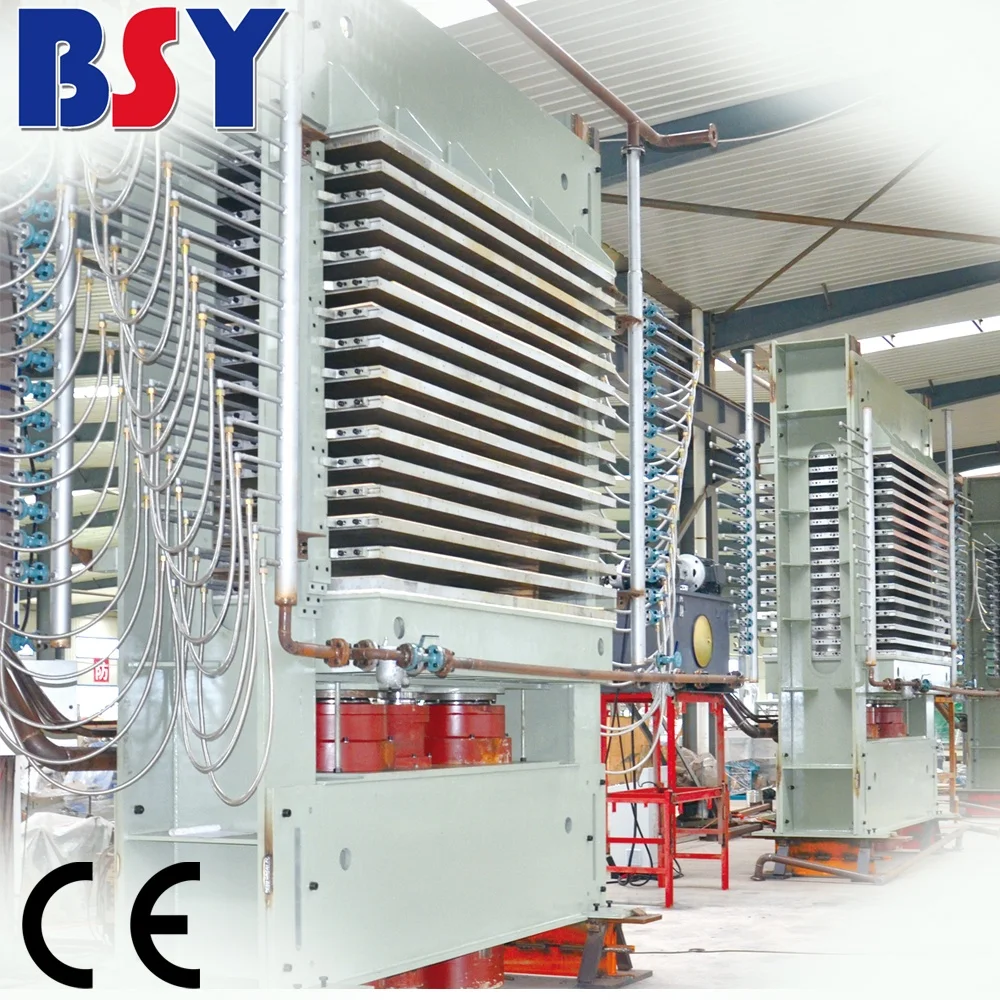

Plywood Hot press Introduction:

Hydraulic hot press is one of main machines in plywood production line.Apply for large-scale production in big factory.

Configuration:

1.Heavy,solid and reliable complete structure.

2.42mm & 52mm thick solid steel hot platen.

3.Input and output tubes of steam and heat conduction oil are alternative.

4.Oil cylinder with bigger diameter.





Model	BY214X8/4B-15	BY214X8/6-15
Nominal pressure(KN)	4000	6000
Hot-press plate sizes (mm)	2700 x 1370 x 42	2700 x 1370 x 42
Finished piece dimensions (ft)	4x8	4x8
Opening (mm)	70	70
layer number	15 with 16 plates	15 with 16 plate
Diameter of plunger cylinders (mm)	Φ 360/ 2 pieces	Φ 400/ 2 pieces
Working stroke (mm)	1050	1050
Working pressure (Mpa)	25	25
Total Motor (kw)	26	26
Closing speed (m/min)	4	4
Overall dimensions (mm)	5000 x 1446 x 5395	5000 x 1446 x 5395
Weight (kg)	34000	38000

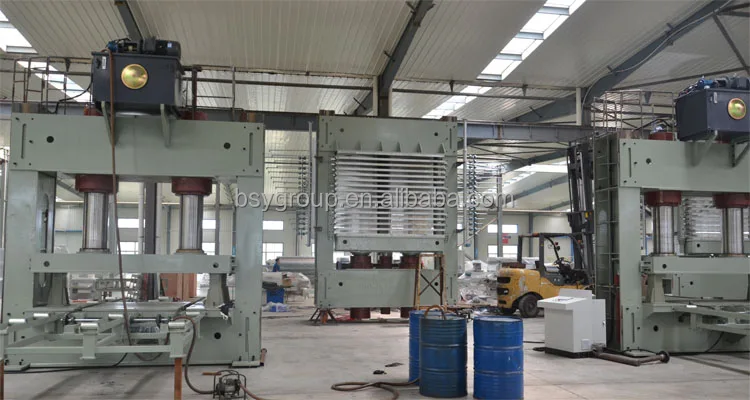

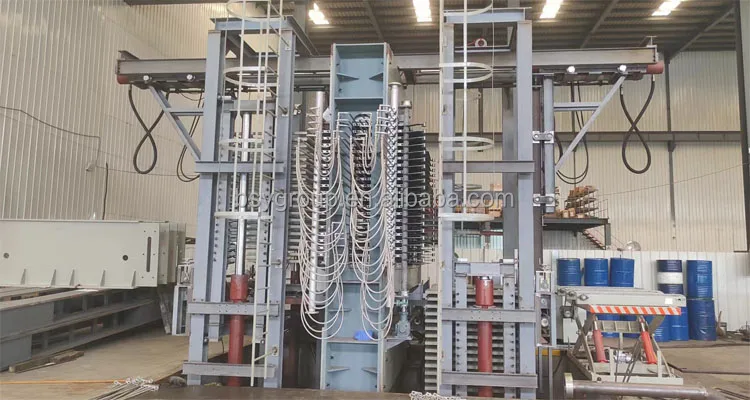

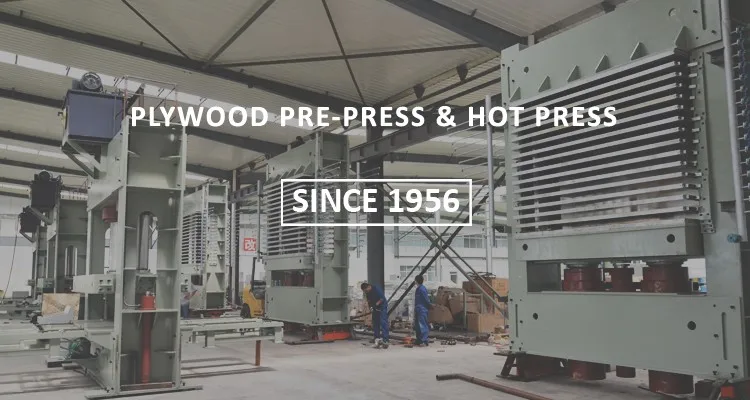

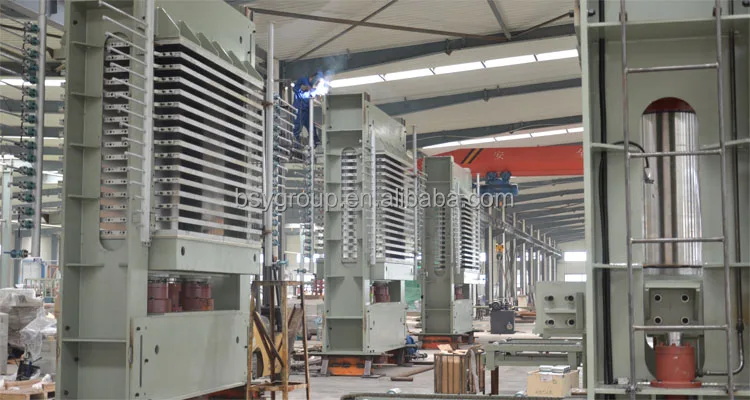

Semi-finished productions in our assembly workshop





Model Cold Press	HYY814×8/4C	HYY814×8/5B	Model Hot Press	HY214X8/8B-10
Nominal pressure(KN)	4000	5000	Nominal pressureKN)	8000
Unit pressure of board surface(Mpa)	1.3	1.3	Hot plate size(mm)	1300X2700X52
Width of press board(mm)	2700×1370	2700×1370	Product dimensions(ft)	4X8
Max.working stroke(mm)	1000	1000	Opening(mm)	70
Net opening(mm)	300-1300	300-1300	Opening mumber(pcs)	10
Diameter and quantity of pressure cylinders(mm)	Φ320/2 pieces	Φ360/2 pieces	Plunger cylinder diameter(mm)	Φ300x4 ,Φ190x1
Diameter and quantity of lift cylinders(mm)	Φ80/2 pieces	Φ80/2 pieces	Working stroke(mm)	18.5KW+7.5KW
Feeding speed(m/min)	6.78	6.78	Working pressure(Mpa)	1050
Total motor(kw)	16.1	16.1	Motor (kw)	25
Overall dimensions(mm)	3500×2400×4650	3500×2400×4750	Overall sizes(mm)
Weight(kg)	18000	18000	Weight(kg)









Other machines may interest you

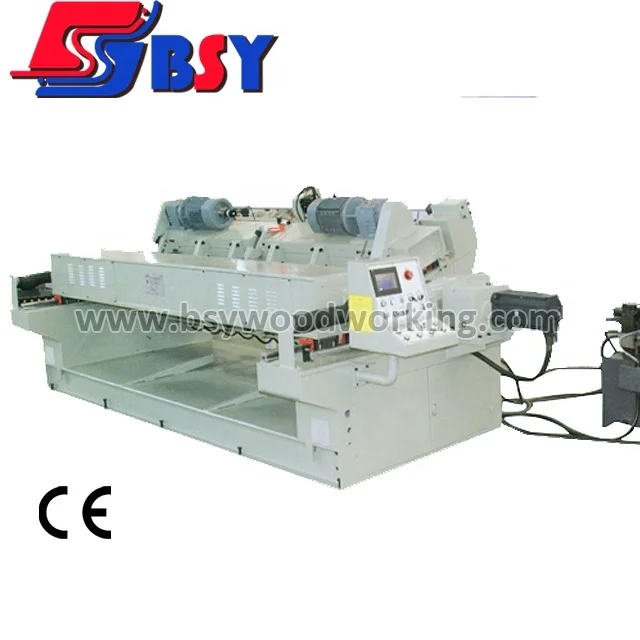

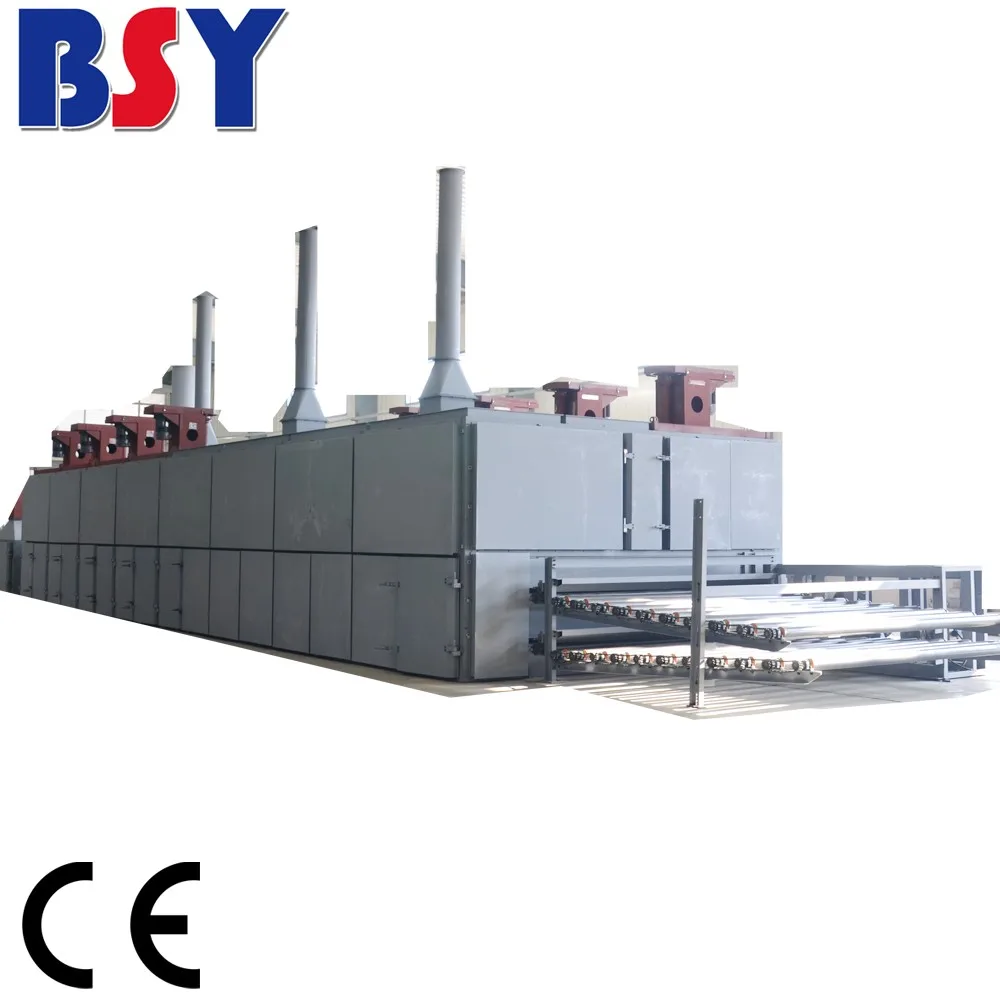

Veneer Peeling Line machine                                Veneer roller dryer                                   Plywood Hot press machine
