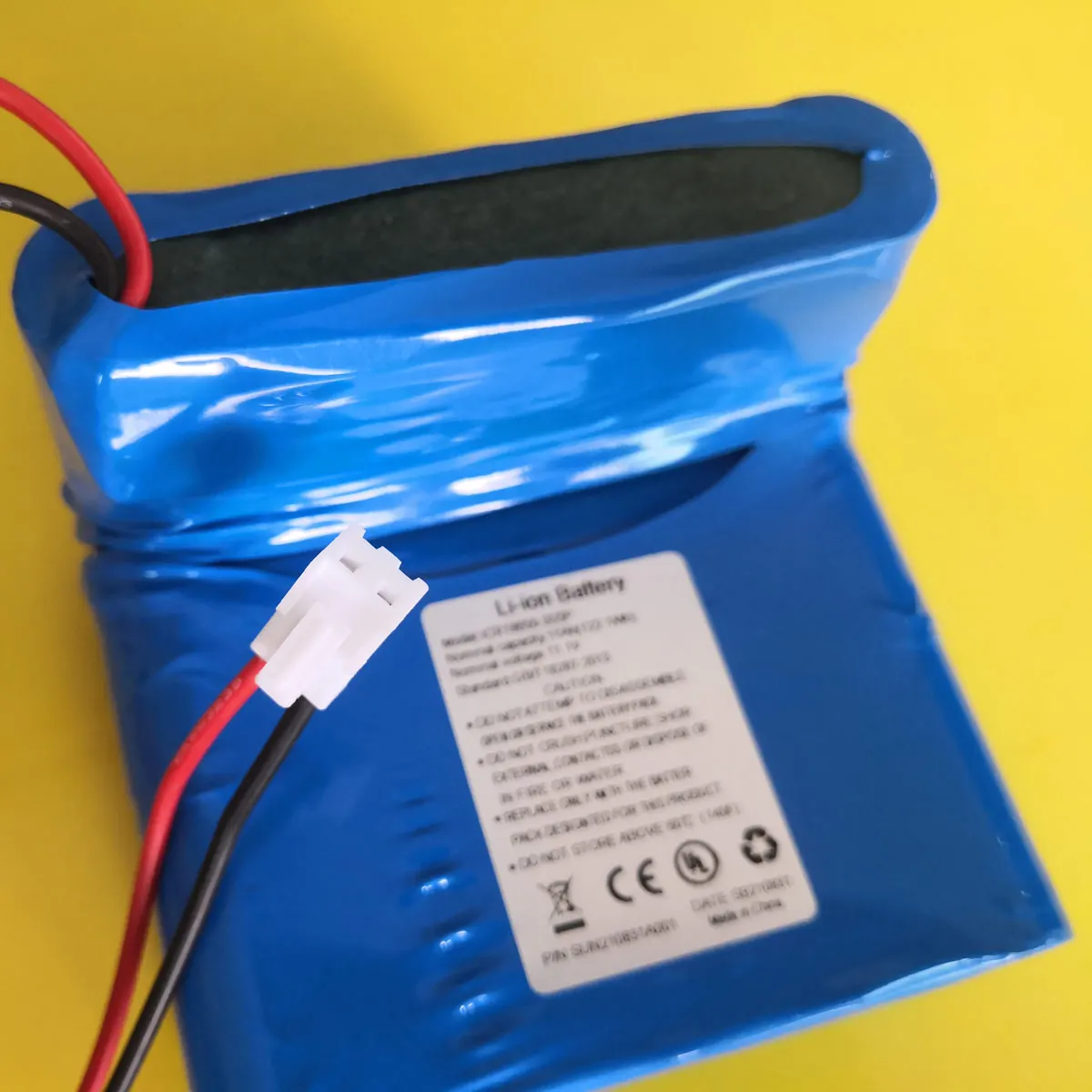

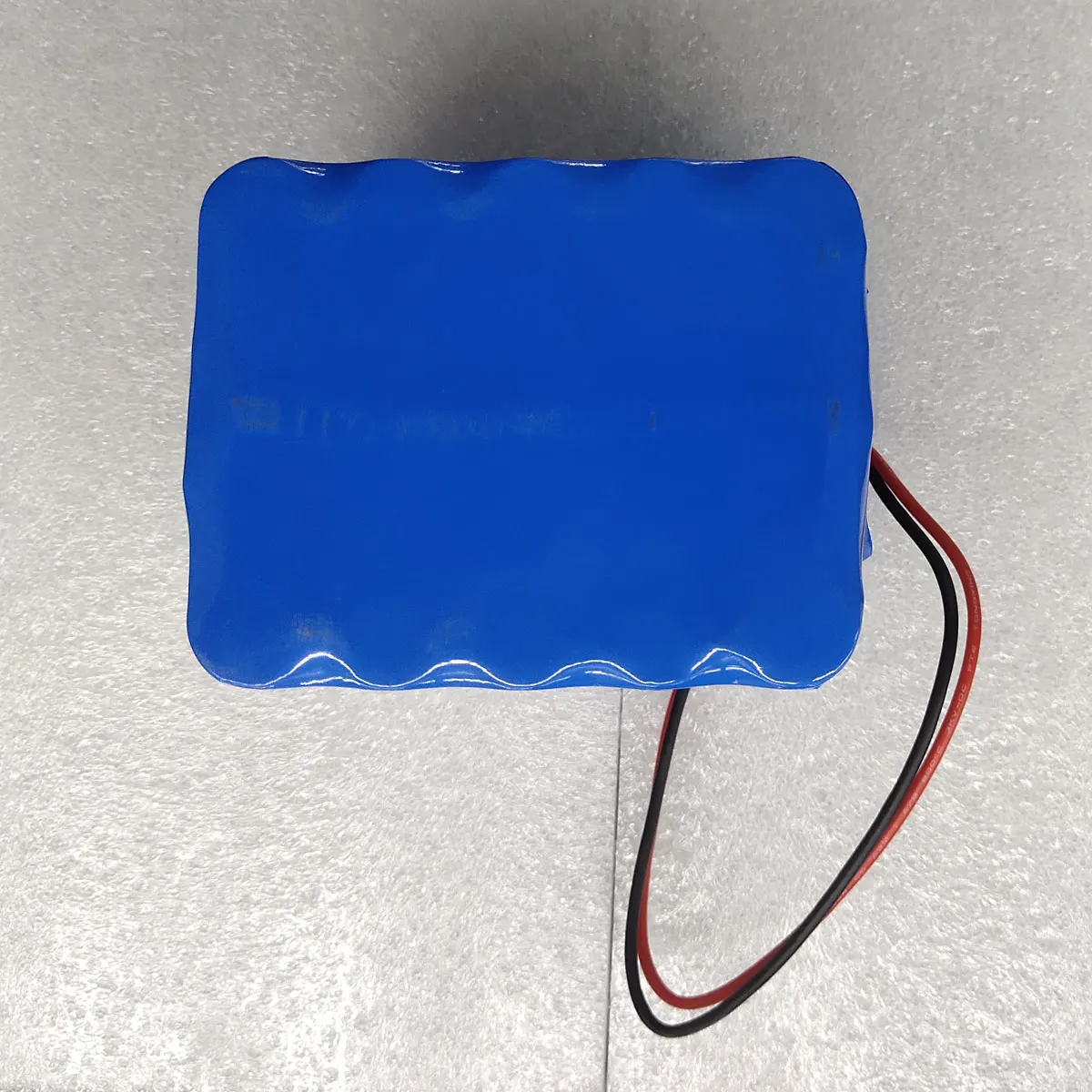

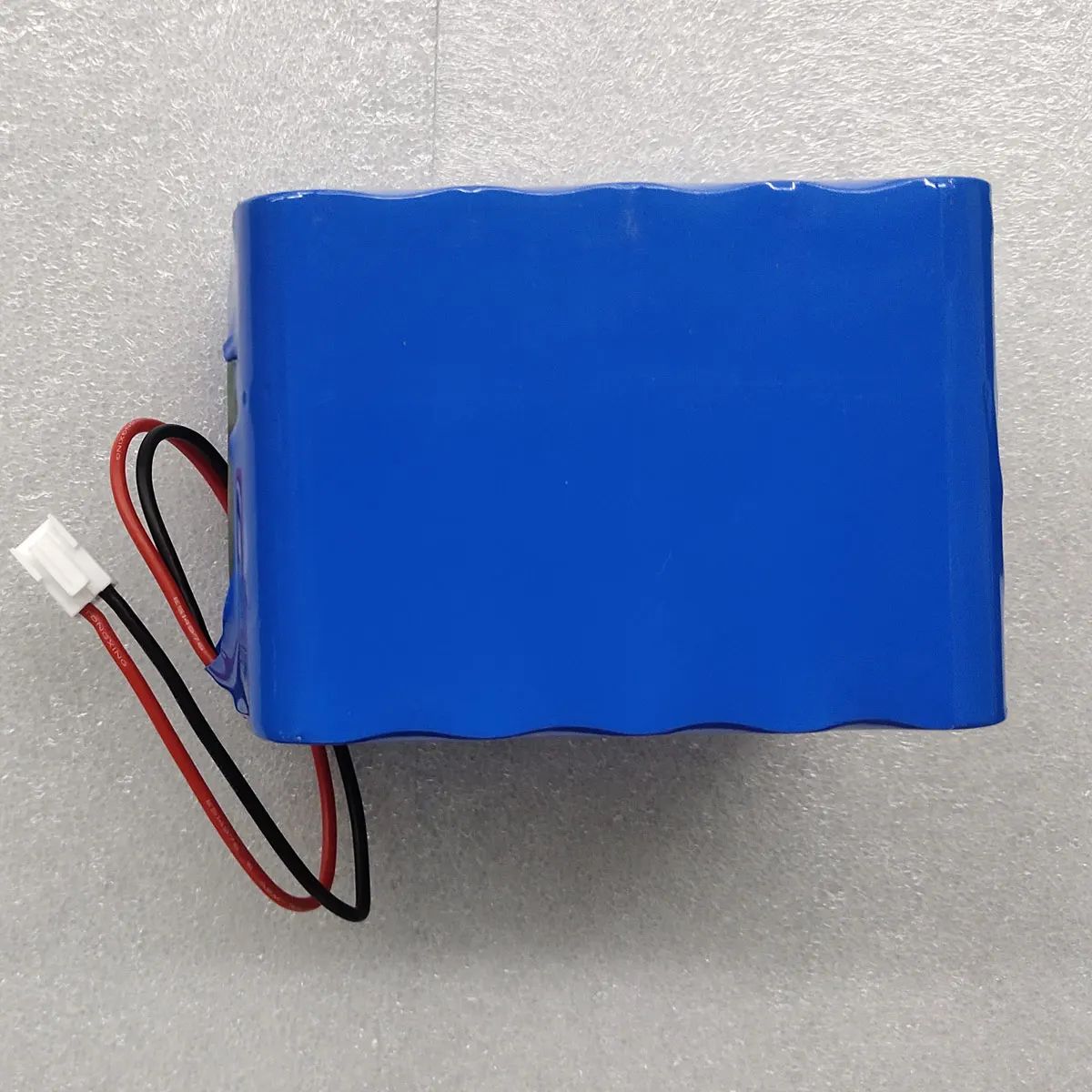

18650 21700 32700 Cell Battery Pack 3.2V 3.7V 7.4V 11.1V 12.8V 2000mAh 4500mAh 6000mAh Lithium Ion Battery Pack
- Category: >>>
- Supplier: Guangdong Sunbang Technology Co. Ltd.
Share on (1600680415373):
Product Overview
Description
Chinese lithium battery pack manufacturer.
ISO9001:2015 certified factory, passed UL, TUV audit.
Products Description

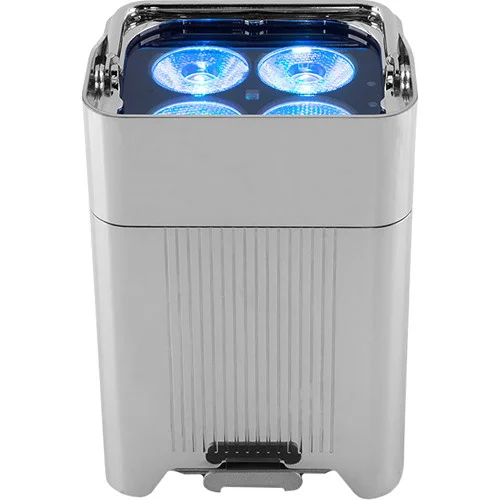

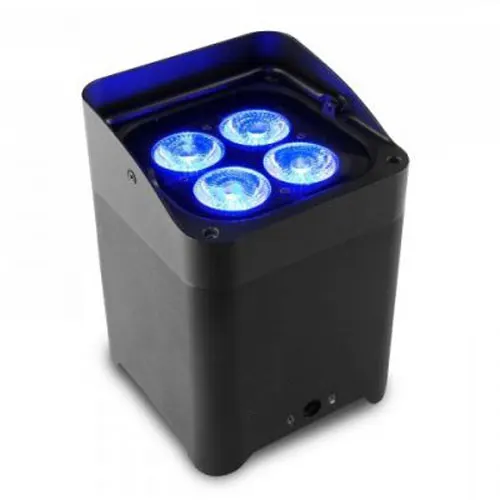

This product fits perfectly with the Chauvet Stage LED.

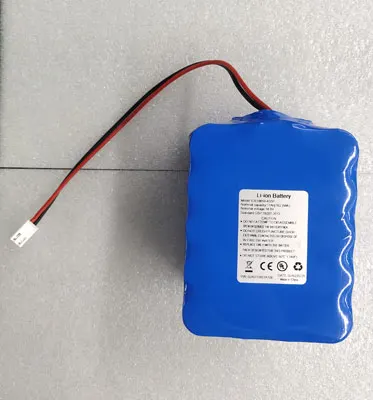

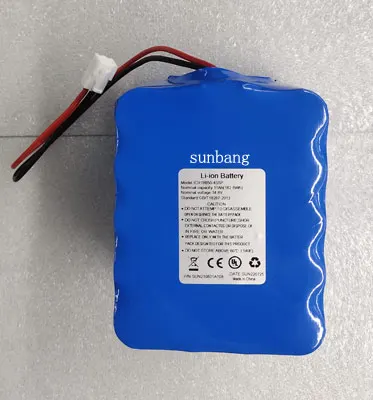

4S5P 14.8V 11Ah Lithium Ion Battery Pack for Chauvet LED
Electrical Properties | ||
Nominal Voltage | 14.8V | |
Nominal Capacity | 11Ah | |
Energy | 162.8Wh | |
Internal Resistance | 20≤mΩ | |
Cycle Life | 800 Times | |
Self-discharge | 3% per month | |
Charging | ||
Charging Voltage | 16.8V | |
Charging Mode | AC-DC | |
Charging Current | 2.2A | |
Maximum Charging | 11A | |
Discharging | ||
Discharging Current | 11A | |
Maximum Continuous Discharging Current | 11A | |
Peak Current | 33A(ms) | |
Discharging Cut-off Voltage | 10V | |
Environment | ||
Charging Temperature | 0℃ to 45℃(32℉ to 113℉) | |
Discharging Temperature | -20℃ to 60℃(-4℉ to 140℉) | |
Storage Temperature | 0℃ to 45℃(32℉ to 113℉) | |
Dustproof and Waterproof rating | ||
Physical | ||

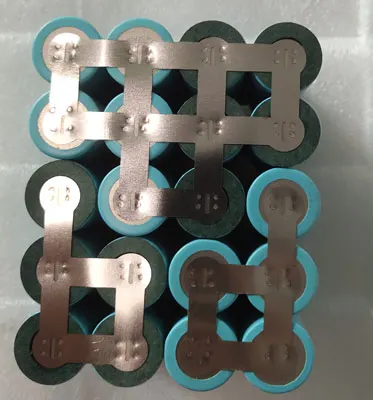

Configuration | 4S5P | |
Battery Cell | 18650 3.7V 2200mAh | |
Case | PVC | |
Dimension | 100*80*90mm | |
Weight | 0.92 | |

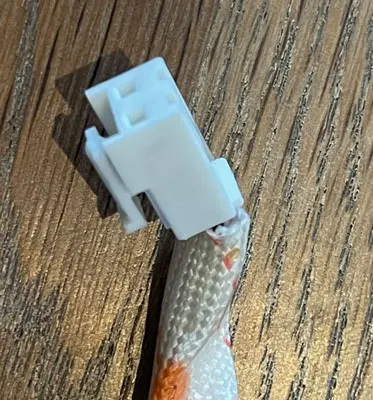

Terminal | VH3.96 | |

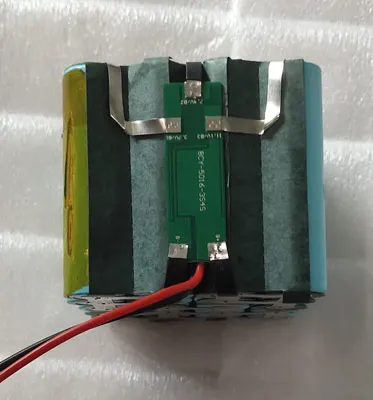

BMS | ||
Overcharge Protection | Yes | |
Overdischarge Protection | Yes | |
Overcurrent Protection | Yes | |
Short circuit Protection | Yes | |
Balanced cell | Yes | |
3S5P 11.1V 11Ah Lithium Ion Battery Pack for Chauvet LED
Electrical Properties | ||
Nominal Voltage | 11.1V | |
Nominal Capacity | 11Ah | |
Energy | 122.1Wh | |
Internal Resistance | 20≤mΩ | |
Cycle Life | 800 Times | |
Self-discharge | 3% per month | |
Charging | ||
Charging Voltage | 12.6V | |
Charging Mode | AC-DC | |
Charging Current | 11A | |
Maximum Charging | 2A | |
Discharging | ||
Discharging Current | 2A | |
Maximum Continuous Discharging Current | 11A | |
Peak Current | 33A(ms) | |
Discharging Cut-off Voltage | 7.5V | |
Environment | ||
Charging Temperature | 0℃ to 45℃(32℉ to 113℉) | |
Discharging Temperature | -20℃ to 60℃(-4℉ to 140℉) | |
Storage Temperature | 0℃ to 45℃(32℉ to 113℉) | |
Dustproof and Waterproof rating | ||
Physical | ||
Configuration | 3S5P | |
Battery Cell | 18650 3.7V 2200mAh | |
Case | PVC | |
Dimension | 80*80*90mm | |
Weight | 0.9KGS | |
Terminal | VH3.96 | |
BMS | ||
Overcharge Protection | Yes | |
Overdischarge Protection | Yes | |
Overcurrent Protection | Yes | |
Short circuit Protection | Yes | |
Balanced cell | Yes | |

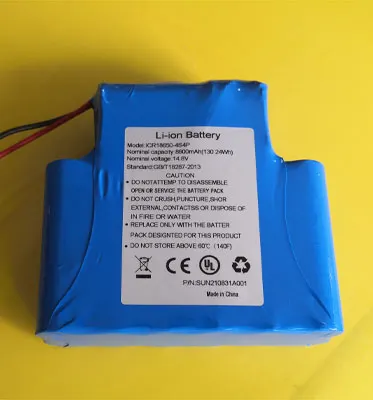

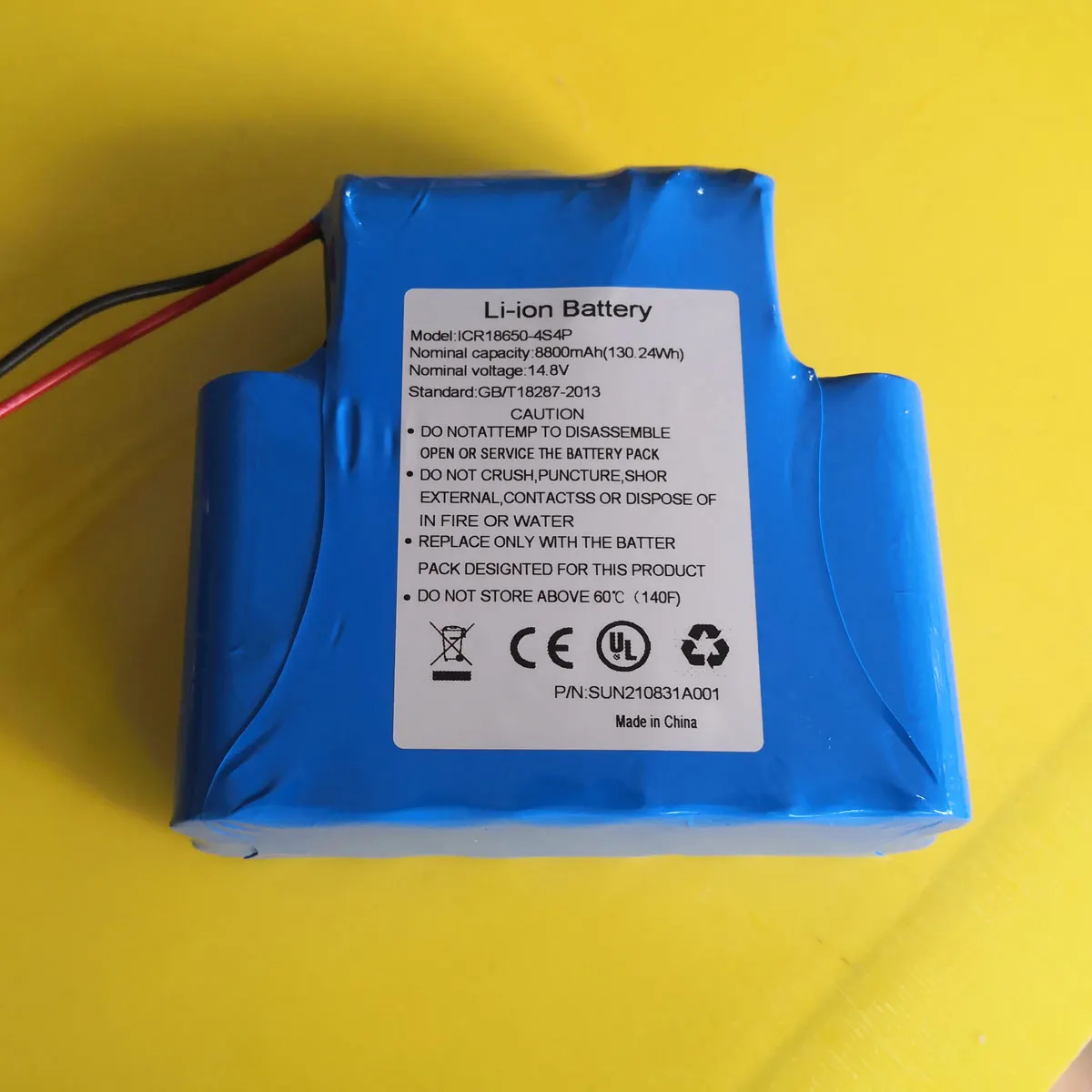

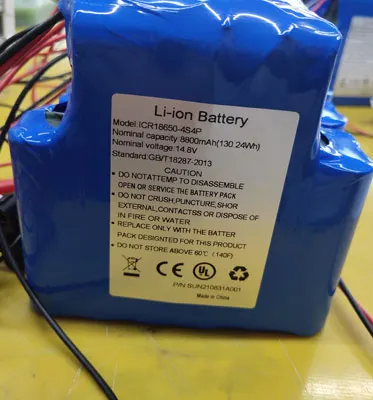

4S4P 14.8V 8800mAh Lithium Ion Battery Pack for LED Stage
Electrical Properties | ||
Nominal Voltage | 14.8V | |
Nominal Capacity | 8800Ah | |
Energy | 130.24Wh | |
Internal Resistance | 20≤mΩ | |
Cycle Life | 800 Times | |
Self-discharge | 3% per month | |
Charging | ||
Charging Voltage | 16.8V | |
Charging Mode | AC-DC | |
Charging Current | 2.2A | |
Maximum Charging | 11A | |
Discharging | ||
Discharging Current | 2A | |
Maximum Continuous Discharging Current | 11A | |
Peak Current | 33A(ms) | |
Discharging Cut-off Voltage | 10V | |
Environment | ||
Charging Temperature | 0℃ to 45℃(32℉ to 113℉) | |
Discharging Temperature | -20℃ to 60℃(-4℉ to 140℉) | |
Storage Temperature | 0℃ to 45℃(32℉ to 113℉) | |
Dustproof and Waterproof rating | ||
Physical | ||
Configuration | 4S4P | |
Battery Cell | 18650 3.7V 2200mAh | |
Case | PVC | |
Dimension | 80*40*120mm | |
Weight | 0.92KG | |
Terminal | VH3.96 | |
BMS | ||
Overcharge Protection | Yes | |
Overdischarge Protection | Yes | |
Overcurrent Protection | Yes | |
Short circuit Protection | Yes | |
Balanced cell | Yes | |
These three batteries can be perfectly applied to the chauvert stage LED.
If your LED is not of this voltage and capacity, our company can provide you with other batteries.
Please contact us.
