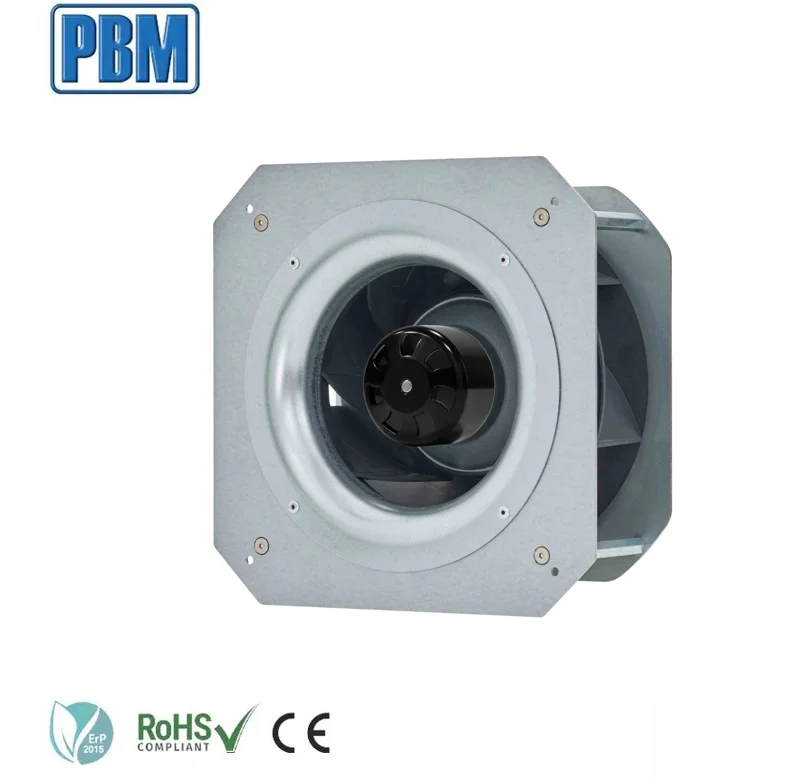

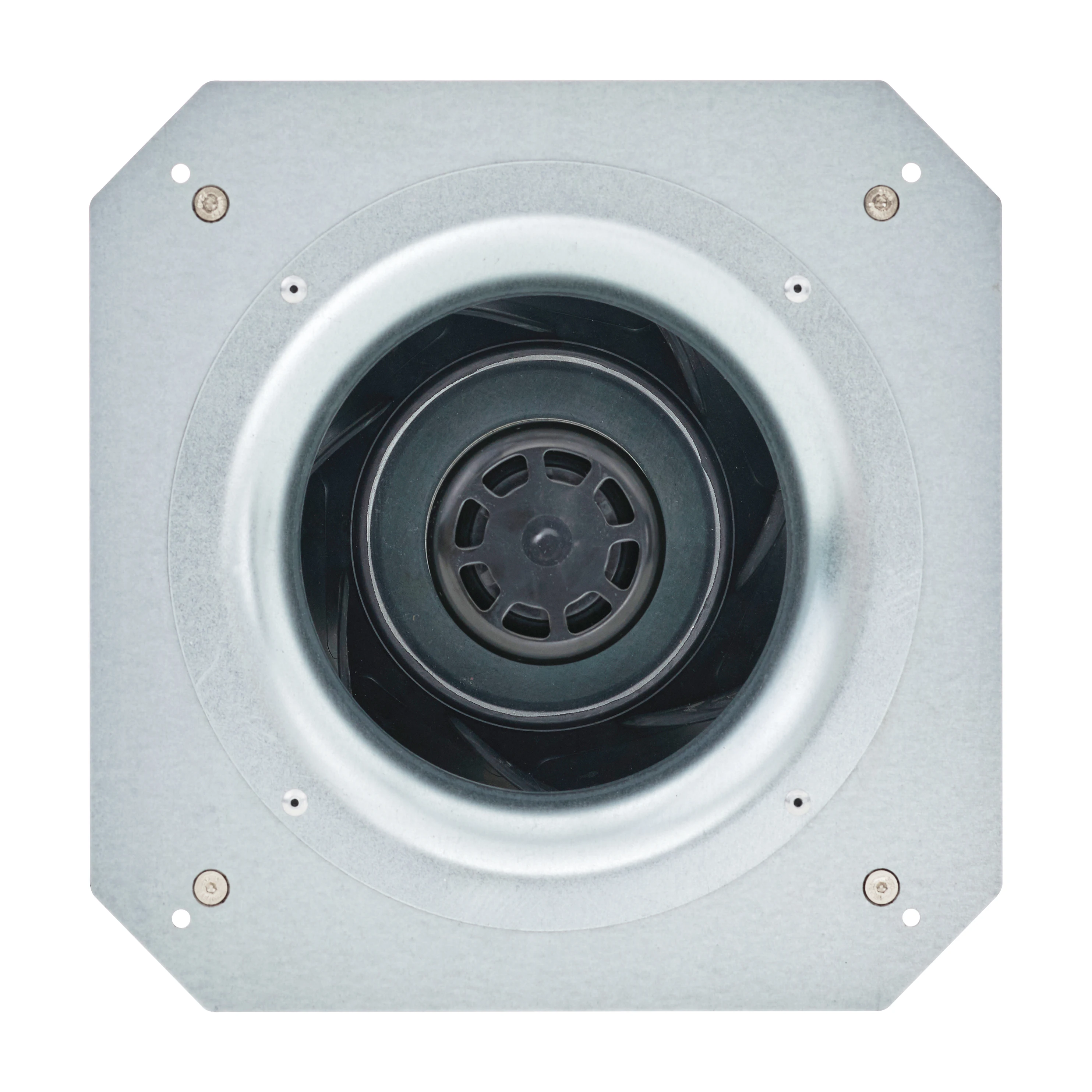

High Power External Rotor Motor EC DC IP55 190mm Centrifugal Backward Fan with Support Bracket
- Category: >>>
- Supplier: Pbm Motor And Fan (suzhou) Co. Ltd.
Share on (1600680427282):
Product Overview
Description
Products Description
One-plug Easy-mounting with Higher Efficiency
PBM centrifugal fans with support bracket, adopt both metal rivetstructure or welding and single-piece plastic with glass fiber reinforcement aerodynamic impeller, compact energy-saving smart EC motor drives it with maintenance free ball bearing, installed into easy-mounting, anti-vibration, robust support bracket design to guarantee stable, quiet fan operation with maximum “η” up to 55% efficiency at ErP Directive satisfaction of customers in their ventilation, heating, refrigeration product or system.
Product Specification
1. General Characters
Model | PK3N190B48-RZ0 |
Rated Voltage | 48VDC |
Operating Voltage | 36~57VDC |
Rated Speed | 3500 RPM |
Input Current | 1.8 A |
Input Power | 85 W |
Air Flow | 710 m³/H |
Static Pressure | 840 Pa |
Sound Level | 68 dB(A) |
Protection Type | IP55 |
2. Mechanical
Dimension | 226mm X 226mm X 81.6mm (see dimension drawing) |
Material of Impeller | Propylene with glass-fiber reinforced |
Number of Blades | 6 |
Impeller Plate | Injection-moulded round sheet-metal plate |
Mounting Position | Any |
Surface of Rotor | Coated in black |
Bearing System | NMB ball bearing |
Lead Wire | DC(AWG22 #) |
Weight | 1200g |
Package | Standard |
3. Electrical Protection
Locked-rotor Protection | Over-current limiting circuit protects motor from damage at least for 72 hours of locked rotor condition at rated voltage. |
under Locked Rotor | A, Typical inrush current when the motor is trying to re-start under locked rotor conditions is 2~4 times the normal running current reoccurring and for 16~20% of restarting cycle period. B, If he CL function is used this restarting inrush current is about the same as the normal running current. |
Reverse Polarity Protection | No damage if the positive and negative leads are reversed under maximum operation voltage conditions. |
The circuit will be shut down automaticlly when input voltage over threshold. And re-started when Voltage down to threshold below. | |
Soft Start | In 5 seconds after power on and speed control voltage gets to 1.5V or PWM duty cycle at 10% above. |

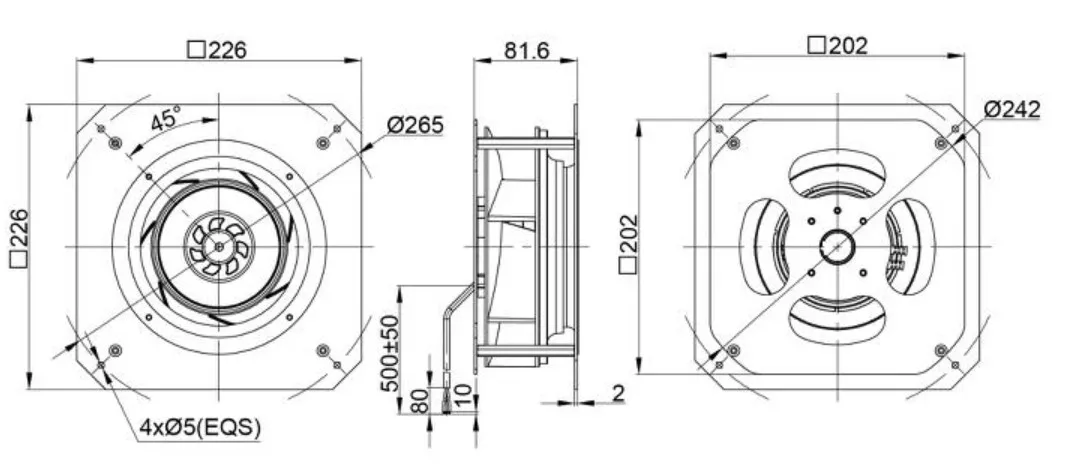

4. Outline Drawing

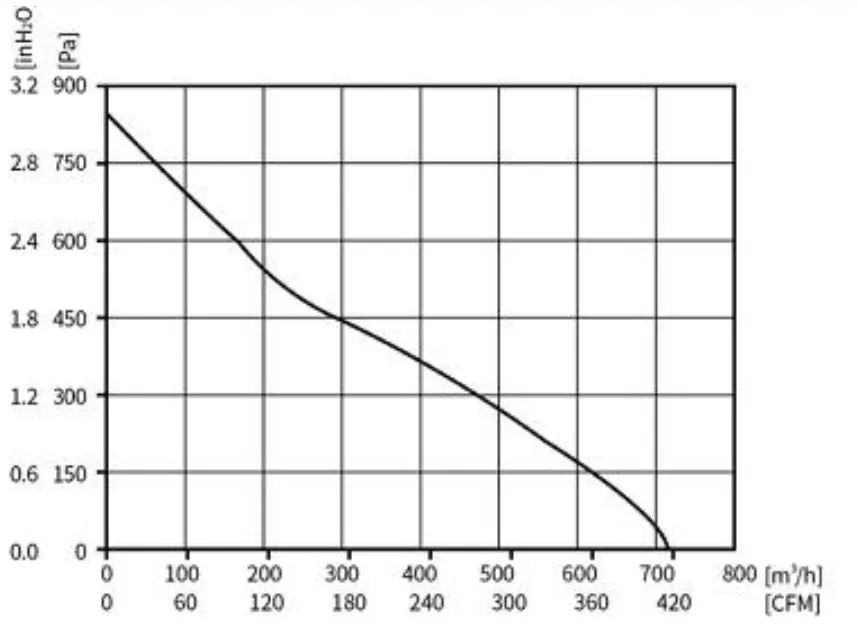

5. Performance Curve

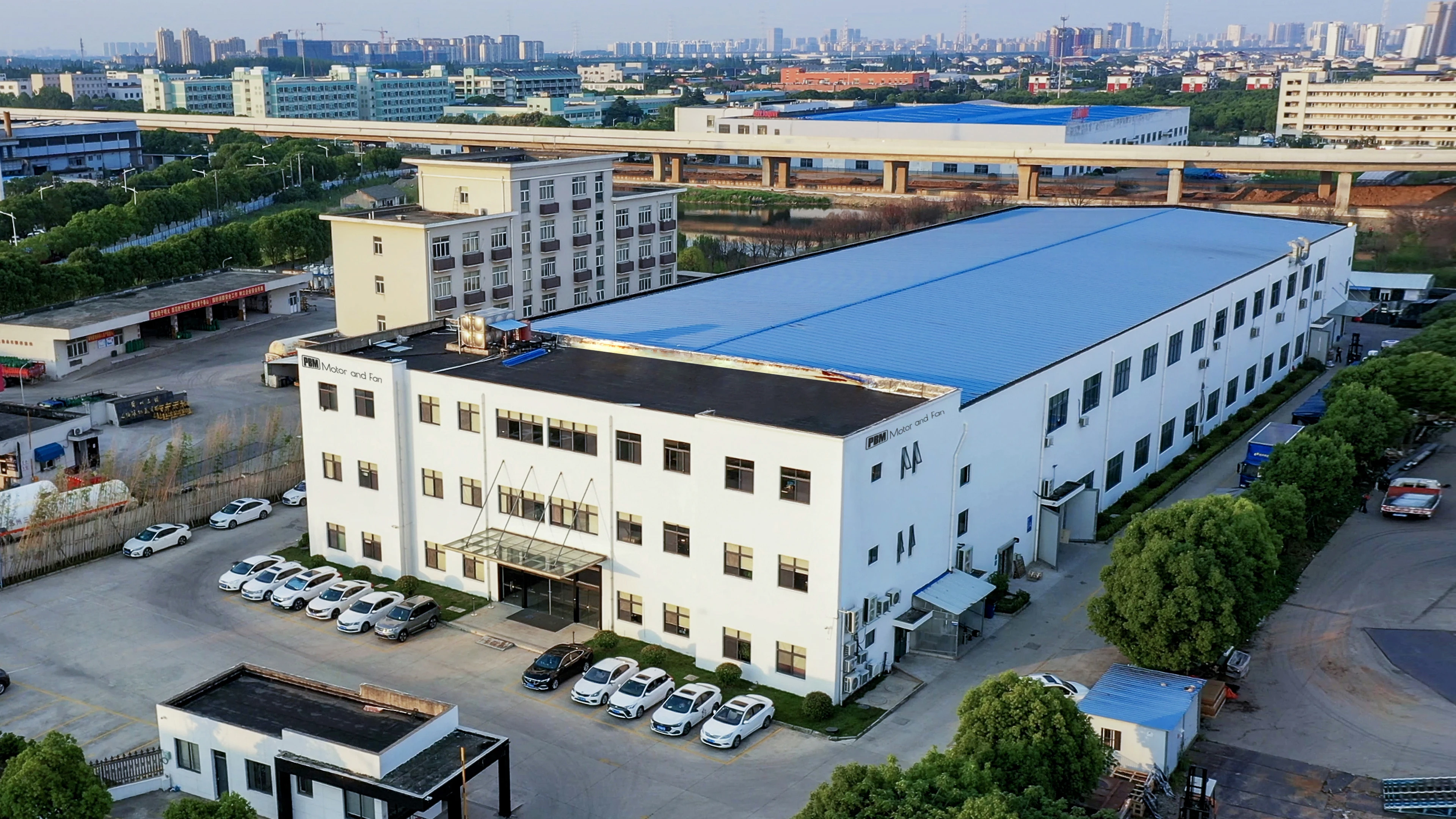

Company Profile
222
PBM is a China mainland EC(Electronically Commutated) brushless motor manufacturing and technology consulting company offering an extensive range of EC motors, fans and intelligent ventilation solutions for air-moving precisely and constantly with maintenance-free throughout the life cycle of products in last decades.
Focus on EC fan only and protecting our world with intelligent energy efficient motor and fan solutions are our goal in an attempt to make tomorrow a greener & Healthier world.
