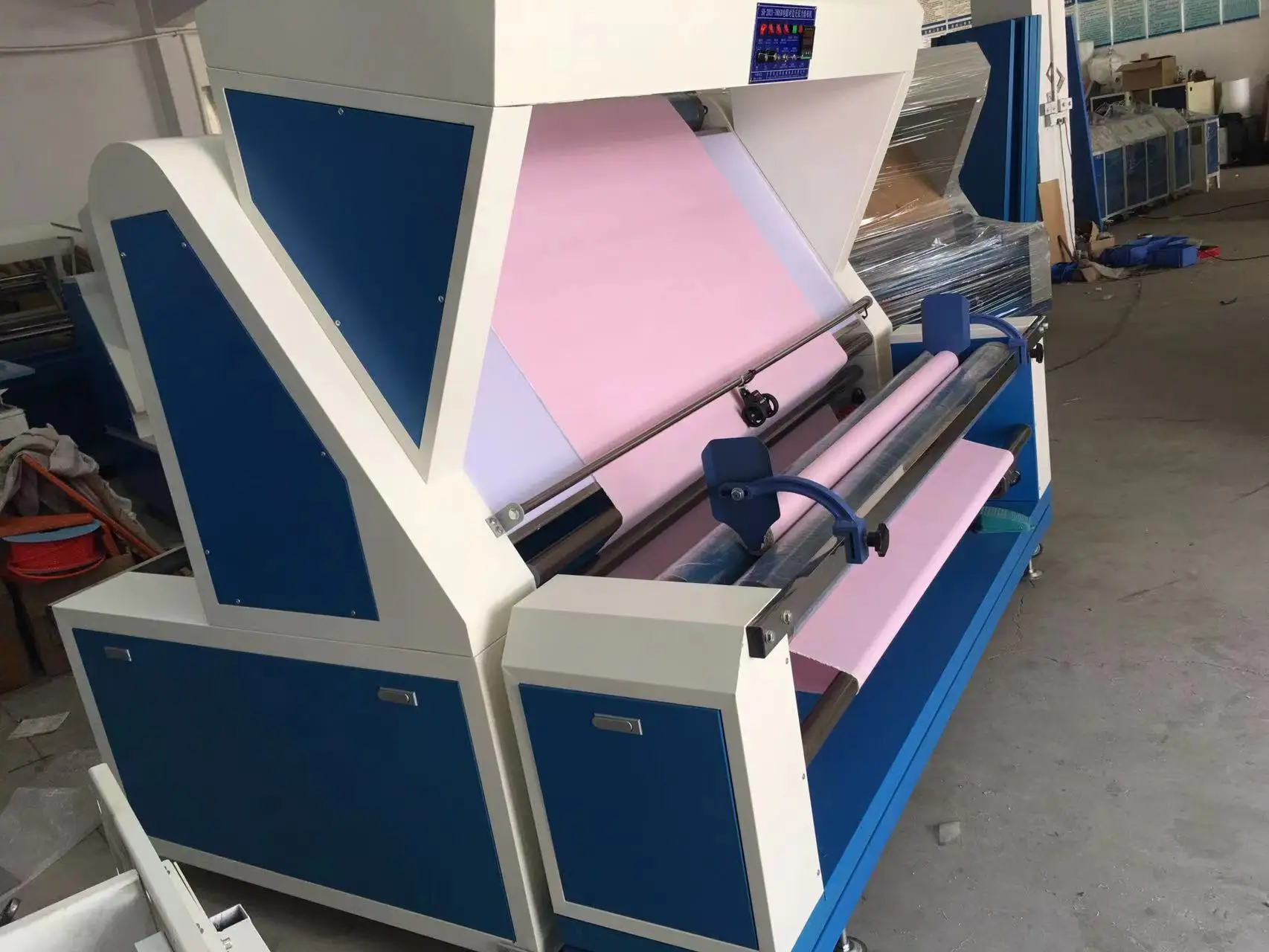

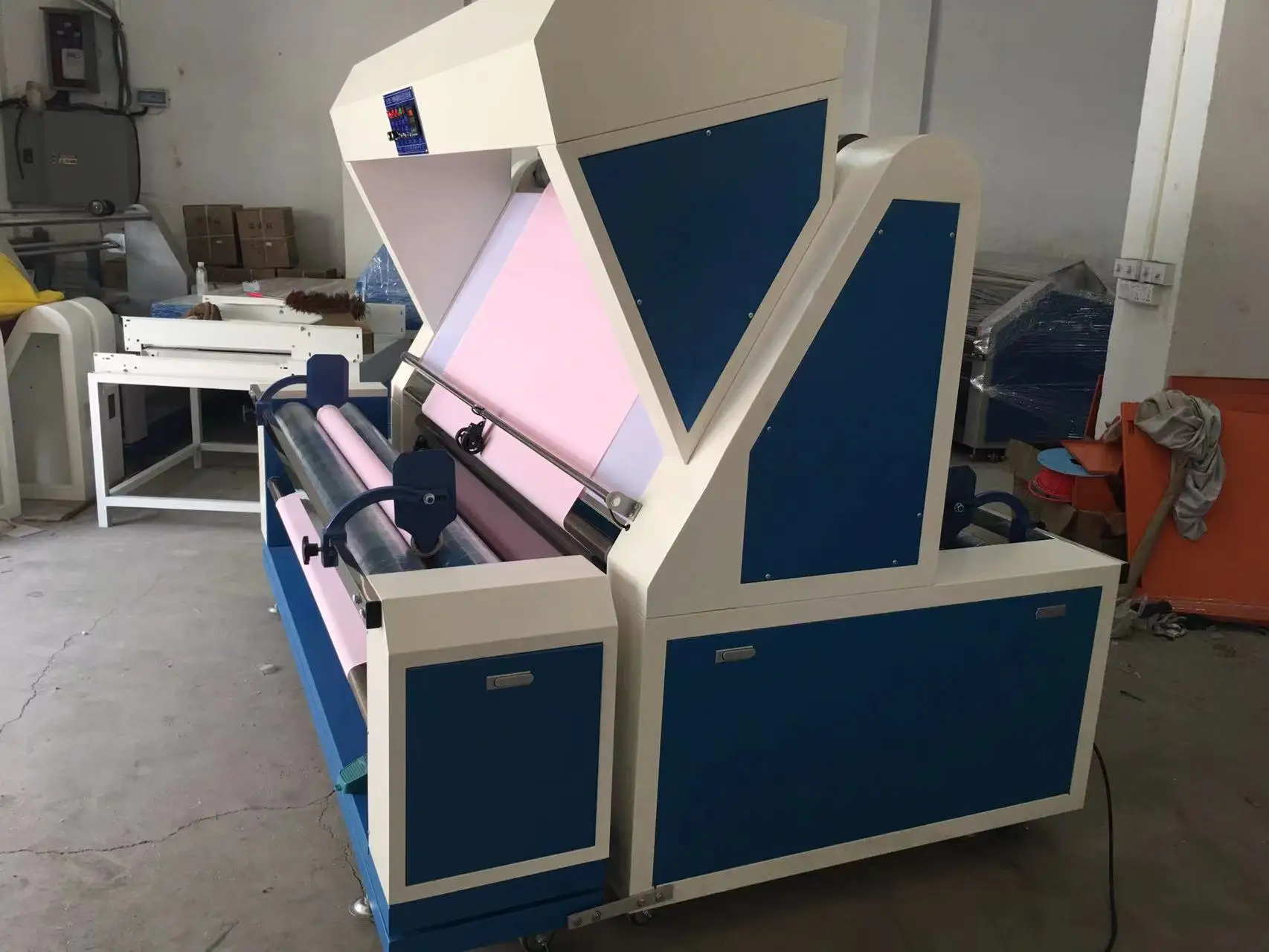

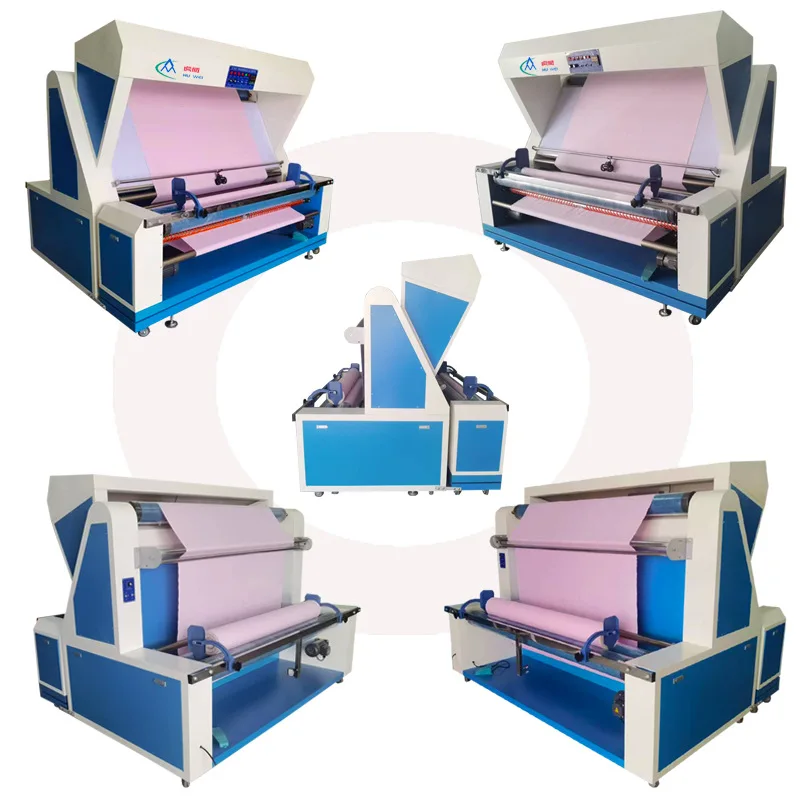

multi function knit and woven textile fabric inspection machine
- Category: Textile Finishing Machines >>>
- Supplier: Dongguan Huli Mechanical Equipment Co. Ltd.
Share on (1600680434265):
Product Overview
Description
Products Description
Fabric inspection machine of specification： | ||||||||
Model | HW-780 SR | |||||||
Max. Fabric Working Width | 1900 mm/2100 mm | |||||||
Max. Roll Fabric Diameter | 60 cm | |||||||
Working Speed | 0-60 m/min | |||||||
Power | 2.1 Kw | |||||||
Voltage | AC 220V 50Hz | |||||||
Suitable For | Knit & Woven | |||||||
Input Fabric | Rolled Type | |||||||
Output Fabric | Rolled Type | |||||||
Weight | 650 KG | |||||||
Dimensions(L x W x H) | 2450 *1750 *1950 mm | |||||||

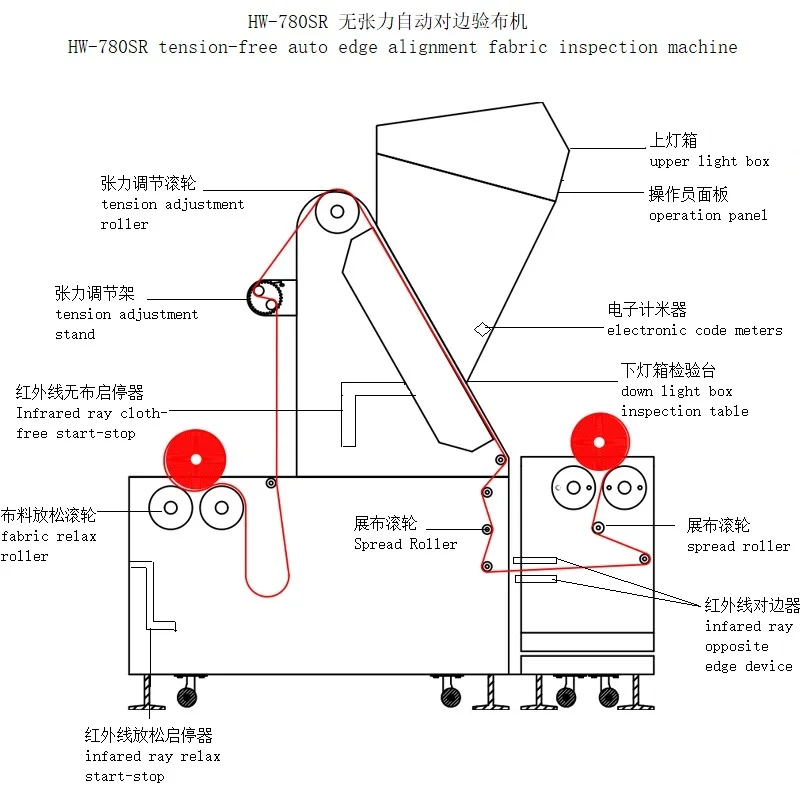

Fabric inspection machine Main feature:
1.Multi-Function machine: Fabric inspection , rolling fabric,smoothing fabric ,edge alignment,measurement,reverse & forward running
2.Speed is adjustable: Use with imported Japan Mitsubishi converter .
3.Automatic Edge: Configuration of automatic edge fabric system that can make fabric roll tidy and beautiful.
4.Electronic eye control tension-free feeding fabric:avoid elasticity fabrics from being stretched and deformed.
5.Accurate measurement of length: Equipped with digital counter.
6.Smoothing fabric function:spreading fabric ,avoid the edges are folding on themselves and moving toward the center of the roller.
7.Forward and reverse function,can re-check fabric.
2.Speed is adjustable: Use with imported Japan Mitsubishi converter .
3.Automatic Edge: Configuration of automatic edge fabric system that can make fabric roll tidy and beautiful.
4.Electronic eye control tension-free feeding fabric:avoid elasticity fabrics from being stretched and deformed.
5.Accurate measurement of length: Equipped with digital counter.
6.Smoothing fabric function:spreading fabric ,avoid the edges are folding on themselves and moving toward the center of the roller.
7.Forward and reverse function,can re-check fabric.
8.Edge Alignment Control,without tension releasing fabric,measurement,spreading fabric.
Usage: Suitable for normal knitted or woven fabric and other fabric.
Details Images
button operator panel
Data display，Power Switch，Tension adjustment，speed Contorl，Automatic code meter.
Converter frequency
Use with imported brand electric appliances.Mitsubishi frequency converter France Schneider relay.
Operator panel
Control cloth release speed，Equipped with reverse switch.
code meter
Smoothing fabric roller
Spreading fabric to two side,let fabric running toward to the center
Spreading fabric to two side,let fabric running toward to the center
without tension releasing fabric,Edge Alignment Control
Automatic edge alignment sensor， let fabric one side edge accurately
Company Profile
FAQ
Q1 :Our workers can't operate the machine, how to train the staff?
A1:We will send you the teaching video of the machine and 24-hour online service,we also support free training service, engineers can train your workers for free in our factory for 1-3 days.Q2 : I don’t know which one is suitable for me ?
A2:Please tell me your
1) Your materials
2) Max size of your material
3) Max cut thickness
4) Popular cut thickness
Q3 :It's not convenient for me to go to China, but I want to see the condition of the machine in the factory. What should I do?
A3:We support the production visualization service. The sales department who responds to your inquiry for the first time will be responsible for your follow-up work. You can contact him /her to go to the factory to check the production progress of the machine, or send you the sample pictures and videos you want. We support free sample service.
