BY814 * 8/6 машина для горячего прессования шпона

Product Overview

Description

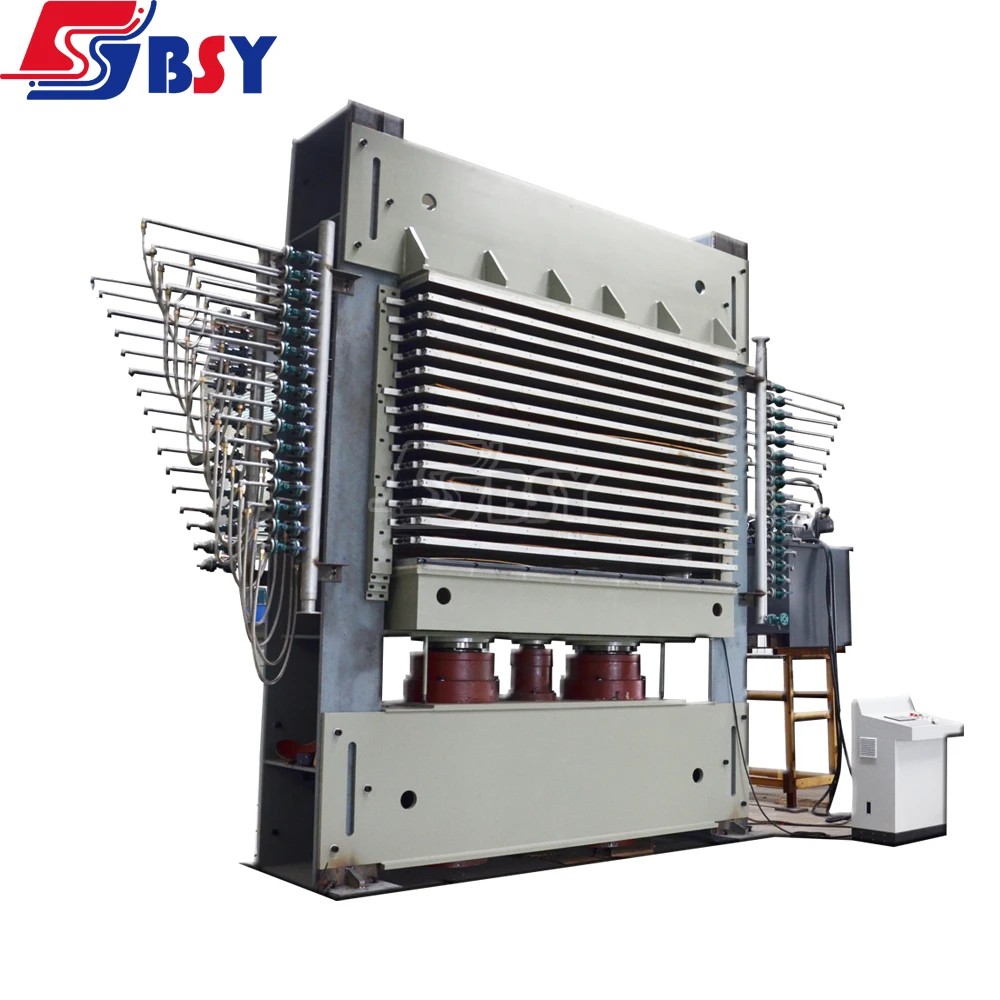

BY814*8/6 Hot press machine for plywood



Product description



this hot press machine is used for plywood production, its function is pressing the veneers which with

glue together under high pressure and high temperature, machine is hydraulic system, heating method

can be both steam heating and hot oil heating.









Machine features



1. strong frame

2. fast closing speed

3. individual control cabinet with touch screen

4. good quality electrical element: Simens, Omron, Mitsubishi

5. standard size of platen is 4x8ft, 5x5ft, 3x6ft, or can be customzied

6. daylights max. 15, can be customzied.

7. The main structure is welded by thick steel plate, and do special surface dealing

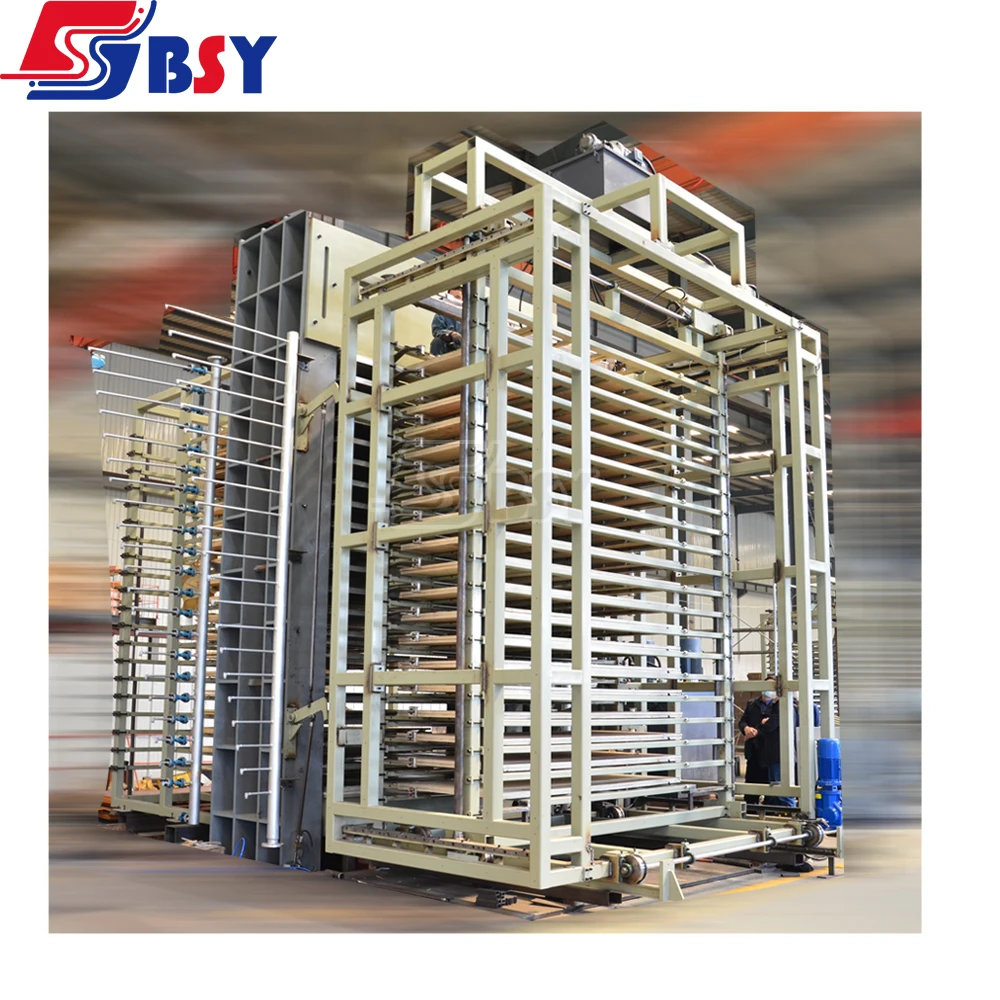

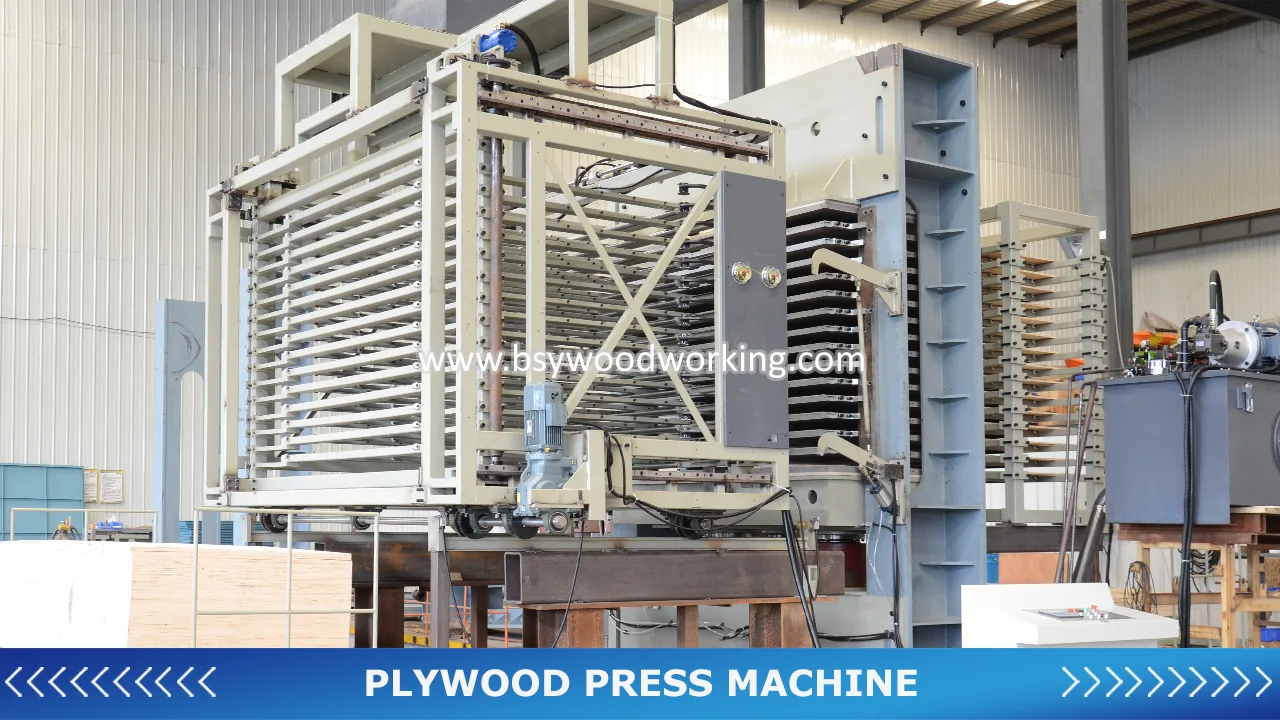

8. Automatic loader and unloader is option









Hot press Machine Parameters





Hot press machine Model	BY214 x 8/4B -15	BY214 x 8/6-15
Nominal pressure(KN)	4000	6000
Hot-press plate sizes (mm)	2700 x 1370 x 42	2700 x 1370 x 42
Finished piece dimensions (ft)	4x8	4x8
Daylight distance (mm)	70	70
Daylight number	15	15
Diameter of cylinders (mm)	Φ 320* 2 +  Φ190	Φ360*2 +  Φ190
Working stroke (mm)	1050	1050
Working pressure (Mpa)	25	25
Total Motor (kw)	26	26
Closing speed (m/min)	4	4
Overall dimensions (mm)	5000 x 1446 x 5395	5000 x 1446 x 5395
Weight (kg)	34000	14000

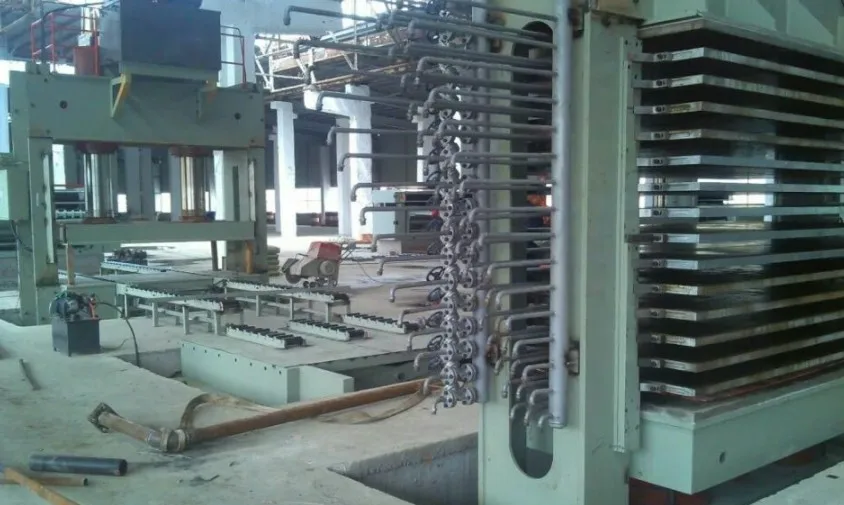

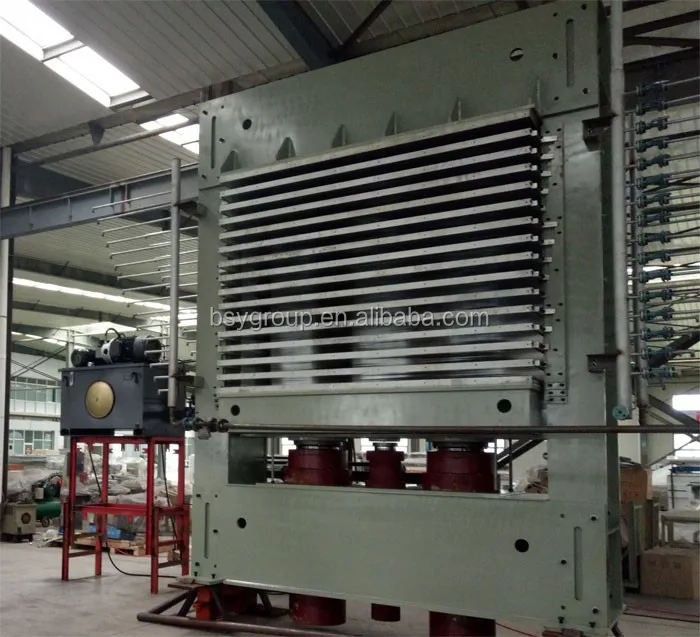

Machine Picture

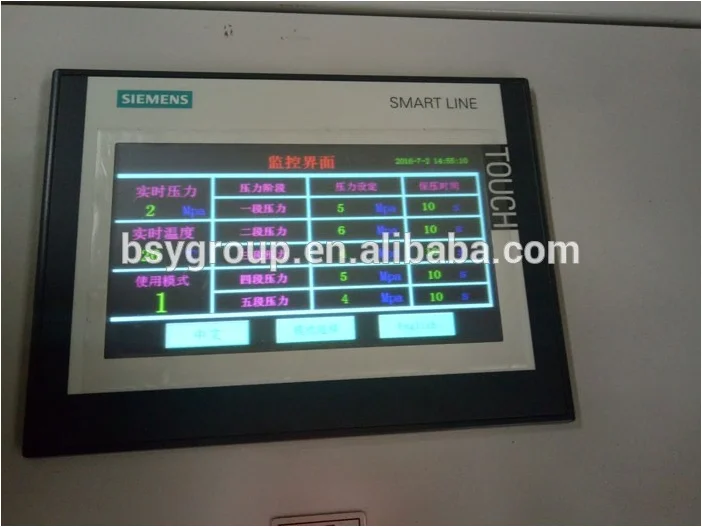

 With Siemens Touch Screen, 5 section pressure, automatic working















Solid 52mm/42mm plate

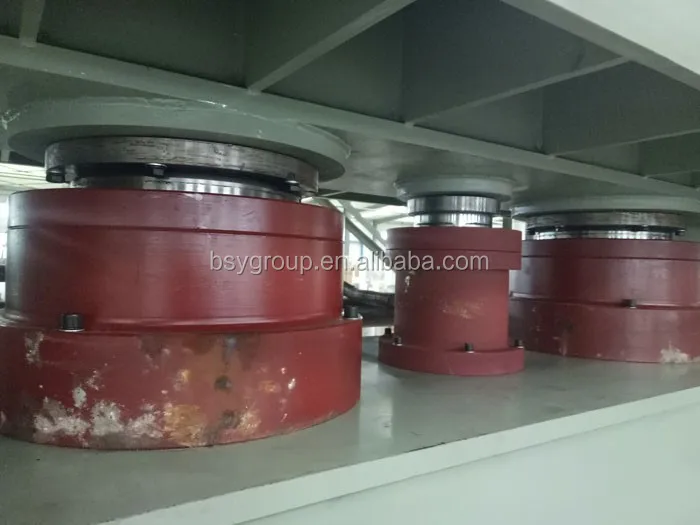

good quality solid cylinder will not leak oil



















   FAQ



1.  What is delivery time ?

        normally 40-50 days, production line need around 70-90 days according to the order.



2.   Where we located ?

       we located at Weihai, Shandong Province, we can help you to book the hotels and meet you

      at the airport or bus station.



3.  How long time Machine guarantee ?

      The guarantee period is 12 months, lifetime warrantee.



4.  What about after sales services ?

      we have professional engineer team to work at customer's factory to guide installation and

       commissioning and free training workers.
