Bopp Film PET Film PE Film Rotogravure Printing Machine
- Category: >>>
- Supplier: Zhejiang Deguang Machinery Co. Ltd.
Share on (1600680565860):
Product Overview
Description
Product Description

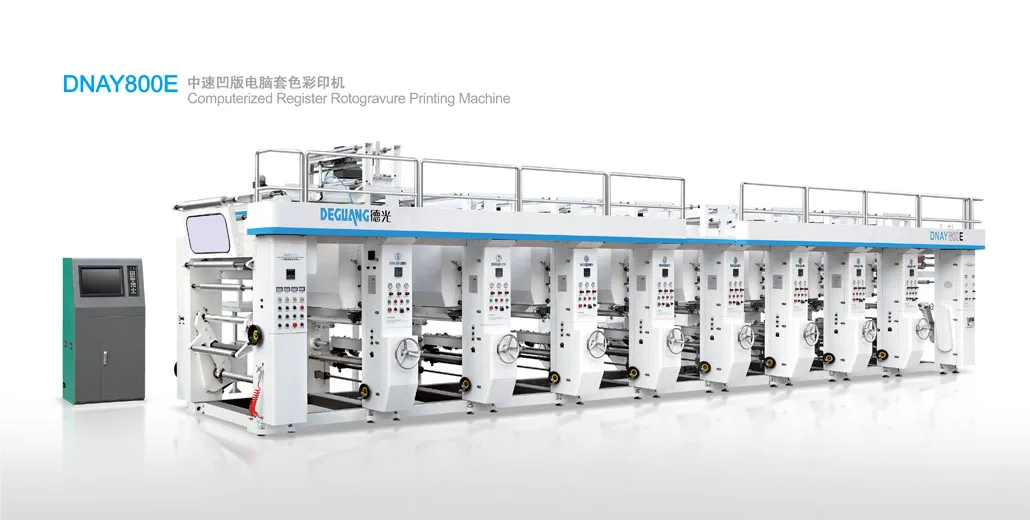

Bopp Film PET Film PE Film Rotogravure Printing Machine
Application:
This machine is suitable to print bopp, pet, cpp, pe, pvc, nylon, paper etc.,
it is widely used in soft packaging like food bag, shopping bag, shrink sleeve label etc.
Feature:
1. Shaftless printing cylinder installation
2. External type blower with strong air flow
3. Non-stop roll change
3. Non-stop roll change
4. Automatic register with video inspection monitor
5. Pneumatic ink circulation, pneumatic doctor blade, pneumatic pressing roller
6. Heating by electric or hot air or gas or thermal oil
5. Pneumatic ink circulation, pneumatic doctor blade, pneumatic pressing roller
6. Heating by electric or hot air or gas or thermal oil
Specification:
| Model | DNAY800EC | DNAY1100E |
| Colors | 6 colors | 6 colors |
| Printing width | 800mm | 1100mm |
| Material width | 830mm | 1130mm |
| Printing material | bopp, pet, cpp, pe, pvc, nylon, paper | |
| Max printing speed | 100-130m/min | 100-130m/min |
| Max mechanical speedd | 150m/min | 150m/min |
| Register accuracy | ±0.1mm | |
| Unwind and rewind diameter | 600mm | 600mm |
| Paper core diameter | 76mm | 76mm |
| Printing cylinder diameter | 100-350mm | 100-350mm |
| Power | 100kw | 110kw |
| Weight | 11000kg | 12000kg |
| Dimension | 10600*2900*3020mm | 10600*3200*3020mm |
Printing sample:

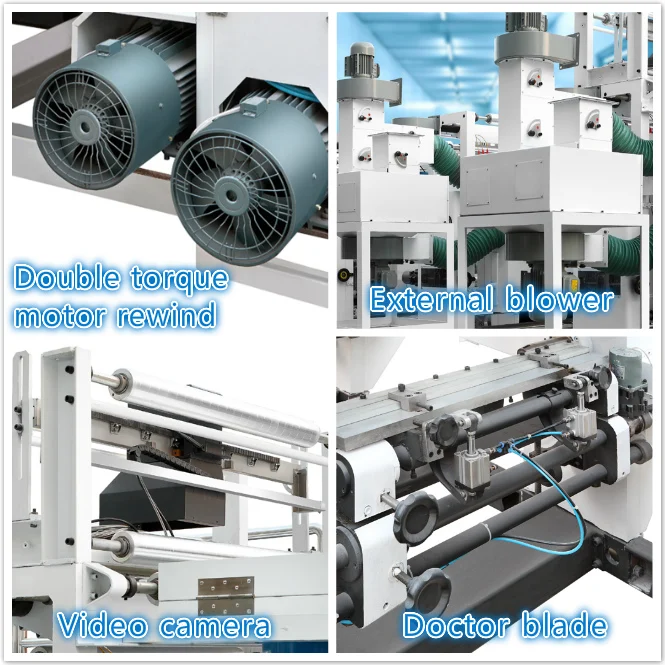

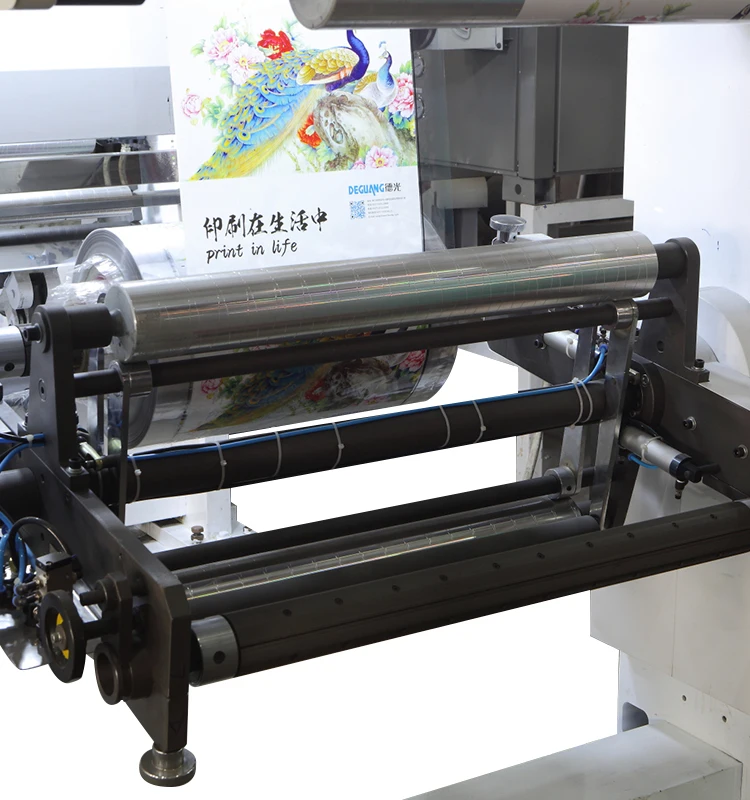

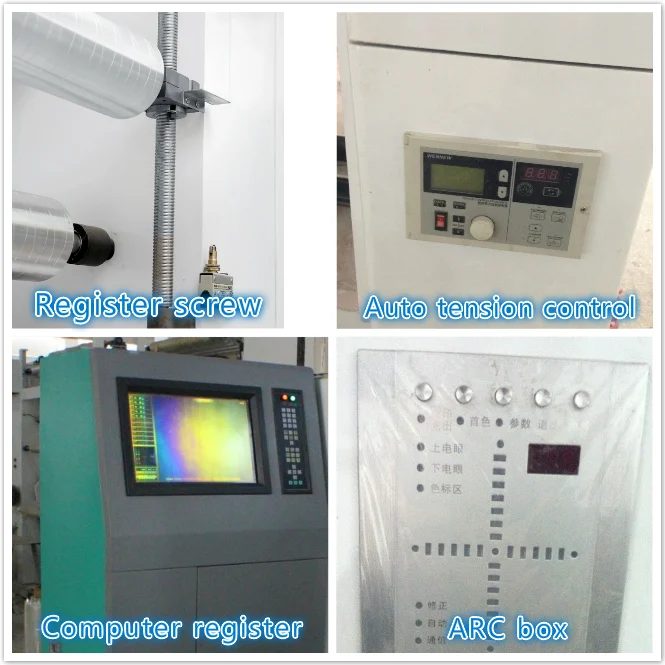

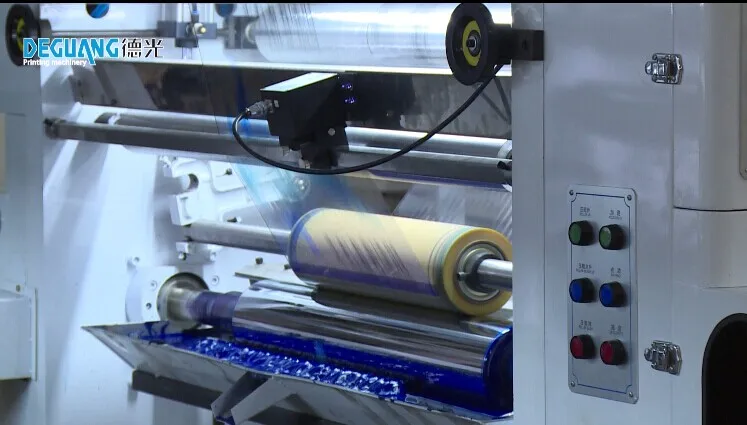

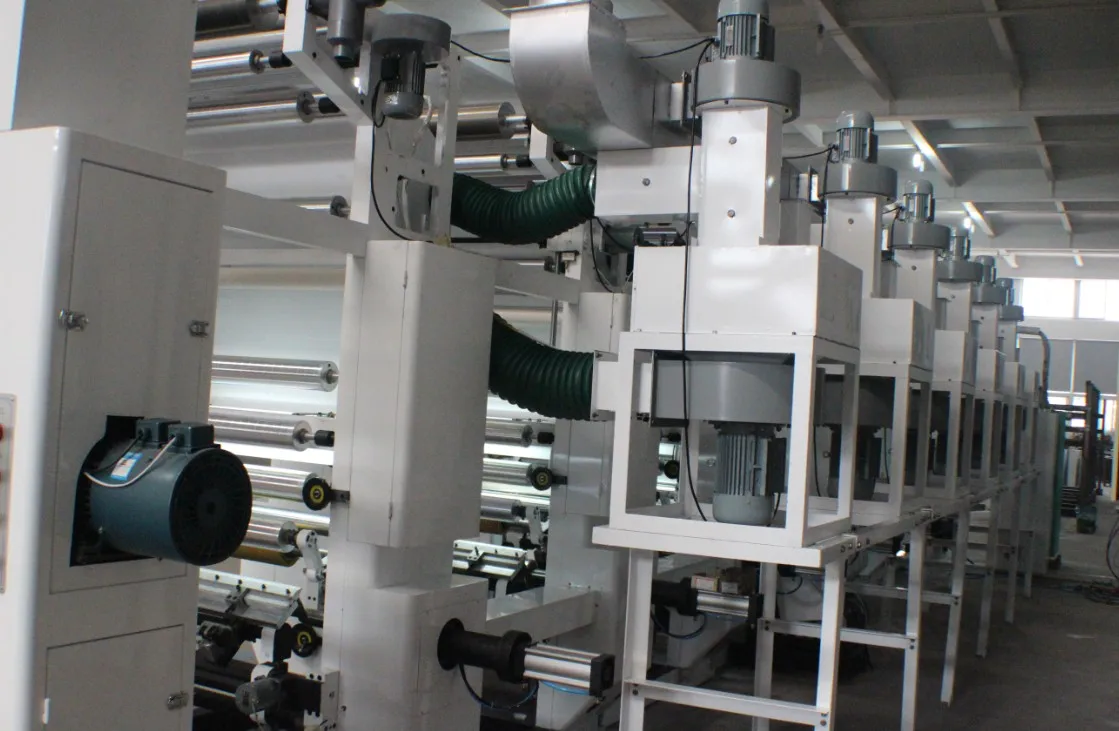

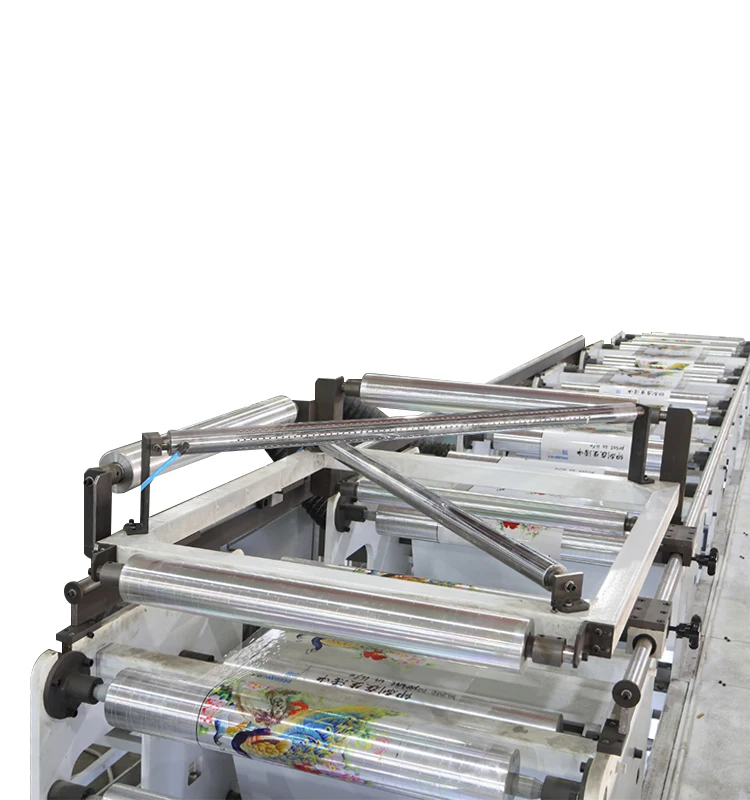

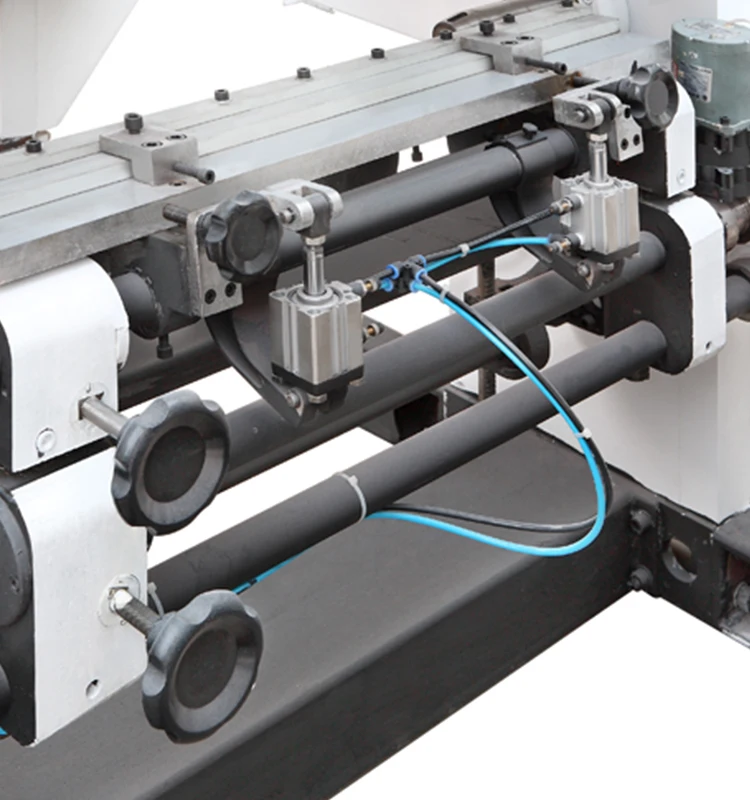

Machine detailes
