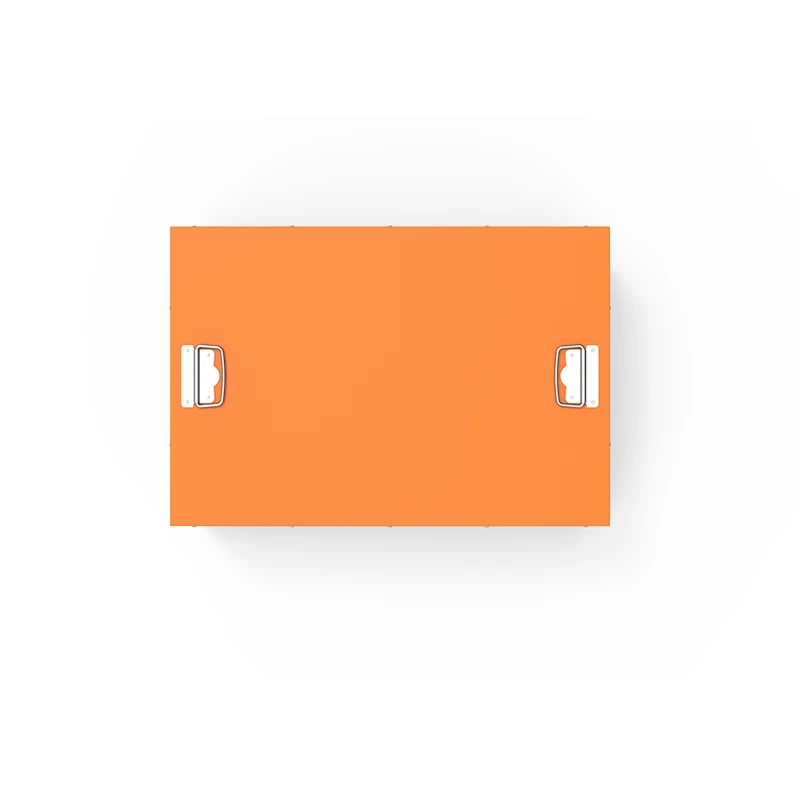

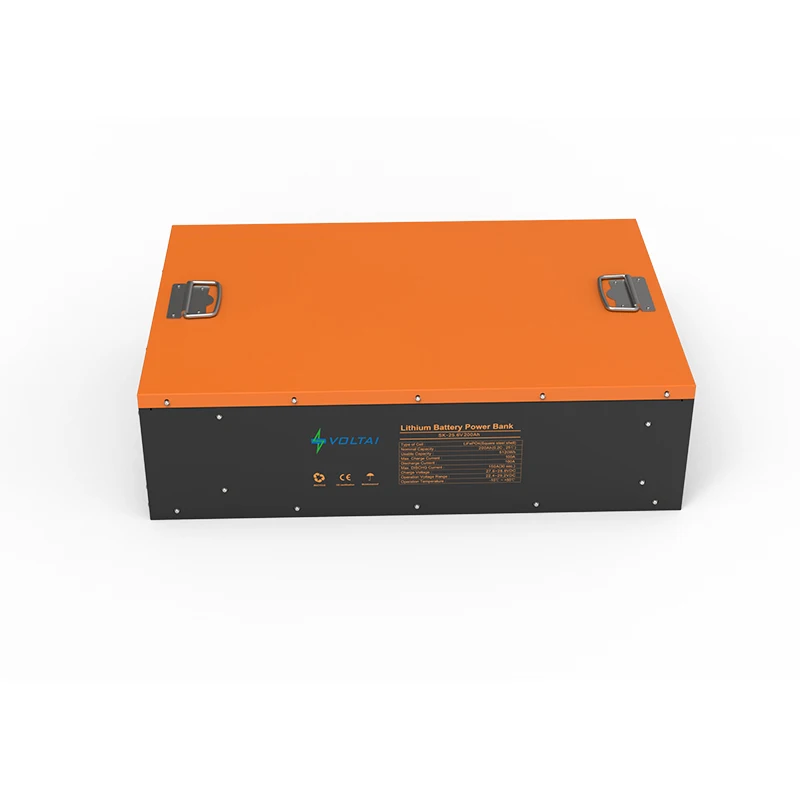

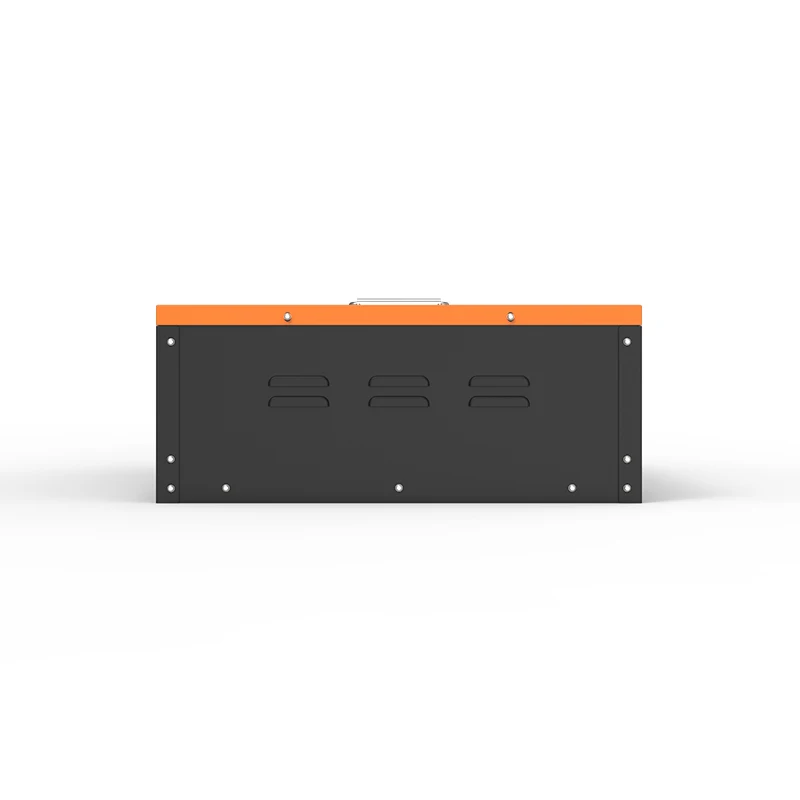

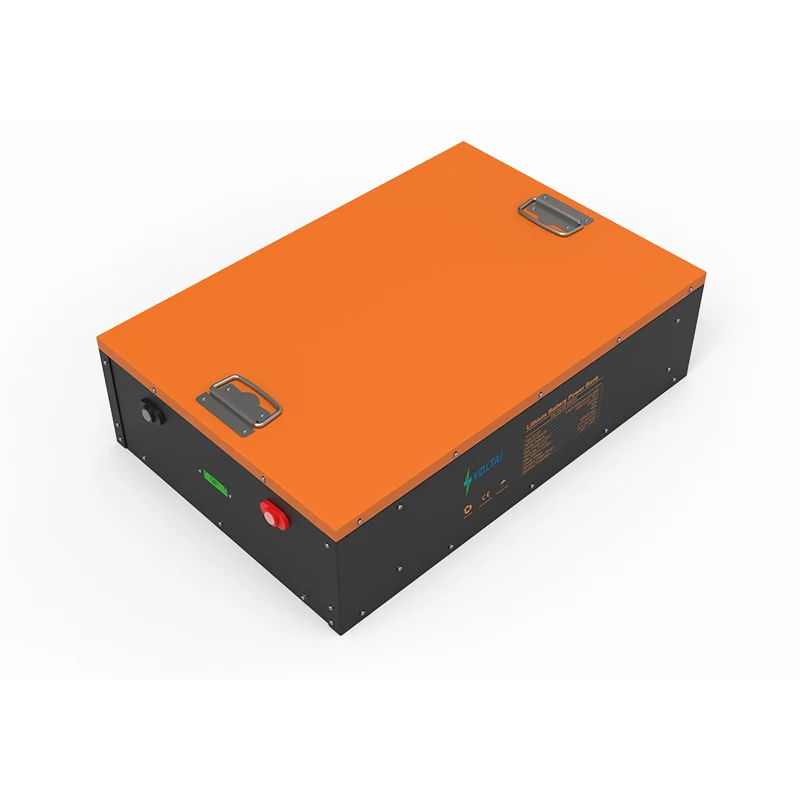

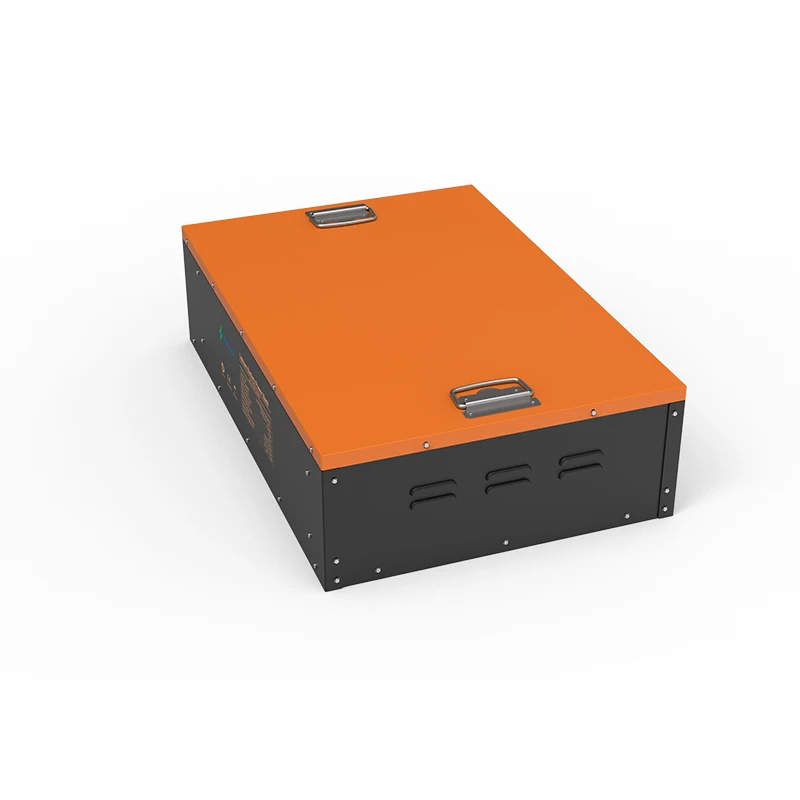

aluminum case lithium ion battery Deep cycle lithium ion batteries 100ah lithium ion batteries home energy storage
- Category: >>>
- Supplier: Hunan Voltai Green Energy Co. Ltd.
Share on (1600680594655):
Product Overview
Description
Products Description

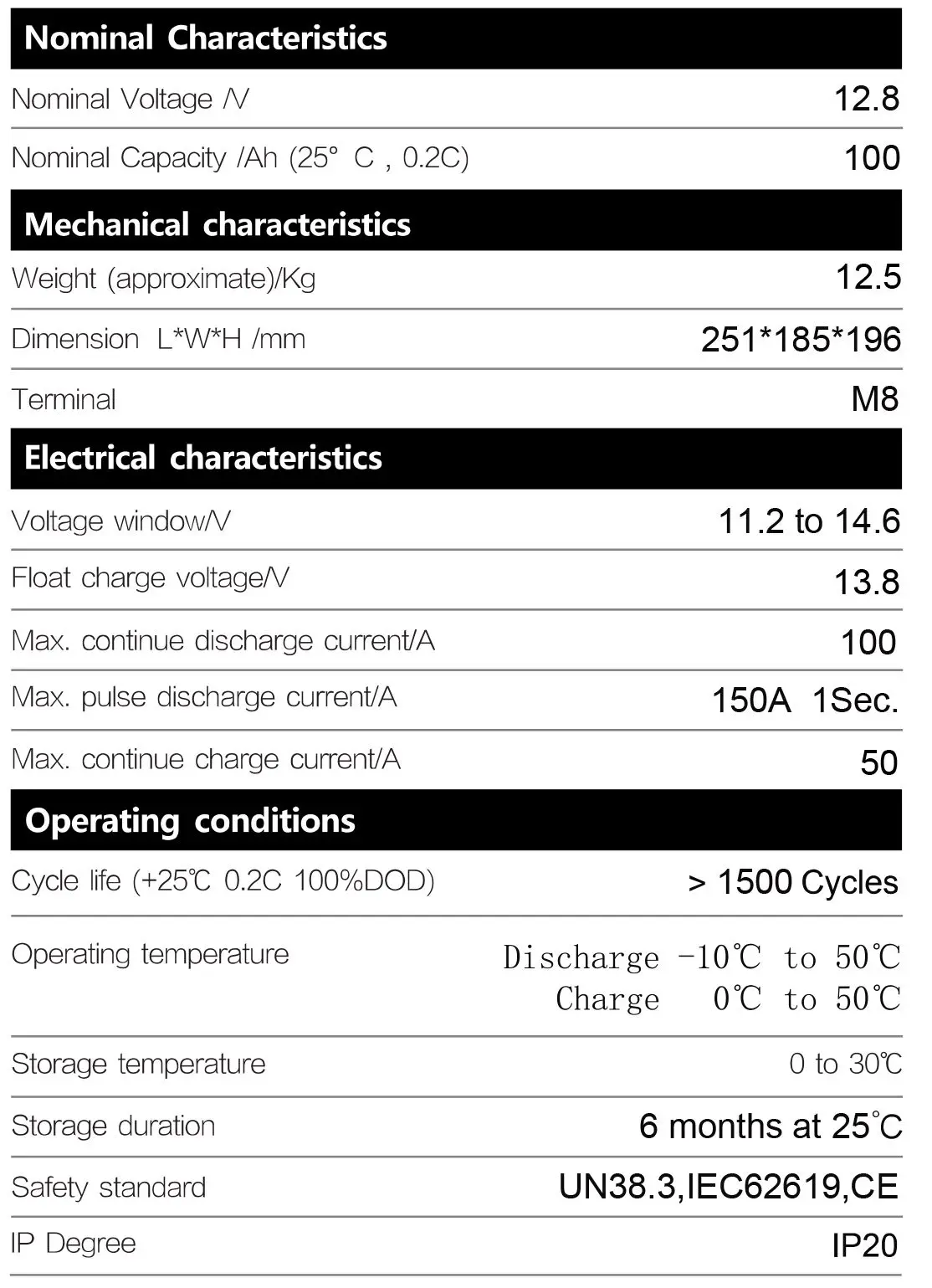

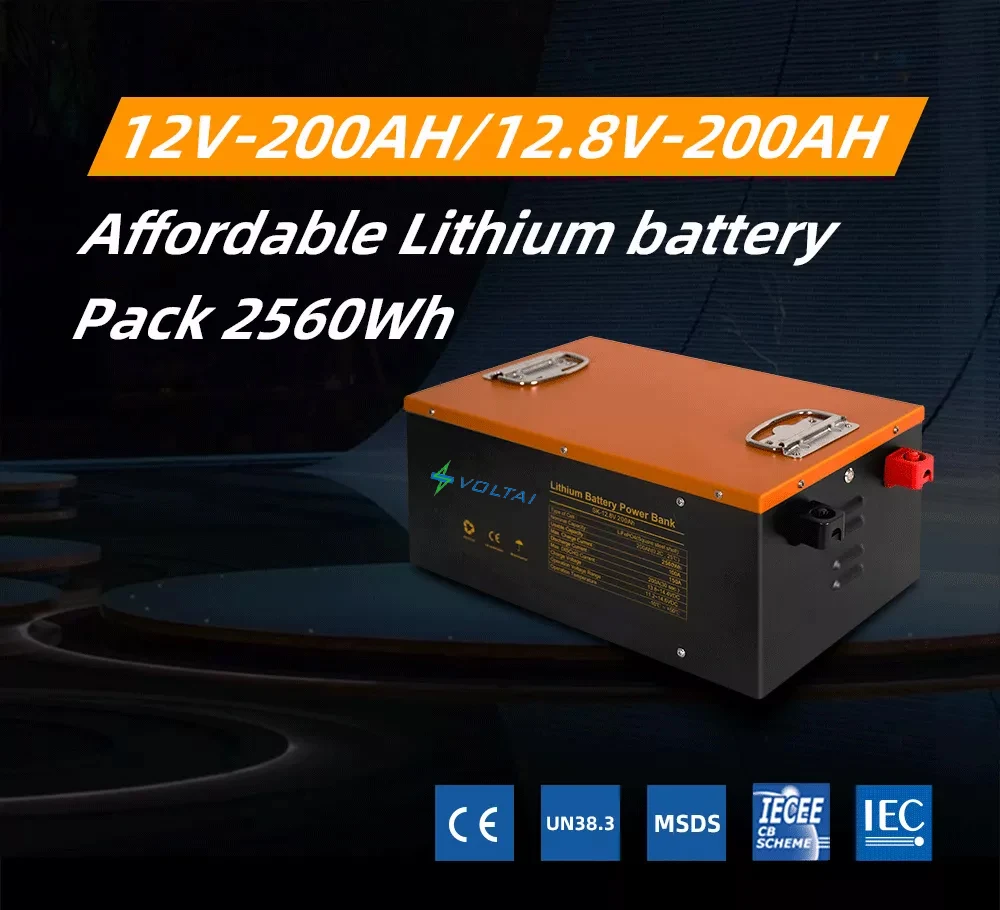

MODEL | 12V100AH | 12V200AH | 24V100AH | 24V200AH | 48V100AH | |||||
Battery Type | LiFePO4 | |||||||||
Normal Battery Voltage(Vdc) | 12.8V | 12.8V | 25.6V | 25.6V | 51.2V | |||||
Normal Capacity(25℃，0.2C)（WH） | 1280WH | 2560WH | 2560WH | 5120WH | 5120WH | |||||
Voltage window (Vdc) | 11.2～14.6V | 11.2～14.6V | 22.4～29.2V | 22.4～29.2V | 44.8～58.4V | |||||
Folat Charge Voltage(Vdc) | 13.8V | 13.8V | 27.6V | 27.6V | 55.2V | |||||
Max.continue discharge current（A） | 100 | 150 | 100 | 150 | 100 | |||||
Max.pulse discharge current（A） | 200A 30Sec. | 200A 30Sec. | 200A 30Sec. | 200A 30Sec. | 200A 30Sec. | |||||
Max.continue charge current（A） | 100 | 100 | 100 | 100 | 100 | |||||
Case design | Horizontal design | Horizontal design | Wall mounted or Horizontal design (Optional) | |||||||
Cycle life(+25℃ 0.2C） | ≧3000 Cycles | |||||||||
Cell Equalizer Current(A) | 1~5A Max. | |||||||||
Terminal | M6 | |||||||||
Storage temperature | 0℃～30℃ | |||||||||
IP degree | IP20 | |||||||||
Storage duration | 6 months at 25℃ | |||||||||
Safety standard | UN38.3,IEC62619,CE | |||||||||
Display (Optional) | None or LCD display (Optional) | |||||||||
Communication Port (Optional) | CAN/RS485/RS232 (Optional) | |||||||||
PROTECTION | ||||||||||
Protection | Overcharge protection、Overdischarge protection、Overcurrent protection、Shortcircuit protection、Overtemperature protection | |||||||||
AMBIENT | ||||||||||
working Temperature | -10℃～+50℃ | |||||||||
Humidity | 0~95% ( no condensation) | |||||||||
Sea Level(m) | ≤1500 | |||||||||

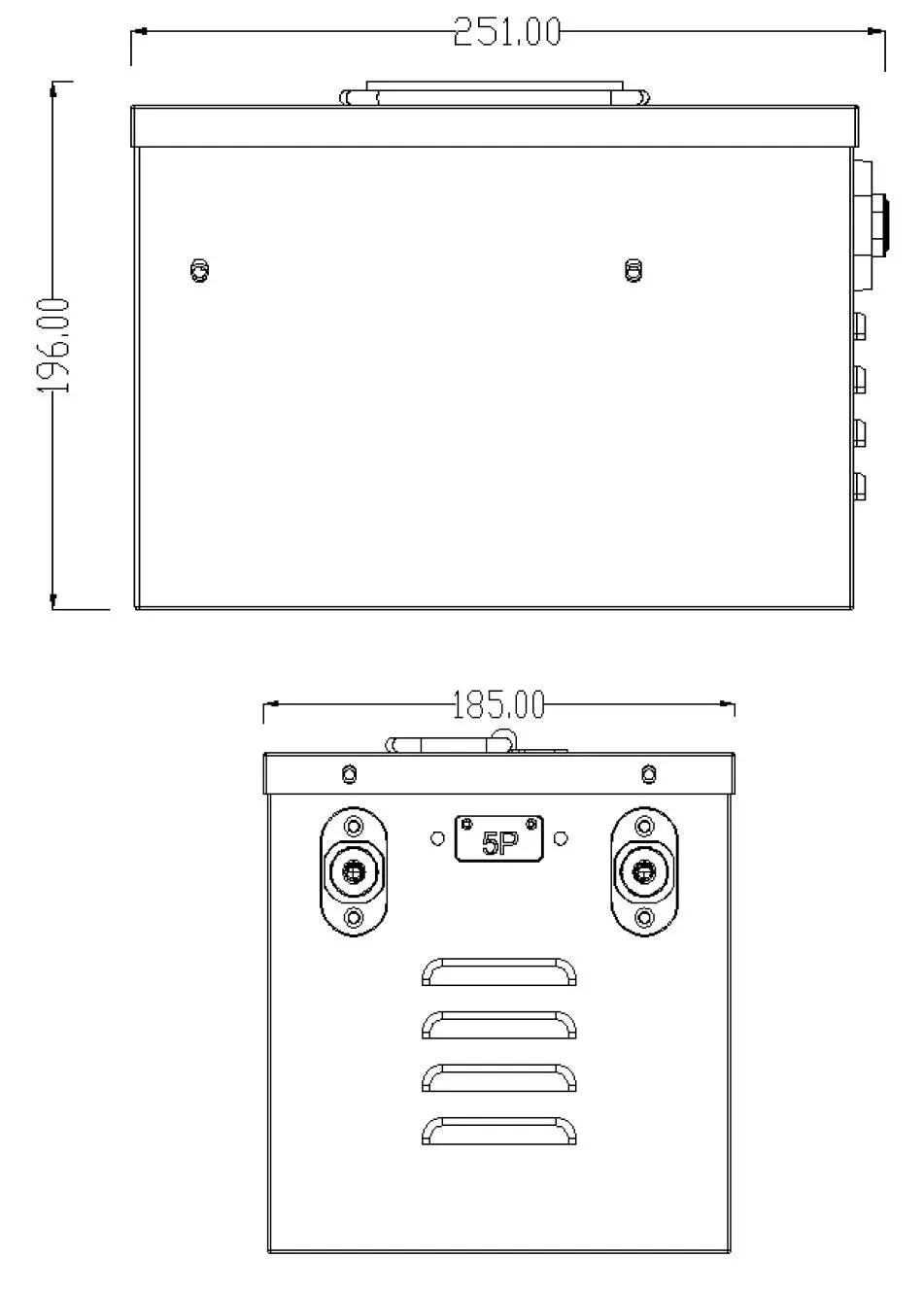

DIMENSION | ||||||||||
L×W×H (products size) mm | 350*185*189 | 429*261*189 | 429*261*189 | 521*488*218 | 540*370*228 | |||||
L×W×H (package size) mm | 410*255*230 | 490*331*229 | 490*331*229 | 581*558*258 | 600*440*268 | |||||
Weight(NW Kg) | 17.0Kg | 33.0Kg | 33.0Kg | 58.0Kg | 58.0Kg | |||||
Weight(GW Kg) | 17.5Kg | 33.5Kg | 33.5Kg | 58.5Kg | 58.5Kg | |||||
20FT QTY( UNIT) | 1100 set | 600 set | 600 set | 330 set | 330 set | |||||
Working System
CUSTOMERS FEEDBACK
Company Profile
Why Choose Us
FAQ
1. who are we?
We are based in Hunan, China, start from 2019,sell to Southeast Asia(45.00%),North America(20.00%),Western Europe(15.00%),Northern
Europe(10.00%),Eastern Europe(5.00%),Southern Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Lithium Battery
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Hunan, China, start from 2019,sell to Southeast Asia(45.00%),North America(20.00%),Western Europe(15.00%),Northern
Europe(10.00%),Eastern Europe(5.00%),Southern Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Lithium Battery
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
