H2O2 disinfection sterilization chamber VHP sterile pass box

Share on (1600680644086):


Price:US$ 17’619.00

Quantity:


Product Overview

Description



Product Description

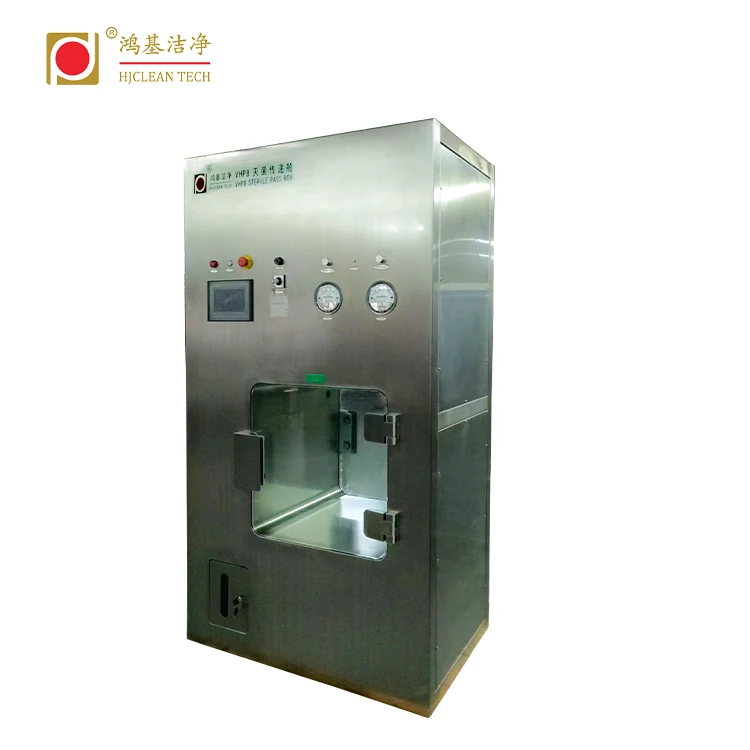

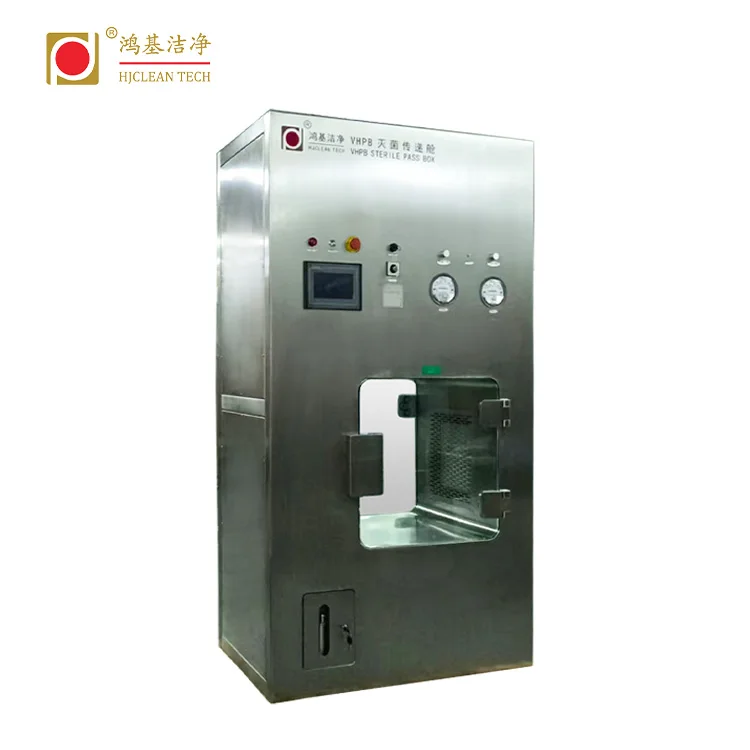

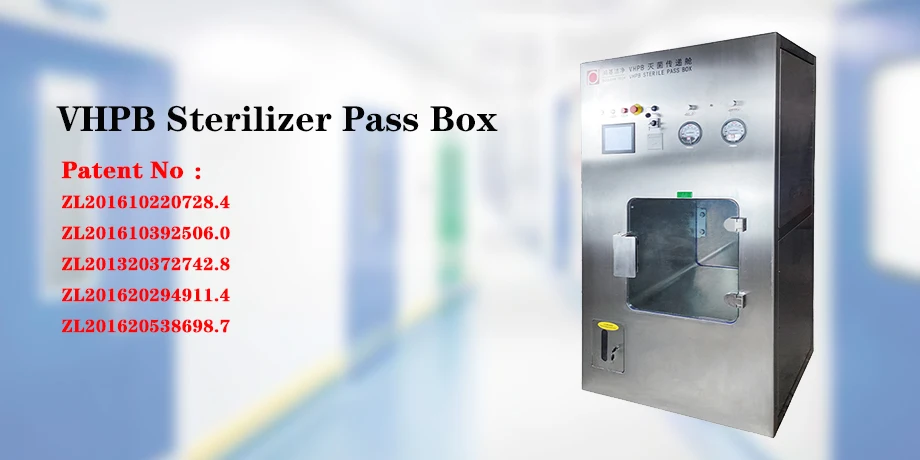

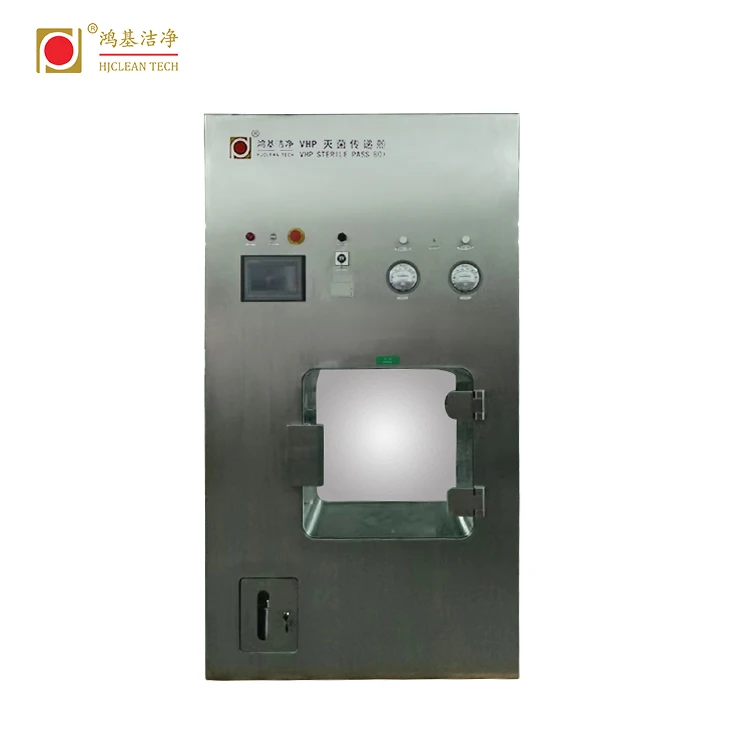

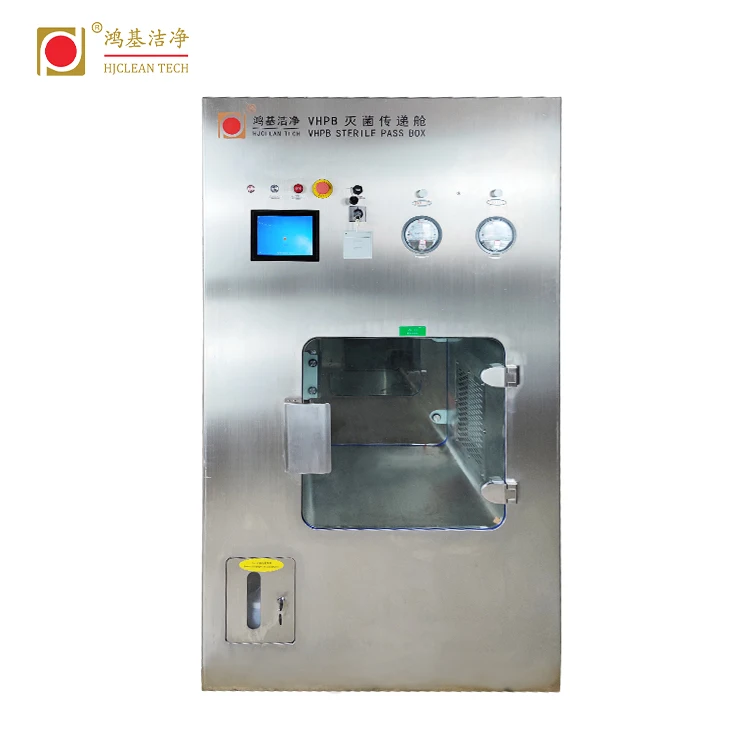

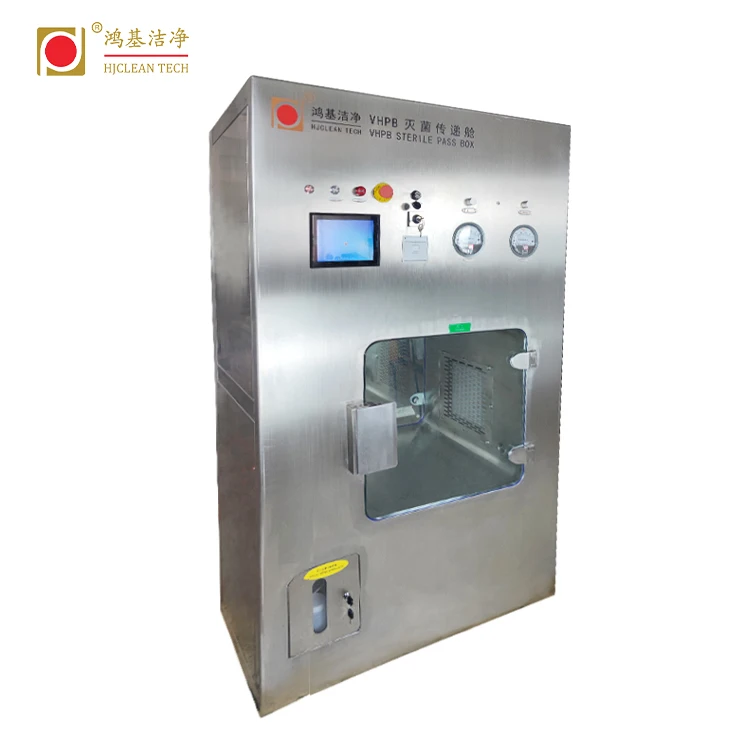

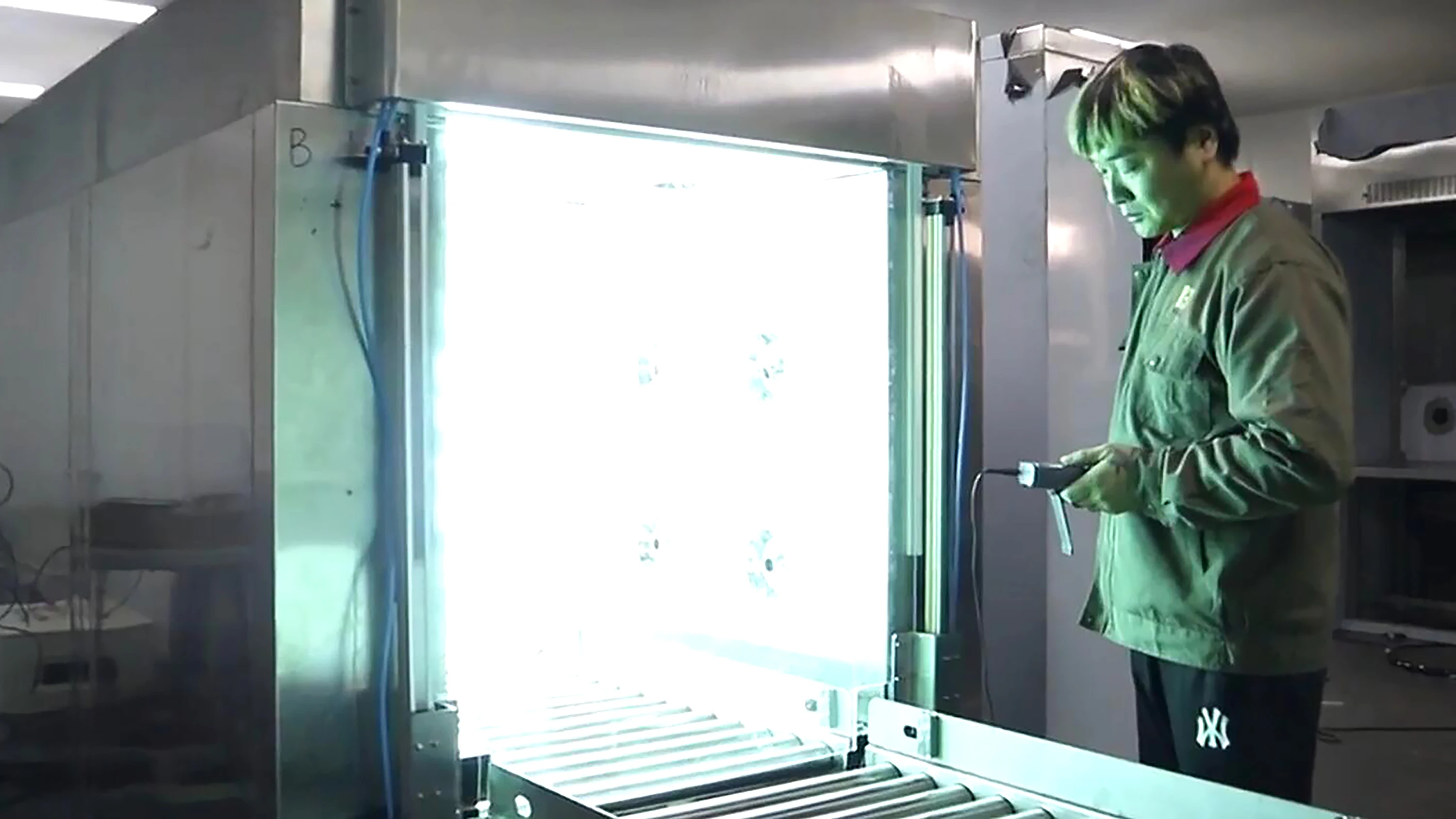

VHPB sterilizer pass box.
VHPB sterilizer pass box is a special sterilization equipment that can provide absolute biological decontamination on the surface of items when transferring items between different functions. It is equipped with a dedicated hydrogen peroxide VHP generator, a sterile air supply system, an electromagnetic door interlocking system, a closed system, a residue removal system after sterilization, a dedicated HMI (human-machine interface) and a sterilization medium giving system. It is widely used in normal temperature surface sterilization in pharmaceutical, medical, sanitation, biological testing and other places.


Product parameter


Material
304 stainless steel externally,316L stainless steel internally
Clean Grade
CLASS A
Leakage rate
≤0.5%VOL/h (under 100Pa)
Air change
≧80T/h
Vaporization temperature
≤60℃
Compressed air
≥0.5Mpa
Sterilizer
better than 30% food grade hydrogen peroxide solution
VHP residue removal efficiency
≤1PPM
Control method
manual or automatic
Noise
≤70dB(A)


Specification/model
Outer size W*D*H, unit: mm
Inner dimension w*d*h unit: mm
Exhaust connection
Fresh air outlet
power supply
Maximum power consumption KW
VHPB-125
950*600*1800
500*500*500
DN50
DN150



AC220v/50Hz
3.5
VHPB-200
1050*700*1900
600*600*600
DN50
DN150
3.5
VHPB-350
1150*800*2000
700*700*700
DN50
DN200
3.5
VHPB-500
1250*900*2100
800*800*800
DN75
DN200




AC380V/50Hz
5.5
VHPB-800
1350*1000*2200
900*900*1000
DN75
DN250
5.5
VHPB-1000
1450*1100*2300
1000*1000*1000
DN75
DN250
5.5
VHPB-1200
1650*1100*2300
1200*1000*1000
DN75
DN250
5.5






Company Profile








SUZHOU LUCKY INTERNATIONAL IMPORT & EXPORT CO., LTD was established in 2014 in Suzhou, Jiangsu, the city in China, with Shanghai to the east and a superior geographical location. The company is mainly engaged in clean engineering, air purification engineering, air purification equipment, pharmaceutical purification equipment, and air purifiers. , Laboratory equipment, medical equipment, environmental testing equipment, Wujinjiaodian, mechanical equipment, electrical equipment, building materials, metal materials and other products, and engaged in the import and export business of the above-mentioned products and technologies; in addition, it is also engaged in the wholesale of medical masks, Japanese Sales of masks (non-medical), wholesale of protective equipment for medical staff, sales of sanitary products and disposable medical supplies, sales of first-class medical devices and second-class medical sales. These products are used in electronics, pharmaceuticals, precision machinery, aerospace It has been widely used in
other fields, and we have enough confidence to assure users that the products we provide to users are high-quality and
cost-effective. Since the establishment of the company, the products have been sold to the world, such as Southeast Asia, the domestic market, South Asia, and South Europe. , North America, Northern Europe, Central America, Western Europe, Eastern Asia, Middle East, Oceania, Africa, Eastern Europe, South America and other countries. Suzhou Lucky International Import and Export Co.,
Ltd. adheres to the tenet of customer first, technology leader, service first, and pioneering and enterprising, and serves
domestic and foreign enterprises wholeheartedly.

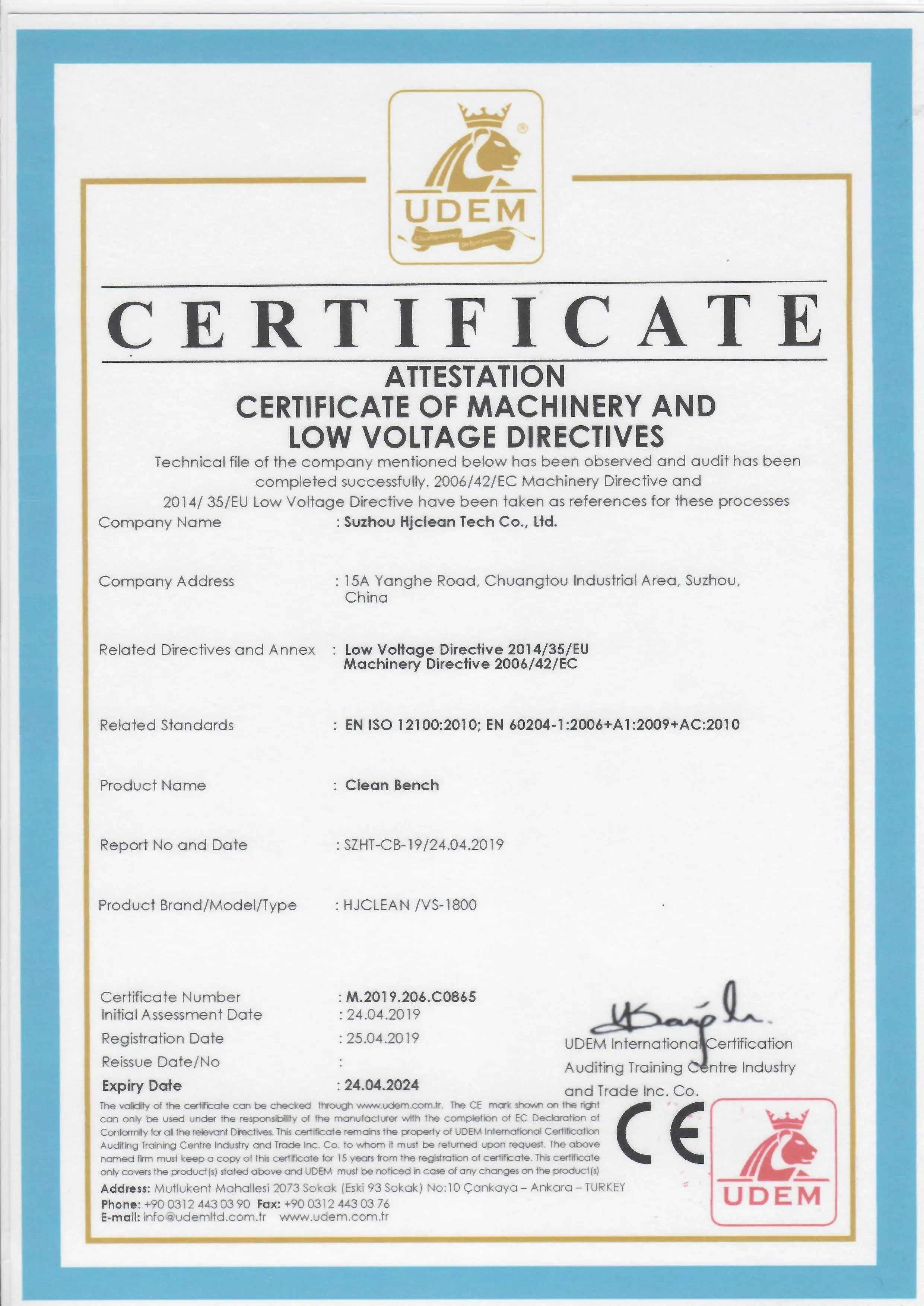

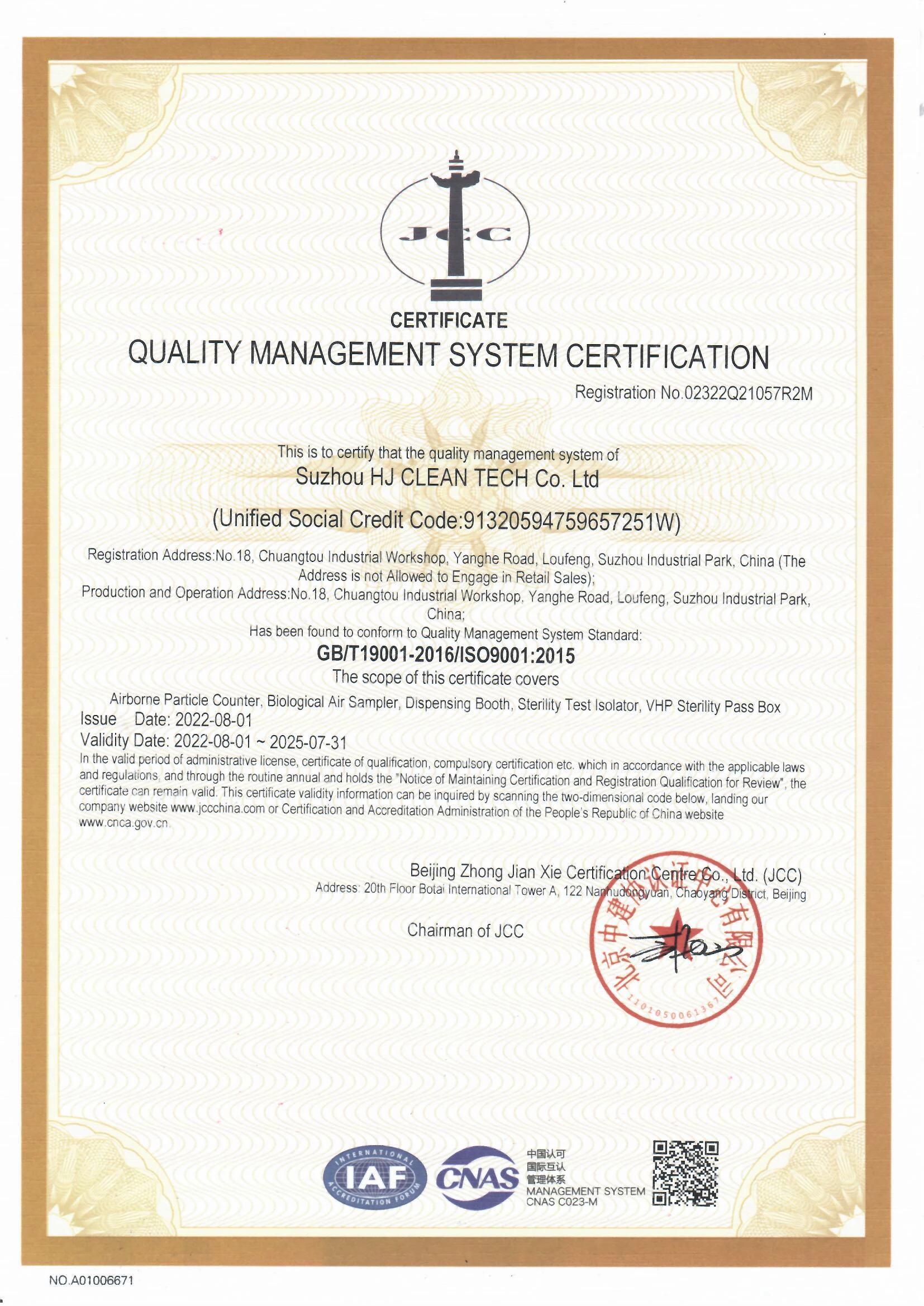

Certisfications

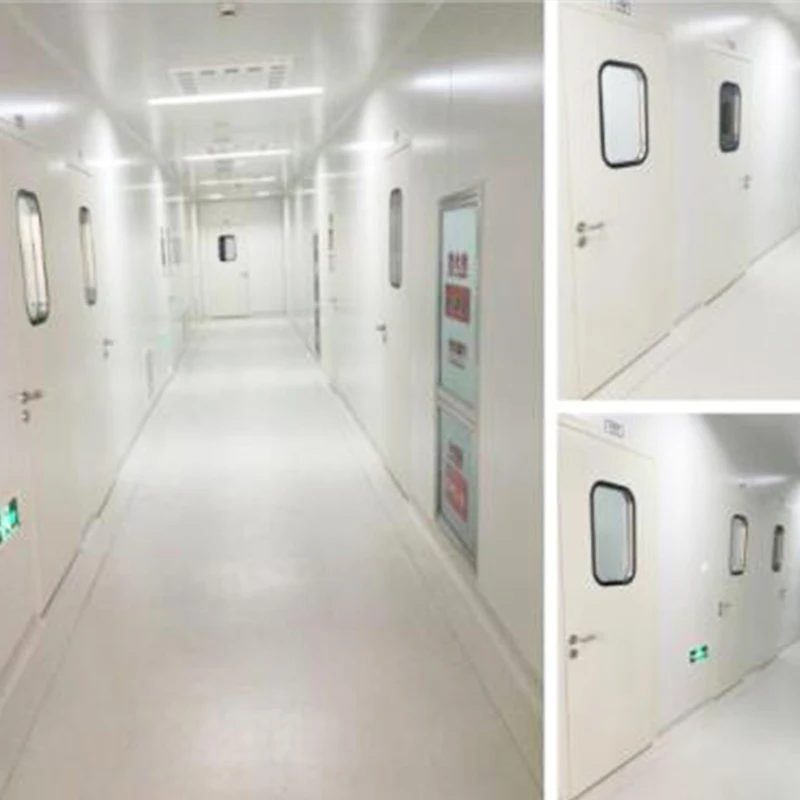

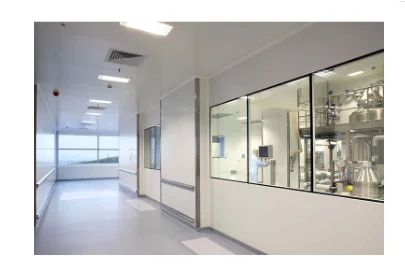

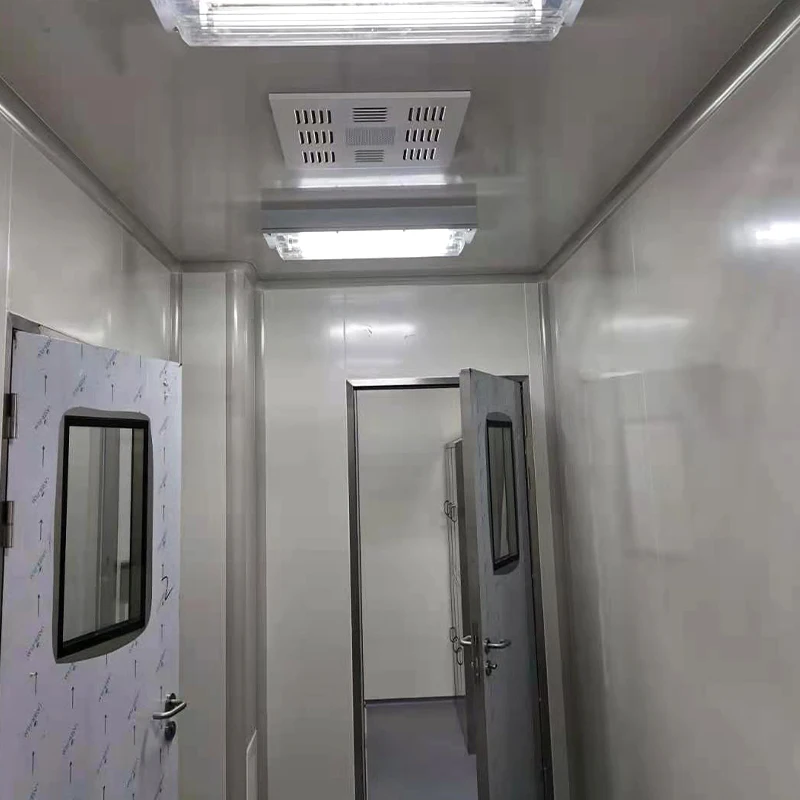

Customer Photos




Exhibition




Packing & Delivery




FAQ


1. who are we?
We are based in Jiangsu, China, start from 2014,sell to Southeast Asia(67.00%),North America(1.00%),South America(1.00%),Eastern Europe(1.00%),Africa(1.00%),Oceania(1.00%),Mid East(1.00%),Eastern Asia(1.00%),Western Europe(1.00%),Central America(1.00%),Northern Europe(1.00%),Southern Europe(1.00%),South Asia(1.00%),Domestic Market(1.00%). There are total about 11-50 people in our office.SUZHOU LUCKY INTERNATIONAL IMPORT & EXPORT CO., LTD adhere to the purpose of the users first, technology advanced, service paramount and exploration keeping, we will service for domestic and foreign enterprises wholohearedly.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
clean room project,sandwich panel,door windows,Laminar air flow,Dispensing booth

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CPT;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
