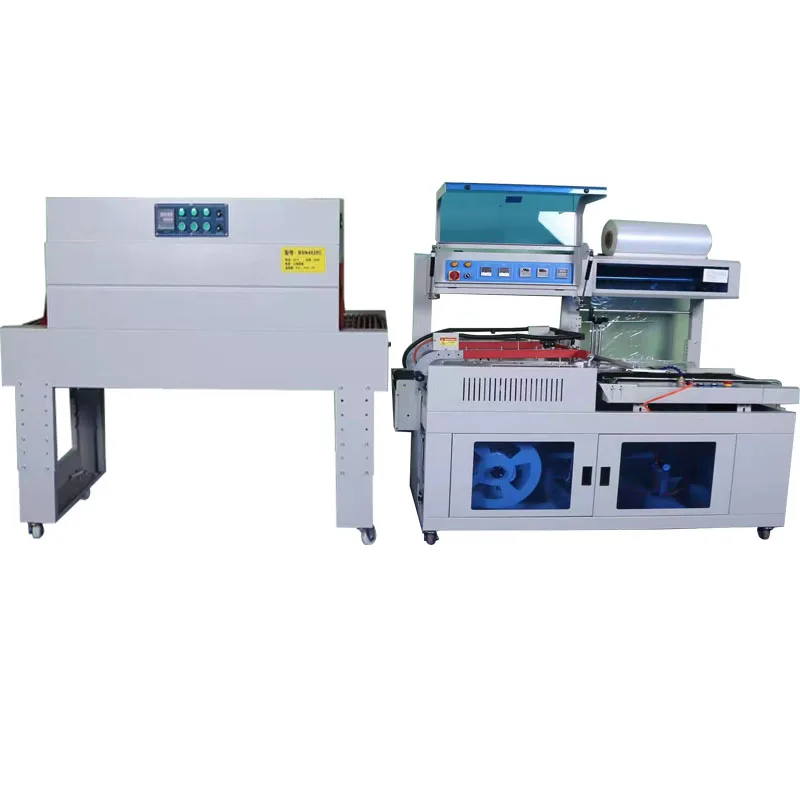

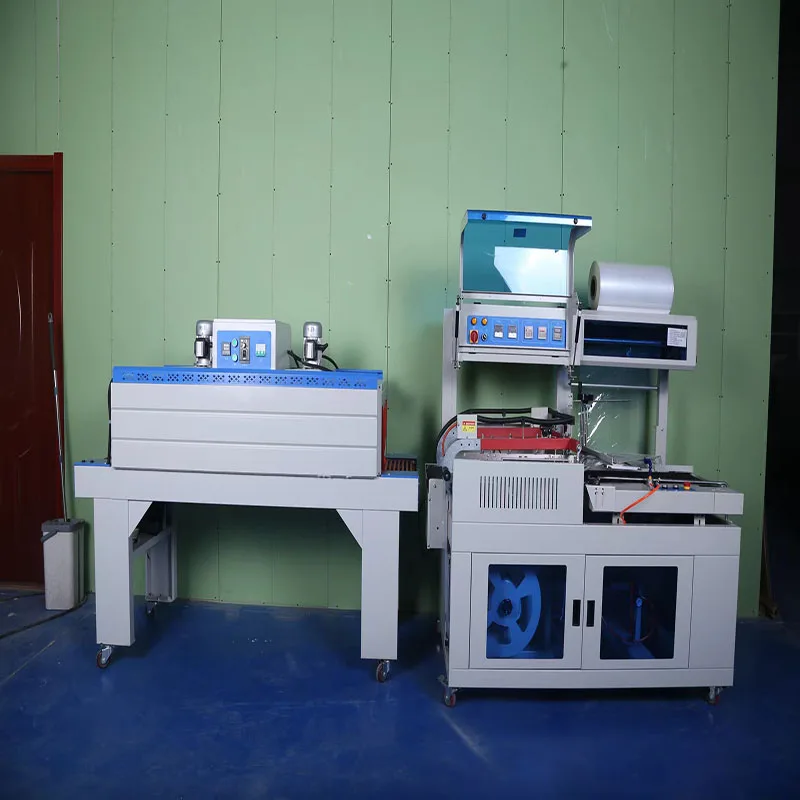

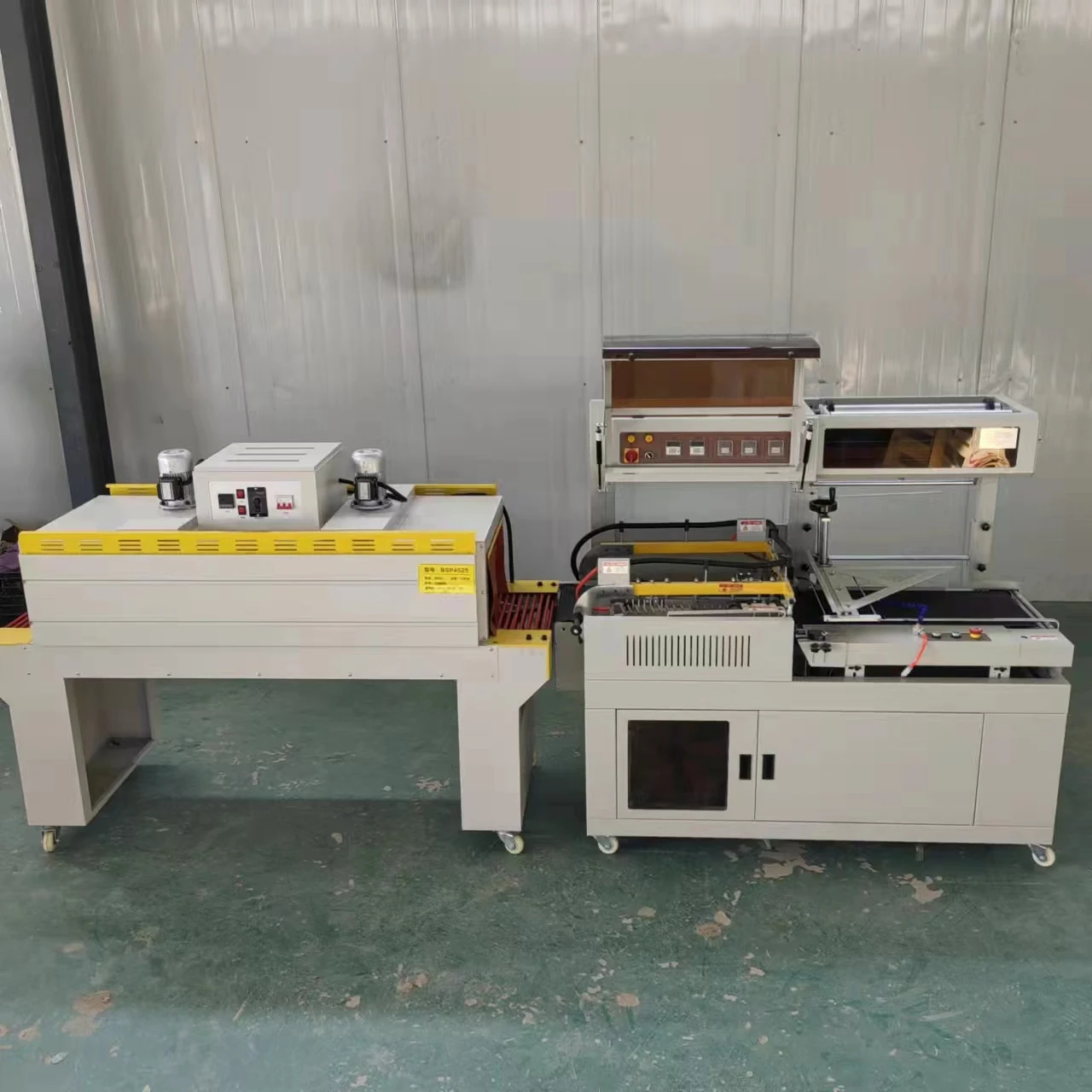

Made in China good products multi function can sealing machine baler tea box packing machine
- Category: >>>
- Supplier: Xingtai Mintai Machinery Manufacturing Co. Ltd.
Share on (1600680698749):
Product Overview
Description
Products Description

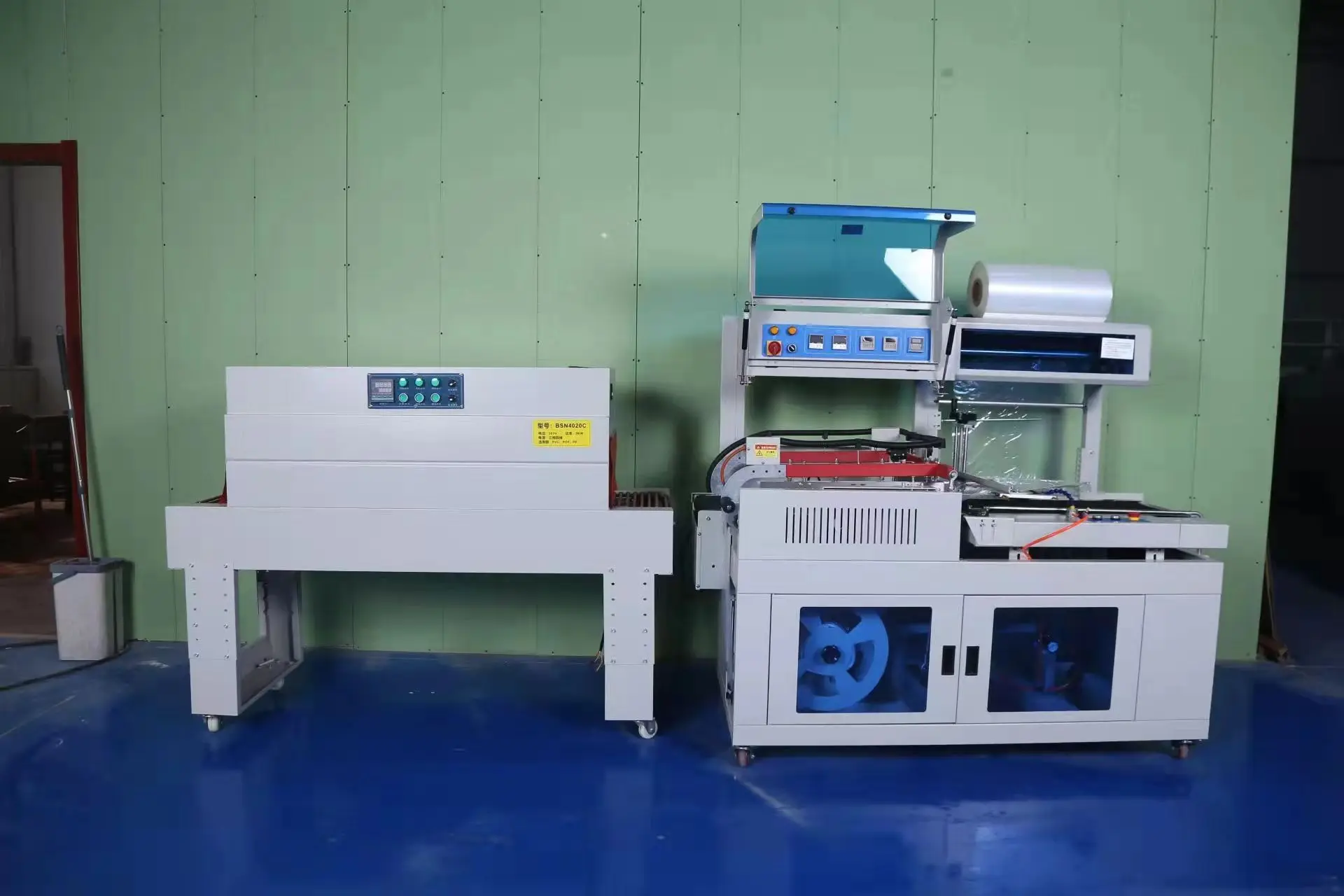

Details Images

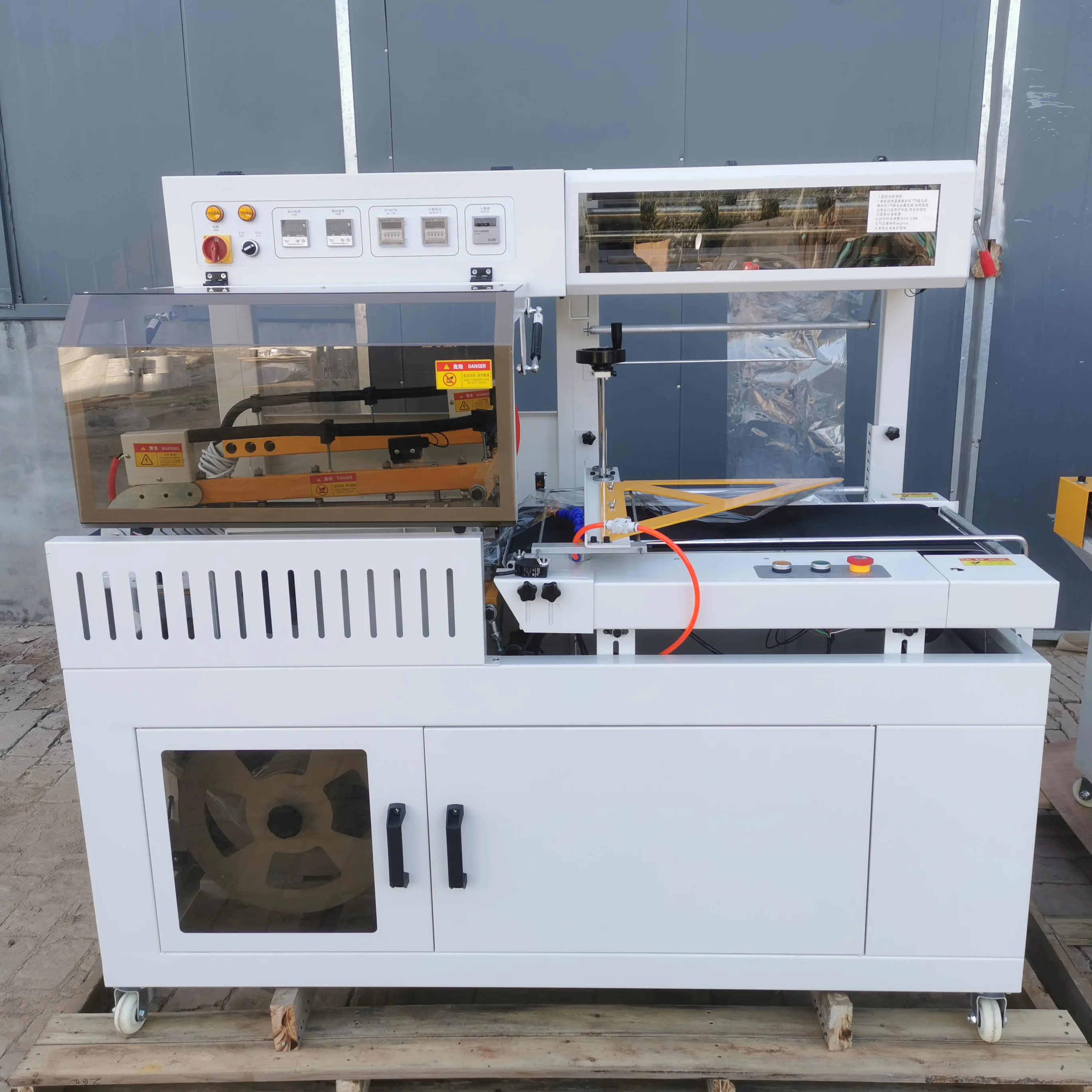

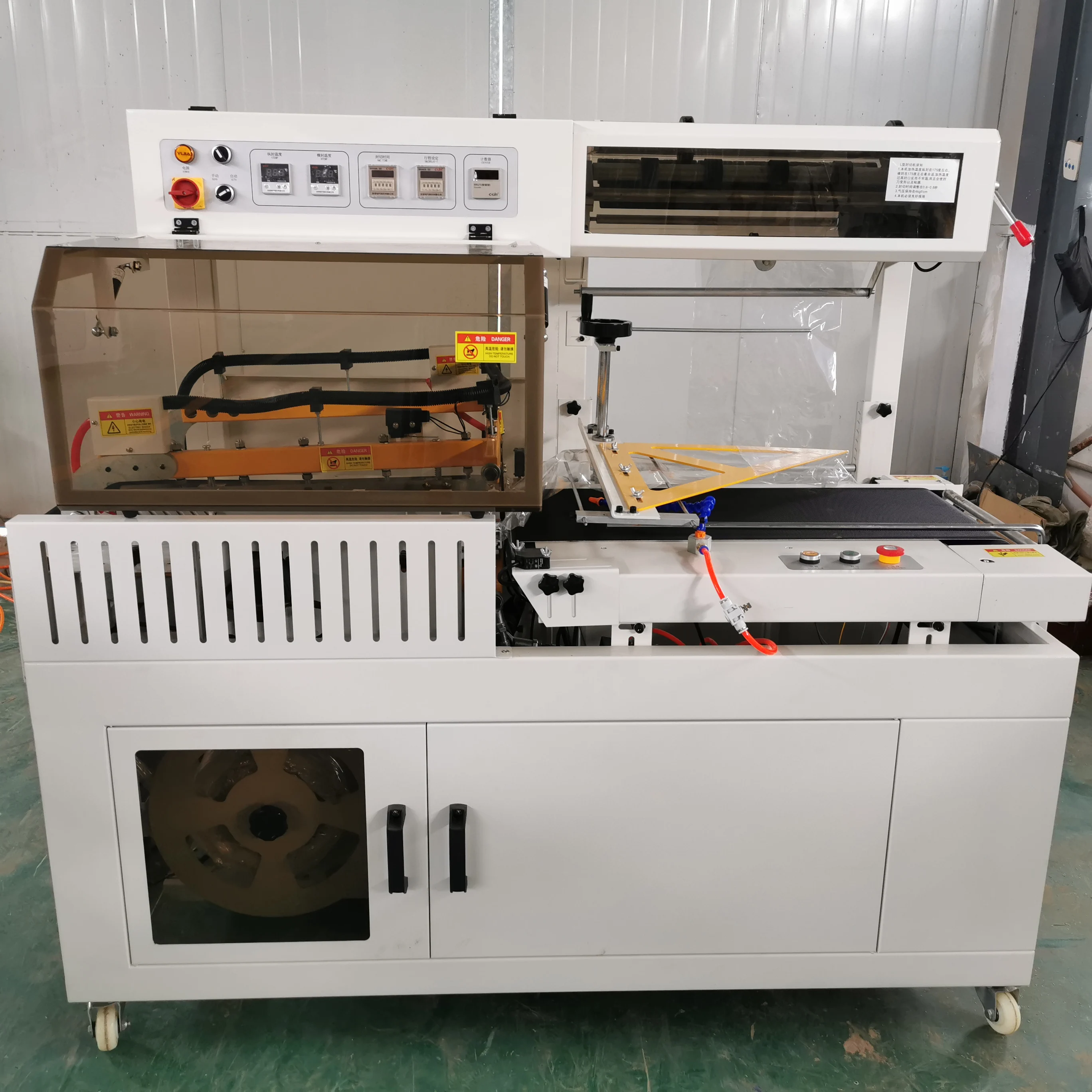

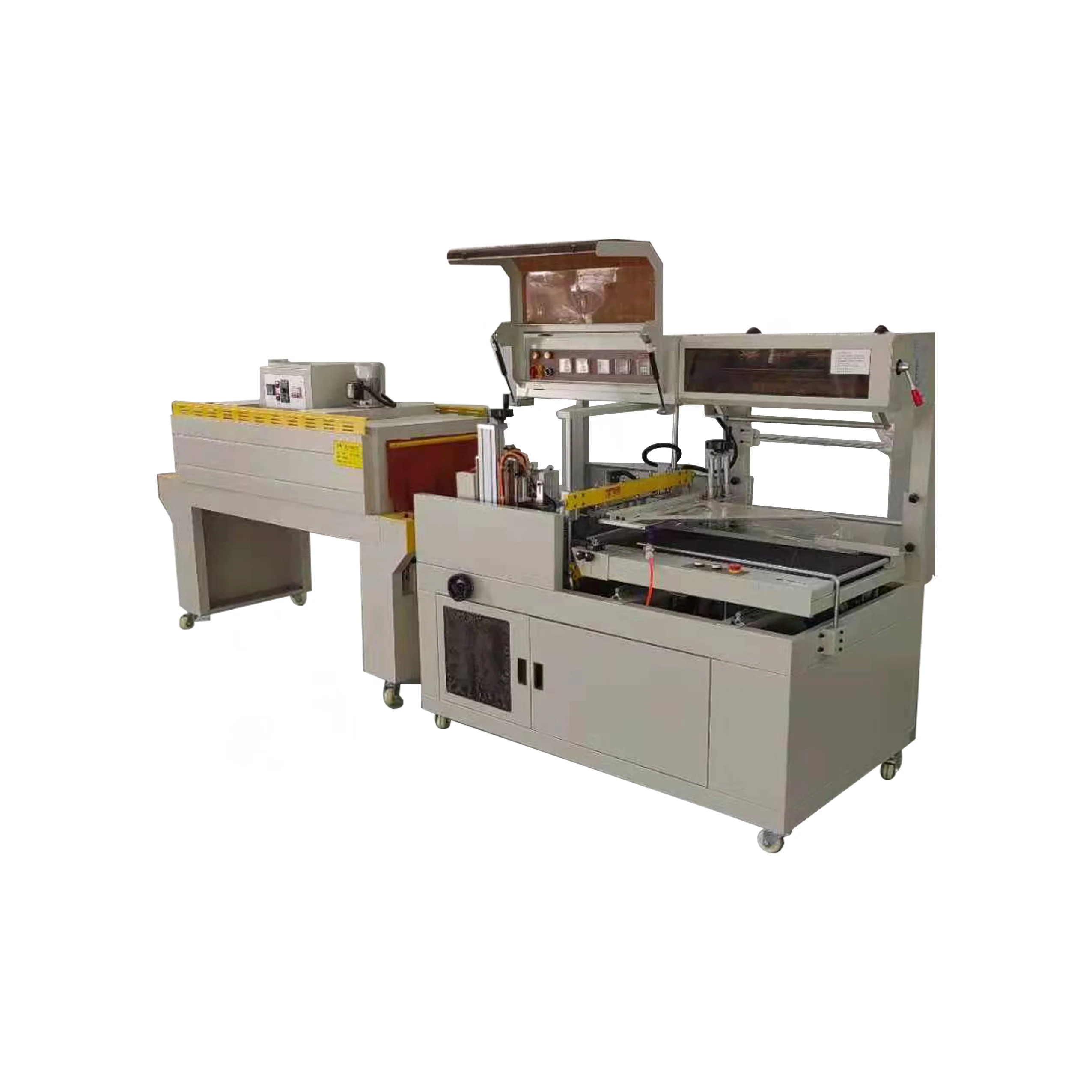

Sealing Cutting Machine Parameters
Sealing Cutting Machine | L450 |
Weight | 300kg |
Voltage | 220v 50hz |
Air supply voltage | 5-7kg/cm3 |
Power | 1.35KW |
Speed | 15-30bags/min |
Max package length | <500mm |
Max packing width | <400mm |
Sealing cutter size | 450mm |
Size(L*W*H) | 1650x900x1540mm |
Conveyor belt width | 330mm |
Applicable shrink film | POF、PE |
Parets Name | Quantity | Brand | ||||
air cylinder | 1 | AirTac(Taiwan) | ||||
optoelectronic switch | 1 | Omron(Japan) | ||||
intermediate relay | 1 | Omron(Japan) | ||||
electrical machinery | 1 | Feiteng(China) | ||||
Digital display meter (temperature controller) | 1 | Clin(China) | ||||
time relay | 1 | Clin(China) | ||||
Indicator Other small electrical switch | 5 | Yijia(China) | ||||
Instructions
(I) Schedule setting
The longer the time, the longer the excess part of the contraction film, after the contraction is not beautiful. (On the packaging after the contraction film will produce relaxation phenomenon). Note: if the time is too short, the sealing cutter may cut to the packaging, usually in 0.1-0.5 seconds (but due to the thickness of the packaging, the time is different).(Ⅱ) counter
Packaging through the electric eye switch, sealing knife down and then back up, the number on the counter will be displayed. (Press the "RESET" button in the upper right corner when the digit on the counter returns to zero).
Packaging through the electric eye switch, sealing knife down and then back up, the number on the counter will be displayed. (Press the "RESET" button in the upper right corner when the digit on the counter returns to zero).
(Ⅲ) Photoelectric eye switch (installed on both sides of conveyor belt)
When the package passes through the electric eye, the stroke setting device is activated, and the sealing cutter is lowered to seal and cut.
(Ⅳ) Selection switch
When installing the film or debugging the machine, the manual position must be selected. At this time, the conveyor belt does not run and the electric eye is closed. Select automatic position when formal packaging, at this time the conveyor belt operation,electric eye start. When the package touches the electric eye, the sealing knife will drop automatically. Please be careful not to touch the electric eye with your hands.
When installing the film or debugging the machine, the manual position must be selected. At this time, the conveyor belt does not run and the electric eye is closed. Select automatic position when formal packaging, at this time the conveyor belt operation,electric eye start. When the package touches the electric eye, the sealing knife will drop automatically. Please be careful not to touch the electric eye with your hands.
(Ⅴ)The sealing and cutting temperature
The horizontal seal is usually set at about 180°C and the vertical seal is set at about 300°C. (The material and thickness of the contraction film are different).
(Ⅵ)Cylinder aspects
Drain the water at least once a month (close to the white button below the cylinder, the water will come out) and check the oil at least once a month.

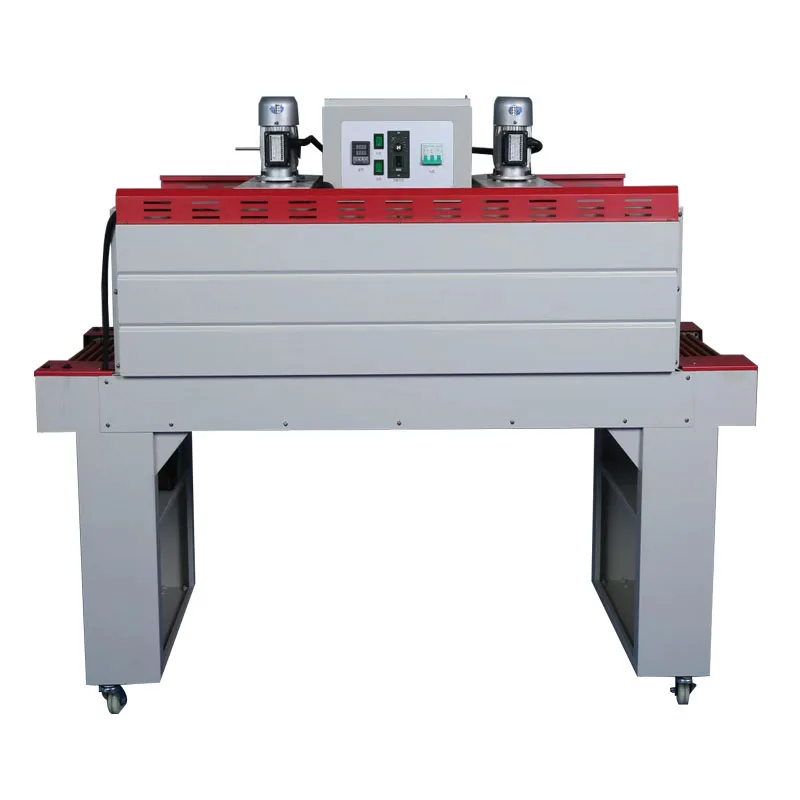

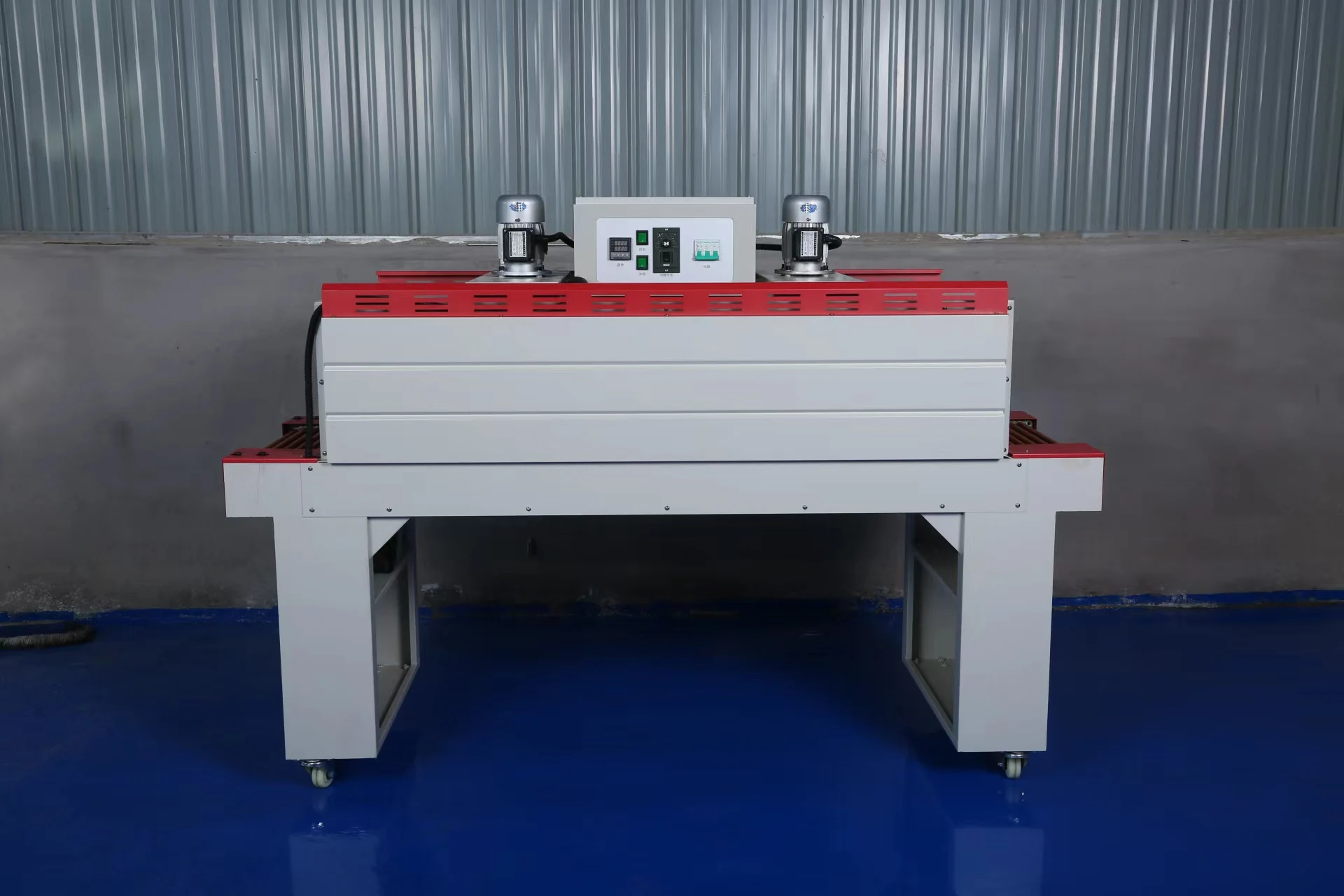

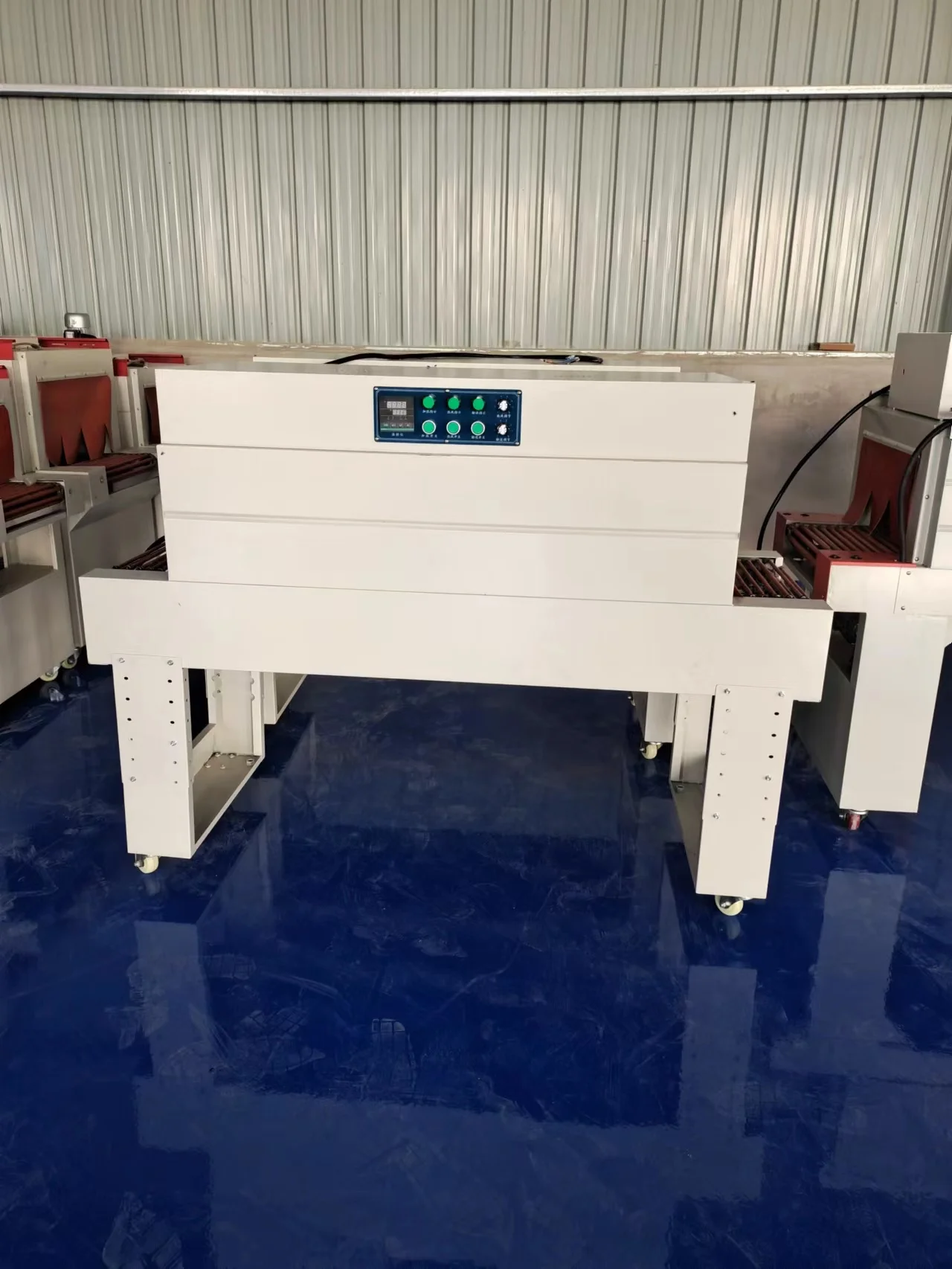

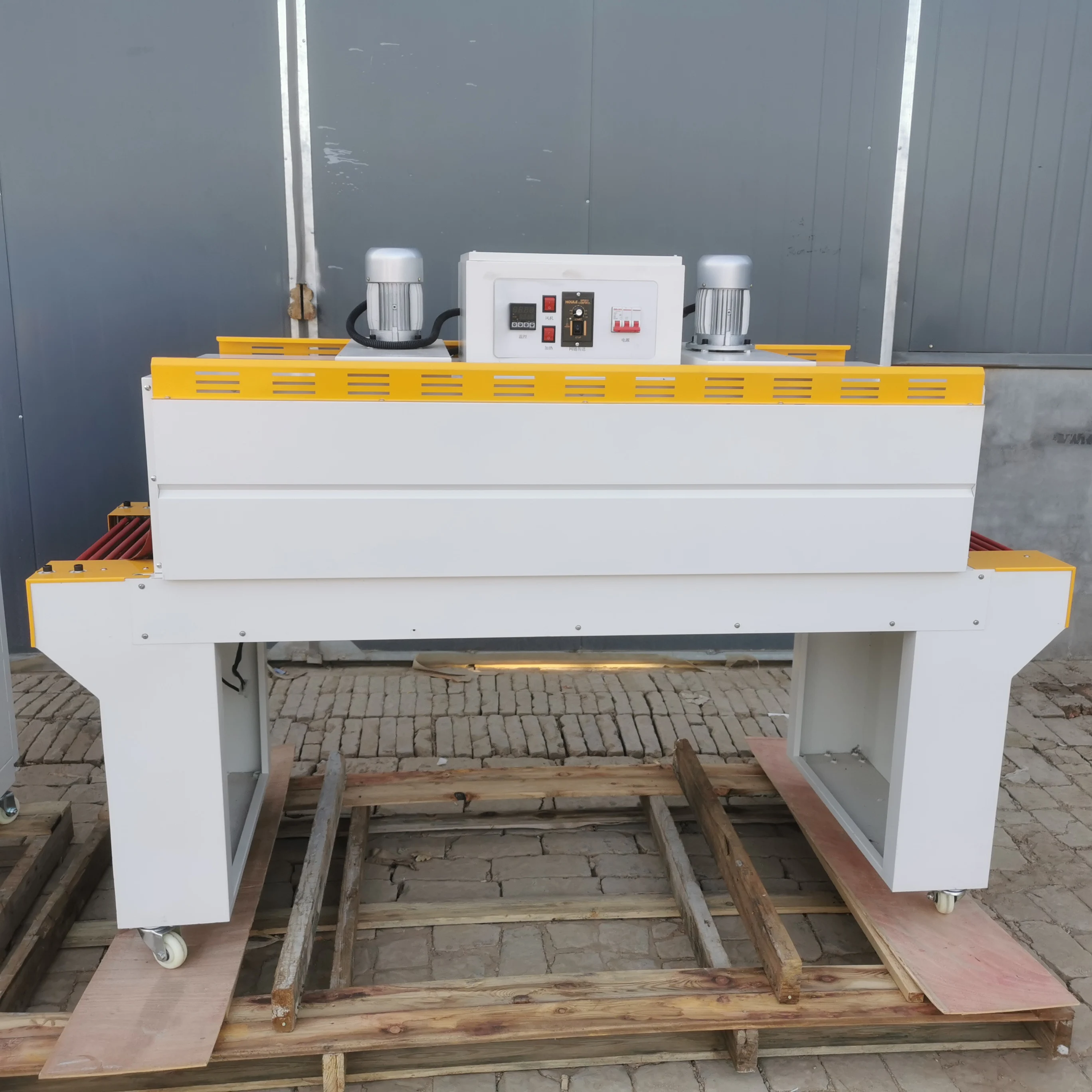

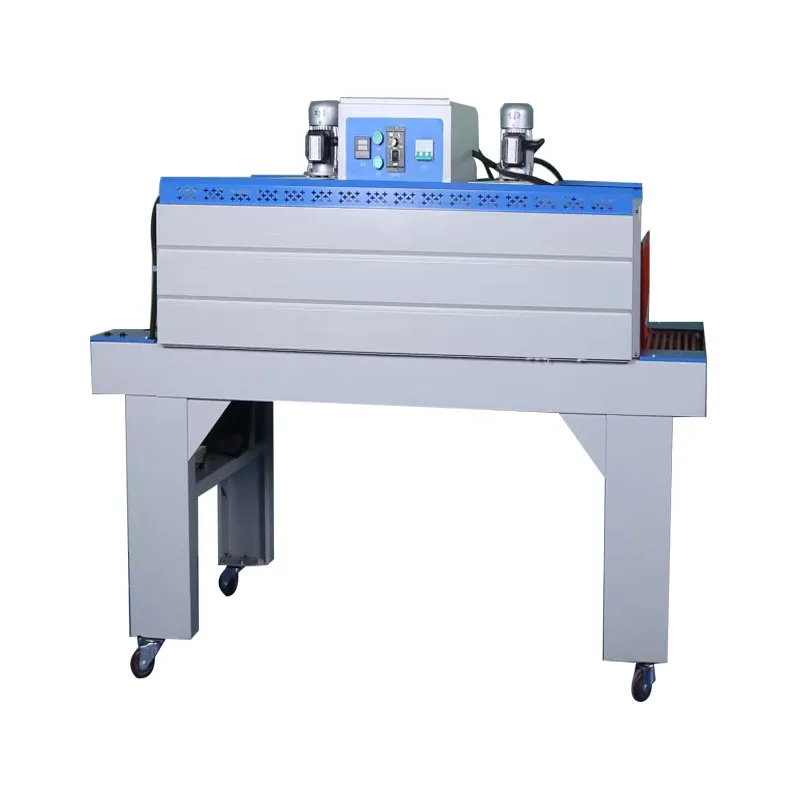

Shrinking Machine
Shrinking Machine | 4020c |
Power | 380V/50-60HZ |
Speed | 0-10m/min |
Shrink furnace size (L* W* H) | 1200*400*200mm |
Product size (W* H) | 300*120mm |
Conveying material | Roller chain |
Delivery truck | 10kg |
Machine size (L* W* H) | 1600*650*1350mm |
Weight | 90kg |
Applicable shrink film | POF、PVC |
Power | 9kw |
Name | Quantity | Brand |
Phase break and phase sequence protection relay | 1 | DELIXI |
AC contactor | 1 | DELIXI |
power switch | 1 | CHNT |
intelligent temperature controller | 1 | Clin |
indicator light | 3 | GANGBO |
button switch | 3 | JIANGDA |
electrical machinery | 1 | SULIN |
Instructions
The internal circulation heat shrinker power is generally large in about 6-12KW, the temperature set is also relatively high,generally around 130°-160°, according to the thickness of the material, the speed of the delivery of products, the size of the air volume, the temperature setting is also different, the product is not high temperature resistance can use low temperature, the use of thin shrinkage film. If the shrinkage film is thick, the temperature needs to be increased, and the power of the contraction machine also needs to be selected. When the speed of conveying products increases, the temperature increases correspondingly, and conversely, the temperature decreases correspondingly when the air volume increases, and conversely increases. The power of POF and PVC shrink is generally 6-12KW, and the temperature is generally set at about 130-160 ° to adjust.
