stepper motor with gearbox nema 34 stepper motor with planetary gearbox stepper planetary gear motor 86mm
- Category: >>>
- Supplier: Changzhou Jinsanshi Mechatronics Co. Ltd.
Share on (1600680703703):
Product Overview
Description
Product Description

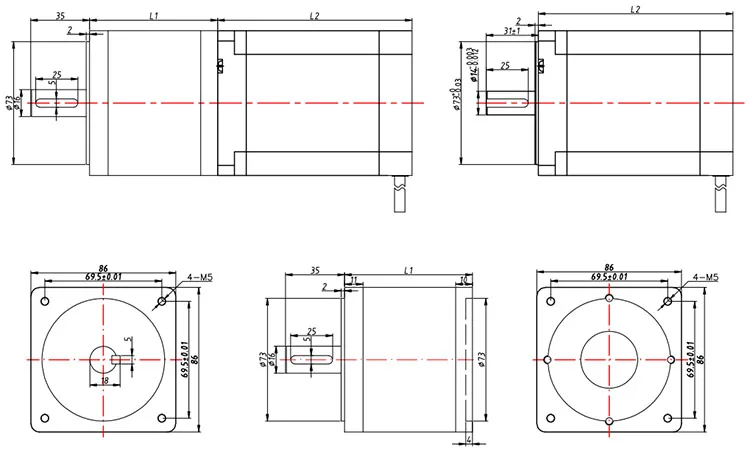

planetary reducer gearbox for NEMA 23 and NEMA 34 stepper motor
| Specifications | First Stage | Second Stage | |
| Gear ratio | 4,5,7,9,10 | 16,20,25,28,35,36,40,45,49,50,63,70,81,90,100 | |
| Length | mm | 73 | 87 |
| Rated road | N.m | 50 | 80 |
| Max road | N.m | 100 | 160 |
| Effiency | % | 96 | 94 |
| Blacklash | arcmin | ≤15 | ≤25 |
| Weight | Kg | 2 | 2.5 |
| Rated input speed | rpm | 3000 | 3000 |
| Max input speed | rpm | 3000 | 5000 |
| Protection class | IP | 65 | 65 |
| Lubrication | Grease | Grease | |
| Noise | dB | ≤45 | ≤45 |
| Life | h | 20000 | 20000 |
Company Information
Changzhou Jinsanshi Mechatronics Co. Ltd. is located in Changzhou city, Jiangsu province, China. We are a comprehensive company which specializes in producing and researching motors and drivers. We accept OEM and ODM orders! We have passed ISO9001 and have got the certification of CE and ROHS!
Our main products include hybrid step motor, and step driver, step servo motor and driver, integrated step servo motor, linear stepper motor, geared stepper motor, stepper motor with brake, brushless dc motor,AC servo Motor. And we are always researching and developing new products.
Our products are widely applied in engraving machine, cutting plotter, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment..Our products are exported to all over the world, including Europe, South America, North America, Africa, South-east Asia, etc.
We can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance.
On the way of development, the principle of "fficiency is the life, quality is the fundamental" is always insisted by Jinsanshi people. We take the market as guidance, provide high quality products and good service to customers. We are expecting the cooperation with more friends from home and abroad in the near future.
Our products are widely applied in engraving machine, cutting plotter, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment..Our products are exported to all over the world, including Europe, South America, North America, Africa, South-east Asia, etc.
We can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance.
On the way of development, the principle of "fficiency is the life, quality is the fundamental" is always insisted by Jinsanshi people. We take the market as guidance, provide high quality products and good service to customers. We are expecting the cooperation with more friends from home and abroad in the near future.
FAQ
1.Q:Can I get some samples?
A:We are honored to offer you samples for quality check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
5. Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
