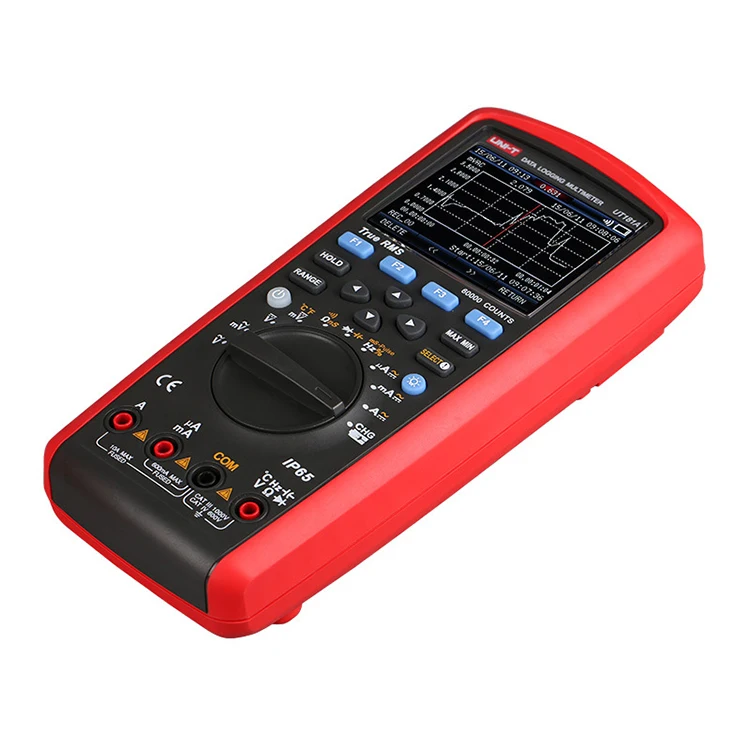

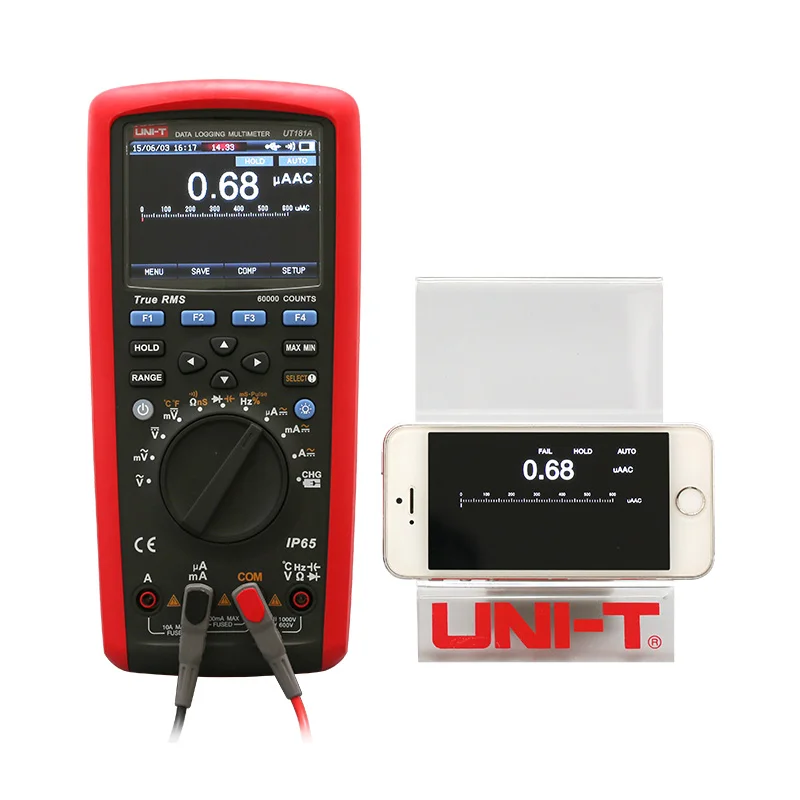

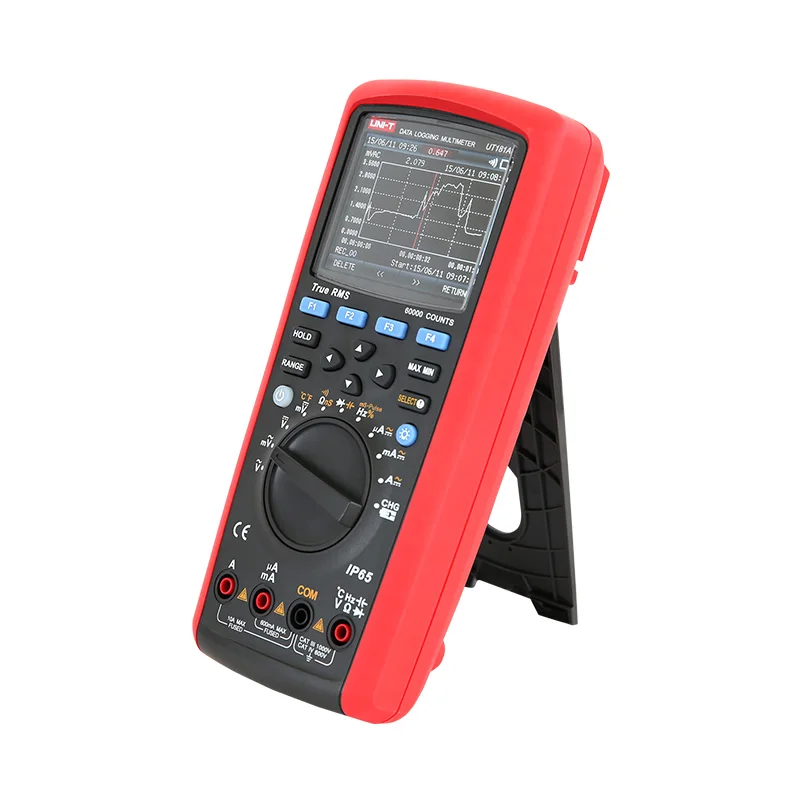

UT181A True RMS Datalogging Multimeter with trend capture nS conductance
- Category: >>>
- Supplier: Nanning Bokun Instrument Equipment Co. Ltd.
Share on (1600680705265):
Product Overview
Description
Product Description
UT181A is a digital multimeter with trend capture, true RMS, low pass filter, nS conductance, dual temperature measurement, and more. With the help of the datalogging feature, users can store up to 20000 units of measurement data and display them on a trend graph for long term monitoring.

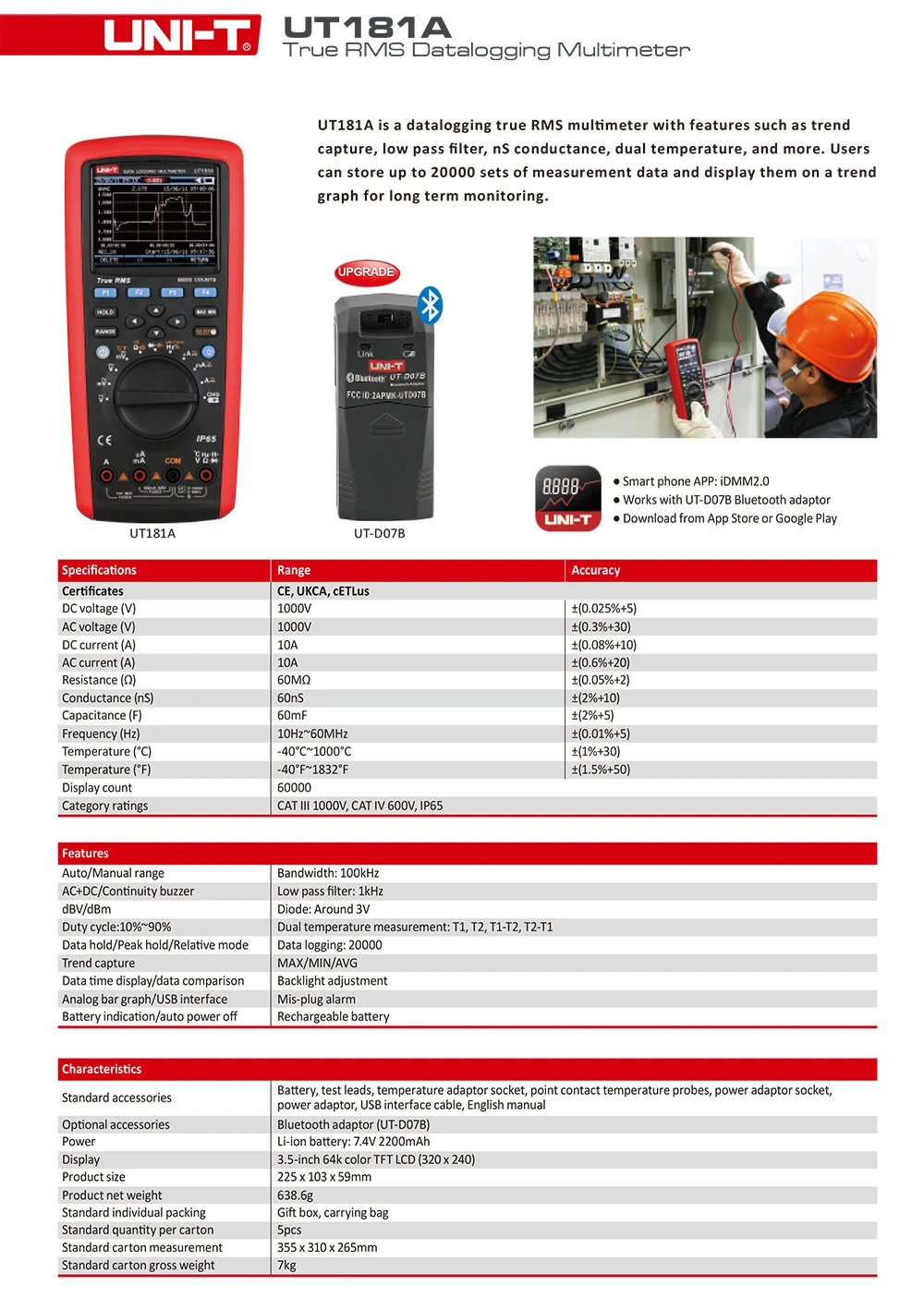

Specifications | Range | UT181A |
DC voltage (V) | 1000V | ±(0.025%+5) |
AC voltage (V) | 1000V | ±(0.3%+30) |
DC current (A) | 10A | ±(0.08%+10) |
AC current (A) | 10A | ±(0.6%+20) |
Resistance (Ω) | 60MΩ | ±(0.05%+2) |
Conductance(nS) | 60nS | ±(2%+10) |
Capacitance (F) | 60mF | ±(2%+5) |
Frequency (Hz) | 10Hz~60MHz | ±(0.01%+5) |
Temperature (°C) | -40°C~1000°C | ±(1%+30) |
Temperature (°F) | -40°F~1832°F | ±(1.5%+50) |
