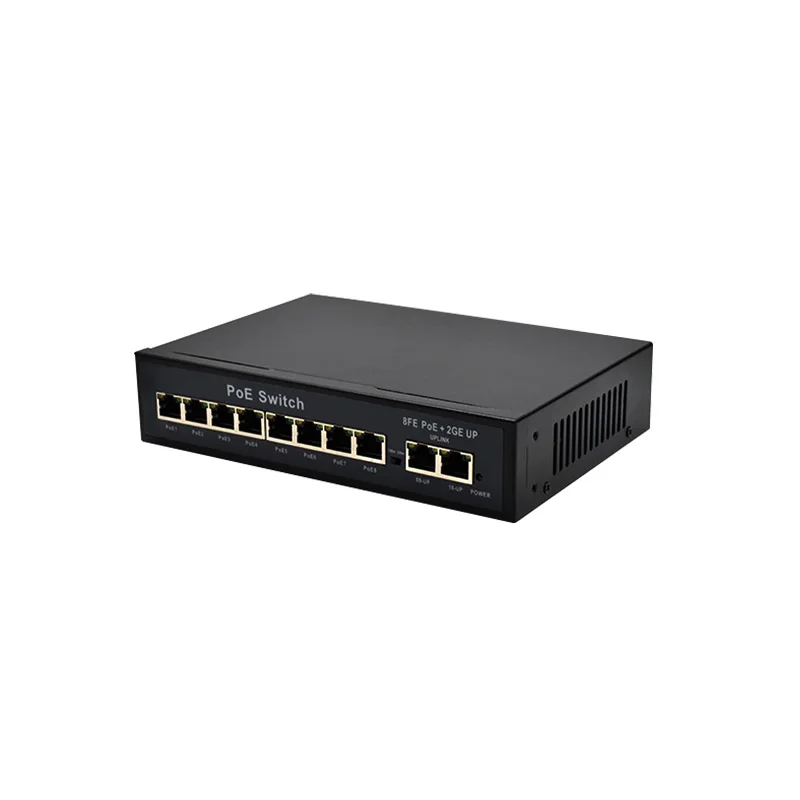

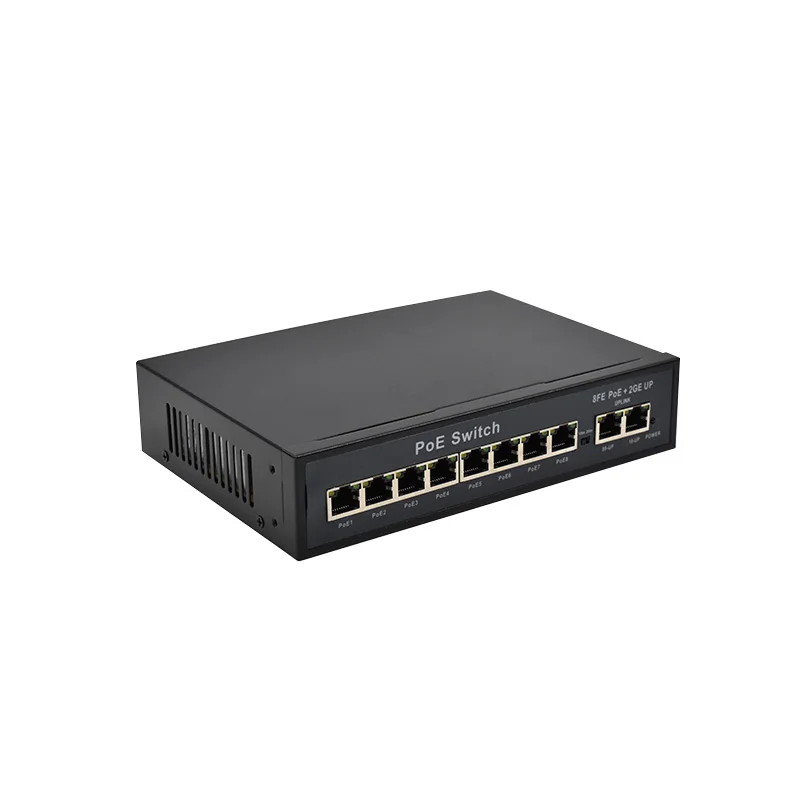

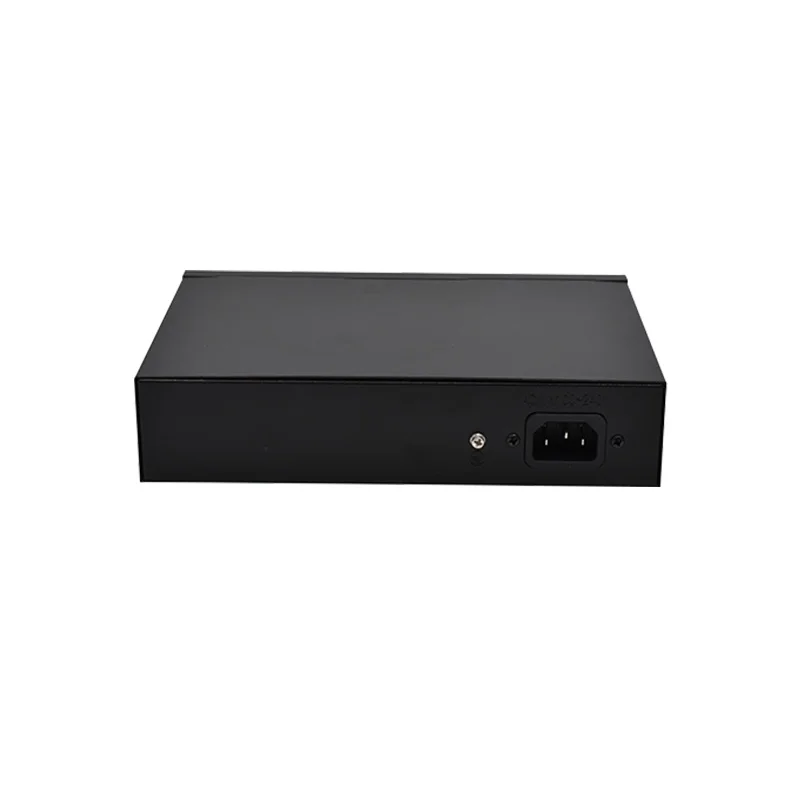

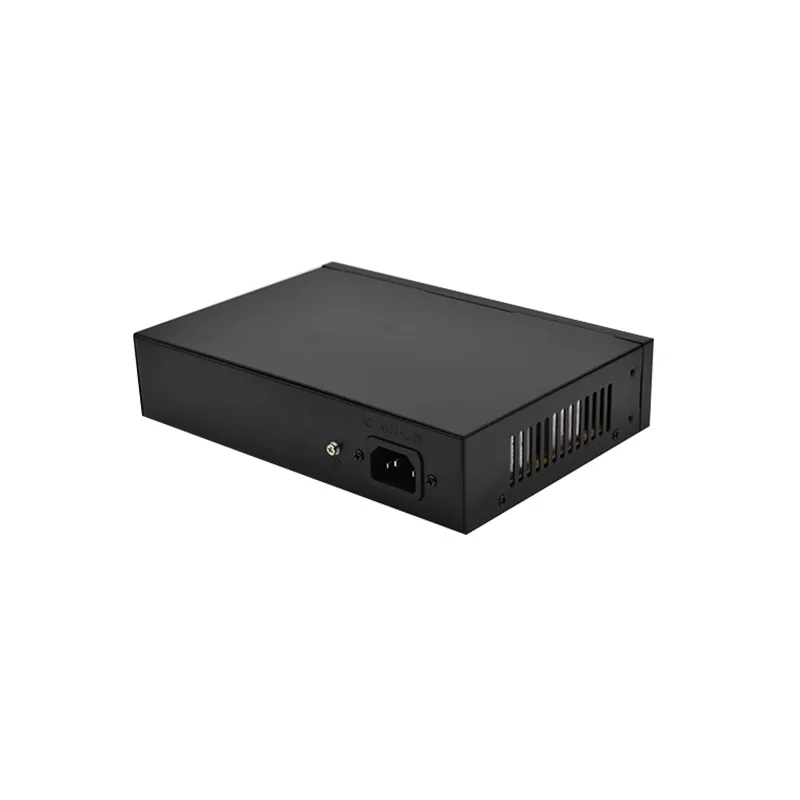

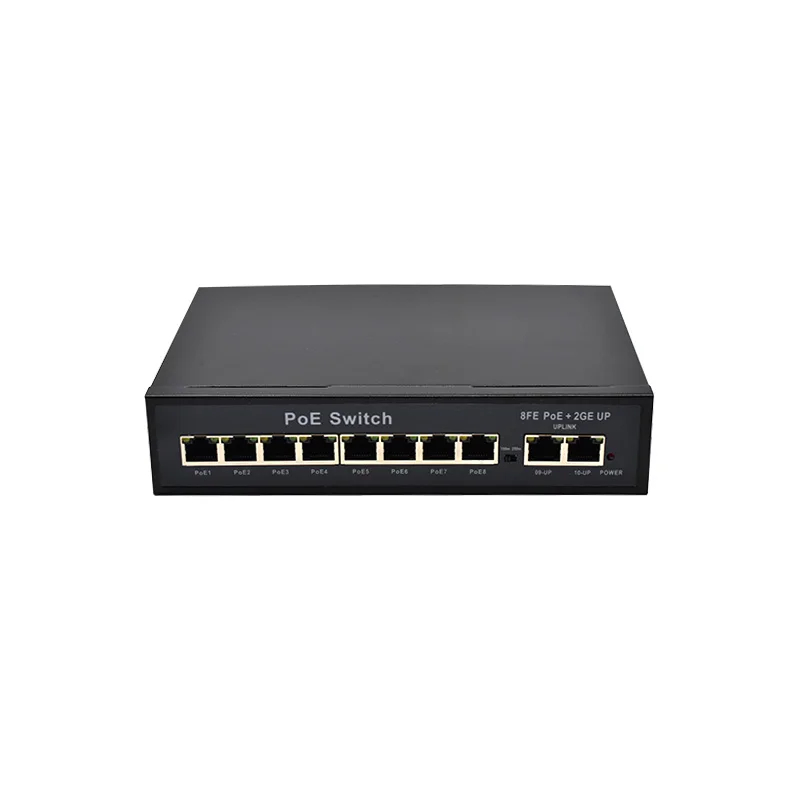

8 port Half/Full duplex adaptive support VLAN 10/100mbps PoE RJ45 port and 2 10/100/1000mbps uplink ports poe switch
8 port Half/Full duplex adaptive support VLAN 10/100mbps PoE RJ45 port and 2 10/100/1000mbps uplink ports poe switch
8 port Half/Full duplex adaptive support VLAN 10/100mbps PoE RJ45 port and 2 10/100/1000mbps uplink ports poe switch
8 port Half/Full duplex adaptive support VLAN 10/100mbps PoE RJ45 port and 2 10/100/1000mbps uplink ports poe switch
8 port Half/Full duplex adaptive support VLAN 10/100mbps PoE RJ45 port and 2 10/100/1000mbps uplink ports poe switch
8 port Half/Full duplex adaptive support VLAN 10/100mbps PoE RJ45 port and 2 10/100/1000mbps uplink ports poe switch
8 port Half/Full duplex adaptive support VLAN 10/100mbps PoE RJ45 port and 2 10/100/1000mbps uplink ports poe switch

8 port Half/Full duplex adaptive support VLAN 10/100mbps PoE RJ45 port and 2 10/100/1000mbps uplink ports poe switch

Share on (1600680708986):


Price:$17.50 - $22.00

Quantity:


Product Overview

Description



Product Description


Overview
This PoE switch has 8 10/100Base-TX Ethernet ports and 2 10/100/1000Base-T ethernet port, of which port 1-8 support IEEE802.3 af/at PoE (Power over Ethernet) protocol power supply. The PoE port supports a maximum output power of 25.4W, and the maximum PoE power output of whole machine is 96W; It is support standard PoE protocol, which can automatically detect whether the powered device supports PoE power supply, and it only provide the power to the same PoE protocol PD devices, it can effectively prevent damage to non-PoE powered devices.

The PoE switch can force the port 1-8 transmission rate to be reduced to 10mbps through the DIP switch, and then this will be able to transmit a maximum distance of 250m through the existing twisted pair.At the same time, the port 1-8 are in a state of mutual network isolation, but they can communicate with the uplink ports (9-10) respectively.It can effectively isolate the conflict domain and broadcast domain, reduce the generation of broadcast storms, and improve the efficiency of network communication. It is an ideal choice for video surveillance networking in hotels, shops, supermarkets, family homes and small and medium-sized enterprises.




Specification


Model
WOR-SL802P


Protocol
Standard
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.1W Spanning Tree
IEEE 802.3x flow control


Ethernet port
Characteristic
Connector Type
1×8 RJ45，1×2 RJ45
Transmission rate
10/100Mbps auto-negotiate；
10/100/1000Mbps auto-negotiate
Transmission distance
10Base-T: ≤250m（CAT3,4,5 UTP）
100Base-TX: ≤100m（CAT3,4,5 UTP）
1000Base-T: ≤100m（CAT3,4,5 UTP）




Exchange performance
Forward method
Store-and-forward（full wire-speed）
Transmission mode
Half/Full duplex adaptive
MAC address table
2K
Case space
1Mb
Jumbo frames
9216b
Packet Forwarding Rate
4.1664Mpps@64byte
Bandwidth
5.6G（non-blocking）


LED indicator
Power indicator
Green, power
Link/act indicator
Yellow, per ethernet port
PoE indicator
Green, per PoE port
1000M indicator
Green, per uplink port


DIP switch
100m
Standard mode - All ports can communicate with each other.
250m
Extend mode, port 1-8 are isolated from each other, transmission distance can up to 250m, and can communicate with port 9-10.



Power parameters
Input voltage
AC100~240V, 50Hz
Power consumption
Standby: ≤3W; whole: ≤96W
PoE pin
1/2+,3/6-
The port max rate
≤25.4W


Environment
Operating Temperature
-20℃～60℃
Storage Temperature:
-40℃～85℃
Operating Humidity
5%～95% non-condensing
Heat dissipation method
Natural heat dissipation
Physical properties
Size
201×140×44mm
Weight
Net weight:0.7kg,Gross weight: 0.9kg

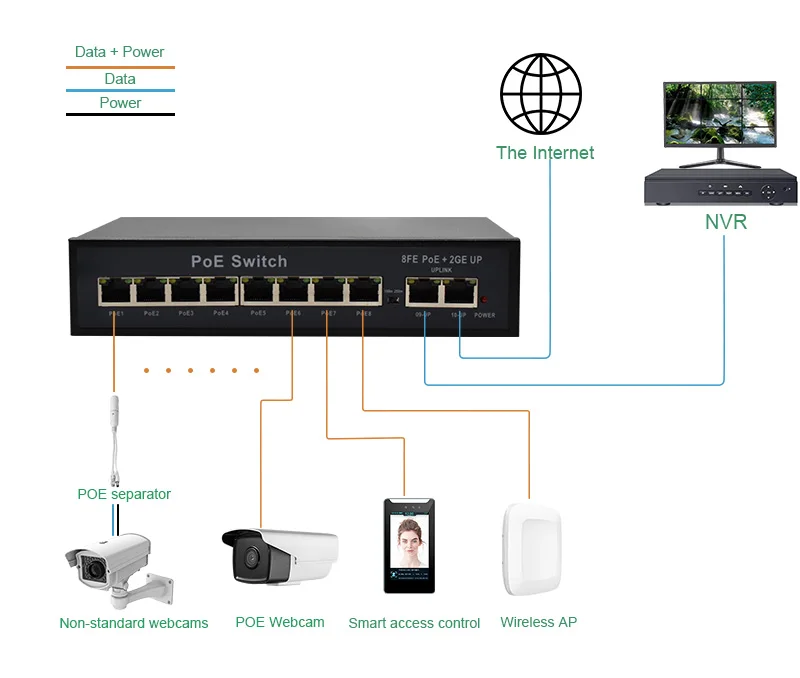

Applications






Certifications




Our exhibition




Customer Photos




FAQ


1.Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. What is the lead time? How do you ship the goods and how long does it take arrive?
For usual products. We keep stock, could ship 1-3 days after payment. For big quantity and special products. Please check lead
time with our sales representative. Sea transportation & Air transportation & Express ( DHL / UPS / TNT / FedEx / EMS ). Air
transportation & Express usually take 3-5 days to arrive.
4. What is your warranty time?
We promise 1-year warranty for general-grade products, and more for special-grades products. Man-made sabotage and natural factors are not within the scope of warranty.
5. Why choose Wanglink?
1) Prompt delivery and remarkable services .
2) Competitive selling prices
3) Rich experience of OEM & ODM co-operation
4) 100% new materials for production and 100% reliable quality
