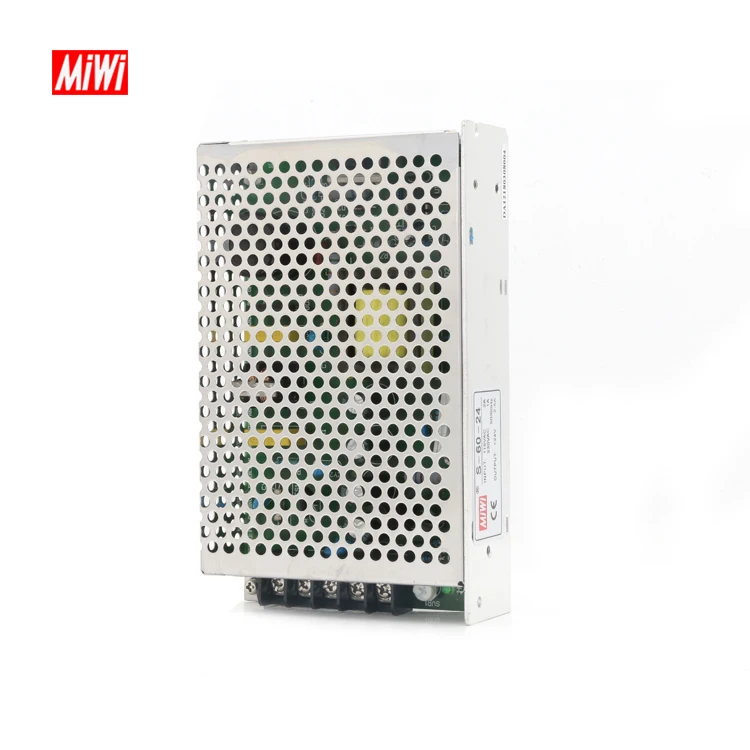

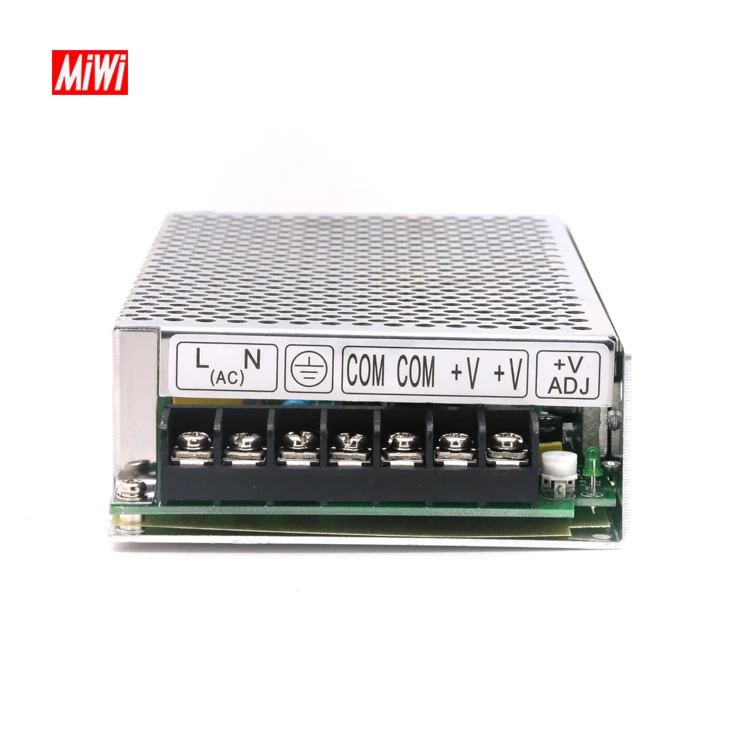

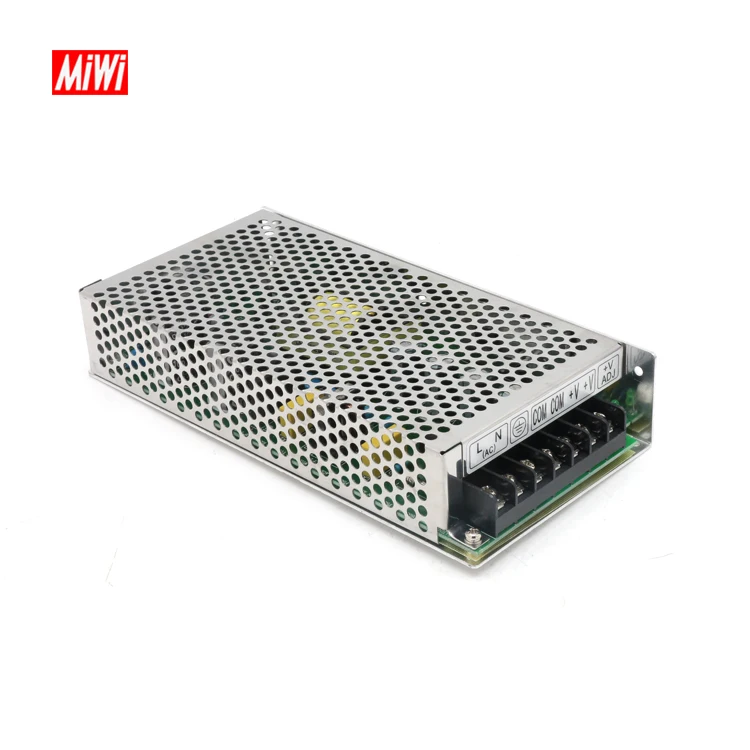

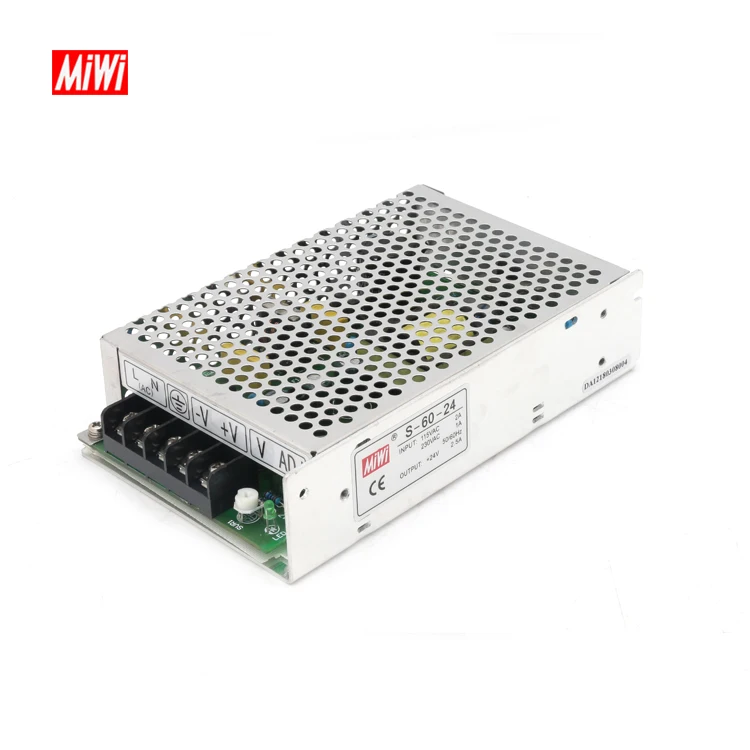

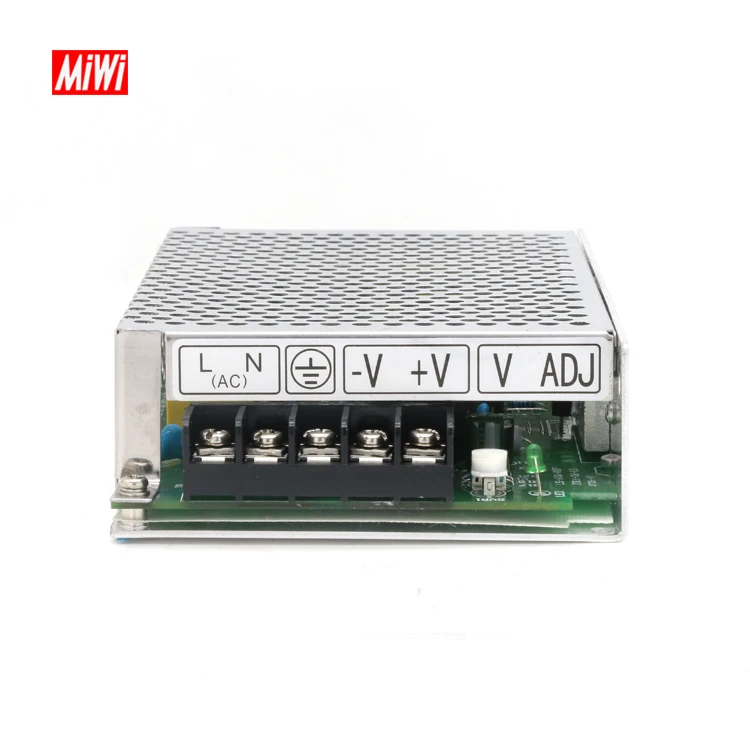

MiWi S 60 5V 5V 12A 60W ac dc smps Switching Power Supply
- Category: >>>
- Supplier: Yueqing Mingwei Electric Co. ltd.
Share on (1600680729405):
Product Overview
Description
You are here:Home>>Single Output Series>>S Series
Product Description
MiWi S-60-5V Single Output 5V 12A 60W ac dc Switching Power Supply
- Input voltage selected by switch
- Protection: short-circuit/ over-load/ over-voltage protection
- Cooling by air
- 100% full load burn-in test
| Model | S-60-5V | S-60-12V | S-60-15V | S-60-24V |
| DC Output Voltage | 5V | 12V | 15V | 24V |
| Iutput Voltage Error | ± 2% | ± 1% | ± 1% | ± 1% |
| Rated Output Current | 12A | 5A | 4A | 2.5A |
| Output Current Range | 0-12A | 0-5A | 0-4A | 0-2.5A |
| Tripple and Noise | 100mVp-p | 120mVp-p | 120mVp-p | 120mVp-p |
| Iniet Stability | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% |
| Tolerance Voltage | ± 1% | ± 0.5% | ± 0.5% | ± 0.5% |
| DC Output Power | 60W | 60W | 60W | 60W |
| Efficiency | 73% | 76% | 77% | 79% |
| Adjustable Range for DC Voltage | `+10, -5% | ± 10% | ± 10% | ± 10% |
| AC Input Voltage Range | 85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC | |||
| Input Current | 2A/115V 1A/230V | |||
| AC Inrush Current | Cold-Start Current: 30A/115V, 60A/230V | |||
| Leakage Current | <1mA/240VAC | |||
| Overload Protection | 105%~150% Type: Cut Output, Reset: Auto Recovery | |||
| Over Voltage Protection | ………… | |||
| High Temperature Protection | ………… | |||
| Temperature Coefficient | ± 0.03% /℃ (0~50℃) | |||
| Start, Rise, Hold time | 800ms, 50ms, 10ms, /115VAC 300ms, 50ms, 80ms, /230VAC | |||
| Vibration | 10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes | |||
| Withstand Voltage | Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC | |||
| Isolation Resistance | Input and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms | |||
Working Temperature and Humidity | `-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH | |||
Storage Temperature and Humidity | `20℃~+85℃, 10%~95%RH | |||

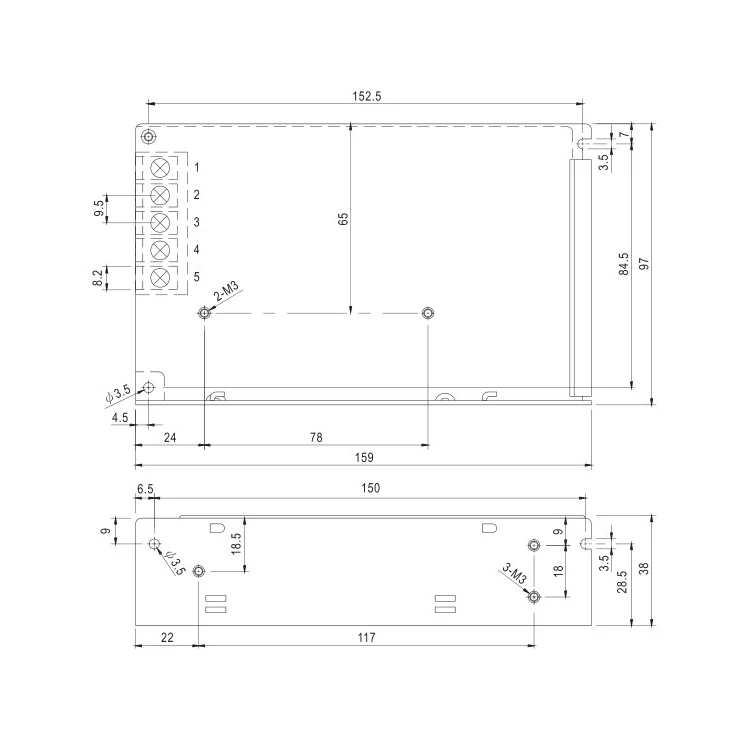

| Overall Dimension | 159*98*38mm | |||
| Weight | 0.56kgs | |||
| Safety Standards | CE certificate | |||
| EMC Standards | Meet FCC Part 15J Conduction class B | |||
| Note | 1. The testing condition for the parameter above is: 230VAC input, rated load, 25℃ 70%Rh, Humidity. 2. Error, include the setting error, line stability and load stability. 3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting. 4. Inlet Voltage Stability test: when is over load, the lowest voltage of inler is representative to the highest voltage. 5. Load stability test: the load is from 0% to 100%, others 60%. 6. C2,3,6 must be knocked down. | |||
