Product Overview

Description

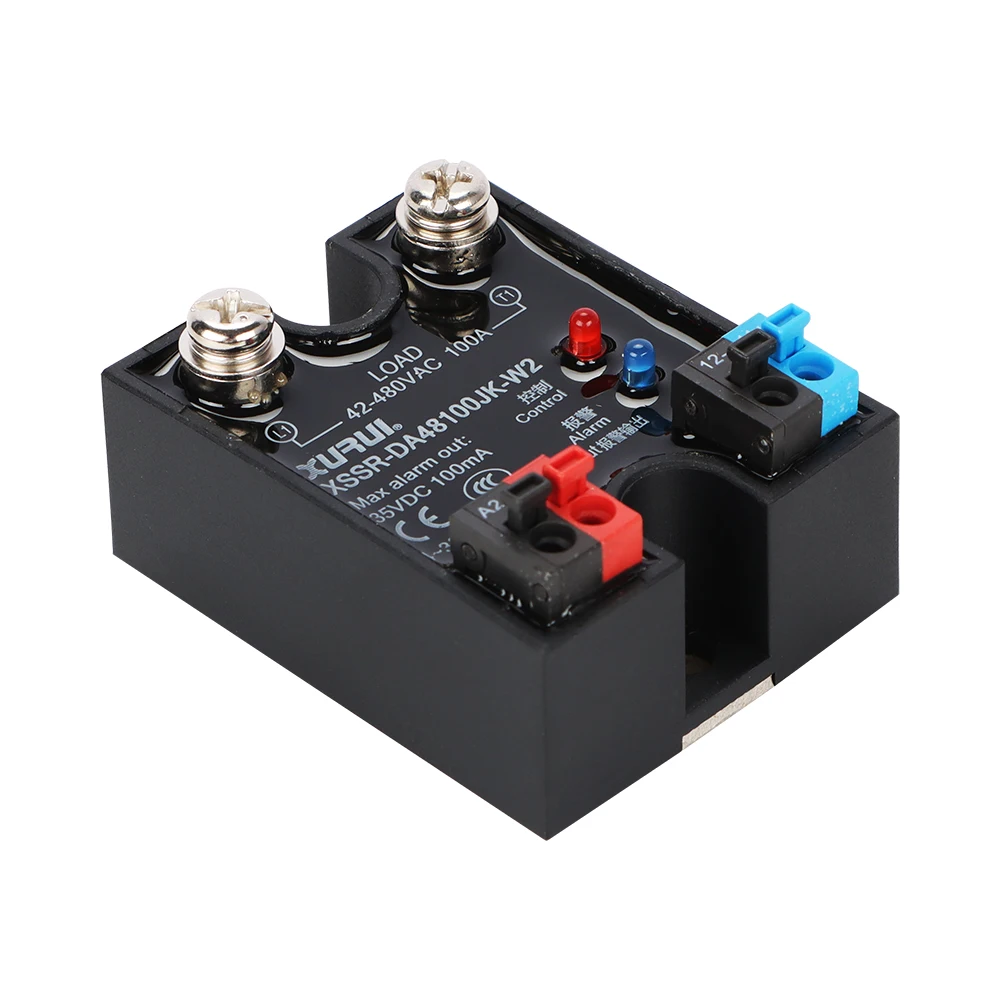

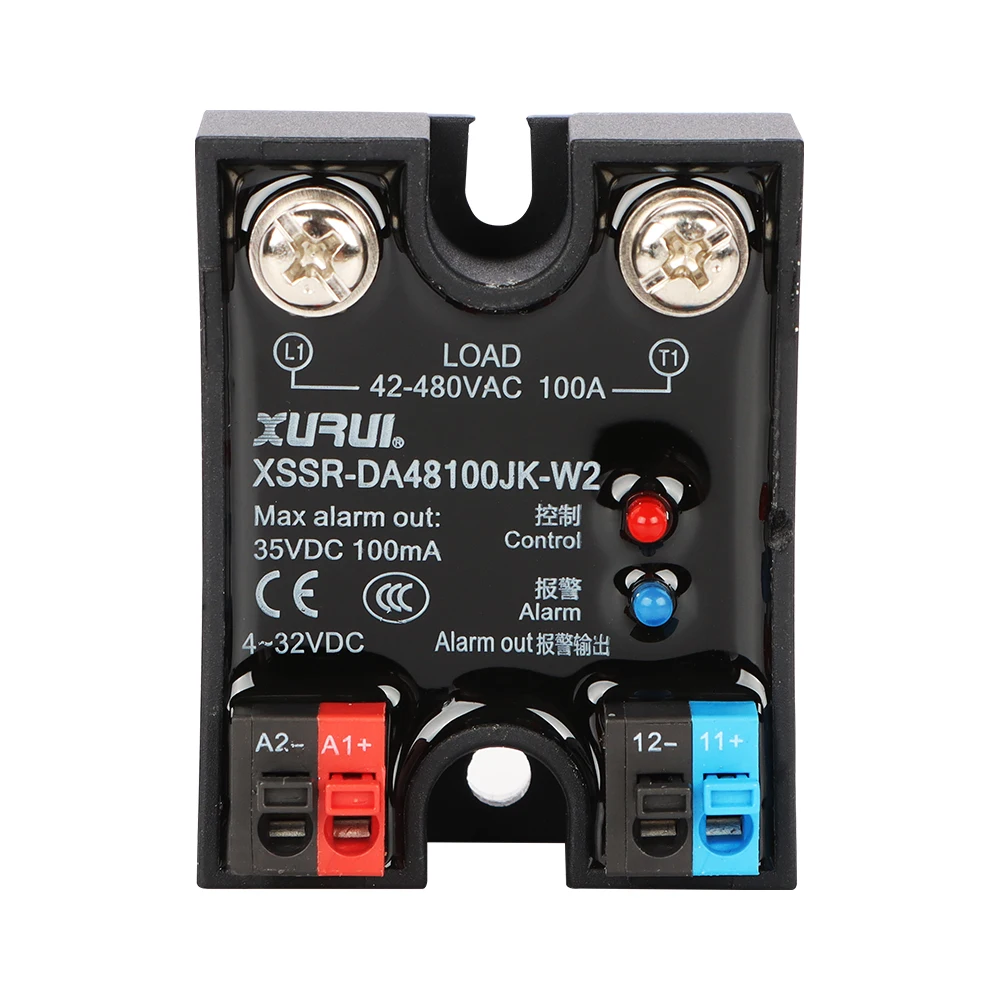

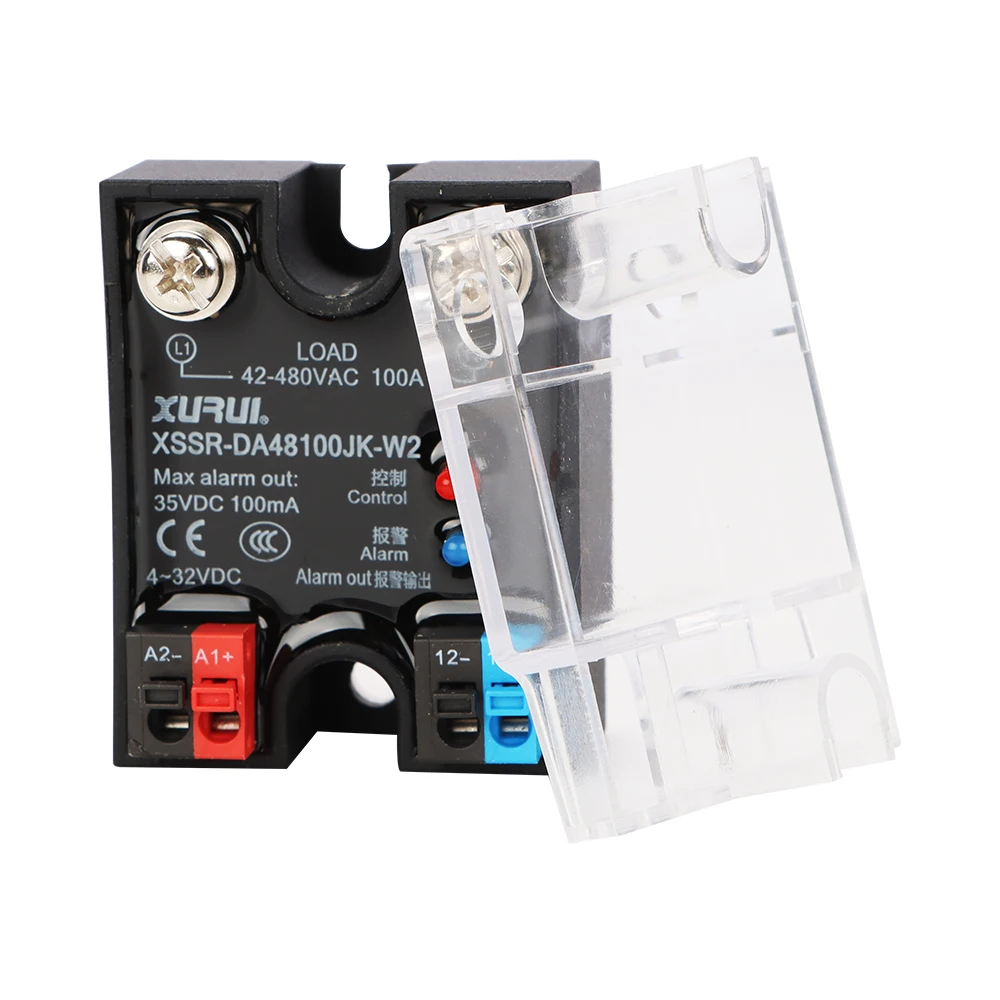

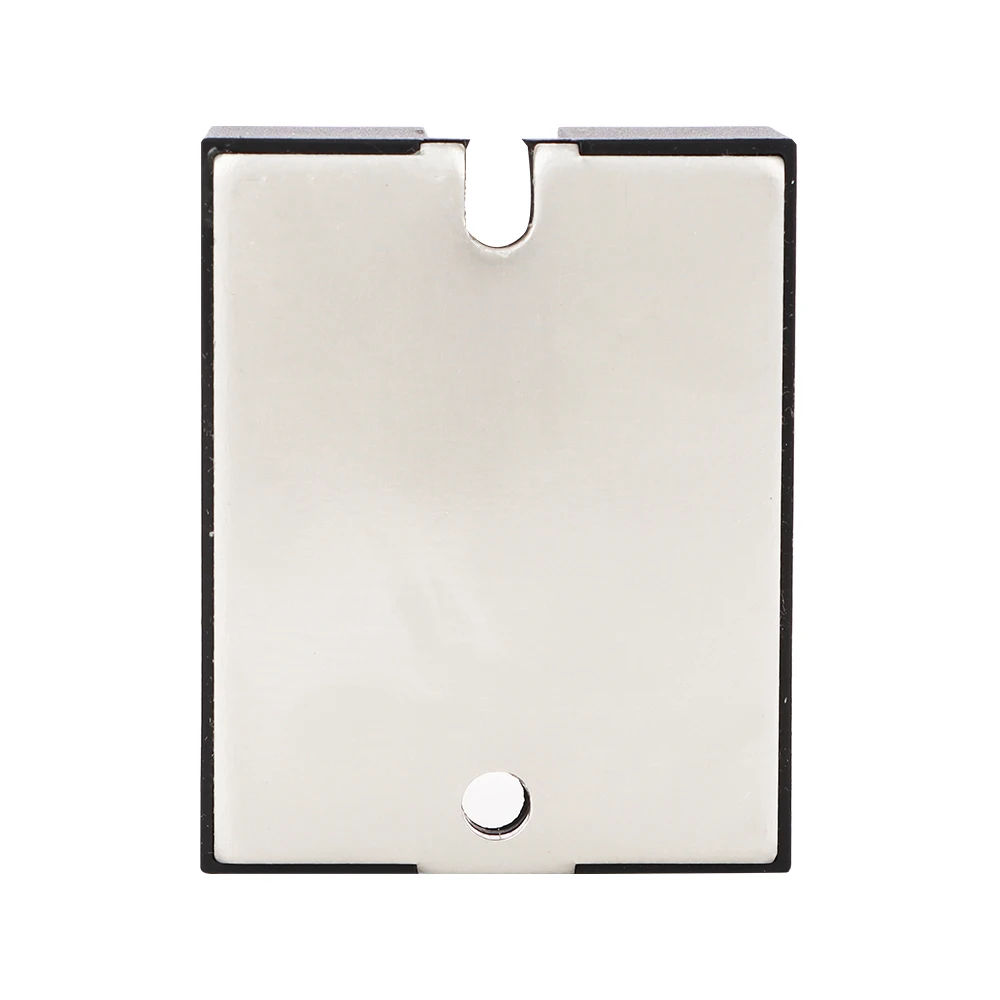

4-32VDC input solid state relay integrated monitoring relay ssr 40A


Input control voltage
4-32VDC
Input control current
6-25mA
Input reverse voltage
32VDC
Guaranteed shutdown voltage
1VDC
Guaranteed switch-on voltage
4VDC
Output load voltage
42-480VAC
Maximum output load current
100A
Minimum output load current
0.08A
Output voltage drop
≤1.6VAC
Output leakage current
≤5mA
Medium withstand voltage
≥2500VAC
Insulation resistance
≥100MΩ
Switching time
≤10mS
Frequency Range
47-70Hz
Maximum rating of alarm output
≤35VDC,100mA
Alarm output transistor voltage drop
≈1.2V
Maximum number of alarm output in series
8
Operating temperature
-20℃-70℃
Working environment humidity
≤85%
