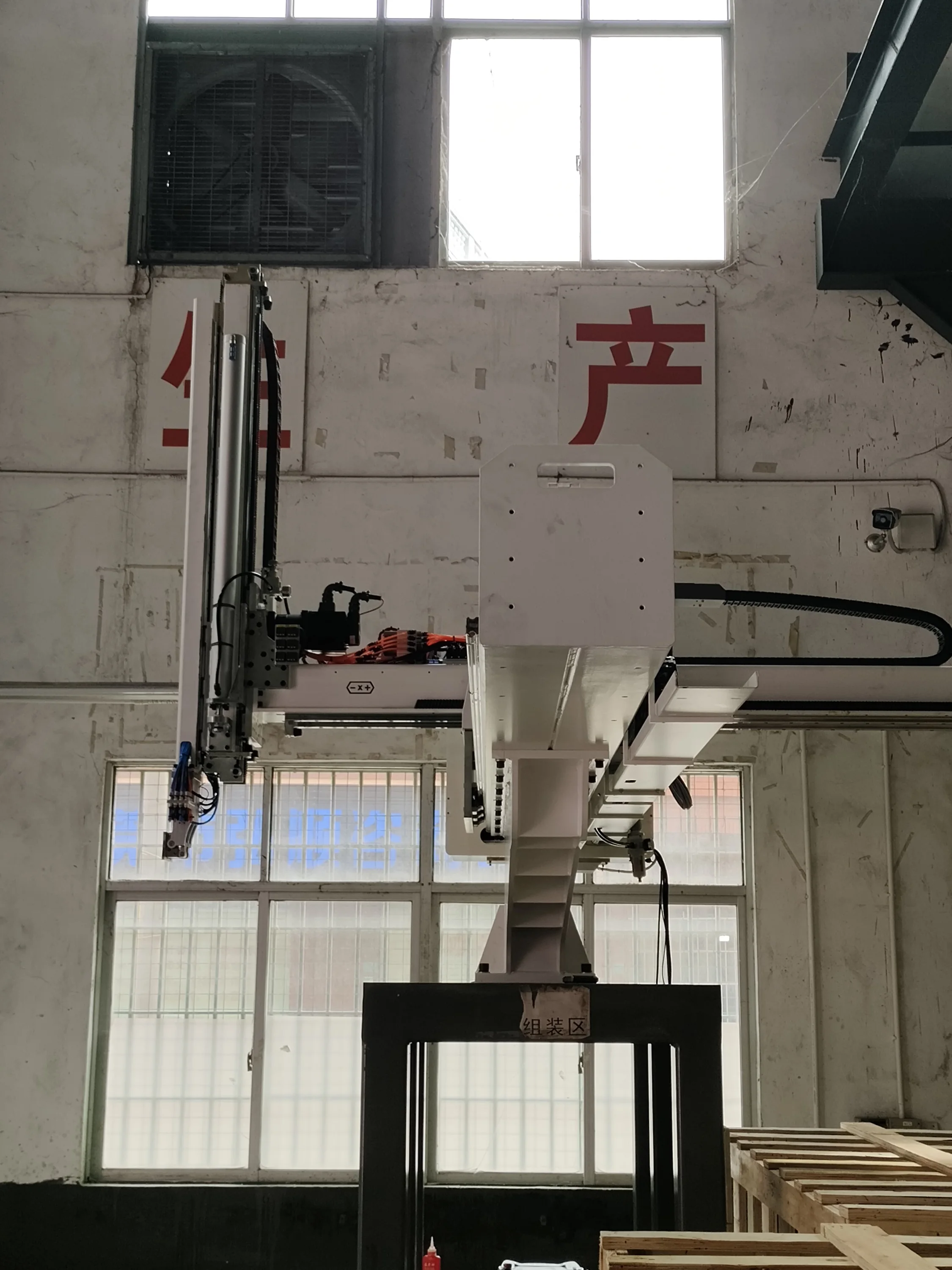

Take Out Industrial Robot Hand Sprue Picker Robotic Arm Denso Robotic High Tech Cobot
- Category: >>>
- Supplier: Dongguan Runma Intelligent Technology Co. Ltd.
Share on (1600680775754):
Product Overview
Description
Product Overview

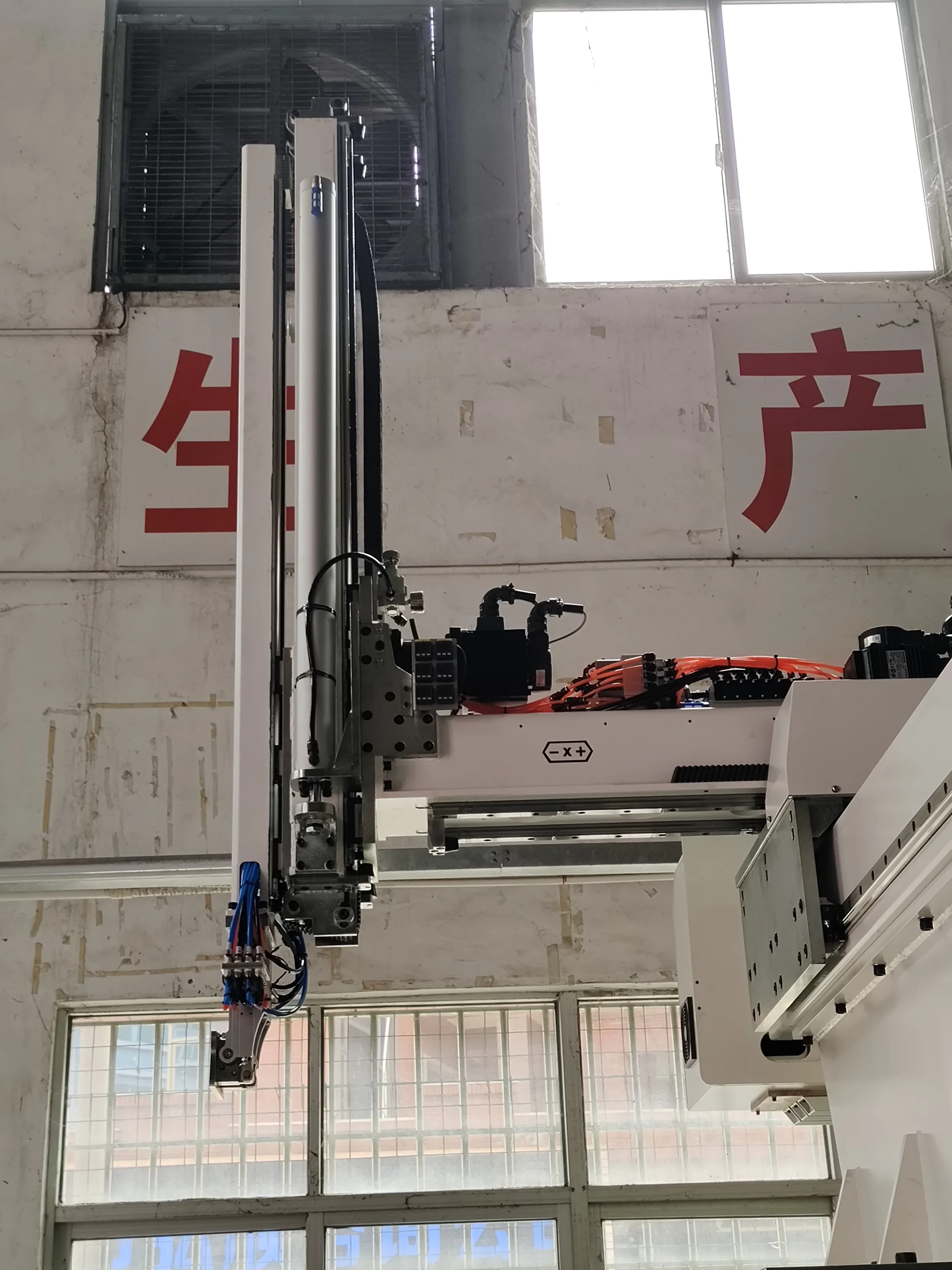

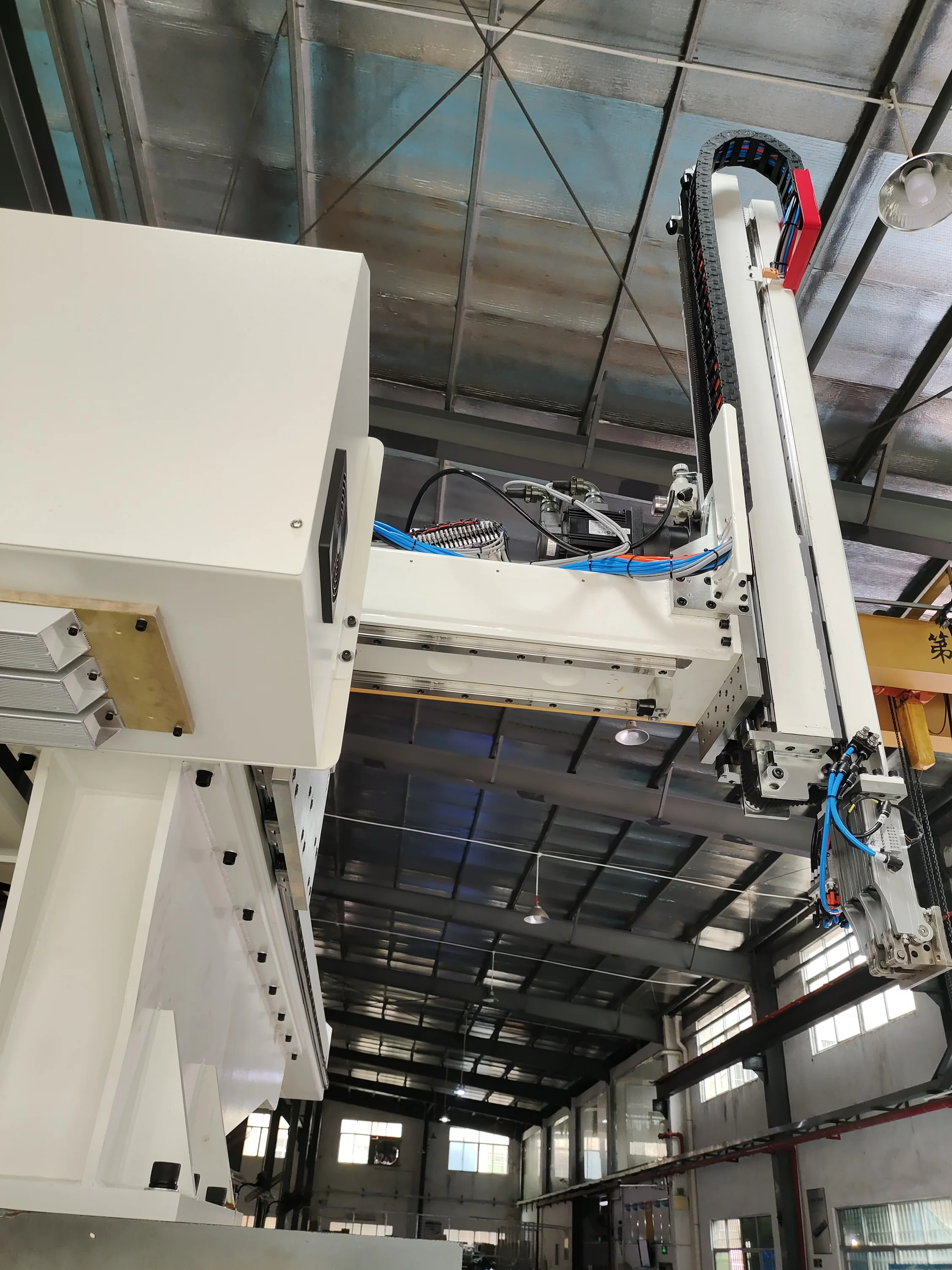

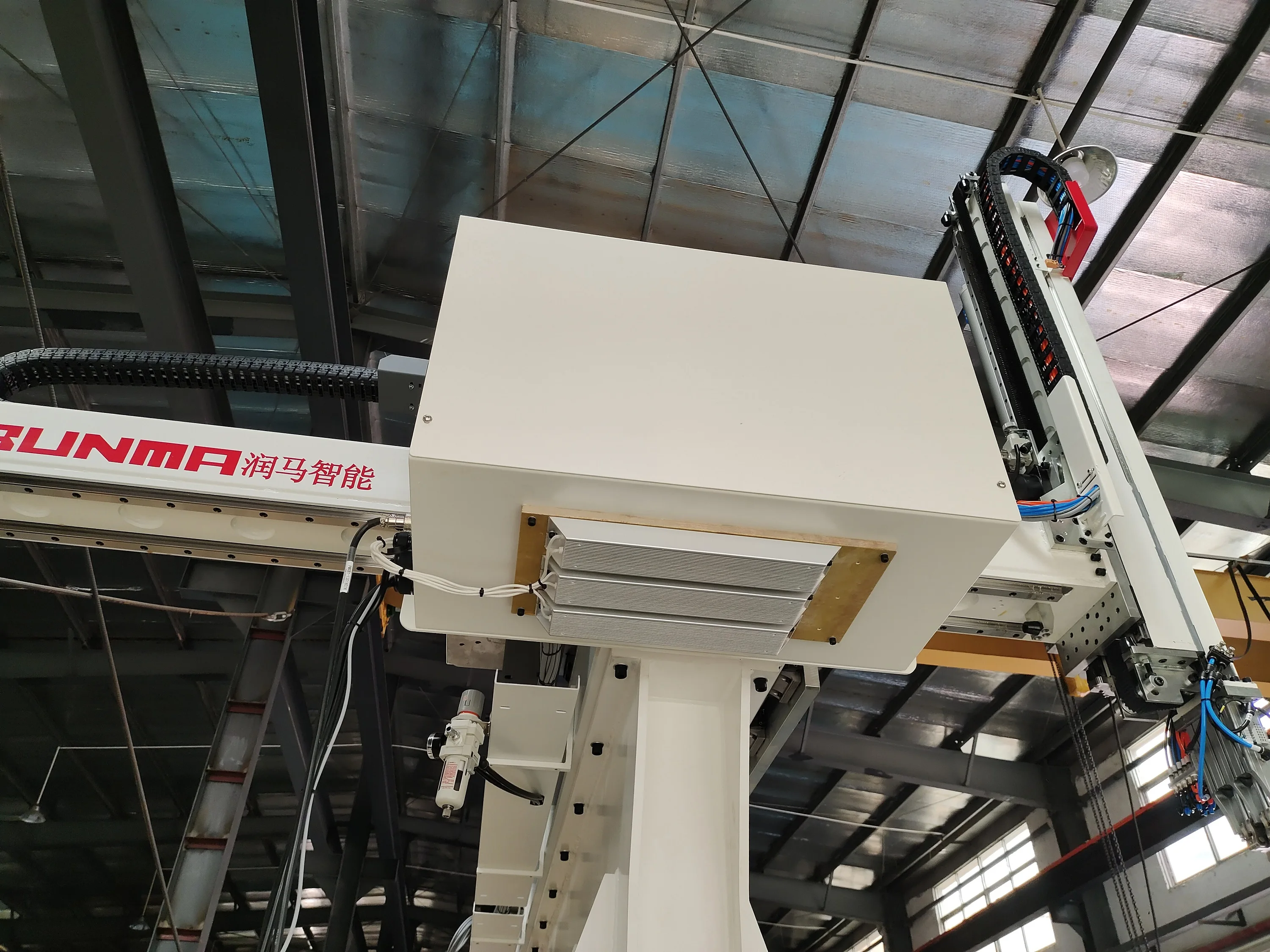

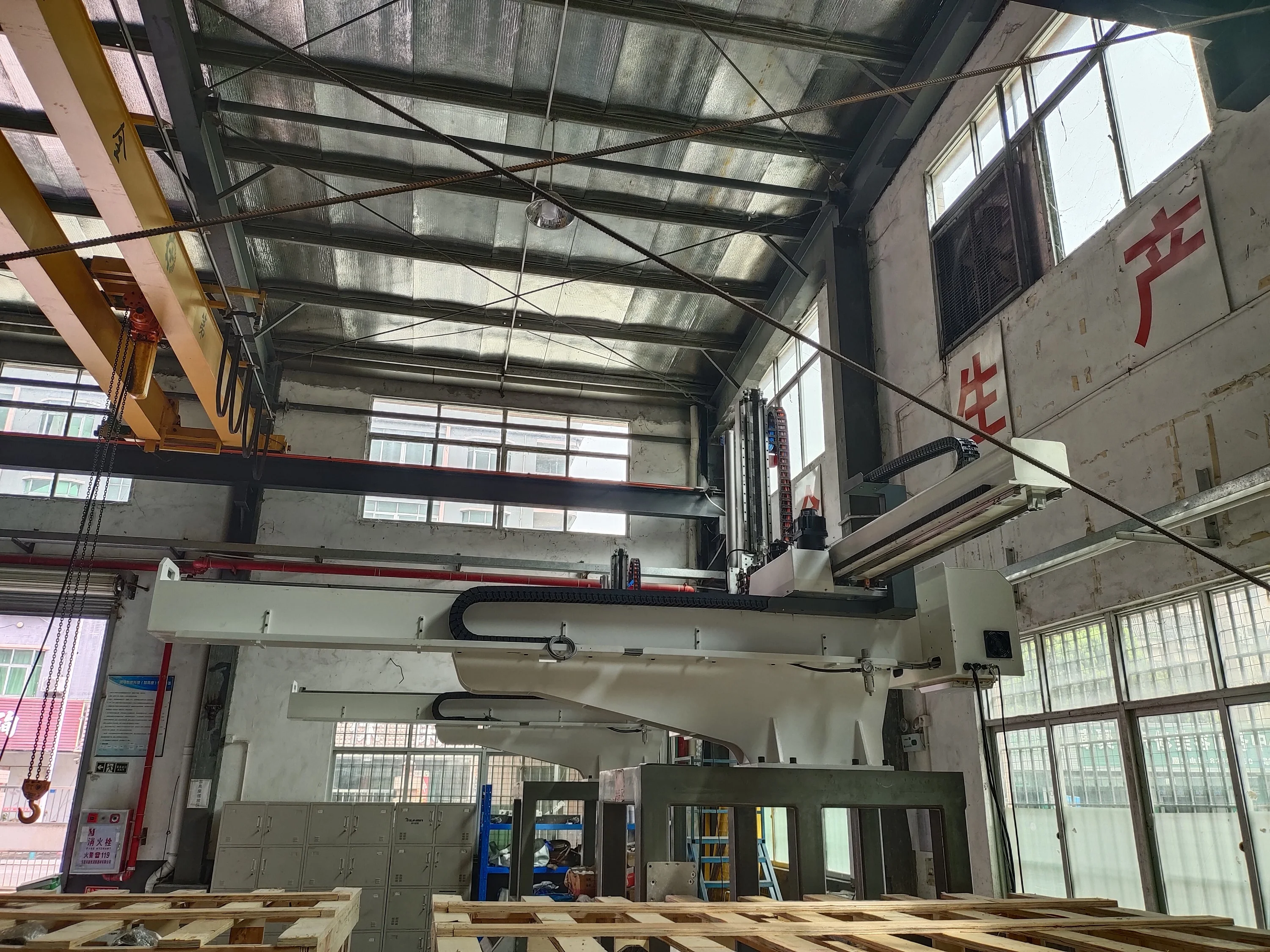

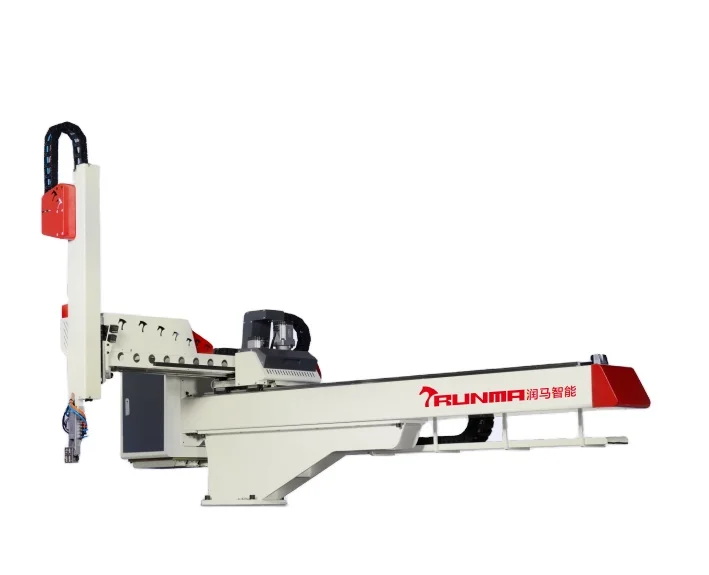

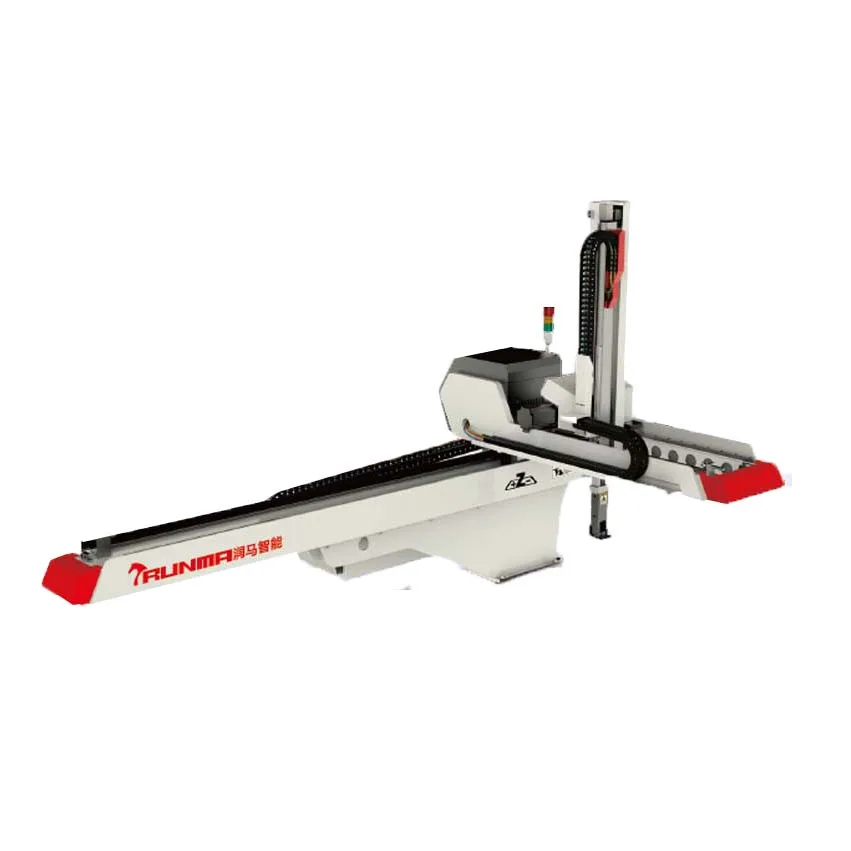

RN2500WSS3-Large ox-head traverse robot
Large full servo traverse robot, this series are mainly applied to 650~3000T horizontal injection molding machines to take out the finished product. Telescopic arms are adopted. Vertical, crosswise and traverse strokes are driven by AC servo motor.Low noise THK (JP) or PMI (Taiwan) linear guide way is used to guarantee quiet and stable movement. The complete set includes standard accessories.
In addition, according to the actual use of customers, servo axis A and axis B or one of them can be added to the side
In addition, according to the actual use of customers, servo axis A and axis B or one of them can be added to the side
pose group, which can move freely from multiple angles flexibly to realize complex taking-out method and optimized taking-out path.
FEATURES AT A GLANCE
Arm type:
Ox-head
Color:
Red and creamy white
AC .servo
Three-axis
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Model | RN2500WS(S3) |
2 | Applied to IMM | 1200~2000T |
3 | Vertical stroke | 2500mm |
4 | Crosswise stroke | 460~2150mm |
5 | Traverse stroke | 3700mm |
6 | Side-pose rotation angle | 90° |
7 | Max payload(including EoAT) | 30kg |
8 | Take-out time | 3.5s |
9 | Dry cycle time | 22s |
10 | Drive mode | X,Y,Z-ACservo motor |
11 | Working pressure(kgf/m2) | 5~7 |
12 | Air consumption(nl/cycle) | 30 |
13 | Power consumption(kva) | 6.5 |
14 | NW(KG) | 1850 |
Successful Project
Project in Thailand
Project in India
Project in Russia

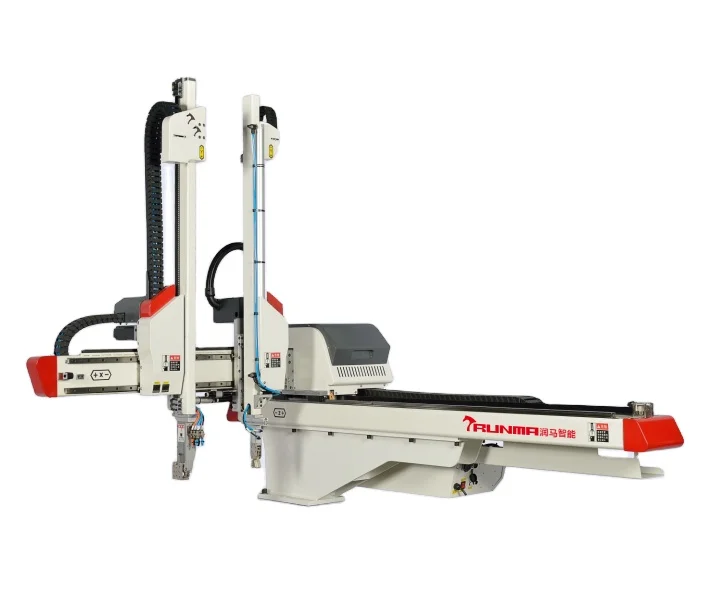

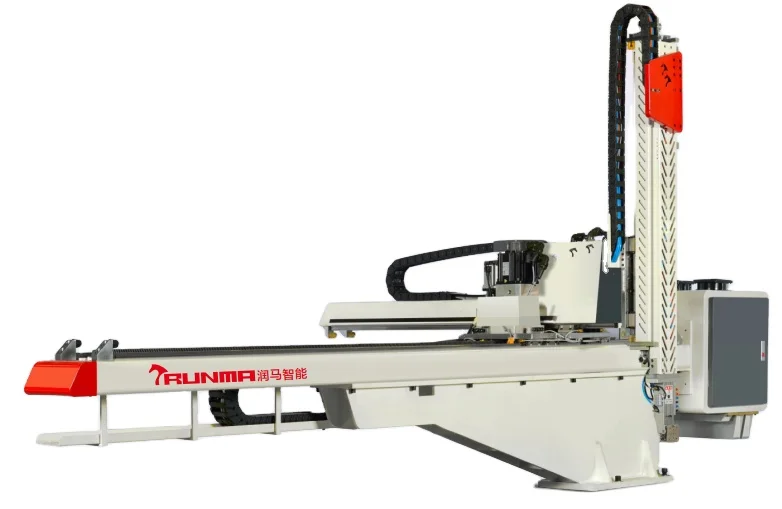

SIMILAR PRODUCTS
Company Profile
DONGGUAN RUNMA INTELLIGENT TECHNOLOGY CO.，LTD
Dongguan Runma Intelligent Technology Co., Ltd, located in Dongguan Citywhich is famous for its manufacturing industries in Guangdong Province, isa high tech enterprise that concentrate on R&D, production, sales andservices of automation equipments.
Service tenet
To satisfy our customers is our eternal commitment
To let customers make profit is our ultimate goal;
Business philosophy.
No more but perfection; no curtness but rigidity;
No brag but the fact;no fabrication but the truth
Service philosophy
rapidly efficiently and conveniently provide our customers with max valued services
One Heart for Three Hearts
We serve our customers with heart and soul
To make them feel free from worry, rest assured and satisfied.
One Heart for Three Hearts
We serve our customers with heart and soul
To make them feel free from worry, rest assured and satisfied.
FAQ
A1: We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
Q2: How many years your company established?
A2: Our company have more than ten years experience in robot manufacturing. Our engineers are with at least 5 years experience of robot design.
A2: Our company have more than ten years experience in robot manufacturing. Our engineers are with at least 5 years experience of robot design.
Q3: How long is your delivery time?
A3: Generally it is 15-20 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
A3: Generally it is 15-20 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q4: How about your quality ?
A4: Our product is one year warranty. We use high quality components from Japan,Europe and Taiwan. Such as THK linear and Panasonic AC servo motor.
A4: Our product is one year warranty. We use high quality components from Japan,Europe and Taiwan. Such as THK linear and Panasonic AC servo motor.
