Brief introduction

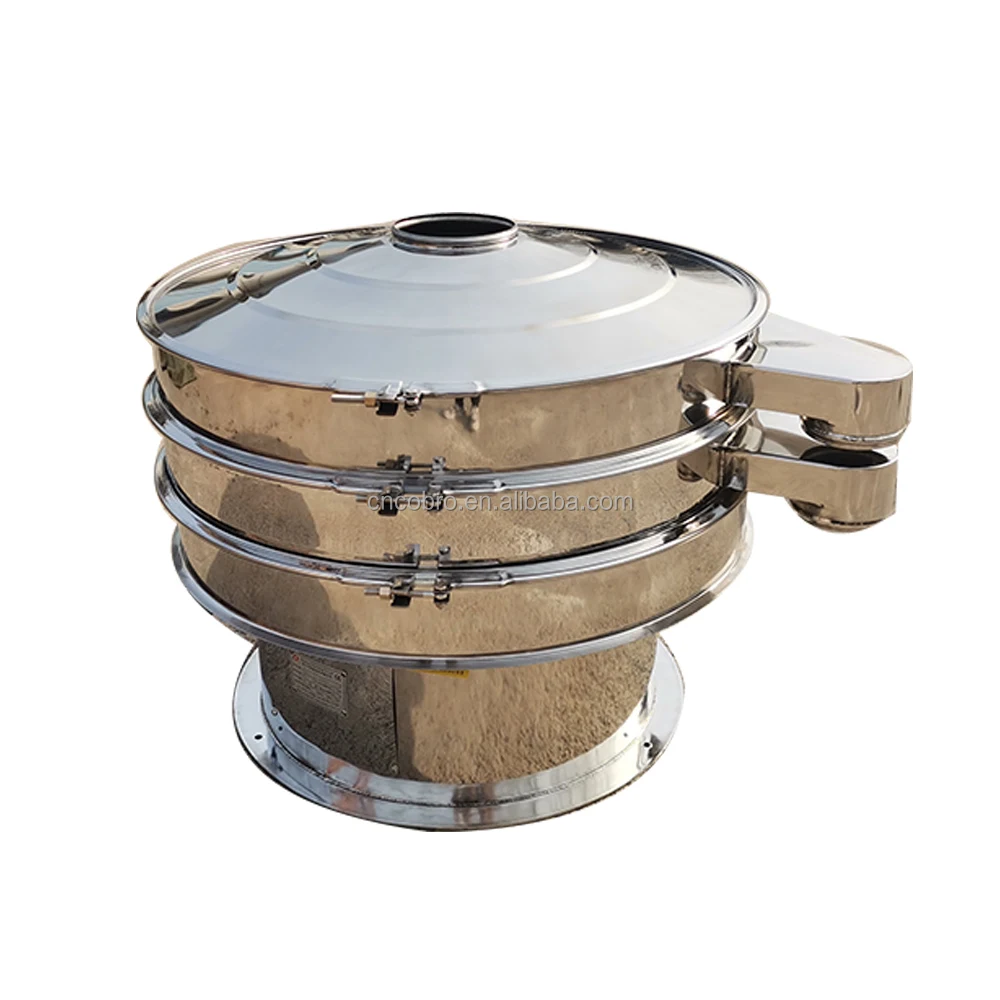

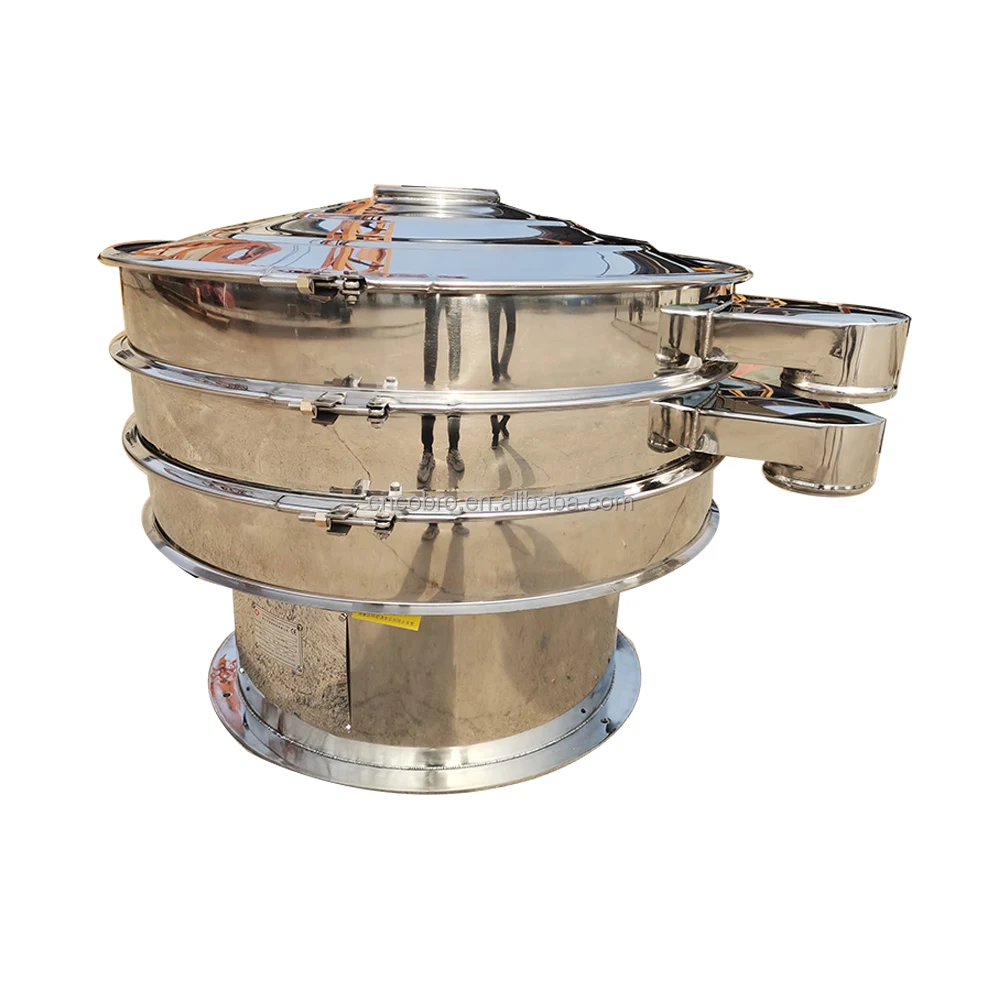

The latest in round separation design from Cobro is the new generation Round Separator. Currently available in 400-, 600-, 800-,1000-,1200-,1500-, 1800- and 2000-mm diameters, the separator is designed to increase safety, provide stronger construction and allow for a more sanitary process.
Separate solids from liquids or segregate dry materials into various sizes. Particles as fine as 500 mesh can be screened, with up to 5 screen decks. No special flooring or foundation is needed and less working floorspace is required. Simple and efficient design requires less horsepower. Other features include long screen life and ease with which screens may be changed.
Model
|
S494-B
|
S496-B
|
S498-B
|
S4910-B
|
S4912-B
|
S4915-B
|
S4918-B
|
S4920-B
|
Diameter(mm)
|
400
|
600
|
800
|
1000
|
1200
|
1500
|
1800
|
2000
|
layer
|
1-4
|
1-4
|
1-4
|
1-4
|
1-4
|
1-4
|
1-4
|
1-4
|
Effective diameter
|
380
|
600
|
750
|
900
|
1100
|
1450
|
1750
|
1950
|
Mesh size
|
3-500mesh
|
Max. Feeding size
|
20
|
20
|
30
|
30
|
30
|
50
|
50
|
60
|
Power
|
0.25
|
0.6
|
0.6
|
0.8
|
1.5
|
2.2
|
2.5
|
2.5
|
How it works

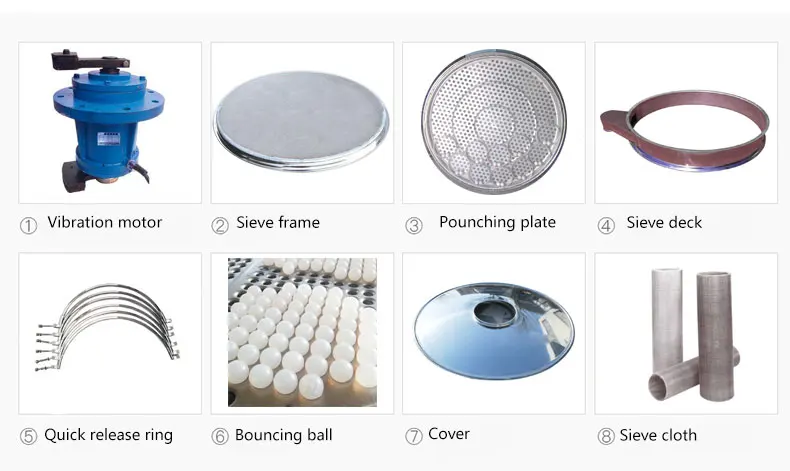

The round vibrating screen is drived by vibration force making by its center mass. Vibration is accomplished by eccentric weights on the upper and lower ends of the vertical vibration motor shaft.Rotation of the top weight creates vibration in the horizontal plane, which causes material to move across the screen cloth to the periphery. The lower weight acts to tilt the machine, causing vibration in the vertical and tangential planes. The angle of lead given the lower weight with relation to the upper weight provides variable control of the spiral screening pattern.Speed and spiral pattern of material travel over the screen cloth can be set by the operator for maximum throughput and screening efficiency of any screenable product
|
