Mini OLED Display 1.54 Inch OLED MODULE Screen Monochrome white 126X64 LCD Factory Price
- Category: >>>
- Supplier: Shen Zhen Smart Science Technology Limited
Share on (1600680816067):
Product Overview
Description

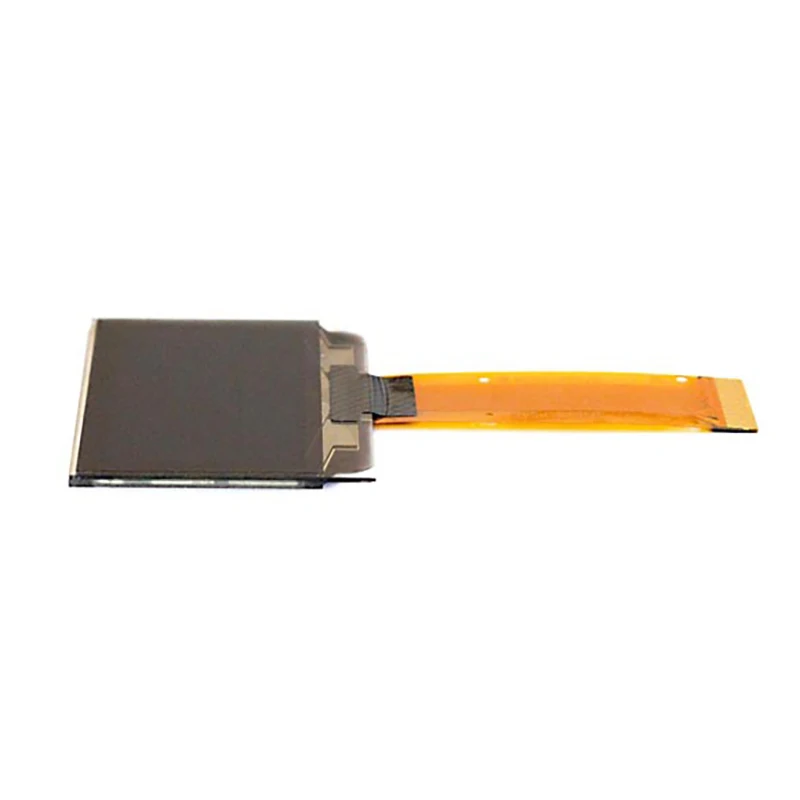

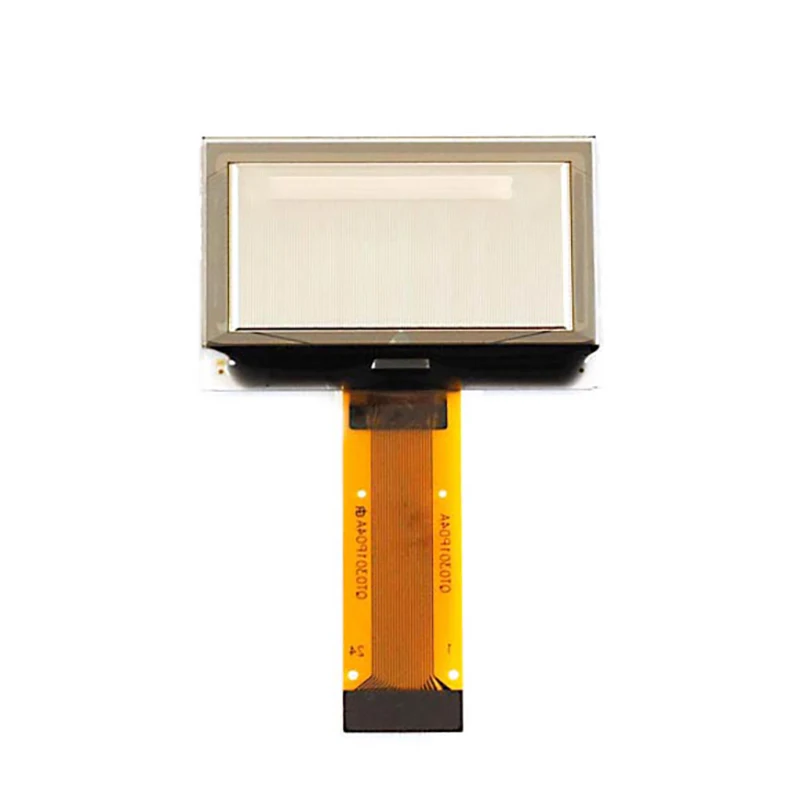

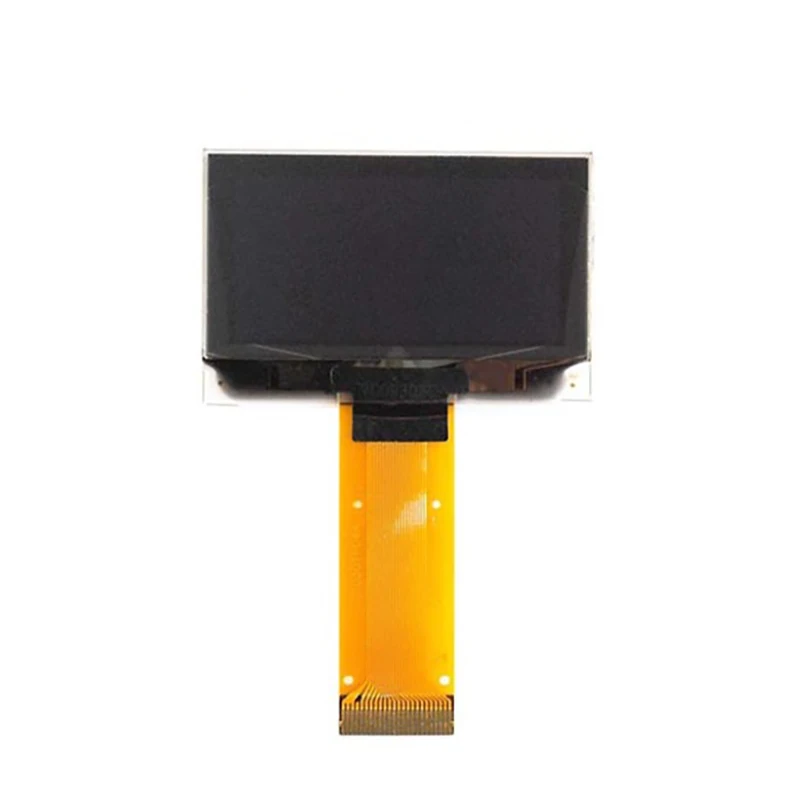

Mini OLED Display 1.54 Inch OLED MODULE Screen Monochrome white 126X64 LCD Factory Price
INTRODUCTION
This is a white OLED display panel, 1.54 inch with 128x64 pixels. The controller IC SPD0301 communicates via 6800/8080 8-bit parallel and I2C/4-wire serial interface.
This OLED display possessing the excellent characteristics such as autoluminescence, wide angle of view, wide temperature range becomes the ideal choice for instruments and apparatus.
FEATURE
*Self-luminous, no backlight is required.
*Ultra low power consumption.
*Wide operating temperature: -40℃~70℃
* Come with helpful manual
Technical Specifications
DIAGONAL SIZE | 1.54" |
DISPLAY MODE | Passive Matrix |
DISPLAY COLOR | White |
DRIVE Duty | 1/64 Duty |
INTERFACE | 8-bit 68XX/80XX Parallel, 4-wire SPI, I2 C |
Driver IC | SPD0301 |

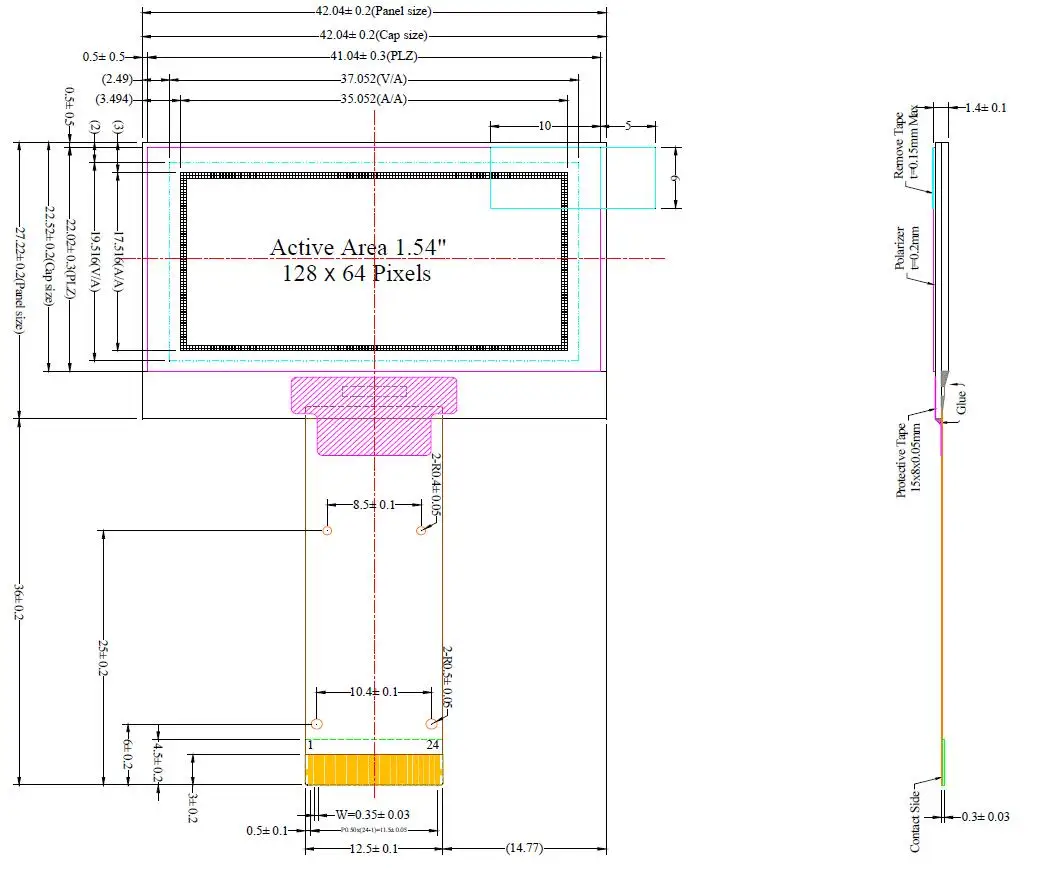

OUTLINE DIMENSION(mm) | 42.04x27.22x1.4 |
ACTIVE AREA(mm) | 35.052x17.516 |
PIXEL PITCH(mm) | 0.274x0.274 |
BRIGHTNESS(Typ) | 110cd/m2 |
VIEW ANGLE | 160 |
OPERATING TEMP. | -40℃~70℃ |
STORAGE TEMP. | -40℃~85℃ |
POWER SUPPLY(Typ) | 2.8V |
Application
*If you interested in 0.96”-10.1” TFT LCD Modules ,pls click here to know more about the detail.
* If you can't find a suitable one, contact us to get a recommendation.
Production Flow
Packaging & Shipping
Certifications
Adhering to the principle of customer first,quality first,Smart has a well-established rigorous quality management systerm accredited with ISO9001 ,Smart is firmly committed to its environmental responsibilities all products are RoHS & REACH compliant.
Company Information
SHENZHEN SMART SCIENCE TECHNOLOGY LIMITED established in 2009, is a high-tech private enterprise that is engaged in the R&D, Manufacturing and Marketing of LCD Modules and Touch Screens. Our products are sold to more than 60 different countries and areas all over the world
*1 , Products: 0.96”-10.1” TFT LCD Modules and Touch Screens
*2, Monthly Production Capacity:600,000pcs Employee: 80-100 persons
*3, Factory: 2000 square meter , Office and Warehouse: 600 square meter
*4, over 10 years LCD Modules experience and Stronger engineer team
*5, Production Lines: 10 lines, including 4 high-precision Full-Automatic production lines, which contain full-auto COG, full-auto FOG, full-auto Backlight-assembly, full-auto Glue-dispensing, full-auto CTP-assembly, in fully-enclosed dust-free, temperature and humidity controlled workshops.
*6 ,Certification :ISO9001& RoHS & REACH
