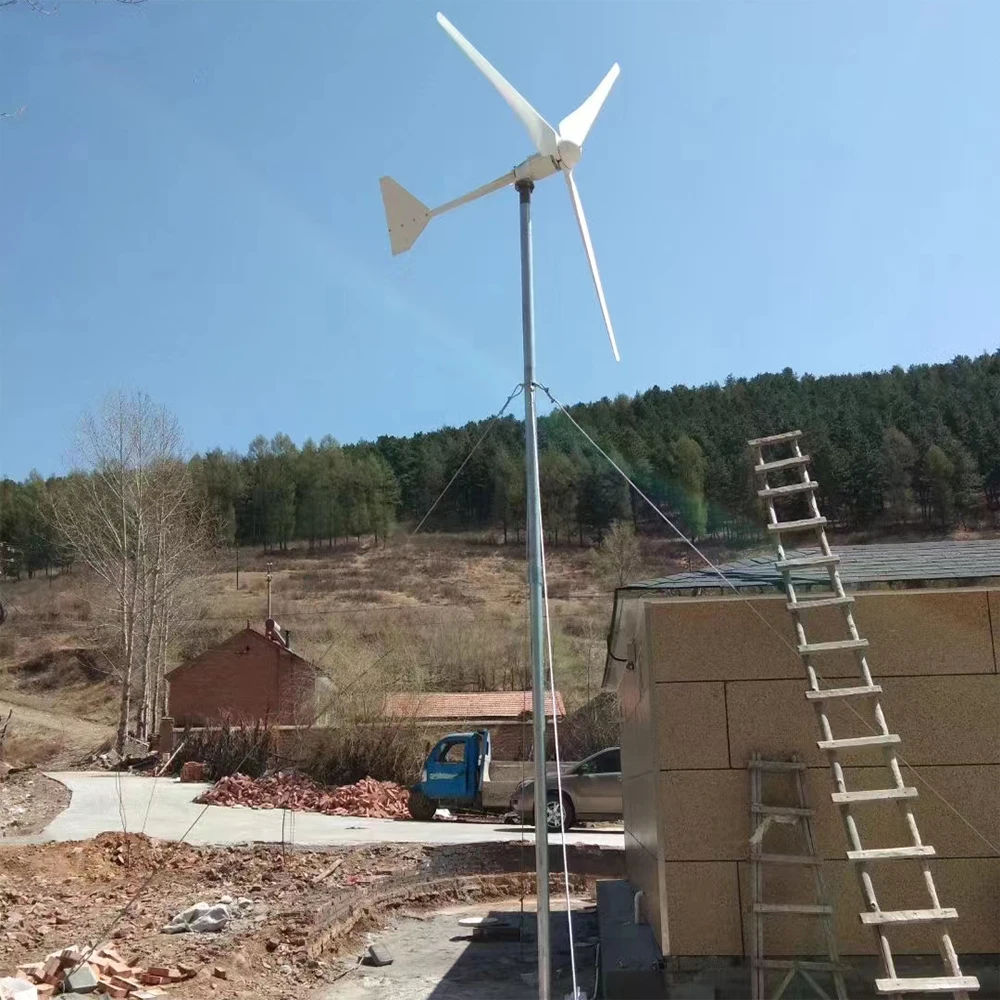

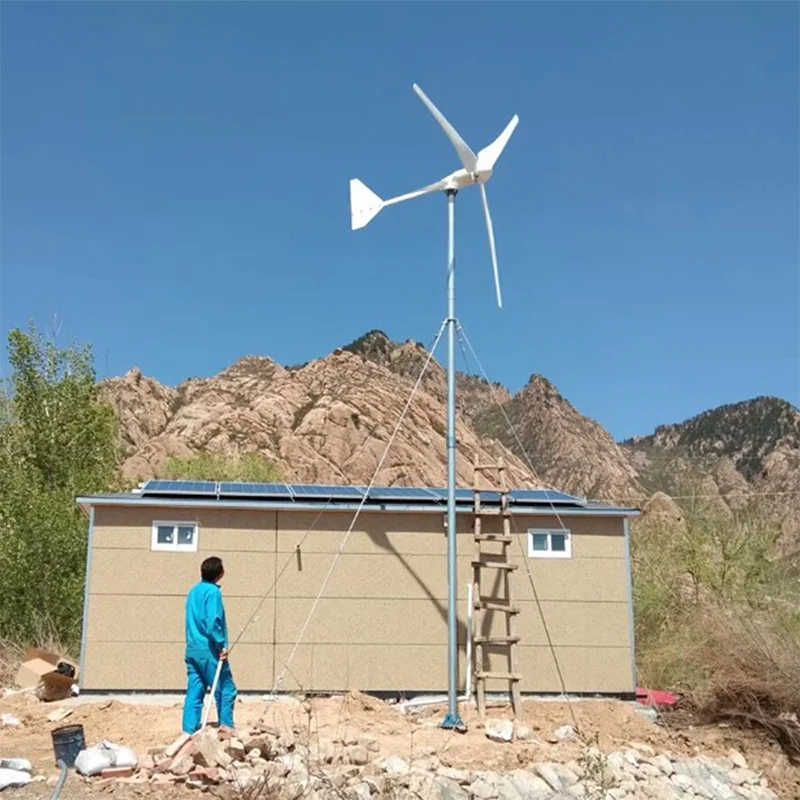

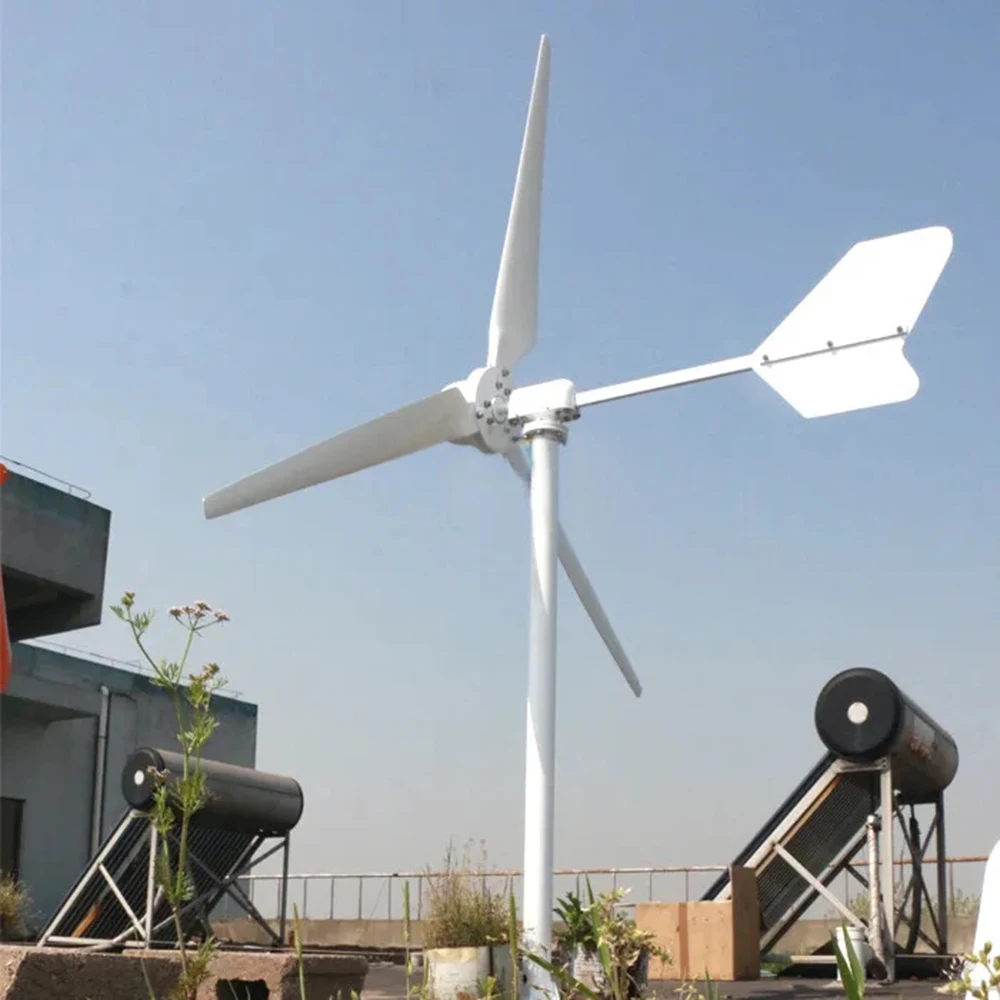

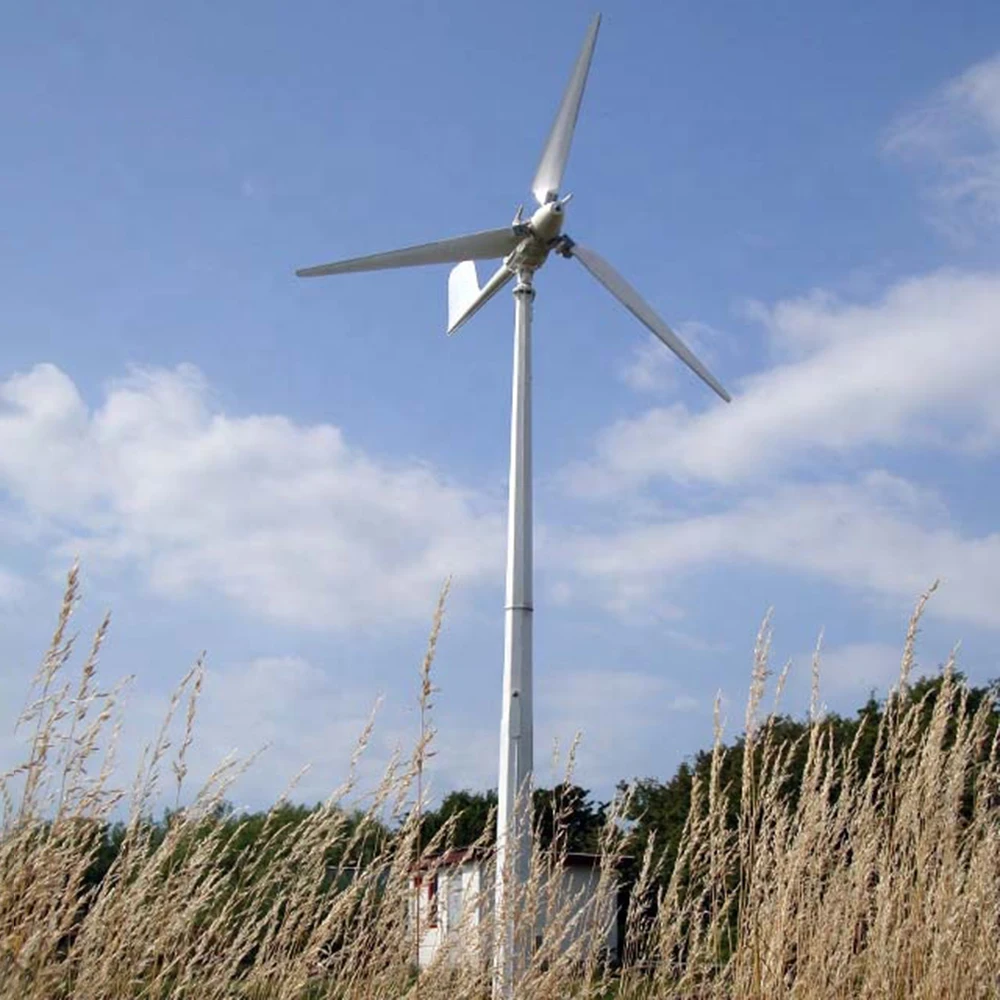

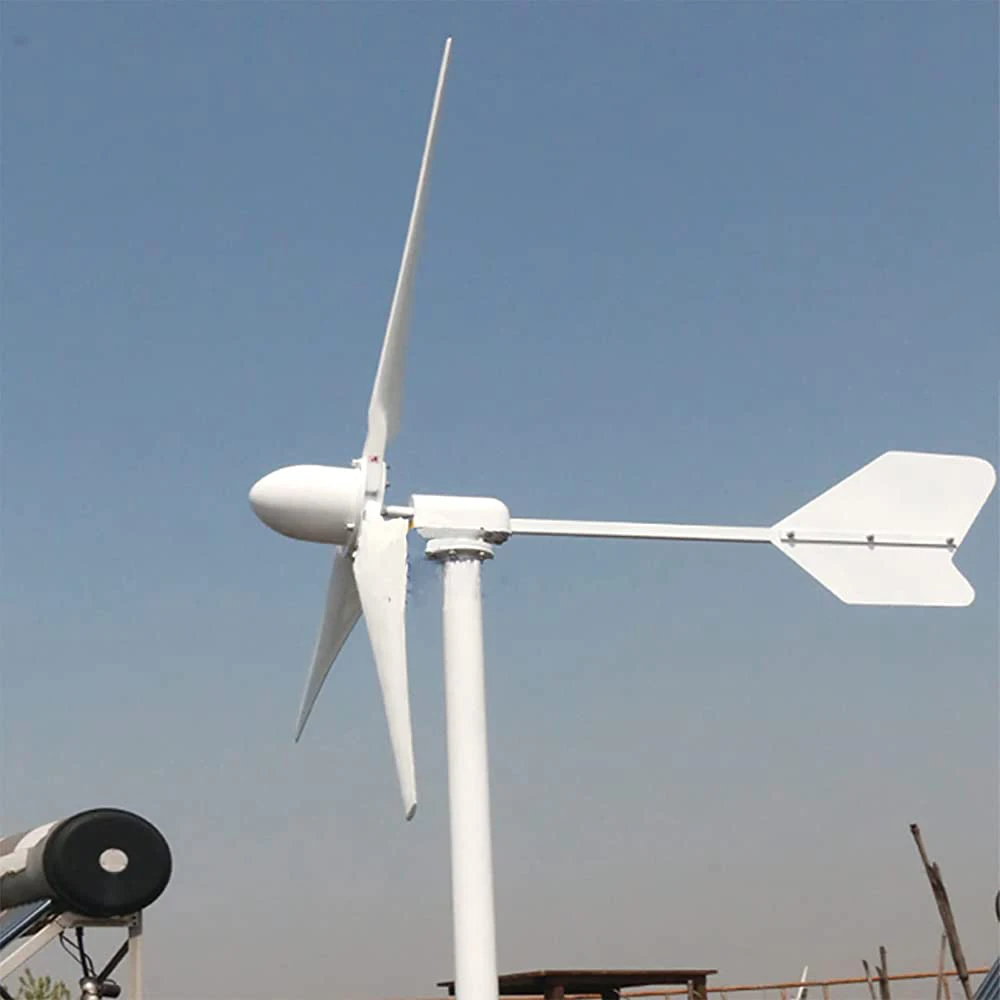

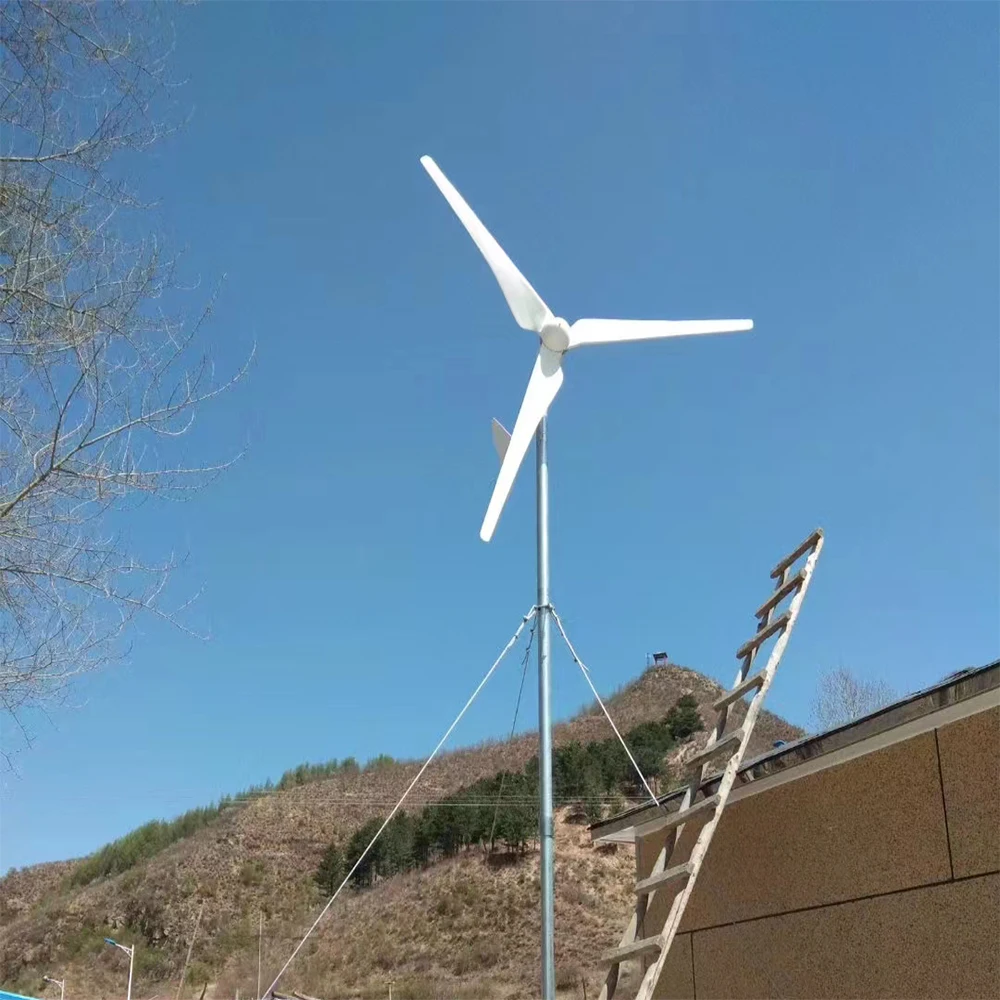

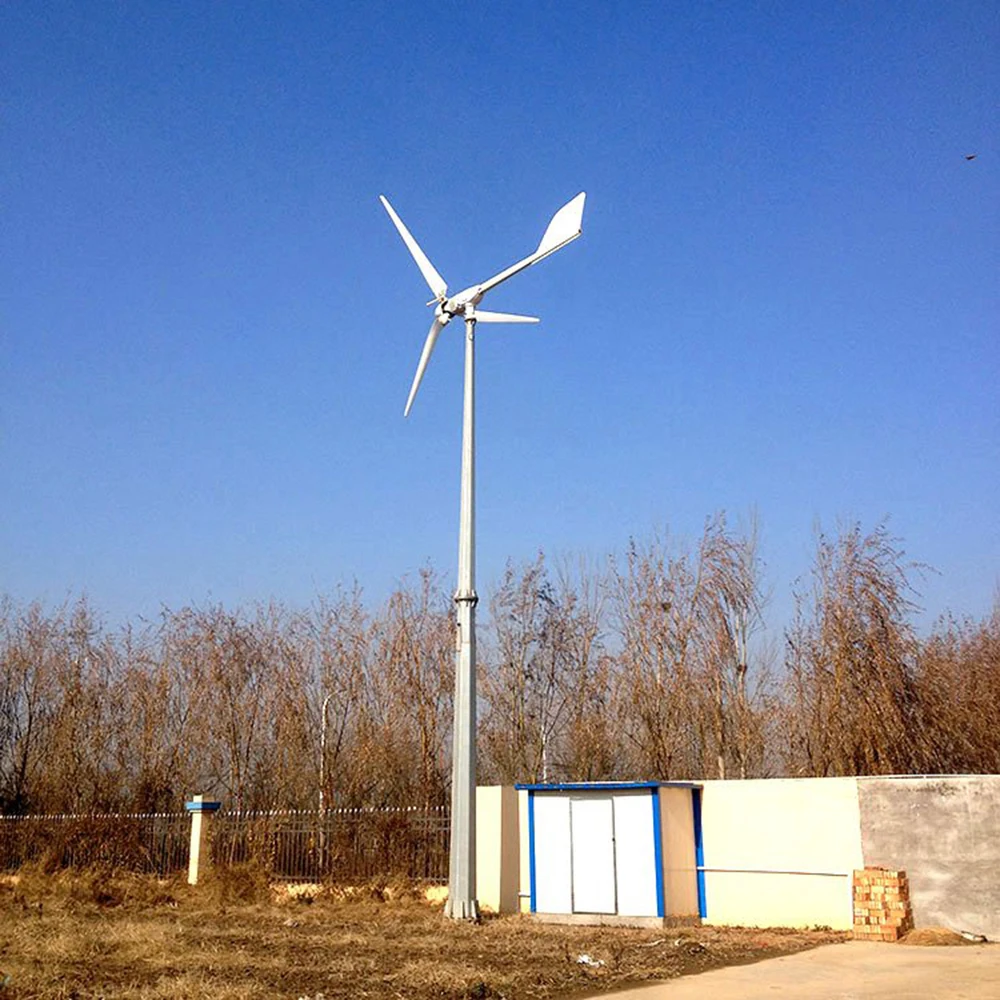

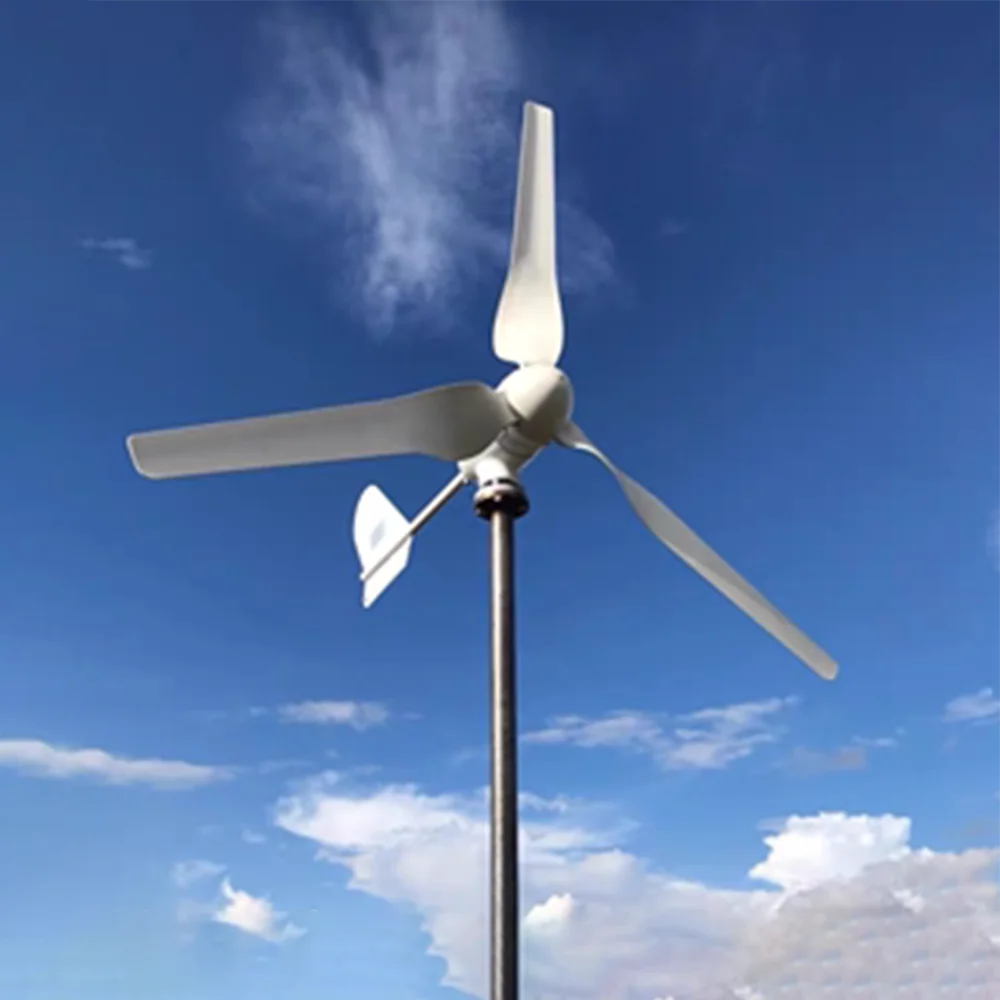

Wind Turbine Generator Complete Set Small Wind Generator Home Use Low Noise 1000W 2000W 3000W 24V 48V Aluminum Alloy HELIOS
- Category: >>>
- Supplier: Helios Technology Co. Ltd.
Share on (1600680833439):
Product Overview
Description
Model | HL-1000W | HL-1500W | HL-2000W | HL-2500W | HL-3000W | ||||
Rated Power | 1000W | 1500W | 2000W | 2500W | 3000W | ||||
Max Power | 1200W | 1700W | 2200W | 2800W | 3.5KW | ||||
Wind Wheel Diameter | 2.6m | 2.9m | 3.2m | 3.7m | 4.0m | ||||
Start-up Wind Speed | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | ||||
Rated Wind Speed | 11m/s | 11m/s | 11m/s | 11m/s | 11m/s | ||||
Survival Wind Speed | 55m/s | 55m/s | 55m/s | 55m/s | 55m/s | ||||
Product Assembly Weight | 56kg | 58kg | 60kg | 95kg | 98kg | ||||
Rated Voltage | 48V/96V/120V/220V/240V | 96V/120V/220V/240V | |||||||
Number of Blades | 3 Pieces | ||||||||
Blades Material | Reinforced glass fiber | ||||||||
Generator Type | (PMG)Three Phase AC Permanent Magnet Generator | ||||||||
Magnet Material | NdFeB | ||||||||
Generator shell material | Aolly Steel | ||||||||
Control System | Electromagnet / Wind Wheel Yaw | ||||||||
The Wind Adjustment | Automatic Windward Adjustment | ||||||||
Working Temperature | -40℃ ~ +80℃ | ||||||||
Q1. How can we guarantee quality?
Always a pre-production sample before mass production and final Inspection before shipment. Also can provide sample for quality inspection and market testing.
Q2. Are these products easy to be installed?
Yes, It is easy to be installed by themselves, we provide installation manual for reference. Our sales manager and engineer can also guide the installation by video if any query.

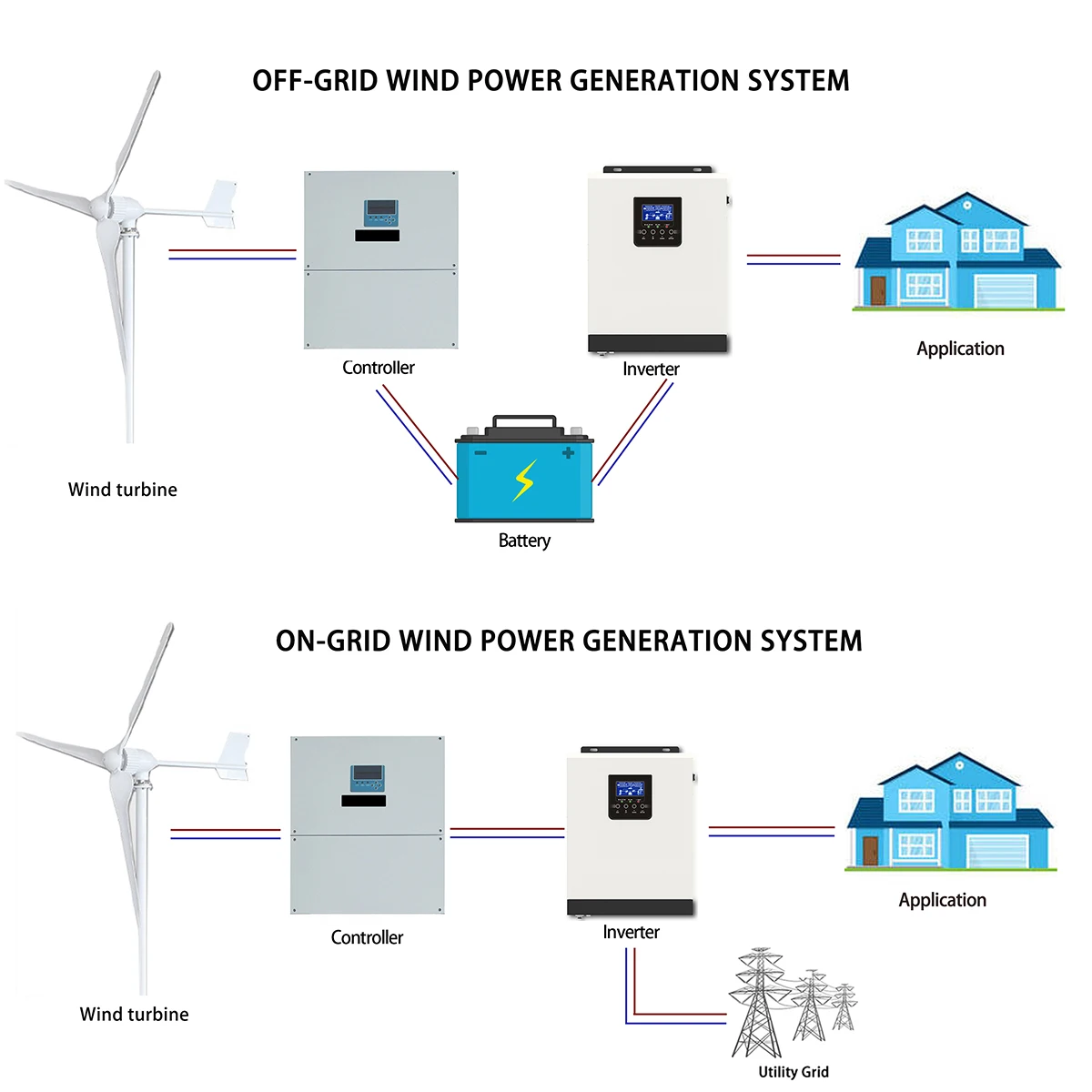

Q3. How far is the best distance between wind turbine, controller and battery?
Usually better within 10 Meters between wind turbine with controller, and controller to batteries; Batteries and inverter to load within 20-50 Meters.
Q4. For horizontal axis wind turbines & vertical axis wind turbines, which of type efficiency is better?
(1). For same watts at same wind speed, the output efficient of horizontal axis wind turbines is better than that vertical axis wind turbines.
(2). Low wind speed, we suggest to use vertical HLS series.
(3). Wind speed is over 8m/s, the generation efficiency of vertical wind turbine is around 80-90%. No noise & most popular.

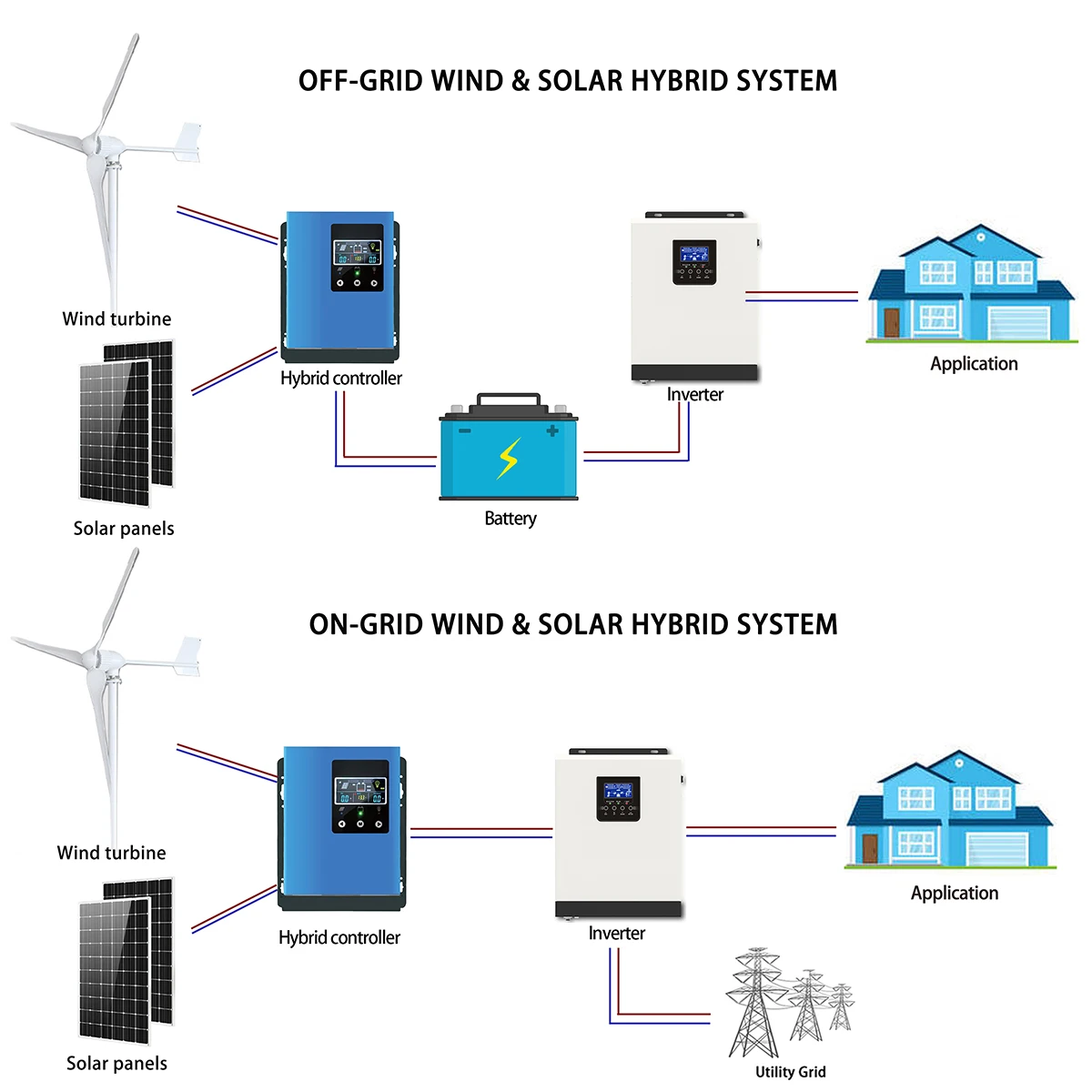

Q5. Can you also provide the full sets of wind & solar system?
Yes, of course! We are a one-stop energy solution provider. we have qualified technician team to design for your system, including wind turbine,solar panel system and Energy storage system, also provide detailed installation instruction.
Q6. What kind of certificates your products have?
Our products have acquired CE, ISO & ROHS certificates.
Q7. What are your terms of payment?
Often like T/T & L/C, others can be negotiated;
Alibaba Trade Assurance are available, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount.
Always a pre-production sample before mass production and final Inspection before shipment. Also can provide sample for quality inspection and market testing.
Q2. Are these products easy to be installed?
Yes, It is easy to be installed by themselves, we provide installation manual for reference. Our sales manager and engineer can also guide the installation by video if any query.
Q3. How far is the best distance between wind turbine, controller and battery?
Usually better within 10 Meters between wind turbine with controller, and controller to batteries; Batteries and inverter to load within 20-50 Meters.
Q4. For horizontal axis wind turbines & vertical axis wind turbines, which of type efficiency is better?
(1). For same watts at same wind speed, the output efficient of horizontal axis wind turbines is better than that vertical axis wind turbines.
(2). Low wind speed, we suggest to use vertical HLS series.
(3). Wind speed is over 8m/s, the generation efficiency of vertical wind turbine is around 80-90%. No noise & most popular.
Q5. Can you also provide the full sets of wind & solar system?
Yes, of course! We are a one-stop energy solution provider. we have qualified technician team to design for your system, including wind turbine,solar panel system and Energy storage system, also provide detailed installation instruction.
Q6. What kind of certificates your products have?
Our products have acquired CE, ISO & ROHS certificates.
Q7. What are your terms of payment?
Often like T/T & L/C, others can be negotiated;
Alibaba Trade Assurance are available, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount.
