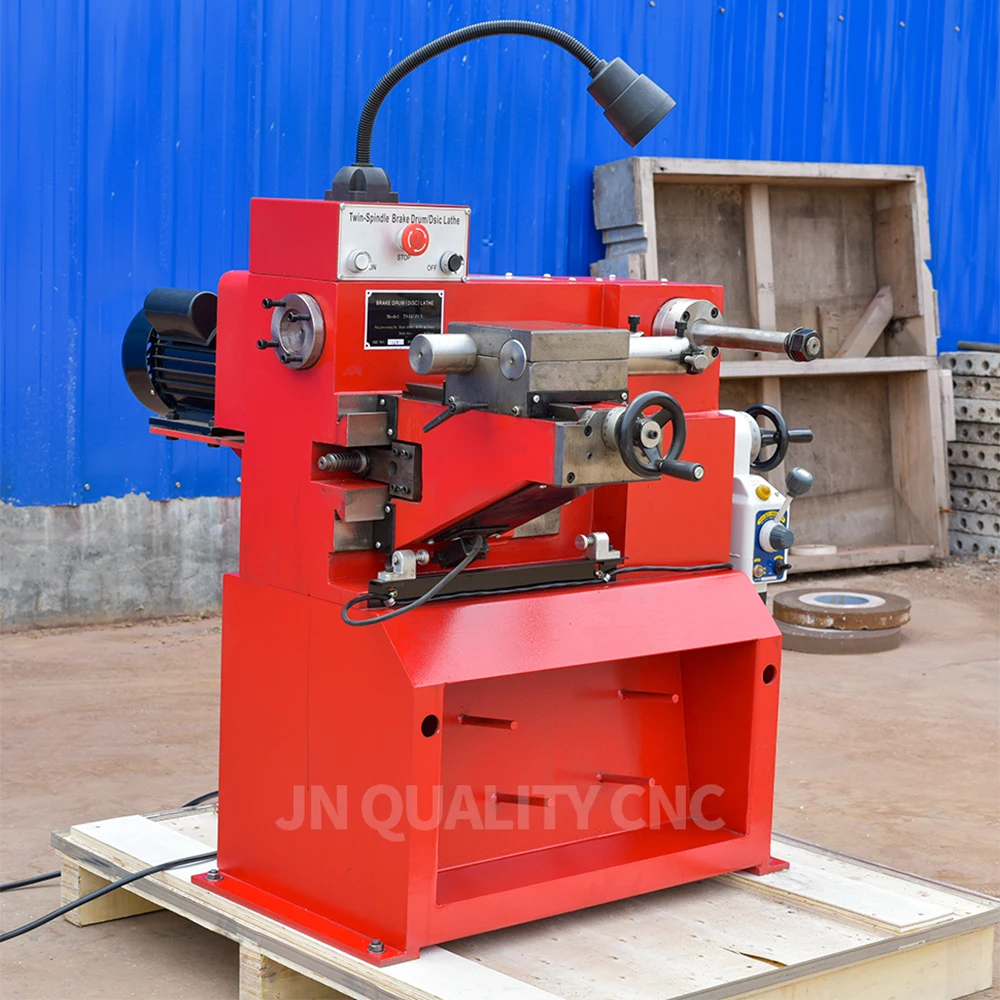

Excellent Quality Manual Brake Drum Disc grinding Lathe Machine manufacturer OEM CE T8445A T8445 T8445fcv
- Category: >>>
- Supplier: Jinan Quality CNC Machinery & Equipment Co. Ltd.
Share on (1600680845942):
Product Overview
Description
Flexible operation Brake Drum Disc skimming Lathe Machine manufacturer OEM CE T8445A T8445 T8445fcv
https://youtu.be/Q9Hd03X_vaE

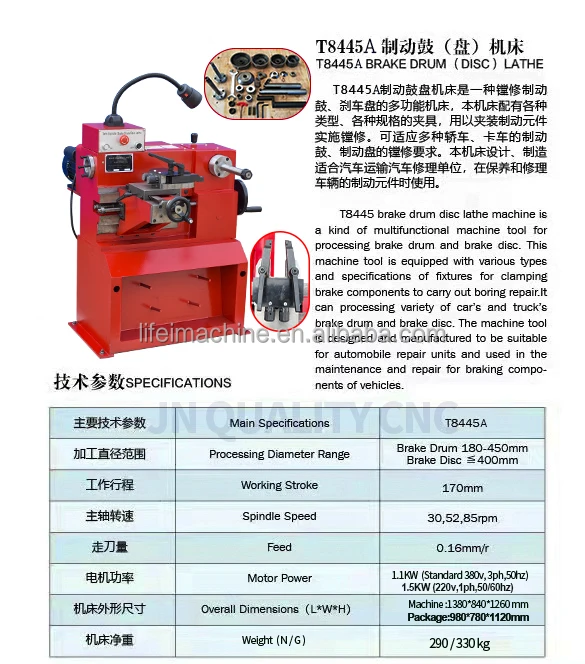

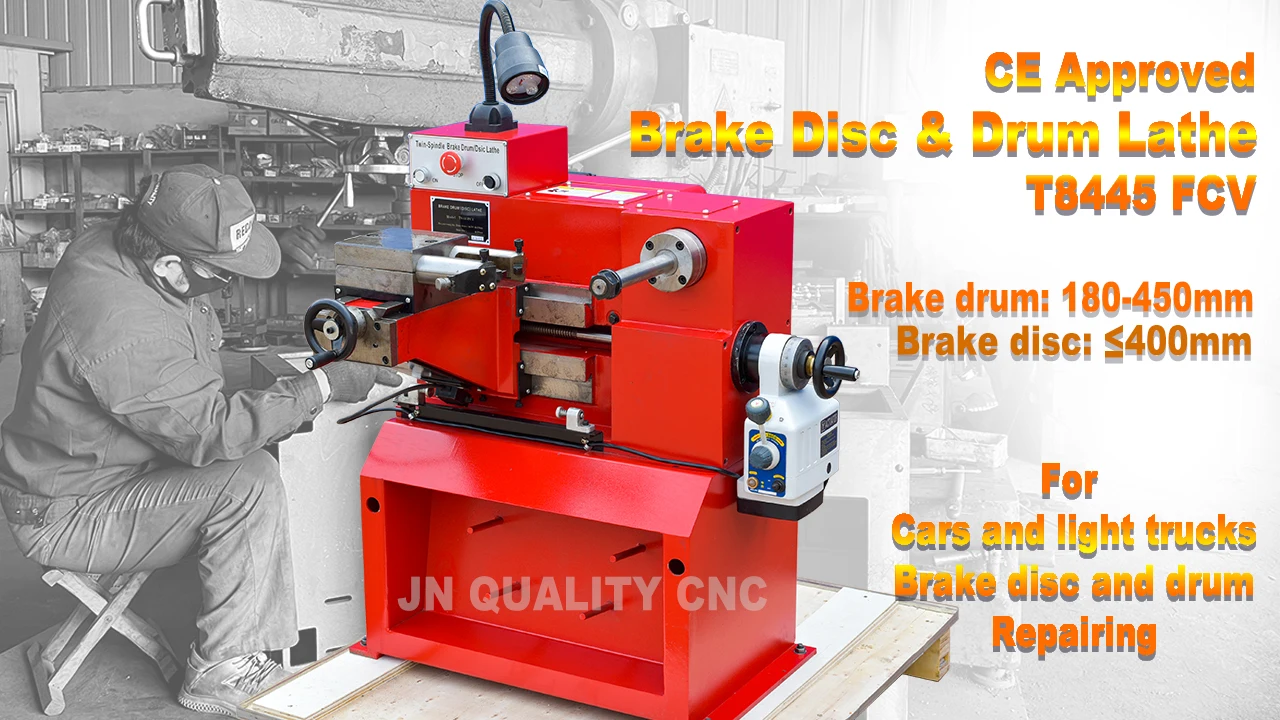

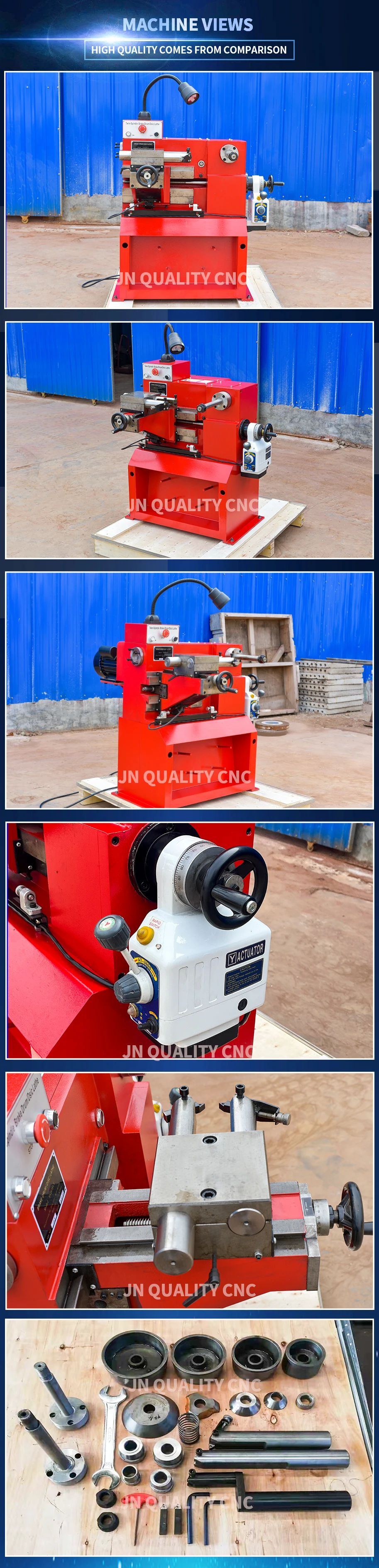

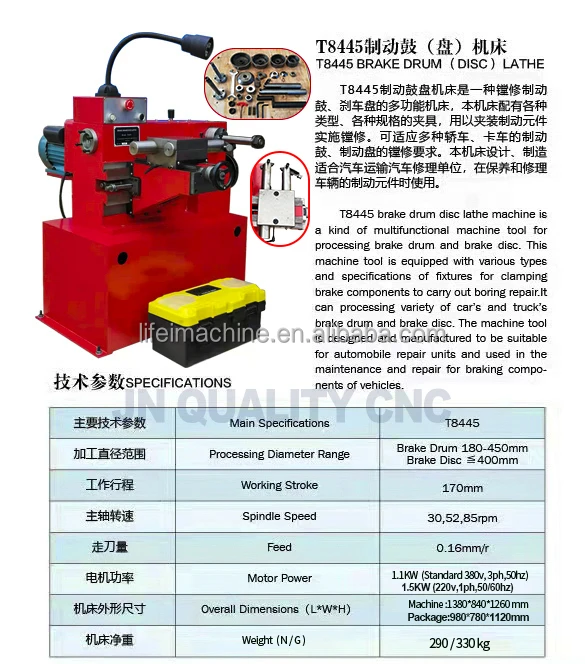

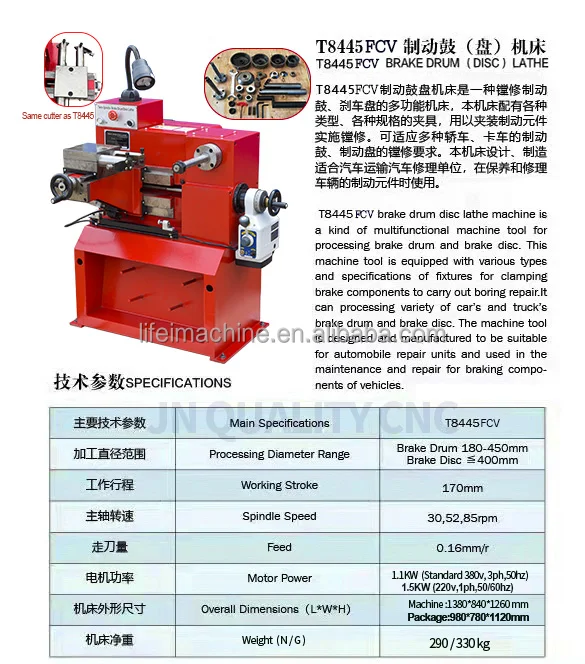

T8445 FCV / T8445 / T8445A brake disc and brake drum lathe machine , which is designed and manufactured for automobile repair unites and widely used in the maintenance and repair for braking components of vehicles, can process variety of car's and truck's brake disc and brake drum or hub .
We just need to connect the lathe machine with the brake disc or brake drum by using the fixture-screws directly, it has the features of convenient installation, high processing precision and one time molding.
2. The machine is a kind of variable speed lathe with 32, 52 and 85rmp /min . It can fulfill the reparation of the brake drum disc and shoe of auto-mobiles from mini-car to medium heavy trucks.

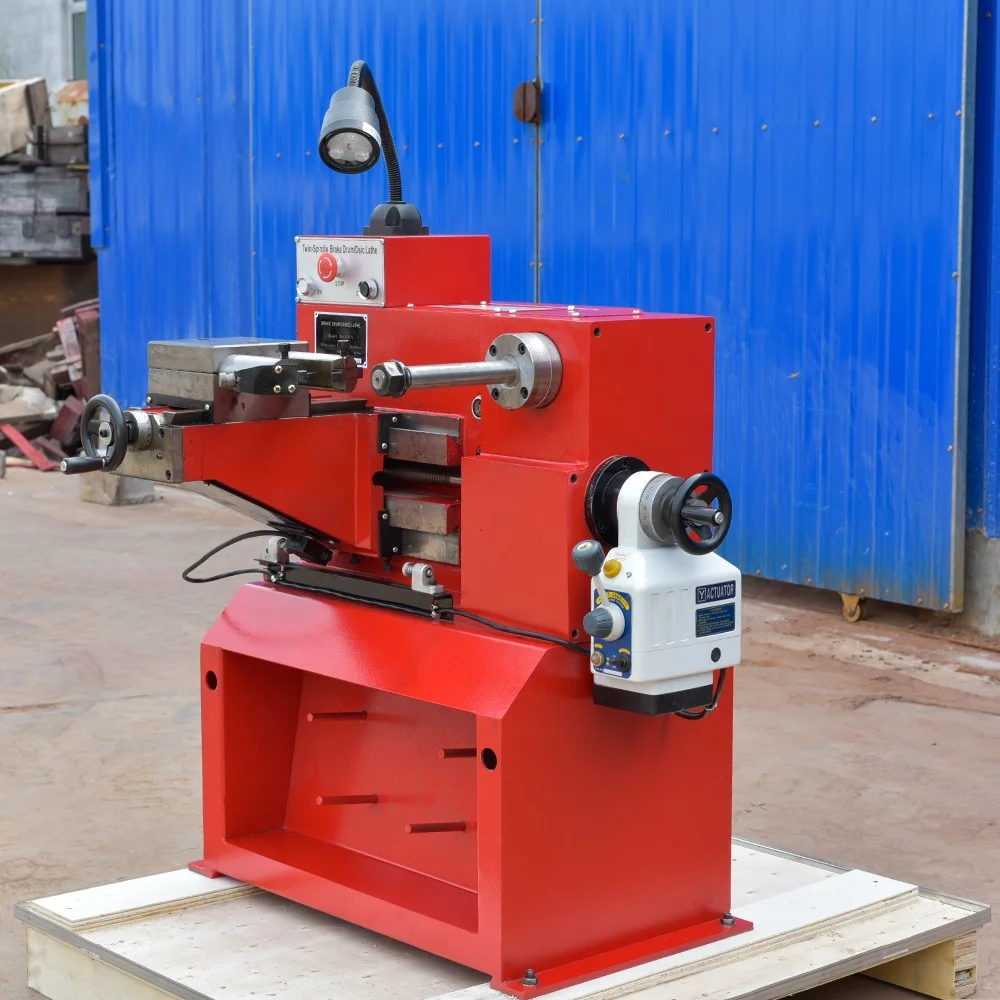

Advantages of T8445 FCV brake disc and brake drum lathe machine:

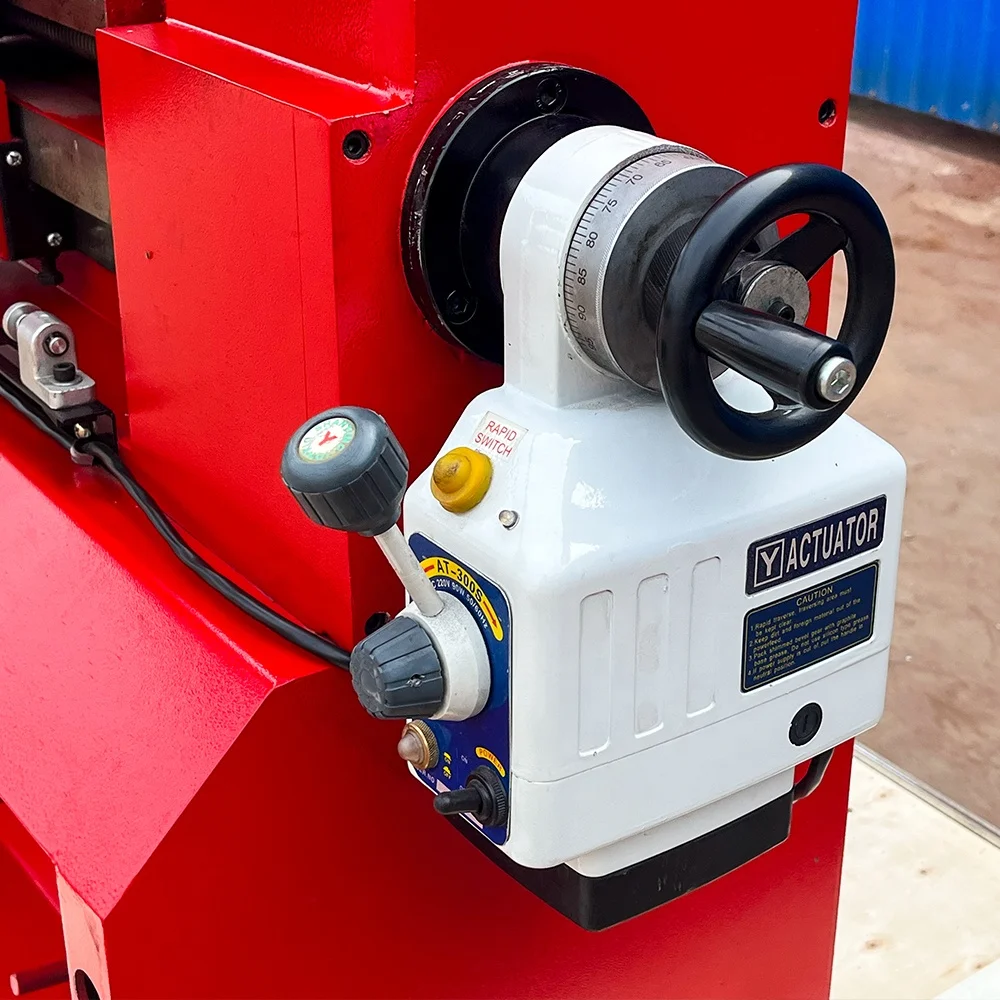

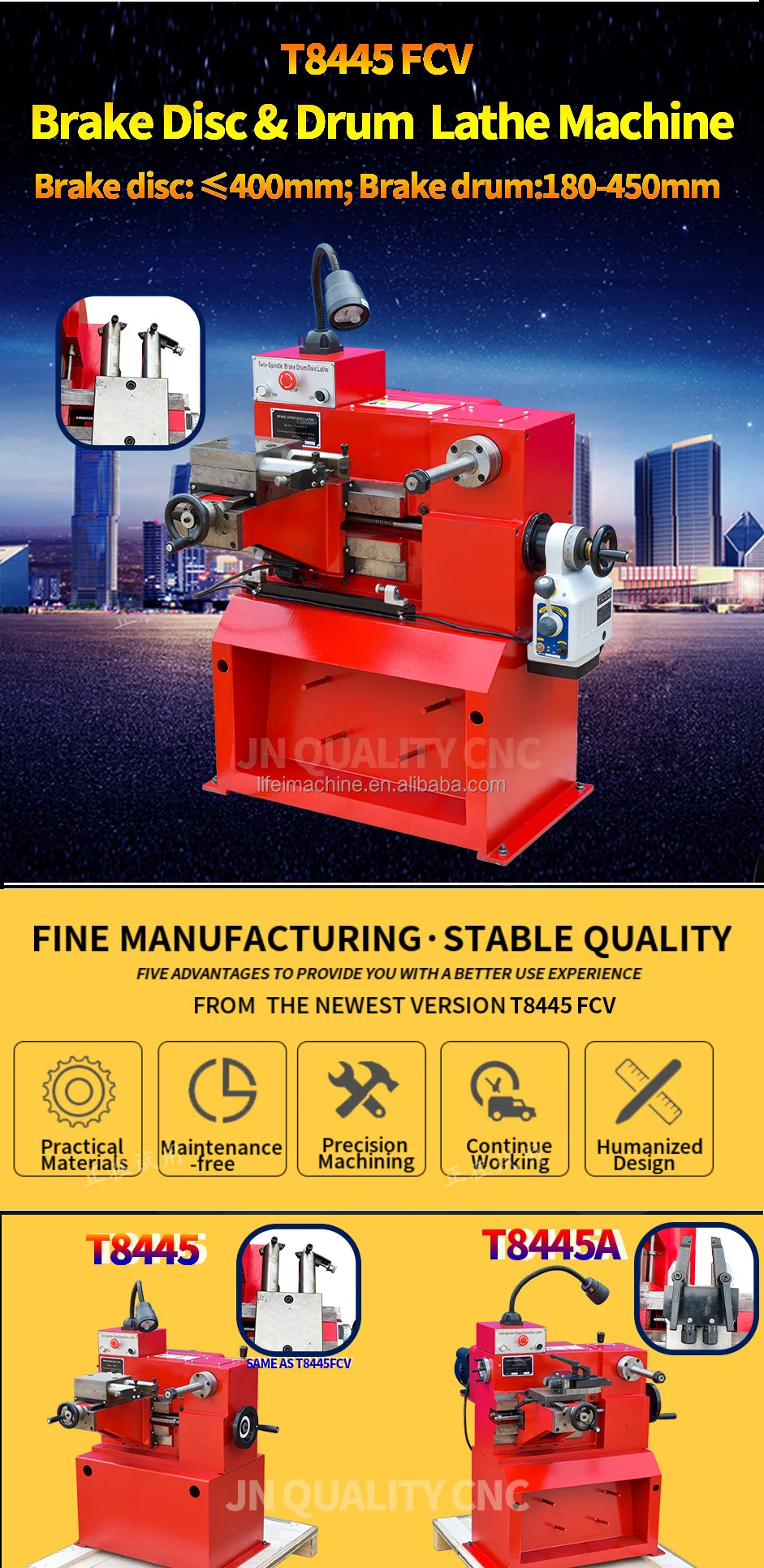

1. T8445FCV is equipped with auto - feed device, T8445 and T8445A have no such device.
2. The machine is a kind of variable speed lathe with 32, 52 and 85rmp /min . It can fulfill the reparation of the brake drum disc and shoe of auto-mobiles from mini-car to medium heavy trucks.

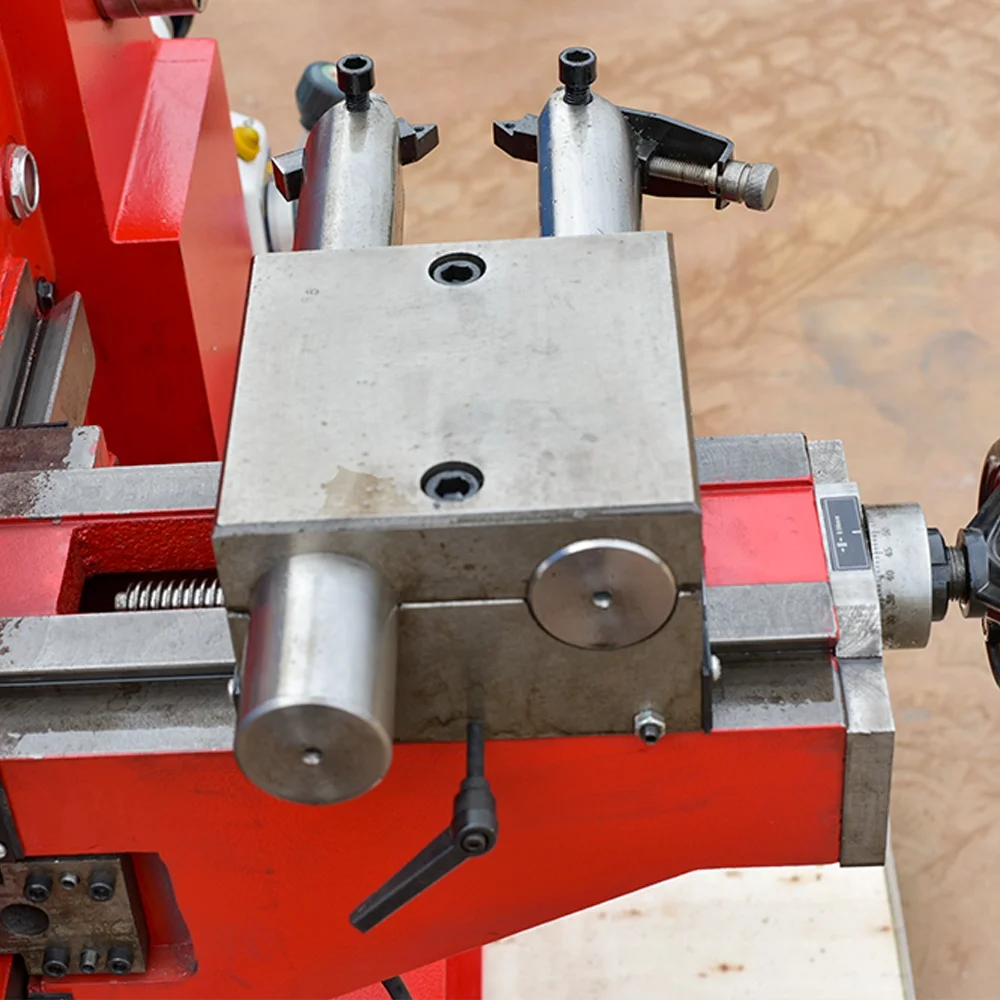

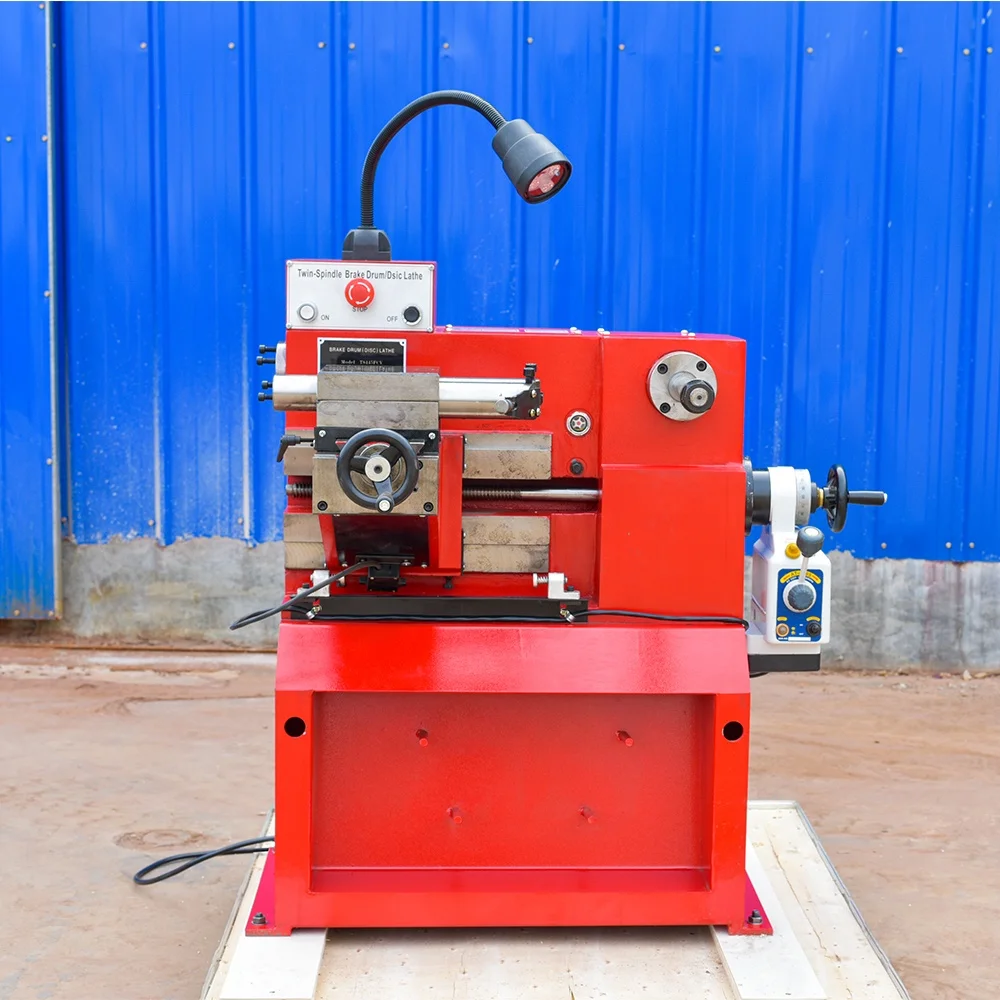

3. The unusual feature of this equipment is its twin-spindle each other perpendicular structure. The brake drum/shoe can be cut on the first spindle and the brake disc can be cut on the second spindle.
The 2 spindles can't work at the same time, because of the cutters.
4. The net weight of this equipment is 290 kgs with high strength cast iron bed , higher rigidity, accurate work piece positioning and is easy to operate.
4. The net weight of this equipment is 290 kgs with high strength cast iron bed , higher rigidity, accurate work piece positioning and is easy to operate.
1 | Name | Brake Disc & drum Skimming Lathe Machine |
2 | Model | T8445 FCV |
3 | Range of cutting diameter | Brake drum: 180mm - 450mm; Brake disc: ≤ 400mm. |
4 | Working stroke | 170mm |
5 | Rotational speed | 30, 52, 85 rpm |
6 | Infinitely variable speed feed /feeding capacity | 0 - 0.5mm/r |
7 | Motor power | 1.1kw for 380v, 1ph 50/60hz or 1.5kw for 220v,1 ph,50/60hz |
8 | Machine/Package size (L*W*H) | 1380*840*1260mm/980*780*1120mm |
9 | Net / Gross weight | 290 kg / 320 kg |
10 | Producting time‘ | 3-20 days |
11 | Warranty | 2 years (no man-made reasons) |
12 | Electrical power | 380v, 3ph, 50hz, 220v,1ph,50hz |
13 | Optional parts | Cutter (one cutter can process 200-300 disc) |
