GROWATT 1Mw Solar Inverter 125kva Converter Price Exhibition EU Three Phase 120kw 110kva 100kwp MAX100K MAC PV Inverters
- Category: >>>
- Supplier: Suzhou Goodmolds Optics Co. Ltd.
Share on (1600680853740):
Product Overview
Description

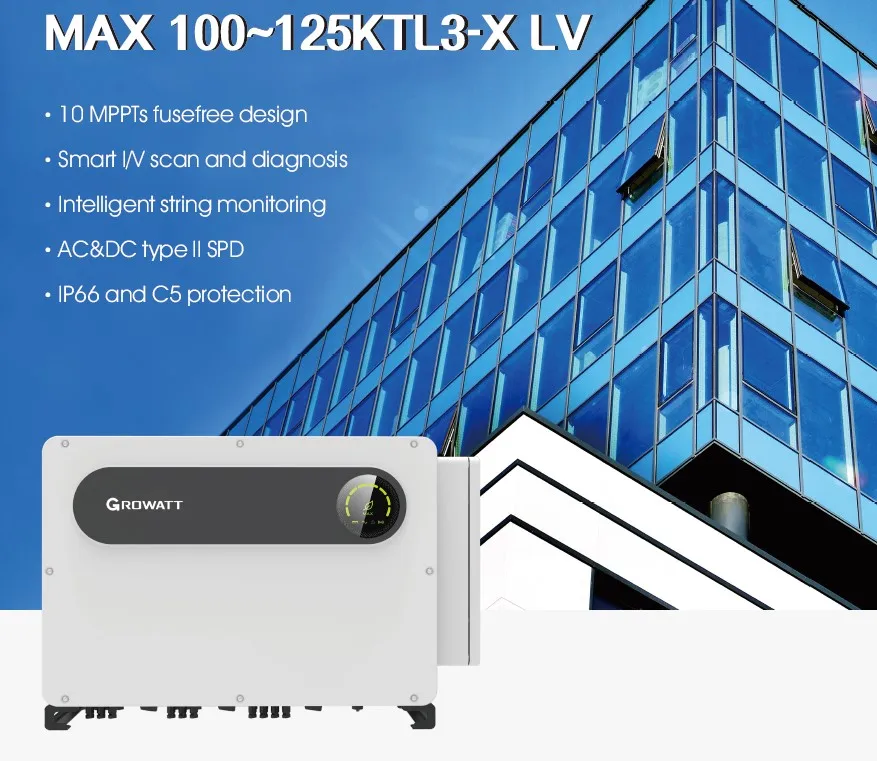

GROWATT 1Mw Solar Inverter 125kva Converter Price Exhibition EU Three Phase 120kw 110kva 100kwp MAX100K MAC PV Inverters
Product Description
On Grid Inverter
♦ Max. DC Voltage up to 1000V
♦ High Yield
♦ High power density, offer lighter and easy installation
♦ Real Time Monitoring(Flexible communication connection, support RS485, WiFi, GPRS)
♦ Warranty:5 years/10 years
♦ Max. DC Voltage up to 1000V
♦ High Yield
♦ High power density, offer lighter and easy installation
♦ Real Time Monitoring(Flexible communication connection, support RS485, WiFi, GPRS)
♦ Warranty:5 years/10 years
Configuration List
Item | MAX 100KTL3-X LV | MAX 110KTL3-X LV | MAX 120KTL3-X LV | MAX 125KTL3-X LV | ||||
Input data (DC) | ||||||||
Maximum input voltage | 1100V | 1100V | 1100V | 1100V | ||||
Minimum input voltage/open voltage | 200V | 200V | 200V | 200V | ||||
Rated input voltage | 600V | 600V | 600V | 600V | ||||
Operating voltage range | 200V-1000V | 200V-1000V | 200V-1000V | 200V-1000V | ||||
Full MPPT Voltage Range | 550V-850V | 550V-850V | 600V-850V | 600V-850V | ||||
Number of MPPT / MPPT groups per route | 10/2 | 10/2 | 10/2 | 10/2 | ||||
MPPT maximum input current per route | 32A | 32A | 32A | 32A | ||||
MPPT maximum short circuit current per circuit | 40A | 40A | 40A | 40A | ||||
Output data (AC) | ||||||||
Rated output power | 100KW | 110KW | 120KW | 125KW | ||||
Maximum output apparent power | 110KVA | 121KVA | 132KVA | 137.5 KVA | ||||
Maximum output current | 158.8 A | 174.6 A | 190.5 A | 198.5 A | ||||
Rated output voltage | 230V/400V | 230V/400V | 230V/400V | 230V/400V | ||||
Output voltage range | 340VAC-440VAC | 340VAC-440VAC | 340VAC-440VAC | 340VAC-440VAC | ||||
Output voltage frequency range | 45~55 Hz/55-65Hz | 45~55 Hz/55-65Hz | 45~55 Hz/55-65Hz | 45~55 Hz/55-65Hz | ||||
Power factor (cos φ) | >0.99 | >0.99 | >0.99 | >0.99 | ||||
Adjustable range of power factors | 0.8 lead 0.8 lag | 0.8 lead 0.8 lag | 0.8 lead 0.8 lag | 0.8 lead 0.8 lag | ||||
Maximum total harmonic distortion | <3% | <3% | <3% | <3% | ||||
Efficiency | ||||||||
Maximum efficiency | 98.7% | 98.7% | 98.7% | 98.7% | ||||
General data | ||||||||
Dimensions (wide/high/thick) mm | 970/640/345 | 970/640/345 | 970/640/345 | 970/640/345 | ||||
Weight | 84 kg | 84 kg | 84 kg | 84 kg | ||||
Operating temperature range | -30°C ...+60°C ...+C | -30°C ...+60°C ...+C | -30°C ...+60°C | -30°C ...+60°C ...+C | ||||
Altitude | 4000m | 4000m | 4000m | 4000m | ||||
Electricity consumption at night | <1w | <1w | <1w | <1w | ||||
Relative humidity | 0~100% | 0~100% | 0~100% | 0~100% | ||||
Features | ||||||||
Display | LED/W iFi +APP | LED/W iFi +APP | LED/W iFi +APP | LED/W iFi +APP | ||||
Warranty | 5 years | 5 years | 5 years | 5 years | ||||

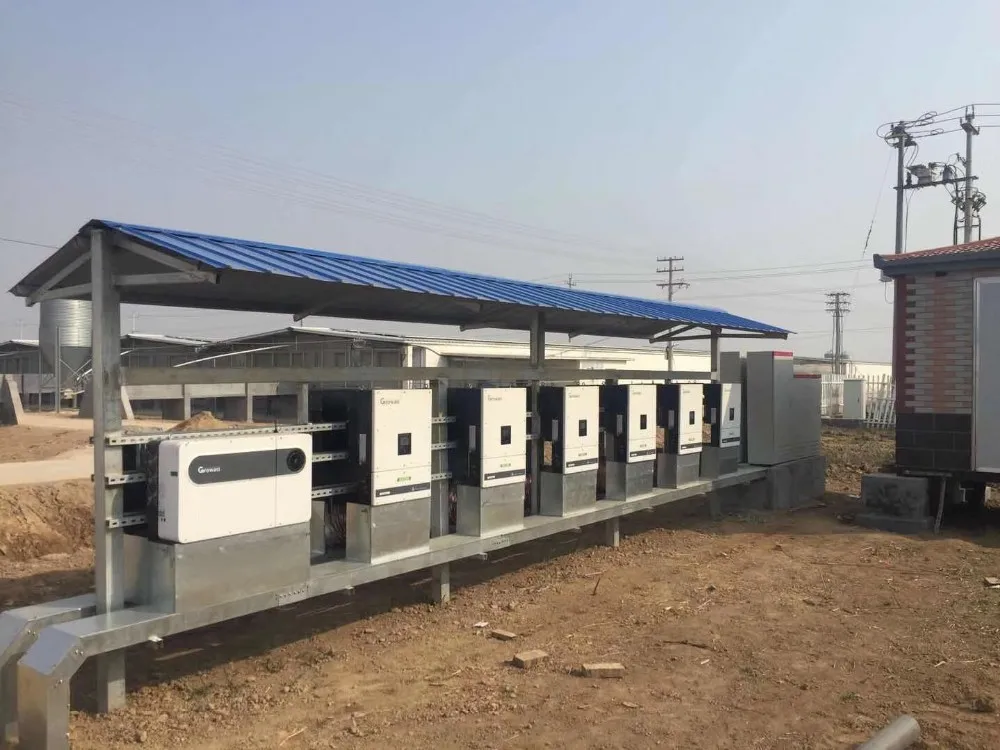

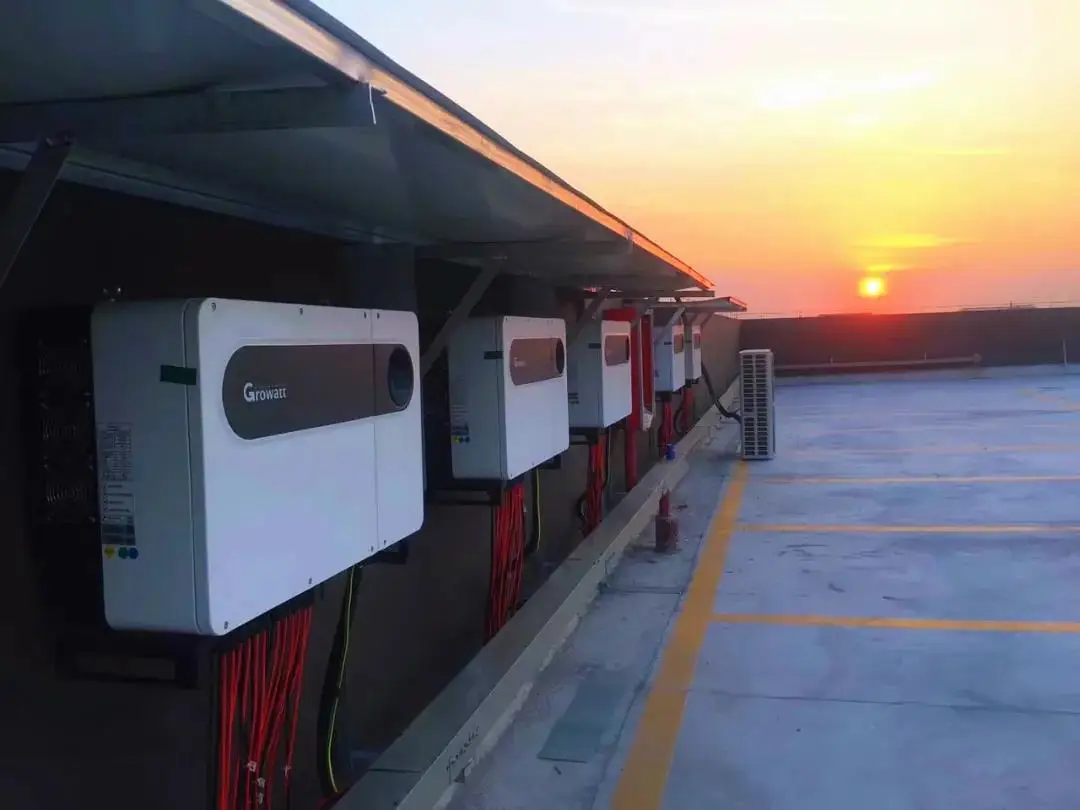

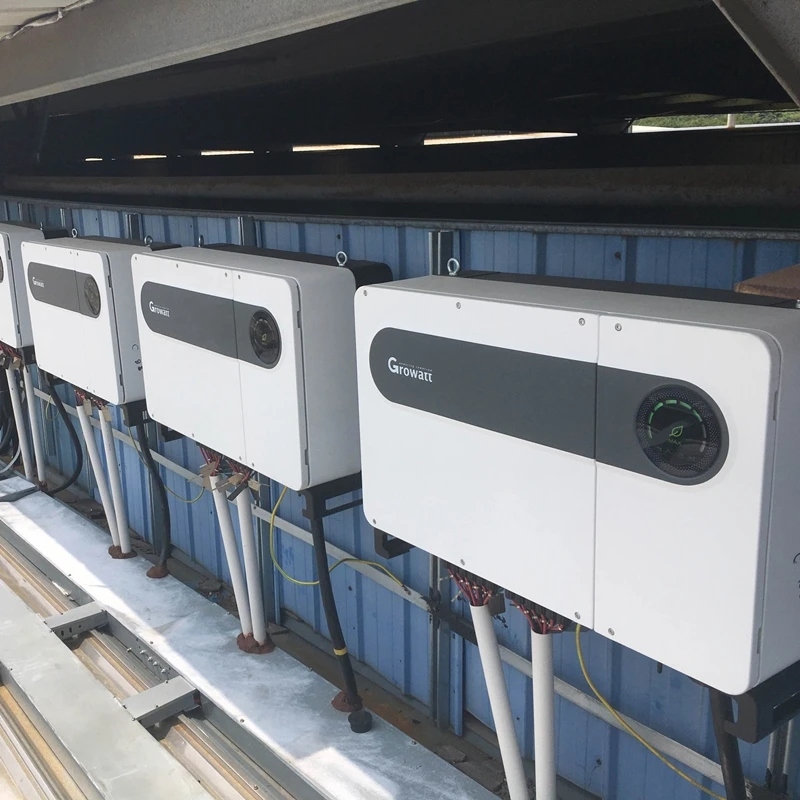

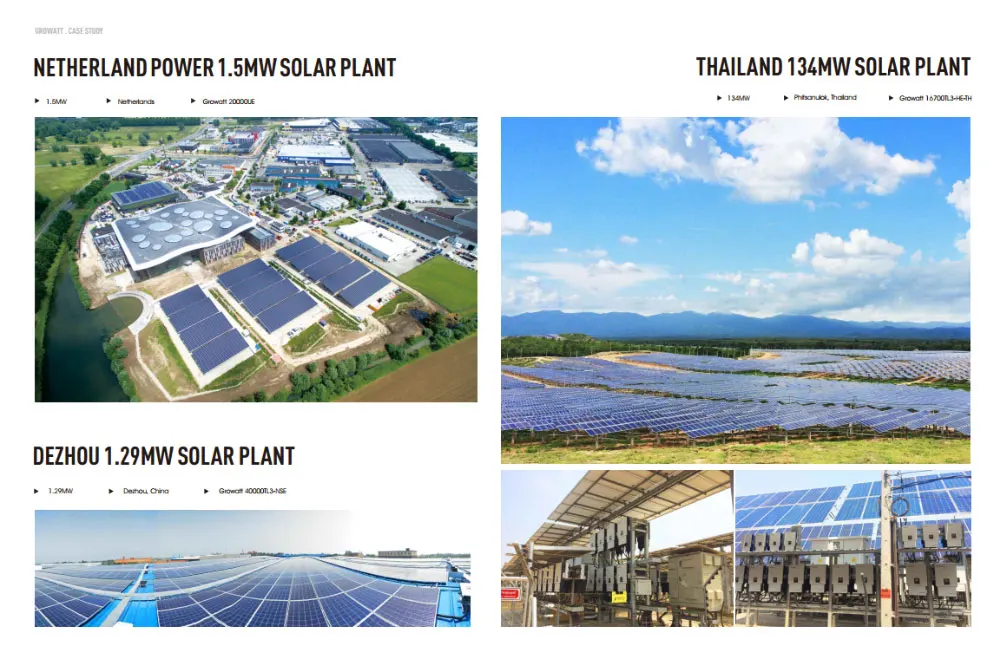

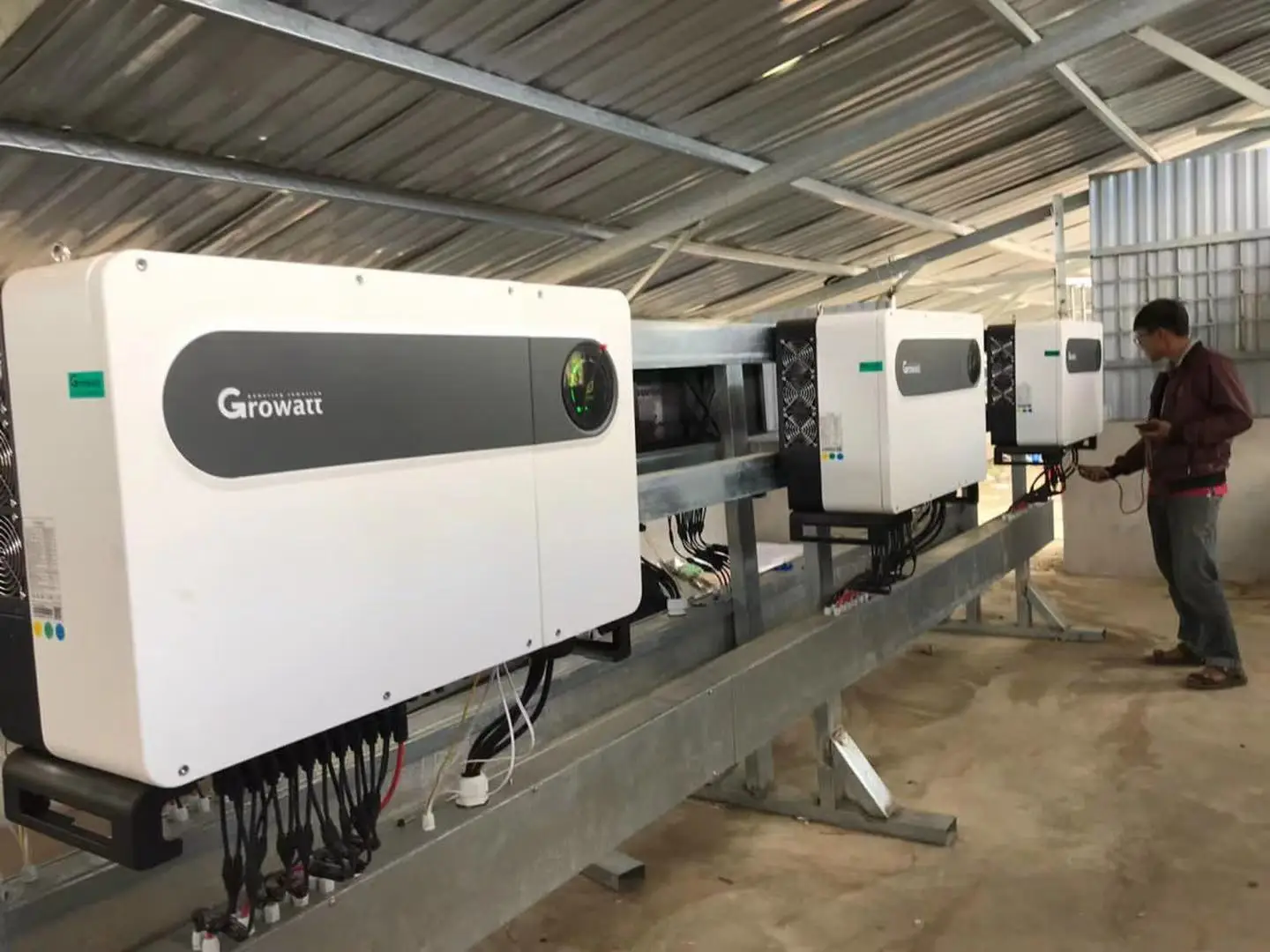

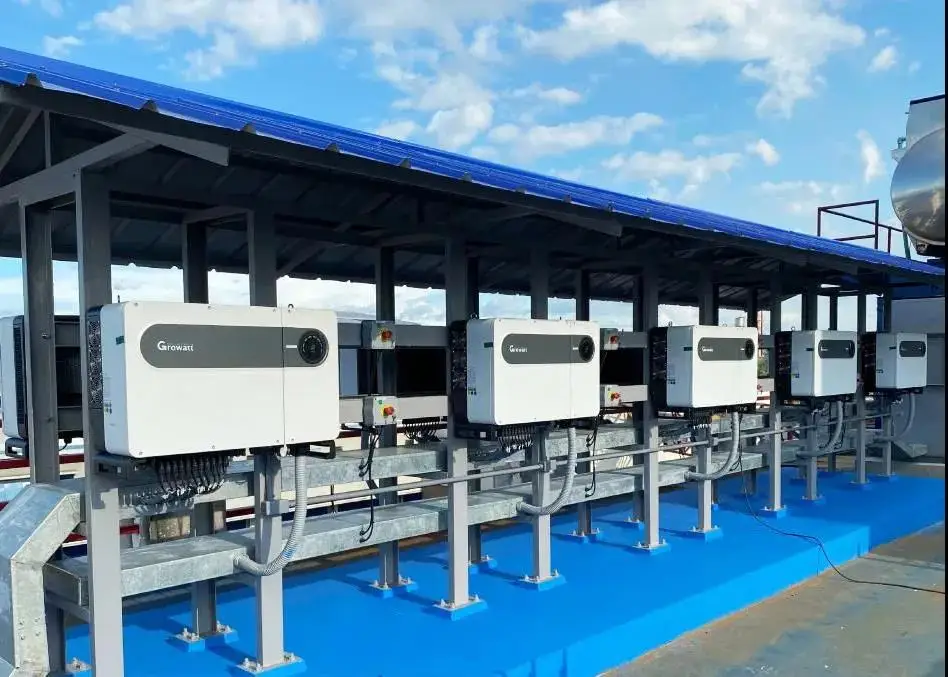

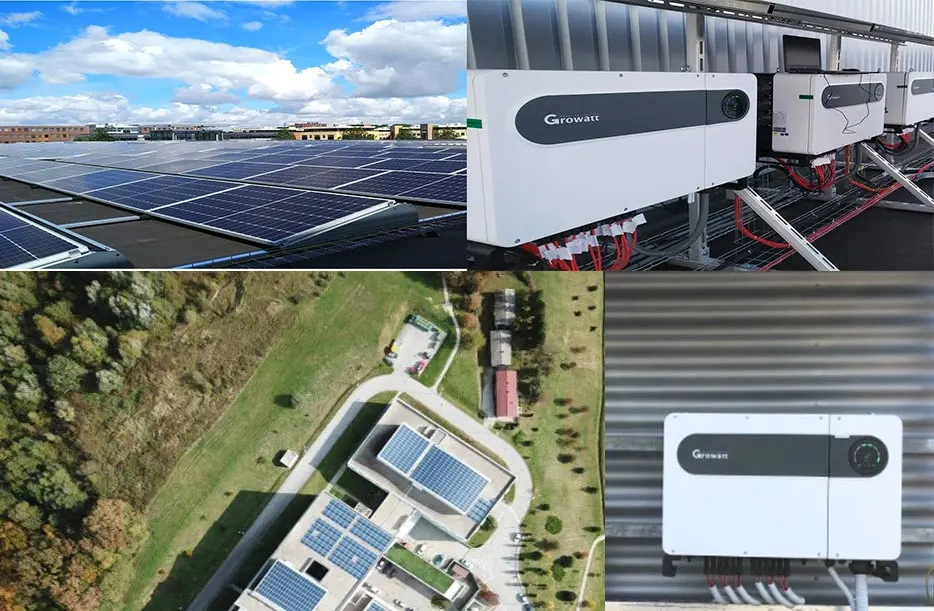

Product Application
Growatt On Grid Inverter 100kw 125kw125000W Grid Tie Inverter for Solar Energy System

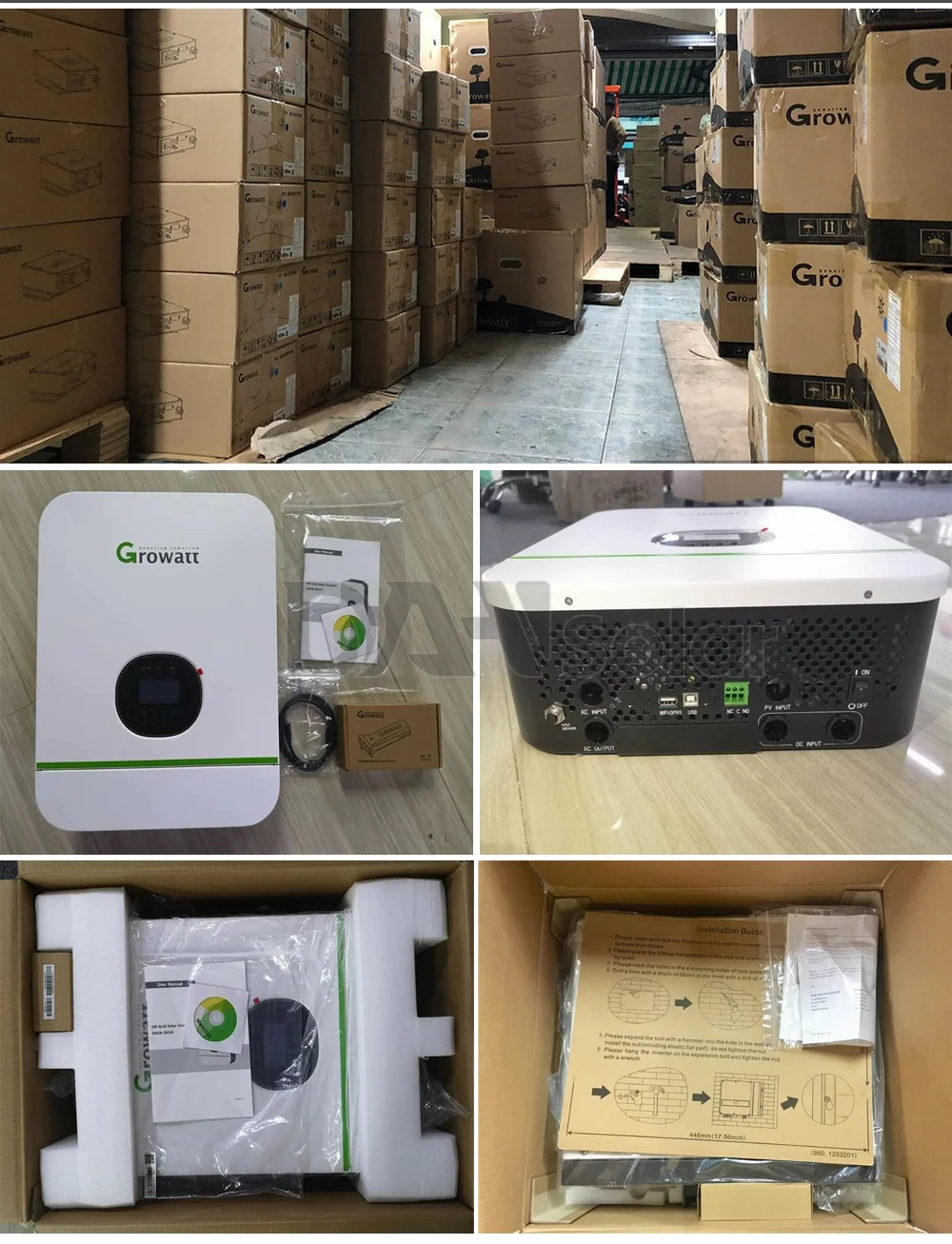

Deliver and Payment

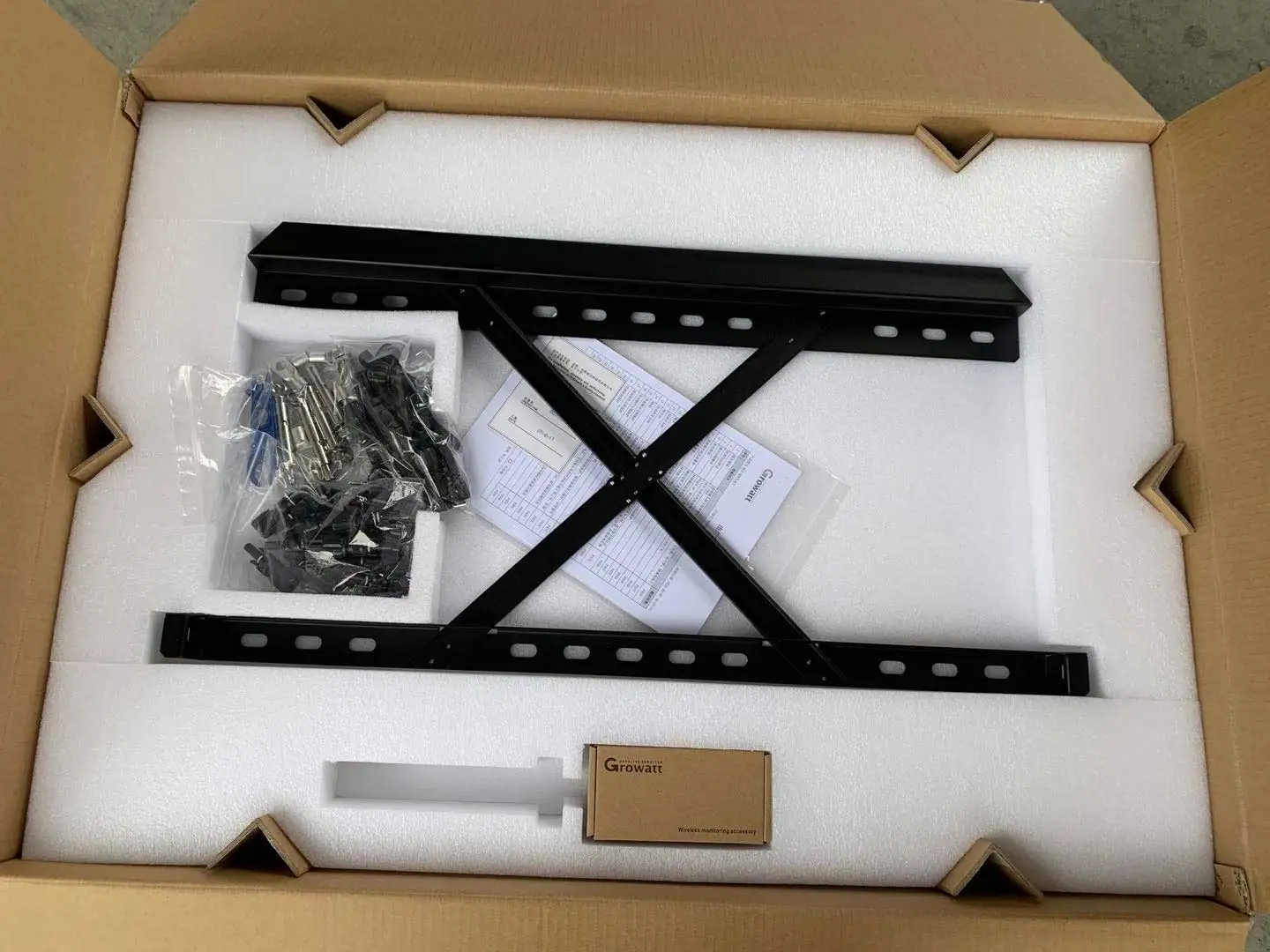

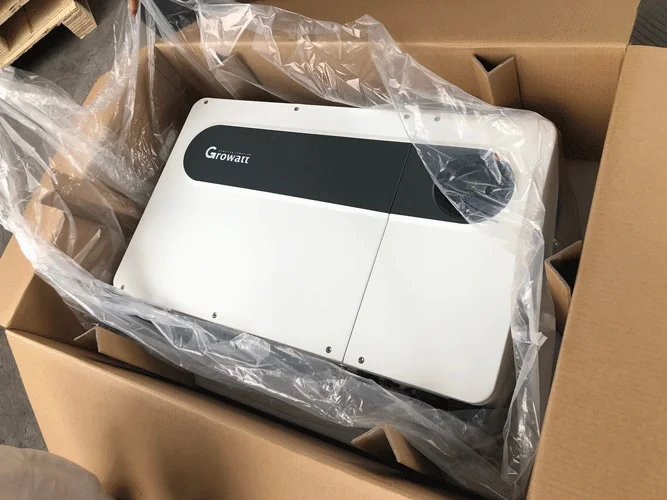

Perfect packaging for easy transportation and safe shipping
Packing Details : carton box , wooden box and wooden pallet , 1unit per carton box
Delivery Details : ship within 5days after payment
Packing Details : carton box , wooden box and wooden pallet , 1unit per carton box
Delivery Details : ship within 5days after payment
We welcome use Trade Asurrance,you enjoy:
100% product quality protection
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
100% payment protection for your covered amount
Our Company
Growatt is a new energy enterprise dedicated to the R&D and manufacturing of PV inverters including on-grid, off-grid and storage inverters, and user side smart energy management solutions as well. The power capacity of Growatt on-grid inverters ranges from 1kW to 100 kW, meanwhile its off-grid and storage inverters cover a power range from 1 kW to 630 kW. Growatt inverters are extensively used worldwide for applications in residential, commercial, utility-scale scenarios as well as other storage power station projects.
Our Partners

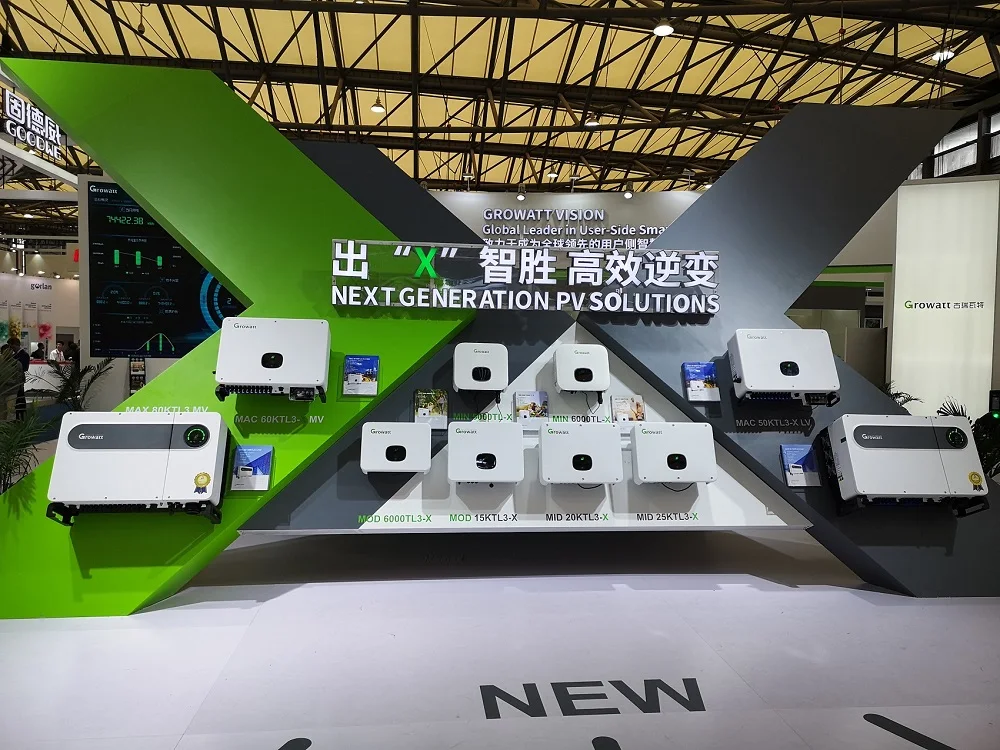

Exhibition
Since its foundation in 2010, Growatt has established branch offices one after another in Germany, US, UK, Australia, Thailand,India, Netherlands, etc in order to better serve the customers across the globe. Growatt always sticks to the R&D investment and technology innovation, and provides customers with premium products and services through its core inverter technology, rigorous quality control and continuous improvement of customer service. By end of September 2018, Growatt has shipped over 1.2 million inverters to over 100 countries and regions across the globe, growing into a Global Top 10 Inverter Brand and becoming the No.1 Chinese Residential PV Inverter Brand.
Our Categories---Click To View More
12v/48v LifePo4 Battery
NRUIT/EITAI Lithium Iron Battery, CATL Cells.Power Wall Type, 4.4kwh to 14.3kwh.
BMS For GROWATT/ SOFAR/ DEYE and More.
Wifi/ Bluetooth Optional.
BMS For GROWATT/ SOFAR/ DEYE and More.
Wifi/ Bluetooth Optional.

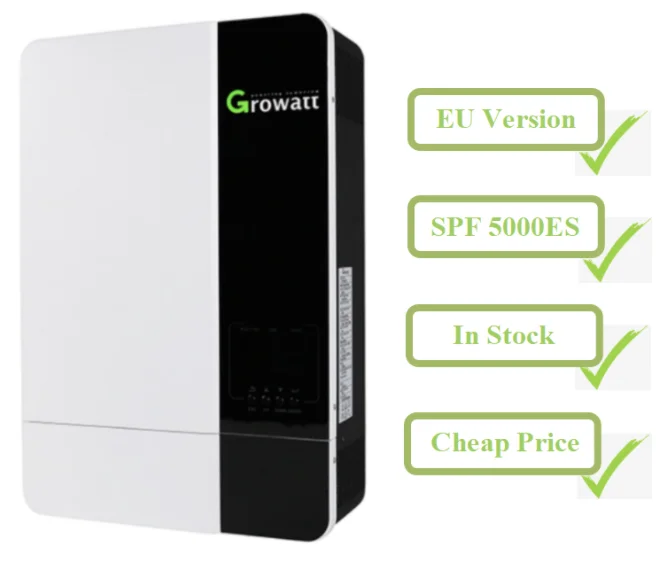

GROWATT Inverter
GROWATT All Series Inverter,
EU/ US version.
Off On Grid Hybrid.
Ready To Ship.
Ready To Ship.

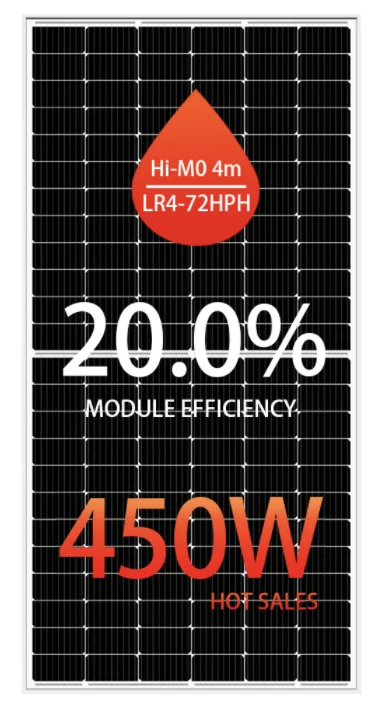

Half Cut PV Module
LONGI/EITAI Half Cells Solar Panel, 156mm, 182mm, 210mm.
From 350w to 550w.
From 350w to 550w.

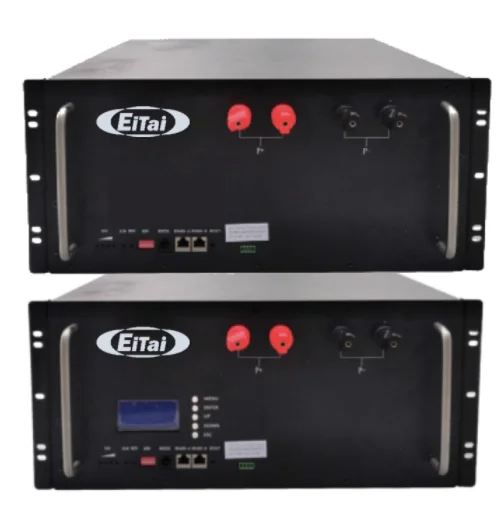

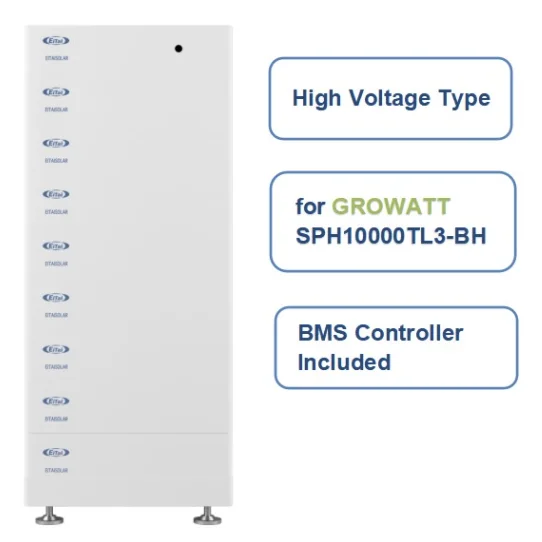

High Voltage LifePo4 Battery
High Voltage Lithium Iron Battery,
CATL Cells.
Suitable For Three Phase High Voltage Hybrid Inverter.
BMS for GROWATT/ SOLIS and more.
BMS for GROWATT/ SOLIS and more.

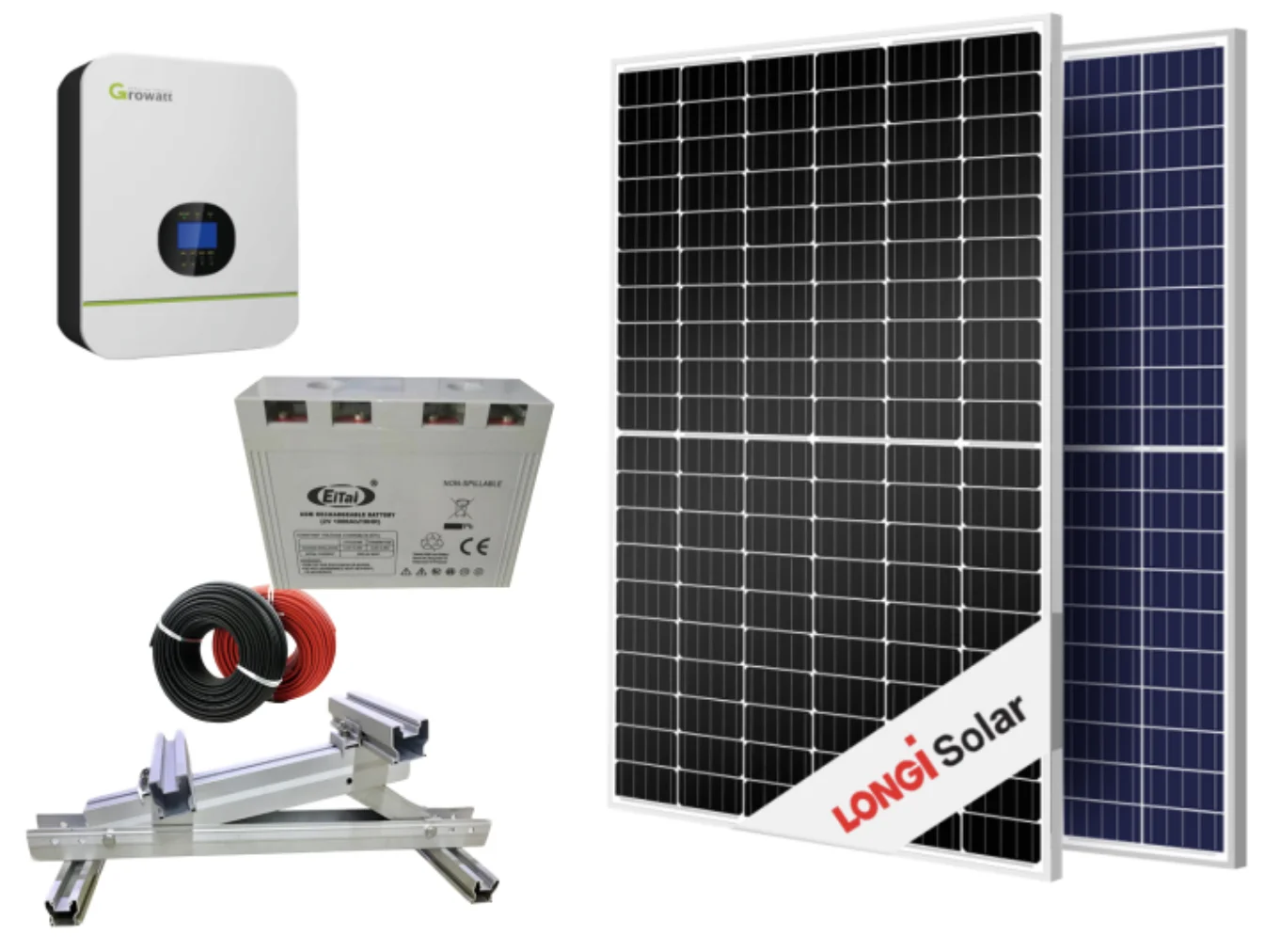

Off-Grid Solar System
Complete Off-Grid Solar System From 3kw, With LONGI/ EITAI Solar Panel, GROWATT Inverter, LifePo4/ Gel Battery, Roof/ Ground Mounting System And Related Parts.

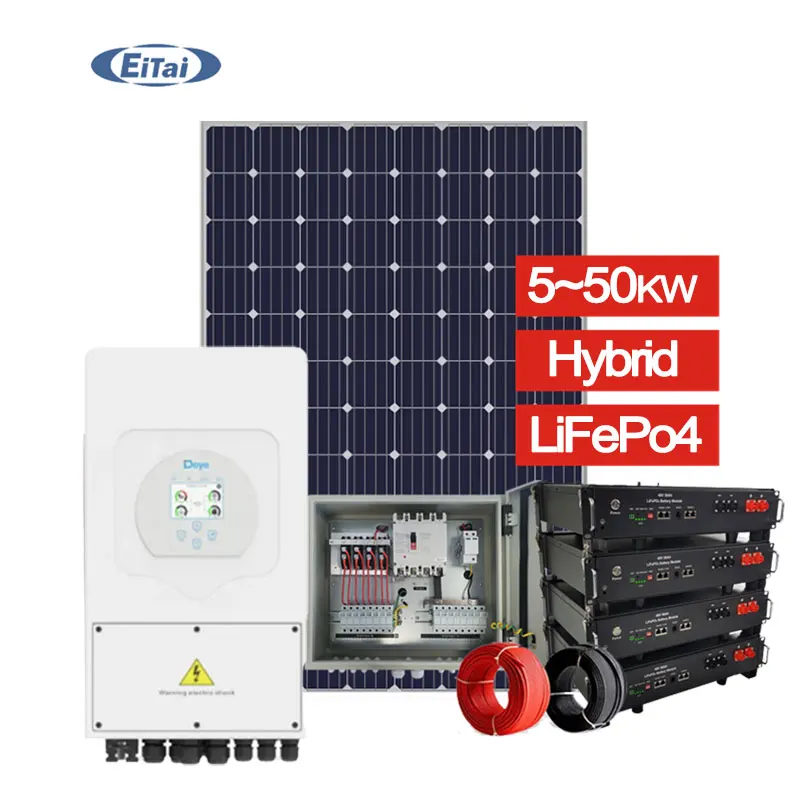

Hybrid Solar System
