Product Overview
Description

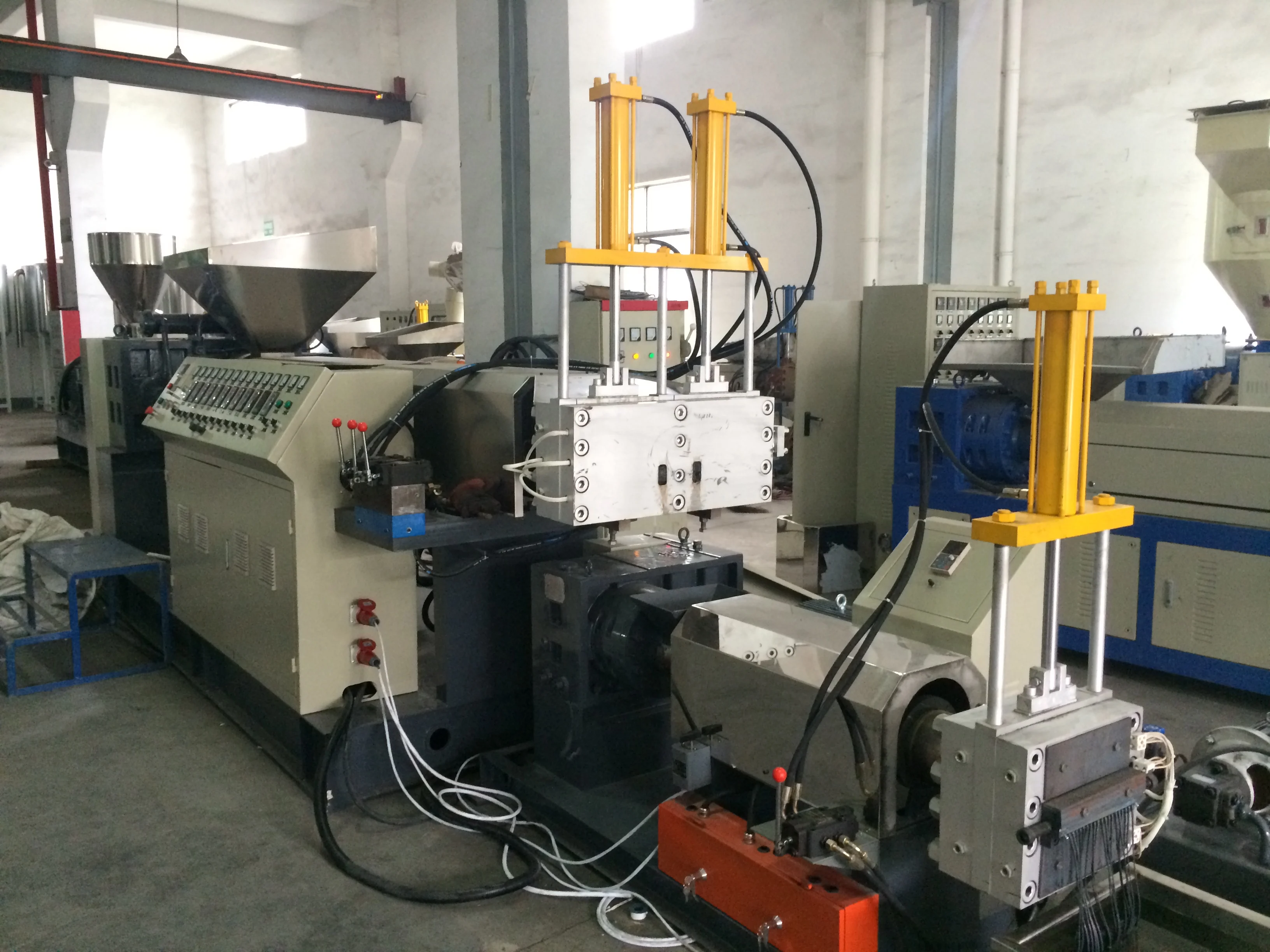

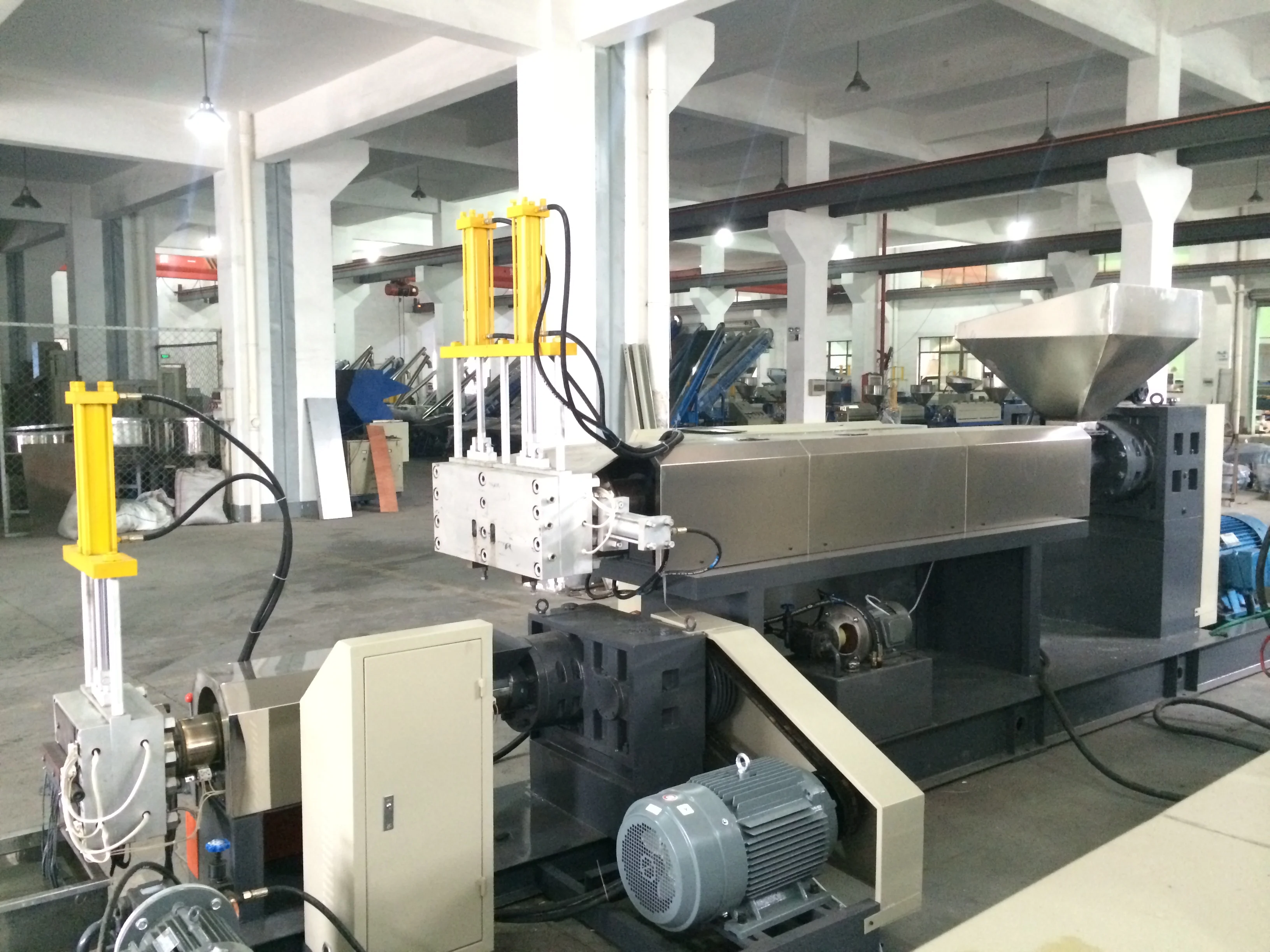

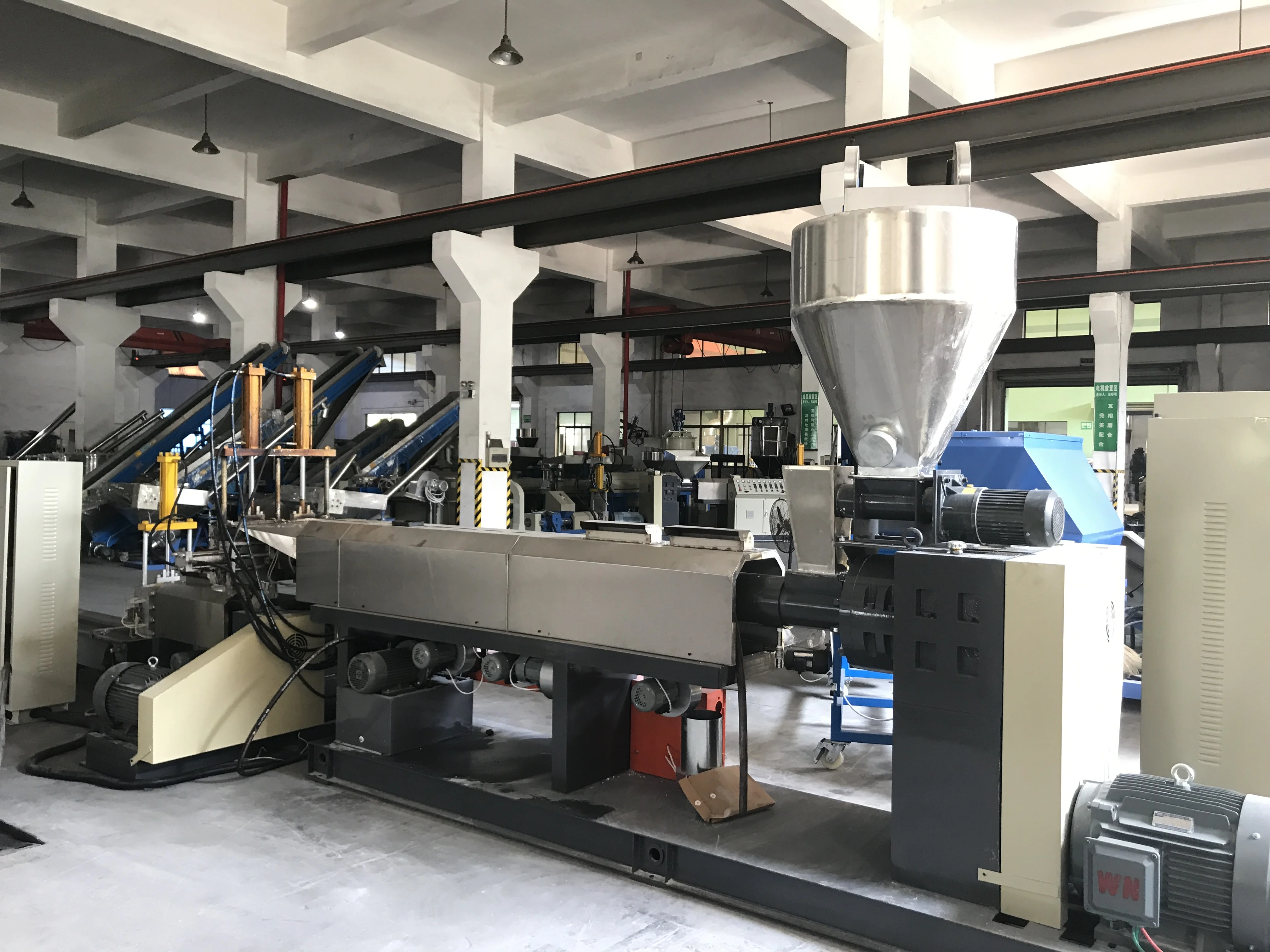

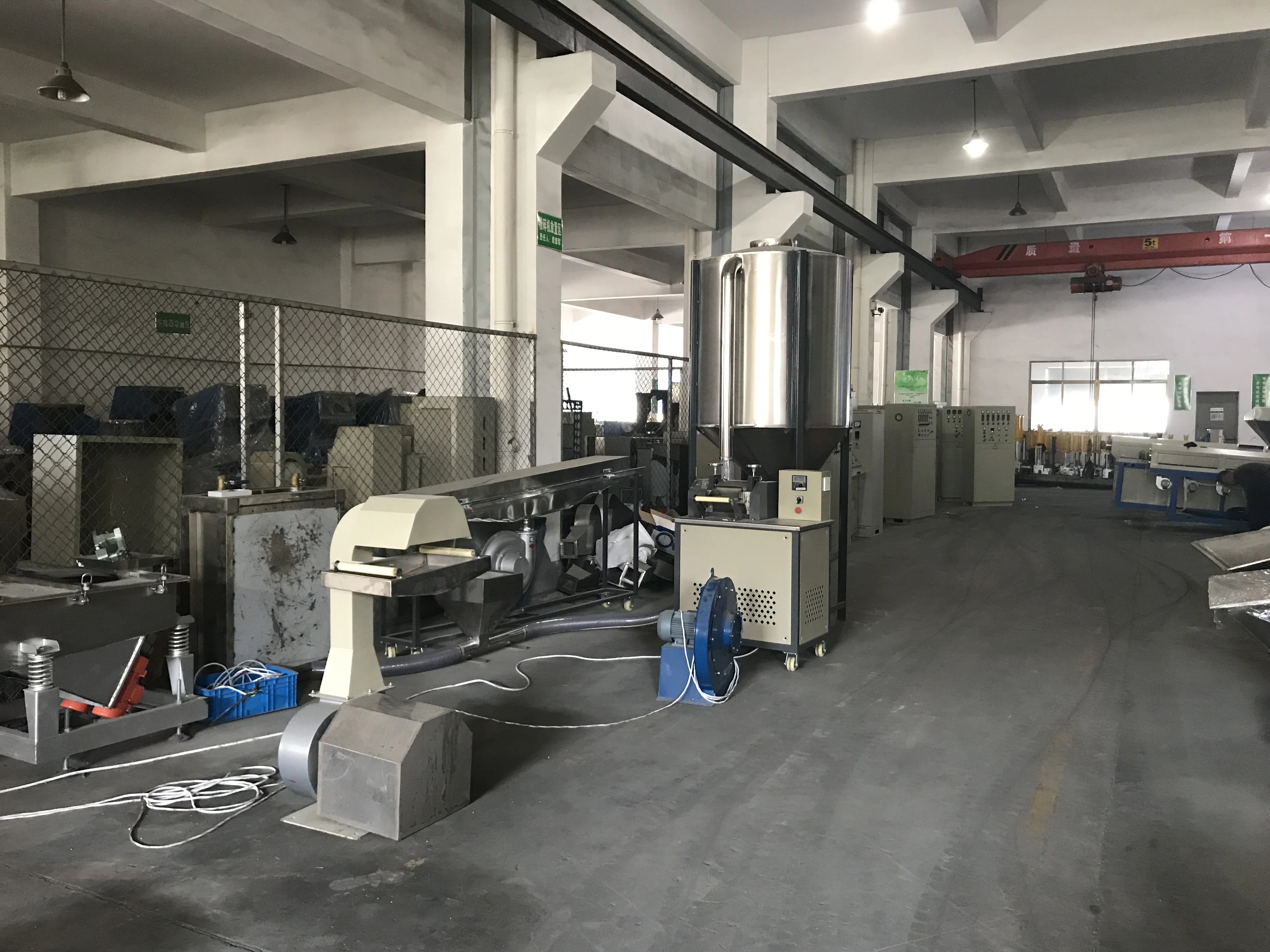

pp pe pet pelletize cutter the water strips into grains for recycle plastic milling granulator
Application:
Applicable materials: PP,PE, ABS ,PS ,PC ,PA,PET ,PBT etc.
Material shape: bottle ,container , hard scrap etc

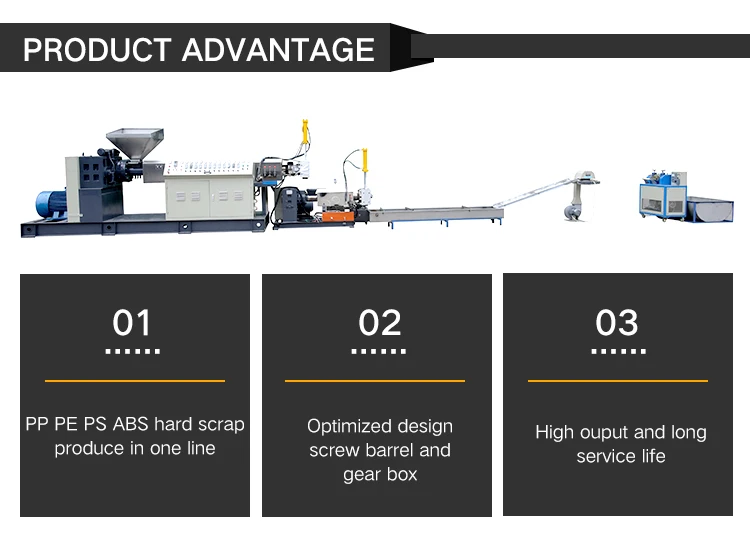

Advantages:

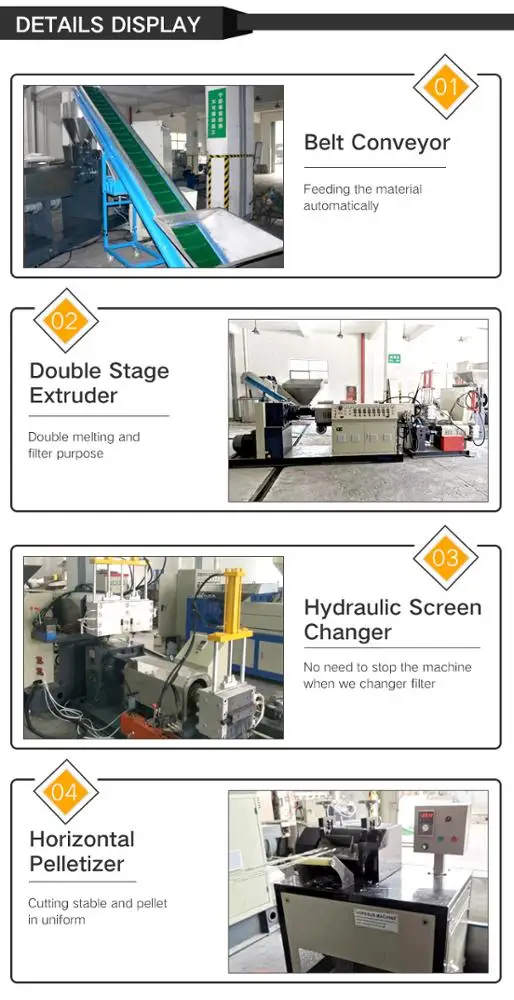

1. Equipped with the side feeding device to ensure high output.
2. Vent design on the barrel to evaporate the volatiles form the recycling material.
3. Hydraulic screen change unit for easy operation and safety.
4. The vertical centrifuge separates and dry the pellets faster.
5. High-efficient side-feeder ensures high capacity feeding, low energy consumption

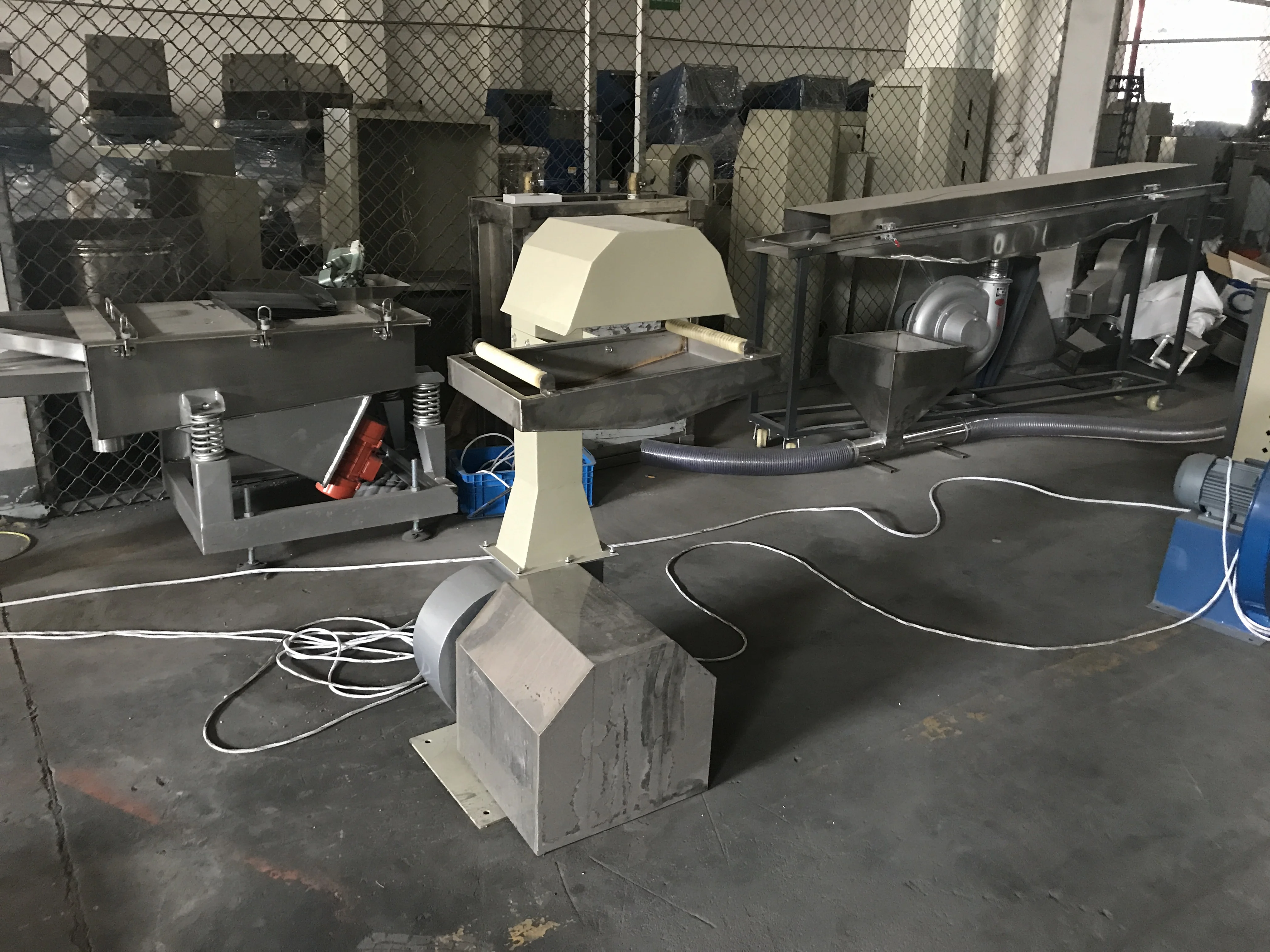

6. Plastic pelletizer style: water-ring cutting with extrusion die, noodle cutting type
Model | Long dia.ratio | Output(kg/h) | Power(kw) |
HPD-SJP-80-70 | 28:1 | 100-120 | 18.5 |
HPD-SJP-90-80 | 28:1 | 120-140 | 22-30 |
HPD-SJP-100-90 | 28:1 | 140-170 | 37-45 |
HPD-SJP-120-110 | 28:1 | 200-240 | 37-45 |
HPD-SJP-130-120 | 28:1 | 270-320 | 55-75 |
HPD-SJP-140-130 | 28:1 | 350-430 | 75-90 |
HPD-SJP-150-140 | 28:1 | 450-550 | 75-110 |
HPD-SJP-160-150 | 28:1 | 500-600 | 110-132 |
some machines video :
1. https://youtu.be/J3NaPy5E3Gc
2. https://youtu.be/4-ia8W4-UGg
3. https://youtu.be/ViyP9ZdSvmU
4. https://youtu.be/aXvgME_Y7Ls
5. https://youtu.be/nKb9iMj1LZg
Contact with us for more video and idear for different kinds of plastic pelletizing machine .
Mobile&whatsapp&wechat : 008615888181919
Item | Specification |
Screw and barrel | l made of high grade 38CrMoAIL l hardening& tempering hardness : HB270-300 l Nitrided hardness: HV850-1000 l Nitrided depth:0.45-0.7 mm l Screw straightness : 0.015 mm |
Gear box | l Gear made of 20CrMnTi l Hard teeth surface l Hardness : HRC54-62 l Bearing : ZHJ and DYZV l Sealing:TAIWAN TTO |
Motor | l Beautiful profile l High efficiency and energy saving (IE2 of IEC60034-30 and level 3 of GB18613-2012) l Class F VPI insulation l Low noise l Little vibration l Reliable performance l High lock rotor torque l Junction box equipped with glands |
Screen changer | l Option : Hydraulic , motor , manual etc l Filter material : 38CrMoAl nitrition treatment l Convenient and high efficient |
Electrical parts | l Option : chnt , siemens , schedule brand etc ; l Stable and high performance |
Pelletizer | l Horizontal or vertical pelletizer according to the use l Option : strand pelletizer , water ring , under water cutting ; l Rotary blade design and blade teeth made of tungsten steel l Stable and cutting in uniform |
