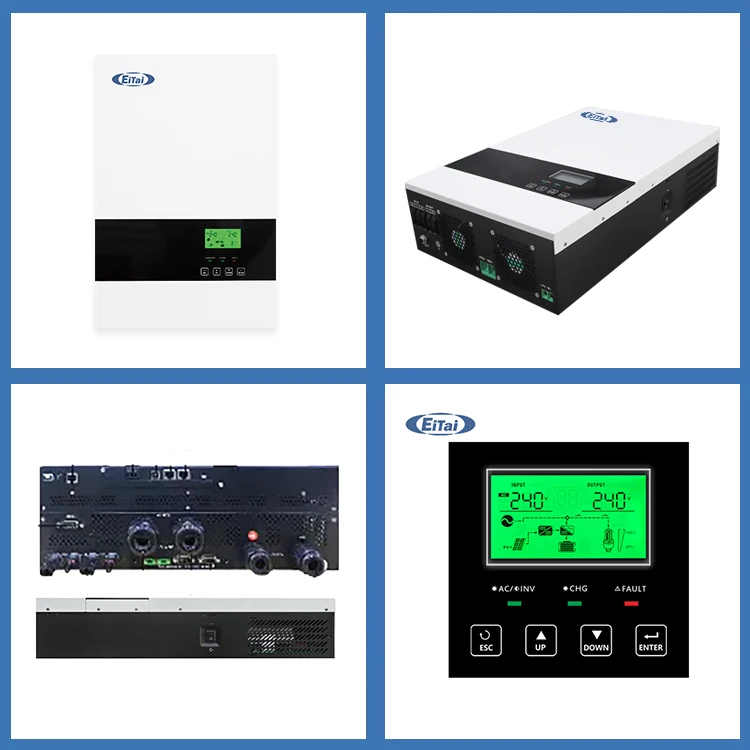

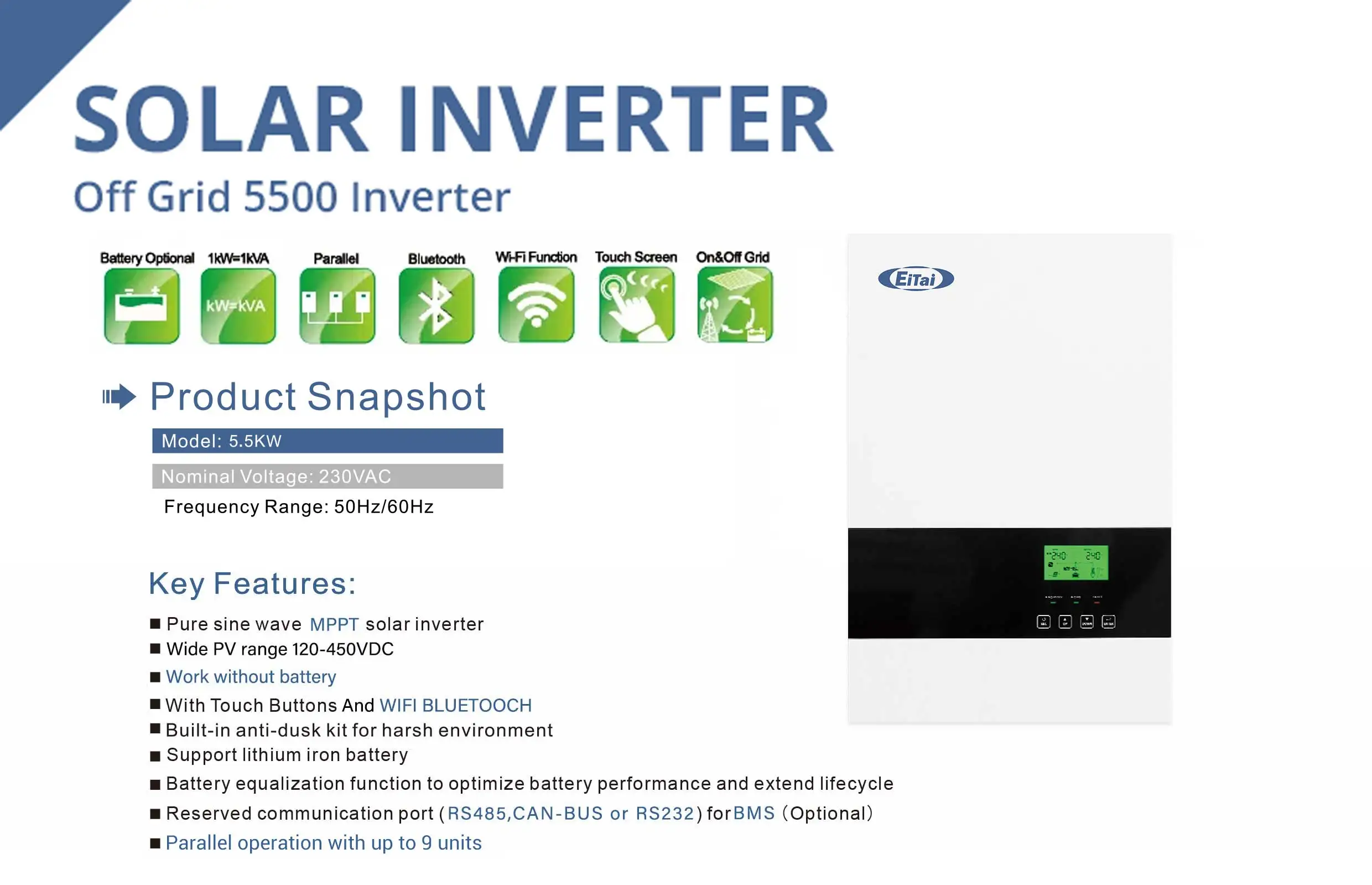

EITAI SPF 5000ES Off Grid Solar Inverter 10kw Invert Charger 5000W
- Category: >>>
- Supplier: Suzhou Goodmolds Optics Co. Ltd.
Share on (1600680910592):
Product Overview
Description
Product Description
MODEL | EITAI VM II Pro 5500-48 |
Rated Power | 5500VA/5500W |
INPUT | |
Voltage | 230VAC |
Selectable Voltage Range | 170-280VAC(For Personal Computers);90-280VAC(For Home Appliances) |
Frequency Range | 50Hz/60Hz(Auto Sensing) |
OUTPUT | |
AC Voltage Regulation（Batt.Mode） | 230vac±5% |
Surge Power | 11000VA |
Efficiency（Peak） | up to 93.5% |
Transfer Time | 10ms(For Personal Computers);20ms(For Home Appliances) |
Waveform | Pure Sine Wave |
BATTERY | |
battery Voltage | 48VDC |
floating charge voltage | 54VDC |
Overcharge Protection | 63VDC |
SOLAR CHARGE&AC CHARGE | |
Maximum PV Array Open Circuit Voltage | 500VDC |
Maximum PV Array Power | 5500W |
MPPT Range@Operating Voltage | 120-450VDC |
Maximum Solar Charge Current | 100A |
Maximum AC Charge Current | 80A |
Maximum Charge Current | 100A |
PHYSICAL | |
dimension，D x Wx H (mm) | 503*302*120 |
Net Weight(kgs) | 10.6 |

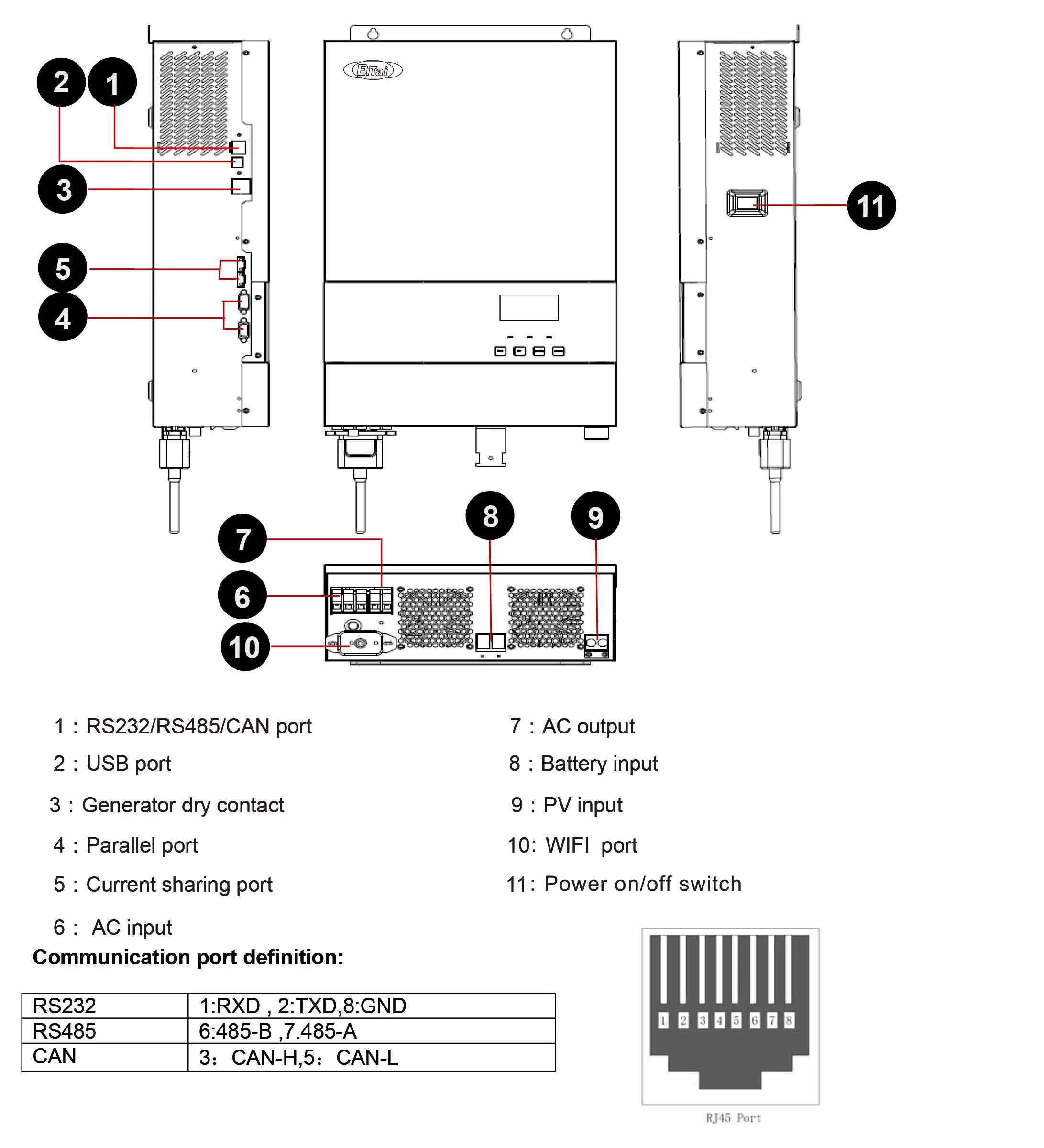

Communication Interface | USB/RS232 |
ENVIRONMENT | |
Humidity | 5% to 95% relative Humidity(non-condensing) |
Operating Temperature | -10°C to 50°C |
Storage Temperature | -15°C to 60°C |
Recommend Products

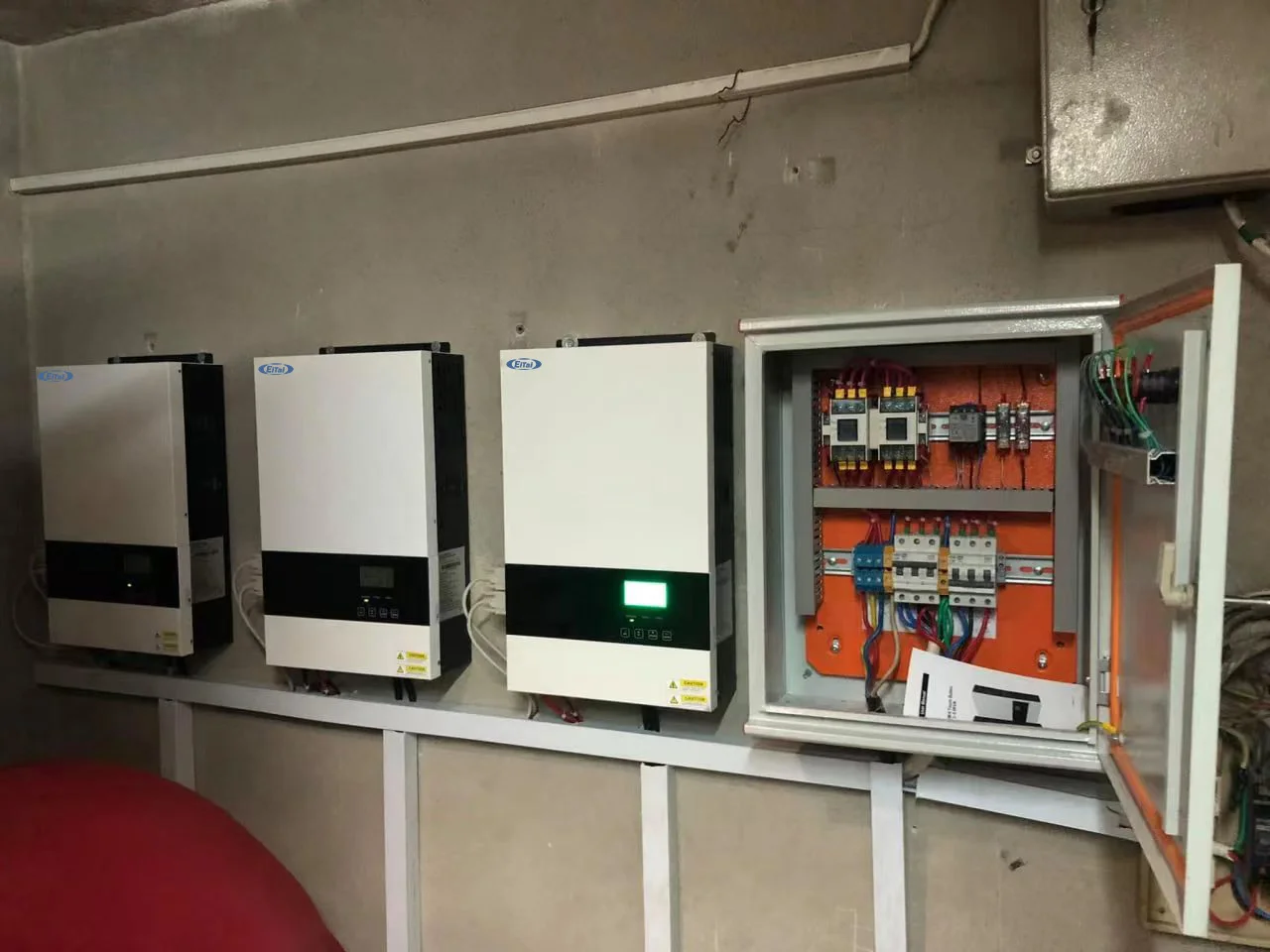

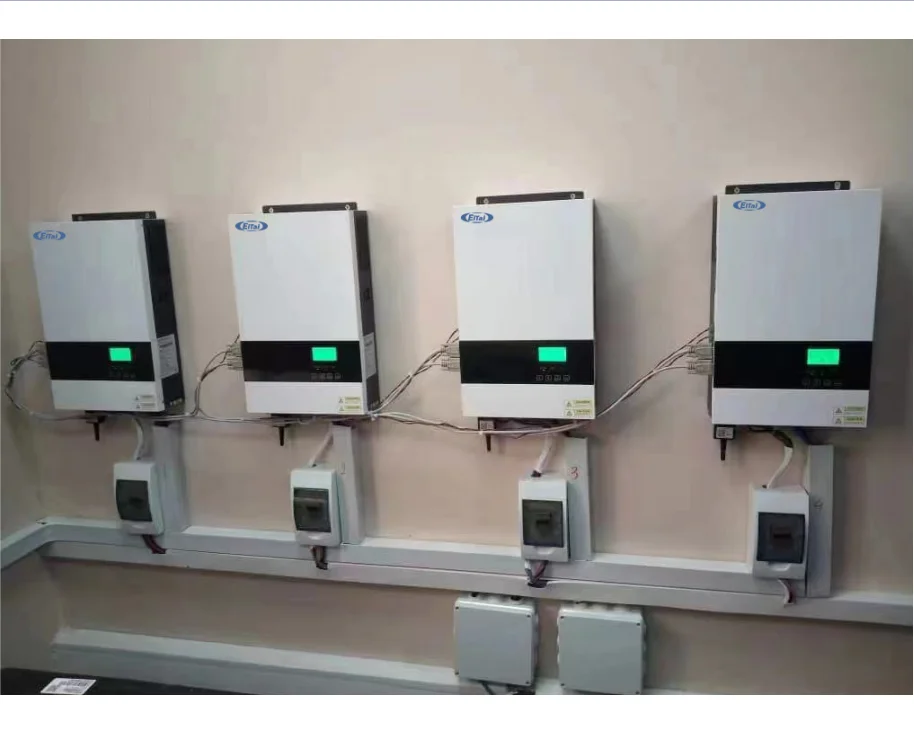

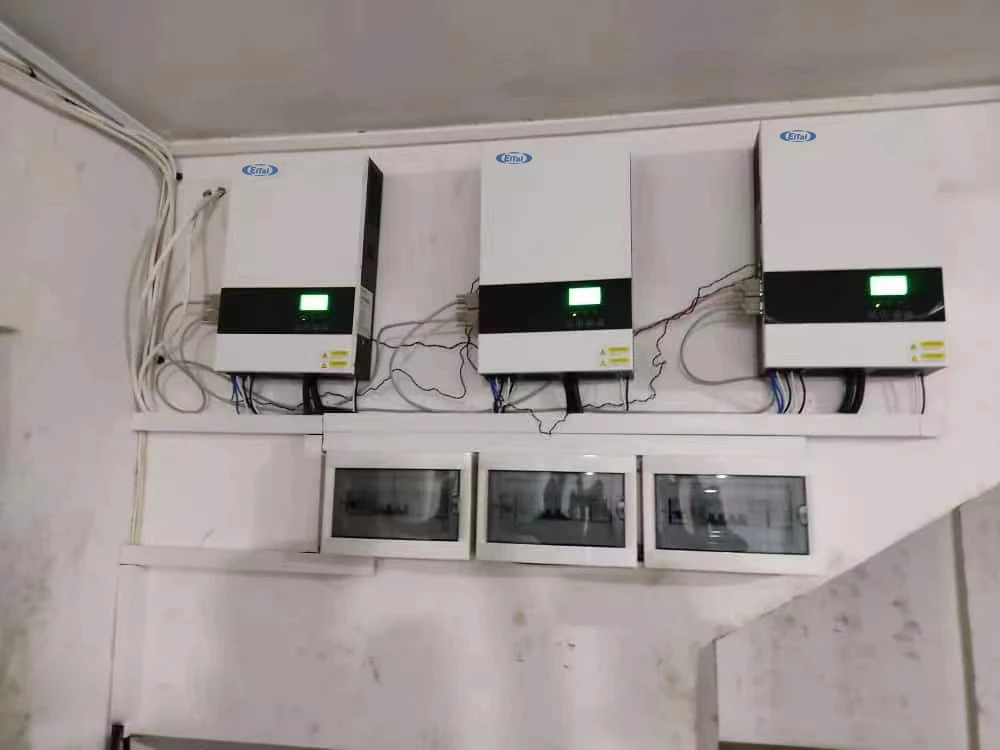

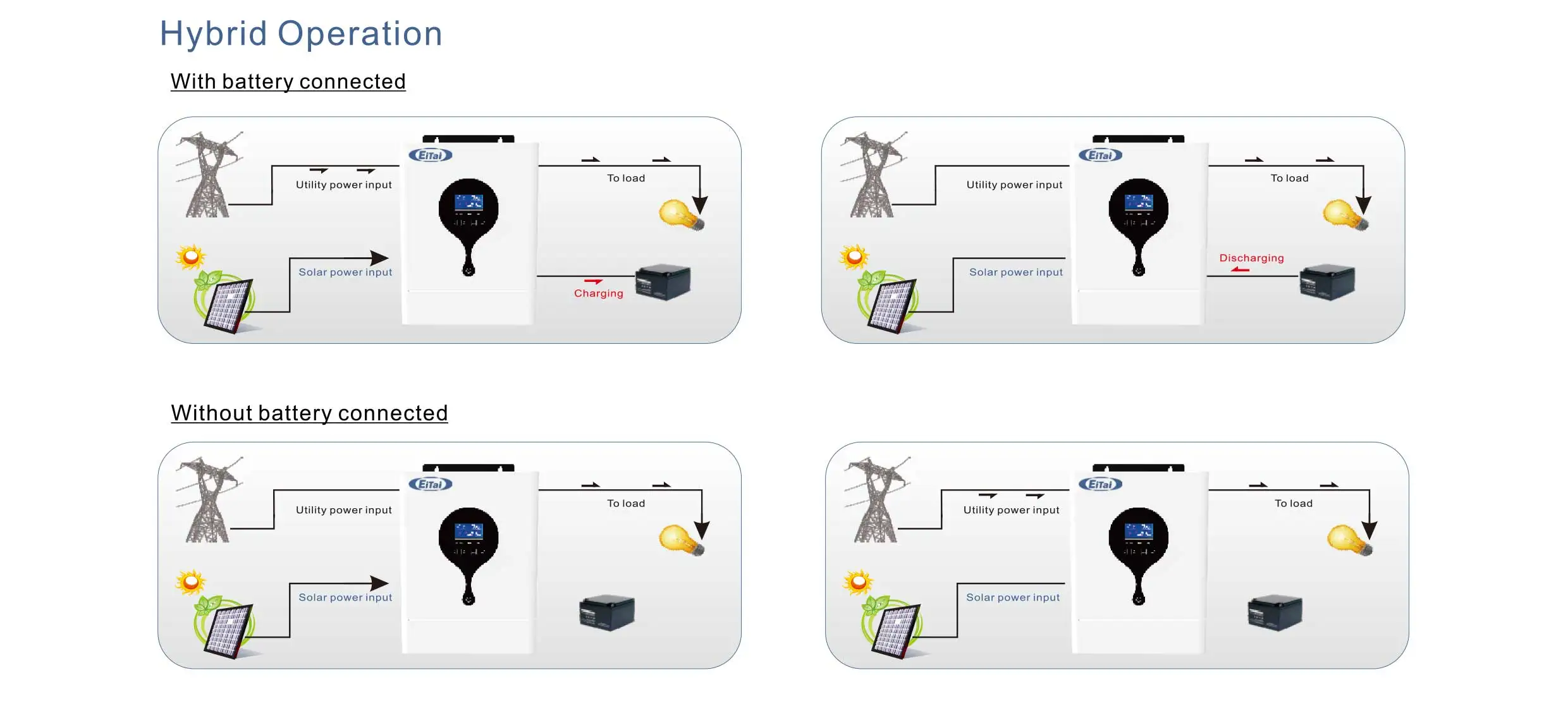

Application

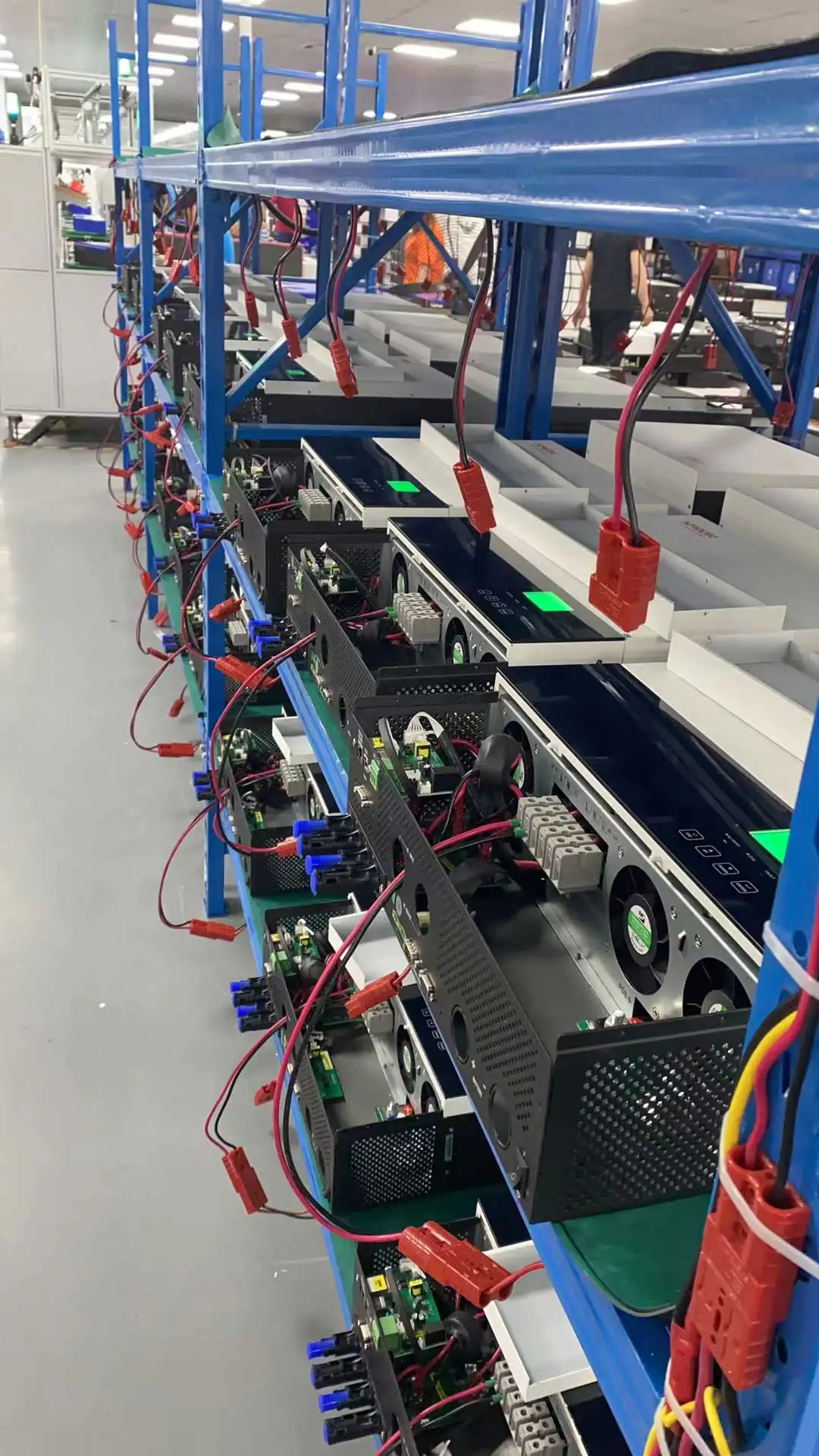

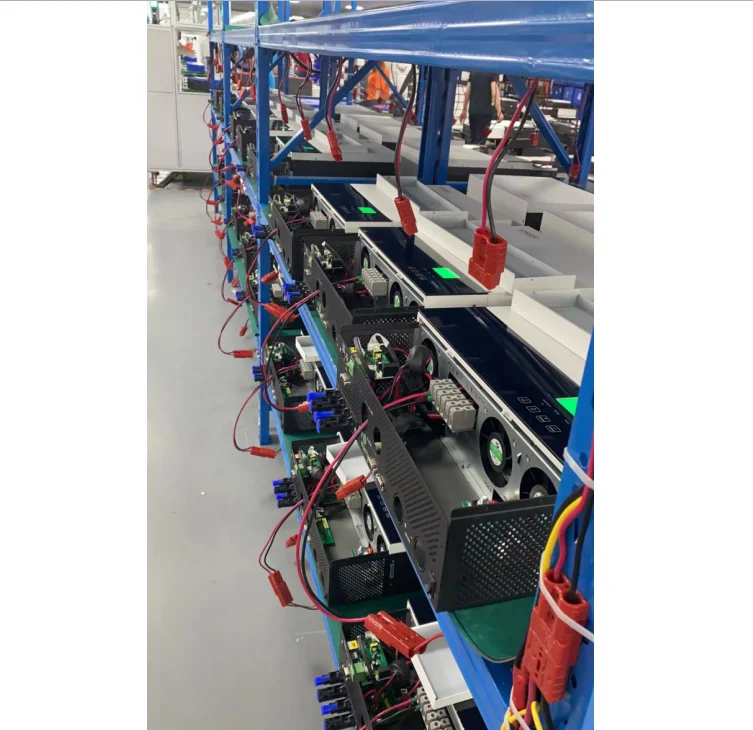

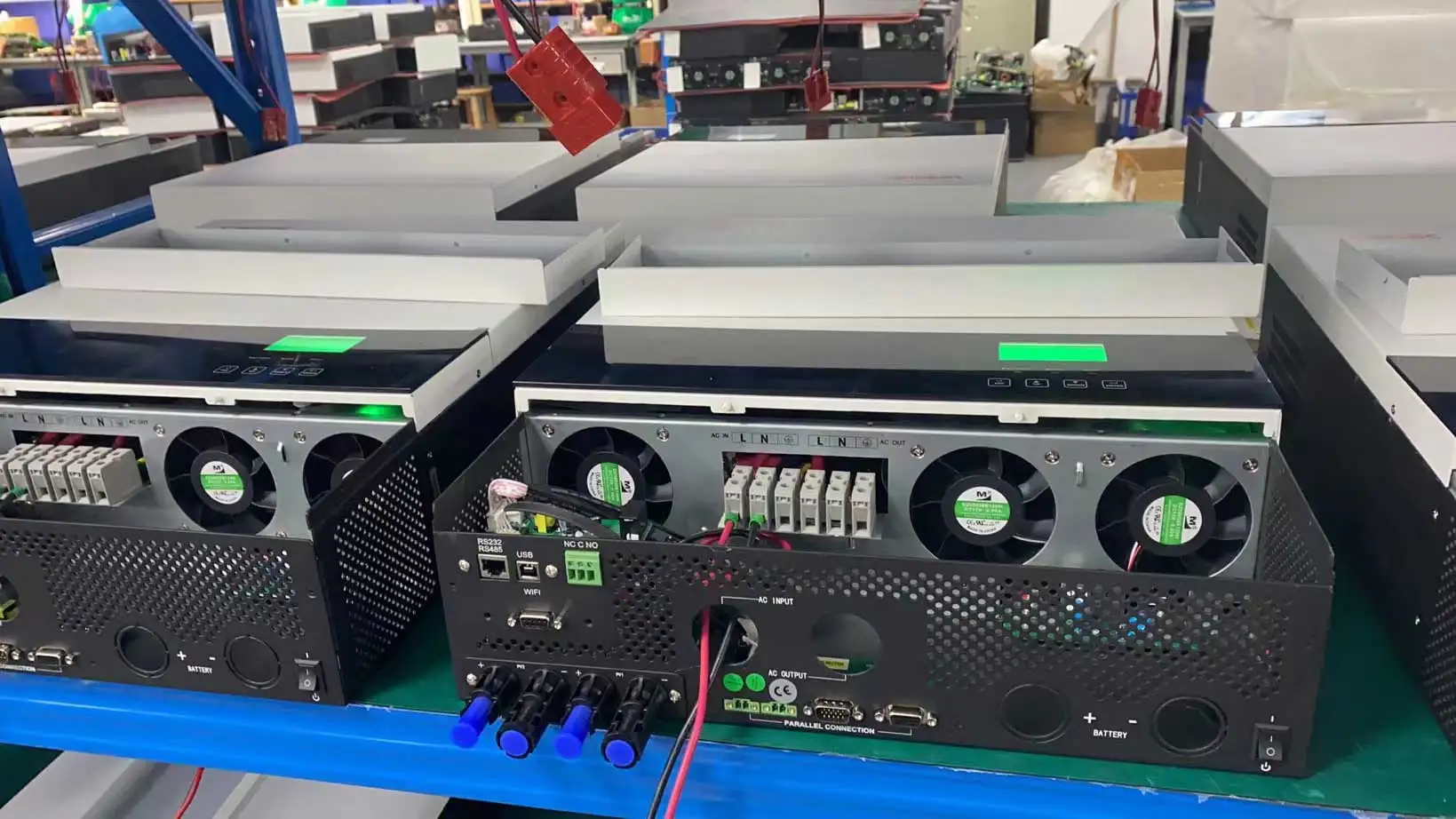

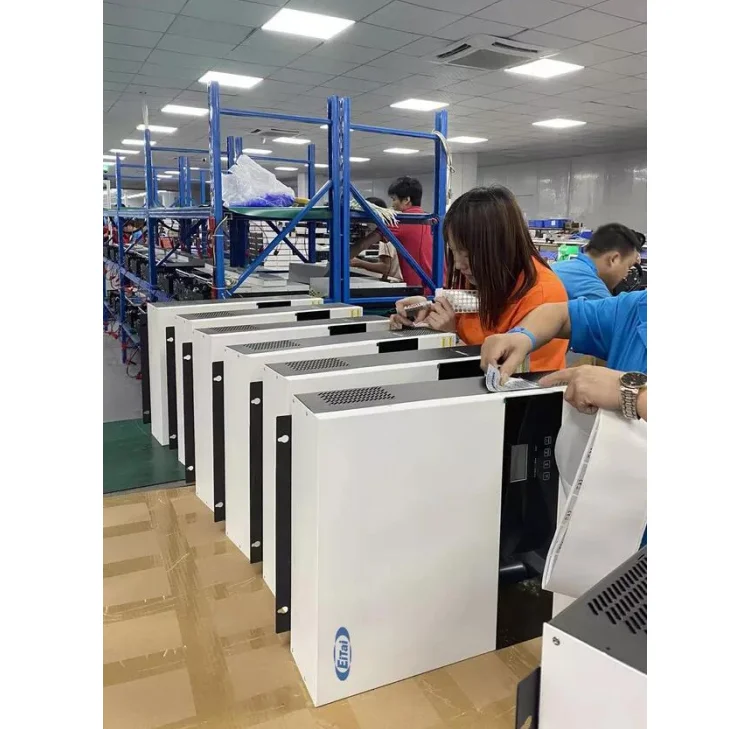

Production&Delivery&Payment
Company Profile
Eitai (XiaMen) Photovoltaic Technology Co., Ltd is a high-tech enterprise specialized in the field of new energy, especially in the product research & development, production, sales and service. Its Headquarters are located in Xiamen Special Economic Zone,and it also has branches in Japan. With support of a professional team, the company provides its clients with safe, reliable,stable and efficient solutions for the solar photovoltaic power station. It focuses on core businesses like automatic positioning piling machines, automatic solar module installation and cleaning equipment, PV mounting and related accessories, PV power plant construction business and so on.
