Kcd-11 rocker switch 15*10 mini on off rocker switch
US $0.03-$0.29
Wintai tech KCD5 t105/2 pin rocker switch rocker switch circuit breaker 2pin rocker switch
- Category: Rocker Switches >>>
- Supplier: Wenzhou,Wintai,Electronic,Technology,Co.,Ltd.
Share on:
Product Overview
Description

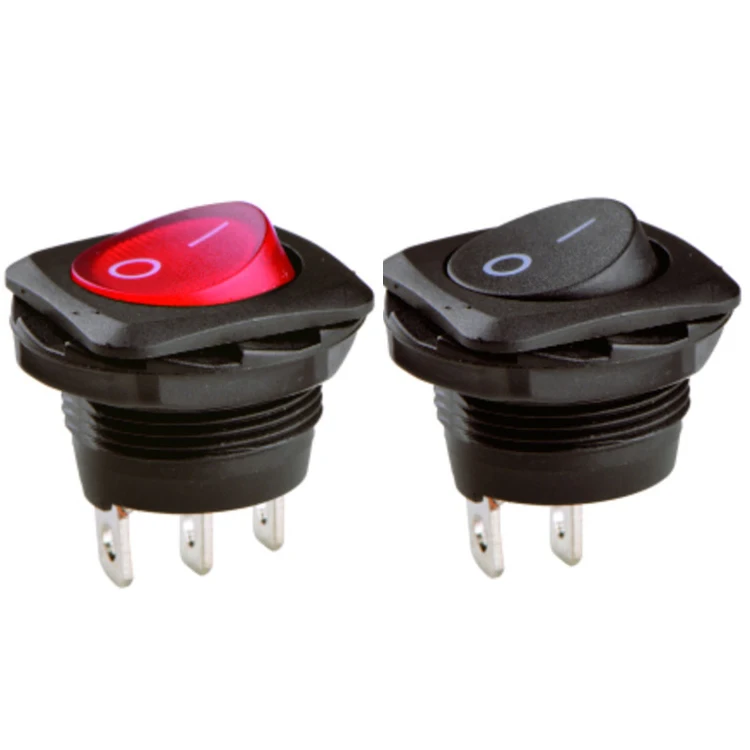

ø23mm 3pin Rocker Switch
The rocker switch, also known to some other manufactures as the boat switch. It's an on and off electrical switch that, when pressed, swings from side to side, raising one side and lowering the other. This shaking mechanism can connect or disconnect the circuit. Wintai Tech. rocker switch, including mini type, common and waterproof type, providing an extensive range for printed circuit board through-hole, surface mount and panel mount applications. It is designed to perform in a variety of applications,such as household appliances, computers, etc.
Product Paramenters
Product Name | Rocker Switch |
Current Rating | 10A 250VDC |
INSULATION RESISTANCE | 108 Ω min |
Operating Force | 250gf |
Operating Temperature | -25oC ～ +80oC |
Life Time | 10,000 Cycles |
Details Images
The circuits characteristics
PCB installation method
Products Description
Product Structure Description
Generally speaking, the rocker switch is composed of 8 parts, the details are as follows. (1) Operation button, is made of PA66 nylon (UL94V-2). (2) Sealing rubber, is made of silicone rubber. (3) Semi-elliptical spring, is made of stainless steel plated silver. (4-5) Internal case and lid, both are made of Polycarbonate. (6)Cover, is made of PA66 nylon(UL94V-2). (7).Contacts, are made of coin silver, silver plated. (8)Terminals，are made of copper, silver plated.
