Smart Micro Solar Panel Inverter 600w 230v Output With Wifi Lowest On Grid Inverter China Trade
- Category: Solar Energy Products >>>
- Supplier: Qingdao,Northern,Electric,And,Power,Co.,Ltd.
Share on:
Product Overview
Description

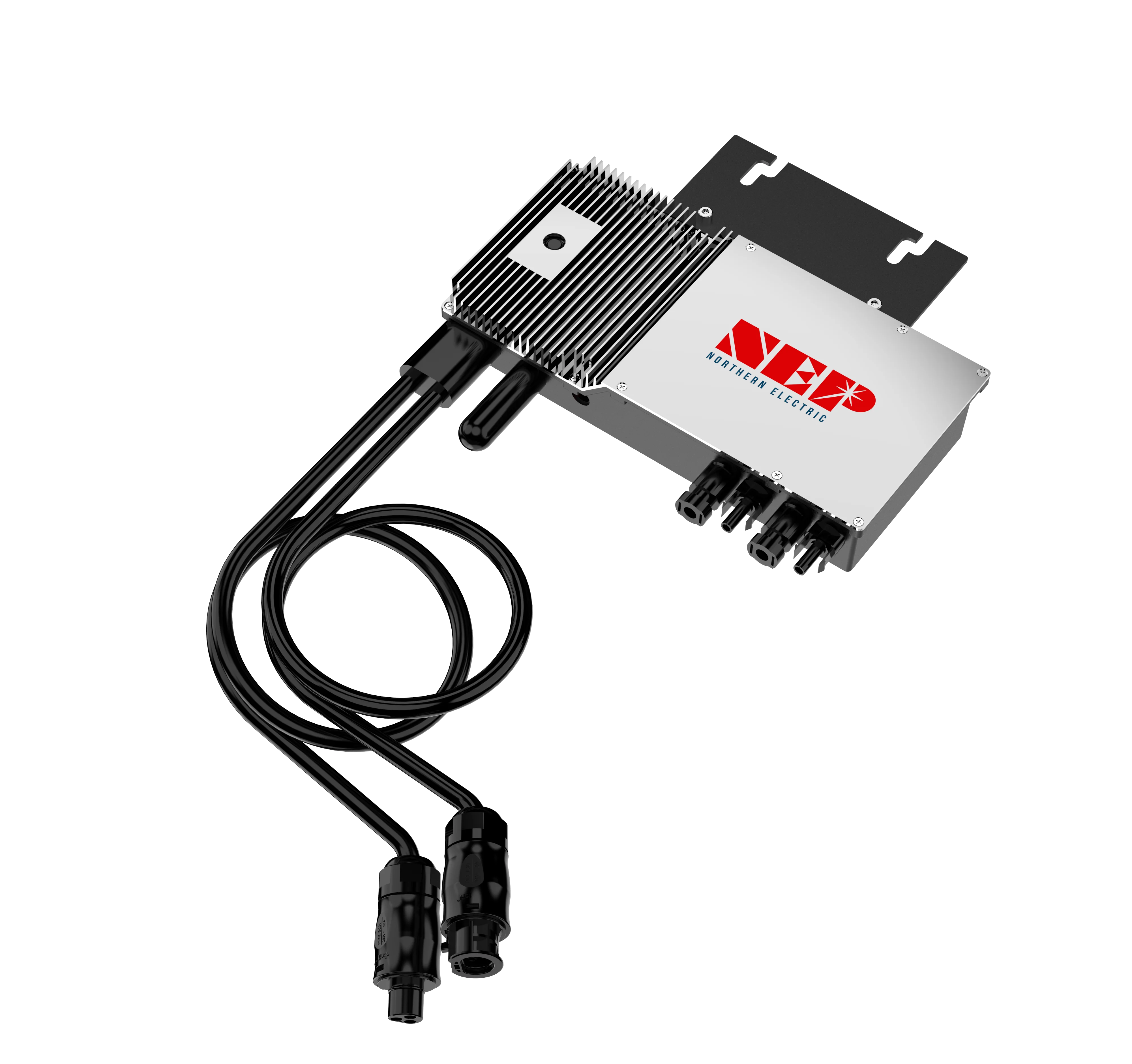

Product Description
Empfohlene max. photovoltaische Leistung (Wp) | 450*2 | |||||
Max. Leerlaufgleichspannung (Vdc) | 60 | |||||
Max. Eingangsgleichstrom (Adc) | 14*2 | |||||
MPPT-Tracking-Genauigkeit | >99.5% | |||||
MPPT-Tracking-Bereich (Vdc) | 22-55 | |||||
Isc PV (absolutes Maximum) (Adc | 18*2 | |||||
Maximale Stromnachspeisung vom Wechselrichter zur Solarzellengruppe (Adc) | 0 | |||||
AC-Ausgangsspitzenleistung (Wp) | 550 | |||||
AC-Ausgangsnennleistung (Wp) | 500 | |||||
Nominelle Energienetzspannung (Vac) | 240 | 208 | 230 | |||
Zulässige Energienetzspannung (Vac) | 211-264* | 183-229* | konfigurierbar* | |||
Zulässige Energienetzfrequenz (Hz) | 59,3 zu je 60,5* | konfigurierbar* | ||||
THD | < 3 % (bei Nennleistung) | |||||
Phasenwinkel (cos phi, fixiert) | > 0,99 (bei Nennleistung) | |||||
Ausgangsnennstrom (Aac) | 2,08 | 2,40 | 2,17 | |||
(Einschalt-)Strom (Spitze und Dauer) | 24A,15us | |||||
Nominelle Frequenz (Hz) | 60 | 50 | ||||
Maximaler Ausgangsfehlerstrom (Aac) 4,4 A Spitze | 4,4 A Spitze | |||||
Maximaler Ausgangsüberstromsschutz (Aac) | 10 | |||||
Maximale Anzahl an Einheiten pro Verzweigung (20 A) (sämtliche NEC-Anpassungsfaktoren wurde berücksichtigt) | 7 | 6 | 6 | |||
Gewichtete Durchschnittseffizienz (CEC) | 95.50% | |||||
Ausgleichsverlust in der Nacht (Wp) | 0.11 | |||||
Über-/Unterspannungsschutz | Ja | |||||
Über-/Unterfrequenzschutz | Ja | |||||
Anti-Inselbildungsschutz | Ja | |||||
Überstromschutz | Ja | |||||
Schutz vor umgekehrter DC-Polarität | Ja | |||||
Überlastschutz | Ja | |||||
Schutzart | NEMA-6 / IP-66 / IP-67 | |||||
Umgebungstemperatur | -40 °F bis +149 °F (-40 °C bis +65 °C) | |||||
Betriebstemperatur | -40 °F bis +185 °F (-40 °C bis +85 °C) | |||||
Anzeige | LED-LAMPE | |||||
Kommunikation | Powerline | |||||
Abmessungen (B x H x T) | 10,91 Zoll x 5,20 Zoll x 1,97 Zoll (277 mm x 132 mm x 50 mm) | |||||
Gewicht | 6,4 lbs. (2,9 kg) | |||||
Umweltkategorie | Indoor and Outdoor | |||||
Feuchter Standort Geeignet | Innen- und Außenbereiche | |||||
Verschmutzungsgrad | Verschmutzungsgrad 3 | |||||
Überspannungskategorie | II (Solarstrom), III (Netzstrom) | |||||
Übereinstimmung mit Produktsicherheit | UL 1741 CSA C22.2 Nr. 107.1 | IEC/EN 62109-1 IEC/EN 62109-2 | ||||
Übereinstimmung mit Netz- und Systemregeln* (siehe Typenschild für Details zur Übereinstimmung mit diesen Regeln) | IEEE 1547 | VDE-AR-N 4105* VDE V 0126-1-1/A1 G83/2, CEI 021 AS 4777.2 & AS 4777.3,EN50438 | ||||
Products Category
Company Profile
Why Choose Us
Certifications
Exhibition and Cooperation
Packaging&Transportation
FAQ
What are the advantages of microinverter compared to conventional inverters?
1. Compared with the traditional inverter, the micro-inverter is directly attached to the back of the component board, which not
only has a strong sense of technology, but also saves household space.
2. The micro-inverter system is all designed in parallel. The high-voltage direct current brought by the series system is no
longer on the roof, which avoids the fire risk caused by high-voltage DC arc spark and is safer on the roof of the home.
3. The parallel circuit design of the micro-inverter AC system, the shadow, dust and leaves partially block the panel, no longer
have the short board effect, eliminating the mismatch problem caused by the different orientation and angle of the component,
greatly improving the power generation. The amount can generate 5%~25% of the total power generation, which is very suitable for
the application of household photovoltaics such as urban villas and new rural areas.
4. The micro inverter also has a communication function, which can be used in conjunction with the ECU monitoring system to
realize real-time monitoring of parameters such as power generation (voltage and current frequency) and equipment temperature of
each solar panel. This information is transmitted through PLC communication technology. Access to the Internet to reach the global
server, so that users can instantly see the power generation of each solar panel in any place with network signals.
5. NEP' micro-reverse parallel design features make each solar panel operate independently, and also provide great flexibility for
disassembly, modification and expansion of balcony space and roof renovation.
only has a strong sense of technology, but also saves household space.
2. The micro-inverter system is all designed in parallel. The high-voltage direct current brought by the series system is no
longer on the roof, which avoids the fire risk caused by high-voltage DC arc spark and is safer on the roof of the home.
3. The parallel circuit design of the micro-inverter AC system, the shadow, dust and leaves partially block the panel, no longer
have the short board effect, eliminating the mismatch problem caused by the different orientation and angle of the component,
greatly improving the power generation. The amount can generate 5%~25% of the total power generation, which is very suitable for
the application of household photovoltaics such as urban villas and new rural areas.
4. The micro inverter also has a communication function, which can be used in conjunction with the ECU monitoring system to
realize real-time monitoring of parameters such as power generation (voltage and current frequency) and equipment temperature of
each solar panel. This information is transmitted through PLC communication technology. Access to the Internet to reach the global
server, so that users can instantly see the power generation of each solar panel in any place with network signals.
5. NEP' micro-reverse parallel design features make each solar panel operate independently, and also provide great flexibility for
disassembly, modification and expansion of balcony space and roof renovation.
How does the grid tied micro inverter system work?
A solar micro-inverter is a device used in photovoltaics that converts direct current (DC) generated by a single solar module to
alternating current (AC). Microinverters contrast with conventional string and central solar inverters, which are connected to
multiple solar modules or panels of the PV system.
Microinverters have several advantages over conventional inverters.
1.Small amounts of shading, debris or snow lines on any one solar module, or even a complete module failure, do not
disproportionately reduce the output of the entire array.
2.Each microinverter harvests optimum power by performing maximum power point tracking for its connected module.
3.Simplicity in system design, lower amperage wires, simplified stock management, and added safety are other factors introduced
with the microinverter solution.
alternating current (AC). Microinverters contrast with conventional string and central solar inverters, which are connected to
multiple solar modules or panels of the PV system.
Microinverters have several advantages over conventional inverters.
1.Small amounts of shading, debris or snow lines on any one solar module, or even a complete module failure, do not
disproportionately reduce the output of the entire array.
2.Each microinverter harvests optimum power by performing maximum power point tracking for its connected module.
3.Simplicity in system design, lower amperage wires, simplified stock management, and added safety are other factors introduced
with the microinverter solution.
What conditions do i need to meet my roof when installing a solar power system?
After the relevant materials are prepared, the owner submits an application for access to the local customer service center of the
State Grid Corporation. After approval, the grid company will install smart meters, sign the electricity sales contract and
dispatch agreement, complete the grid connection acceptance and commissioning, and finally Realize grid-connected power
generation. This series of processes NEP can help you complete the process, saving you peace of mind and time.
State Grid Corporation. After approval, the grid company will install smart meters, sign the electricity sales contract and
dispatch agreement, complete the grid connection acceptance and commissioning, and finally Realize grid-connected power
generation. This series of processes NEP can help you complete the process, saving you peace of mind and time.
What does this warranty lasting time?
This Warranty Period lasts for 25 years from the date of purchase at the point of sale to you, the original end user customer,
unless otherwise agreed in writing.
unless otherwise agreed in writing.
