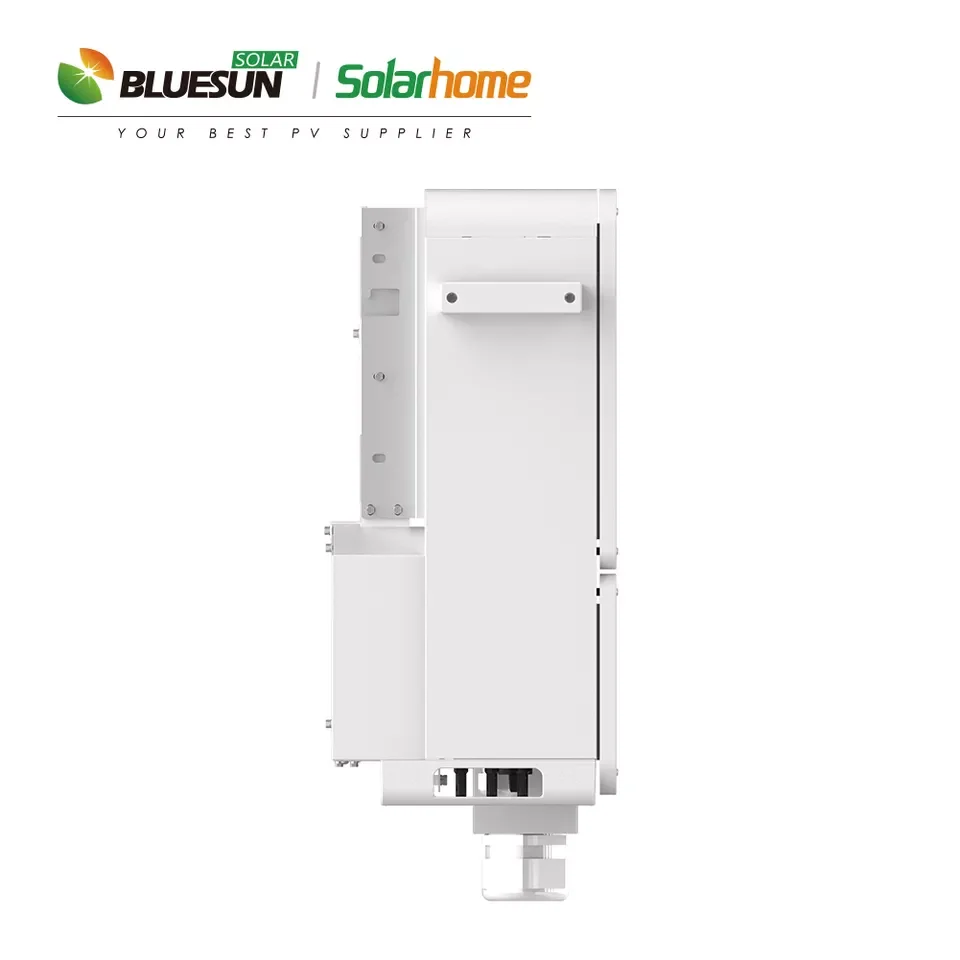

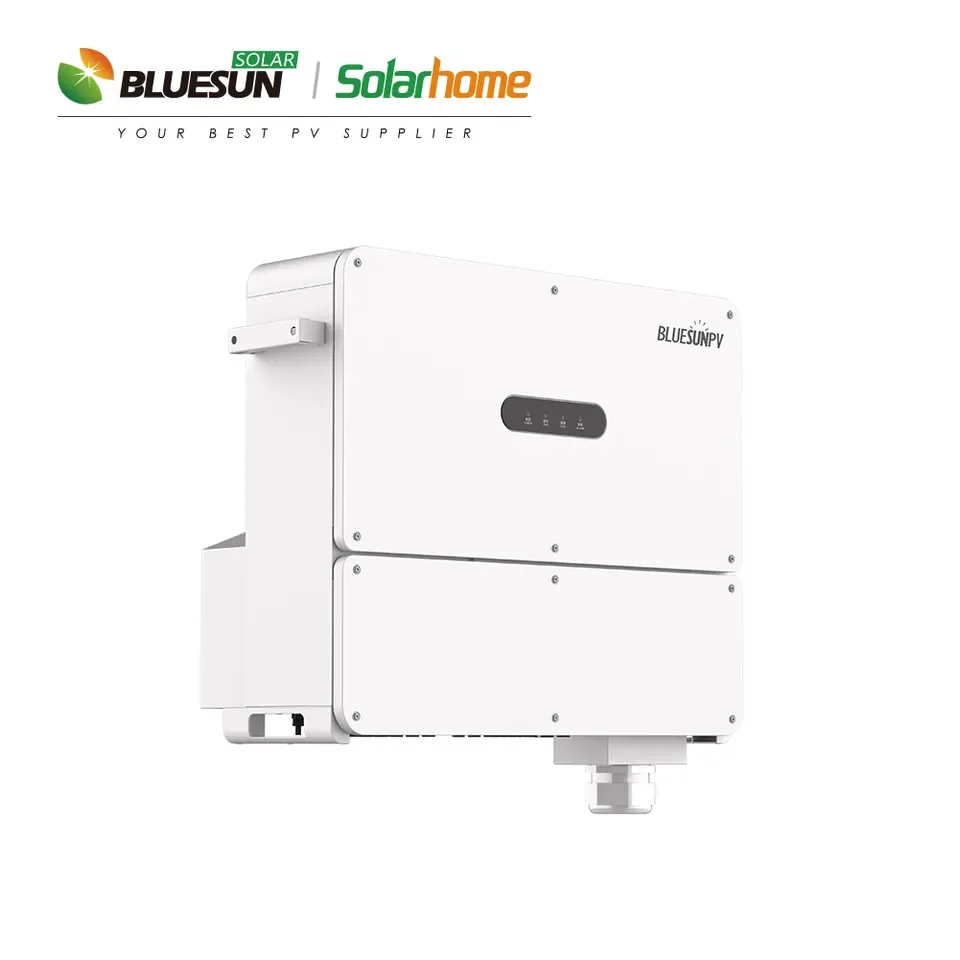

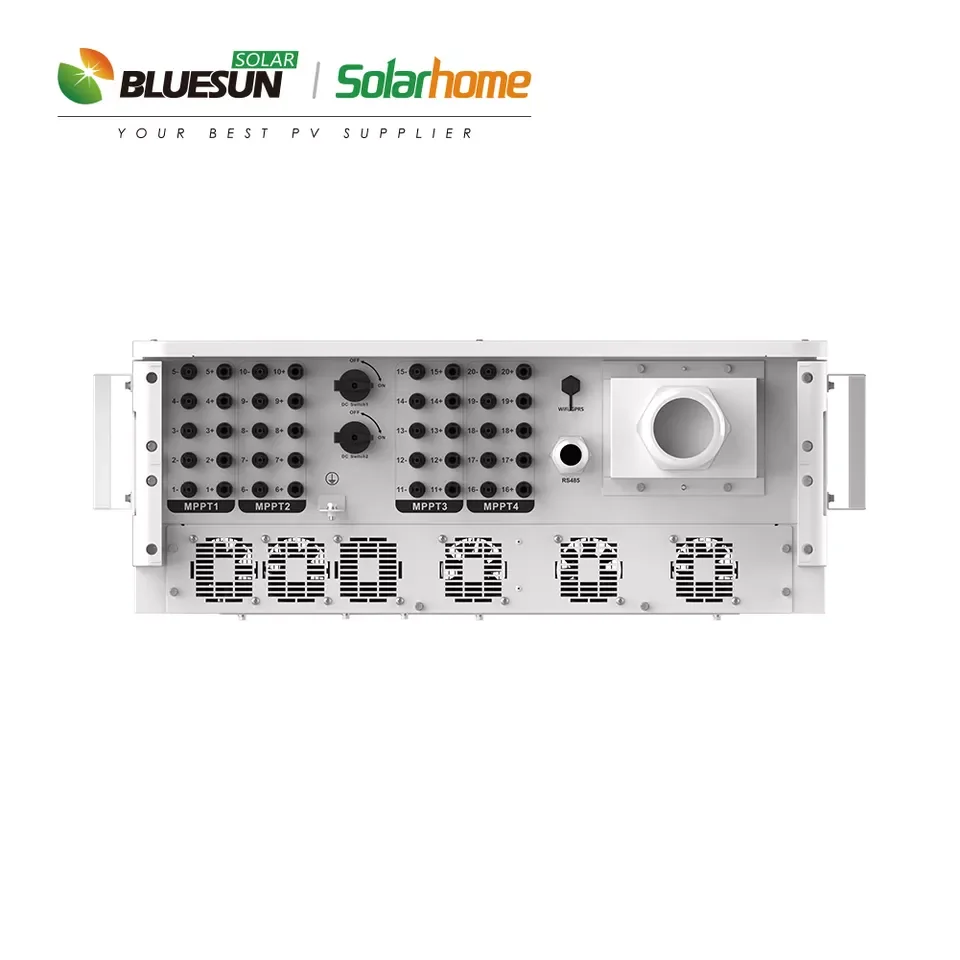

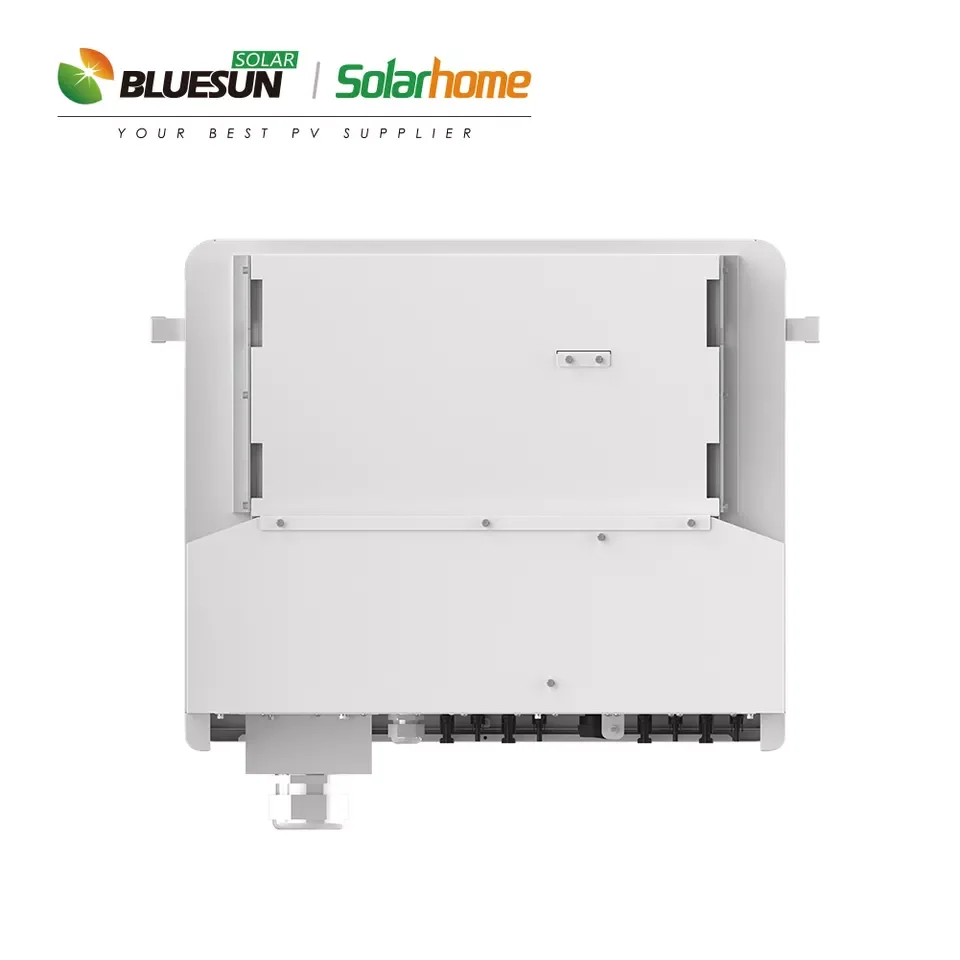

50KW MPPT dc to ac converter on grid solar inverter Promotion Price For Sale
- Category: >>>
- Supplier: Bluesun Solar Parts Co. Ltd.
Share on (1600681899400):
Product Overview
Description
Product Description
Features
Max DC voltage 1100v, max power 40/50/60/100/110kw
*High Efficiency
Max efficiency 99.01%
*High Reliability

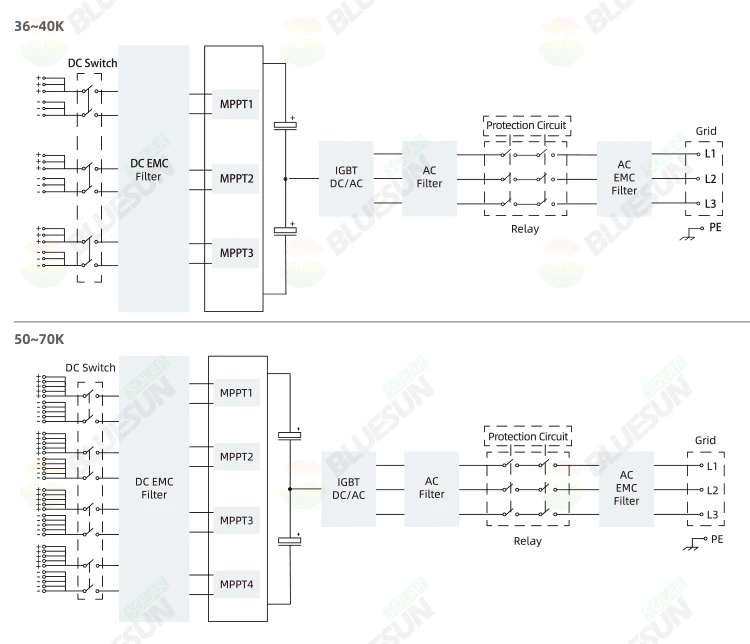

Double channels MPPT
*Compact Structure
Easy for installation and maintenance
*High Efficiency
Max efficiency 99.01%
*High Reliability
Double channels MPPT
*Compact Structure
Easy for installation and maintenance

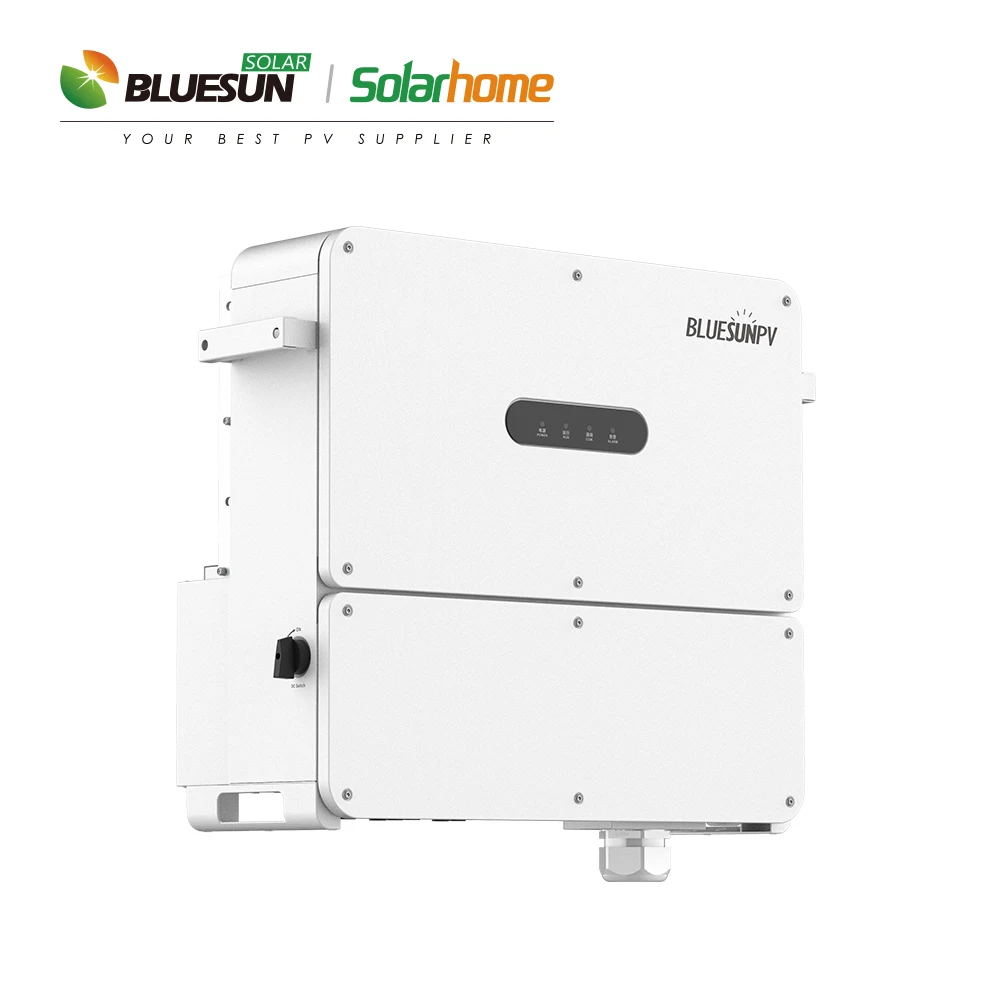

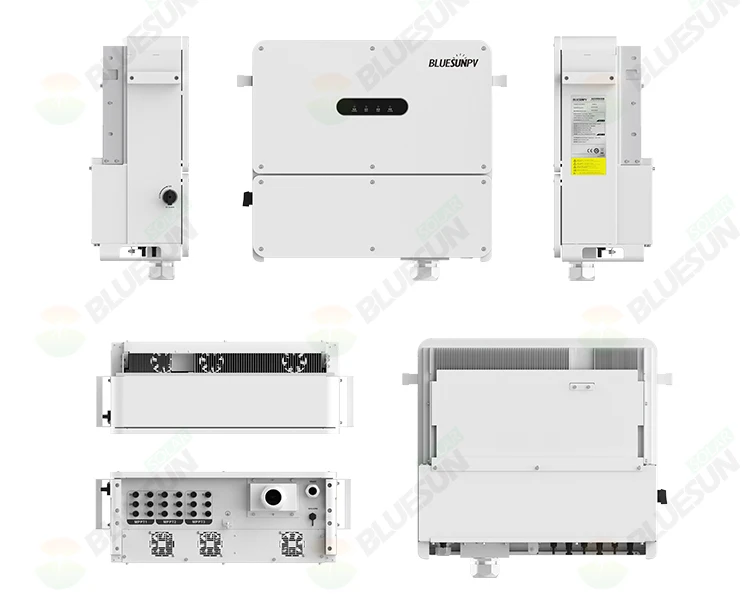

Detailed Images
Product Parameters

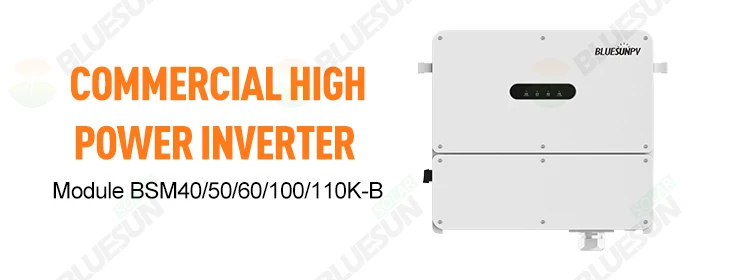

Model | BSM40K -B | BSM50K-B | BSM60K-B | BSM100K-B | BSM110K -B | |||||||
DC Input | Max. DC Voltage | 1100V | ||||||||||
Starting Voltage | 250V | |||||||||||
MPPT Voltage Range | 250V ~ 1000V | |||||||||||
MPPT Range Full Load | 540V-880V | |||||||||||
Max Current / MPPT | 26A/39A | 39A | 65A | |||||||||
Number of DC Inputs | 8 | 9 | 12 | 18 | 20 | |||||||
MPPT Number | 3 | 4 | ||||||||||
AC Output | Rated Output Power | 40KW | 50KW | 60KW | 100KW | 110KW | ||||||
Max. Active Power | 44KW | 55KW | 66KW | 110KW | 121KW | |||||||
Rated Output Voltage | 400V (Three Phase) | |||||||||||
AC Voltage Range | 400V±20% | |||||||||||
Rated Output Current | 57.7A | 72.2A | 86.5A | 144A | 158.8A | |||||||
Max. Output Current | 63.5A | 79.4A | 95.3 A | 158.8A | 174.7A | |||||||
Rated Grid Frequency | 50 Hz/60Hz | |||||||||||
Powr Factor | 0.8 (Leading) -0.8 (Lagging) | |||||||||||
THD | <3% | |||||||||||
System Parameters | Max. Efficiency | 98.95% | 99.03% | 98.85% | 99.01% | 99.01% | ||||||
European Efficiency | 98.45% | 98.51% | 98.52% | 98.52% | ||||||||
Cooling System | Smart Air Cooling | |||||||||||
Operating Temperature | -40°C~+60°C | |||||||||||
Protection Level | IP65 | |||||||||||
Standby Power Consumption | <1W | <5W | ||||||||||
Topology Structure | Transformerless | |||||||||||
Operating Altitude | 5000m (Derating above 4000m) | |||||||||||
Display | LED+APP | |||||||||||
Communication | RS485/ WiFi / GPRS | |||||||||||
AC Terminator | OT/DT(MAX 50m㎡) | OT/DT (MAX 95m㎡) | OT/DT(MAX300m㎡) | |||||||||
Certification | IEC62109 / IEC61000 / IEC62116 /IEC61727 / EN50S49 / CQC / CGC | |||||||||||

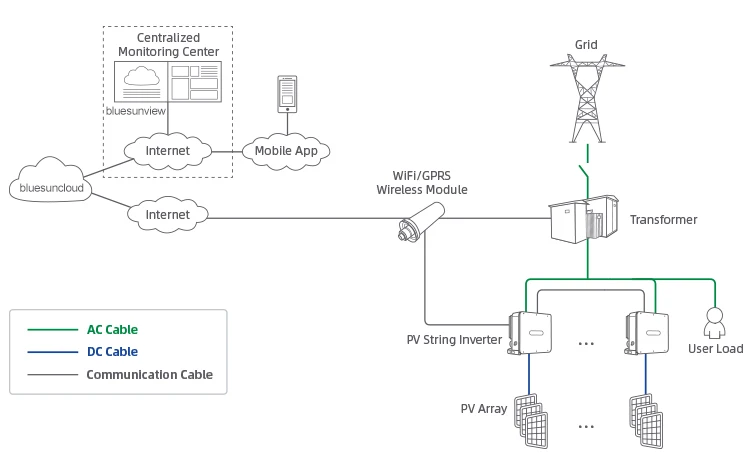

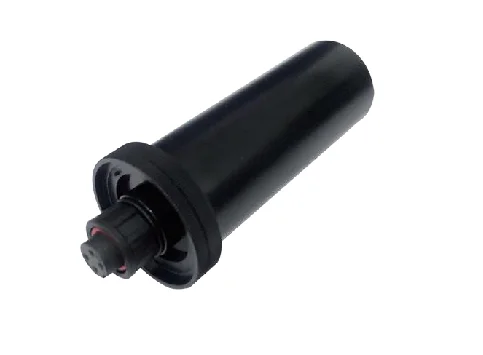

Monitoring Equipment
High precision& intelligent detection
2. Cooperation with cloud platform and can check the inverter status
Certification

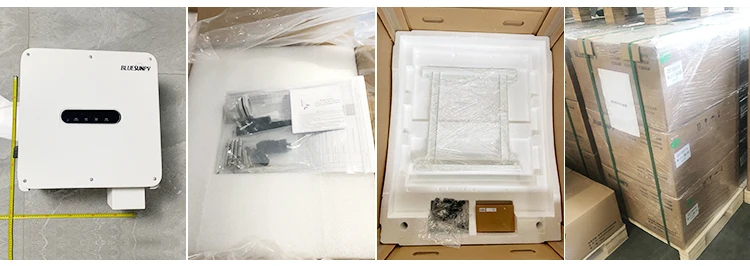

Packing & Delivery

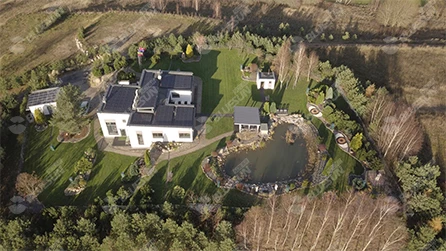

Global Projects
12MW Dalian Roof-top PV project in China
Ukraine 15MW solar plant
CNNC 2.8MW PV project in Weihai, China
Roof-top PV project in Anhui Province, China
String photovoltaic project in Shandong Province, China
50 KW String inverter project in China
China 500 KW solar project
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
We welcome use Trade Assurance, you'll enjoy:
We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
Contact US
Please feel free to contact me if you have any needs.
Online 24 hours!
