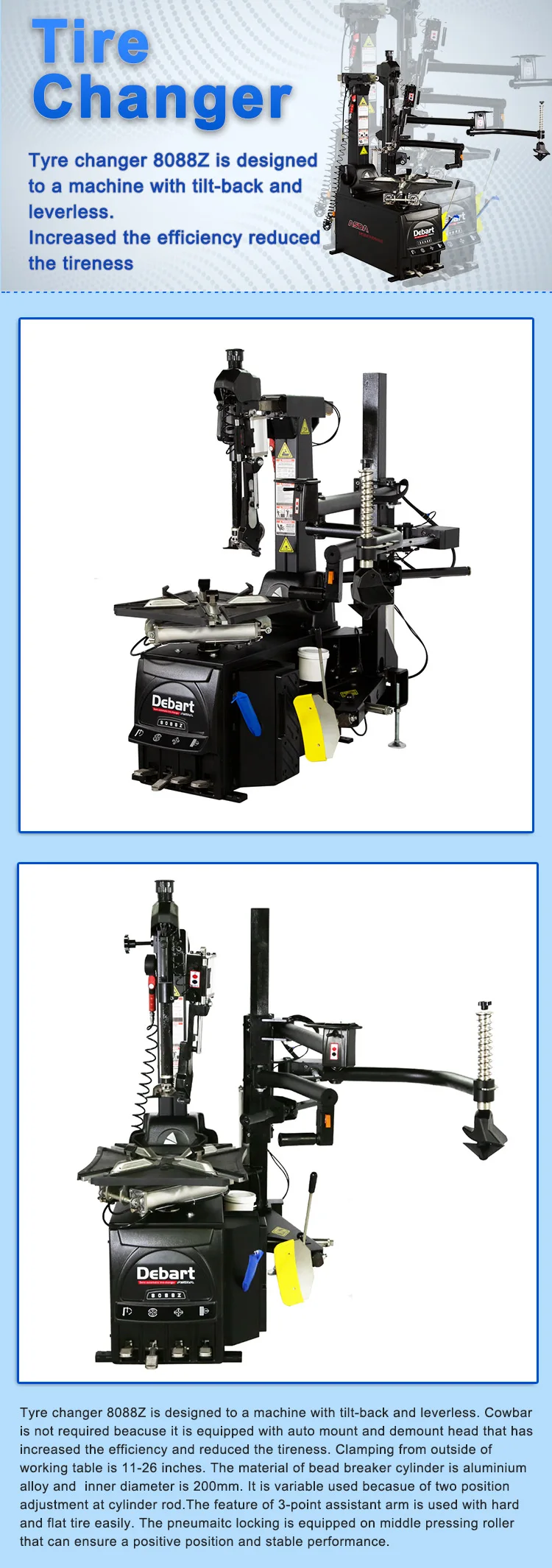

Factory price europe leverless tilt back car tire changer for sale
- Category: Tire Changers >>>
- Supplier: Yingkou Aisida Auto Maintenance Equipment Co. Ltd.
Share on (1600681928006):
Product Overview
Description
Product Description
Power supply voltage | 110v, 220v 50/60 hz, 1 ph 380v 50/60 hz 3 ph |
Electric motor | 1.1 kw / 0.75 kw |
Working pressure | 116psi-145psi (8bar-10bar) |
Tire shovel force | Pneumatic 5500 lb (2500kg 8bar) (3140kg 10bar) |
Type of driving system | Electric and pneumatic |
Working plate power | Double cylinder |
Tire shovel system | The spatula is retractable and adjustable |
Clamp the outer edge | 11" -24 "(276 mm -- 630 mm) |
Clamp the inner edge | 13" - 26" (326 mm - 680 mm ) |
Highest wheel width | 14" (350 mm ) |
Highest wheel diameter | 51" (1250 mm ) |
Rotary torque of the turntable | 885 ft/lbs |
Power cable length | 81.6" (2000 mm) |
Revolution of table | 7rpm |
Rotary tire width capacity (mounting) | 3" - 15" (80 mm - 385 mm ) |
Tire shovel tire width capacity (removed) | 1 1/2" - 14" (40 mm - 350 mm ) |
Level of noise | < 70 dB |
Size of product | L 91.02" x W 75.92" x H 88.36" (2230 mm x 1860 mm x 2165 mm) |
Product package weight | 435 kg |
Product package size | 1270 mm x 1100 mm x 1820 mm |
