Greenhouse hot water air heater heating unit ceiling mounted heater for farm
SINOGREEN heating units are the best heating and air units for your wall heat pump or boilers. In order to calculate your requirements, whole heating solution exactly and the heating unit cost, SINOGREEN consultant team is at your disposal.
Taken by client from Uzbekistan in 2017.
SinoGreen Greenhouse Hot Water Unit Heaters & Cooling systems.
Taken by client from Italy in 2019.
SinoGreen Greenhouse Hot Water Unit Heaters & Air Circulation Fans.
Specification
Type | SGST(60)-400 | SGST(72)-400 | SGST(96)-450 | SGST(136)-500 |
Power (w) | 150 | 190 | 260 | 460 |
Voltage (v) | 220/380 | 220/380 | 220/380 | 220/380 |
Rotational Speed (r/min) | 1400 | 1380 | 1380 | 1380 |
Airflow (m³/h) | 3000 | 3500 | 4500 | 5500 |
Outlet Wind Speed | 5.7 | 6.5 | 6.9 | 6.9 |
Inlet Wind Temp. ℃ | 15 | 15 | 15 | 15 |
Outlet Wind Temp. ℃ | 50 | 50 | 50 | 50 |
Heating Capacity (kw) | 23.5 | 28.6 | 36.5 | 47.5 |
Water Consumption (L/h) | 1000 | 1300 | 1400 | 1600 |
Water Speed (m/s) | 0.49 | 0.58 | 0.44 | 0.31 |
Refrigerating Capacity | 14.1 | 17.1 | 21.9 | 28.5 |
Noise (db) | 60 | 65 | 70 | 75 |
Remarks:
1. All the electric parameter can be customized, like 110V-1P-60HZ, 240V-1P-50HZ, 480V-3P-60HZ, etc.
2. UL motor is available for USA and Canada market.
3. NPT standard thread, hanging installation etc. can be customized.
SinoGreen hot water air unit heater access to China's national patents. ( NO. ZL201620012243.I )
Horizontal Unit Heaters are ideal for hot water installations. A wide range of outputs and airflows allows virtually unlimited
flexibility in job design.
flexibility in job design.
High Protection Grade and Long Service Life
√ Stainless steel screws
√ Blades adjusted by dynamic balance
√ Water proof gel caps
√ Protective screening
√ Exclusive hot-dip galvanizing water chamber
√ Rubber legs
√ Blades adjusted by dynamic balance
√ Water proof gel caps
√ Protective screening
√ Exclusive hot-dip galvanizing water chamber
√ Rubber legs
High Efficiency of Heating

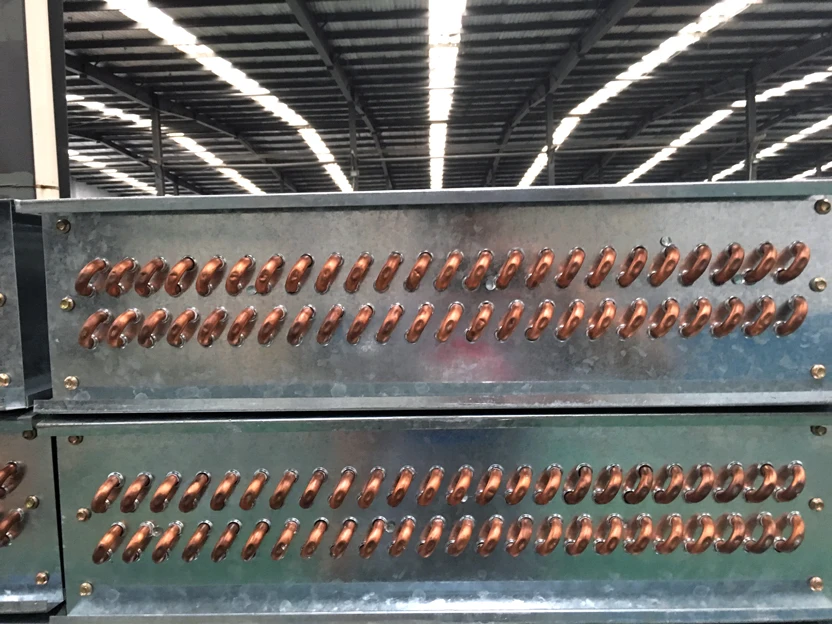

√ 100% copper tubes, can be professional identification
√ The tubes stagger arrangement
√ "S" shape water pipe√ Hot-dip galvanizing and electrostatic spraying shell
√ Aluminum alloy frame and shutters
√ The tubes stagger arrangement
√ "S" shape water pipe√ Hot-dip galvanizing and electrostatic spraying shell
√ Aluminum alloy frame and shutters
Packing & Delivery
Since 2003, SinoGreen has committed to providing high-quality products and services worldwide that are based on value, costomer's needs, and excellent sales support. SinoGreen strives to provide our distributors and customers with innovative products that offer the best return on investment.
