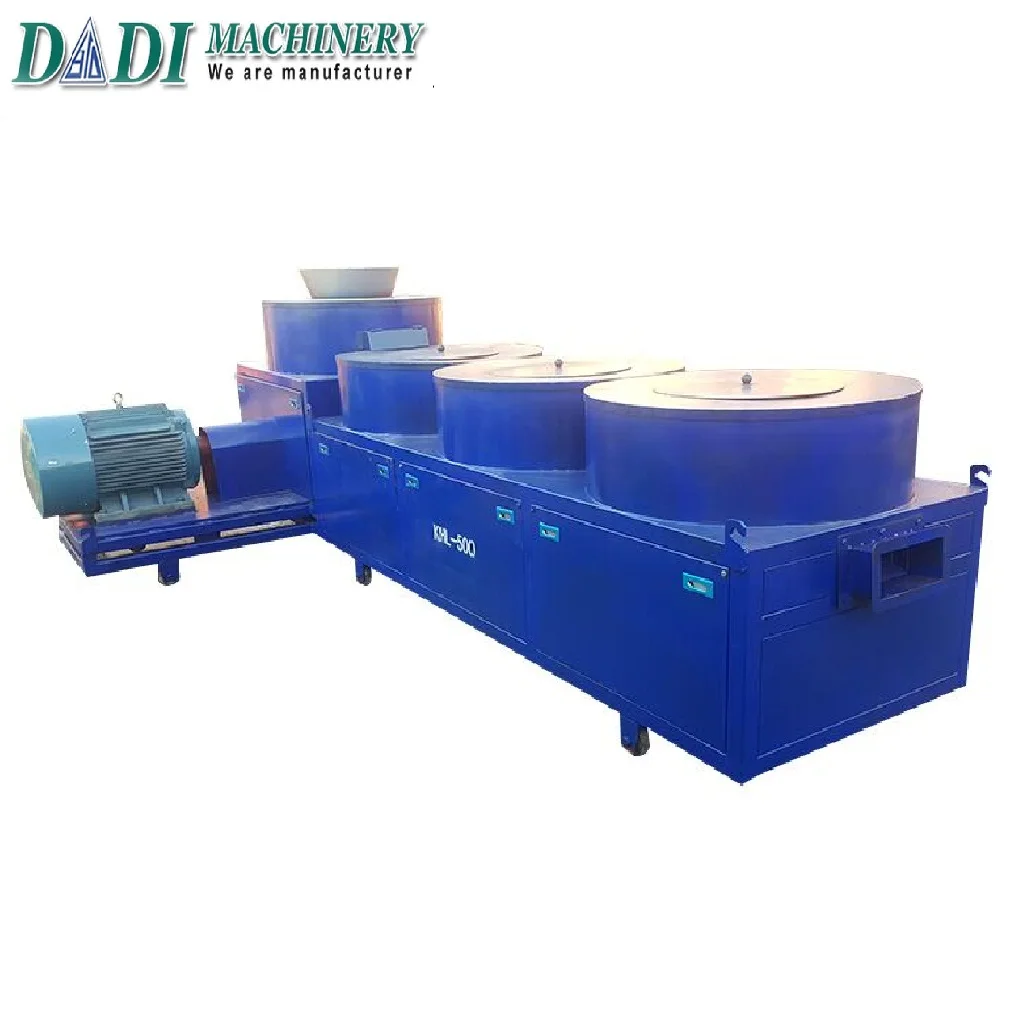

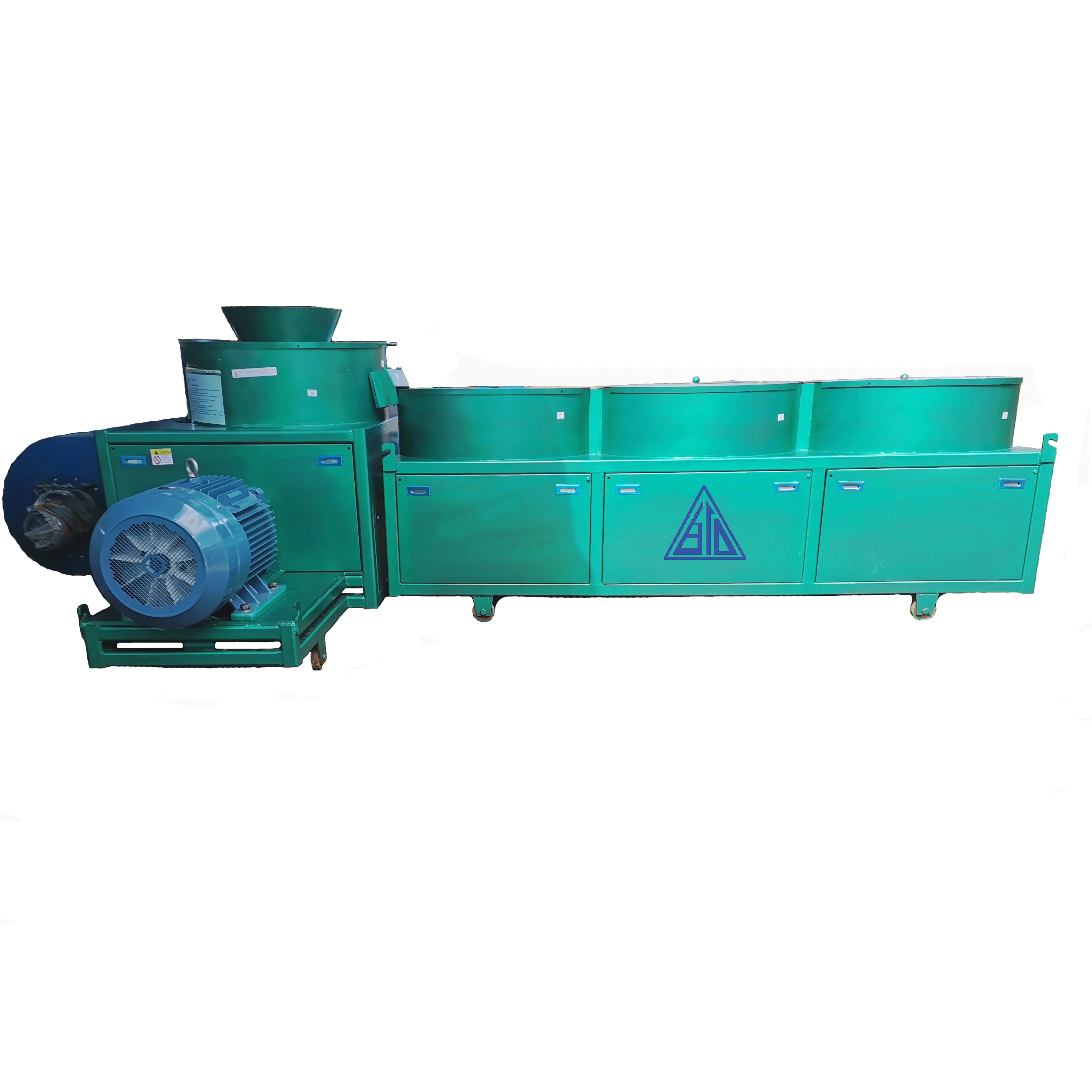

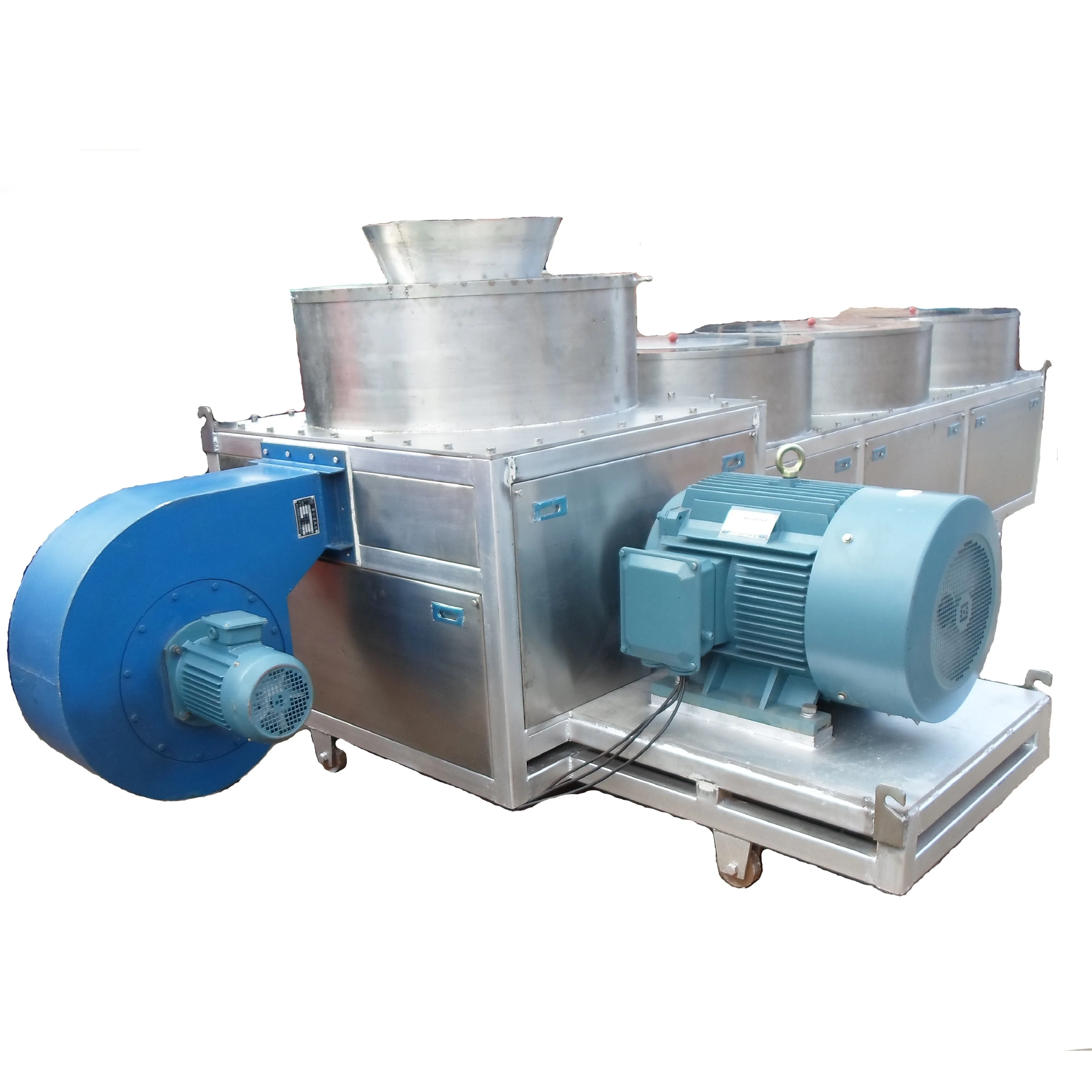

Harbin Dadi Ring Die Granulator For Organic Compound Fertilizer Granule Making Machine

Product Overview

Description

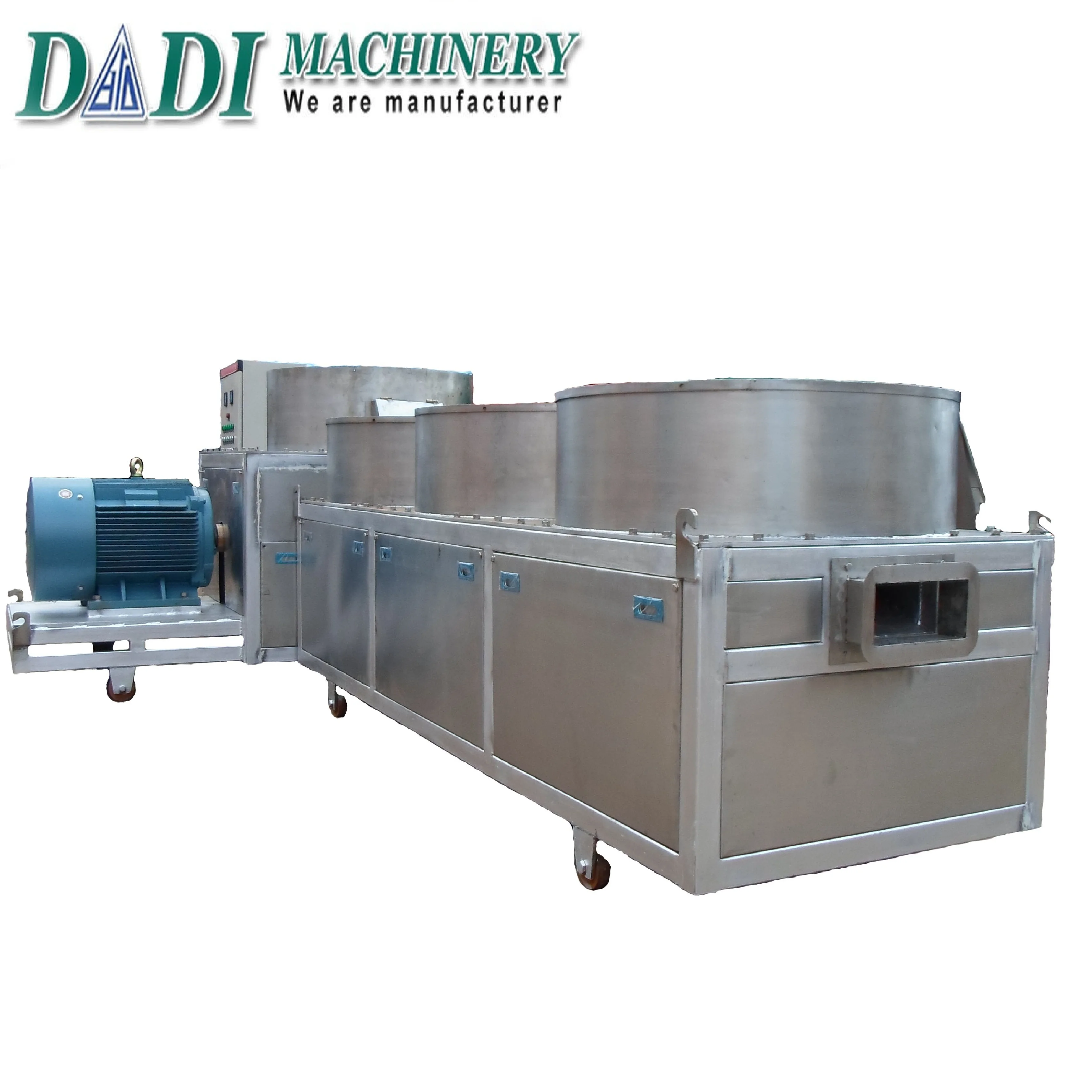

Harbin Dadi Ring Die Granulator For Organic Compound Fertilizer Granule Making Machine

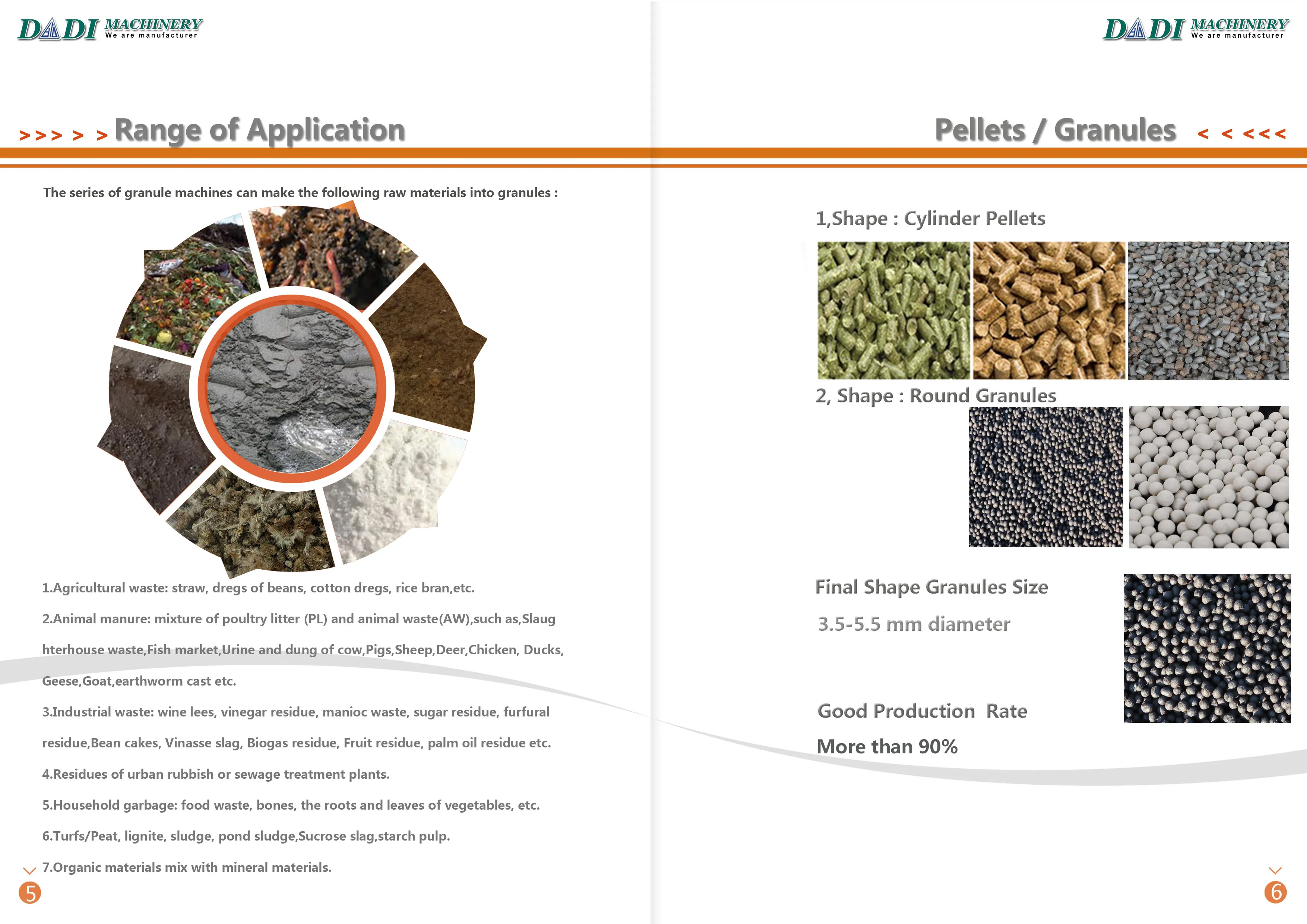

The series of granule machines can make the following raw materials into granules :

1. Agricultural waste: straw, dregs of beans, cotton dregs, rice bran, etc.

2. Animal manure: a mixture of poultry litter (PL) and animal waste(AW), such as Slaughterhouse Waste, Fish Market, Urine, and dung of cows, Pigs, Sheep, Deer, Chicken, Ducks, Geese, Goat, earthworm cast, etc.

3. Industrial waste: wine lees, vinegar residue, manioc waste, sugar scum, furfural residue, Bean cakes, Vinasse slag, Biogas residue, Fruit residue, palm oil residue, etc.

4. Residues of urban rubbish or sewage treatment plants.

5. Home scrap: food waste, bones, the roots and leaves of vegetables, etc.

6. Turfs, lignite, sludge, pond sludge, Sucrose slag, starch pulp, Bentonite clay, and Diatomite.

7. Organic materials mix with mineral materials.

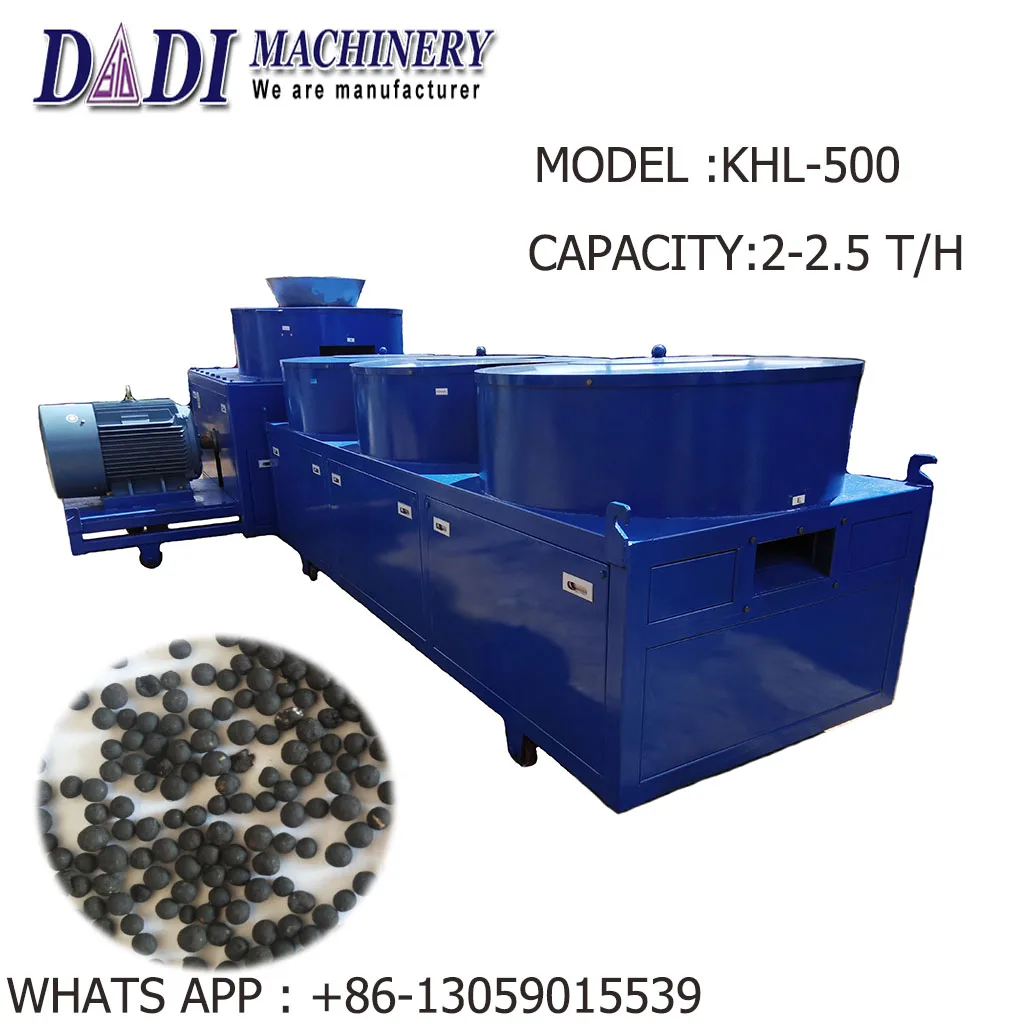

Model :	KHL-500
Capacity: T/h	2-2.5
Input moisture content required:  %	30-35
Moisture reduction after granulation: %	3
Input material particle size required: mm	0.3-0.5
Rate of finished products:%	>90
Voltage: V	380 (optional)

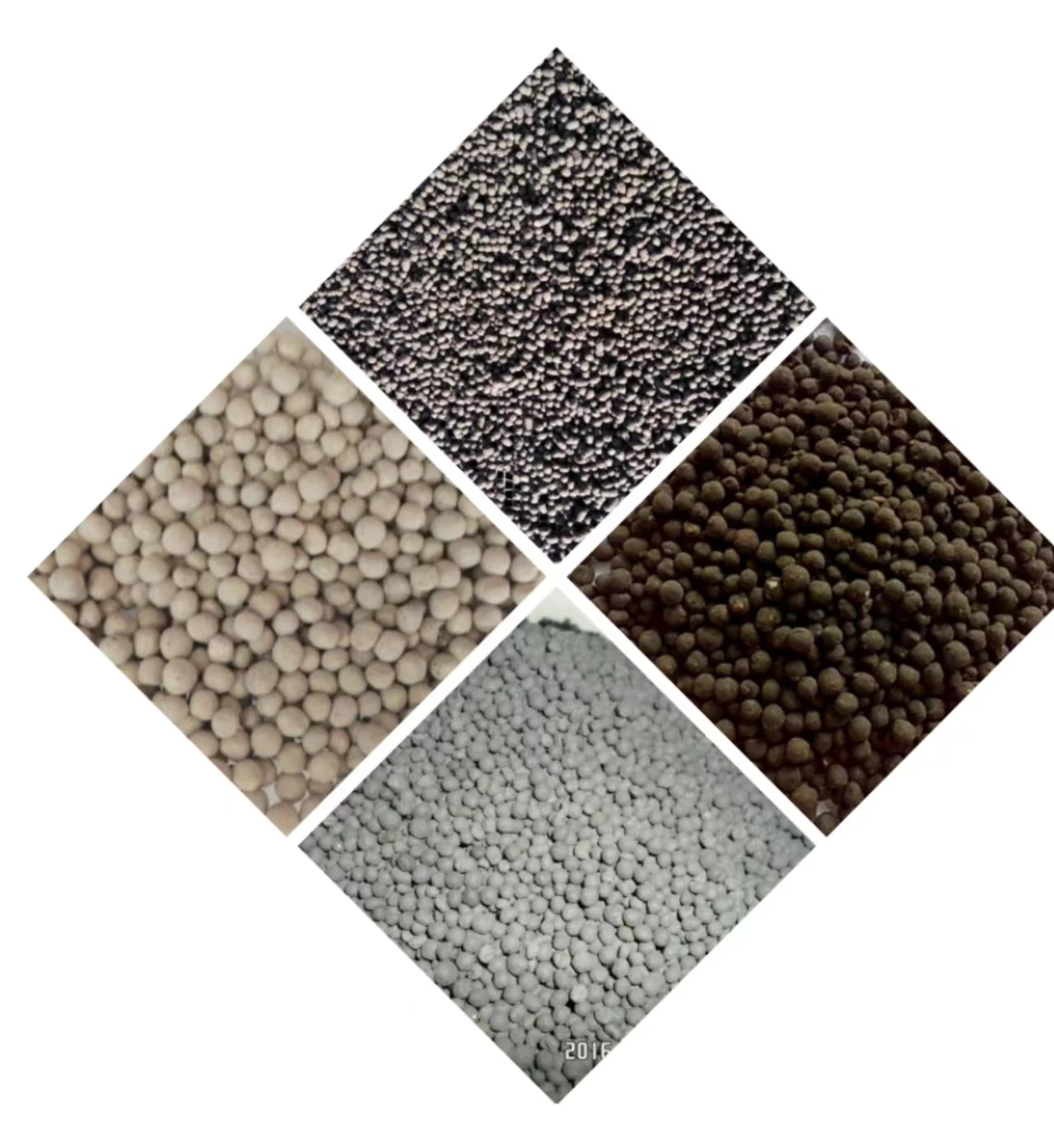

Granules size: mm	3.5-5.5
Power: KW	33
Total weight: Kg	300
Size: m	4.5 -1.6 -1.4

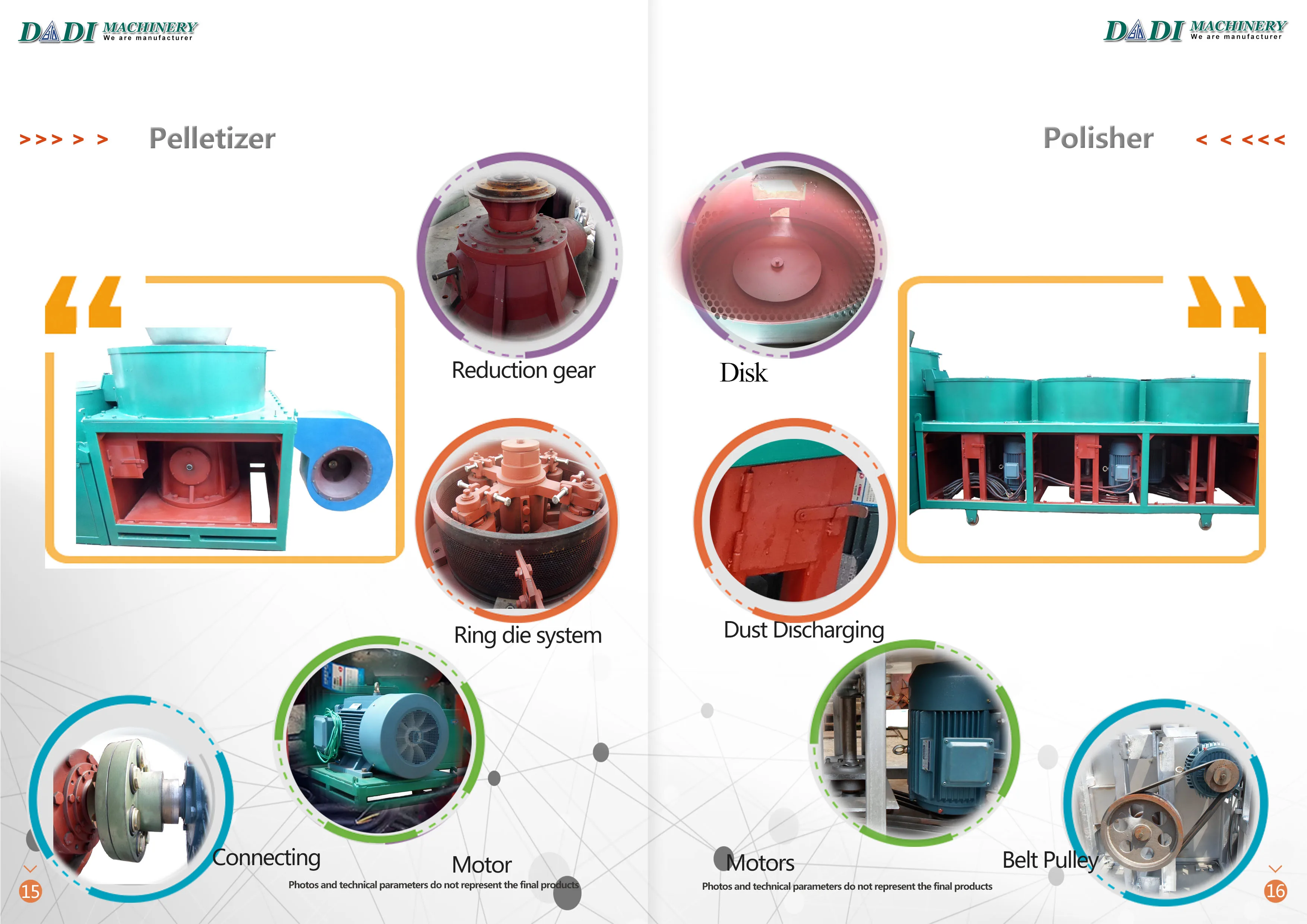

The Ring Die Granulator has two parts :

1, Pelletizer part

2, Polisher (Balling) part

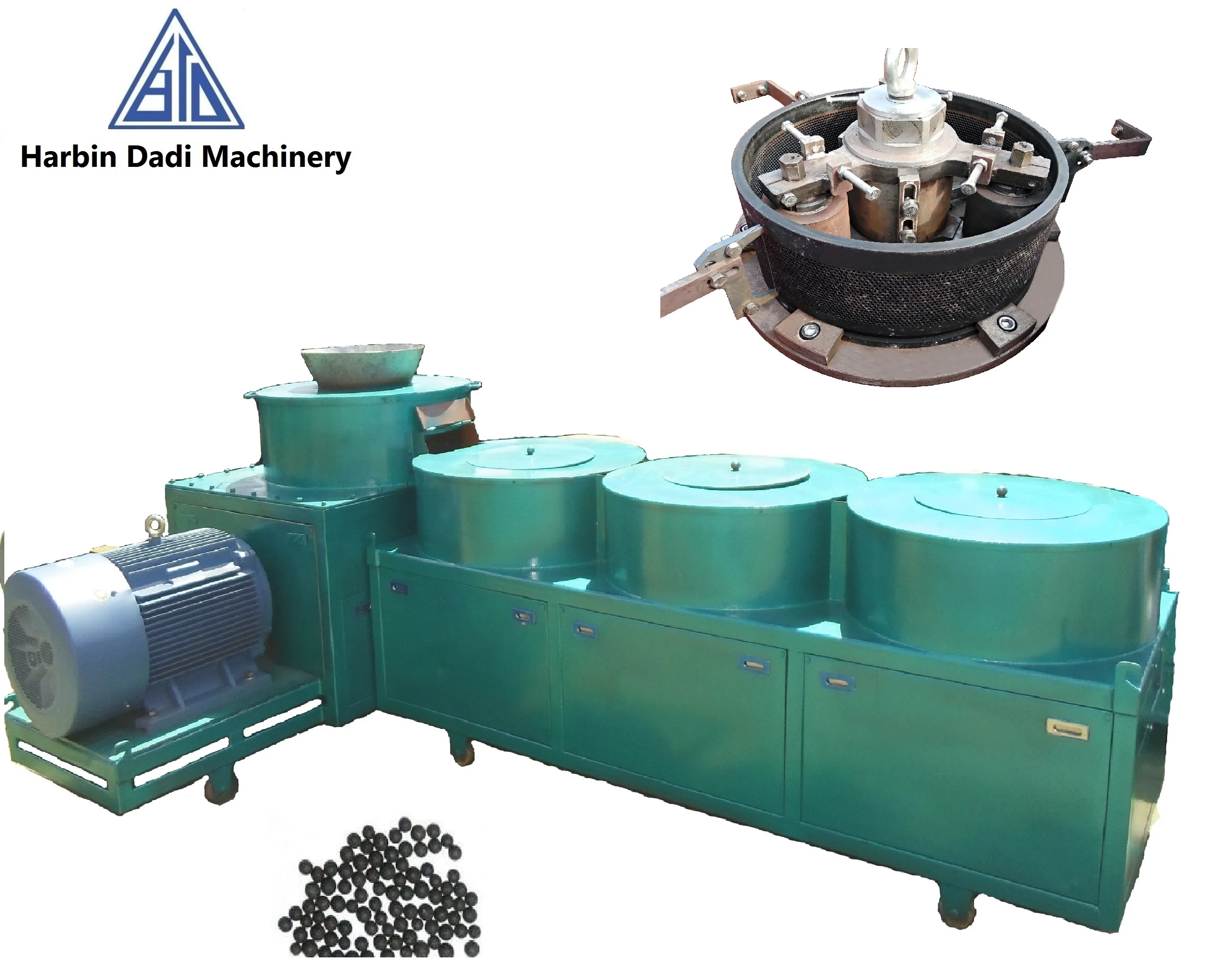

The Pelletizer part with Ring die and rollers system :
The raw material goes into the working chamber and falls on the ‘dump tray’, the raw materials throw into the ring die by centrifugal effect; The ring die and rollers system turn drive-by reduction gears & transmission which energy from the motor. The pressure comes from the ring die and rollers system running, cylinder form is forced extrusion from the ring die hole, which is cut into small pellets as required by the cutting line.

The polisher (Balling) part is a rotation disk:
The small pellets fall onto the disk in the drum, by high-speed rotating disk throw onto the wall of the drum with circumferential movement, the granules in a circular motion at the same time also in radial rotation motion due to centrifugal effect. Mutual friction makes the granules with edges and corners into balls gradually due to the granules’ moving. At this moment, Polisher (Balling) part gradually floats on the top, and the final granules overflow along with the number of granules increasing in the drum.

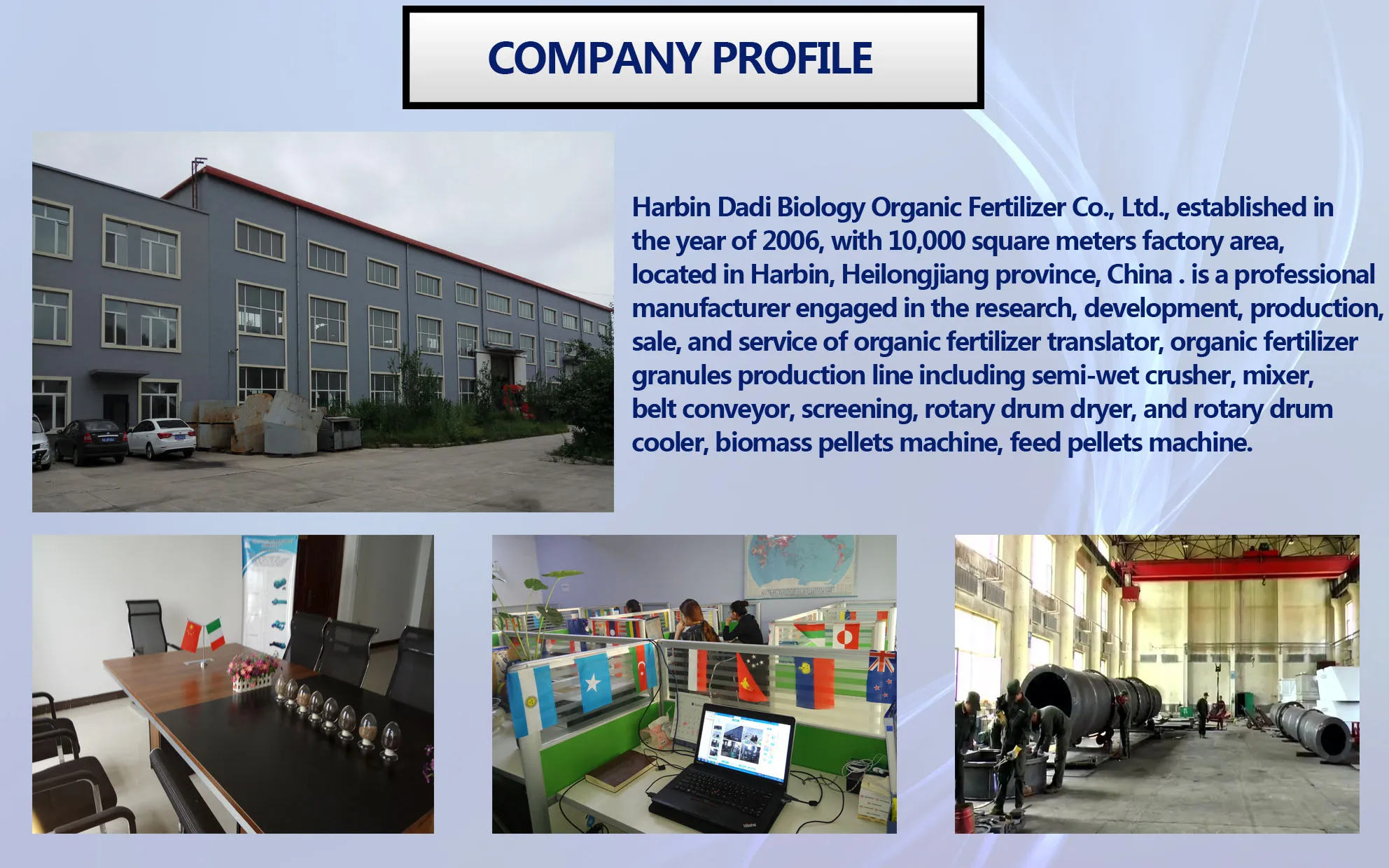

Harbin Dadi Biology Organic Fertilizer Co.,Ltd . , established in the year of 2006, with 10,000 square meters factory area,located in Harbin, Heilongjiang province, China . is a professional manufacturer engaged in the research, development, production, sale and service of organic fertilizer granulator ,organic fertilizer granules production line including semi-wet crusher , mixer , belt conveyor ,screening , rotary drum dryer and rotary drum cooler , biomass pellets machine ,feed pellets machine .With ring die and rollers system construction, our granulator can make nice ball shape in lower energy consumption . Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including lathe, milling machine,drilling machine,submerged welding machine,crane,band sawing machine. In addition, we have obtained CE certificates, and acquired eight utility model patents. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Canada ,Colombia,India,Morocco,Mexico,Finland and Spain. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements .

Better service, Better quality, Competitive prices, and timely delivery are our concept.

Welcome customers from all over the word to visit our factory and set up friendly relationship!
