Second Hand Baby Diapers Production Equipment Used Automatic Adult Baby Diaper Making Machine Baby nappy Making Machine
- Category: >>>
- Supplier: Chipbest Technology (Dongguan) Co. Ltd.
Share on (1600682049636):
Product Overview
Description
Product Description

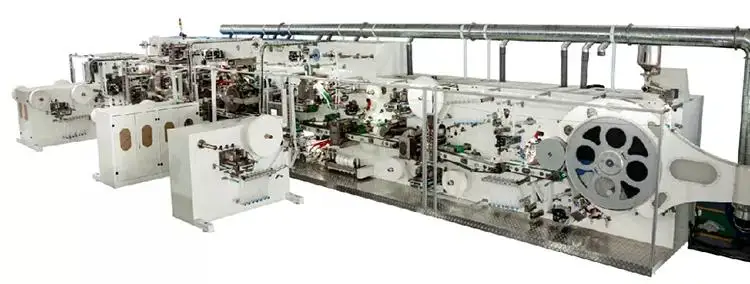

Second Hand Baby Diapers Production Equipment Used Automatic Adult Baby Diaper Making Machine Baby nappy Making Machine

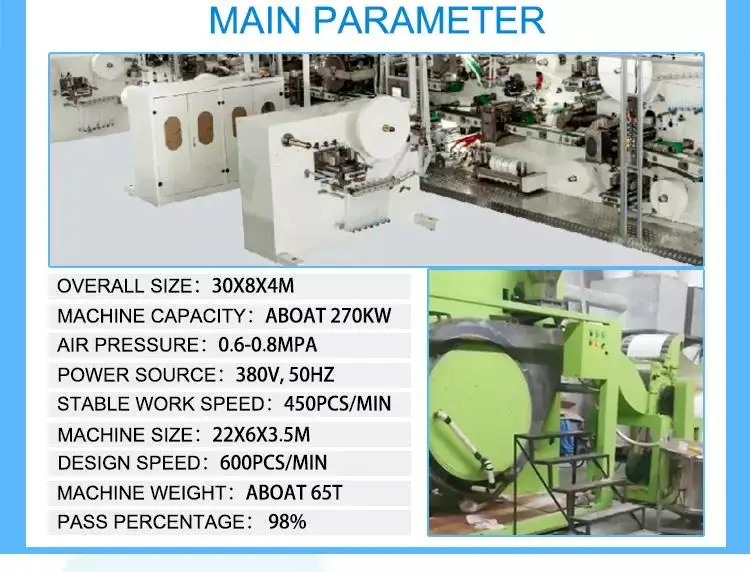

| Main Parameter | |
| Overall Size | 30*6*4m |
| Machine Size | 22*2*3.5m |
| Design Speed | 600pcs/min |
| Stable work speed | 450-500pcs/min |
| Pass percentage | 98% |
| Power source | 380V,50HZ |
| Machine capacity | about 260kw |
| Air pressure | 0.6-0.8Mpa |
| Machine weight | about 60T |
| Configuration | |
| Product size | S: 390x280 M: 450x320 L: 500x320 XL: 525x330 |
| Safety system | It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer. |
| Control system | PLC control system,Operating on the touch screen |
| Materials corrective system | Germany BST automatic web guide system (optional). |
| Drive system | Three-axis or full servo |
| Product structure | Up&Down Tissue, Fluff core(mix with SAP), ADL, Backsheet, Front tape, Topsheet, Leg cuff N.W., Side Tape, Waistband. |
| Tension system | Up&Down Tissue ADL, Back sheet, Top sheet, Cuff N. W., are adopt A&B shaft active unwinding by inverter motor. |

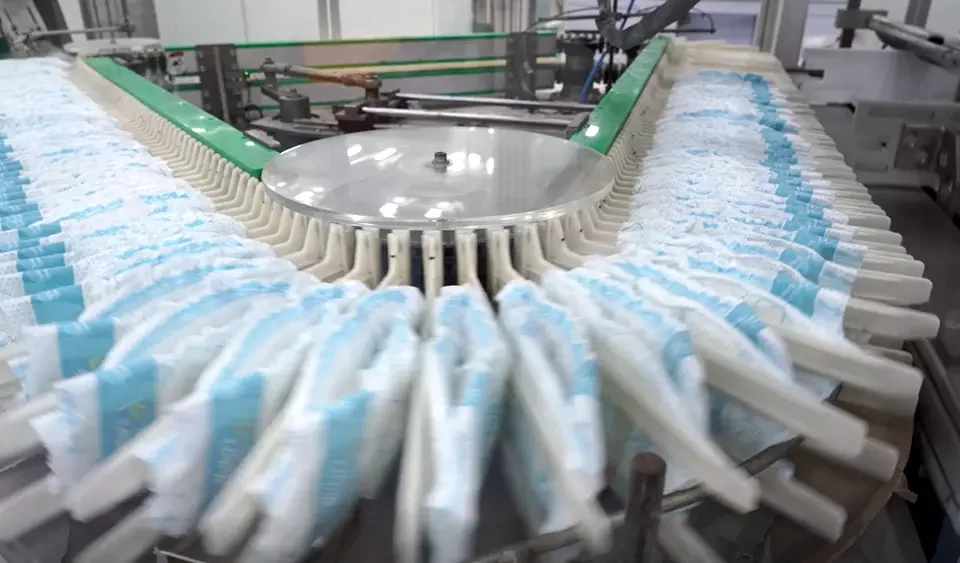

| Packing Way | Equipped with the stacker at the request of client. |

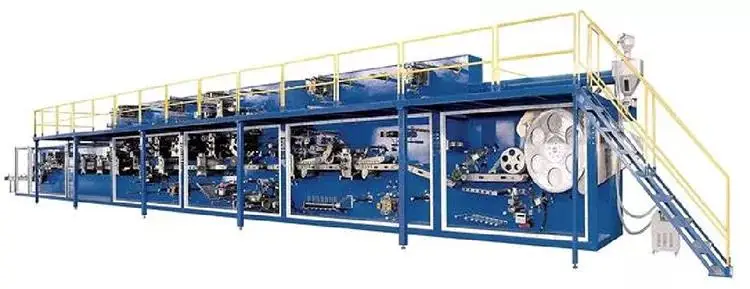

Full servo T shape baby diaper production:

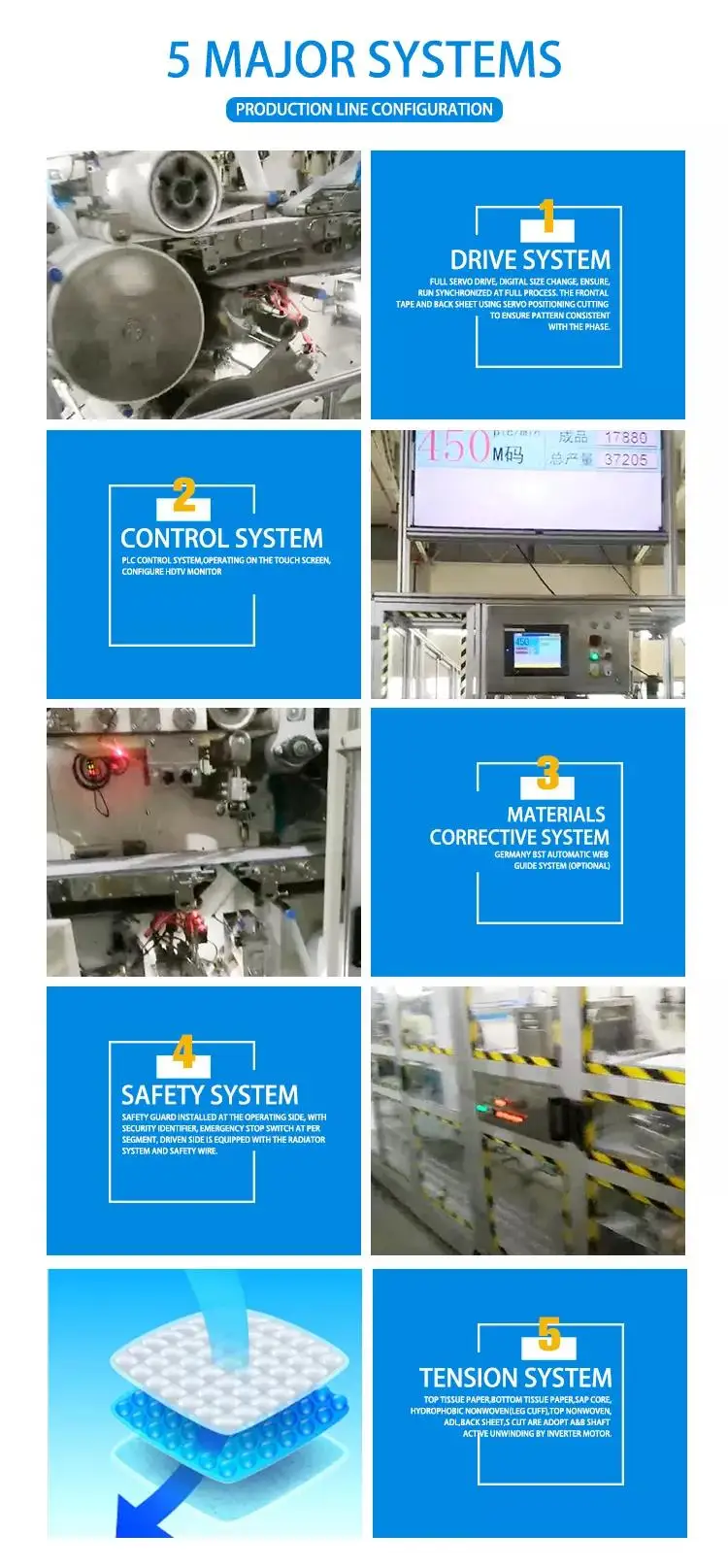

| Configuration | |
| Product size | 380x280 420x320 480x320 520x340 |
| Safety system | Safety guard installed at the operating side, with security identifier, emergency stop switch at per segment, Driven side is equipped with the radiator system and safety wire. |
| Control system | PLC control system,Operating on the touch screen |
| Materials corrective system | Germany BST automatic web guide system (optional). |
| Drive system | Full servo drive, digital size change, ensure, run synchronized at full process. The frontal tape and back sheet using servo positioning cutting to ensure pattern consistent with the phase. |
| Product structure | Top(bottom) tissue paper,sap core,ADL,hydrophobic NW(leg cuff),topsheet NW,PE film,spandex,frontal tape,elastic nonwoven(zero-waste),S cut |
| Tension system | Tissue paper, cotton core (SAP), Top sheet nonwoven, ADL,PE film,back&wing release paper,packing film A&B shaft unwinding by Inverter motor |
| Packing Way | Auto stacker as customized design (one push two exit.). |
Who we are:
Chipbest located in Dongguan China is engaged in researching,development,production,sales and service of hygiene product equipment,and now already is an excellent Manufacturer of Household Paper Equipment.

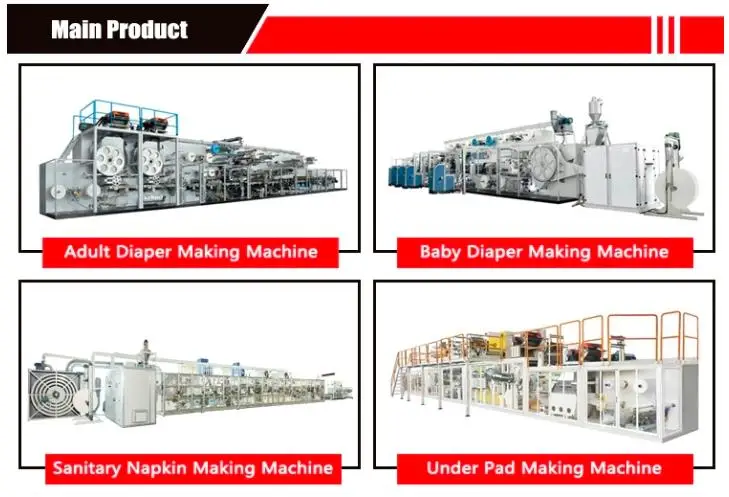

Chipbest Precision Product range:

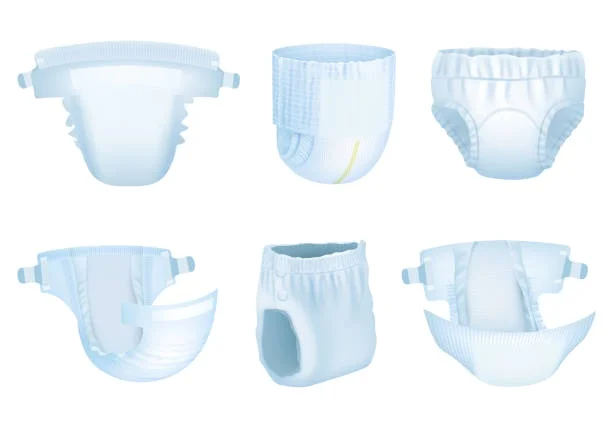

Baby Diaper Production Line (Include:I&T shape diaper,Baby pants,Full Elastic Waistband diaper)
Adult Diaper Production Line(Include:Adult diaper,Adult pants)
Sanitary napkin&Panty Liner Production Line
Under Pad Production Line
Our Advantages:
Professional

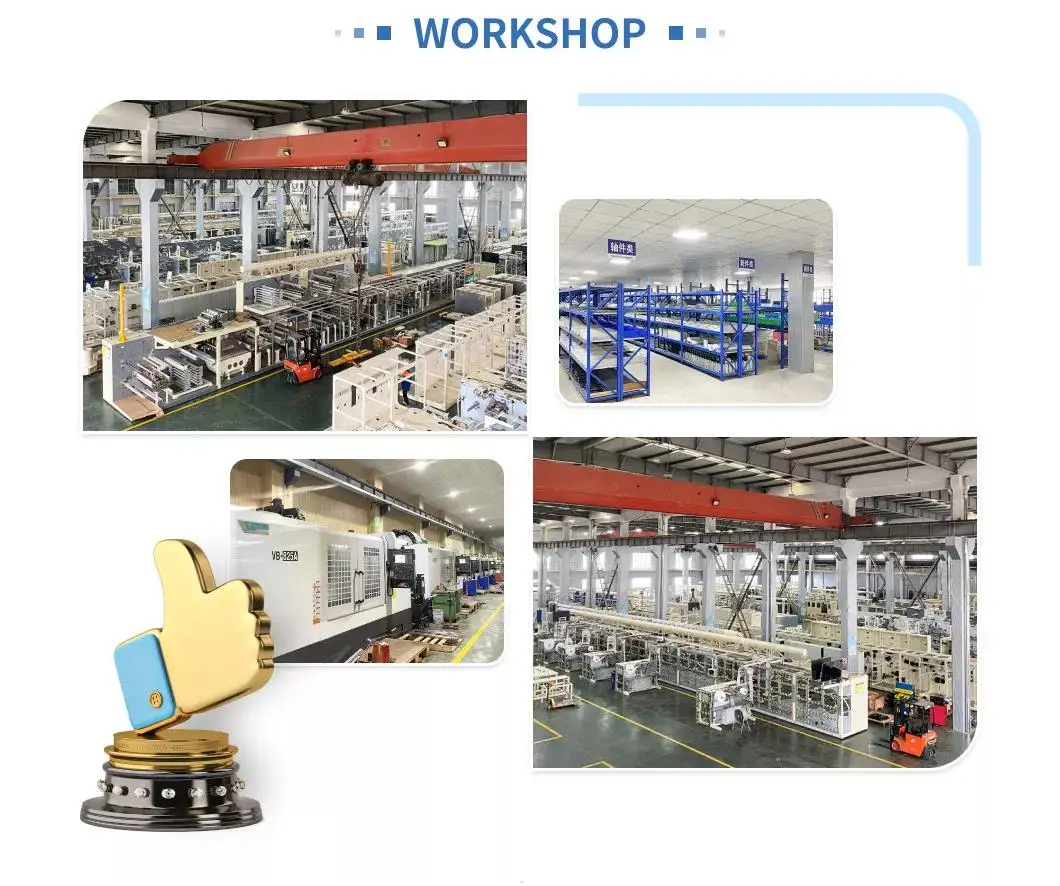

Chipbest have strong design and technology team and equipped with advanced CNC gantry machining center, CNC high-precision CNC lathe, large-scale radial drilling machine, precision saddle lathes, milling machines and other processing equipment.
Service
"Quality as Fundamental, Development by Innovation" is our company culture.We are one of leading manufacturer in China and focus on supplying A-Z and 7X24H Service for the customer in the disposable hygiene product field
Innovate
Chipbest adopt scientific management strict monitoring, research and development of new products constantly for different customers. Depend on our good engineer from design and technology team.
Efficient
Efficiency is the life of the company. Chipbest attaches great importance to enterprise efficiency. Introduces advanced company management system for all of our team. According to production schedule to ensure timely finish of machine of customers.
Packing&Shipping:
Rust Preventing Oil
Warpping Film
Wooden Crate
Weatherproof Rucksack
Protect your Machine on the shipment!
