Product Overview
Description
Product Overview

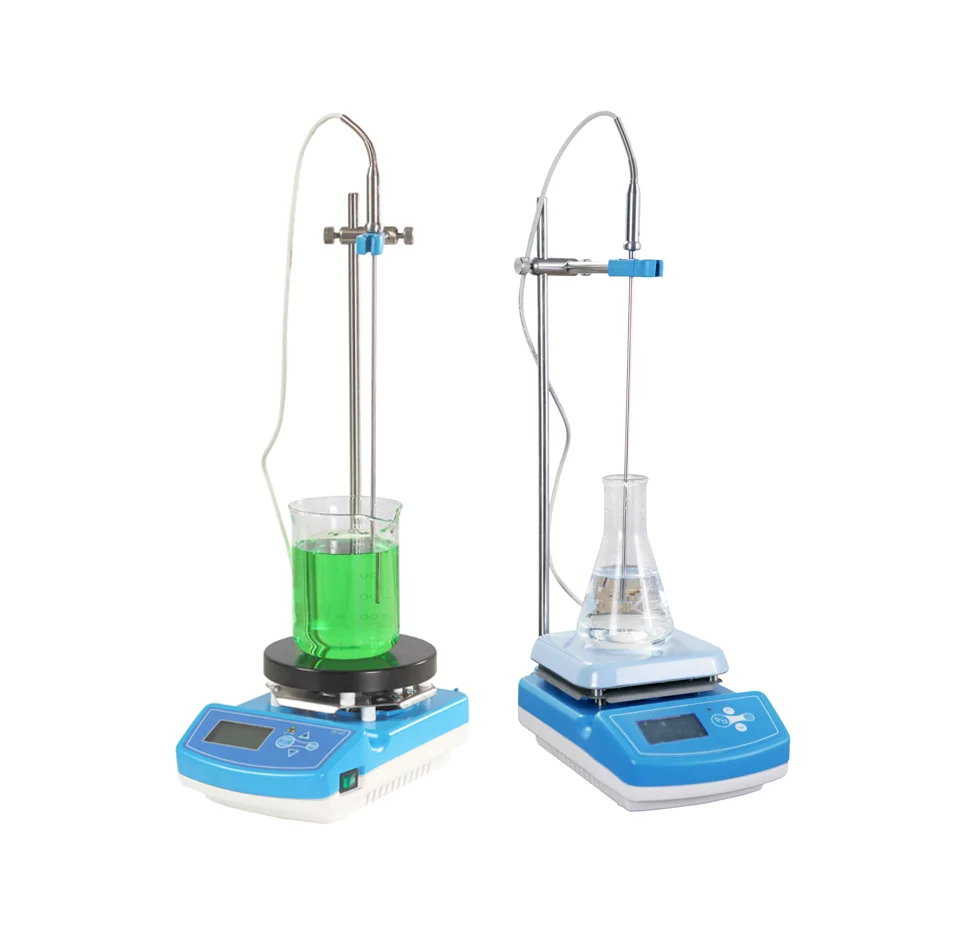

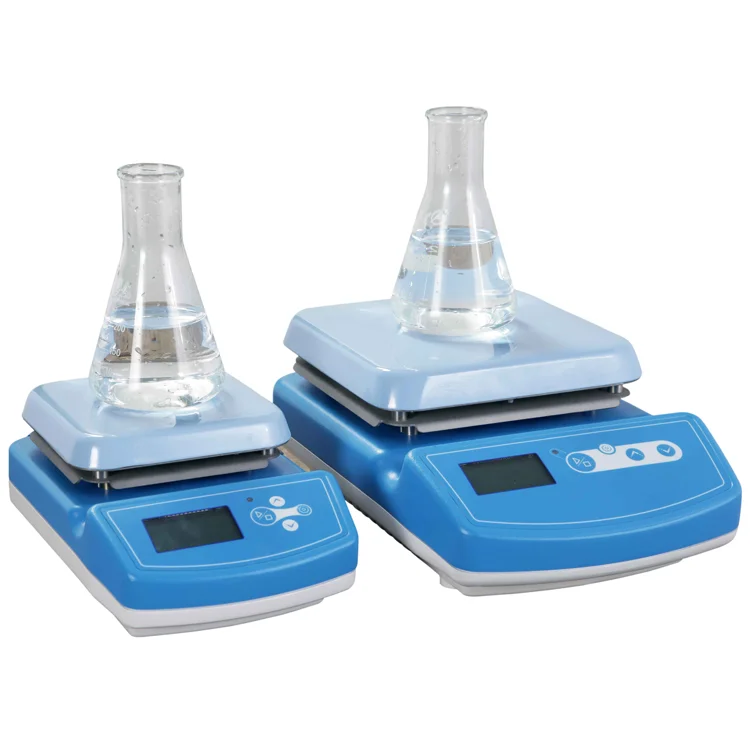

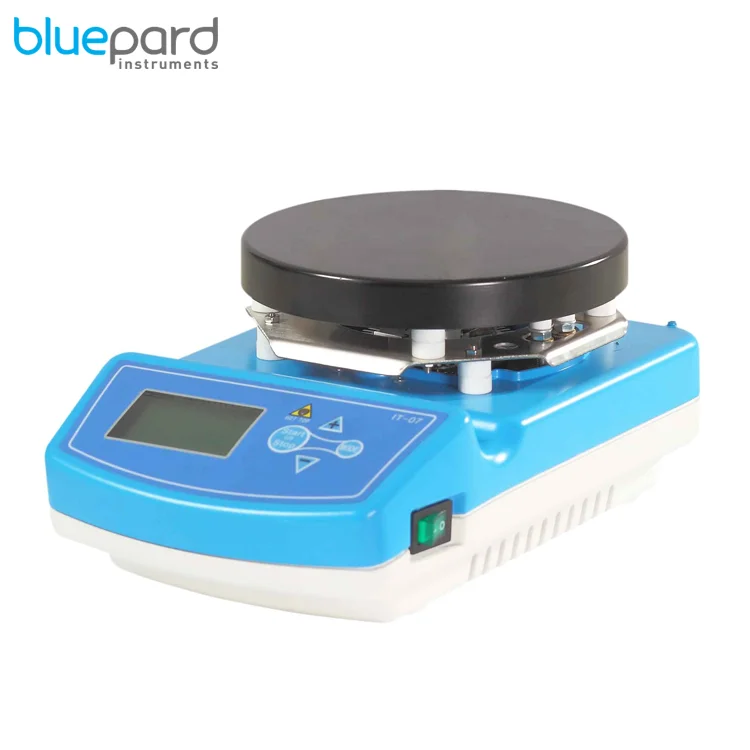

Magnetic stirrer
The magnetic stirrer is driven by a micro motor to rotate a high temperature resistant strong magnet to generate a rotating
magnetic field to drive the stirrer in the container to rotate, so as to stir, mix or auxiliary heat the liquid in the container,
so that the solution can be fully mixed at the set temperature. It can be widely used in biology, medicine, chemistry and other fields.
magnetic field to drive the stirrer in the container to rotate, so as to stir, mix or auxiliary heat the liquid in the container,
so that the solution can be fully mixed at the set temperature. It can be widely used in biology, medicine, chemistry and other fields.
FEATURES AT A GLANCE
Features

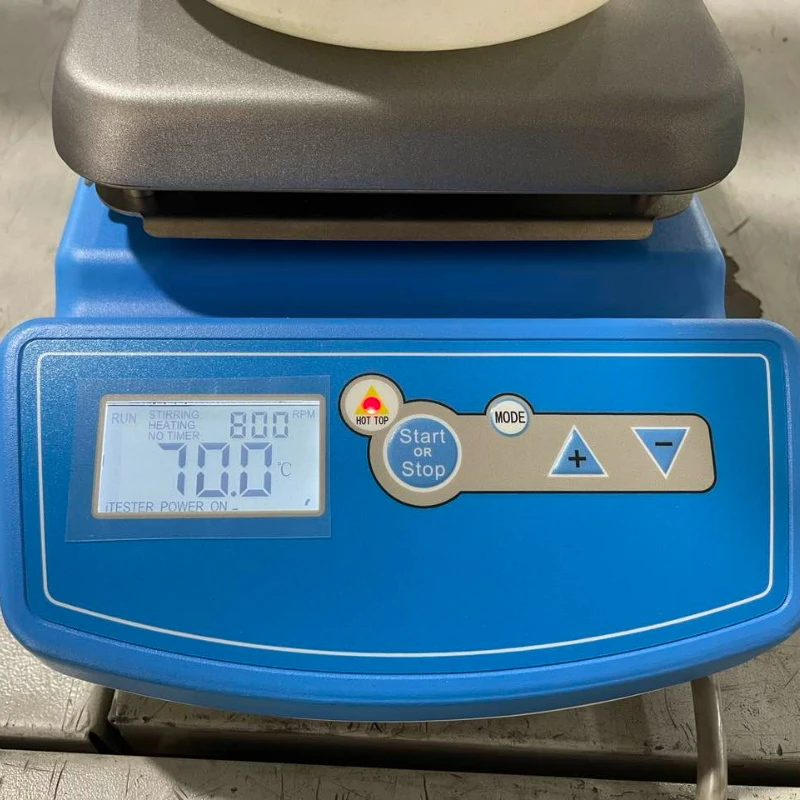

● Large LCD screen to display more data at same time.
● External temperature sensor for liquid, temperature range from ambient temperature to 200℃ .
● Free-step speed adjustment.
● Die-cast Aluminum alloy external chamber.
● Aluminum alloy working plate.
● Over-temp alarm system, auto switch off when 470℃ .
● Caution indication light when plate temperature reach 50℃ .
Differences between A/B series
● Magnetic Stirrer Series BMS-07A and BMS-09A include external temperature sensor which can measure liquid’s temperature
directly. Temperature range is from Ambient +5 ℃ to 200 ℃ .
● Magnetic Stirrer Series BMS-09B and BMS-07B are able toreach highest temperature as 450 ℃ .
● External temperature sensor for liquid, temperature range from ambient temperature to 200℃ .
● Free-step speed adjustment.
● Die-cast Aluminum alloy external chamber.
● Aluminum alloy working plate.
● Over-temp alarm system, auto switch off when 470℃ .
● Caution indication light when plate temperature reach 50℃ .
Differences between A/B series
● Magnetic Stirrer Series BMS-07A and BMS-09A include external temperature sensor which can measure liquid’s temperature
directly. Temperature range is from Ambient +5 ℃ to 200 ℃ .
● Magnetic Stirrer Series BMS-09B and BMS-07B are able toreach highest temperature as 450 ℃ .
PRODUCT SPECIFICATIONS
Model | IT-07A3 | IT-09A5 | IT-09A12 | IT-07B3 | |||
Stirring capacity (H2O) | 3L | 5L | 12L | 3L | |||
Liquid temp range | RT+5℃ ~200℃ | / | |||||
Working plate temp range | / | ambient+5℃ ~320℃ | |||||
Speed rang(rpm) | 200~2000 | ||||||
Temperature accuracy | ±1% | ||||||
Plate dimension(mm) | 130×130 | 180×180 | 180×180 | 130×130 | |||
Exterior dimension (W×H×D)mm | 150×110×249 | 210×130×330 | 210×129×330 | 150×110×249 | |||
POWER(AC Hz) | 220V/50 | ||||||
Heating power Input power (Max. W) | 400/500 | 550/600 | 650/750 | 400/500 | |||
Weight(KG) | 4 | 5 | 5 | 3.5 | |||
Model | IT-09B5 | IT-09B15 | IT-09C10 | IT-09C15 | |||
Stirring capacity (H2O) | 5L | 15L | 10L | 20L | |||
Liquid temp range | / | ||||||
Working plate temp range | ambient+5℃ ~320℃ | / | |||||
Speed rang(rpm) | 200~2000 | ||||||
Temperature accuracy | ±1% | ±15℃ | / | ||||
Plate dimension(mm) | 180×180 | 180×180 | 180×180 | 180×180 | |||
Exterior dimension (W×H×D)mm | 210×129×330 | 210×330×130 | 210×330×130 | 210×330×130 | |||
POWER(AC Hz) | 220V/50 | ||||||
Heating power Input power (Max. W) | 550/600 | 650/750 | -/50 | -/50 | |||
Weight(KG) | 4.5 | 4.5 | 4.0 | 4.0 | |||

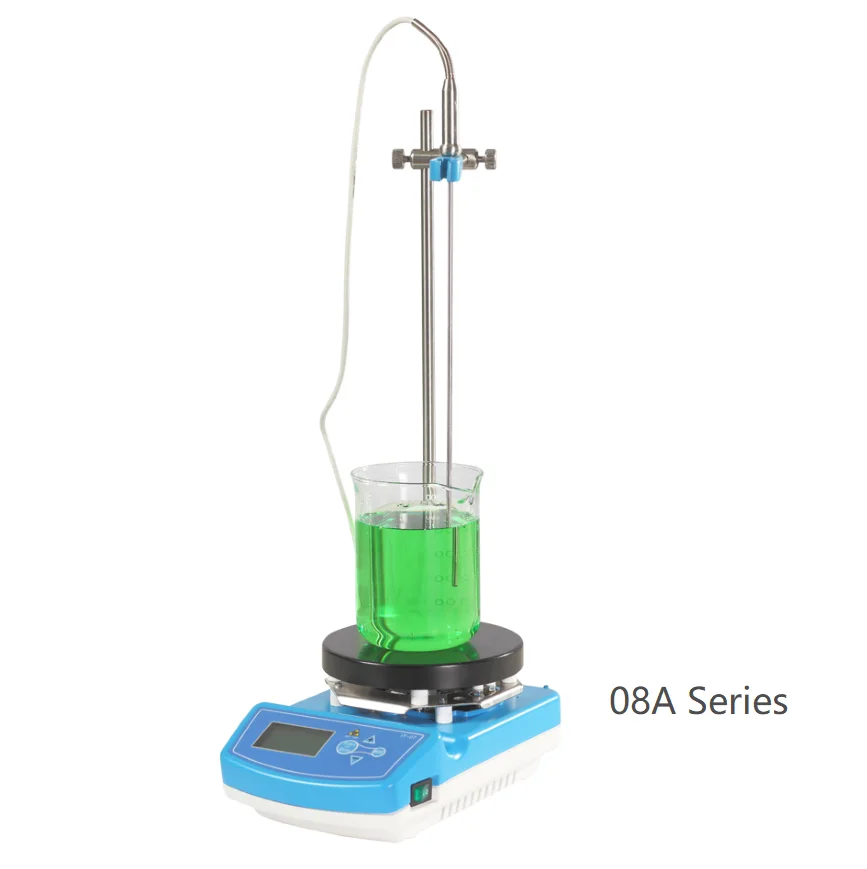

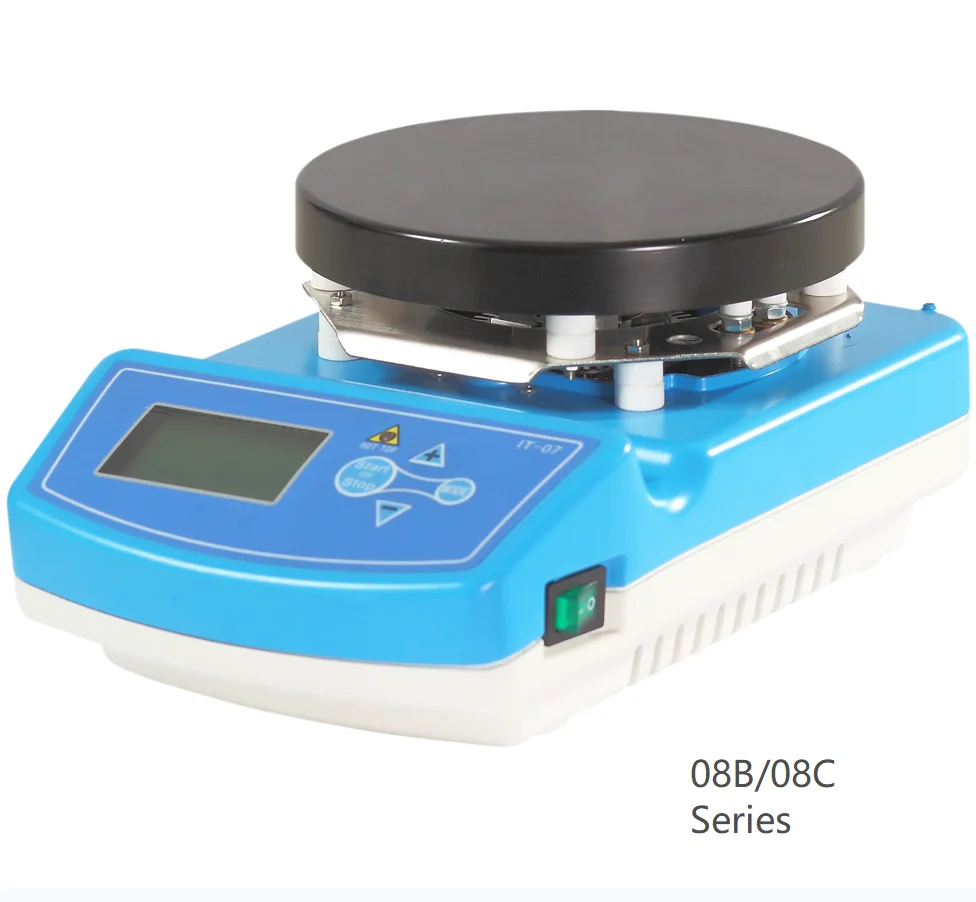

Model | IT-08A3 | IT-08B3 | IT-08C5 | ||
Stirring capacity(H2O) | 3L | 5L | |||
Speed range | 200~2000rpm | ||||
Heating power(Max.W) | 550W | ------ | |||
Input power(Max.W) | 600W | 50W | |||
Liquid temp range(℃) | RT+5~200℃ | ------ | ------ | ||
Working plate temp range(℃) | ------ | RT+5~320℃ | ------ | ||
Temp display resolution | ±5℃ | ±15℃ | ------ | ||
Weight(kg) | 4 | 3.5 | |||
