HG8245H 4GE 2POTS USB WIFI 2.4G External antenna GPON/EPON ONT ONU Router Modem

Product Overview

Description

Overview

Huawei HG8245H FTTH is manufactured and developed by Huawei company, which is a leader in FTTH/ FTTO broadband access network field. This model is properly manageable added with features such as high-bandwidth, high reliability, low power consumption and satisfy the users required to access broadband, voice, data and video etc. Huawei HG8245H FTT features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the HG8245H provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.

Huawei HG8245H FTTH offers 4GE ports+2*phone port and wifi with 2 antennas high gain wireless function.

Specifications

Item	Descriptions
Model	HG8245H
Fiber port	1 GPON interface, 4GE+2POT+1USB+WIFI,SC single-mode,
	Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
Wavelength	Tx 1310nm, Rx 1490nm
Fiber interface	SC/UPC
RX sensitivity	<-27dBm (1490nm)
WLAN	IEEE802.11b/g/n,2*2 MIMO, 2.4G&5GWIFI,2*External antenna
LAN	1*10/100/1000Mbps adaptive Ethernet ports, full/half-duplex, RJ45 interface
Throughput	Downstream 950Mbps,Upstream 930Mbps
L2 forwarding capability	200 Mbit/s downstream (with any length packets)
	200 Mbit/s upstream (with any length packets)
IPv4 L3 forwarding capability	2Gbit/s with any length packets in the downstream direction
	1Gbit/s with any length packets in the upstream direction
IPv6 L3 forwarding capability	2Gbit/s with any length packets in the downstream direction
	1Gbit/s with any length packets in the upstream direction
Configuration method	NMS, Web, or TR069
Voice protocol	SIP, H.248
DC power	Adapter input: 100-240 V AC, 50 – 60 Hz ; Adapter output: 11 – 14 V DC, 1 A
Button	Reset, power
Power	≤8W
Operation	Working temperature: -0-+40℃  working humidity:5-95%(non-condensation)
Dimension	200*180*50mm(length*width*height)
Net weight	≤0.8Kg

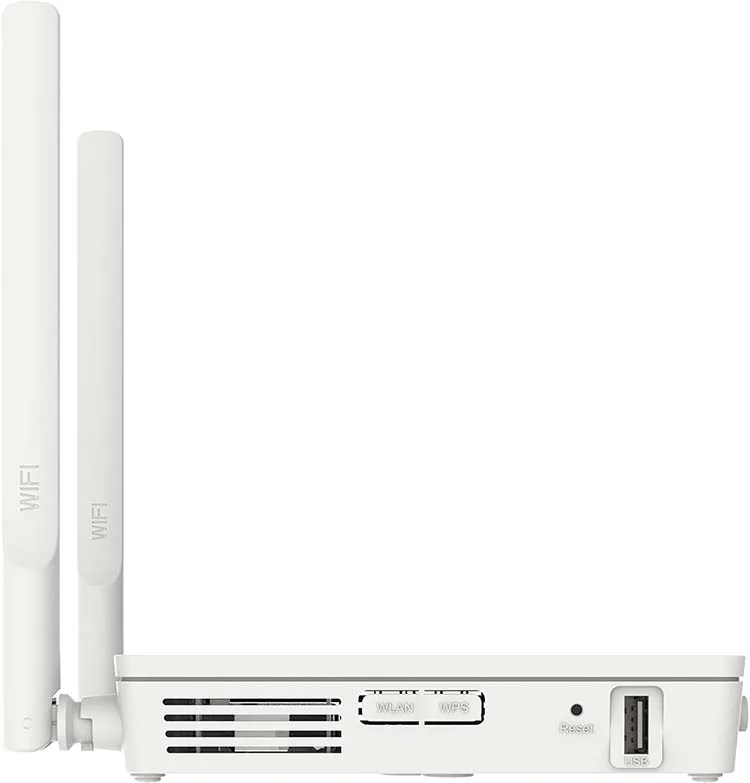

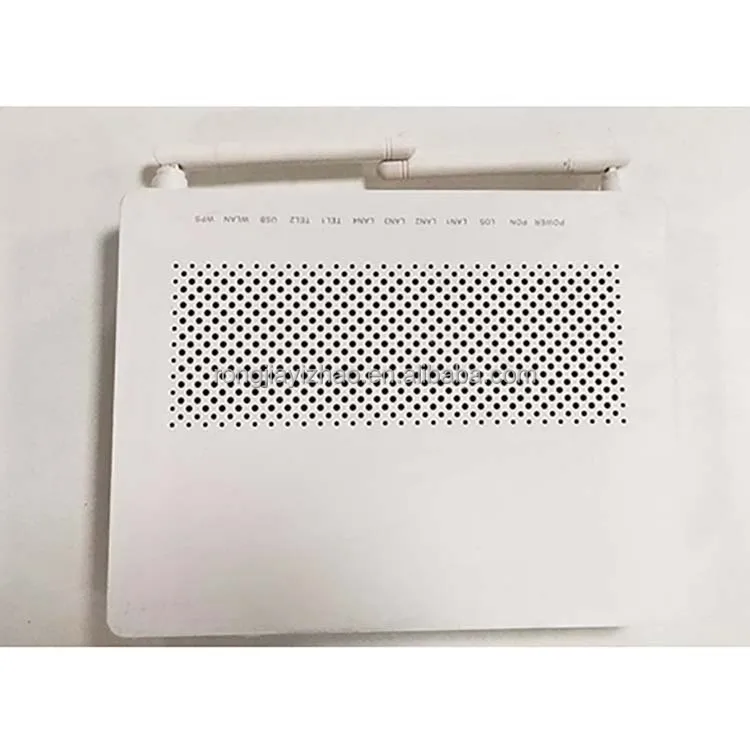

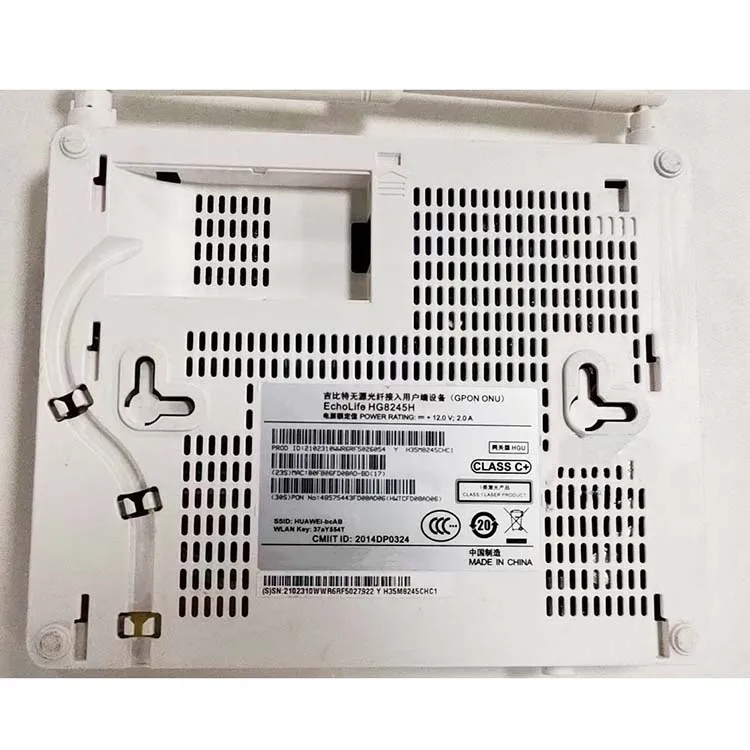

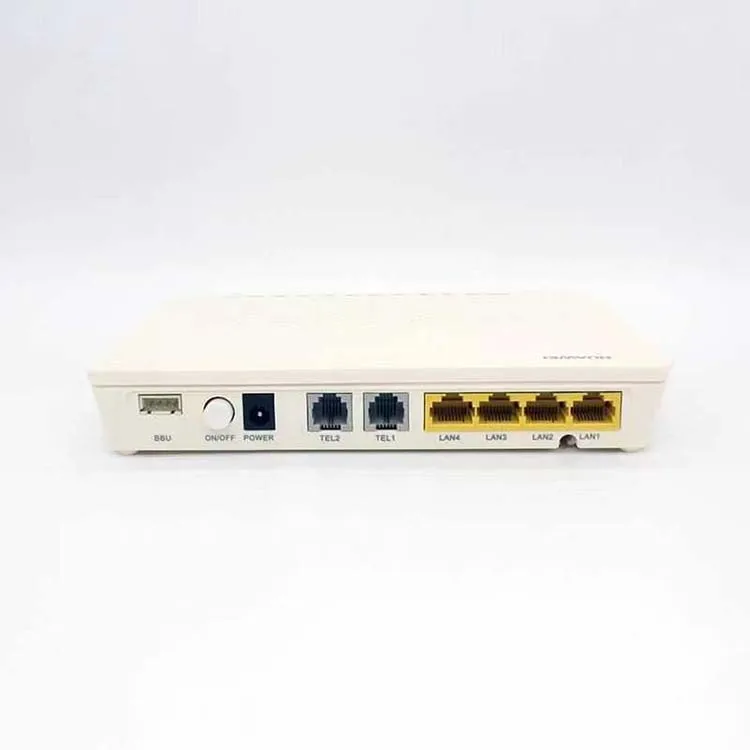

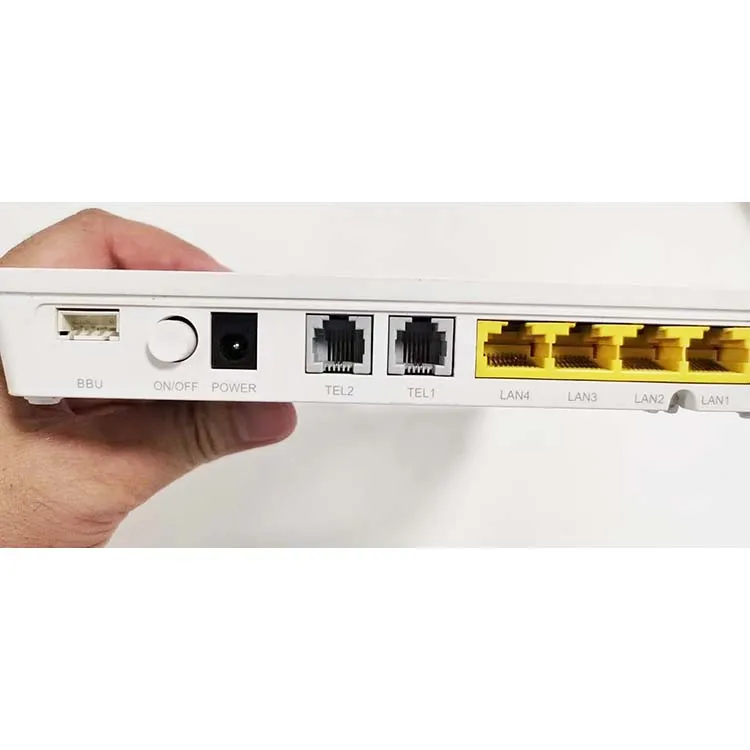

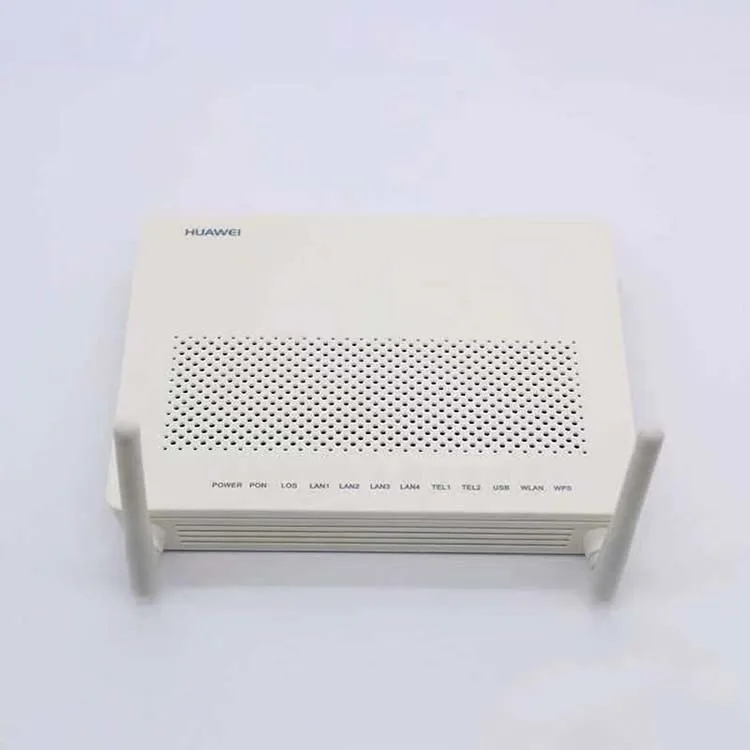

Product Pictures
